OPERATOR’S MANUAL
SECTlON M105
MANUAL 20
INCLUDING:OPERATION,INSTALLATION& MAINTENANCE Released: 2/70
Tool Products
SUPERPAR-A-MAT@ SELF-FEEDDRILLS
Revised: 12-12-94
Models 8265-( )-( ) and 8365-( )-( ) Form: 5014
IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING. .
OPERATING OR SERVICING THIS EQUIPMENT.
OPERATING AND SAFETY PRECAUTIONS RECOMMENDED LUBRICANTS
l Keep hands and clothing away from rotating end of tool.
l Wear suitable eye protection while operating tool.
l Disconnect air supply from tool before removing/installing bit
or performing other maintenance procedures.
ROUTINE LUBRICATION REQUIREMENTS
Lackoforan excessive amount of lubrication will affect the perfor-
mance and life of this tool. Use only recommended lubricants at
below time intervals:
EVERY 8 HOURS OF TOOL OPERATION - Fill air line lubricator
reservoir of recommended F.R.L. with spindle oil (29665).
EVERY 160 HOURS OF TOOL OPERATION - Inject NLGI #l
“EP” grease (33153), 1 to 2 strokes, thru grease fitting in gear
housing. NOTE: Spindle must be extended from outer sleeve suf-
ficiently to expose grease fitting in gear housing. Gearing should
contain approximately 1/4 oz. (7 g) of grease per set of gears.
AIR SUPPLY REQUIREMENTS
Formaximum operating efficiency, the following air supply specifi-
cations should be maintained to this air tool:
l AIR PRESSURE - 90 PSIG (6 bar)
l AIR FILTRATION - 50 micron
. LUBRICATED AIR SUPPLY
l HOSE SIZE - 3/8” (10 mm) I.D.
An AR0® model C28231-810 air line FILTER/REGULATOR/LU-
BRICATOR (F.R.L.) is recommended to maintain the above air
supply specifications.
MOUNTING
The nose end of the outer sleeve (40) is provided with 2-1/2” - 16
L.H. threads (remove thread guard [45] for use) and a 2-1/2” x
1-1/4” long pilot diameter for fixture mounting. Foot and flange
type mounting brackets are available for tool mounting.
After disassembly iscomplete, all parts, except sealed or shielded
bearings, should be washed with solvent. To relubricate parts, or
for routine lubrication, use the following recommended lubricants:
Where Used ARO Part # Description
Air Motor 29665 1 qt. Spindle Oil
“0” Rings & Lip Seals 36466 4 oz. Stringy Lubricant
Gears and Bearings 33153 5lb.“EP”- NLGI#1Grease
SET-UP PROCEDURE
WARNING: Keep clear of rotating end of unit with hands and/or
clothing. Keep fingers/hands from being pinched between hous-
ing orvalves and adjustment screws and/or trip bracket.
l
l
l
l
l
l
l
l
l
l
Loosen two screws (11) and remove cover (1).
Allow a minimum distance of 1/4” between the drill point of the
unit and the workpiece (this is necessary for the air motor to
start and reach free speed before the drill point touches the
workpiece).
Determine the TOTAL STROKE LENGTH the drill must travel
to perform the drilling operation - see illustration below.
Loosen jam nut (8) and turn adjustment screw “A” so the dis-
tance between the end of the screw and the stud (28) equals
the Total Stroke Length.
lighten jam nut (8).
Loosen jam nut (8) and turn adjustment screw”B” so the dis-
tance between the end of the screw and the button bleed
valve (27) is slightly GREATER than the distance set for ad-
justment screw “A”.
Start and let unit advance until the adjustment screw “A
makes contact with the stud (28).
Carefully, and beaware that the unit isgoing to retract, turn the
adjustment screw “B” until it depresses the button bleed valve
(27) enough to cause the unit to retract.
Tighten jam nut (8).
See “FEED RATE CONTROL VALVES”, page 2.
THIS DISTANCE MUST EQUAL
TOTAL STROKE LENGTH AJUSTMENTSCREW “A”
For parts and service information, contact your local ARO distributor, or the Customer Service Dept. of the Ingersoll-Rand Dis-
tribution Center, White House, TN at PH: [phone], FAX: [phone].
ARO Tool Products
Ingersoll-Rand Company
INGERSOLL-RAND®
1725 U.S. No. 1 North l P.O. Box 8000 l Southern Pines, NC 283888000
©1994 THE ARO CORPORATION . PRINTED IN U.S.A.
PROFESSIONAL TOOLS

FEEDRATECONTROLVALVES
l Turnvalve(25), marked“R” an tap of housing,approximately1-1/2
turns counterclockwise (open).
l Turn the other valve (25), marked “F” on top of housing, clock-
wise until closed (do not tighten to snugly).
l Startunit and slowly turn valve (25) marked“F” counterclockwise
(open) until the desired forward rote of feed is reached.
l Afinal adjustmentof the rateof return(retract) can be madewith
the valve (25) marked “R” on housing.
MANUALOPERATION
l Install button bleedvalve (27) in eitherthe “F” port located at top
of valve housing orthe “F” port located at the rear of valve hous-
ing. NOTE:Unused port must be plugged with pipe plug (26).
l Depressbuttonbleedvalve(27) marked“F” onvalvehousing.The
unit will start in the forward (advancing) mode and continue to
feed forward until the adjusting screw “B” has depressedbleed
valve (27) marked “R” to retract the unit. Seeset-up procedure.
l A manual emergencyretract button bleed valve (27) can be in-
stalled in “R” port at top of valve housing if desired. This valve
can beusedto immediately retractthe unit in case of misaligned
part or other emergency.Valve not furnished.
REMOTEOPERATION
Install a pressurebleedvalve-ARO part number9600 - in valve
port marked “F” at either the top or rear of valve housing.
Connect pressurebleed valve - using 1/8” i.d. tubing - to a re-
moteoperatedvalve which, when actuated,feeds air pressureto
the pressurebleed valve. Pressurebleed valve will bleed the air
from “F” port of valve housing causing spool valve in housing to
shift to the forward feed position,thus starting-theforward stroke
of the unit.
Install a pressurebleedvalve-ARO part number9600 - in valve
port marked “R” at the top of the valve housing and connect -
using 1/8” i.d. tubing - to a remote MANUALLYoperated valve.
Thisvalve is used as on emergencyretractin case of a part mis-
alignment or such only asthe unit, when properlyset-up and ap-
plied,will automatically retractand returnto thestart position.See
set-up procedure.
Referto page 9 for plumbing and schematic diagrams.
SPECIALNOTE:Theair inlet and remoteportsof valvehousinghave
tapered pipe threads and should not require the use of thread
sealants,such OSsealant tape or pipe joint compounds, Thread
sealants, when used improperly, can contaminate air passages
and cause valve or unit to malfunction.
RECOMMENDEDPOWERAIR INLETSYSTEM
MODEL23903-200 CONNECTOR
1/4- FEMALEN.P.1.F
MODEL23103300 COUPLER
3/8 FEMALEN.PT.F.
Your ARO self-feed tool is designed to deliver specific horsepower and thrust to achieve high rates of work. To assure the unit wilt develope this power, care must be token that
the power air inlet system Is correctly sized to permit the proper rate of air flow. Shown is o system for o single tool that will supply correct delivery. IMPORTANT - the tool is power
rated when 90 p.s.i. is present AT THE TOOL DURING OPERATION.
Shown below is the some system in schematic form.
F-R-L- MODEL C26231-810
F = FILTER
R = REGULATOR
L = LUBRICATOR
If two or three units ore to be instolled. each unit should be supplied with a system like that shown below or use system like that above for each tool.
FILTER MODEL F25241-110
REGULATOR MODEL R27241-100
LUBRICATOR MODEL L26231-110
2

SET-UPPROCEDUREWITH OPTIONAL
M105
HYDRAULICCHECK
20
Assemble hydraulic check to mounting bracket and assemble
mounting brackettotool using washers(30997) and cap screws
(Y157-44). .
Measuredistance from drill paint to work piece - distance “Y”.
Distance“X” between hydraulic check plunger and trip bracket l
must be lessthan distance “Y” to preventdamage to drill point
when it approaches the work piece.
Loosenthe Capscrews (Yl57-44) and position hydraulic check
to obtain correct setting for distance “X”.
Tighten cap screws (Y157-44)securely before operating unit.
Increasethe air flow thru the feed control valve marked “F” by l
Openingtwo (2) full turnsfrom closedposition.Thiswill allow drill
toadvancerapidlyuntilthetrip bracketcontactsplungerof hydraul-
ic check. .
Thehydraulic feed rate adjustment is located at the nameplate
end of the hydraulic check,Rotateextendedspindle until the slot
on the spindle is located midway between the highest and the
lowest settings.
Start drill unit and the drill will advance at a rapid rate until the
trip bracket contacts plunger of hydraulic check.
Slowly rotatethe hydraulic feed rate counterclockwise for faster
feed rate or clockwise for slower feed rate.
TO CONTROLBREAKTHROUGH
Positionhydraulic checksothe distance betweenthe plunger and
the trip bracket (distance “X”) is lessthan the distance from the
drill point to the oppositeside of the work piece (distance “W”).
Set-upof the self-feeddrill unit will be the same as explained in
Set-up Procedure,page 1.
ADJUSTMENT SCREW “B”-,
AJUSTMENTSCREW “A”-
l MOUNTING BRACKET 40316 SCREW (2) Y157-44 l
ADJUSTMENT,
FEEDRATE
HYDRAULIC CHECK (SEE TABLE)-

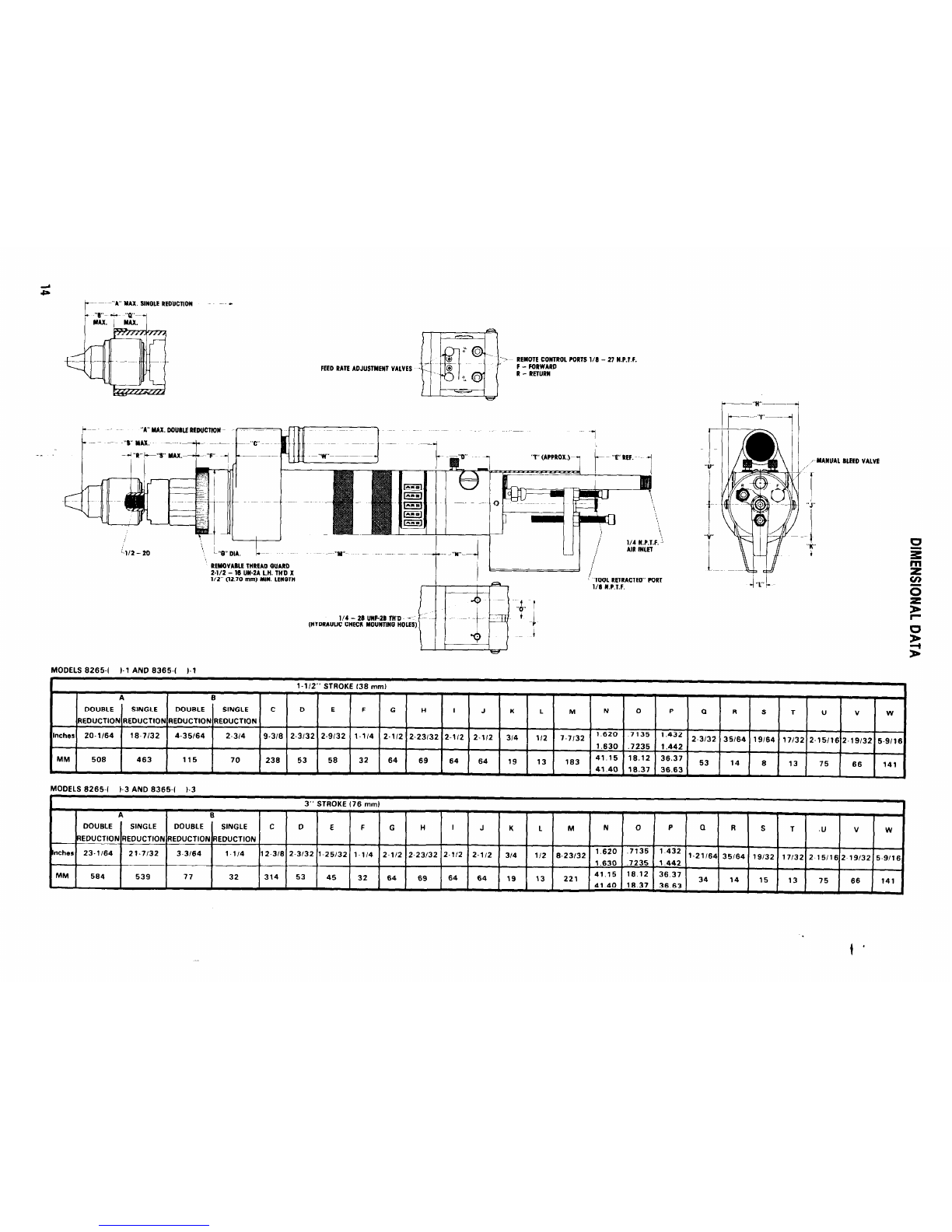

SEE PAGE 11 FOR HYDRAULIC CHECK DIMENSIONAL DATA.
PARTS INDICATED BY ASTERISK (•) ARE INCLUDED
IN 40591-( ) HYDRAULIC CHECK ASSEMBLY.
Neverapply excessivepressureby a holding device which may
cause distortion of a part.
Apply pressureevenly to parts which have a pressfit.
Apply evenpressureto the bearing race that will be pressfitted
to the mating part.
Usecorrect tools and fixtures when servicing this tool,
Don’t damage “0” rings when servicing tool,
Useonly genuine AROreplacement parts for this tool, When or-
dering,specify part number,description, tool model number and
serial.number.
motor housing (50) from the outer sleeve (40).
Usingwrenchesonflats of ring gear (90) and motor housing,un-
-thread gearing from motor housing.
Pull spindle (89) and components from ring gear.
Removebearing (87) and spacer (88).
Turn snap rings (68 and 74) so the open portion will allow the
removal of shafts and gears.
Removelock nut (93), releasing bearings (92) and spindle (91).
.
.
.
.
.
.
-
GEARINGDISASSEMBLY
Removechuck from gearing.
-
Threadadjustmentscrews (6 and 7) all the way back and push
- the piston rod (47) all the way forward to exposewrench flats of
motor housing (50) from the outer sleeve (40).
- Usingwrencheson flats of housing adapter and motor housing,
unthread gearing from motor housing.
If tool has double gearing, unthread lock nut (82) from housing
- adapter (67).
Removespindle nut (85) from spindle.
_ DIRECTDRIVEMODELS:Unthreadand removeColletnut (116)and
bearing lock nut (114).
GEARING ASSEMBLY
Lubricate gears and needle bearings (70) liberally with ARO
33153 grease and assemble two needle bearings to each
gear.
Assemble one gear to spindle and secure with shaft (71).
Repeat for opposite shaft and gear.
Rotate snap ring, securing both shafts.
Pack bearing (78) with ARO 33153 grease and assemble
bearings (78 and 79) to spindle. NOTE: Bearing (78) is an an-
gular contact type bearing and should be installed with the
identification markings facing away from the spindle.
Assemble washer (81), wavy washers (80) and spindle into
lock nut (82).
Assemble seal (83), nose housing (84) and spindle nut (85)to
gearing. . ,
DIRECT DRIVE MODELS: Assemble bearing lock nut (114)to
spindle.
Assemble gearing to tool.
Assemble chuck to spindle.
_ Grasplock nut (82) in one hand and tap the threaded end of the
spindle with a soft faced hammer; spindle and components will
loosen from lock nut.
Removebearings(78 and 79) andturn snap ring sothe open por-
- tion will allow the removal of one shaft, releasing gear. Repeat
for removal of opposite shaft and gear,
48129-1 GEARING DISASSEMBLY
Removechuck from gearing.
_ Threadadjustmentscrews (6 and 7) all the way back and push
the piston rod (47) all the way forward to exposewrench flats of
48129-1 GEARING ASSEMBLY
Packbearings(92) with ARO33153greaseand assembletospin-
3
-

DISASSEMBLY/ASSEMBLYINSTRUCTIONS
die (91).
_ Assemblespindle (91) to ring gear (90).
_ Assembleseal (94) to lock nut (93) and assemble lock nut to
ring gear, securing bearings (92).
Assemblespindle nut (95) to spindle.
_ Assemblesnap rings to spindle.
_ Lubricategearsand needlebearings(70) liberallywith ARO33153
grease and assembletwo needle bearings to each gear.
_ Assembleone gearto spindle and securewith shaft (71).Repeat
this procedure for the three remaining gears.
- After shafts have been assembled, rotate snap rings to secure
shafts.
Pack bearing (87) with ARO33153 grease and assemble into
- spacer (88).
- Assemblespacer and bearing to spindle and assemblespindle
and components into ring gear.
Assemblegearing to tool.
_ Assemblechuck to spindle.
MOTORDISASSEMBLY
Removegearing from tool as previously outlined.
_ Removespacers (63 and 62) and motor assembly from motor
housing.
Usinga spannertypewrench, removeretainer nut (51) and sems
- fastener (52).
_ Graspcylinder in one hand and tap splined end of rotor with a
soft faced hammer; motor will come apart
MOTORASSEMBLY
Pack bearing (53) with ARO 33153 grease and assemble into
end plate (54). NOTE: Assemble bearing with identification
markings facing away from end plate.
Assemble spacer (55) and end plate (54) to rotor (56), secur-
ing with sems fastener. NOTE: Torque to 28 in. Ibs.
Coat i.d. of cylinder (58) with ARO 29665 spindle oil and as-
semble cylinder over rotor,aligning roll pin in cylinder with hole
in end plate and air inlet of cylinder with air inlet of end plate.
Coat blades (57) with ARO 29665 spindle oil and assemble to
rotor slots - straight side out.
Pack bearing (61) with ARO 33153 grease and assemble into
end plate (60).
Assemble end plate (60) to rotor, aligning hole in end plate
with roll pin in cylinder.
Assemble bearing retainer nut (51) to end plate (54) and
torque to 9 - 12 ft Ibs.
Be sure rotor does not bind (if rotor binds, tap splined end of
rotor lightly to loosen).
Assemble motor and spacers (62 and 63) to motor housing.
Assemble gearing to tool.
AIR PISTONDISASSEMBLY
Removegearing and motor assembly as outlined.
Removecover(l), adapter (3), lock washer (4) and trip bracket
(5 or 106).
Placevalve housing (12or 105) in a suitable holding device with
- the outer sleeve (40) in an upright position,
Using a strap type wrench on outer sleeve (40), unthread (L.H.
- threads) and CAUTIOUSLYremoveouter sleeve straight up and
off fromvalve housingto preventbending of air cylinder (35) and
damaging the inside diameter.NOTE:Motorhousing (50), piston
rod (47), piston (32) and components will remain inside outer
sleevewhen outer sleeve is removedfrom valve housing.
- Handlethe air cylinder (35) with care soitsfine cylindrical shape
is not distorted in any manner.
- Ifthe air cylinder remainsinsidethe outer sleevewhen the sleeve
is removed,push the piston rod (47) forward then pull it back-
ward. The air cylinder will then extend from the sleeve and can
now be removed.
_ Removeretaining ring (48).
_ Push piston rod and motor housing out thru gear end of outer
sleeve.Piston(32) will drop out when motor housing and piston
rod are removed from outer sleeve.
Insert a suitable rod thru gear end of outer sleeveand push cap
- (38) out thru valve end of outer sleeve.
Pistonrod (47) and motor housing (50) are secured with a hard
- dryingthread adhesive.If it should becomenecessaryto separate
thesetwo parts,heatthe threaded area lightly to softenthe adhe-
sive and unthread the rod from the housing.
AIR PISTONASSEMBLY
NOTE:Whena part containing “0” rings has been removedfrom
-tool, it is recommendedthat the “0” rings be replaced with new
ones when reassembling part to the tool. Lubricate all “0” rings
with ARO36460 “0” ring lubricant,
_ Assemble retaining ring (39) into outer sleeve (40).
_ Assemble“0” rings (36 and 37) to cap (38) and assemblecap
into outer sleeve thru valve end.
- Coattorque pin (42) with greaseto retain pin in place and as-
semble inside outer sleeve in hole provided.
_ Assemble“0” ring (49) to groovein piston rod and assemble“0”
ring (37) to groove in motor housing (50).
_ Assemblepiston rod and motorhousing to outer sleevethru end
of sleevewith external threadsand push piston rodthru cap (38)
using care not to damage “0” ring (38) contained in cap. Align
slot in motor housing with torque pin (42).
- Assemble“0” ring (34) and backup rings (33) to piston (32).
_ Assemblepistonto pistonrodand push pistonon rod until it seats
against shoulder on rod.
_ Secure piston with retaining ring (48).
_ Clampvalve housing (12or105) in a suitable holding devicewith
the threaded end of housing upright.
Coat i.d. of air cylinder (35) with “0” ring lubricant 36460 and
- place air cylinder on valve housing, over “0” ring (30).
- Usingcare notto damage“0” rings 13) contained in valve hous-
ing, insert piston rod (47) thru housing and carefully locate outer
sleeveoverair cylinder and thread outer sleeveto valve housing.
Tighten securely using a strap type wrench.
_ Assemblemotor,gearing,trip bracketand componentsand cover
(1) to housing.
VALVEHOUSINGDISASSEMBLY
_ Thevalve body(16),needle valves (25) and button bleed valves
(27) can be serviced without removing outer sleeve from valve
housing. To gain access to check valves (20) and components
or “0” rings (13),follow disassembly procedurefor removingthe
air piston.
_ Removeboth caps (15) and “0” rings (14) from housing (12).
- Push valve body (16) out thru housing. Handle valve body with
reasonable care so the o.d. of valve is not damaged.
_ Button bleed valves (27) need not be removed except for
replacement.
VALVEHOUSINGASSEMBLY
NOTE:Whena part containing “0” rings has been removedfrom
- tool, it is recommendedthat the “0” rings be replaced with new
ones when reassembling part to the tool. Lubricate all “0” rings
with ARO36460 “0” ring lubricant.
_ Assemble“0” rings(24) to needlevalves(25) and assemblenee-
dle valves to housing.
_ Assemble plate (103) to housing, securing with screws (104).
_ Assemble“0” rings (l7) to valve body (16).
_ Assemblevalvebody(16)tovalvehousing(12)and assemblecaps
(15) with “0” rings (14) to housing.
If checkvalves(20) havebeenremoved,assemble“0” rings(19)
to valves (20) and assemble valves to valve housing.
- Assemblesprings (21) to housing.
- Assemble“0” ring (22) to screw (23) and assemblescrew to
housing.
_ Assemble retaining screw (18) to housing.
_ Assemble outer sleeve and components to valve housing as
described in air piston assembly section.
4

M 105
20
99
* ASSEMBLE WITH IDENTIFICATION MARKINGS FACING OUT
ASSEMBLE WITH SCRIBED LINES ON O.D. ALIGNED
5

a
24

a
t INCLUDED WITH AND BONDED TO VALVE HOUSING (12)

1
7
8
9
10
11
12
13
14
16
17
18
20
21
22
23
24
25
26
28
29
30
31
32
33
34
35
36
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
Cover
models 8265-( )-1 and 8365-( )-1 ......
models 8265-( )-3 and 8365-( )-3. .....
Pipe Plug .......................
Adapter ........................
LockWasher ....................
Trip Bracket ...................
Adjustment Screw “A”
models 8265-( )-1 and 8365( )-1 ......
models 8265( )-3 and 8365-( )-3, .....
AdjustmentScrew “B”
models 8265( )-1...... ..........
models 8265-( )-3 ..... ..........
Nut (1 or 2 req’d) .................
Pipe Nipple
models 8265-( )-1 and 8365( )-1 ......
models 8265( )-3 and 8365-( )-3. .....
Washer (2 req'd) ..................
Screw (2 req’d) ...................
Valve Housing (includes item 31) .......
“0” Ring (3 req'd) .................
“0” Ring (2 req’d) .................
Cap (2 req’d) ....................
Valve Body ......................
“0” Ring (5 req’d) ................
Retaining Screw ..................
“0” Ring (1 or 2 req’d) ..............
CheckValve (1 or 2 req’d) ...........
Spring (1 or 2 req’d) .............
“0” Ring .......................
Screw .........................
“0” Ring (1 or 2 req’d) ..............
NeedleValve (1 or 2 req’d) ...........
Pipe Plug (2 req’d) ................
Button Bleed Valve (2 req’d) ..........
Stud ..........................
“0” Ring .......................
“0” Ring ......................
Ring Seal (included with items 12and 105)
Housingand ValveAssembly(includes items
12thru 31,103 and 104) ............
Piston .........................
Backup Ring (2 req’d) ..............
“0” Ring .......................
Air Cylinder
models 8265-( )-1 and 8365-( )-1 ......
models 8265-( )-3 and 8365-( )-3. .....
“0” Ring .......................
“0” Ring (2 req’d) .................
Cap .........................
Retaining Ring, ...................
OuterSleeve
models 8265-( )-1and 8365-( )-1 ......
models 8265-( )-3 and 8365-( )-3. .....
Muffler .........................
Torque Pin ......................
Manifold (includes items 44 thru 46) ...
“0” Ring (2 req’d) .................
Thread Guard ....................
Set Screw ......................
Piston Rod
models 8265-( )-1 and 8365-( )-1 ......
models 8265-( )-3 and 8365-( )-3. .....
Retaining Ring, ..................
“0” Ring .......................
Motor Housing. ...................
Bearing RetainerNut ...............
SemsFastener ...................
Bearing ........................
End Plate .......................
40582-1
40582
Y227-2-1
44883
Yl4-616
41713-3
40292-2
40292-2
40292-1
40292-2
Y11-4-c
40857-2
40857-7
Y14-10
Y211-102
40572
Y325-211
Y325-14
46697
40307
41083
39652
Y325-2
39587
35733
Y325-3
38863
Y325-7
48441-1
Y227-2-L
24130
46558
Y325-22
Y325-32
40593
40815
40576
41981
Y325-22
40579-1
40579
Y325-214
Y325-225
40577
Y147-212
40595
40573
43874-1
40578
43589
Y325-23
40581
Y23-103
40596
40575
Y145-23
Y325-16
40574
33694
33700
33709
33710
55
56
58
60
61
69
70
71
72
73
74
75
76
78
79
80
81
83
85
86
87
88
89
90
91
92
93
94
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
Spacer.........................
Rotor..........................
Blade (5 req’d) ...................
Cylinder (includes items 59) ..........
Roll Pin (2 req’d) ..................
End Plate ........................
Bearing .......................
Motor Assembly (includes items 51thru 61)
Spacer.........................
Spacer, ........................
Spindle ........................
Bearing (2 req'd) ..................
Retaining Ring, ...................
Housing Adapter (includes grease fitting
35323) ........................
Snap Ring ......................
Gear(2 req’d) 18teeth ..............
NeedleBearing (2 req’d per gear) ......
Shaft (2 or 4 req’d) ................
Gear(2 req’d) 14teeth ..............
Gear(7 interior, 15 exterior teeth) .......
Snap Ring ......................
Spindle ........................
Splined Driver ....................
Spindle ........................
Bearing ........................
Bearing ........................
WaveWasher (2 req’d) ...............
Washer ........................
Lock Nut .......................
GreaseSeat .....................
NoseHousing(includes greasefitting 35967)
Spindle Nut ....................
Spindle ........................
Bearing ........................
Spacer.........................
Spindle (includes needle bearing 42261)
Ring Gear(includes needle bearing 48123-1
and greasefitting 35323) ...........
Spindle ........................
Bearing (2 req'd) ..................
Lock Nut .......................
Seal ..........................
Spindle Nut .....................
Chuck (not shown)
1/2” capacity ....................
3/8” capacity, ...................
GearingAssembly (4:1) .............
GearingAssembly (7.43:1). ...........
GearingAssembly (4:1) .............
Gearing Assembly (7.43:1). ...........
Gearing Assembly (1:1)..............
Gearing Assembly (1.SS:1)............
Plate ..........................
Screw (2 req'd) ...................
Valve Housing (includes item 31) .......
Trip Bracket ....................
Spacer. ........................
Shaft (2 req’d) ...................
Spindle ........................
Ring Gear (includes grease fitting 35967)
Bearing (paired) ..................
Bearing Lock Ring ...............
Seal ...........
Bearing Lock Nut, .... : : : : 1: : : : : : : :
Collet .........................
Collet Chuck Nut ..................
Housingand ValveAssembly(includes items
13,19thru 26, 28 thru 31and 103 thru 105)
33701
41521
41520
35679
Y178-20
33712
33705
41522
33699
33711
40840
33704
33708
35270
40843
46416
42271
40841
46417
34574
40842
40839
34488
40835
33703
33706
47589
47590
34490
37774
38379
33697-1
40836
33704
48126-1
48127-1
48128-1
48118-1
39164
48121-1
48120-1
48119-1
30018
33907
40825
40826
40819
40820
38246
48129-1
48440-1
Y211-1
40594-1
41713-1
37128
38242
38238
38239-1
38244-1
38241
38243
38240
32968-9
32970
41303
9

BASICREMOTECONTROLFORSTART
AND EMERGENCYRETRACTFUNCTIONS
MODELS8265-( ) START
3-WAYPALMBUTTONVALVEMODEL
461-3 GUARD20975 (RECESSED
GREENBUTTON).INSTANT TUBECONNECTIONS
AND SPRlNGRETURN
PRESSUREBLEEDVALVE 9600
1/8" NPTF MALEAND FEMALE
I
PALMBUTTONVALVE(MODEL461-2) -
REDBUTTONWITHOUTGUARD.lNSTANTTUBE
CONNECTIONSAND SPRINGRETURN
“IN” N/C PORT
+ PACKAGED10 TOA BOX
Remote operation of the unit may be achieved by connecting a 3-way valve to the remote start and/or remote retract ports, as shown above.
TO START - Depress the remote button momentarily. The unit will advance the drill to a pre-set depth and automatically retract to the initial position whereupon the Unit Will stop.
EMERGENCYRETRACT- Depress the emergency button momentarily. The signal to the Unit will shift the built-in pressure operated valve, commanding the unlitto retract immediately
to the lnitial position whereupon the unit will stop.
NOTE: MANUAL START and EMERGENCY RETRACT buttons on the tool ore fully operational even when remote control is used. The manually operated buttons con be used when
set-up is required.
Shown below is the same system in schematic form.
SUPPLY
10

BASICREMOTECONTROLFORSTART
AND EMERGENCYRETRACTFUNCTIONS
MODELS8365-( )
CONNECTEDTO IN PORT
WITH MALECONNECTOR59474-004 +
ADAPTER6045, 1/8’ N.P.T.F.
(MALEAND FEMALETHREAD)
MALECONNECTOR59474-004 + SUPPLY
I-WAY VALVE(MODEL5040-10 SHOWN)
2-POSITIONMANUALRETURN
1/8’ NPTF PORTS
MALECONNECTOR59494-004 +
1/8 NPTF
TUBING59690( ). SEETABLE
M 105
20
* PACKAGED10 TOA BOX
REMOTEOPERATION
Remote operation is achieved by connecting a 4-way valve to the remote start and retract ports, as shown above. This valve supplies power directly to the feed piston In the tool.
TO START - Move lever forward. The Unit will advance to o preset depth (adjustment screw contacts stud on valve housing),
TO RETRACT - Move lever rearward (back). The unit will retract to the initial position.
EMERGENCY RETRACT-The unit will retract at any time the lever is moved to the rearward (back) position. The motor runs continuously as long as air pressure is present at the
air inlet to the tool. A shut-off valve should be instolled In the air inlet line to completely shut the tool off in case of an emergency.
Shown below is the some system in schematic form.
11

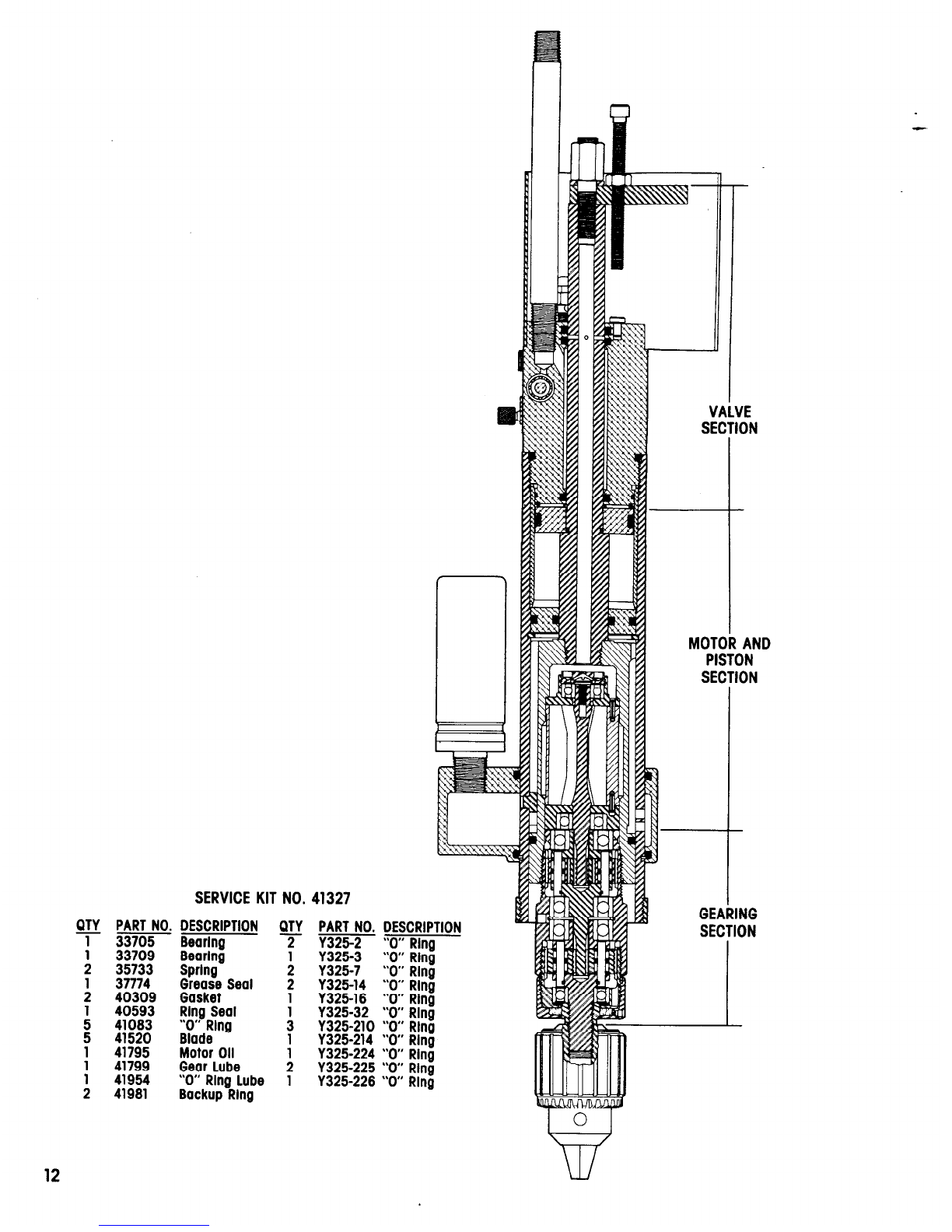

SERVICE KIT NO. 41327
PART NO.
33705
33709
35733
37774
40309
40593
41083
41520
41795
41799
41954
41981
DESCRIPTION QTY PART NO.
Bearing 2 Y3252-2
Bearing
Grease Seal
Gasket
Ring Seal
“0” Ring
Blade
Motor Oil
Gear lube
“0” Ring lube
Backup Ring
Y325-3
Y325-7
Y325-14
Y325-18
Y325-32
Y325-210
Y325-214
Y325-224
Y352-225
Y325-226
I(
VI E
SECTION
PI! AND N
SECTION
SECTION
12

TROUBLESHOOTING M105
20
LISTEDBELOWARESOMEOFTHEMOSTCOMMONCAUSESFORTHESELF-FEEDDRILLTOMALFUNCTION.MALFUNCTIONSBEYONDTHESCOPE
OFTHISMANUALSHOULDBEBROUGHTTOTHEATTENTIONOFYOURAROREPRESENTATIVEORRETURNTHETOOLTOFACTORYFORREPAIR.
CONDITION
Failure to feed or ir-
regular or erratic
feed.
Low speed or motor
fails to operate.
Motor continues to
run after retraction
Failure to retract.
POSSIBLECAUSE
1. Inadequate air supply.
2. Feedcontrol Valves improperly
adjusted.
3. Air leak around cap (15).
4. Dirt or damaged “0” rings on
spool valve (16).
5. Clogged air passage in valve
housing.
1. Inadequate air supply.
2. Clogged air passage in valve
housing.
1. Piston not fully retracted.
2. Damaged “0” ring (13) inside
valve housing.
1. Improper adjustment or alignment
between adjustment screw and
button bleed valve,
2. Feedcontrol valves (25) im-
properly adjusted or ditty
3. Air leak around cap (15).
4. Damaged “0” rings in muffler
cap, valve housing or spool valve
or seals on piston.
5. Clogged air passages in valve
housing.
CORRECTIVEACTION
1. Check air supply for correct regulator adjustment (90 p.s.i.g.
max. when tool is operating).
2. Referto set-up procedure, page 1.
3. Check for damage to “0” ring. Check and insure caps are
properly tightened.
4. Referto valve section, page 4, and removespool valve. In-
spect, clean and replace “0” rings.
5. Removevalve housing from tool. Disassembleand blow all air
passagesclear of debris.
1. Check air supply for correct regulator adjustment.
2. Removevalve housing from tool. Disassembleand blow all air
passagesclear of debris.
1. Insure piston is not obstructed and is returned all the way
back.
2. Removevalve housing from tool. Replace “0” rings
1. Referto set-up procedure, page 1
2. Check adjustment, refer to page 2. Remove,inspect and
clean.
3. Check for damage to “0” ring. Check and insure caps are
properly tightened.
4. Disassemble,inspect and replace “0” rings and/or seals.
5. Removevalve housing from tool. Disassembleand blow air
passages clear of debris.

MODELS 8265-( )-1 AND 6365-( )-1
I 1-1/2” STROKE (38 mm) I
DOUBLE SINGLE DOUBLE SINGLE C D E F G H I J K L M N 0 P cl R S T U V W
REDUCTION REDUCTION REDUCTION REDUCTION
inches 20-1/84 18-7/32 4-35/64 2-3/4 9-3/8 2-3/32 2-9/32 1-1/4 2-1/2 2-23/32 2-1/2 2-1/2 314 1/2 7-7/32 3.620 .7135 1.432 2-3/32 35164 19164 17132
1.630 .7235 2-15/16 1.442 2-19/32 5-9/16
MM 508 463 115 70 238 53 58 32 64 69 64 64 19 13 183 41.15 18.12 36.37 53 14 8
41.40 13 75 18.37 36.63 68 141
MODELS 8265-( )-3 AND 8365-( )-3
3” STROKE (76 mm)
A 8
DOUBLE SINGLE DOUBLE SINGLE C D E F G H I J K L M N 0 P a R S T .U V W
REDUCTION REDUCTION REDUCTION REDUCTION
Inches 23-1/64 21-7/32 3-3/64 1-1/4 12-3/8 2-3/32 1-25/32 1-1/4 2-1/2 2-23/32 2-1/2 2-1/2 3/4
1/2 8-23/32 1.620 .7135 1.432 1-21/64 35184 19132
1.630 .7235 17/32 1.442 2-15/16 2 19/32 5-9/16
MM 584 539 77 32 314 53 45 32 64 69 64 64 19 13 221 41.15 18.12 36.37 34 14
41.40 18.37 15 36.63 13 75 66 141

Part of worldwide Ingersoll-Rand
PN 49994311
