Arrow Group Industries EH65-A Series Use and care manual

Model No. EH65-A LM65
VL6562-A WL65-A
Owner's Manual &Assembly Instructions
O01
Exterior Dimensions Interior Dimensions Door
*Approx. Base (Roof Edge to Roof Edge) (Wall to Wall) Opening
Size Size Width Depth Height Width Depth Height Width Height
6' x 5' 74" x 57" 76 1/4" 59 1/2" 69 7/8" 71 1/4" 54 1/4" 68 5/8" 32" 60"
1,8 m x 1,4 m 188,0 cm x 144,8 cm 193,7 cm 151,1 cm 177,5 cm 181,0 cm 137,8 cm 174,3 cm 81,3 cm 152,4 cm
709120710
Missing Parts, Questions on Assembly?
Call: 1-800-851-1085
Do not return to dealer, they are not
equipped to handle your requests.
Storage Area: 27 Sq. Ft. 147 Cu. Ft.
2,5 m24,2 m3
BUILDING DIMENSIONS * Size rounded off to the nearest foot
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.

2
Owner's Manual
Before beginning construction, check local building codes regarding footings, location
and other requirements. Study and understand this owner's manual.
Important information and helpful tips will make your construction easier and more
enjoyable.
Assembly Instructions: Instructions are supplied in this manual and contain all
appropriate information for your building model. Review all instructions before you begin,
and during assembly, follow the step sequence carefully for successful results.
Flooring and Anchoring: Your storage building must be anchored to prevent wind
damage. A base is necessary to construct a square and level building. Anchoring and
base materials are not included with your building. We recommend the combined use of
an Arrow Floor Frame Kit and an Arrow Anchoring Kit as an effective method of
securing your building to the ground (Available by mail order or at your local dealer) or
you may construct a base and anchoring system of your choice. Your assembly
instructions provide information on a few methods commonly used to secure and level
a storage building.
Parts and Parts List: Check to be sure that you have all the necessary parts for your
building.
•All part numbers can be found on the parts. All of these numbers (before the -) must agree with the
numbers on the parts list. The parts list is located on page 12.
•If you find that a part is missing, include the model number of your building and contact:
Arrow Group Industries, Inc. Customer Service Department
1101 North 4th Street Breese, Illinois 62230
1-800-851-1085
•Separate contents of the carton by the part number while reviewing parts list. The first few steps
show how to join related parts to make larger sub assemblies which will be used later.
•Familiarize yourself with the hardware and fasteners for easier use during construction. These are
packaged within the carton. Note that extra fasteners have been supplied for your convenience.
BEFORE YOU BEGIN....
A2

3
Selecting and Preparing Your Site: Before assembly, you will want to decide on
a location for your building. The best location is a level area with good drainage.
•Allow enough working space for ease of moving parts into position during assembly. Be sure there
will be enough space at entrance for doors to open fully and enough space around the building to
be able to fasten the panel screws from the outside.
•Before you begin the first steps in assembling your parts, a base should be constructed and
an anchoring system should be ready to use.
Watch the Weather: Be sure the day you select to install your building is dry and calm.
Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground.
Teamwork: Whenever possible, two or more people should work together to assemble
your building. One person can position parts or panels while the other is able to handle the
fasteners and the tools.
Tools and Materials: These are some basic tools and materials you will need for the
construction of your building. Decide which method of anchoring and the type of base you
wish to use in order to form a complete list of the materials you will need.
Base Preparation
• Hammer and Nails
• Spade or Shovel
• Hand Saw / Power Saw
• Lumber and/or Concrete
Optional Time-Savers
• Wrench / Nut Driver
• Electric / Cordless Drill
• Square
• String (for squaring frame)
Required
• Work Gloves
• Step Ladder
• Utility Knife / Scissors
• Pliers
• Carpenter's Level
• Tape Measure
Required
• Eye Goggles
• No. 2 Phillips Screwdriver
(With Hardened Magnetic Tip)
Note: A power screwdriver or vari-
able speed drill with Phillips-tip at-
tachment can speed assembly by
as much as 40%.
PLAN AHEAD....
A3

4
Safety precautions are important to follow throughout the construction of your building.
•Care must be taken when handling various
pieces of your building since some contain
sharp edges. Please wear work gloves, eye
protection and long sleeves when assembling
or performing any maintenance on your build-
ing.
•Practice caution with the tools being used in the
assembly of this building. Be familiar with the
operation of all power tools.
•Never concentrate your total weight on the
roof of the building. When using a step ladder
make sure that it is fully open and on even
ground before climbing on it.
•Keep children and pets away from worksite to
avoid distractions and any accidents which
may occur.
•Do not attempt to assemble the building if parts
are missing because any building left partially
assembled may be seriously damaged by light
winds. Call 1-800-851-1085
•Do not attempt to assemble the building on a
windy day, because the large panels acting as a
"sail", can be whipped about by the wind making
construction difficult and unsafe.
SAFETY FIRST....
A4
safetyedge
safetyedge
sharpedge
sharpedge

Finish: For long lasting finish, periodically clean and wax the exterior surface. Touch-
up scratches as soon as you notice them on your unit. Immediately clean the area with
a wire brush; wash it and apply touch-up paint per manufacturer's recommendation.
Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy
amounts of snow on roof can damage building making it unsafe to enter. In snow country,
Roof Strengthening Kits are available for most Arrow Buildings for added protection
against heavy snow accumulation.
Doors: Always keep the door tracks clear of dirt and other debris that prevent them from
sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep
doors closed and locked to prevent wind damage.
Fasteners: Use all washers supplied to protect against weather infiltration and to protect
the metal from being scratched by screws. Regularly check your building for loose
screws, bolts, nuts, etc. and retighten them as necessary.
Moisture: A plastic sheet (vapor barrier) placed under the entire floor area with good
ventilation will reduce condensation.
Other Tips....
• Wash off inked part numbers on coated panels with soap and water.
• Silicone caulking may be used for watertight seals throughout the building.
Do not store swimming pool chemicals in your building. Combustibles and
corrosives must be stored in air tight approved containers.
Keep this Owner's Manual and Assembly Instructions for future reference.
5
CARE & MAINTENANCE....
A5 Web

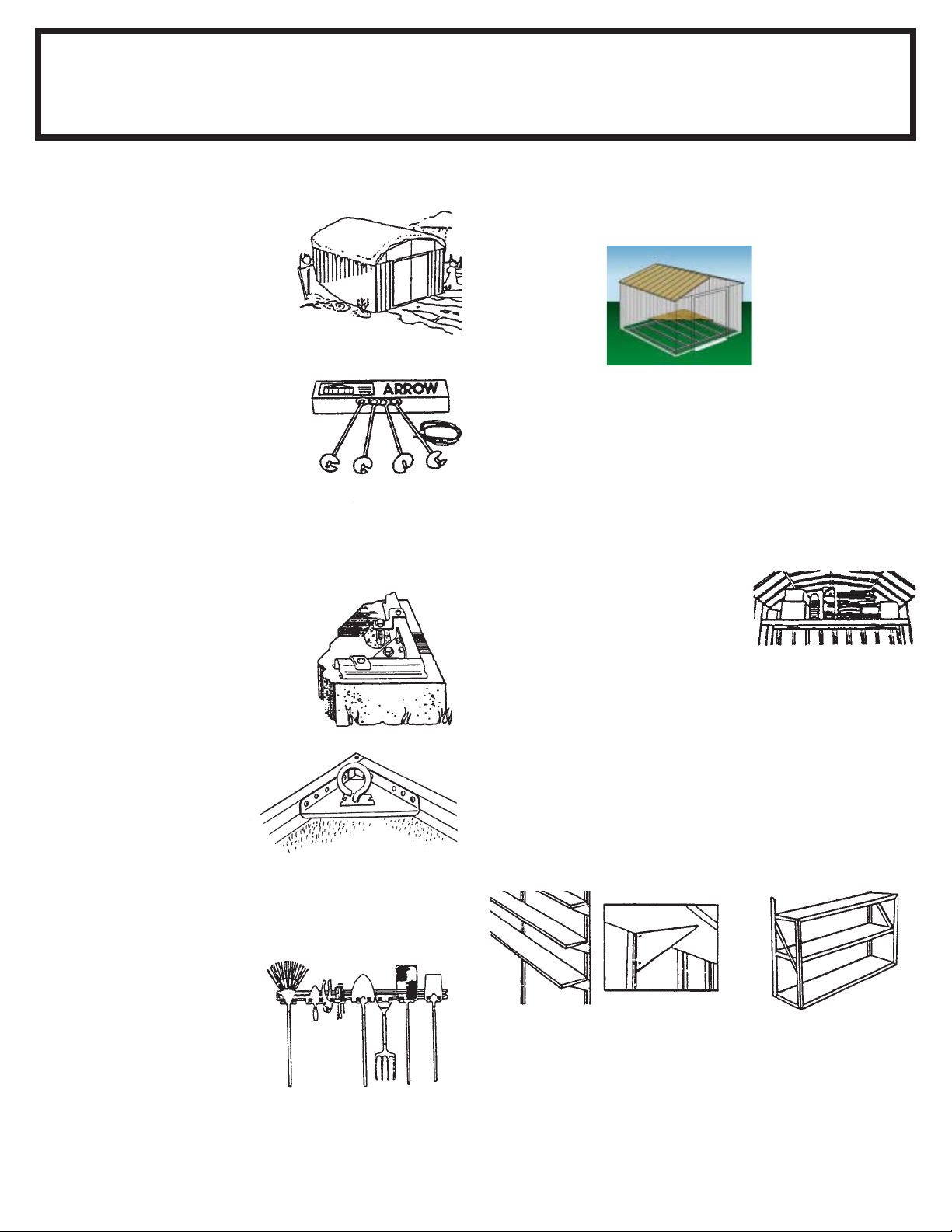

ACCESSORIES....
A6 WEB
6
* Some drilling required to fit buildings without mid-wall bracing.
Model No. SS404
• Makes 8" to 12" (20,3-30,5 cm)
wide shelves in any length.
• Brackets, braces,
hardware included.
Lumber is not included.
Model No. SS900-A
• Grey color
• 3 shelves
• Holds up to 85 lbs. (38 kg)
(even weight distribution)
Heavy-duty, galvanized steel shelf units help organize storage
space. They easily mount on the wall or sit on the floor. Fits all
Arrow buildings.*
SHELF UNITS
ATTIC KIT / WORKBENCH KIT
Model No. AT101
Heavy-duty galvanized steel bars that
fit all 10' (3,0 m) wide Arrow buildings.
They install quickly and easily to
help organize space and create
more useable space as an attic or
workbench. Will hold up to 250 lbs.
(113 kg) evenly distributed.
Some drilling required to fit buildings without mid-wall bracing.
Model No. AK100
New concrete anchor system permits
anchoring any size Arrow building
directly to a concrete slab. Each kit
contains heavy-duty, hot-dipped
galvanized steel corner gussets and
perimeter clips which fit over the floor
frame and lag bolt into a concrete slab.
Full assembly instructions and a 1/4"
masonary drill bit are included.
TOOL HANGING RACK
Model No. TH100
The perfect tool organizer. Twin
25 1/2" (64,8 cm) steel channels
plus five heavy-duty snap-in
hangers and a small tool holder for
screwdrivers, pliers, etc. Holders
slide along channel for fully
adjustable spacing. Great for
garage, basement, or the back
of any door. Fits all Arrow
storage buildings.
ROOF STRENGTHENING
(heavy snow load) KITS
Extra roof beams and gable braces
designed for added protection against
heavy snow accumulation. Increases
the strength of your roof by 50%.
ANCHOR KITS
Model No. AK4
Anchor Kit contains heavy-duty steel
augers, 60' (18 m) of steel cable and
4 cable clamps. No digging or concrete
pouring, just insert cable under roof,
over roof beams, into augers and twist
augers into the ground. For buildings
larger than 10'x9' (3,0 m x 2,6 m), use 2 kits.
FLOOR FRAME KITS
MODELS FB47410, FB5465, FB106-A
FB109-A and FB1014-A
A simple new floor frame system made of heavy-duty, hot-dipped
galvanized steel. Use as base for plywood, sand or stone.
Model No. AK600
Earth Anchor Kit anchors any size
Arrow building to the ground.
Each kit contains heavy duty,
hot-dipped galvanized steel
corner gussets and 4 earth anchors.

THIS
PAGE
WAS
LEFT
BLANK
INTENTIONALLY
7

THIS
PAGE
WAS
LEFT
BLANK
INTENTIONALLY
8

The Base For Your Building
9
FRONT
(DOOR)
FRONT
(DOOR)
Base
C09
Note: Finished Slab dimensions, with lumber removed.
OPTION 1: ARROW FLOOR FRAME KIT: (Order No. FB5465)
Arrow has the best base for your building in this simple kit. It keeps stored items above the ground.
This kit should be used with one of the following:
A. To support a plywood deck B. To be filled with sand. We recommend the combined use of
1. an ARROW FLOOR FRAME KIT and 2. an ARROW ANCHORING KIT as an effective method of securing the building to the ground.
Allow 1 - 2 hours for construction.
OPTION 2: Wood Platform
If you decide to build your own base, be sure to select the appropriate materials.
These are the recommended materials for your base:
●2 x 4's (38 mm x 89 mm) Pressure Treated Lumber ●5/8" (15,5 mm) 4 x 8 (1220 mm x 2440 mm) Plywood-exterior grade
●10 & 4 penny Galvanized Nails ●Concrete Blocks (optional)
The platform should be level and flat (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
To construct the base follow instructions and diagram.
Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6 cm/61,0 cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction.
OPTION 3: Concrete Slab
The slab should be at least 4" (10,2 cm) thick. It must be level and flat to provide good support for the frame.
The following are the recommended materials for your base.
●1 x 4's (19 mm x 89 mm) (will be removed once the concrete cures)
●Concrete ●Sheet of 6 mil plastic
●We recommend for a proper strength concrete to use a mix of:
1 part cement ●3 parts pea sized gravel ●2 1/2 parts clean sand
Prepare the Site/Construct a Base
1. Dig a square, 6" (15,2 cm) deep into the ground (remove grass).
2. Fill up to 4" (10,2 cm) in the square with gravel and tamp firm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 1x4 (19 mm x 89 mm)
lumber.
5. Pour in concrete to fill in the hole and the frame giving a
total of 4" (10,2 cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for concrete curing time.
Note: Platform/Slab will extend 9/16" (1,4 cm) beyond floor
frame on all four sides. Seal this 9/16" (1,4 cm) of wood with a
roofing cement (not included), or bevel this 9/16" (1,4 cm) of
concrete when pouring, for good water drainage.
74"
188,0 cm
16"/24"
40,6 cm/61,0 cm
57"
144,8 cm
74"
188,0 cm
57"
144,8 cm

It is important that the entire floor frame be anchored after the building is erected.
Below are recommended ways of anchoring.
Anchoring Down The Building
Anchoring
A10
ArrowAnchoringKit:(Model No. AK100 or 68383)
Recommended for use with the concrete base.
Contains: Corner gussets, perimeter clips, hardware,
1/4" masonary drill bit and installation instruction.
AnchoringintoConcrete:
1. For poured concrete slab or footing or patio blocks:
Use 1/4" x 2" (6 mm x 51 mm) Lag Screws.
2. For Anchor Post of Concrete poured after building is
erected: Use 1/4" x 6" (6 mm x 152 mm) Lag Screws.
ArrowAnchoringKit:(Model No. AK4 or 60298)
Recommended for use with any suggested base.
Contains: 4 Anchors with Cable, Clamps and
installation instruction.
AnchoringintoWood/Post:
Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm)
dia. holes provided in the frames for proper anchoring.
10
OVER THE BEAMS
AND INTO THE GROUND
1. 2.
1. 2.

11
Remove from bag of screws
and save for the last step
67293
Weather Stripping (1)
66029
Plug (2)
(Packed with Screws)
66382
Lower Door Guide (4)
66183
Roof Trim Cap
(2 right & 2 left)
66045
Handle (2)
66646
Washer (181)
(5 sheets of 40)
65109
#8-32 Acorn Nut (6)
(Packed with Screws)
67468
Peak Cap (2)
(Arrow Logo)
65004
#8Ax5/16" (8 mm)
Screw (176)
65923
#8-32x3/8" (10 mm)
Bolt (61)
65900A
#10Bx1/2" (13 mm)
Black Screw (8)
(Packed with Screws)
65103
#8-32 Hex Nut (61)
Hardware
C11
66769
Door Slide (4)

12
Assembly Part Part Quantity Check
Key No. Number Description in Carton List
1 5964 Roof Beam 1
2 5982 Roof Angle 1
3 5996 Right Gable 2
4 5997 Left Gable 2
5 6015 Side Roof Trim 2
6 6442 Right Roof Panel 2
7 6443 Left Roof Panel 2
8 10499 Horizontal Door Brace 4
9 6657 Door Handle Brace 2
10 6658 Gable Brace 2
11 6869 Ridge Cap 1
12 6515 Wall Panel (Rear) 2
13 10476 Right Door 1
14 10476 Left Door 1
15 7332 Wall Panel (Side) 2
16 9369 Door Jamb 2
17 9389 Front Corner Panel 2
18 9393 Rear Corner Panel 2
19 9396 Door Track 1
20 9397 Rear Wall Angle 1
21 9925 Rear Wall Channel 1
22 9399 Rear Floor Frame 1
23 9400 Side Wall Angle 2
24 9926 Side Wall Channel 2
25 9402 Side Floor Frame 2
26 9403 Front Floor Frame 1
Parts List
O12

13
Assembly by Key No.
C13

14
Step 1 ●Parts Needed For ●
Door TrackAssembly
The door track assembly supports
the sliding doors and reinforces the
front wall.
Hint: The holes in the top side of the
door track are for fastening the gable
to the top of the front wall in a later
step.
1 Position door slides onto the legs,
from the end of door track, as shown
in the end view.
2 Set this piece aside for later use.
●●
●●
●9396 Door Track (1)
STEP
2
66769
Long Leg
on Top
Short Leg
on Bottom
STEP
1
9396
END VIEW
66769
C14

1 Assemble the four corners of the
floor frame using two screws at each
corner as shown. At the front corners
fasten bolts through from the bottom
with nuts on top.
2 Measure the floor frame diago-
nally. When the diagonal measure-
ments are equal, the floor frame is
square.
NOTE
If using a wood platform or
concrete slab do not fasten the
floor frames to your base at this
time. You will anchor the
building after it is erected.
Step 2
C15
●Parts Needed For ●
Floor Frame
●●
●●
●9403 Front Floor Frame (1)
●●
●●
●9399 Rear Floor Frame (1)
●●
●●
●9402 Side Floor Frame (2)
15
The floor frame must be square
and level or holes will not align.
RIGHT
REAR
9399
9402
9403
STEP
2
STEP
1
FRONT
When Diagonal Measurements
are Equal the Floor Frame
is Square
9402
9399
RIGHT
FRONT
9402
9403
9402
Level

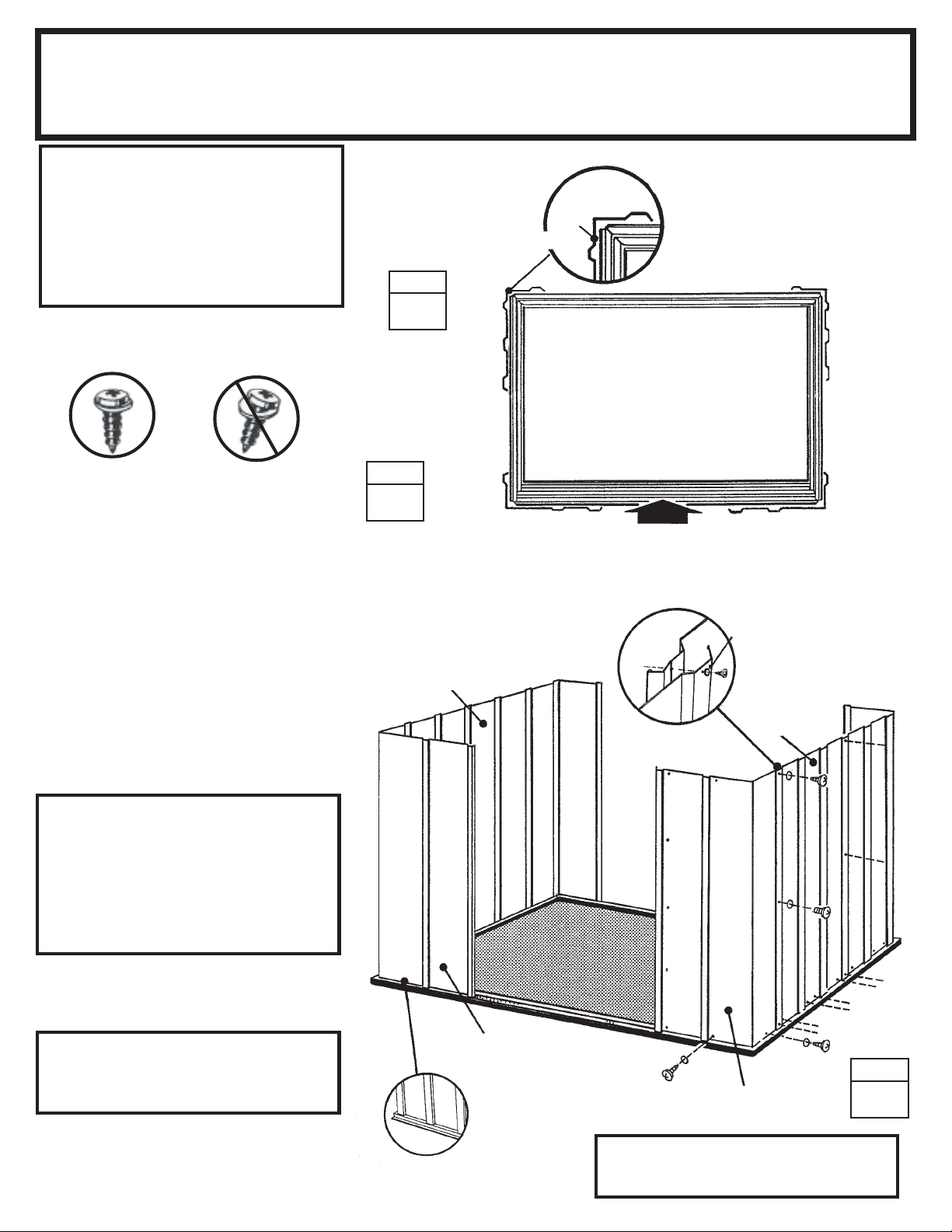

1 Position front corner panels at the
corners of the floor frame as shown.
The widest part of each corner panel
must be placed at the front of the build-
ing. Fasten the corner panels to the
floor frame with two screws.
2 Position rear corner panels at rear
of building as shown. The widest part
of each corner panel must be placed
along side of the building. Fasten cor-
ner panels to the floor frame using four
screws.
NOTE
The wall panels come in two
widths. Each wall panel has a
crimped rib on one side. The
crimped rib should go under the
rib of the panel that follows it.
3 Attach wall panels to the sides, as
shown.
NOTE
Be careful to install the correct
panel in each position as shown.
16
The remainder of the building assembly
requires many hours and more than one
person. Do not continue beyond this point
if you do not have enough time to com-
plete the assembly today. A partially
assembled building can be severely
damaged by light winds.
NOTE
Each screw and bolt in the wall
requires a washer.
●Parts Needed For ●
Corners/Wall Panels
Step 3 ●●
●●
●9389 Front Corner Panel (2)
●●
●●
●9393 Rear Corner Panel (2)
●●
●●
●7332 Wall Panel (2)
4 Double-check the part numbers of
the wall panels, before proceeding.
FRONT
STEP
TOP VIEW
9393
SIDE
REAR
Narrow
Side
9389 9389
SIDE
WideSide
9393
1
STEP
2
SUPPORT THE CORNER PANEL
WITH A STEP LADDER UNTIL A
WALL PANEL IS ATTACHED.
9393
7332
7332 9393
9389
9389
Panels rest on
frame as shown
Crimped Rib
Underneath
Washer
STEP
3
O16
The floor frame must be square
and level or holes will not align.
CORRECT INCORRECT

17
●●
●●
●9397 Rear Wall Angle (1)
●●
●●
●9925 Rear Wall Channel (1)
●●
●●
●9926 Side Wall Channel (2)
●●
●●
●9400 Side Wall Angle (2)
●●
●●
●Door Track Assembly (1)
●Parts Needed For ●
Frames

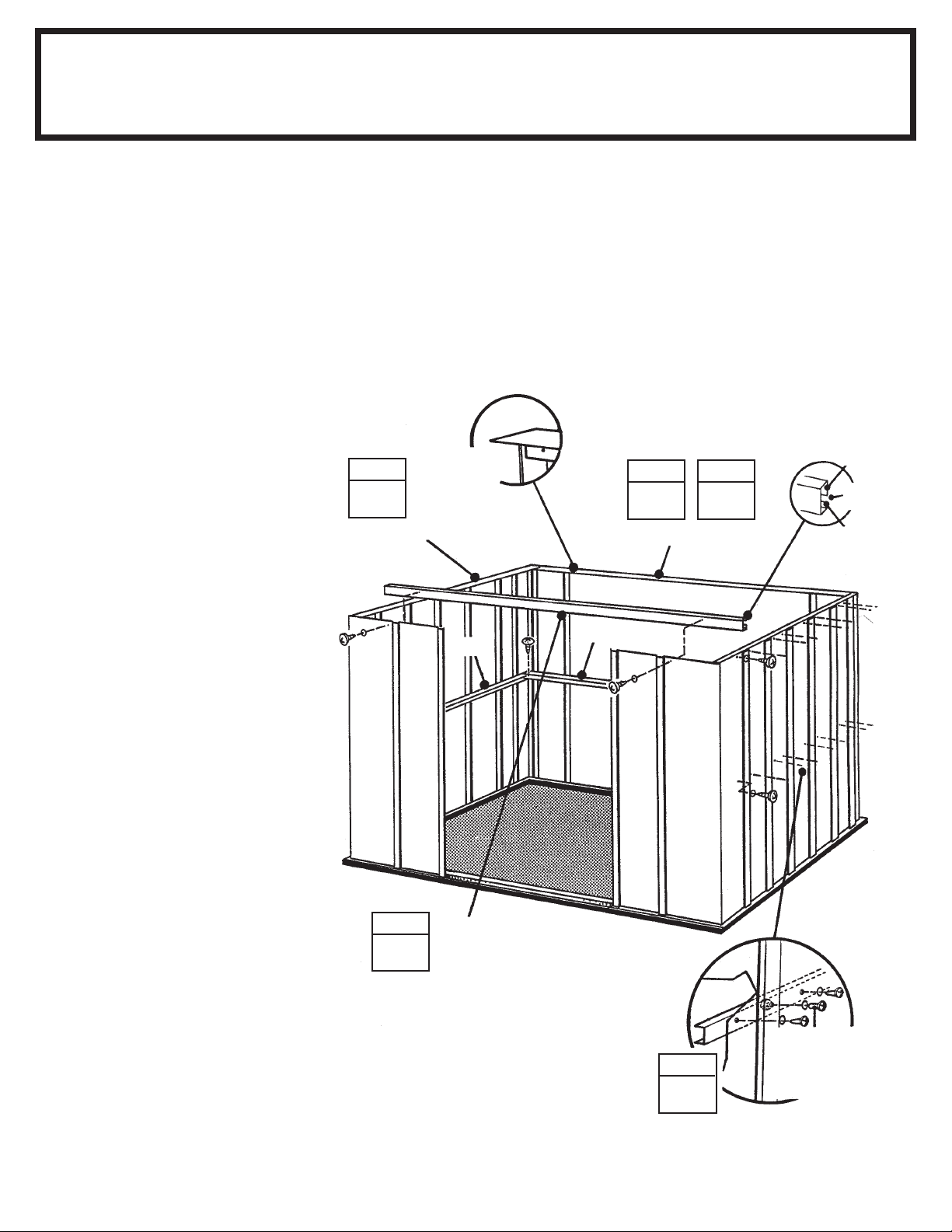

Step 4
The main frame pieces give rigidity to
the side walls and provide a surface
for attaching the gables which sup-
port the roof.
1 Fasten the rear wall angle across
the inside top of the rear wall using
screws.
2 Fasten the rear wall channel
across the middle of the rear wall
using screws.
3 Fasten the side wall angles across
the inside top of the side panels us-
ing screws. Side wall angles must
overlap rear wall angle in corners.
4 Fasten the side wall channels
across the middle of the side panels
using screws. Fasten overlaps in rear
corners with screws.
5 Fasten the door track assembly
(holes on top) across the top of the
front wall panels using screws. See
the figure.
STEP
9400
3
9397
9396
Bolt and nut
does not go thru
wall channel
at overlap
9925
Opening
Facing in
STEP
STEP
5
Long Leg
on Top
STEP
2
STEP
1
4
Short Leg
on Bottom
9926
FRONT
Wall Angles
Must Face
Inside
Building
Detail Showing
Center of Panel Screwed
to Wall Channel
DOOR TRACK ASSEMBLY
C17

18
●Parts Needed For ●
Wall Panels
Step 5 ●●
●●
●6515 Wall Panel (2)
1 Fasten the wall panels at the top
and bottom with screws.
2 Fasten the center of each panel to
the wall channel with screws.
Fasten overlapping ribs as before.
Panels rest on
frame as shown
2
STEP
16515
STEP
Crimped Rib
Underneath
O18

19
The door jambs reinforce the door
opening and provide an attractive
trim. Follow these steps for both door
jambs.

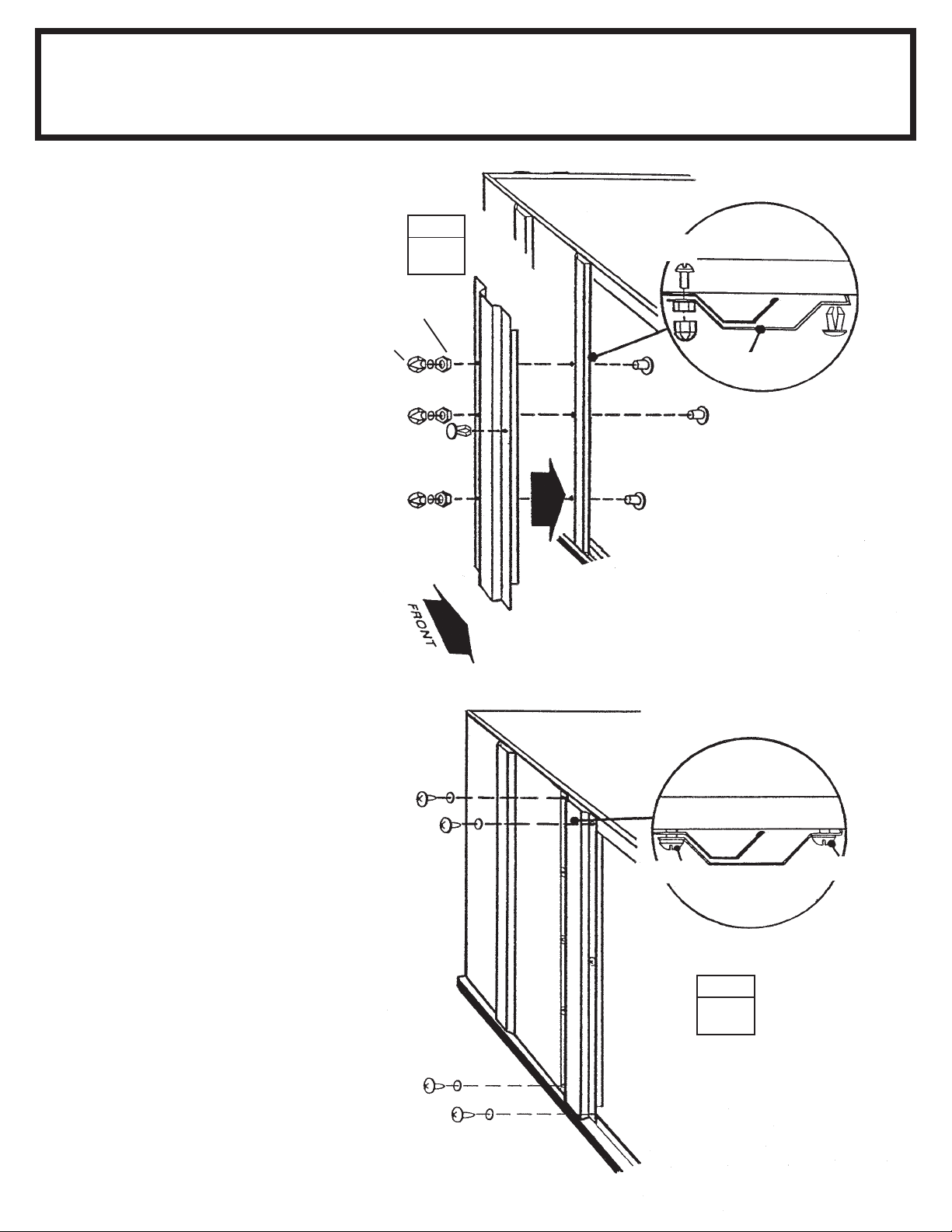

1 Fasten a door jamb to the front
panel with three bolts, nuts and acorn
nuts, as shown. Push a plug into
hole at center of jamb, closest to door
opening.
2 Fasten the top of the door jamb to
the door track with two screws. Do
the same for the bottom into frame.
Repeat steps 1 and 2 for the opposite
door jamb.
Step 6 ●Parts Needed For ●●
●●
●
Door Jamb ●●
●●
●9369 Door Jamb (2)
9369
STEP
1
Plug
STEP
2
TOP VIEW
9369
Door Track
Plug
(3) bolts
Bolt
TOP VIEW
Door Track
Screw
Screw
O19
Hex Nut
Acorn Nut

20
1 Lift and fasten a right and left
gable, under angle at corner, to the
door track with screws.
2 Join the left and right gables
together with a gable brace using a
bolt in the bottom 2 holes.
Repeat Steps 1 & 2 for the opposite
side of building.
●●
●●
●5996 Right Gable (2)
●●
●●
●5997 Left Gable (2)
●●
●●
●6658 Gable Brace (2)
●Parts Needed For ●
Gables/Braces
Step 7
The gables go on top of the front and
rear walls to support the roof beam.
NOTE
The gables are packed nested
together and might be mistaken
as one piece. Carefully separate
them before continuing.
STEP
1
5996
6658 Gable Brace
Gable
5997
5996
5997
STEP
2
C20
