Arrow Group Industries EN65-A Series Use and care manual

* Size rounded off to the nearest foot
BUILDINGDIMENSIONS
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
709310206
Owner's Manual &Assembly Instructions
Exterior Dimensions Interior Dimensions Door
*Approx. Foundation Storage Area (Roof Edge to Roof Edge) (Wall to Wall) Opening
Size Size Sq. Ft. Cu. Ft. Width Depth Height Width Depth Height Width Height
6' x 5' 74" x 57" 27 142 76 1/4" 59 1/2" 67 7/8" 71 1/4" 54 1/4" 66 5/8" 32" 58"
1,8m x 1,4m 188cm x 145cm 2,5m24,0m3194cm 151cm 172cm 181cm 138cm 169cm 81cm 147cm
C01
Model No. EN65-A ENB65 HM65-A
HM65S NW65 SA65-A

2
Owner's Manual
Before beginning construction, check local building codes regarding footings, location
and other requirements. Study and understand this owner's manual.
Important information and helpful tips will make your construction easier and more
enjoyable.
Assembly Instructions: Instructions are supplied in this manual and contain all
appropriate information for your building model. Review all instructions before you begin,
and during assembly, follow the step sequence carefully for correct results.
Foundation andAnchoring:Yourstoragebuilding must be anchoredto preventwind
damage.A foundation is also necessary as a base in order to construct a square and level
building. Anchoring and foundation materials are not included with your building. We
recommend the combined use of an Arrow Floor Frame Kit and an Arrow Anchoring
Kit as an effective method of securing your building to the ground (Available by mail order
or at your local dealer) or you may construct a foundation and anchoring system of your
choice.Your assembly instructions provide information on a few methods commonly used
to secure and level a storage building.
Parts and Parts List: Check to be sure that you have all the necessary parts for your
building.
•All part numbers can be found on the parts. All of these numbers (before the -) must agree with the
numbers on the parts list. The parts list is located on page 12.
•If you find that a part is missing, include the model number of your building and contact:
Arrow Group Industries, Inc. Customer Service Department
Route 50 East Breese, Illinois 62230
1-800-851-1085
•Separate contents of the carton by the part number while reviewing parts list. The first few steps
show how to join related parts to make larger sub assemblies which will be used later.
•Familiarize yourself with the hardware and fasteners for easier use during construction. These are
packaged within the carton. Note that extra fasteners have been supplied for your convenience.
BEFORE YOU BEGIN....
A2

3
Selecting and Preparing Your Site: Before assembly, you will want to decide on
a location for your building. The best location is a level area with good drainage.
•Allowenoughworkingspaceforeaseofmovingpartsintopositionduringassembly. Besurethere
will be enough space at entrance for doors to open fully and enough space around the building to
be able to fasten the panel screws from the outside.
•Before you begin the first steps in assembling your parts, a foundation should be constructed and
an anchoring system should be ready to use.
Watch the Weather: Be sure the day you select to install your building is dry and calm.
Do not attempt to assemble your building on a windy day.Be careful on wet or muddy ground.
Teamwork: Whenever possible, two or more people should work together to assemble
your building. One person can position parts or panels while the other is able to handle the
fasteners and the tools.
Tools and Materials: These are some basic tools and materials you will need for the
construction of your building. Decide which method of anchoring and the type of foundation
you wish to use in order to form a complete list of the materials you will need.
FoundationPreparation
•HammerandNails
• Spade or Shovel
• Hand Saw / Power Saw
•Lumberand/orConcrete
OptionalTime-Savers
• Wrench / Nut Driver
• Electric / Cordless Drill
•Square
• String (for squaring frame)
Required
• Work Gloves
•Step Ladder
• Utility Knife / Scissors
• Pliers
•Carpenter'sLevel
•TapeMeasure
Required
• Eye Goggles
• No. 2 Phillips Screwdriver
(With Hardened Magnetic Tip)
Note: A power screwdriver or vari-
able speed drill with Phillips-tip at-
tachment can speed assembly by
as much as 40%.
PLAN AHEAD....
A3

4
Safety precautions are important to follow throughout the construction of your building.
•Care must be taken when handling various
pieces of your building since some contain
sharp edges. Please wear work gloves, eye
protectionandlongsleeveswhenassembling
orperforming anymaintenanceonyourbuild-
ing.
•Practicecautionwiththetoolsbeingusedinthe
assembly of this building. Be familiar with the
operation of all power tools.
•Never concentrate your total weight on the
roof of the building. When using a step ladder
make sure that it is fully open and on even
ground before climbing on it.
•Keepchildrenandpetsawayfromworksiteto
avoid distractions and any accidents which
mayoccur.
•Donotattempttoassemble the building if parts
are missing because any building left partially
assembled may be seriously damaged by light
winds. Call 1-800-851-1085
•Do not attempt to assemble the building on a
windyday,becausethe large panels acting as a
"sail",canbewhippedaboutbythewindmaking
construction difficult and unsafe.
SAFETY FIRST....
A4
safetyedge
safetyedge
sharpedge
sharpedge

Finish: For long lasting finish, periodically clean and wax the exterior surface. Touch-
up scratches as soon as you notice them on your unit. Immediately clean the area with
a wire brush; wash it and apply touch-up paint per manufacturer's recommendation.
Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy
amounts of snow on roof can damage building making it unsafe to enter. In snow country,
Roof Strengthening Kits are available for most Arrow Buildings for added protection
against heavy snow accumulation.
Doors: Always keep the door tracks clear of dirt and other debris that prevent them from
sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep
doors closed and locked to prevent wind damage.
Fasteners: Use all washers supplied to protect against weather infiltration and to protect
the metal from being scratched by screws.Regularly check your building for loose screws,
bolts, nuts, etc. and retighten them as necessary.
Moisture: A plastic sheet (vapor barrier) placed under the entire floor area with good
ventilation will reduce condensation.
Other Tips....
• Wash off inked part numbers on coated panels with soap and water.
• Silicone caulking may be used for watertight seals throughout the building.
Do not store swimming pool chemicals in your building. Combustibles and
corrosives must be stored in air tight approved containers.
Keep this Owner's Manual and Assembly Instructions for future reference.
5
CARE & MAINTENANCE....
A5 Web

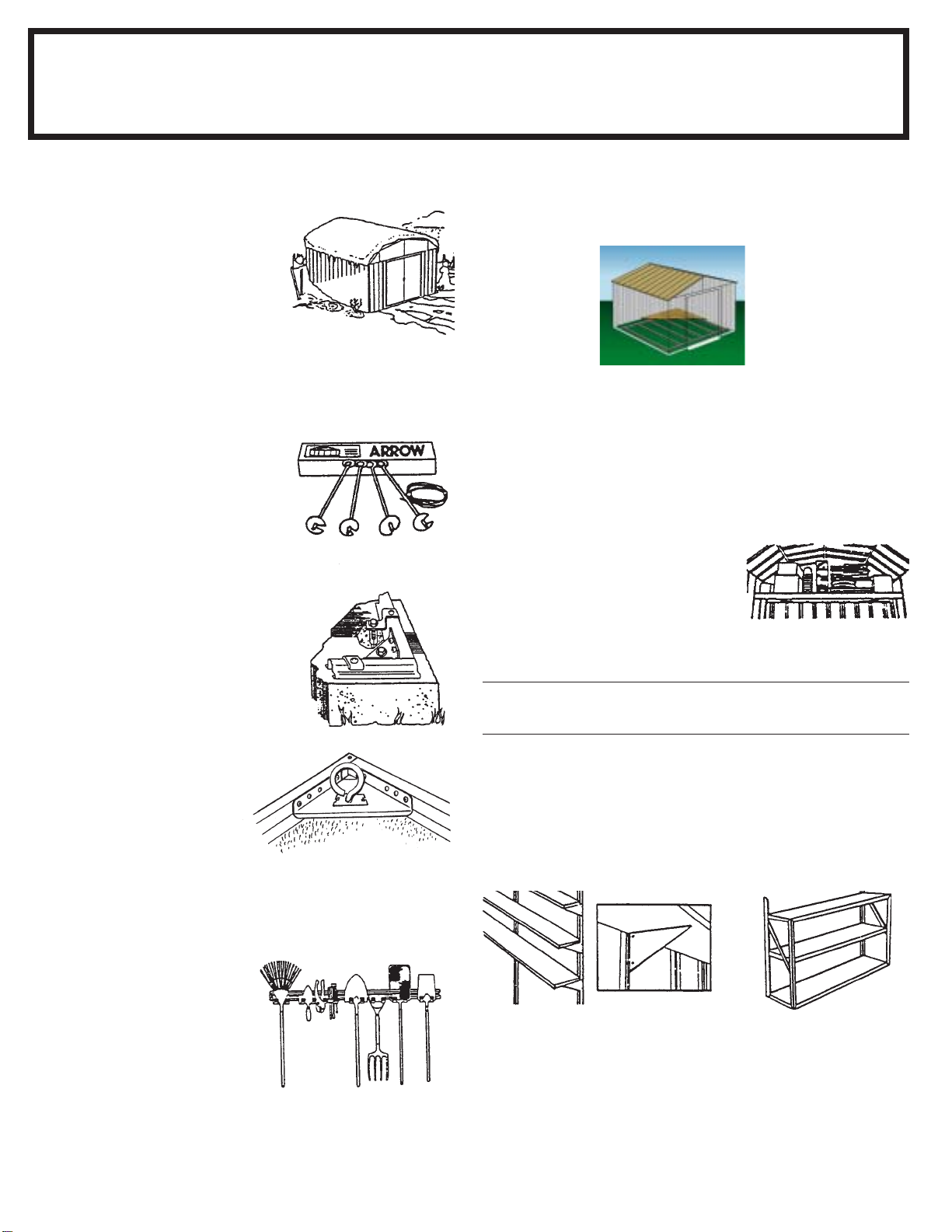

ACCESSORIES....
A6 WEB
6
* Some drilling required to fit buildings without mid-wall bracing.
ModelNo.SS404
• Makes 8" to 12" (20-30cm)
wide shelves in any length.
• Brackets, braces,
hardwareincluded.
Lumber is not included.
ModelNo.SS900-A
• Grey color
• 3 shelves
• Holds up to 85 lbs. (38kg)
(even weight distribution)
Heavy-duty, galvanized steel shelf units help organize storage
space. They easily mount on the wall or sit on the floor. Fits all
Arrowbuildings.*
SHELF UNITS
Must be drilled for use as workbench in Estator.
+ Even weight distribution.
10'Long,250lb.(113kg)load+
Fits all Arrow 10' wide buildings. 16 lbs. (7kg)
AT101
Model No. Fits ShippingWeight
ATTIC KIT / WORKBENCH KIT
Heavy-duty galvanized steel bars that
fit all 10' wide Arrow buildings. They
install quickly and easily to help
organizespaceandcreatemore
useable space as an attic or
workbench. Will hold up to 250 lbs.
(113kg)evenlydistributed.
Model No. AK100
New concrete anchor system permits
anchoringanysizeArrowbuilding
directly to a concrete slab. Each kit
containsheavy-duty,hot-dipped
galvanizedsteelcornergussets and
perimeter clips which fit over the floor
frame and lag bolt into a concrete slab.
Full assembly instructions and a 1/4"
masonarydrillbit are included.
TOOL HANGING RACK
Model No. TH100
Theperfecttool organizer.Twin
25 1/2" (65cm) steel channels
plus five heavy-duty snap-in
hangers and a small tool holder for
screwdrivers,pliers, etc. Holders
slide along channel for fully
adjustablespacing.Greatfor
garage,basement, or the back
of any door. Fits all Arrow
storagebuildings.
ROOF STRENGTHENING
(heavy snow load) KITS
Extraroofbeamsand gable braces
designedforaddedprotectionagainst
heavysnowaccumulation. Increases
the strength of your roof by 50%.
ANCHOR KITS
Model No. AK4
Anchor Kit contains heavy-duty steel
augers, 60' (18m) of steel cable and 4 cable
clamps.Nodigging or concrete
pouring,justinsert cable under roof,
over roof beams, into augers and twist
augersintotheground.Forbuildings
larger than 10'x9', use 2 kits.
FLOOR FRAME KITS
MODELSFB47410,FB5465,FB106-A
FB109-AandFB1014-A
Asimplenewfloorframesystemmadeofheavy-duty,hot-dipped
galvanizedsteel. Useasfoundationforplywood,sandorstone.
Model No. AK600
Earth Anchor Kit anchors any size
Arrowbuildingtotheground.
Each kit contains heavy duty,
hot-dippedgalvanizedsteel
cornergussetsand4earth anchors.

THIS
PAGE
WAS
LEFT
BLANK
INTENTIONALLY
7

THIS
PAGE
WAS
LEFT
BLANK
INTENTIONALLY
8

The Foundation For Your Building
9
FRONT
(DOOR)
FRONT
(DOOR)
Foundation
C09
Note:Finished Slabdimensions,with lumberremoved.
OPTION 1: ARROW FLOOR FRAME KIT: (Order No. FB5465)
Arrow has the best base for your building in this simple kit. It keeps stored items above the ground. This kit should be used with one
of the following:
A. To support a plywood deck B. To be filled with sand. We recommend the combined use of
1.anARROWFLOORFRAMEKITand2.anARROWANCHORINGKITasaneffectivemethodofsecuringthebuildingtotheground.
Allow 1 - 2 hours for construction.
OPTION 2: Wood Platform
If you decide to build your own foundation, be sure to select the appropriate materials.
Thesearetherecommendedmaterialsforyourfoundation:
●2 x 4's (5cm x 10cm) Pressure Treated Lumber ●5/8" (1,5cm) 4 x 8 (122cm x 244cm) Plywood-exterior grade
●10 & 4 penny Galvanized Nails ●Concrete Blocks (optional)
The platform should be level and flat (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
Toconstruct the foundationfollowinstructions and diagram.
Constructframe (using10 pennygalvanizednails)
Measure 16"/24" (40,6cm/61cm) sections to construct
insideframe(seediagram)
Secureplywoodto frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction.
OPTION 3: Concrete Slab
The slab should be at least 3" to 4" (8-10cm) thick. It must be level and flat to provide good support for the frame.
The following are the recommended materials for your foundation.
●1 x 4's (2,5cm x 10cm) (will be removed once the concrete cures)
●Concrete ●Sheet of 6 mil plastic
●We recommend for a proper strength concrete to use a mix of:
1 part cement ●3 parts pea sized gravel ●2 1/2 parts clean sand
PreparetheSite/ConstructaFoundation
1. Dig a square, 6" (15cm) deep into the ground (remove grass).
2. Fill up to 4" (10cm) in the square with gravel and tamp firm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 1x4 (2,5cm x 10cm)
lumber.
5. Pour in concrete to fill in the hole and the frame giving a
total of 4" (8-10cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for concrete curing time.
Note:Platform/Slab willextend 9/16"(1,4cm) beyondfloor
frame on all four sides. Seal this 9/16" of wood with a
roofing cement (not included), or bevel this 9/16" of
concretewhen pouring, for good waterdrainage.
74"
1,9m
16"/24"
40,6cm/61cm
57"
1,4m
74"
1,9m
57"
1,4m

It is important that the entire floor frame be anchored after the building is erected.
Belowarerecommendedwaysofanchoring.
Anchoring Down The Building
Anchoring
A10
ArrowAnchoringKit:(ModelNo.AK100or68383)
Recommendedforusewiththeconcretefoundation.
Contains:Cornergussets,perimeterclips,hardware,
1/4" masonary drill bit and installation instruction.
AnchoringintoConcrete:
1. For poured concrete slab or footing or patio blocks:
Use 1/4" x 2" Lag Screws.
2. For Anchor Post of Concrete poured after building is
erected: Use 1/4" x 6" Lag Screws.
ArrowAnchoringKit:(ModelNo.AK4or60298)
Recommendedforuse withanysuggestedbase.
Contains:4AnchorswithCable,Clampsand
installationinstruction.
AnchoringintoWood/Post:
Use 1/4" Wood Screws. There are 1/4" (0,63cm) dia.
holesprovidedin theframesforproperanchoring.
10
OVERTHEBEAMS
AND INTO THE GROUND
1. 2.
1. 2.

11
Removefrombagof screws
and save for the last step
67293
WeatherStripping(1)
66029
Plug (2)
(PackedwithScrews)
66382
LowerDoorGuide(4)
66242
Door Slide (4)
66183
Roof Trim Cap
(2 right & 2 left)
66045
Handle(2)
66646
Washer(181)
(5sheetsof40)
65109
#8-32AcornNut(6)
(PackedwithScrews)
67468
PeakCap(2)
(ArrowLogo)
65004
#8Ax5/16"Screw(176)
65923
#8-32x3/8"Bolt(57)
65900A
#10Bx1/2"BlackScrew(4)
(PackedwithScrews)
65103
#8-32HexNut(57)
Hardware
C11

12
Assembly Part Part Quantity Check
Key No. Number Description in Carton List
1 5964 Roof Beam 1
2 5982 Roof Angle 1
3 5996 Right Gable 2
4 5997 Left Gable 2
5 6015 Side RoofTrim 2
6 6442 Right Roof Panel 2
7 6443 Left Roof Panel 2
8 6632 Horizontal Door Brace 4
9 6657 Door Handle Brace 2
10 6658 Gable Brace 2
11 6869 RidgeCap 1
12 8995 Wall Panel (Rear) 2
13 9356 Right Door 1
14 9357 Left Door 1
15 9364 Wall Panel (Side) 2
16 9900 Door Jamb 2
17 9388 Front Corner Panel 2
18 9392 Rear Corner Panel 2
19 9396 Door Track 1
20 9397 RearWall Angle 1
21 9925 RearWallChannel 1
22 9399 Rear Floor Frame 1
23 9400 SideWall Angle 2
24 9926 SideWallChannel 2
25 9402 Side Floor Frame 2
26 9403 Front Floor Frame 1
Parts List
C12

13
Assembly by Key No.
C13

14
Step 1 ●Parts Needed For ●
Door TrackAssembly
The door track assembly supports
the sliding doors and reinforces the
front wall.
Hint: The holes in the top side of the
doortrackareforfasteningthegable
to the top of the front wall in a later
step.
1Positiondoorslidesontothelegs,
fromthe endof doortrack,as shown
in the end view.
NOTE: Flat side on top, pins and
holes must be oriented as shown.
2 Set this piece aside for later use.
●●
●●
●9396Door Track(1)
STEP
2
66242
LongLeg
onTop
ShortLeg
on Bottom
STEP
1
9396
ENDVIEW
66242
C14

1 Assemble the four corners of the
floor frame using two screws at each
cornerasshown.At the front corners
fasten bolts through from the bottom
with nuts on top.
2 Measure the floor frame diago-
nally. When the diagonal measure-
ments are equal, the floor frame is
square.
NOTE
If using a wood platform or
concrete slab do not fasten the
floor frames to your base at this
time. You will anchor the
building after it is erected.
NOTE
If you have purchased a Floor
Frame Kit you need to
install it at this time.
Step 2
C15
●Parts Needed For ●
Floor Frame ●●
●●
●9403 Front Floor Frame (1)
●●
●●
●9399 Rear Floor Frame (1)
●●
●●
●9402 Side Floor Frame (2)
15
The floor frame must be square
and level or holes will not align.
RIGHT
REAR
9399
9402
9403
STEP
2
STEP
1
FRONT
WhenDiagonalMeasurements
are Equal the Floor Frame
is Square
9402
9399
RIGHT
FRONT
9402
9403
9402
Level

1Positionfrontcornerpanelsatthe
corners of the floor frame as shown.
The widest part of each corner panel
mustbeplacedatthefrontofthebuild-
ing. Fasten the corner panels to the
floor frame with two screws.
2Positionrearcornerpanelsatrear
of building as shown. The widest part
of each corner panel must be placed
along side of the building. Fasten cor-
nerpanelstothefloorframeusingfour
screws.
NOTE
The wall panels come in two
widths. Each wall panel has a
crimped rib on one side. The
crimped rib should go under the
rib of the panel that follows it.
3Attach wall panelstothesides, as
shown.
NOTE
Be careful to install the correct
panel in each position as shown.
16
Theremainder ofthe buildingassembly
requiresmanyhoursandmore thanone
person. Do not continue beyond this point
if you do not have enough time to com-
plete the assembly today. A partially
assembledbuilding can beseverely
damagedby light winds.
NOTE
Each screw and bolt in the wall re-
quires a washer.
●Parts Needed For ●
Corners/Wall Panels
Step 3 ●●
●●
●9388 Front Corner Panel (2)
●●
●●
●9392Rear Corner Panel (2)
●●
●●
●9364 Wall Panel (2)
4 Double-check the part numbers of
the wall panels, before proceeding.
The floor frame must be square
and level or holes will not align.
FRONT
STEP
TOP VIEW
9392
SIDE
REAR
Narrow
Side
9388 9388
SIDE
WideSide
9392
1
STEP
2
SUPPORTTHECORNERPANEL
WITH A STEP LADDER UNTIL A
WALL PANEL IS ATTACHED.
9392
9364
9364 9392
9388
9388
Panels rest on
frameas shown
CrimpedRib
Underneath
Washer
STEP
3
C16

17
●●
●●
●9397 Rear Wall Angle (1)
●●
●●
●9925 Rear Wall Channel (1)
●●
●●
●9926 Side Wall Channel (2)
●●
●●
●9400 Side Wall Angle (2)
●●
●●
●DoorTrackAssembly (1)
●Parts Needed For ●
Frames
Step 4
Themainframepiecesgiverigidityto
the side walls and provide a surface
for attaching the gables which sup-
portthe roof.
1Fastentherearwallangleacross
the inside top of the rear wall using
screws.
2 Fasten the rear wall channel
across the middle of the rear wall
using screws.
3Fastenthesidewallanglesacross
the inside top of the side panels us-
ing screws. Side wall angles must
overlap rear wall angle in corners.
4 Fasten the side wall channels
across the middle of the side panels
usingscrews.Fastenoverlapsinrear
corners with screws.
5 Fasten the door track assembly
(holes on top) across the top of the
front wall panels using screws. See
thefigure.
STEP
9400
3
9397
9396
Bolt and nut
does not go thru
wallchannel
atoverlap
9925
Opening
Facingin
STEP
STEP
5
LongLeg
onTop
STEP
2
STEP
1
4
ShortLeg
on Bottom
9926
FRONT
WallAngles
Must Face
Inside
Building
DetailShowing
CenterofPanelScrewed
toWallChannel
DOORTRACKASSEMBLY
C17

18
●Parts Needed For ●
Wall Panels ●●
●●
●8995 Wall Panel (2)
1 Fasten the wall panels at the top
and bottom with screws.
2Fastenthecenterofeachpanelto
the wall channel with screws.
Fasten overlapping ribs as before.
Panels rest on
frameas shown
2
STEP
18995
STEP
CrimpedRib
Underneath
C18
Step 5

19
The door jambs reinforce the door
opening and provide an attractive
trim.Followthesestepsforbothdoor
jambs.
1 Fasten a door jamb to the front
panelwiththreebolts,nutsandacorn
nuts, as shown. Push a plug into
holeatcenterofjamb,closesttodoor
opening.
2Fastenthe topofthe doorjambto
the door track with two screws. Do
the same for the bottom into frame.
Repeatsteps1and2forthe opposite
door jamb.
Step 6 ●Parts Needed For ●●
●●
●
Door Jamb ●●
●●
●9900 Door Jamb (2)
9900
STEP
1
Plug
STEP
2
TOP VIEW
9900
DoorTrack
Plug
(3)bolts
Bolt
TOP VIEW
DoorTrack
Screw
Screw
C19
HexNut
AcornNut

20
1 Lift and fasten a right and left
gable, under angle at corner, to the
door track with screws.
2 Join the left and right gables
together with a gable brace using a
bolt in the bottom 2 holes.
Repeat Steps 1 & 2 for the opposite
side of building.
●●
●●
●5996 Right Gable (2)
●●
●●
●5997Left Gable (2)
●●
●●
●6658GableBrace(2)
●Parts Needed For ●
Gables/Braces
Step 7
Thegablesgoontopofthe front and
rear walls to support the roof beam.
NOTE
The gables are packed nested
together and might be mistaken
as one piece. Carefully separate
them before continuing.
STEP
1
5996
6658GableBrace
Gable
5997
5996
5997
STEP
2
C20
