Artec Avenue 50 User manual

BLOCK DIAGRAM
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT SAFETY INSTRUCTIONS
- DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY VENTILATION OPENINGS ON THIS APPARATUS.
- ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRICAL CODES
AND COMPATIBLE WITH VOLTAGE, POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF THE
APPARATUS.
- ONLY USE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED BY THE MANUFACTURER FOR SAFE
OPERATION AND TO AVOID INJURY.
- WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
- SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL.
- OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH
SOUND PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND
EAR PROTECTION IS RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME.
GAIN
GAIN
MIXER
GAINLEVEL
MIDDLEBASS TREBLE
REVERB
POWER
AMP***
CD / MP3 IN
REC OUT
/ PHONE
DRIVE
FOOT SW
MIDDLEBASS TREBLE TIME LEVEL
MASTER
VOLUME
SPEAKER
General
microphone
Preamp equipped
Acoustic guitar
Humbucker or
active pickup
Single pickup
Gain setting Drive setting Reverb setting
Heavy Metal
Blues O.D
Rock
Distortion
Crunch
Distortion
Reverb
Room reverb
Hall reverb
SETTING GUIDE
DC POWERED
STREET BAND
AMPLIFIER
GAIN MIDDLEBASS TREBLE

SPECIFICATION

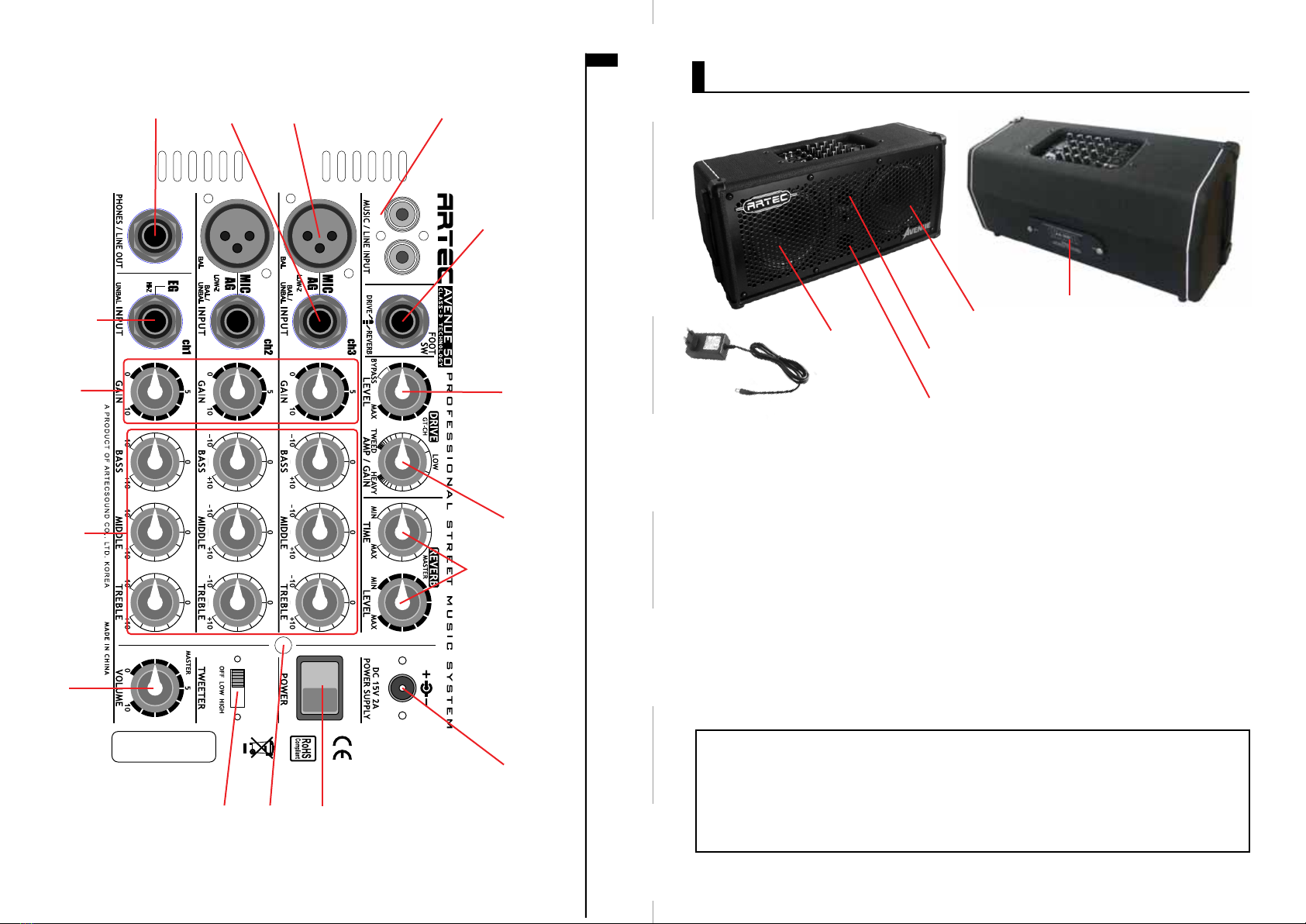

CONTROL PANEL
A PRODUCT OF ARTECSOUND CO., LTD. KOREA MADE IN CHINA
LEVEL of DRIVE EFFECT - 0~1 position : bypass - 2~10 position : drive level * for GT channel only
DUAL PREAMP CONTROL - 12 o’clock : minimum gain - turn to clockwise : heavy drive - turn to counterclockwise : tweed drive
Reverb time and level control * for MIC and GT channel
TWO WAY FOOT SWITCH
- tip : drive on/off - ring : reverb on/off * drive and reverb controls must be set to desired sound
DC POWER INLET * DC15V2A
regulated or SMPS only
CD / MP3 INPUT RCA-JACK
POWER SWITCH
POWER
INDICATOR
MASTER VOLUME
INPUT GAIN CONTROL
3 BAND EQUALIZER
GT channe l INPUT - for high impedance passive instruments
MIC channel BALANCED XLR INPUT (for MIC or ACOUSTIC GUITAR)
MIC channel BALANCED INPUT
REC OUT / PHONE JACK
8 inch speaker
1 inch tweeter
Bass reflex hole
Battery Holder
use ten AA size
alkaline or rechargeable
DIMENSION : L560 x D230 x H270 (mm)
WEIGHT : 8.9KG (without Battery & P.S.)
SPEAKER : 2 x 8 inch LF
OUTPUT : 50 watts music power
DC POWER : Max 2A @ 15V
FREQUENCY RANGE : 60Hz ~ 8kHz
BATTERY LIFETIME : avg 5~6 hours (Alkaline)
EQ (Both ch)
Bass frequency : 180Hz peak
Bass gain : -10dB ~ +10dB
Middle frequency : 900Hz
Middle gain : -10dB ~ +10dB
Treble frequency : 2KHz pak
Treble gain : -10dB ~ +10dB
MIC CH
LOW-Z BALANCE XLR
Max input level : +10dBV
Max gain : 60dB
LOW-Z (10kohm)
BAL / UNBAL INPUT
Max input level : +10dBV
Max gain : 60dB
GT CH
HI-Z (500kohm)
UNBALANCE INPUT
Max input level : +8dBV
Max gain : 70dB
(for passive instrument)
TWEETER ATTENUATOR SWITCH
8 inch speaker
Power Adaptor (included)
