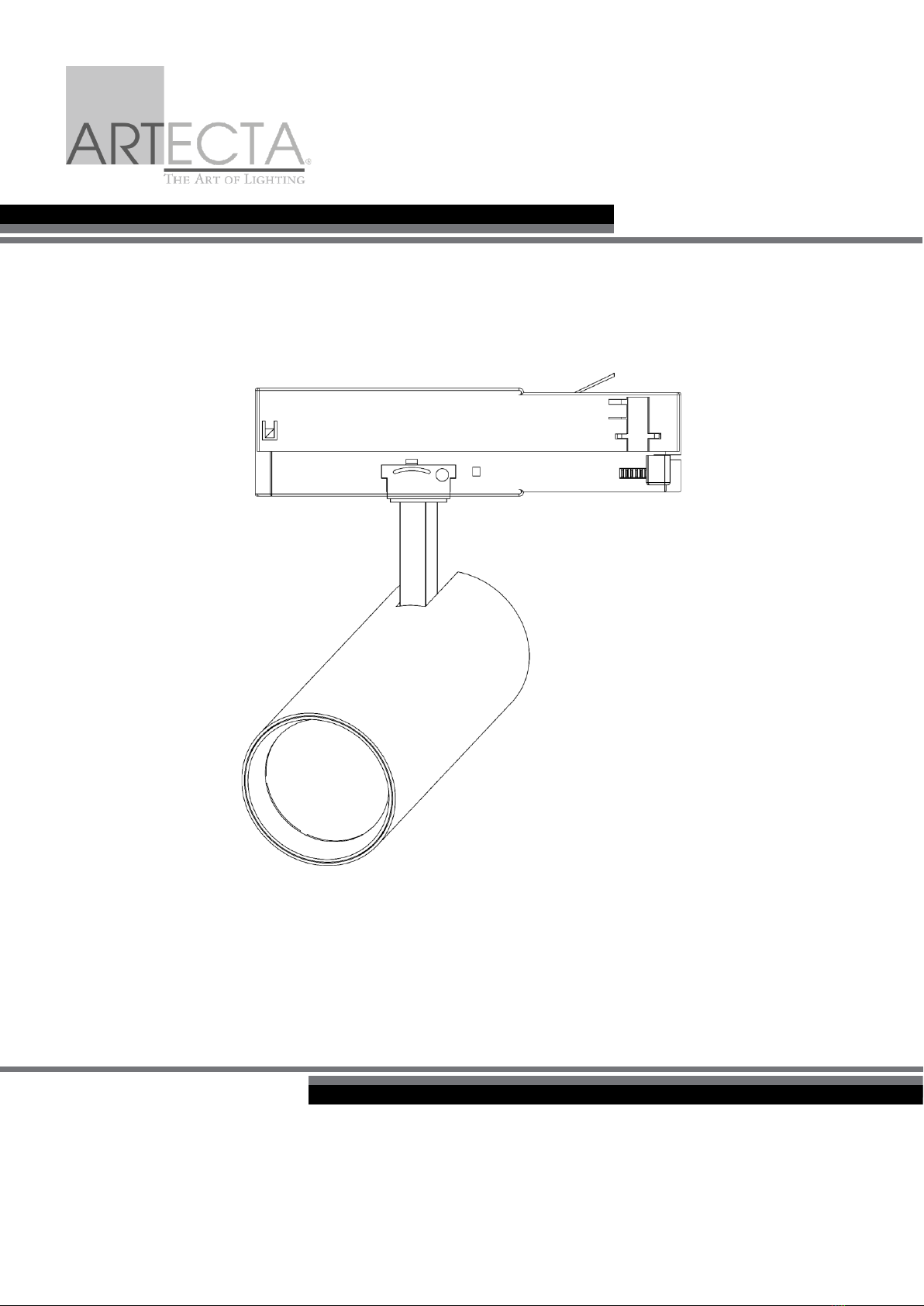

Artecta New Port 15W CCT 38 V1 User manual

New Port 15W CCT 38°
Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands
Product code: A0320200 –Black housing
A0320201 –White housing
USER MANUAL
ENGLISH
V1

1
New Port 15W CCT 38°
Product code: A0320200/A0320201
Preface
Thank you for purchasing this Artecta product.
The purpose of this user manual is to provide instructions for the correct and safe use of this product.
Keep the user manual for future reference as it is an integral part of the product. The user manual shall be
stored at an easily accessible location.
This user manual contains information concerning:
●Safety instructions
●Intended and non-intended use of the device
●Installation and operation of the device
●Maintenance procedures
●Troubleshooting
●Transport, storage and disposal of the device
Non-observance of the instructions in this user manual may result in serious injuries and damage of
property.
©2021 Artecta. All rights reserved.
No part of this document may be copied, published or otherwise reproduced without the prior written
consent of Highlite International.
Design and product specifications are subject to change without prior notice.
For the latest version of this document or other language versions, please visit our website
www.highlite.com or contact us at [email protected]om.
Highlite International and its authorized service providers are not liable for any injury, damage, direct or
indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or
reliance on the information contained in this document.

2
New Port 15W CCT 38°
Product code: A0320200/A0320201
Table of contents
1. Introduction..........................................................................................................................................................3
Before Using the Product ..................................................................................................................................3
Intended Use .......................................................................................................................................................3
LEDs Lifespan .......................................................................................................................................................3
Text Conventions ................................................................................................................................................3
Symbols and Signal Words................................................................................................................................4
Symbols on the Information Label ..................................................................................................................4
2. Safety ....................................................................................................................................................................4
Warnings and Safety Instructions ....................................................................................................................4
Requirements for the User.................................................................................................................................5
3. Description of the Device ...................................................................................................................................6
View and Dimensions ........................................................................................................................................6
Product Specifications ......................................................................................................................................7
Dimensions...........................................................................................................................................................8
4. Installation and Deinstallation ...........................................................................................................................9
Safety Instructions...............................................................................................................................................9
Personal Protective Equipment .......................................................................................................................9
Installation Site Requirements ..........................................................................................................................9
Mounting..............................................................................................................................................................9
Dismounting.......................................................................................................................................................11

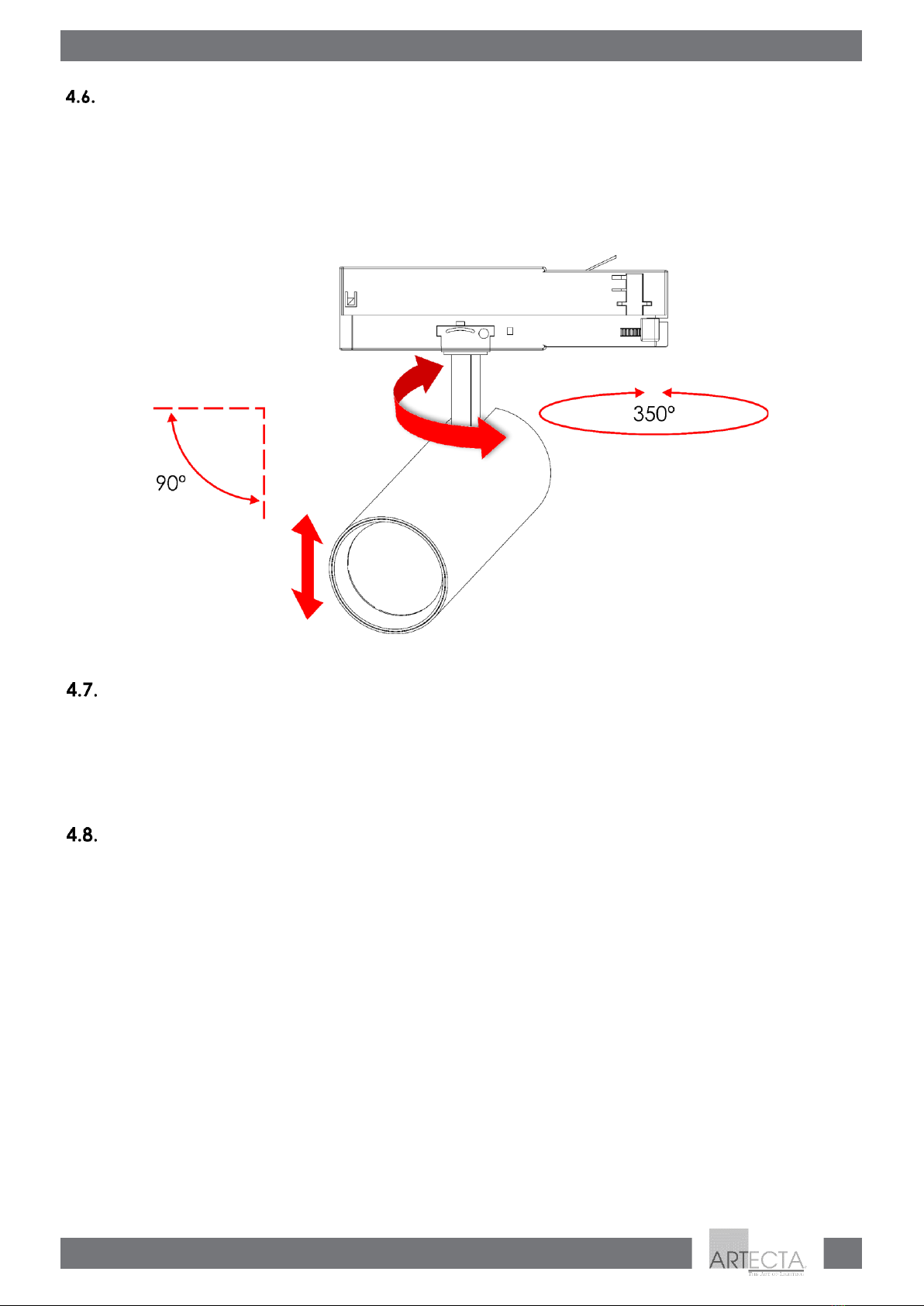

Direction Adjustment .......................................................................................................................................12
Connecting to Power Supply.........................................................................................................................12
Color Temperature Adjustment.....................................................................................................................12
5. Troubleshooting .................................................................................................................................................13
6. Maintenance .....................................................................................................................................................13
Preventive Maintenance................................................................................................................................13
Basic Cleaning Instructions .......................................................................................................................13
Corrective Maintenance................................................................................................................................13
7. Transportation and Storage..............................................................................................................................14
Instructions for Transportation ........................................................................................................................14
Storage...............................................................................................................................................................14
8. Disposal ..............................................................................................................................................................14
9. Approval.............................................................................................................................................................14

3
New Port 15W CCT 38°
Product code: A0320200/A0320201
1. Introduction
Before Using the Product
Important
Read and follow the instructions in this user manual before installing, operating or
servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual.
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your
Highlite International dealer.
Your shipment includes:
●Artecta New Port 15W CCT 38°
(including track adapter)
●User manual
Fig. 01
Intended Use
This device is intended for use as an architectural light spot. It is suitable for indoor installation in
commercial and residential buildings. This device is suitable for household illumination.
Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.
LEDs Lifespan
The light output of the LEDs gradually decreases over time (lumen depreciation). High operating
temperatures contribute to this process. You can extend the lifespan of the LEDs by providing adequate
ventilation and operating the LEDs at the lowest possible brightness.
Text Conventions
Throughout the user manual the following text conventions are used:
●References: References to chapters and parts of the device are in bold lettering, for example:
“Refer to 2. Safety”, “turn the adjustment handle (05)”
●Notes: Note: (in bold lettering) is followed by useful information or tips

4
New Port 15W CCT 38°
Product code: A0320200/A0320201
Symbols and Signal Words
Safety notes and warnings are indicated throughout the user manual by safety signs.
Always follow the instructions provided in this user manual.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
Attention
Indicates important information for the correct operation and use of the
product.
Important
Read and observe the instructions in this document.
Provides important information about the disposal of this product.
Symbols on the Information Label
This product is provided with 2 information labels. One information label is located on the back side of the
track head. The other information label is located on the side of the track adapter.
The information labels contain the following symbols:
This device is designed for indoor use.
Independent controlgear
This device shall not be treated as
household waste.
SELV controlgear, short-circuit proof
2. Safety
Important
Read and follow the instructions in this user manual before installing, operating or
servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual.
Warnings and Safety Instructions
DANGER
Danger for children
For adult use only. The device must be installed beyond the reach of children.
●Do not leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within
children’s reach. Packaging material is a potential source of danger for children.

5
New Port 15W CCT 38°
Product code: A0320200/A0320201
Attention
Power supply
Before connecting the device to the power supply, make sure that the current, voltage and frequency
match the input voltage, current and frequency specified on the information label on the device.
Attention
General safety
●Do not shake the device. Avoid brute force when installing or operating the device.
●If the device fails to work properly, discontinue the use immediately.
Attention
This device shall be used only for the purposes it is designed for.
This device is intended for use as an architectural light spot. It is suitable for indoor installation in
commercial and residential buildings. This device is suitable for household illumination.
This device does not contain user-serviceable parts. Unauthorized modifications to the device will render
the warranty void. Such modifications may result in injuries and material damage.
Attention
Before use, examine the device visually for any defects.
Attention
Do not expose the device to conditions that exceed the rated IP class conditions.
This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater
than 12 mm, such as fingers, and no protection against harmful ingress of water.
Requirements for the User
This product may be used by ordinary persons. Maintenance may be carried by ordinary persons.
Installation and service shall be carried out only by instructed or skilled persons. Contact your Highlite
dealer for more information.
Instructed persons have been instructed and trained by a skilled person, or are supervised by a skilled
person, for specific tasks and work activities associated with the installation, service and maintenance of
this product, so that they can identify risks and take precautions to avoid them.
Skilled persons have training or experience, which enables them to recognize risks and to avoid hazards
associated with the installation, service and maintenance of this product.
Ordinary persons are all persons other than instructed persons and skilled persons. Ordinary persons
include not only users of the product but also any other persons that may have access to the device or
who may be in the vicinity of the device.

6
New Port 15W CCT 38°
Product code: A0320200/A0320201
3. Description of the Device
The Artecta New Port 15W CCT 38° is a compact LED spot suitable for indoor installation in shops,
exhibition halls, showrooms and similar venues. It features 3 selectable pre-defined color temperatures:
warm white (2700 K), neutral white (4000 K), and cold white (6000 K). The LED spot can be dimmed with
an external dimmer.
The device is equipped with a 3-phase track adapter. The 3-phase track adapter is compatible with the
Artecta 3-phase track systems and with the most 3-phase tracks available on the market.

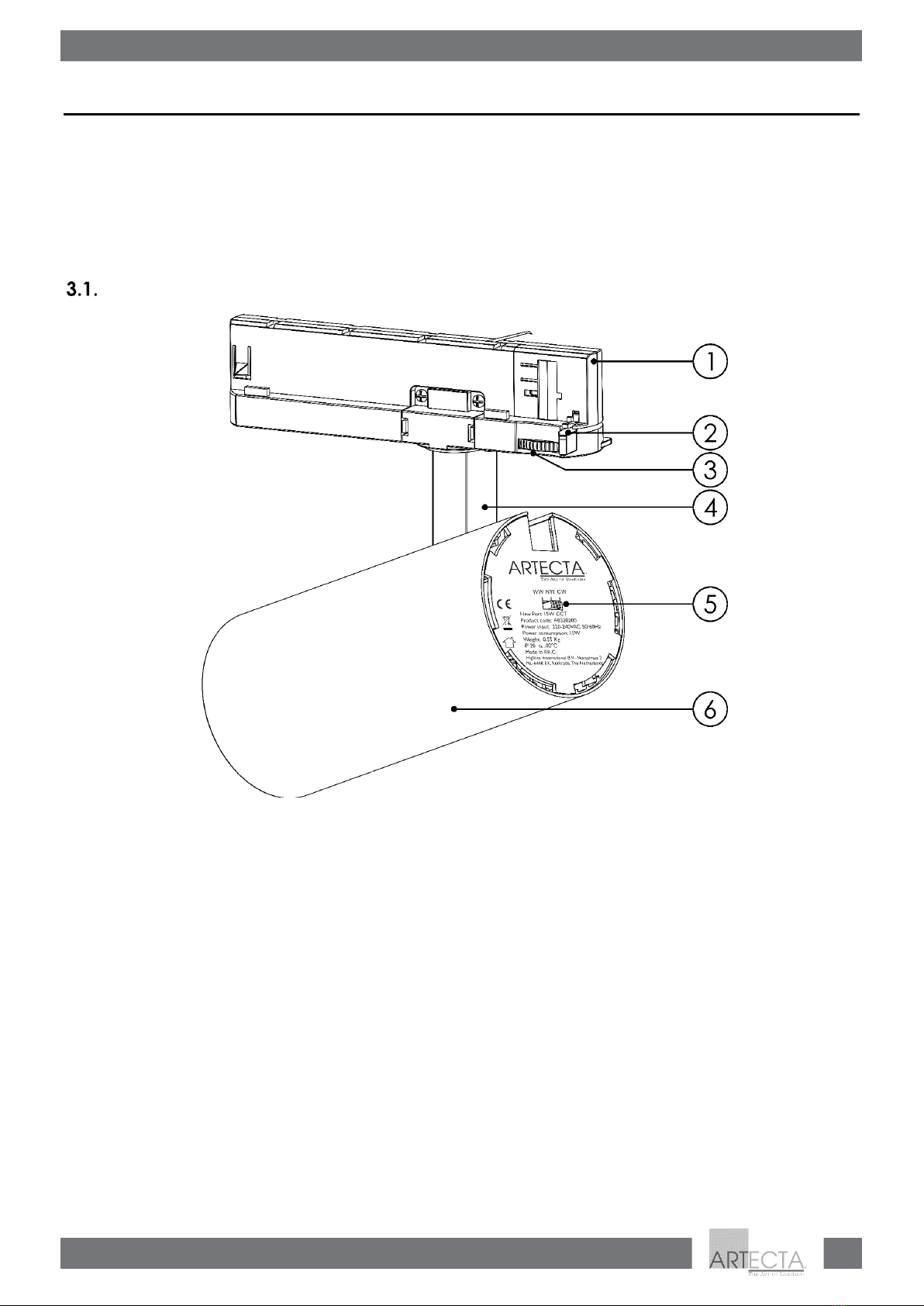

View and Dimensions
Fig. 02
01) Track adapter
02) Track lock
03) Circuit selector (0, 1, 2 and 3)
04) Pivot connector
05) Color temperature selector (WW, NW, CW)
06) Track head

7
New Port 15W CCT 38°
Product code: A0320200/A0320201
Product Specifications
Model:
Artecta New Port 15W CCT 38°
Electrical:
Input voltage:
220–240 V AC, 50/60 Hz
Power consumption:
15 W (at full output)
PFC:
0,94
Physical:
Dimensions:
240 x 189 x 62 mm (L x W x H) (with the track adapter)
Weight:
0,57 kg (with the track adapter)
Track adapter:
Input voltage:
220–240 V AC, 50/60 Hz
Input current max:
0,08 A
Protection class:
II
Output voltage:
16–40 V DC
Output voltage max:
60 V DC
Output current max:
0,35 A
Type output:
SELV
Phases:
3
Optics:
Light source:
15 W COB LED, non-replaceable
Dimmer:
External, TRIAC type
Beam angle:
38°
Luminous flux:
940 lm @ 2700 K
1050 lm @ 4000 K
1080 lm @ 6000 K
CCT (selectable):
WW –2700 K
NW –4000 K
CW –6000 K
CRI:
94
Movement:
Tilt range:
0–90°
Turning range:
0–350°
Construction:
Housing:
Aluminum
Color:
A0320200 –Black
A0320201 –White
IP rating:
IP20
Finish:
Powder coated
Thermal:
Maximum ambient temperature ta:
40 °C
Minimum ambient temperature:
-20 °C
Minimum distance:
Minimum distance from flammable surfaces:
0,5 m
Minimum distance to lighted object:
0,5 m

8
New Port 15W CCT 38°
Product code: A0320200/A0320201

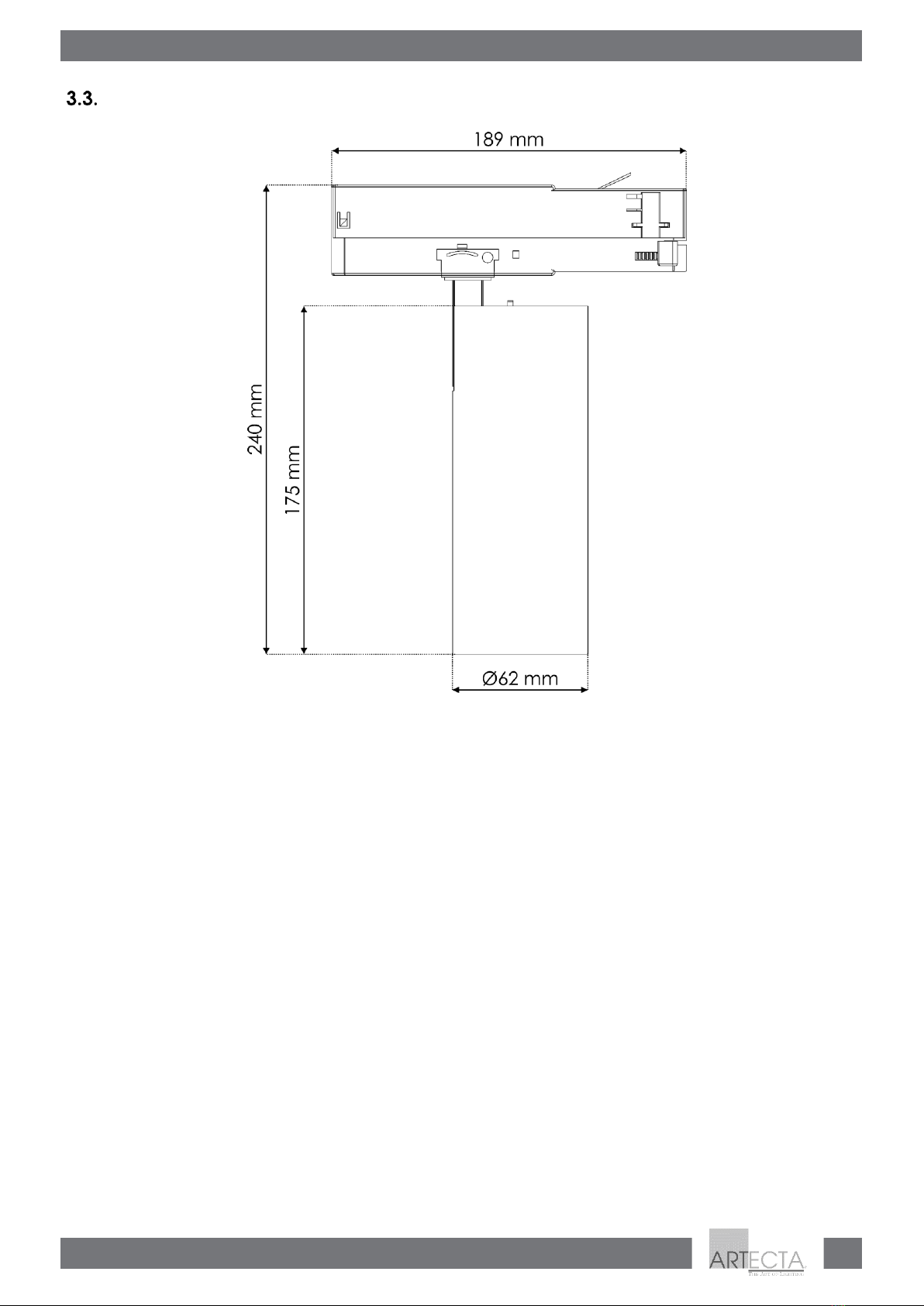

Dimensions
Fig. 03

9
New Port 15W CCT 38°
Product code: A0320200/A0320201

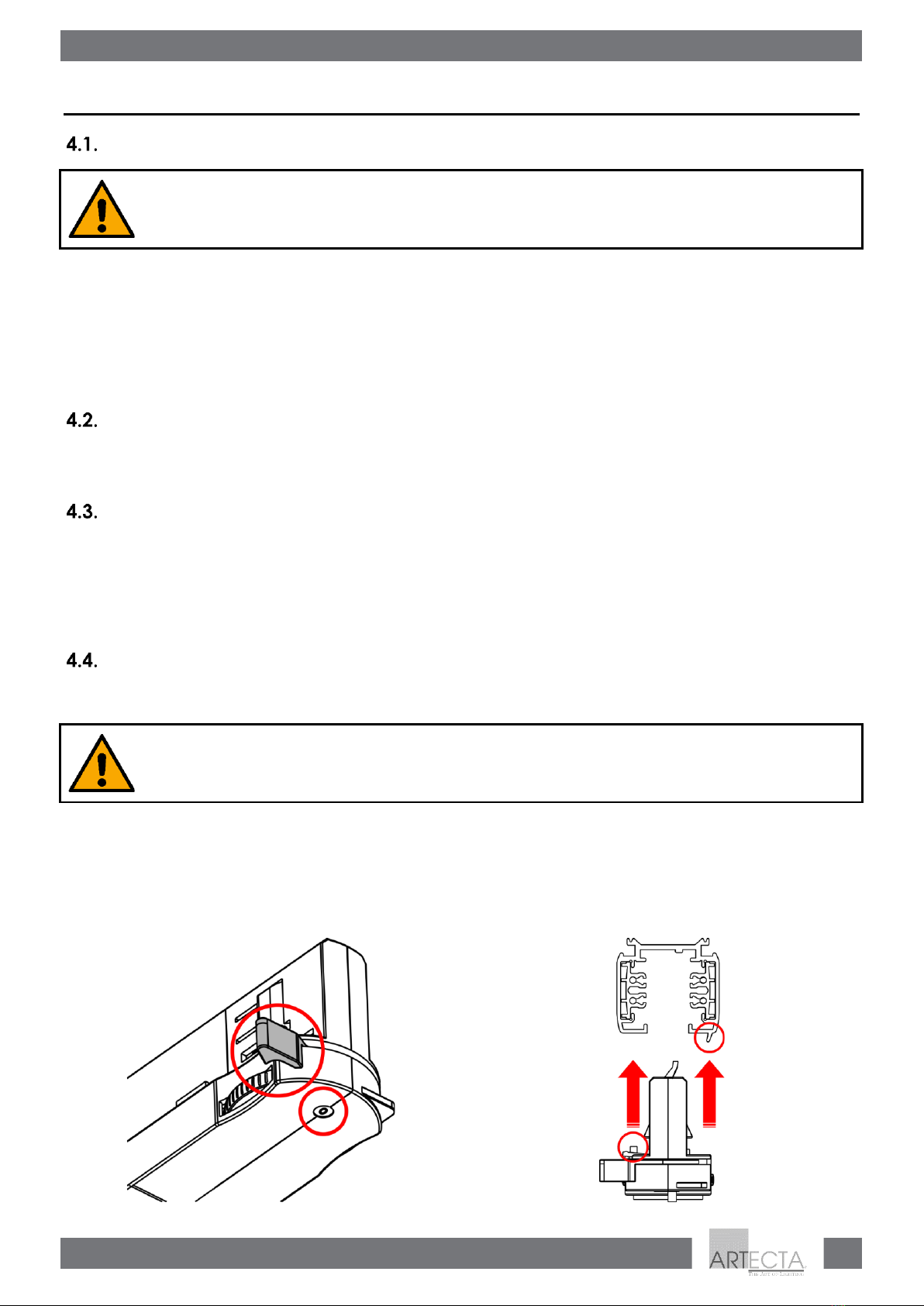

4. Installation and Deinstallation
Safety Instructions
WARNING
Incorrect installation and deinstallation can cause serious injuries and damage of
property.
Installation and deinstallation of the device must be carried out only by instructed or skilled persons.
Follow all applicable European, national and local safety regulations concerning electrical installations in
buildings and working at heights.
Before installing or deinstalling the device make sure that the track system is disconnected from power
supply.
Personal Protective Equipment
During installation and deinstallation wear personal protective equipment in compliance with the
national and site-specific regulations.
Installation Site Requirements
●The device can be used only indoors.
●The device can be mounted only to a 3-phase track system.
●The minimum distance to other objects must be bigger than 0,5 m.
●The maximum ambient temperature ta= 40 °C must never be exceeded.
●The relative humidity must not exceed 50 % with an ambient temperature of 40 °C
Mounting
The device can be mounted only to a 3-phase track system.
CAUTION
Restrict the access under the work area during mounting.
To mount the device, follow the steps below:
01) Disconnect the track system from the power supply.
02) Make sure that the circuit selector (03) is in OFF position (0) and the track lock (02) is in unlocked
position, as shown in Fig. 04.
03) Align the flange of the track adapter (01) with the track, as shown in Fig. 05.
Fig. 04
Fig. 05

10
New Port 15W CCT 38°
Product code: A0320200/A0320201
04) Insert the track adapter (01) in the track and push it until it snaps into place.
05) Turn the track lock (02) clockwise to lock the device in the track, as shown in Fig. 07.
Fig. 06
Fig. 07
06) Select the circuit with the circuit selector (03). You can select 1-, 2- and 3-phase circuit, as shown in
Fig. 08.
Attention
Do not slide the track adapter in the track to adjust the position of the device (see Fig. 09). This can
damage the connectors. Remove the device from the track and install it at the new place. For more
information on how to remove the device from the track, refer to 4.5. Dismounting on page 11.
Fig. 08
Fig. 09

11
New Port 15W CCT 38°
Product code: A0320200/A0320201
Dismounting
CAUTION
Restrict the access under the work area during dismounting.
To dismount the device, follow the steps below:
01) Disconnect the track system from the power
supply.
02) Let the device cool down before dismounting.
03) Set the circuit selector (03) in OFF position (0),
as shown in Fig. 10.
Fig. 10
04) Turn the track lock (02) counterclockwise to unlock the device (see Fig. 11).
05) Pull the track adapter (01) from the track (see Fig. 12).
Fig. 11
Fig. 12

12
New Port 15W CCT 38°
Product code: A0320200/A0320201
Direction Adjustment
To adjust the angle of the device and the direction of the beam:
●Move the track head (06) around the pivot connector (04) to adjust the vertical position of the track
head (06). The adjustment range is 0–90°.
●Turn the track head (06) around the pivot connector (04) to adjust the horizontal position of the track
head (06). The adjustment range is 0–350°.
Fig. 13
Connecting to Power Supply
This device is suitable for mounting only to a 3-phase track system. The device is connected to power
supply when it is mounted to the track system.
Before installing or deinstalling the device make sure that the track system is disconnected from power
supply.
Color Temperature Adjustment
You can adjust the color temperature of the LEDs.
Set the color temperature selector (05)to one of the following positions:
●CW (cold white) position –for a predefined color temperature of 6000 K
●NW (neutral white) position –for a predefined color temperature of 4000 K
●WW (warm white) position –for a predefined color temperature of 2700 K

13
New Port 15W CCT 38°
Product code: A0320200/A0320201
5. Troubleshooting
This troubleshooting guide contains solutions to problems which can be carried out by an ordinary
person. The device does not contain user-serviceable parts.
Unauthorized modifications to the device will render the warranty void. Such modifications may result in
injuries and material damage.
Refer servicing to instructed or skilled persons. Contact your Highlite International dealer in case the
solution is not described in the table.
Problem
Probable cause(s)
Solution
The device does not
function
No power to the device
●Check if the track system is connected
to the power supply
LEDs are damaged
●Disconnect the device and contact
your Highlite International dealer. The
light source is not replaceable.
No light or LEDs cut
out intermittently
The power supply settings do not
match local AC voltage and
frequency
●Disconnect the device. Check the
settings and correct, if necessary
6. Maintenance
Preventive Maintenance
Attention
Before use, examine the device visually for any defects.
Basic Cleaning Instructions
To clean the device, follow the steps below:
Disconnect the device from the electrical power supply.
Allow the device to cool down for at least 15 minutes.
03) Remove the dust collected on the external surface with dry compressed air and a soft brush.
Attention
●Do not immerse the device in liquid.
●Do not use alcohol or solvents.
Corrective Maintenance
The light source is not replaceable.
The device does not contain user-serviceable parts. Do not open the device and do not modify the
device.
Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for
more information.

14
New Port 15W CCT 38°
Product code: A0320200/A0320201
7. Transportation and Storage
Instructions for Transportation
●Use the original packaging to transport the device, if possible.
●Always observe the handling instructions printed on the outer carton box, for example: “Handle with
care”, “This side up”, “Fragile”.
Storage
●Clean the device before storing. Follow the cleaning instructions in chapter 6.1.1. Basic Cleaning
Instructions on page 13.
●Store the device in the original packaging, if possible.
8. Disposal
Correct disposal of this product
Waste Electrical and Electronic Equipment
This symbol on the product, its packaging or documents indicates that the product
shall not be treated as household waste. Dispose of this product by handing it to the
respective collection point for recycling of electrical and electronic equipment. This is
to avoid environmental damage or personal injury due to uncontrolled waste
disposal. For more detailed information about recycling of this product contact the
local authorities or the authorized dealer.
9. Approval
Check the respective product page on the website of Highlite International
(www.highlite.com) for an available declaration of conformity.

©2021 Artecta
