Arthrex AR-3200-0020 User manual

950-0073-00, Rev. B English
950-0073-00 B SM, English, Arthrex Synergy UHD4 System 1 of 74
SynergyUHD4 System
Service Manual
AR-3200-0020
AR-3200-0021
AR-3210-0018
AR-3210-0021
AR-3210-0022
AR-3210-0023
AR-3210-0025
AR-3210-0026
AR-3210-0028
AR-3210-0029
AR-3210-0030
The Arthrex SynergyUHD4 System Camera Control Unit and
Camera Head Service Manual provides important information
for the safe operation and service of all components of the
SynergyUHD4 Camera System, including accessories. Read
this Service Manual thoroughly prior to using this system and
keep it in an easily accessible place for use by all operating
personnel. Read and follow all safety warnings, cautions and
precautions.
Arthrex, Inc.
1370 Creekside Blvd.
Naples, FL 34108, USA
[phone]
Technical Support
1-888-420-9393
EC
REP
Arthrex GmbH
Erwin-Hielscher-Strasse 9
81249 München, Germany
[phone]

950-0073-00 B SM, English, Arthrex Synergy UHD4 System 2 of 74
This is not a warranty document. For all warranty information, including disclaimers,
exclusions, terms, conditions and related provisions, refer to the "Arthrex U.S. Product
Warranty" section of the Arthrex, Inc. website, found at www.arthrex.com whose
provisions are incorporated herein by reference.

950-0073-00 B SM, English, Arthrex Synergy UHD4 System 3 of 74
Table of Contents
1.0 Introduction 5
1.1 Intended Use................................................................................................................................. 5
1.2 Contraindications.......................................................................................................................... 5
1.3 Warnings and Precautions ............................................................................................................ 5
1.4 Symbol Definitions ...................................................................................................................... 11
1.5 End of Life, Environmental Directives......................................................................................... 13
1.6 Initial Use of the Device .............................................................................................................. 13
1.7 Unpacking and Inspecting the Device......................................................................................... 14
1.8 Returning the Device .................................................................................................................. 14
1.9 System Indicators........................................................................................................................ 15
2.0 System Installation and Operation with Data Input Device 20
2.1 Installation .................................................................................................................................. 20
2.2 Accessories for Intended Use...................................................................................................... 22
2.3 System Setup Facility and Surgeon Settings ............................................................................... 24
2.4 Scheduling and Starting Cases .................................................................................................... 33
2.5 System Operation without Tablet Data Input Device .................................................................40
3.0 Theory of Operation 42
3.1 SCOPE.......................................................................................................................................... 43
3.2 GENERAL DESIGN GOALS ............................................................................................................ 43
3.3 CAMERA CONTROL UNIT............................................................................................................. 44
3.4 MOTHERBOARD .......................................................................................................................... 46
3.5 ISOLATION BOARD ...................................................................................................................... 46
3.6 CAMERA HEAD ............................................................................................................................ 47
3.7 PROGRAMMING.......................................................................................................................... 49
4.0 Maintenance 50
4.1 Life Expectancy............................................................................................................................ 50
4.2 Periodic Maintenance ................................................................................................................. 50
4.3 Cleaning and Sterilizing............................................................................................................... 50
4.4 Troubleshooting.......................................................................................................................... 54
4.5 Recommended Annual Camera Control Unit Maintenance Requirements ............................... 56
4.6 Replacement of the Lithium Battery........................................................................................... 56

950-0073-00 B SM, English, Arthrex Synergy UHD4 System 4 of 74
5.0 Troubleshooting (Tests) 57
5.1 Procedure.................................................................................................................................... 57
6.0 Technical Information 61
7.0 APPENDIX [Radio Module Information] 66
8.0 APPENDIX [Detailed EMC Information] 67
9.0 APPENDIX [SW Version access]72

950-0073-00 B SM, English, Arthrex Synergy UHD4 System 5 of 74
1.0 Introduction
It is recommended that personnel study this
manual before attempting to operate, clean,
troubleshoot and/or sterilize the Arthrex
SynergyUHD4 System and accessories. The
safe and effective use of this equipment
requires the understanding of and
compliance with all warnings, precautionary
notices, and instructions marked on the
product, and included in this manual.
The Arthrex SynergyUHD4 System is
comprised of:
AR-3200-0020 [SynergyUHD4 Console
with Matrix]
AR-3200-0021 [SynergyUHD4 Console]

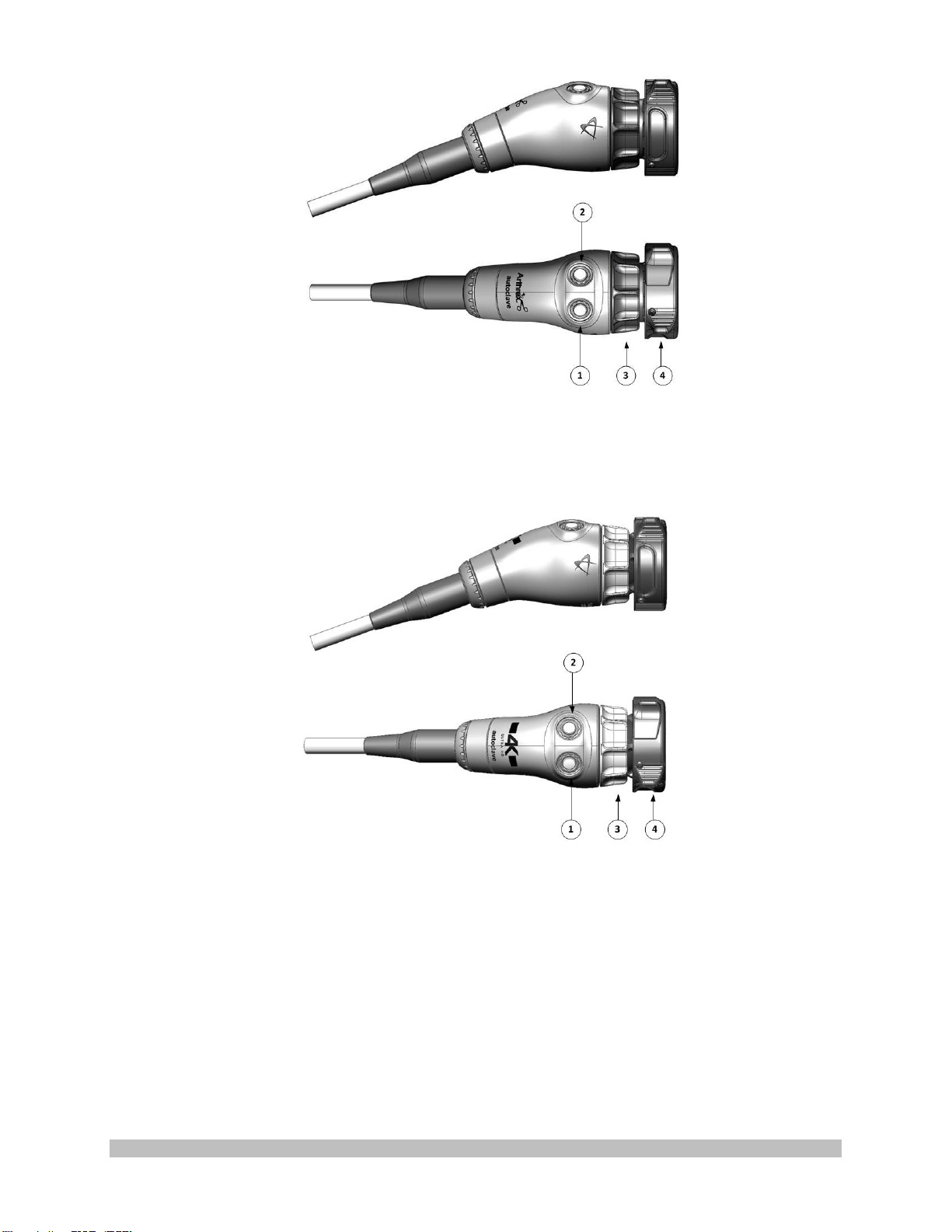

AR-3210-0018 [HD, SynergyUHD4
Camera Head, autoclavable]
AR-3210-0021 [HD SynergyUHD4 C-
Mount Camera Head, autoclavable]
AR-3210-0022 [HD SynergyUHD4 C-
Mount Camera Head, 0 Degree,
autoclavable]
AR-3210-0023 [4K SynergyUHD4
Camera Head, autoclavable]
AR-3210-0025 [4K SynergyUHD4 C-
Mount Camera Head, autoclavable]
AR-3210-0026 [4K SynergyUHD4 C-
Mount Camera Head, 0 Degree,
autoclavable]
AR-3210-0028 [4K SynergyUHD4 C-
Mount w/20 foot cable, autoclavable]
AR-3210-0029 [4K SynergyUHD4
Broadband Camera Head, Autoclavable]
AR-3210-0030 [4K SynergyUHD4 C-
mount Broadband Camera Head,
Autoclavable]
NOTE: the AR-3200-0020 SynergyUHD4
Console is identical to the AR-3200-0021
except that the AR-3200-0020 SynergyUHD4
incorporates the Matrix PWA for transmission
of UHD4 data by fiber optic.
1.1 Intended Use
This system is designed for use by
physicians and surgeons and is intended for
endoscopic camera use in a variety of
endoscopic surgical procedures, including
but not limited to, orthopedic, laparoscopic,
urologic, sinuscopic and plastic surgical
procedures. It is also intended to be used as
an accessory for microscopic surgery.
1.2 Contraindications
Do not use the device if endoscopic surgery
is contraindicated.
Do not use the device if the environmental
conditions for use do not meet the standards
or regulations defined in the accompanying
documents.
1.3 Warnings and Precautions
The words WARNING, PRECAUTION, and
NOTE carry special meanings and they should
be read carefully.
WARNING: The safety and/or health of
the patient, user, or a third party are at
risk. Comply with this warning to avoid
injury to the patient, user, or third party.
PRECAUTION: This contains
information concerning the intended
use of the device or accessory.
Damage to the equipment is possible if
these instructions are not followed.
NOTE: A note is added to provide additional,
focused, information.
1.3.1 WARNINGS
This equipment is designed for use
by medical professionals completely
familiar with the required techniques
and instructions for use of the
equipment. Prior to using the device,
read and follow all warning and
precautionary notices and
instructions marked on the product
and included in this manual. Become
familiar with the operation and
function of this device and
associated accessories. Failure to
follow these instructions can lead to:
Life-threatening injuries to the patient
