ES1231.1-A
ETK Interface Board
User’s Guide
ES1231_1-ug-en.book Seite 1 Montag, 12. Mai 2003 12:37 12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ES1231.1-A ETK Interface Board2
Copyright
The data in this document may not be altered or amended without special
notification from ETAS GmbH. ETAS GmbH undertakes no further obligation in
relation to this document. The software described in it can only be used if the
customer is in possession of a general license agreement or single license.
Using and copying is only allowed in concurrence with the specifications stip-
ulated in the contract.
Under no circumstances may any part of this document be copied, repro-
duced, transmitted, stored in a retrieval system or translated into another lan-
guage without the express written permission of ETAS GmbH.
© Copyright 2002 ETAS GmbH, Stuttgart
The names and designations used in this document are trademarks or brands
belonging to the respective owners.
Document QH101301 R1.0.2 EN TTN F 00K 103 015
ES1231_1-ug-en.book Seite 2 Montag, 12. Mai 2003 12:37 12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Contents 3
Contents
1Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2Setup Hints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1 Recommended Layout when using Several ETK Interfaces . . . . . . . . . . . . . 9
2.2 Parameterizing the Hardware Configuration (HWC) . . . . . . . . . . . . . . . . . 10
3Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1 VMEbus Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

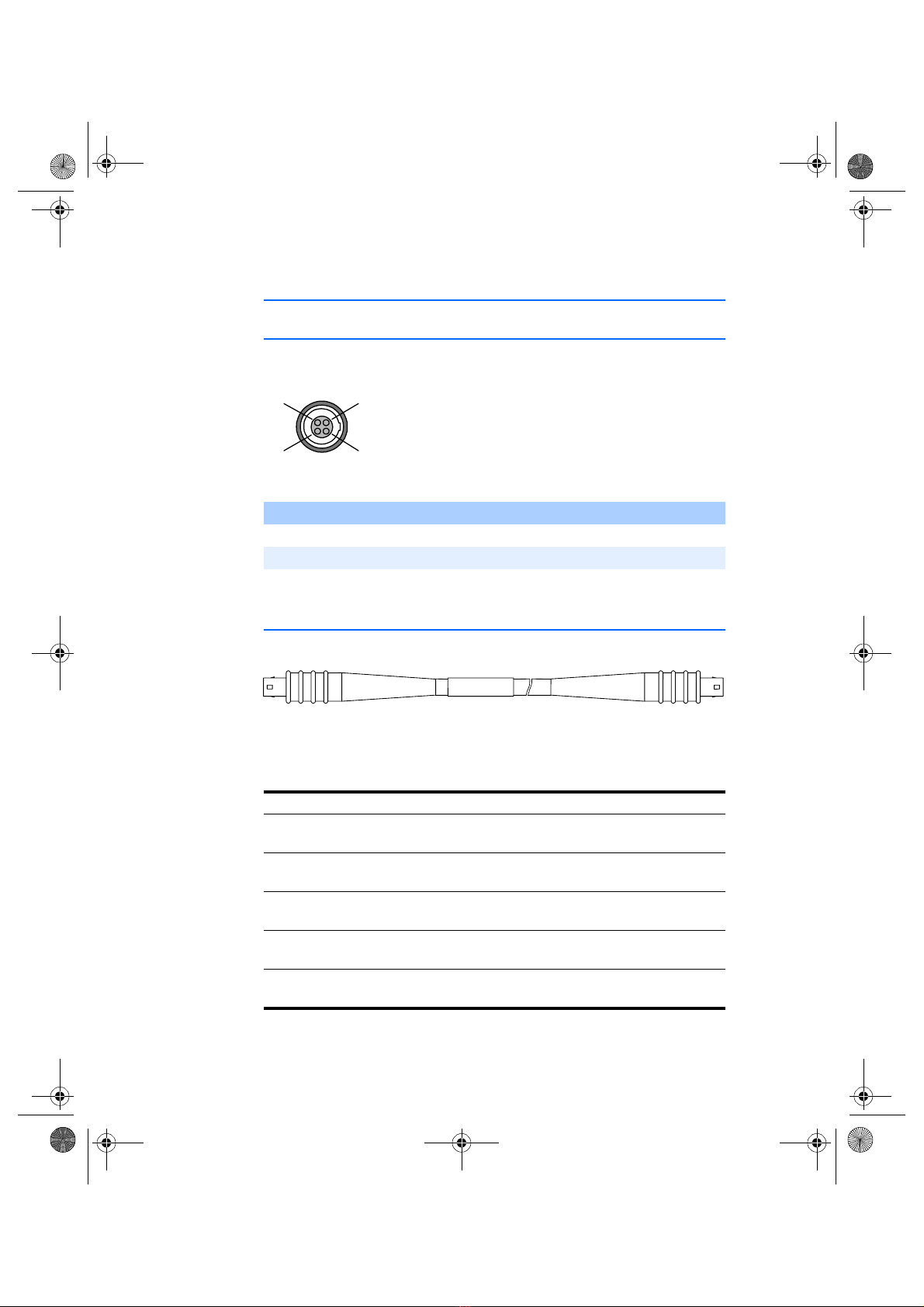

3.2 Interface Cable: ES1231.1-A to ETK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2.1 "A" Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2.2 ETK Interface Cable CBM 150. . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.3 Firmware Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.4 Electrical and Mechanical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.5 Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4ETAS Contact Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
ES1231_1-ug-en.book Seite 3 Montag, 12. Mai 2003 12:37 12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Contents4
ES1231_1-ug-en.book Seite 4 Montag, 12. Mai 2003 12:37 12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Introduction 5
1Introduction
This section contains information about the basic features and applications of
the ES1231.1-A ETK Interface Board (ETK = Emulator Test Probe). A block dia-
gram is also included here to show the schematic layout of the interface board.
1.1 Applications
The ES1231.1-A ETK Interface Board is designed for VME64x systems with 3 U
height. It enables a very high-performance integration of the ETK into the
ES1000 system for memory emulation and particularly data acquisition.
Thanks to a new block transmission mode, the ES1231.1-A is much faster than
its predecessor models ES1200.1/ES1201.1.
Features
The ES1231.1-A has the following features and components:
• Motorola MPC555 40-MHz processor
– 1 MByte SDRAM (32-bit, burstable)
– 1 MByte Flash (16-bit)
• transfer rate of 8 MBit/s
• ’single mode’ and ’block mode’ data transfer from and to the ETK
• Data Acquisition Memory Controller (DAMC) for linking the ETK to the
ES1000 system in real time
• automatic detection of the ETK type
• configuration of the ETK
• 16 independent acquisition time frames possible
• VME64x interface
• up to 4 serial ETK interfaces (e.g. four ES1231.1-A boards) can be operated
simultaneously on an ES1000.
note
Some components of the interface board may be damaged or destroyed by elec-
trostatic discharges. Please keep the board in its storage package until it is
installed.
The board should only be taken from its package, configured, and installed at a
work place that is protected against static discharge.
ES1231_1-ug-en.book Seite 5 Montag, 12. Mai 2003 12:37 12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Introduction6
• 16-MByte data acquisition memory on-board
• Update of firmware possible by means of connected PC
These features guarantee that the real-time requirements are fulfilled when
the ES1000 is used.

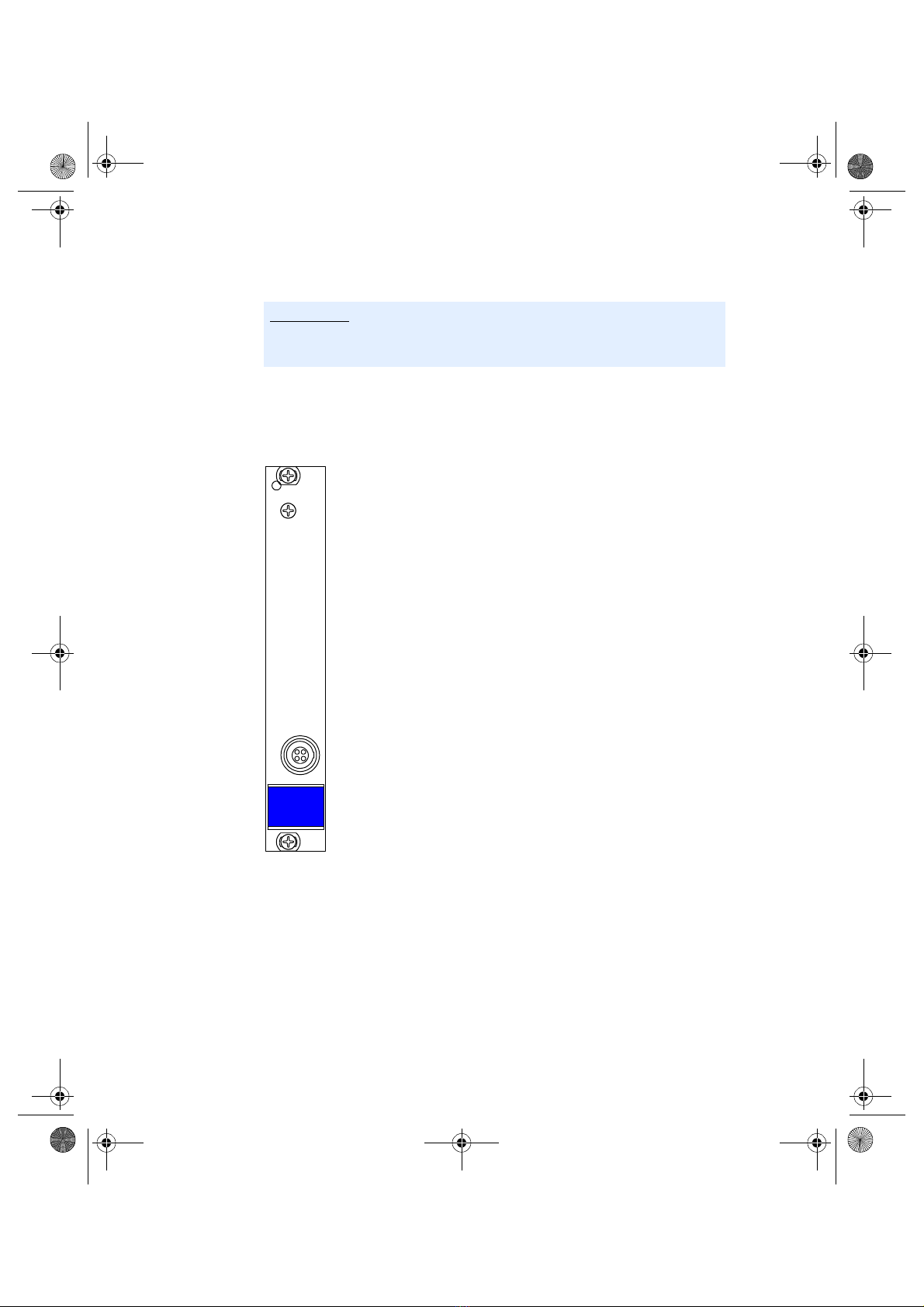

The following figure shows the front panel of the ES1231.1-A.
Fig. 1-1 Front View of the ES1231.1-A
note
ETAS is currently planning extending the data acquisition memory. Please get in
touch with your contact in Sales for more details on planned availability.
ES1231.1
A
A
ES1231_1-ug-en.book Seite 6 Montag, 12. Mai 2003 12:37 12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Introduction 7
1.2 Block Diagram
Fig. 1-2 shows the block diagram of the ES1231.1-A with the major functional
units.
Fig. 1-2 Block Diagram of the ES1231.1-A
VME Slave Interface
The board has a VME slave interface which supports A24/D16 master board
accesses. The A40/MD32 mode will also be supported in the future. The slave
interface converts accesses to the VME bus into accesses to corresponding
memory areas on the board.
Power Supply
The power supply makes voltages of 5 V, 3.3 V and 2.5 V available. ICs with a
low supply voltage are generally used to keep the power consumption down.
PowerPC
The PowerPC and the connected memory modules can be addressed via the
VME bus.
Data Acquisition Memory Controller (DAMC)
The Data Acquisition Memory Controller (DAMC) has a fast RISC processor
designed for applications in real-time data acquisition and real-time addressing
of external modules.
Slave
Interface
VME64x
A24/D16
A40/MD32
DAMC
SDRAM
16MB on Board
VME
64x
Buffer
ETK
DPRAM
32 Bit
128 kB
DPRAM
16 Bit
64 kB
Async.
Boot-
FLASH
16 Bit
1 MB
Sync.
Burst-
SRAM
32 Bit
1 MB
Buffer
PowerPC
MPC555
IRQs IRQs
Power
Supply
5 V
2.5 V
3.3 V
5 V
Serial ETK
Interface
(8 MBit)
Phyter
Transformer
ES1231_1-ug-en.book Seite 7 Montag, 12. Mai 2003 12:37 12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Introduction8
Measurement data is given a time stamp. The RISC processor is controlled by
interrupts and can also be addressed from the VME bus.
Data is exchanged via the memory connected to the DAMC. The connected
memory (SDRAM) is also managed by the DAMC. The VME bus and the Pow-
erPC can access this memory simultaneously.
Serial ETK Interface
The serial ETK interface is dc decoupled from the board. Three different modes
guarantee high performance to ensure that the ever increasing data volume
can be dealt with in the future:
• the 8-MBit ’single mode’ guarantees compatibility to all previous ETKs,
• the much faster 8-MBit ’block mode’ offers increased performance which
is particularly useful with bypass applications in ASCET-SD and when high
demands are made of the amount of data during data acquisition in INCA.
ES1231_1-ug-en.book Seite 8 Montag, 12. Mai 2003 12:37 12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Setup Hints 9
2 Setup Hints
Please read the following section carefully as an addition to the "ES1231.1-A
ETK Interface Board" User’s Guide.

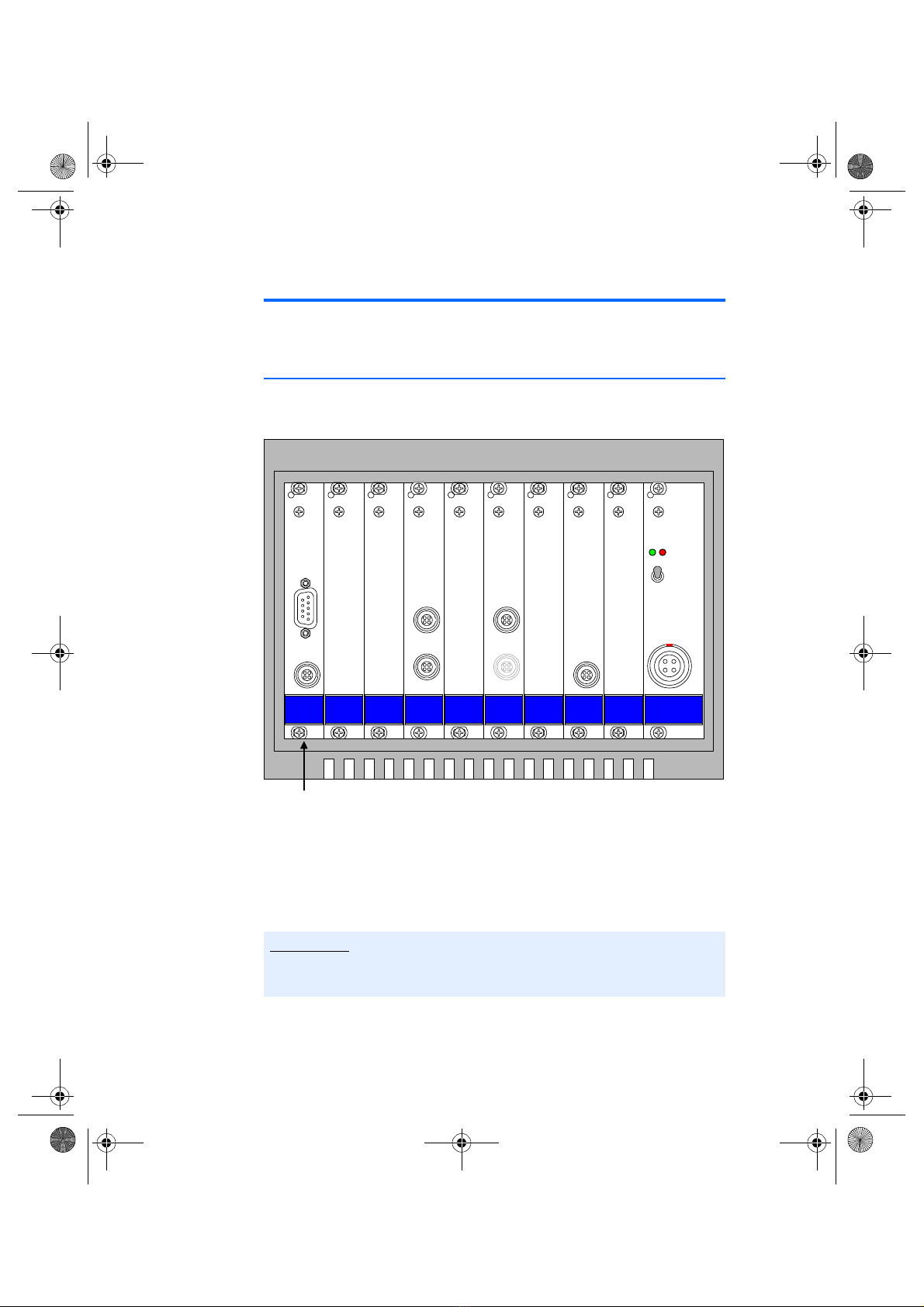

2.1 Recommended Layout when using Several ETK Interfaces
If you are using several different ETK interfaces in your ES1000.2 system,
please observe the order of installation shown in the figure below to ensure
the hardware configuration remains clear.
Slot 1 is for the system controller; otherwise you can install the boards in any
slot providing you observe the following order:
ES1201.1 slot no. < ES1200.1 slot no. < ES1231.1-A slot no.
The following is also true for the ES1200.1 and ES1201.1:
ID1 slot number < ID2 slot number
note
Please note that there must not be more than four ETK ports in the system. Fur-
ther, there can only be one ES1200.1 in the system.
ES1120.1
PC
Serial
ES1200.1
A
B
ES1201.1
A
B
ES1000.2
6...34V
ON
AUTO
UA Temp
ES1231.1
A
A
Slot 1
ES1231_1-ug-en.book Seite 9 Montag, 12. Mai 2003 12:37 12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Setup Hints10
2.2 Parameterizing the Hardware Configuration (HWC)
It is recommend to have the HWC generated automatically. Use the menu
Hardware →Search for Hardware for this.
If you want to organize or change your HWC manually, you must note how the
ETK Controller (ETKC) counts as well as observing the order of installation in
the ES1000.2 system recommended above:
• Starting from the left, the ETK ports are referred to as ETKC-A through
ETKC-D. The system controller can operate a maximum of 4 ETK control-
lers.
• The ETK ports are always numbered consecutively by the system controller.
• This numbering has to be reflected exactly in the HWC.
The ETK index parameter can be selected accordingly in the HWC with the
ETKC device. The following table shows a sample configuration as specified in
the HWC shown below.
The description of the ETK ports in the HWC has to correspond exactly to
where the hardware is installed.
ES1201.1 Port A ETKC-A
ES1201.1 Port B ETKC-B
ES1200.1 Port A ETKC-C
ES1200.1 Port B not assembled
ES1231.1-A Port A ETKC-D
ES1231_1-ug-en.book Seite 10 Montag, 12. Mai 2003 12:37 12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Te c h n i c al D a t a 11
3 Technical Data
The following sections contain information on:
• VMEbus interface
• connection to the ETK
• electrical and mechanical data
• operating conditions
• firmware update
3.1 VMEbus Interface
The ES1231.1-A communicates with the ES1130 Simulation Controller or the
ES1120 System Controller via the VME bus. A VME64x interface has been
implemented to ensure high system performance.
The processor board has direct access to the Data Acquisition Memory Control-
ler (DAMC) via the VMEbus. The DAMC is responsible for the communication
between ETK and ES1231.1-A. Interrupts control the data transfer between
the master CPU and ES1231.1-A.
It is possible to manipulate or preprocess the large amounts of data with the
local CPU (MPC555). The local CPU can also be accessed via the VME bus.
In addition to the A24/D16 modes, which make it possible to work with exist-
ing boards, an A40/MD32 access (multiplexed address and data accesses,
VME64 extension) is used. The maximum bus transfer rate with A40/MD32
access in block mode is approx. 40 MByte/s. A high data transfer rate can be
attained using the VME bus together with the ES1120 System Controller.
Type Slave
Access types A24:D16; A40:MD32
Interrupters 16 interrupters; level and vector can be pro-
grammed
Configuration Auto-ID configuration
ES1231_1-ug-en.book Seite 11 Montag, 12. Mai 2003 12:37 12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Technical Data12
3.2 Interface Cable: ES1231.1-A to ETK
3.2.1 "A" Connector
The "A" connector contains the lines for the ETK interface. A four-pin Lemo
socket (1B dimensions) is used as a connector.
Fig. 3-1 "A" Connector
Fig. 3-2 "A" Connector Pin Assignment
3.2.2 ETK Interface Cable CBM 150
A special cable is needed to connect the ES1231.1-A to the ETK.
Fig. 3-3 ETK Interface Cable CBM150
The following table shows the available types of this cable and their ordering
numbers.
Pin Function Pin Function
1TX+ 3RX+
2TX- 4RX-
Ordering Designation Abbreviation Ordering Number
Cable Lemo 1B FFG - Lemo 1B FFG (4mc-
4mc, 3m)
CBM150-3 F-00K-102-556
Cable Lemo 1B FFG - Lemo 1B FFG (4mc-
4mc, 5m)
CBM150-5 F-00K-102-557
Cable Lemo 1B FFG - Lemo 1B FFG (4mc-
4mc, 10m)
CBM150-10 F-00K-102-553
Cable Lemo 1B FFG - Lemo 1B FFG (4mc-
4mc, 15m)
CBM150-15 F-00K-102-554
Cable Lemo 1B FFG - Lemo 1B FFG (4mc-
4mc, 20m)
CBM150-20 F-00K-102-555
1
4
2
3
ES1231_1-ug-en.book Seite 12 Montag, 12. Mai 2003 12:37 12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Te c h n i c al D a t a 13
3.3 Firmware Update
The firmware of the ES1231.1-A ETK Interface board can be updated using a
service software running on the connected PC while the board is mounted in
the ES1000 system.
3.4 Electrical and Mechanical Data
Processor
Data Acquisition Memory
VMEbus Interface
ETK Interface
Processor Motorola PowerPC MPC555, 40 MHz
Memory 1 MByte SRAM (32-bit, burstable)
1 MByte Flash (16-bit)
On-board 16 MByte
Memory Extension Planned
Type Slave
Address and data lines A24:D16, A40:MD32
Interrupters 16 interrupters; level and vector can be pro-
grammed
Configuration Auto-ID configuration
Connector 160-pin DIN 41612
Transfer rates 8 MBit/s (single mode/block mode)
Connector 4-pin Lemo, 1B dimensions
Cable Double-shielded, twisted pair
ES1231_1-ug-en.book Seite 13 Montag, 12. Mai 2003 12:37 12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Technical Data14
Power Supply
Mechanical Data
3.5 Environmental Conditions
Power consumption
(standard/maximum) 5 W/7 W
Circuit board 100 x 160 mm²
Front panel Height: 3 U
Width: 4 HP (20.4 mm)
Ambient temperature during oper-
ation
-40 °C to +85 °C
Storage temperature -55 °C to +85 °C
Relative humidity 0 to 95 %, no condensation
ES1231_1-ug-en.book Seite 14 Montag, 12. Mai 2003 12:37 12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ETAS Contact Addresses 15
4 ETAS Contact Addresses
ETAS HQ
ETAS GmbH
France
ETAS SAS
Great Britain
ETAS Engineering Tools Application and Services Ltd.
Japan
ETAS K.K.
Borsigstr. 14 Phone: [phone]
70469 Stuttgart Fax: [phone]
Germany E-mail: sal[email protected]
WWW: www.etas.de
1, place des Etats-Unis Phone: [phone]
SILIC 310 Fax: [phone]
94588 Rungis Cedex E-mail: [e-mail]
France WWW: www.etas.fr
Studio 3, Waterside Court Phone: [phone] - 546512
3rd Avenue, Centrum 100 Fax: [phone] - 548767
Burton-upon-Trent E-mail: [e-mail]
Staffordshire DE14 2WQ WWW: www.etas-uk.net
England
9-1, Ushikubo 3-chome, Phone: [phone]
Tsuzuki-ku Fax: [phone]
Yokohama 224-0012 E-mail: [e-mail]
Japan WWW: www.etas.co.jp
ES1231_1-ug-en.book Seite 15 Montag, 12. Mai 2003 12:37 12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ETAS Contact Addresses16
Korea
ETAS Korea Co. Ltd.
North America
ETAS Inc.
South America
UNIT
3F, Samseung Bldg. Phone: [phone]
61-1, Yangjae-dong Fax: [phone]
Seocho-gu E-mail: [e-mail]
Seoul
Republic of Korea
3021 Miller Road Phone: +1 (888) ETAS INC
Ann Arbor, MI 48103 Fax: [phone]
USA E-mail: sal[email protected]
WWW: www.etasinc.com
Av. Cel Amancio Bueno, 30 Phone: [phone]
Jd. Chapadao Fax: [phone]
Campinas SP 13066 740 E-mail: [e-mail]
Brazil
ES1231_1-ug-en.book Seite 16 Montag, 12. Mai 2003 12:37 12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Index 17
Index
A
Applications 5
B
Block diagram 7
C
Connector "A" 12
D
Data Acquisition Memory 13
E
Electrical data 13
Environmental conditions 14
ETK interface 13
ETK interface cable 12
F
Firmware Update 13
Front view 6
I
Introduction 5
M
Mechanical data 13
P
Power supply 14
Processor 13
V
VMEbus interface 11, 13
ES1231_1-ug-en.book Seite 17 Montag, 12. Mai 2003 12:37 12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Index18
ES1231_1-ug-en.book Seite 18 Montag, 12. Mai 2003 12:37 12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Artisan Technology Group is your source for quality
new and certied-used/pre-owned equipment
• FAST SHIPPING AND
DELIVERY
• TENS OF THOUSANDS OF
IN-STOCK ITEMS
• EQUIPMENT DEMOS
• HUNDREDS OF
MANUFACTURERS
SUPPORTED
• LEASING/MONTHLY
RENTALS
• ITAR CERTIFIED
SECURE ASSET SOLUTIONS
SERVICE CENTER REPAIRS
Experienced engineers and technicians on staff
at our full-service, in-house repair center
WE BUY USED EQUIPMENT
Sell your excess, underutilized, and idle used equipment
We also offer credit for buy-backs and trade-ins
www.artisantg.com/WeBuyEquipment
REMOTE INSPECTION
Remotely inspect equipment before purchasing with
our interactive website at www.instraview.com
LOOKING FOR MORE INFORMATION?
Visit us on the web at www.artisantg.com for more
information on price quotations, drivers, technical
specications, manuals, and documentation
Contact us: (888) 88-SOURCE | [e-mail] | www.artisantg.com
SM
View
Instra
