User Manual
For Windows and Macintosh OS
Artisul LCD Pen Tablet | Model: M0610 Pro

1
Precautions
1. Please read this manual carefully before using, and keep it well for future reference.
2. Before cleaning the tablet please unplug the power cord and wipe with a soft damp cloth, do
not use any kind of detergents.
3. Don’t expose this product to water or other liquids. Take care to never spill liquids onto the
tablet and pen. Exposing this product to water or other liquids may cause product malfunction or
electrical shock.
4. Do not place the tablet on where is unstable or a height for children reaching easily in order to
avoid danger. Prevent children from swallowing the pen nib or side switch. The pen nib, side
switch, or other movable parts may accidentally be pulled out if children are biting on them.
5. Power off your tablet in locations where/when electronic devices is not allowed. Because the
tablet may cause other electronic devices to malfunction in some locations where/when the use
of electronic devices is not allowed, such as within an airplane, be sure to turn off the tablet.
6. Do not disassemble the tablet and pen. Do not disassemble or otherwise modify the tablet or
pen. Such action may cause heat generation, ignition, electronic shock, or other damage,
including human injury. Disassembling the product will void your warranty.
7. While getting the components replaced, you are supposed to guarantee that the repairman is
using the substitute components specified by the manufacturer. Unauthorized component
replacement might cause fire, electric shocks or other dangers.
8. Do not insert foreign material into the USB port or any other opening of this product. If a metal
object or foreign material is inserted into a port or other opening of this product it may cause the
product to malfunction or burn out, or cause electronic shock.

2
Contents
1. Product Overview........................................................................................................... 3
1.1 Tablet Introduction................................................................................................. 3
1.2 Product and Accessories....................................................................................... 3
1.3 Setting up the Tablet..............................................................................................4
1.4 Driver Installation....................................................................................................5
1.5 Pen Nib Replacement.............................................................................................6
2. Product Basic Operation.............................................................................................. 6
2.1 Using the Pen........................................................................................................... 6
2.2 Using the Tablet.......................................................................................................8
3. Function Setting............................................................................................................10
3.1 FastAccess Key Setting........................................................................................ 10
3.2 Pen Setting..............................................................................................................12
3.3 Data Saving and Enabling.................................................................................. 13
4. The right setting of graphic applications............................................................14
5. Specifications................................................................................................................. 16
6. Trouble Shooting.......................................................................................................... 17
6.1 Possible Breakdowns Related to TABLET........................................................17
6.2 Possible Breakdowns Related to SYSTEM...................................................... 17
7. After-service Contact.................................................................................................. 17

3
1. Product Overview
1.1 Tablet Introduction
Thanks for choosing Artisul® M0610 Pro creative pen tablet. This is a new
generation of professional battery-free drawing tablet, which can greatly improve
your work efficiency of painting and creation, and full of fun. You can freely do
painting and writing, depicting different lines and colors, just as the pen writes on
the paper, which brings you a real shock experience.
To give you a better understanding and using of your tablet, please read this user
manual carefully. The user manual only shows the information under Windows,
unless otherwise specified, this information applies to both Windows and
Macintosh systems.
1.2 Product and Accessories
1.2.1 Product Overview

4
1.2.2 Other Accessories
Stylus Pen Pen Bag Pen Nibs Pen Nib Clip
-
USB Cable Glove Quick Start Guide
1.3 Setting up the Tablet
1.3.1 Connecting to the Computer
Take out the USB cable from the package, then connect the tablet to your
computer.

5
1.3.2 Connecting to an Android Mobile Phone
1. Please use Android phone/tablet in portrait mode.
2. Please make sure your phone/tablet OS is as following: Android OS 6.0 or later.
3. For some models, you need to go phone or tablet “Settings”, and then enable
“OTG” function.
4. Choose the right OTG Adapter from package, which depends on USB port type of
your phone/tablet. Then connect the pen tablet to your phone following the
illustrations below.
Notes:
1. The pen tablet can works without installing any driver into your phone/tablet.
2. Once connected, the tablet will automatically enter phone mode, in which the
pen can only work in the left gray area(161.5?00.1mm).
3. If it fails to recognize the tablet as the phone mode, please press the button ⑤,③
at the same time for 1 seconds to enter phone mode.
4. Please note that the press keys of pen tablet and digital pen are not supported in
phone mode.
1.4 Driver Installation
1.4.1 OS Support
Windows 7 or later, Mac OS 10.8.5 or later, Android 6.0 or later
1.4.2 Install via Download
Please download the driver from our website: www.artisul.com/downloads
Notice：
1. Before installing, you need to uninstall other driver of similar products, including
the old driver of this product.
2. Before installing, please close all graphics software and anti-virus software to

6
avoid unnecessary mistake.
3. Before installing, you need to connect your Artisul product to the computer.
1.5 Pen Nib Replacement
The nib will be wear out after using for long time, then you need to replace a new
nib.
2. Product Basic Operation
2.1 Using the Pen
2.1.1 Hold the pen
Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can
toggle the side switch easily with your thumb or forefinger. Be careful not to
accidentally press the switch while drawing or positioning with the pen.
Notice: When not in use, place the pen in the pen case or on the desk. Do not place
the pen on the surface of screen, which may interfere with the use of other screen
cursor positioning equipment, it may also cause your computer unable to enter the
sleep mode.

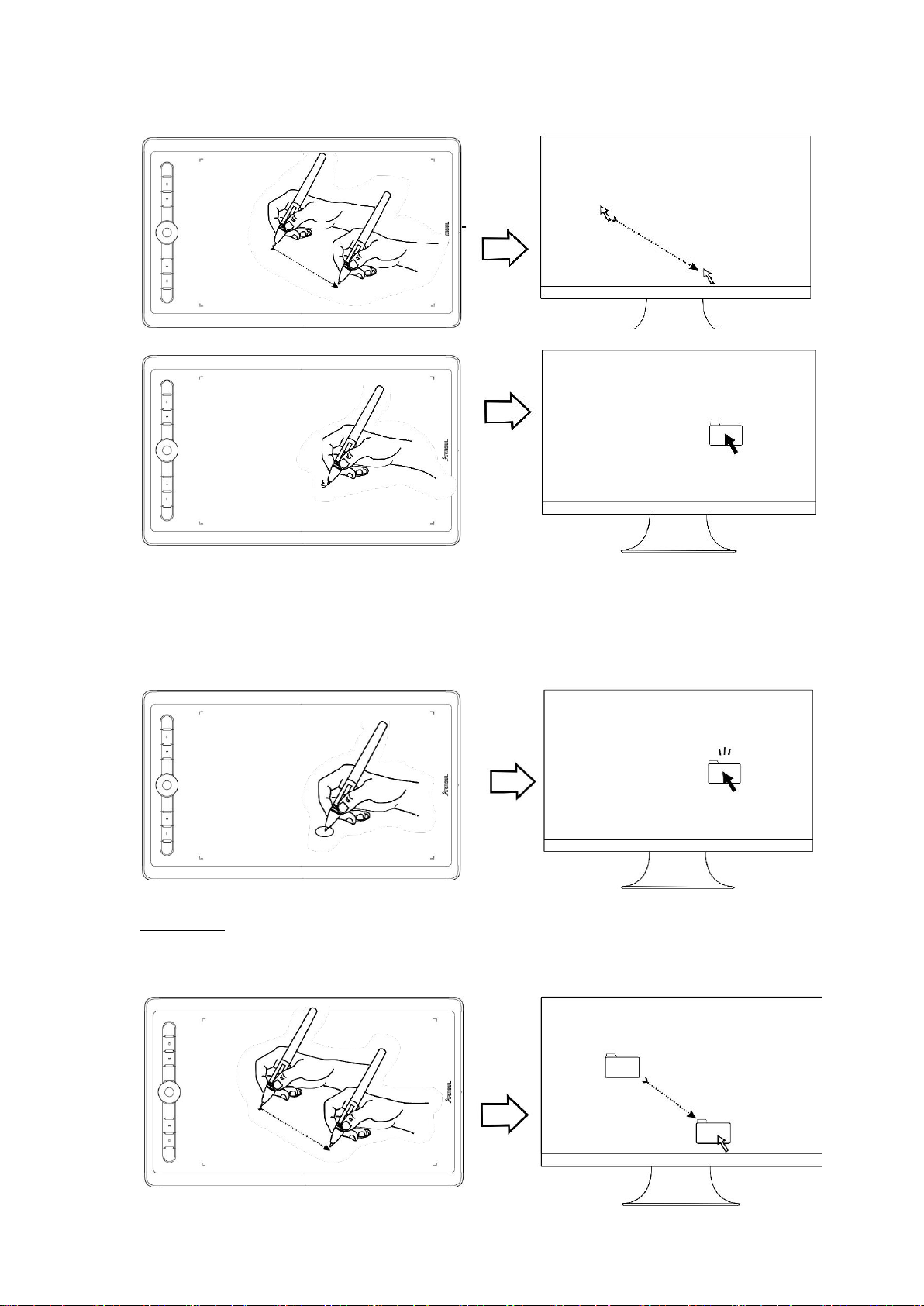

2.1.2 Position the cursor
Move the pen slightly above the active area without touching the screen surface,
the cursor will move to the new position accordingly.
Press the pen tip on the screen to make a selection. Tap the screen once with the
pen tip, or touch it to the screen with enough pressure to register a click.

7
2.1.3 Click
Use the pen tip to tap on the screen once to produce a click. Tap to highlight or
select an item on the screen and double-click to open it.
2.1.4 Move
Select the object, then slide the pen tip across the screen to move it.

8
2.1.5 Use the side buttons
The side buttons of the pen can be set to two different customizable functions.
You can use the buttons whenever the pen tip is within 10mm of the tablet active
area.
You do not have to touch the pen tip to the tablet in order to use the switch.
2.2 Using the Tablet
2.2.1 Press Keys & Dial
There are 8 press keys and one dial on the tablet. You can modify the functions
according to your own habits to improve your work efficiency. See “FastAccess Key
Setting”.
To use the dial in the “Use Wheel” mode:
1. Press the centre of the dial to select the function to be achieved.
2. Rotate the dial to use the function.
To use the dial in the “Use Dial” mode:
1. Press and hold the centre of the dial for approximately two seconds until the
OSD menu is displayed.
2. Rotate the dial and press the centre of the dial to select the function to be
achieved.
3. Rotate the dial to use the function.
2.2.2 LED Indicators of Press Keys & Dial
The LED indicators of press keys and the dial support monochromatic,
polychromatic, and off modes. To customize the LED indicators:
1. When you press key 8, the indicators will switch between the three modes.

9
2. When the indicators are in monochromatic or polychromatic mode, press and
hold key 8, and press key 6 or 7 to adjust the indicator brightness.
3. When the indicators are in monochromatic mode, press and hold key 8, and
rotate the dial to select the desired color.
Notes:
1. The indicators in monochromatic mode will switch to polychromatic mode after
the tablet is not in use for one minute.
2. The indicators will switch to off mode after the tablet is not in use for six minutes.

10
3. Function Setting
3.1 FastAccess Key Setting
3.1.1 Hot Key Setting
To customize hot keys:
1. Click the corresponding value of a press key and select the function to be
achieved on the menu displayed.
2. If the desired function is not displayed, select “Custom” on the menu and
select the function to be achieved in the window displayed. Then, type a
preferred name in the “Name” area and click OK.
When you rotate the tablet to adapt to the left or right hand operation, you need to
select “Left” or “Right” in the “HotKey Align” area.

11

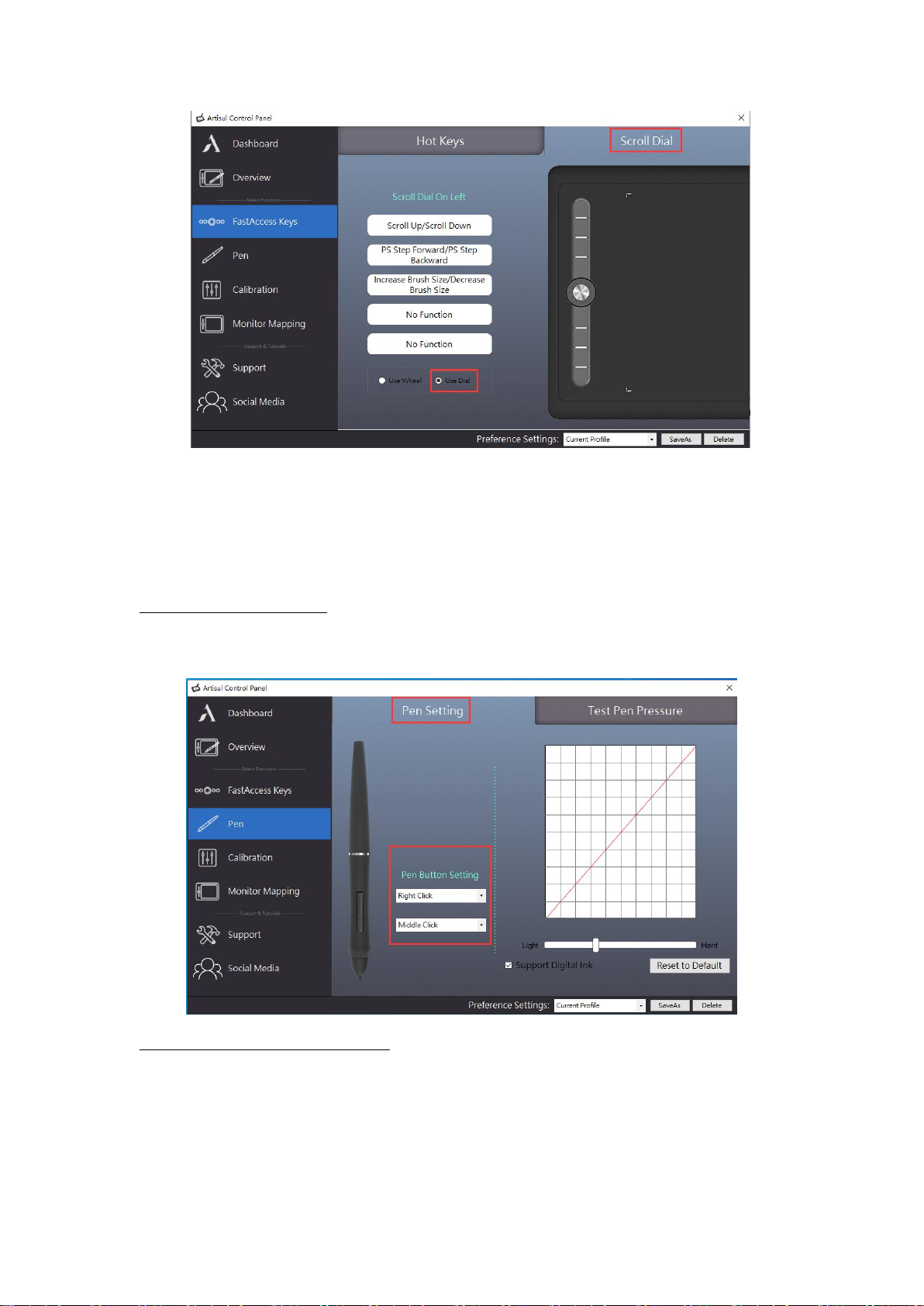

3.1.2 Scroll Dial Setting
To cusomize the dial in the “Use Wheel” mode:
Note: The customized functions in the “Use Wheel” mode do not work in the
“Use Dial” mode.
1. Select “Use Wheel”.
2. Click one of the five values and select the function to be achieved on the menu
displayed.
3. To cusomize the dial in the “Use Dial” mode:
Note: When you close or uninstall the driver, the functions supported in the “Use
Dial” mode are also supported in the computer with Windows 10 (Version 1607 or
later) installed.

12
1. Select “Use Dial”.
2. Open the Windows10 Start menu, and then click Settings ➙Devices ➙Wheel.
3. Follow the on-screen instructions to cusomize the dial.
3.2 Pen Setting
3.2.1 Pen Button Setting
To customize pen buttons, click the corresponding value of a pen button and select
the function to be achieved on the pull-down menu.

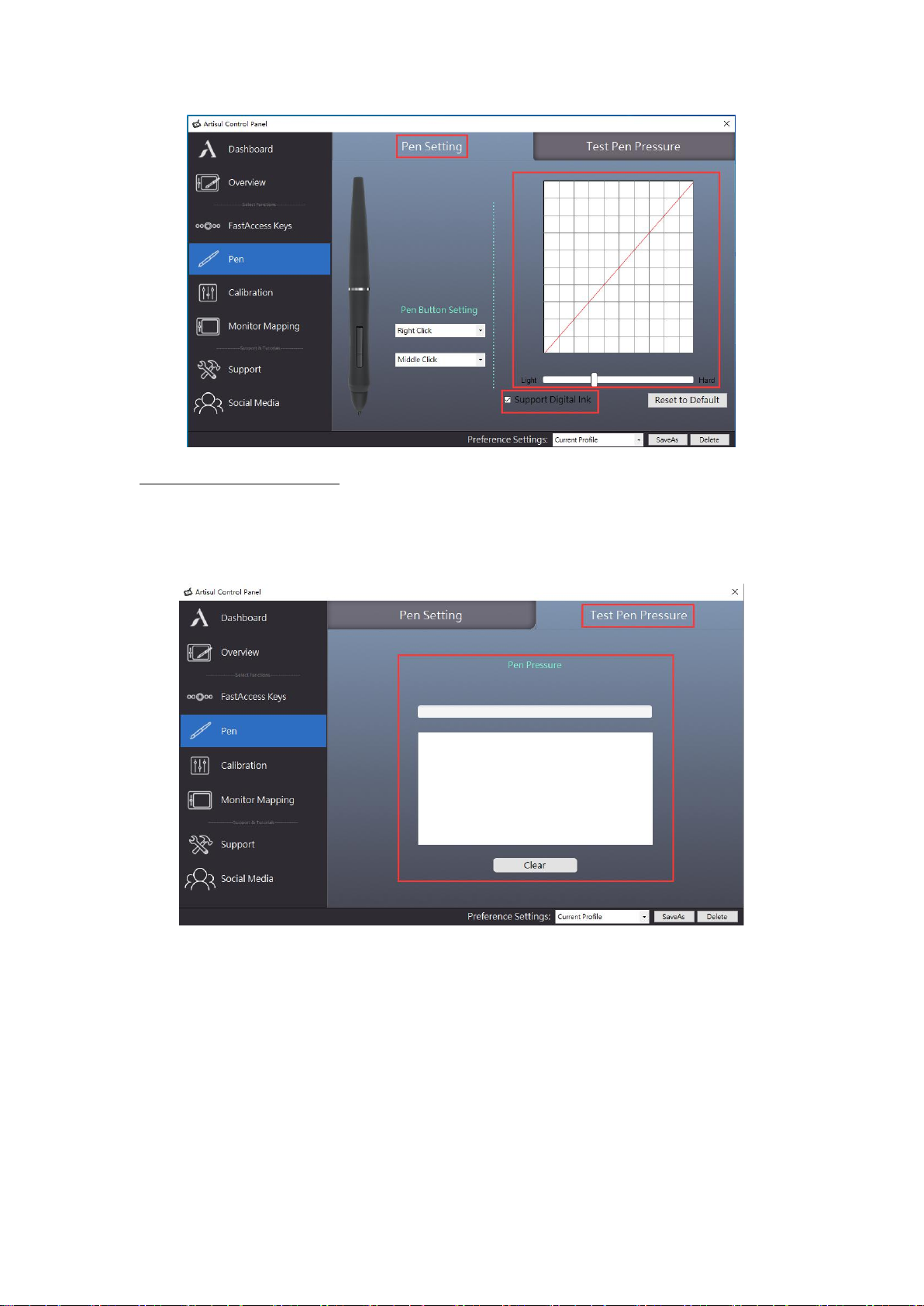

3.2.2 Pressure Sensitivity Setting
To change pressure sensitivity, drag the slider to the left or right. The lighter, the
more sensitive the pressure is.
Note: “Support Digital Ink” is selected by default to ensure pressure sensitivity in
various programs.

13
3.2.3 Pen Pressure Testing
To test pen pressure level:
1. Gradually apply pressure to the stylus on the screen.
2. Click “Clear” button to clear all the ink.
3.3 Data Saving and Enabling
The driver supports saving your customized configuration data for various
programs, which is convenient for you to use different programs and avoid the
trouble of resetting functions.

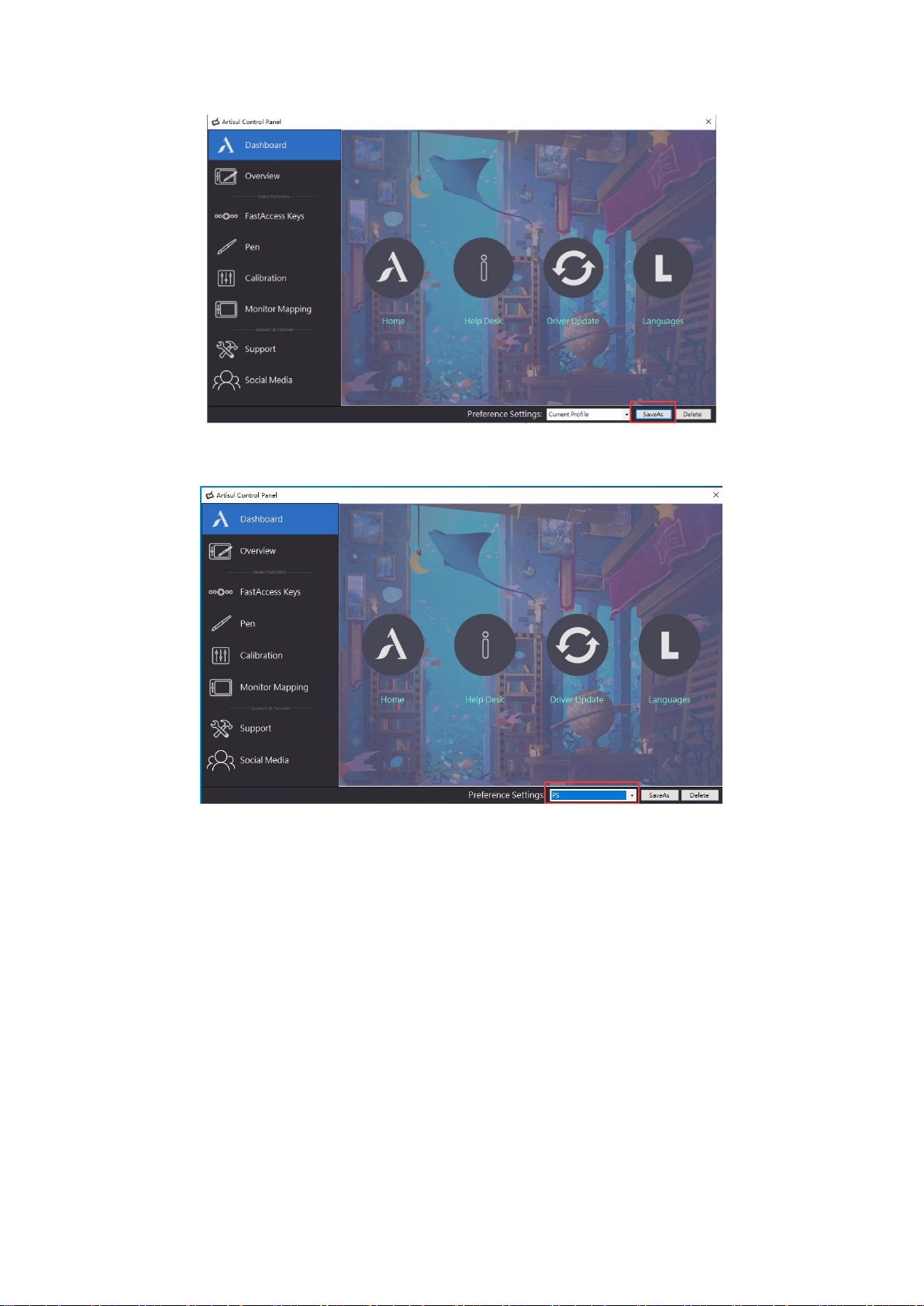

To save your configuration data for a program, click SaveAs to save the
configuration data as a XML file and name it with the program (such as PS, CP, and
CD).

14
To enable the configuration data for a program, select the XML file you saved on
the pull-down menu in the “Preference Settings” area.
4. The right setting of graphic applications
Some applications need to change their setting that ARTISUL can has correct action.
1. SAI
Please follow these steps：
A. Find 「misc.ini」in SAI folder.
B. Right click on misc.ini and select “Edit”
C. Find TabletMouseSimulation = 0 , then modify 0 to 1 and save the file.
D. Restart SAI

15

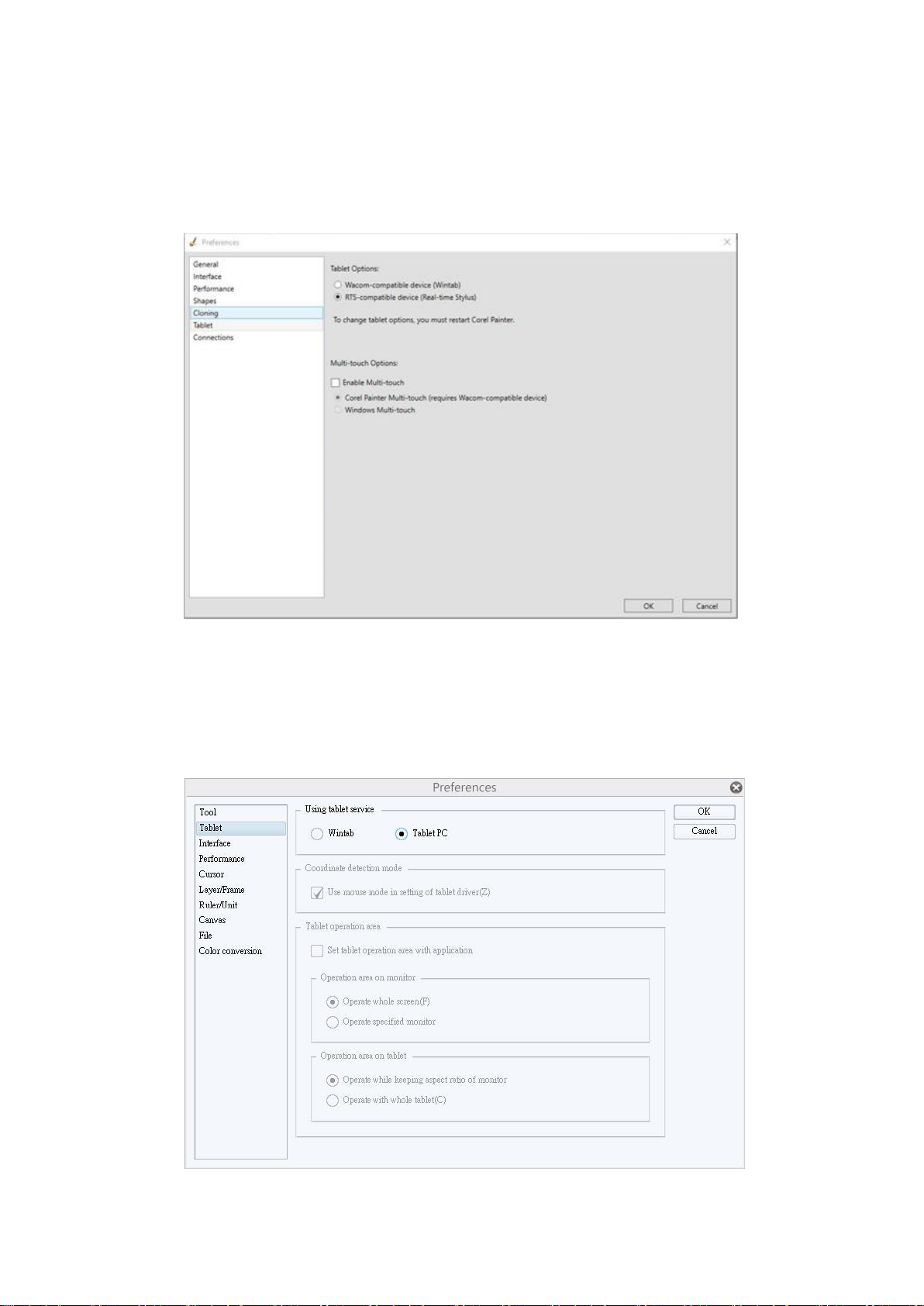

2.Corel Painter 2015
A. Please select EditPreferencesTablet…
B. Tablet options please check “RTS-compatible device (Real-Time Stylus)
C. Multi-touch Options: Please uncheck “Enable Multi-touch”
Clip Studio Paint
A. Run Clip studio paint and press 「Ctrl+K」to open 「Preferences」
B. Select “Tablet”
C. “Using tablet service” please select “Tablet PC”
D. Press “ OK “ and restart Clip Studio Paint

16
SAI2
Please follow these steps：
A. Find 「Sai2.ini」in SAI folder.
B. Right click on misc.ini and select “Edit”
C. Find “ AlwayUseTabletPCApi= no” , then modify no to yes and save the file.
D. Restart SAI2
5. Specifications
Creative Tablet
Model
M0610 Pro
Touch Technology
Battery-free Electromagnetic Resonance
Working Area
258.47 x 161.54 mm (with your computer)
161.54 x 100.5 mm (with your mobile phone)
Dimension
350 x 208 x 9 mm
Touch Resolution
5080 LPI
Report Rate
300 PPS
Pen Sensing Height
10 mm
Interface
Type-C
Press Keys
8 Customized Press Keys
Tilt Range
±60°
OS Support
Windows 7 or later
Mac OS 10.8.5 or later
Android 6.0 or later
Digital Pen
Model
P58B
Dimension
149 x Φ14mm
Weight
14 g
Pressure
8192 Levels

17
6. Trouble Shooting
6.1 Possible Breakdowns Related to TABLET
Abnormal Phenomena
Possible Solutions
There is no pressure in the
graphics software but the
cursor moves
You may have installed other tablet drivers or opened the
drawing software when installing the driver. Please uninstall all
drivers and close the drawing software, then reinstall the
driver. It’s better to restart your computer after finishing the
installation.
The pen does not work
1. Make sure you are using the pen that originally came with
your tablet.
2. Make sure you installed the driver correctly.
Press Keys does not work
1. Make sure the Press Keys function were enabled in the driver.
2. Make sure you have correctly defined the Press Keys.
The computer can’t enter
sleep mode
When you are not using the tablet, please do not put the pen
on the tablet surface, which will keep the computer awake.
The side button of the pen
doesn’t work
When pressing the side button, please make sure that the nib
didn’t touch the tablet surface and the distance between the
nib and surface is within 10mm.
6.2 Possible Breakdowns Related to SYSTEM
Abnormal Phenomena
Possible Solutions
The computer can’t recognize
the tablet
Make sure the USB port is functional, if not, please change to
another USB port.
7. After-service Contact
If you have any questions, please feel free to contact us at:
Website: www.artisul.com
Email: [e-mail]
