Artusi AUM90 User manual

Page 1 of 13
AUM90
AUM60
Range Hoods User Manual

Page 2 of 13
IMPORTANT SAFETY INFORMATION
**Read the complete manual carefully before installation**
Warnings:
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR PERSONAL INJURY, PLEASE
OBSERVE THE FOL-LOWING:
1. Installation and electrical work must be done by a qualified person in accordance
with all ap-plicable codes and standards
2. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or a similarly qualified person to avoid a hazard. Any modifications that may be
required to the electrical system for the installation of the range hood must only be
made by qualified electri-cians.
3. Before servicing or cleaning unit, switch power off at the service panel. Lock panel
to prevent power from being switched on accidentally.
4. Use this unit only in the manner intended by the manufacturer.
5. Sufficient air is needed for combustion and exhausting of gases through the
chimney of fuel burning equipment to prevent back drafting. Follow the heating
equipment manufacturer's guidelines and safety standards, and the local code
authorities.
6. When cutting or drilling into wall or ceiling, be carefully to do not damage existing
electrical wiring and other hidden utilities.
7. Ducted fans must always be vented to the outdoors.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
1. Never leave surface units unattended at high settings. Boil-overs cause smoke and
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
2. Always turn hood ON when cooking at high heat.
3. Clean ventilating fans frequently. Grease should not be allowed to accumulate on
fan or filter.
4. Use proper pan size. Always use cookware appropriate for the size of the surface
element.

Page 3 of 13
WARNING
TO REDUCE THE RICK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, and then
turn off the burner. If the flames do not go out immediately, evacuate and call the fire
department.
2. NEVER PICK UP A FLAMING PAN. – You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels – a violent steam
explosion will result.
4. Use an extinguisher ONLY if:
You know you have a Class ABC extinguisher and you already know how to
operate it.
The fire is small and contained in the area where it started.
The fire department is being called.
You can fight the fire with your back to an exit.
CAUTION
1. To reduce the risk of fire and to properly exhaust air, be sure to duct air outside.
Do not vent exhaust air into spaces within walls or ceiling or into attics, crawl spaces or
garages.
2. Take care when using cleaning agents or detergents.
3. Avoid using food products that produce flames under the range hood.
4. The range hood must only be used for the exhaust of cooking fumes in home
kitchens. The manufacturer disclaims all liability for any other use of the appliance.
5. Two installers are recommended because of the large size and weight of this hood.
6. Use with approved cord-connection kit only.
7. Please read specification label on product for further information and
requirements.

Page 4 of 13
INSTALLATION INSTRUCTIONS
Before You Start...
1. Read this manual carefully and completely.
2. The range hoods conform to related appliances standards. Please check your local
building codes for any additional requirements.
3. The appliance has been manufactured as class I, there-fore ground connection is
necessary. The range hood must be installed so that that the plug is easily accessible.
Unpacking
Remove the packaging with the product in place. Cut off the packing ribbons and
carefully cut open the packaging (do not cut too deeply), remove the packaging.
Check that the product is free from transport damage. Any damage shall be reported
imme-diately to the carrier or seller. Damage, faults and missing parts must be
reported immediately to the seller
Installation preparation

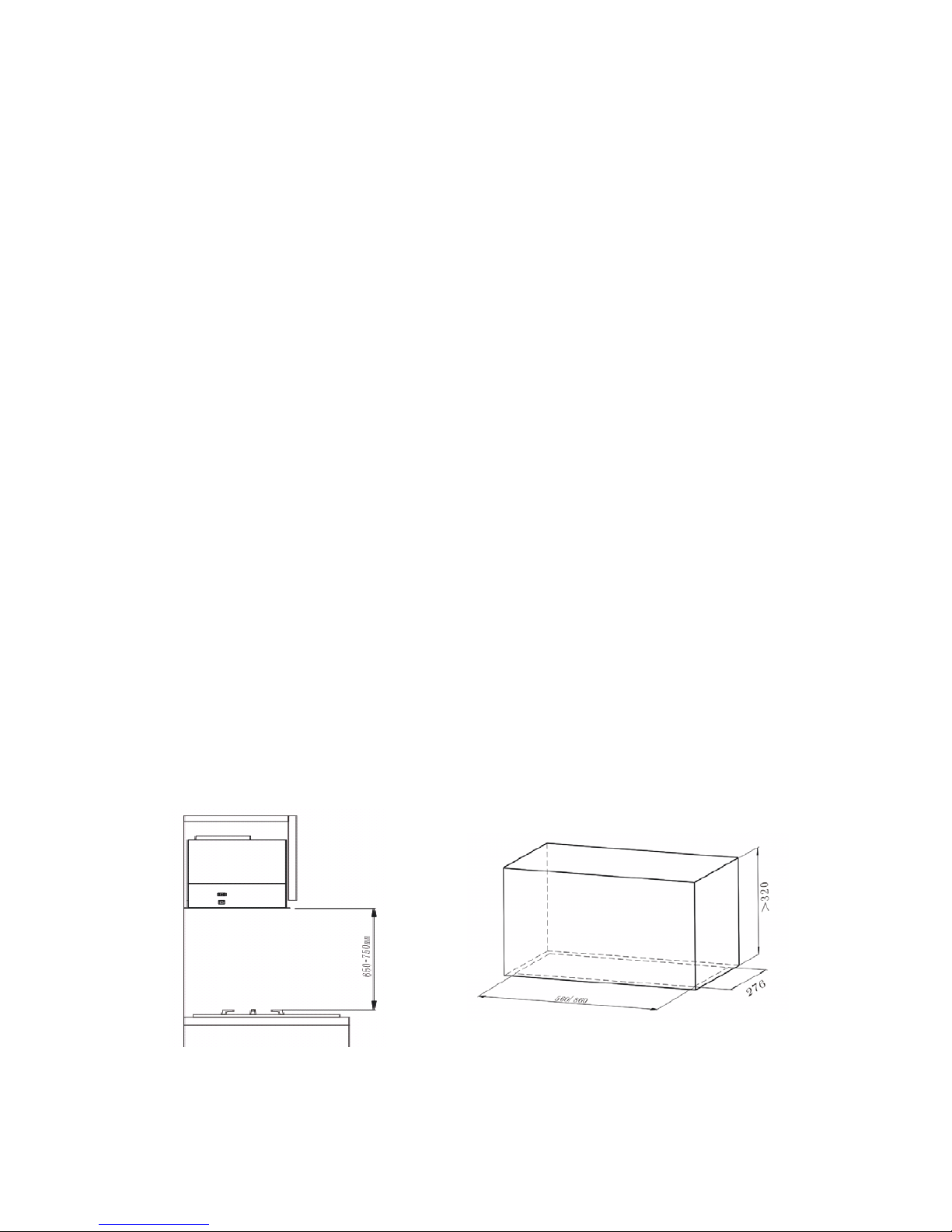

1. The range hood should be mounted at a distance of 650mm – 750mm from the
cooking surface for safety & optimum performance ( If the instructions for
installation of the gas hob specify a greater distance, this has to be taken into
account.)
2. Make sure the inner cabinet size appropriate for installing the range hood.

Page 5 of 13
REMEMBER!

The distance between the top of the hob and the lowest part of the
cooker hood must be at least 65 cm.
If a two-part connection tube is used,the lower section must sit outside
the upper sec-tion.
Do not connect the cooker hood exhaust to a duct used to circulate hot air
or vent steam from another appliance.
Always use protective gloves when installing the appliance!
Fixing to the ceiling cabinet

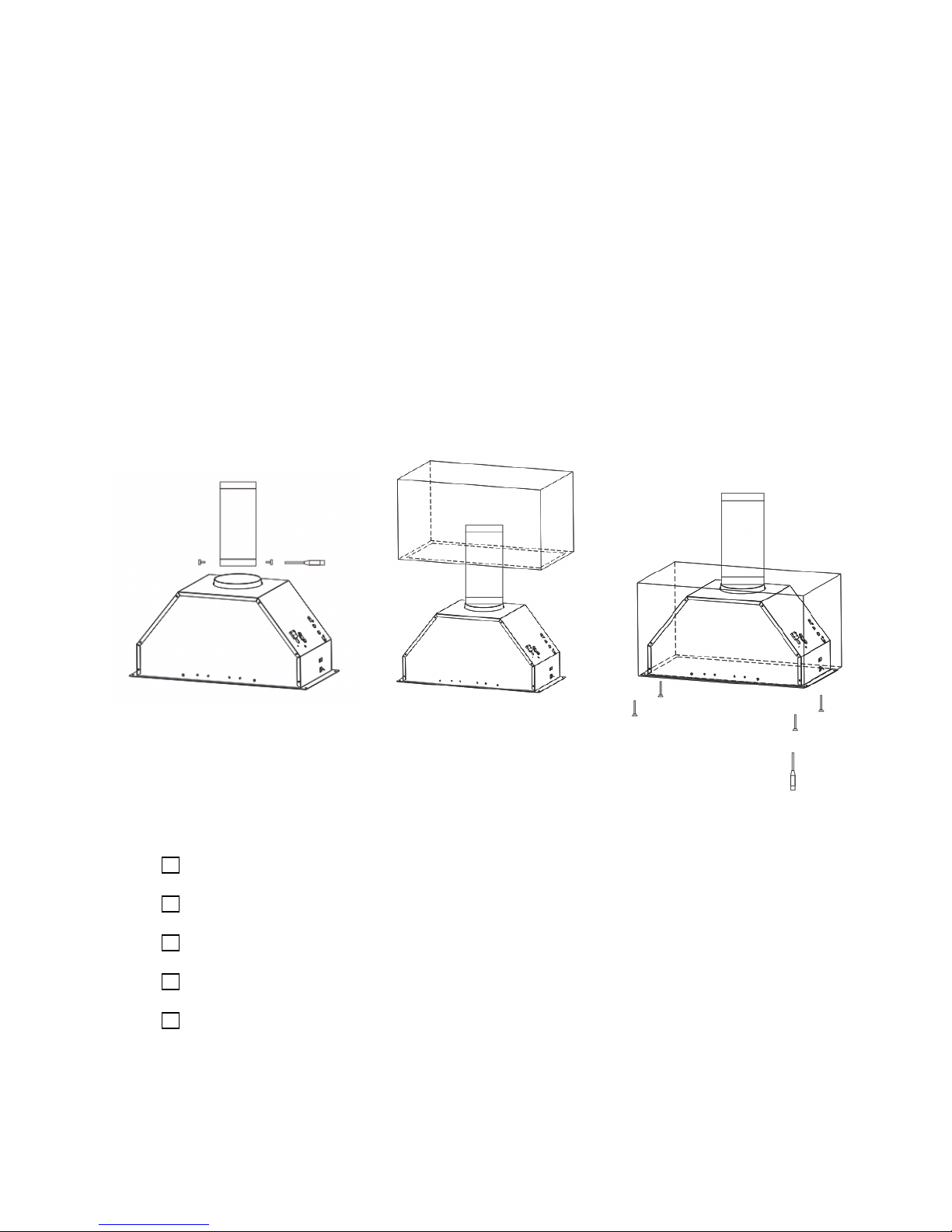

1. Before mounting the hood, plug in and test all functions for proper operation.
2. Removed the filters from the bottom of the hood to pre-vent damage during the
installation.
3. Connected duct tube (if included with the range hood) to the top of the range
hood using duct tape on all seals.
4. With assistance, hold the hood temporary in position ensuring the bottom is
above the minimum clearance for the cooking surface. Mark on the cabinet the
holes for the four mounting screws.
5. Drill the holes at the distances indicated.
6. Mount the hood on the cabinet screws and adjust for appropriate position. When
the hood has been adjusted, secure unit by tightening screws.

Page 6 of 13
USE AND CARE INSTRUCTIONS
Operations
1. For optimum performance in removing cooking odors,it is
recommended that you turn on your range hood prior to cooking and you
leave it operating for 15 min-utes after cooking.
2. Clean the surfaces of the range hood regularly using a non-abrasive
detergent.
3. The anti-grease filters capture the grease particles sus-pended in the
air. They will accumulate grease and dirt depending on the frequency of the
use of your range/cook top.
4. In order to prevent a fire hazard,it is recommended that you clean the
filters at least every 2 months
WARNINGS:Do not attempt to remove the fil-ters while the Range Hood is
operating.
Disconnect the electrical plug prior to any maintenance.
This appliance is not intended for use by young children or infirm persons
without supervision.
There should be adequate ventilation in the room when the Range Hood is
used at the same time as other fuel burning appliances.
DESCRIPTION OF THE SWITCH
Electric switch
Push “Power” button, the motor will start running at high speed (Indicating lights
in “Power” and “High” buttons are on).
Push “Light” button, the lights will be on (Indicating light in “Light” button is on).
Push “Low” button, the motor will run at low speed (Indicating lights in “Power”
and “Low” buttons are on).
Push “Mid” button, the motor will run at middle speed (Indicating lights in “Power”
and “Mid” buttons are on).
Push “High” button, the motor will run at high speed (Indicating lights in “Power”
and “High” buttons are on).
Push “Power” button will stop the motor running at whichever speed.
Light Low Mid High Power

Page 7 of 13
CARE AND CLEANING
General
 DO NOT let dirt build up on the hood
DO NOT use steel wool or steel brushes to clean the hood
DO NOT leave salt solutions, disinfectants, bleaches or cleaning compounds on
the hood for any length of time as they may damage the stainless steel. Rinse after use
with clean water and wipe dry with a clean cloth.
Regular maintenance is required to ensure that the cooker hood functions properly. This is
espe-cially true of the grease and charcoal filters.
Clean the fan and other surfaces of the cooker hood regularly with a cloth dipped in
denatured alcohol or a non-abrasive liquid cleaner.
The charcoal filter cleans the circulating air in the room. Such filters cannot be cleaned or
recycled and must be replaced at least every four months. The speed at which the
charcoal filter becomes saturated depends on how often the fan is used, the type of food
that is cooked and how often the grease filter is cleaned.
To prevent the risk of fire and to ensure that the cooker hood functions properly, the
grease filter must always be cleaned as instructed below when the display indicates the
need or at least every two months.

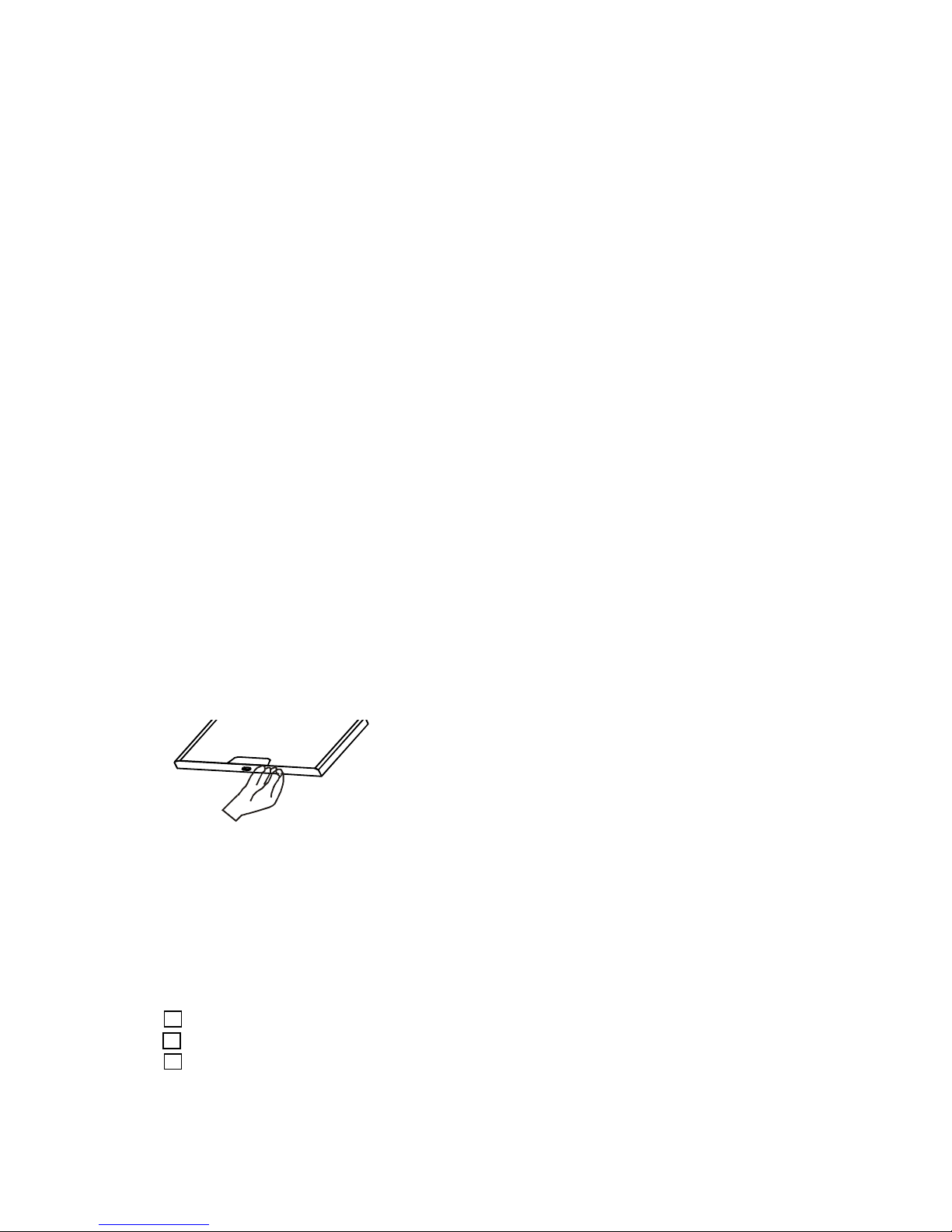

Cleaning the grease filter
Remove the filter from the cooker hood and clean it in a solution of water and neutral
cleaning liquid. Leave the filter to soak in the solution for a while.
- Rinse thoroughly with hot water and leave the filter to dry.
- The filter can also be cleaned in a dishwasher. The color of the grease filter may change
after a few washes. This is normal.
NB:
If you clean the grease flter in the
dishwasher: load only the grease flter and
no other items as food particles from
dishes can fasten in the filter.

Page 8 of 13
Replacing the LED lights
Depending on your model of hood, there are two possible types of lighting, halogen
and LED. The illumination is designed for use during cooking and not for prolonged
general illumination of your kitchen. Prolonged use of the lights may reduce the life
time of the LED lights.
WARNING:Do not touch or change lights while the hood is operating.
Use only the same LED lights as the original specification. Re-placement lights are
available through the dealers.

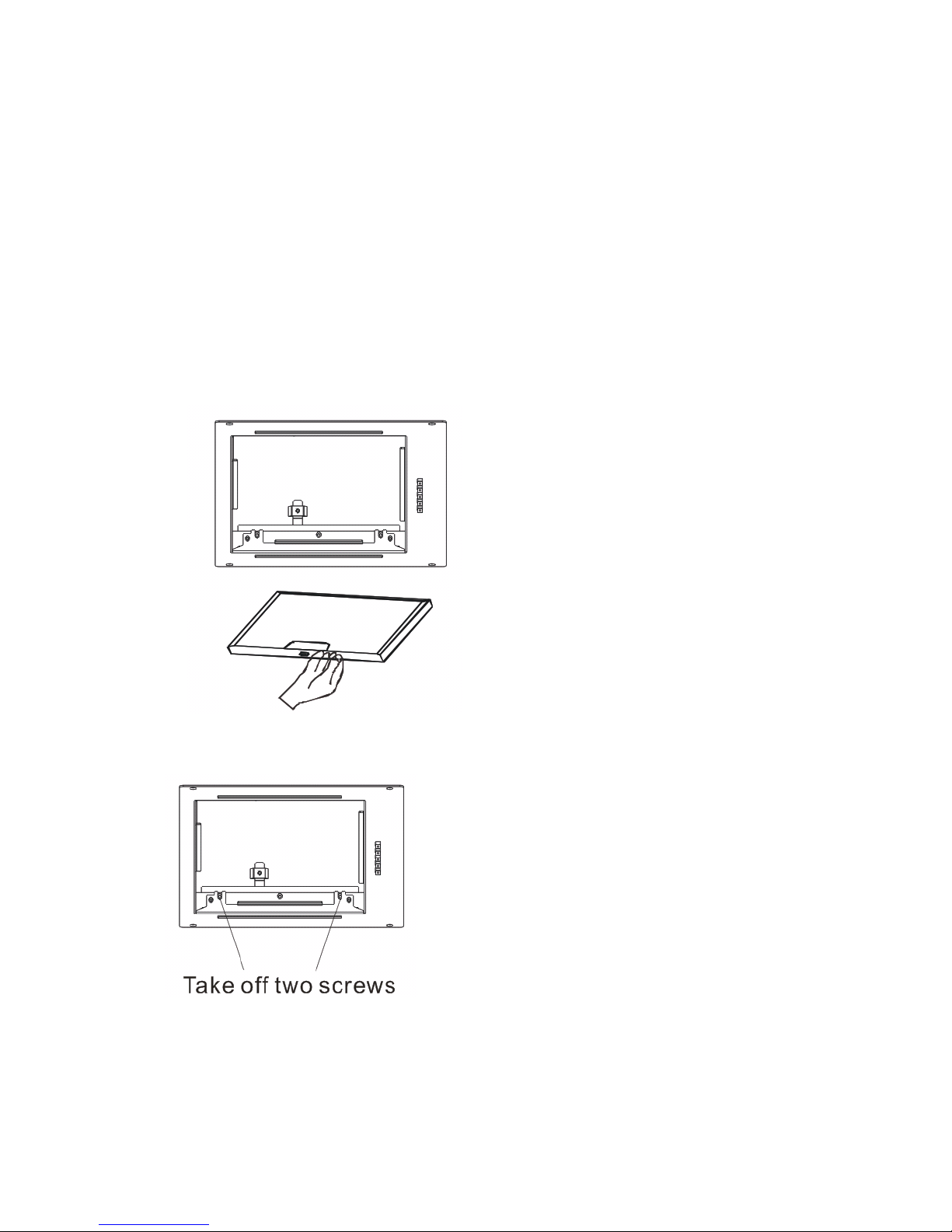

1. Take off the filters from hood.
2. Take off the two screws and replace the LED lights by reversing the steps.
NB:
The light is only meant for use during cooking and not for illuminating the
surroundings for longer periods. If the light is used for longer periods, this will
considerably shorten the burn time of the lights.
Recycling

Page 9 of 13
This appliance complies with European Community directive 2002/96/EC, Waste
Electrical and Electronic Equipment (WEEE). By ensuring that this product is recycled
responsibly, the user helps prevent possible negative impact on the environment.
NB:
Dispose of this product responsibly. Irresponsible disposal can result in negative
environmental impact or personal injury.'
Under no circumstances may this extractor fan be disposed of as household waste. It
must be taken to a recycling centre for electrical and electronic equipment.
This product must be disposed of in accordance with local legislation.
For more information on disposal, recycling and reuse of this product, contact your
local authority, your household waste collection service or the store where you
purchased the product
Hood Size & Wiring diagram:

Page 10 of 13
Trouble Shooting Guide
Problem Possible Reason Solution
Hood doesn't turn on. No electrical supply. Check the plug is connect-ed.
Check the plug is connect-ed.
Power cord is damaged Contact technician service
Poor Airflow
Aluminum grease filters
clogged
Clean the filters and replace
when dry.
Charcoal filters clogged.
Re-circulating mode only. Replace the charcoal filters.
Hood is vibrating Hood is not secured in place Check the installation of hood.Tighten mounting
screws.
Motor running but no
air flow Butterfly valve jammed. Contact technician service
Motor stops after a
few minutes
High temperature safety
device activated.
The kitchen is not
sufficient-ly ventilated.
The hood is installed too near
the cooking surface.
The hood must be at least
61cm (24”) from the stove
Strong cooking smell.
Fan speed too low
Use one of the higher
set-tings.
Charcoal filters not installed.
n re-circulating mode,
char-coal filters must be
installed.
Oil dripping onto
stove.
Aluminum grease filter
satu-rated.
Wash the aluminum grease
filters
Whirring sound Something in contact with fan
blade. Contact technician service
Lights are working
but
fan isn't
Contact technician service
Fan is working but
lights are not Contact technician service
GUARANTEE AND SERVICE!
Before booking a service call, read the Trouble Shooting Guide above , for more
information on guarantee and
service conditions, please contact local dealer.

Page 11 of 13

Page 12 of 13

Page 13 of 13
