Androstick FV-D11 User Manual
Androstick
Makes Your TV Smart
User Manual
Model: FV-D11
Before operating the unit, please read through this manual.
The manual contains important safety information and tutorials about the product.
1 / 28
Artway Technology

Androstick FV-D11 User Manual
Artway Technology
Contents
FEATURES ................................................................................................................................................................5
PRODUCT&ACCESSORIES ....................................................................................................................................5
QUICK INSTALL GUIDE............................................................................................................................................6
Install Information ...............................................................................................................................................6
INTERFACE .......................................................................................................................................................7
Remote Control Operating .................................................................................................................................8
INSTALLING WIZARD...............................................................................................................................................9
WELCOME PAGE ..............................................................................................................................................9
INSTALLING WIZARD .......................................................................................................................................9
MAIN LAUNCHER .................................................................................................................................................. 12
LAUNCHER MENU ......................................................................................................................................... 13
MEDIA PLAYER .............................................................................................................................................. 14
BROWSER ...................................................................................................................................................... 15
APPLICATIONS .............................................................................................................................................. 16
Install from USB-disk/Micro SD card ................................................................................................ 16
Install from Browser.......................................................................................................................... 16
Install from ApkInstaller .................................................................................................................... 16
Remove Applications ..................................................................................................................... 16
SETTINGS..................................................................................................................................................... 17
ADVANCED FEATURES ........................................................................................................................................ 19
DLNA (Digital Living Network Alliance) ........................................................................................................... 19
2 / 28

Androstick FV-D11 User Manual
Artway Technology
General Introduction ......................................................................................................................... 19
Operating Introductions .................................................................................................................... 19
Google TV Remote.......................................................................................................................................... 21
General Introduction ......................................................................................................................... 21
Operating Introductions .................................................................................................................... 22
VPN （ Virtual Private Network ） ..................................................................................................................... 24
Introduction & Attention .................................................................................................................... 24
Operating Manual ............................................................................................................................. 24
EXCEPTION HANDLING ....................................................................................................................................... 26
Systems restore .............................................................................................................................................. 26
SPECIFICATIONS .................................................................................................................................................. 28
3 / 28

Androstick FV-D11 User Manual
Artway Technology
SAFETY WARNING!
Before operating the unit, please read this manual thoroughly.
PLACEMENT
Do not place the unit on an unstable cart, stand, tripod, bracket, table, or shelf.
Do not expose the unit to direct sun-light and other sources of heat.
Do not handle liquids near or on the unit.
Never spill liquid of any kind into the unit
Do not put the unit near appliances that create magnetic fields.
Do not put heavy objects on top of the unit
POWER SUPPLY
Make sure the USB power supply can offer 5V/1A.If not, please use a 5V/1A output AC adapter instead.
Please unplug power supply and aerial plug when the weather is thunder-storm or lightning.
Please unplug power supply, when there is nobody at home or didn’t use over a long period of time.
Please keep power cord from physical or mechanical damage.
Please use exclusive power cord, don’t modify or lengthen it.
Please check and ensure AC source is connected with the ground.
TEMPERATURE
Do not place the unit near or over a radiator or a heater register.
If your unit is suddenly moved from a cold to a warm place, unplug the power cord for at least two hours so
that moisture that may have formed inside the unit can dry completely
HUMIDITY
Do not expose machine in rain, damp or place near water.
Ensure the indoor drying, cool.
VENTILATION
Keep the ventilation openings clear.
Ensure that the unit has enough space for ventilation around
BATTERY
Accurate transaction and recall scrap battery after using.
Please don’t let kid touch battery, in case of dangerous don’t throw battery into fire.
4 / 28

Androstick FV-D11 User Manual
FEATURES
Androstick is a brand new product that based on Android OS.
You can use it:
Surf the Internet via Wi-Fi
Communicate with your friends via SNS applications
Enjoy movies, music and photos via media player
PRODUCT&ACCESSORIES
5 / 28
Artway Technology

Androstick FV-D11 User Manual
Artway Technology
QUICK INSTALL GUIDE

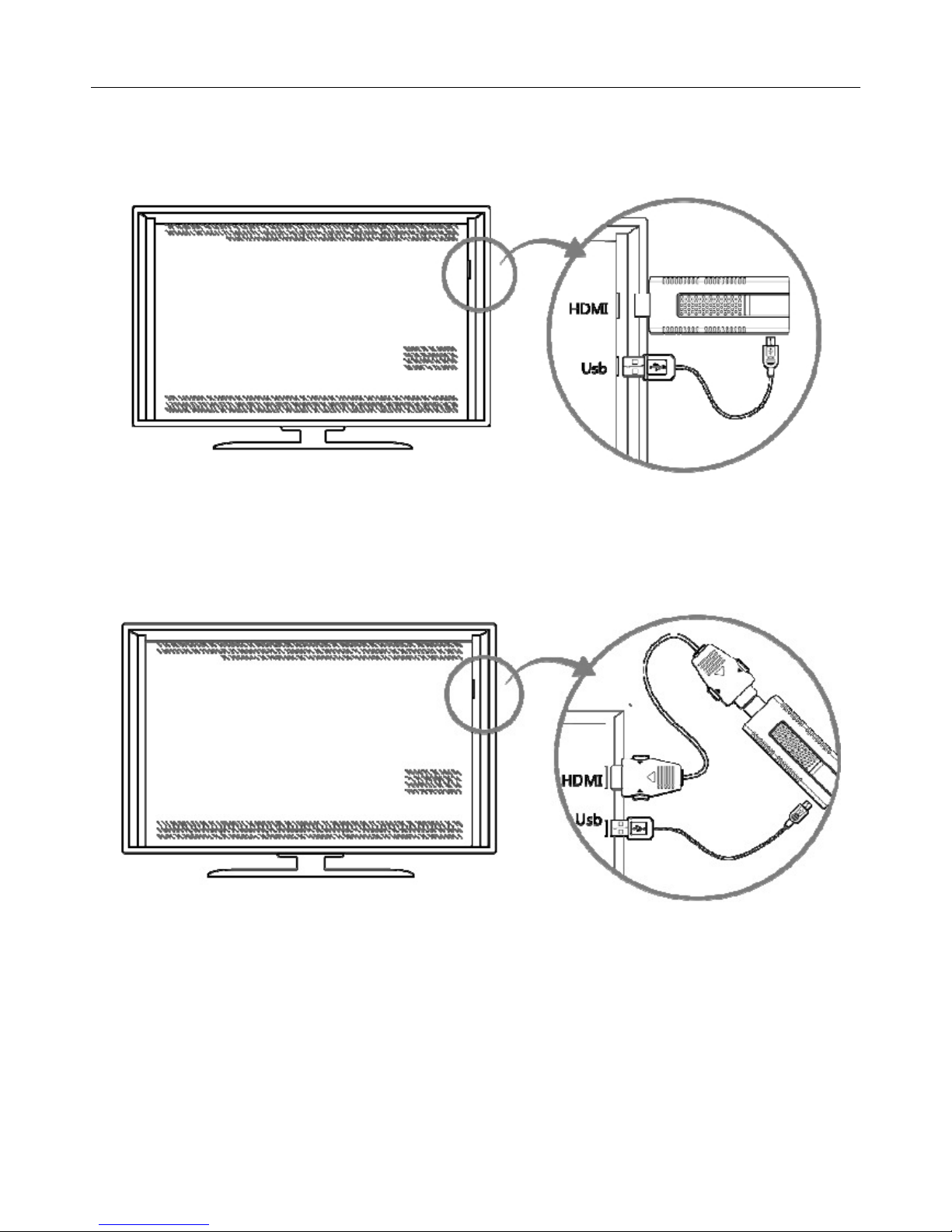

Install Information
Normal Condition:
Insert D11 into TV's HDMI input interface.
Connect D11's mini USB port to TV's USB port via USB supply line for power supply. (*ATTENTION: Make sure
the USB power supply can offer 5V/1A. If not, please use a 5V/1A output AC adapter instead!)
Special Condition (NO ENOUGH ROOM FOR D11 AROUND THE TV'S HDMI INPUT INTERFACE) :
Connect D11 to TV's input interface through HDMI extended line.
Power supply as above.
6 / 28

Androstick FV-D11 User Manual
Artway Technology
INTERFACE
Left:
2.5mm interface: I/R remote control receiver;
Mini USB interface: Power supply (5V/1A)
Right :
Signal light: (Red light during running, no light when shut down)
Back:
USB2.0 interface: Input with USB-disk or mobile HDD
Micro SD Card slot: Support up to 32GB
7 / 28

Icons Features
Power
Page up/ Page down
Mouse/keypad
Call out search bar (also can input web
address)
Home button
Directions & Confirm
Call out menu
Notification Bar
Back
Previous
Play/Pause
Next
Androstick FV-D11 User Manual
Remote Control Operating
8 / 28
Artway Technology

Androstick FV-D11 User Manual
Artway Technology
INSTALLING WIZARD

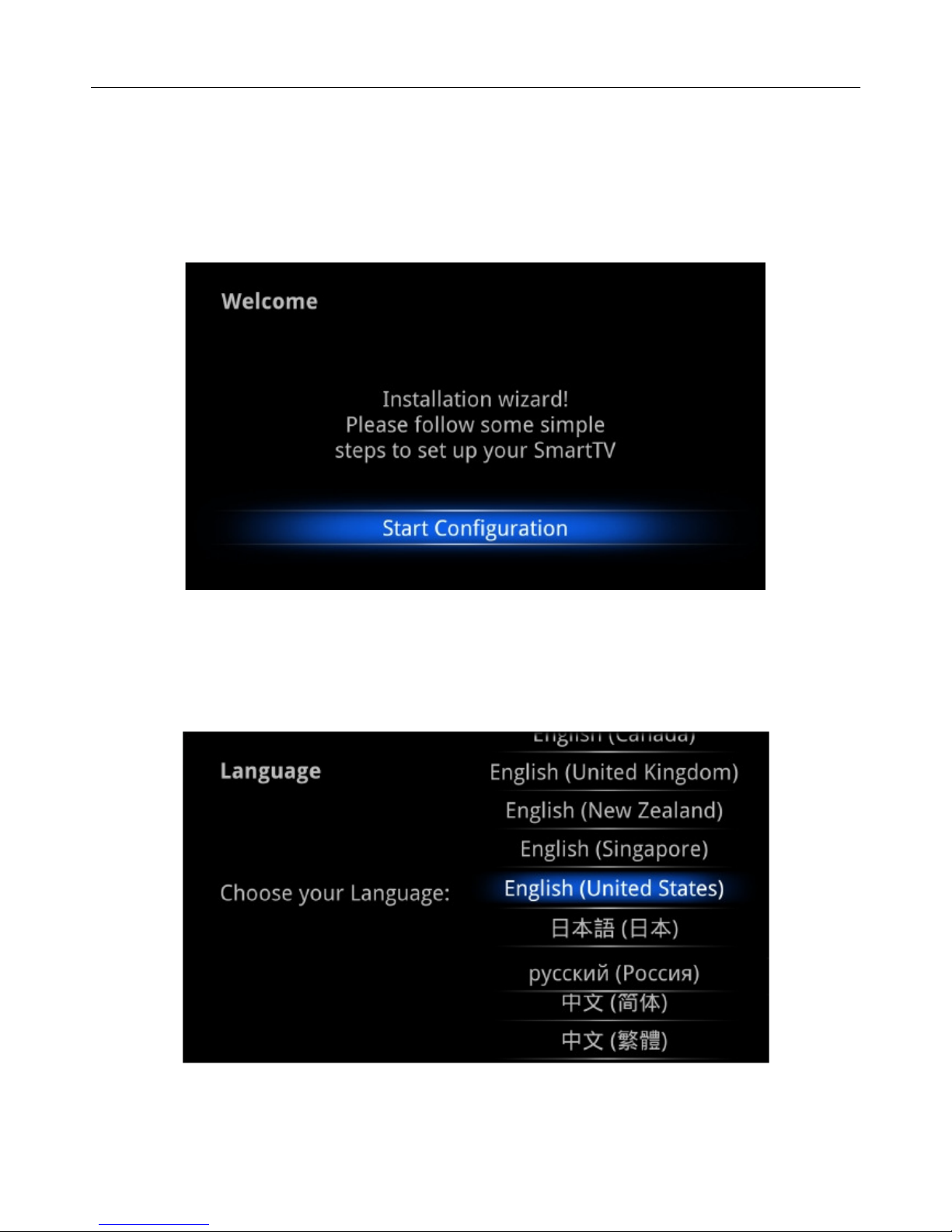

WELCOME PAGE
When the Androstick D11 is first powered up, Welcome Page will be shown. It will help you to configure the device
INSTALLING WIZARD
Choose your language:
9 / 28

Androstick FV-D11 User Manual
Choose your Wi-Fi network access point:
Configuration Result:
10 / 28
Artway Technology

Androstick FV-D11 User Manual
Adjust screen size, using the arrow buttons
on remote control:
Artway Technology
User can setup the Language, Network, Time Zone, Data/Time, and adjust screen size.
Reminder: If you want to skip this wizard, press “
when system booted.
11 / 28
” key. If you finish this wizard once, it will not auto-open

FUNCTION DESCRIPTION
The Media Player lets you enjoy all of
your videos ,music and pictures from
system memory or storage devices
The Notification expend the notification
bar for checking if there is any
notification
The Settings screen contains most of the
customizing and configuration options,
such as language, aspect ratio, date and
time and network
The AppManager lets you launch
selected applications, such as Weather,
Calendar ,News
The Browser allows you enjoy your time
on surfing Internet and searching for
information
Androstick FV-D11 User Manual
MAIN LAUNCHER
Press the arrow buttons
12 / 28
to select the icon and ‘ENTER’ the sub-screen:
Artway Technology

LAUNCHER MENU LIST EXAMPLE DESCRIPTION
You can change your wallpaper
into live ones or other beautiful
pictures
You can open or shut down the
function of notice reminder
You can manage applications
as follows:
Running App Process
Running Service
Running Task
Recent Task
You can manage your widgets
here
Androstick FV-D11 User Manual
LAUNCHER MENU
13 / 28
Artway Technology

Androstick FV-D11 User Manual
Artway Technology
MEDIA PLAYER
The “Picture”, “Music” and “Video” are the media player for local storage. You can play the media on the USB-disk,
Micro SD card etc.
Music player
Picture player
14 / 28

Type Format
Video (Upper to 1080P) H.264 (MKV, AVI, TS, M2TS, MOV, WMV, MP4, FLV)
DIVX (AVI)
MPEG1, MPEG2,MPEG4 (RM, VOB, MPG, MPEG,
TS, M2TS)
VC1
WMV
Audio MP3
WMA
AAC
OGG
WAV
M4A
Picture (Resolution < 20M) BMP
JPG/JPEG
GIF
PNG
Androstick FV-D11 User Manual
Artway Technology
The following table shows the codec or format the product can play (more detail at general outline):
BROWSER
You will use the following key:
Arrow buttons:
Select and confirm to choose or enter
Menu Key :
Call out the Browser’s menu, include forward, edit bookmark, refresh etc.
Back key :
Back to the last page
Search key :
Call out the search bar for searching or input new web address.
PG +/ PG- :
You can use the keys to browse up/ down the web page.
15 / 28

Androstick FV-D11 User Manual
APPLICATIONS
Install from USB-disk/Micro SD card
Artway Technology
1.
2.
3.
4.
5.
Open the “File Manager”.
Choose your USB-disk or any other mass storage’s folder.
Find you application, and press it.
Press the install button.
You can find the application in “App manager” after installation.
Install from Browser
1. Open the Browser.
2. Press search key and input your website address.
3. Download an APK file if there is a link for download this file (*Before download, you must have your Micro
SD card in the card slot).
4. You can find the file in your Micro SD card folder.
5. Install it use “File manager”.
Install from ApkInstaller
1.
2.
3.
4.
Open the ApkInstaller.
Find the icon of the application, and enter it.
Press the install button.
You can find the application in “App manager” after installation.
Remove Applications
1. Enter SETTINGS
2. Enter "Applications--Manage applications"
3. Find the application you want to remove in tab "All"
4. Enter the icon and press "Uninstall"
5. Press "OK" to confirm uninstall
16 / 28

Setup settings Brief description
Wireless & networks
Check to turn on Wi-Fi so you can connect to Wi-Fi networks
Check to receive an alert when an open Wi-Fi network
becomes available
Opens a dialog where you can add a Wi-Fi network by entering
its SSID (the name it broadcasts) and security type
Display
Output mode:
●1080p
●1080i
●720p
Set your display overscan ratio
Applications
Compatibility Mode
Manage applications
Running services
Storage use
Reset to factory defaults
This will erase all data from your device’s internal storage
To also clear music, pictures, and other data, the Micro SD card
needs to be erased
Androstick FV-D11 User Manual
SETTINGS
17 / 28
Artway Technology

Storage settings
Total space
Available space
Erase USB storage
Available space of internal storage
Language & Keyboard
Select language
User dictionary
Android keyboard
System updates
Updating system
About module
Status
Model number
Android version
Baseband version
Kernel version
Build number
Wi-Fi IP address
Wi-Fi MAC address
Androstick FV-D11 User Manual
18 / 28
Artway Technology

Androstick FV-D11 User Manual
Artway Technology
ADVANCED FEATURES
DLNA (Digital Living Network Alliance)
General Introduction
DLNA (Digital Living Network Alliance) seeks for more convenience, choices and enjoyment of your digital
content through DLNA Certified devices. You can share/transfer/play/control media files from different devices
through Wi-Fi.
1)
2)
3)
4)
1)
Android TV play the shared media files from notebook, phone or tablet PCs. (DMP)
Android TV shares its media files, and other devices or itself can play the shared files (DMS)
Android TV can be a display terminal of other devices(DMR)
Mobile phone can be the controller of the Android TV as well as push media files into the TV(DMC)
Operating Introductions
Enter the APP MediaSharing. You will see a list of devices that support DLNA on the left.
19 / 28

Androstick FV-D11 User Manual
Artway Technology
2) Choose the right device on the left, you will see a list of media files that the device shared.
3) Choose and press the media file you want to play. It will take a little longer for video files. Music and
picture play screenshots are as followed:
Operating tips:
You can drag the progress bar during playing music or video. You can also have basic functions like
forward/rewind and Prev/Next
Picture player can zoom in/out and rotate the picture as you like, it also provide filmslide function
Manu of MediaSharing
20 / 28
