Arwin Tools 20300 User manual

18V Snow Thrower
20300

I. Safety Instructions
Warning: Read the operating instructions and act accordingly. Failure to follow all instructions listed below may result in
electric shock, fire and/or serious personal injury. Keep it for general use. Comply with the safety information and the
warning on the appliance.
SAVE THESE INSTRUCTIONS
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
1 .Training
−Read the operating and service instruction manual carefully. Be thoroughly familiar with the controls and the proper use of the
equipment. Know how to stop the unit and disengage the controls quickly.
−Never allow children to operate the equipment. Never allow adults to operate the equipment without proper instruction.
−Keep the area of operation clear of all persons, particularly small children, and pets.
−Exercise caution to avoid slipping or falling, especially when operating in reverse.
2 .Preparation
−Thoroughly inspect the area where the equipment is to be used and remove all doormats, sleds, boards, wires, and other foreign
objects.
−Do not operate the equipment without wearing adequate winter garments. Wear footwear, which will improve footing on slippery
surfaces.
−The operation of any powered machine can result in foreign objects being thrown into the eyes.
Always wear safety glasses or eye shields during operation or while performing an adjustment or repair.
3 .Operation
−Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
−Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic.
−After striking a foreign object, stop the appliance, disconnect from the supply mains, thoroughly inspect the snow thrower for any
damage, and repair the damage before restarting and operating the snow thrower.
−If the unit should start to vibrate abnormally, stop the appliance, disconnect from the supply mains and check immediately for the
cause. Vibration is generally a warning of trouble.
−Stop the appliance, disconnect from the supply mains whenever you leave the operating position, before unclogging the
collector/impeller housing or discharge guide, and when making any repairs, adjustments, or inspections.
−When cleaning, repairing, or inspecting, make certain stop the appliance, disconnect from the supply mains, the collector/impeller
and all moving parts have stopped.
−Disconnect the supply mains, and keep the wire away from the plug to prevent accidental starting.
−Never operate the snow thrower without proper guards, plates or other safety protective devices in place.
−Never operate the snow thrower near glass enclosures, automobiles, window wells, offs, etc; without proper adjustment of the snow
discharge angle. Keep children and pets away.
−Do not overload the machine capacity by attempting to clear snow at too fast a rate.
−Never direct discharge at bystanders or allow anyone in front of the unit.
−Stop the appliance, disconnect from the supply mains when snow thrower is transported or not in use.
−Use only attachments and accessories approved by the manufacturer of snow thrower (such as wheel weights, counterweights, cabs,
etc.).
−Never operate the snow thrower without good visibility or light. Always be sure of your footing, and keep a firm hold on the handles.
Walk; never run.
−Do not carry passengers.

−Never operate the snow thrower without good visibility or light.
−Take all possible precautions when leaving the machine unattended. Stop the appliance, disconnect from the supply mains.
4 .Maintenance and storage
−Check the supply cord, plug and all guards; at frequent intervals for proper tightness to be sure the equipment is in safe working
condition.
−Always refer to owner’s guide instructions for important details if the snow thrower is to be stored for an extended period.
−Maintain or replace safety and instructions labels, as necessary.
−Run the machine a few minutes after throwing snow to prevent freeze-up of the collector/impeller.
−Specific written instructions with appropriate safety warnings shall be provided with the equipment for those maintenance operations
recommended by the manufacturer that must be performed with the appliance running. General maintenance written instructions shall
be provided with the equipment for maintenance operations recommended by the manufacturer to maintain the equipment in safe
operating condition.
- Have your power tools serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of
the power tools in maintained.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to
avoid a hazard.
- If the carbon brushes need to be replaced, have this done by a qualified repair person (always replace the two brushed at the same
time).
ADDITIONAL SAFETY RULES FOR SNOW THROWER
• The appliance must be assembled correctly before use.
• Before inserting the plug into the mains socket, make sure that the socket ratings are correct and correspond to those indicated on
the rating label on the appliance.
• Never move the appliance by pulling at the cables.
• Always disconnect the appliance from the mains supply before transporting it to other places.
•Always switch off the appliance before disconnecting any plug and socket connector or extension cables.
• All onlookers should be kept a safe distance away from the appliance when it is in use.
• The user is responsible for third parties while working with the appliance.
• Be careful never to throw snow towards people or cars, and never allow anyone in front of your snow thrower.
• People not acquainted with the operating instructions, children, juveniles who have not yet reached the minimum age for using this
appliance, and people under the influence of alcohol, drugs or medication are not allowed to use the appliance.
• Only use the appliance for its designed purposes.
• Always use the appliance with the discharge chute attached.
• Keep hands and feet away from all rotating and moving parts.
• Never put your hand in the discharge chute or near the auger to remove snow, sticks or other debris. Blocked auger can “spring
back” when cleared and may cause personal injury, even with the appliance stopped. Always use an object such as a long stick or
shovel handle to clear blockages.
• Wear safe, sturdy, nonskid footwear. Ensure that you have a good a stand, especially on slopes.
• Wear safety glasses, and avoid any loose‐fitting clothing that could get caught in moving parts. Be careful of long hair.
• Only work in daylight or sufficiently good artificial light.
• In order to start the appliance, the auger must be completely free to move.
• The use of the appliance is only permitted if the safety distance provided by the guide bar is complied with.
• Always hold the handle bar firmly and walk, never run.
• Do not overload the appliance by attempting to clear snow at too fast rate.
• Slow down and turn corners slowly.
• Caution! Auger does not stop immediately after switching off.
• Always switch off the appliance, disconnect the plug and wait until the auger stops before carrying out maintenance or cleaning work.

• Use caution when cleaning or performing maintenance on the appliance.
DANGER! Watch your fingers! Wear gloves!
• It is forbidden to move or modify any of the electrical and mechanical safety devices.
• The snow can sometimes hide objects that might clog the chute, or otherwise cause damage. Clear the area of doormats, sleds,
boards, wires and other debris.
• If the appliance strikes a foreign body, examine the appliance for signs of damage and carry out any necessary repairs before
restarting and continuing to work.
• If the appliance should start to vibrate abnormally, switch off the motor and check for the cause immediately. Vibration is generally a
warning of trouble.
• The appliance should be checked carefully before use. You should only work with an appliance that is in good condition. If you notice
any defect on the machine that may cause danger to the operator, do not operate the appliance until defects are rectified.
• Replace worn or damaged parts for safety. Use only original spare parts. Parts not produced by manufacturer may cause poor fit and
possible injury.
• The machine should not be operated by means of an external timer‐switch or by means of a separate system with remote control.
• Let machine adjust to outdoor temperatures before starting to clear snow.
Electrical Safety
• Design of the connection cable according to IEC 60245 (H 07RN‐F) with a core cross‐profile section of at least:
- 1.5 mm2for cable lengths up to 25m
- 2.5 mm2for cable lengths over 25m
• Long and thin connection lines result in a potential drop. The motor does not reach any longer its maximal power; the function of the
device is reduced.
• Plugs and coupler outlets on connection cables must be made of rubber, nonrigid PVC or other thermoplastic material of same
mechanical stability or be covered with this material.
• The connector of the connection cable must be splash proof.
• When running the connection line observe that it does not interfere, is not squeezed, bended and the plug connection does not get
wet.
• Wind off completely the cable when using a cable drum.
• Do not drive the device across the extension cable. Make sure that it is behind you in a secure position. Place the cable on a path or
area that has already been thatched.
• Do not use the cable for purposes for which it is not meant. Protect the cable against heat, oil and sharp edges. Do not use the cable
to pull the plug from the socket.
• Protect yourself against electric shocks. Avoid touching earthed parts with your body (e.g. pipes, heating apparatus, cookers, fridges
etc.).
• Do never connect a damaged cable to the mains. Do not touch a damaged cable before it is disconnected from the mains. A
damaged cable may cause contact with live parts.
• Do not use any defective connection cables.
• When working outdoors, only use extension cables especially approved and appropriately labeled for out-door use.
• Do not set up any provisional electrical connections.
• Never bypass protective devices or deactivate them.
• Only hook up the machine by means of a fault‐current circuit breaker (30 mA).
• The electrical connection or repairs to electrical parts of the machine must be carried out by a certified electrician or one of our
customer service points. Local regulations ‐especially regarding protective measures must be observed.
• Damaged mains must be replaced by the manufacturer or one of their service workshops or a similar qualified person to prevent
dangers.
• Repairs to other parts of the machine must be carried out by the manufacturer or one of his customer service points. Use only
original spare parts, accessories and special accessory parts. Accidents can arise for the user through the use of other spare parts.

The manufacturer is not liable for any damage or injury resulting from such action.
II.Description
Fig.1
Item
Description
1
Safety button
2
Trigger
3
Handle bar
4
Battery
5
Knob
6
Front handle bar
7
Upper tube
8
Lower tube
9
Motor housing
10
Side cover
11
Plate
12
Auger
III.Assembly
Guide bar (Fig. 2)
Take off the plastic clamp.
Slide the lower section into the upper tube.
Line up holes on each tube, and make sure that the internal cable (A) does not pass the mounting holes.
Fix two sections firmly with the supplied screw and swing nut.

Fig.2
Front handle
Loosen the knob and lift up the handle bar to the operation position. (Fig. 4)
Adjust the height of the handle to a safe and comfortable position and fix it by the knob.
Fig.4
IV. Using your Snow Thrower
1. Put on your battery.
2. On/Off switch (Fig. 6)

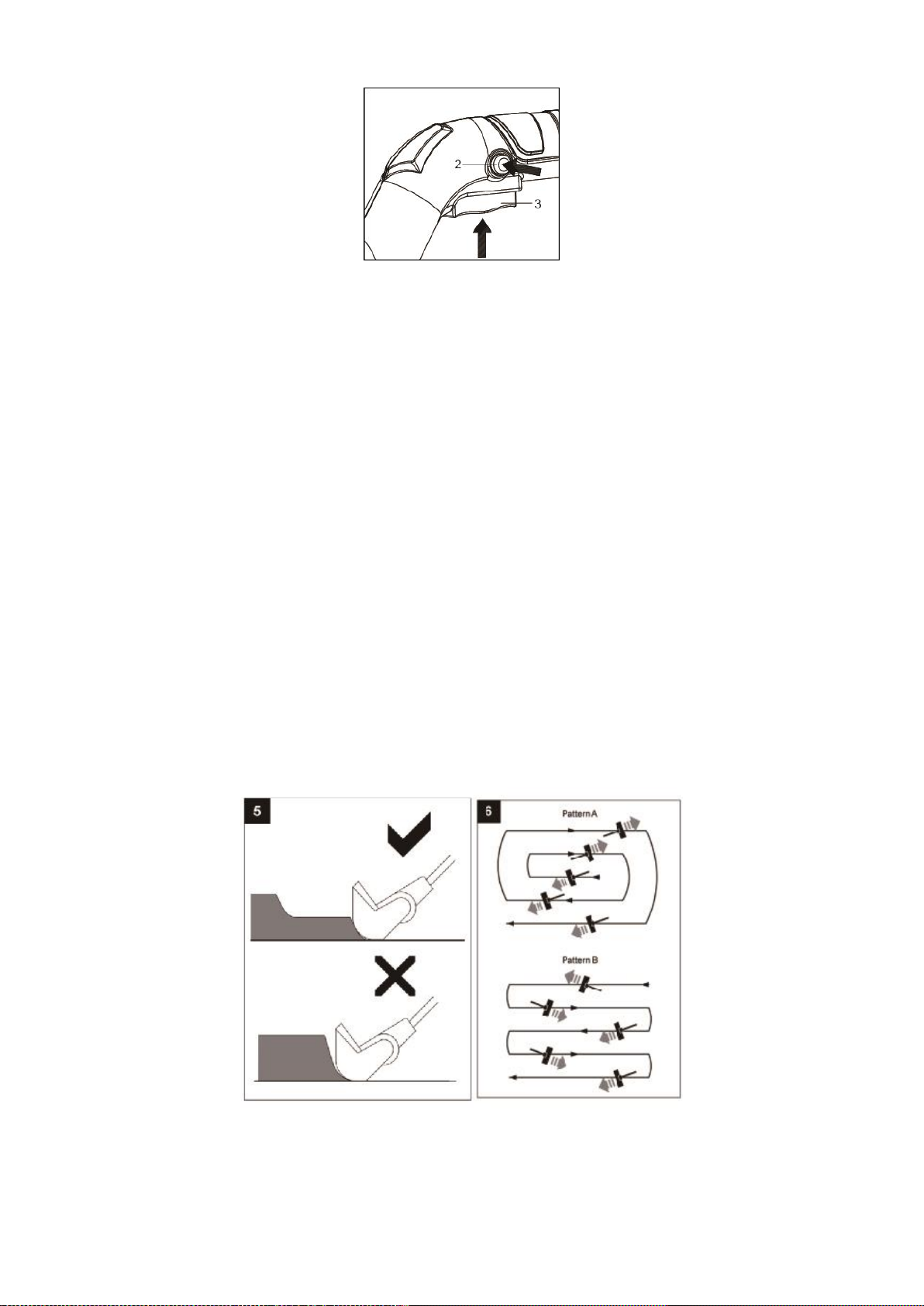

Warning! The auger starts rotation immediately after switch on! Keep hands and feet away from auger.
To switch on, hold the appliance firmly with two hands and press the safety lock off button while press the
On/Off switch trigger. Keep the switch trigger hold while release the button. To stop the appliance, release the
switch trigger and it automatically returns to its start position.

Fig.6
3. REMOVING SNOW
• Before starting work, make sure that the area to be clear is free of stones, debris, wires and any other objects.
• Make sure all fasteners (screws, nuts, etc.) are always fully tightened so that you can work safely with the
appliance.
• Check the auger for wear and tear at regular intervals.
• Position discharge chute in safe direction and angle, away from operator and bystanders.
• Clearing snowfall often, before it gets too deep. Snow is best removed as soon as possible after snow falls.
• Lift the auger off surface slightly before switch on.
• Switch on and tilt the appliance forward until the scraper blade contacts the ground. Push the appliance
forward at a comfortable rate of speed, yet slow enough to clear the path completely. The width and depth of
the snow determines your forward speed.
• Direct the snow to the right or to the left by holding the appliance at a slight angle. For the most efficient snow
removal, throw the snow downwind, and slightly overlap each swath.
• The appliance can remove snow up to 15 cm deep in one pass. When clearing deeper drifts, hold the
appliance by the upper and lower handles and use a swinging or sweeping motion. Shaving off the top layer
and making multiple passes (Fig. 7). For large areas, a definite pattern of operation is required to thoroughly
clean an area of snow. These patterns will avoid throwing snow in unwanted places as well as eliminating a
second removal of snow. (Fig. 8) Pattern A: Throw the snow to the right or left side where it is possible, as on a
long driveway it is advantage to start in the middle. Plow from one end to the other, throwing snow to both sides.
Pattern B: If the snow can only be thrown to one side of the driveway or sidewalk (above), start on the opposite
side.
• Scraping the snow all the way down to the pavement will wear out the scraper and auger. To spare the
machinery, one or two inches of snow can be left behind, to be handled with de‐icing salt or a shovel.
• After clearing the snow, let the motor run for a few minutes so that the ice doesn’t freeze any moving parts.
Then switch off the motor, wait for all moving parts to stop, and wipe the ice and snow off the appliance.
Warning! To avoid serious personal injury, do not use hands or feet to unclog chute.
Fig.7 Fig.8
3. MAINTENANCE AND STORAGE
Before carrying out any maintenance operations, cut off the electric power supply by disconnecting the plug

from the extension cable.
• Regular cleaning and maintenance of your appliance will ensure efficiency and prolong the life of your
appliance.
• After each operation, take apart and clean out the ice and debris from the ventilator and its slot, auger and
housings.
• Only use a cloth soaked with hot water and a soft brush to clean the application. Never wet or spray water on
the machine! l Do not use detergents or solvents as these could cause irreparable damage to your appliance.
Chemicals can destroy the plastic parts.
• To protect the application from corrosion when storing for a longer period, treat the metal parts with harmless
oil to the environment.
• Store the appliance in a dry room out reach of kids.
• Maintain or replace safety and instructions labels as necessary.

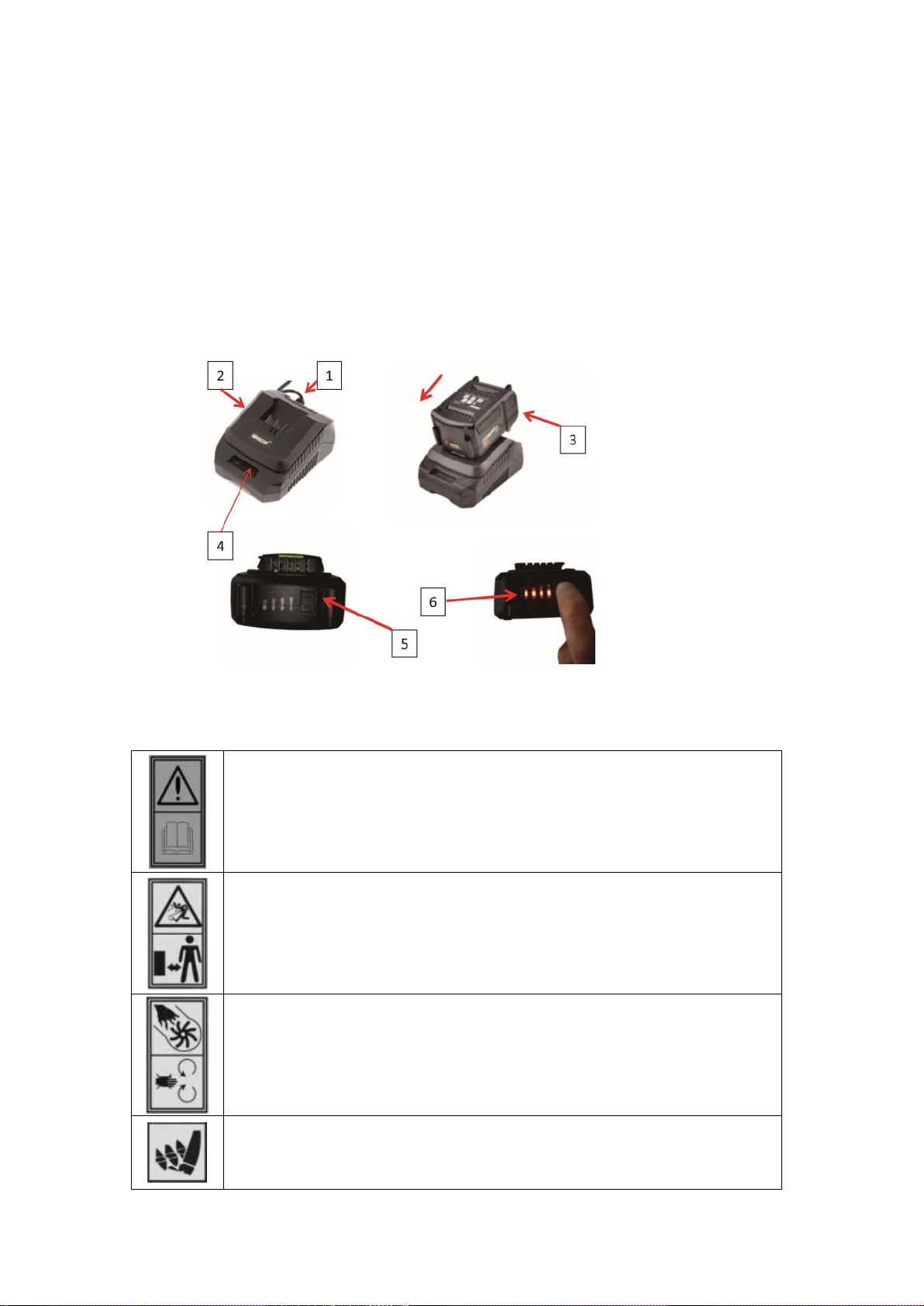

Charge your battery when power lower.

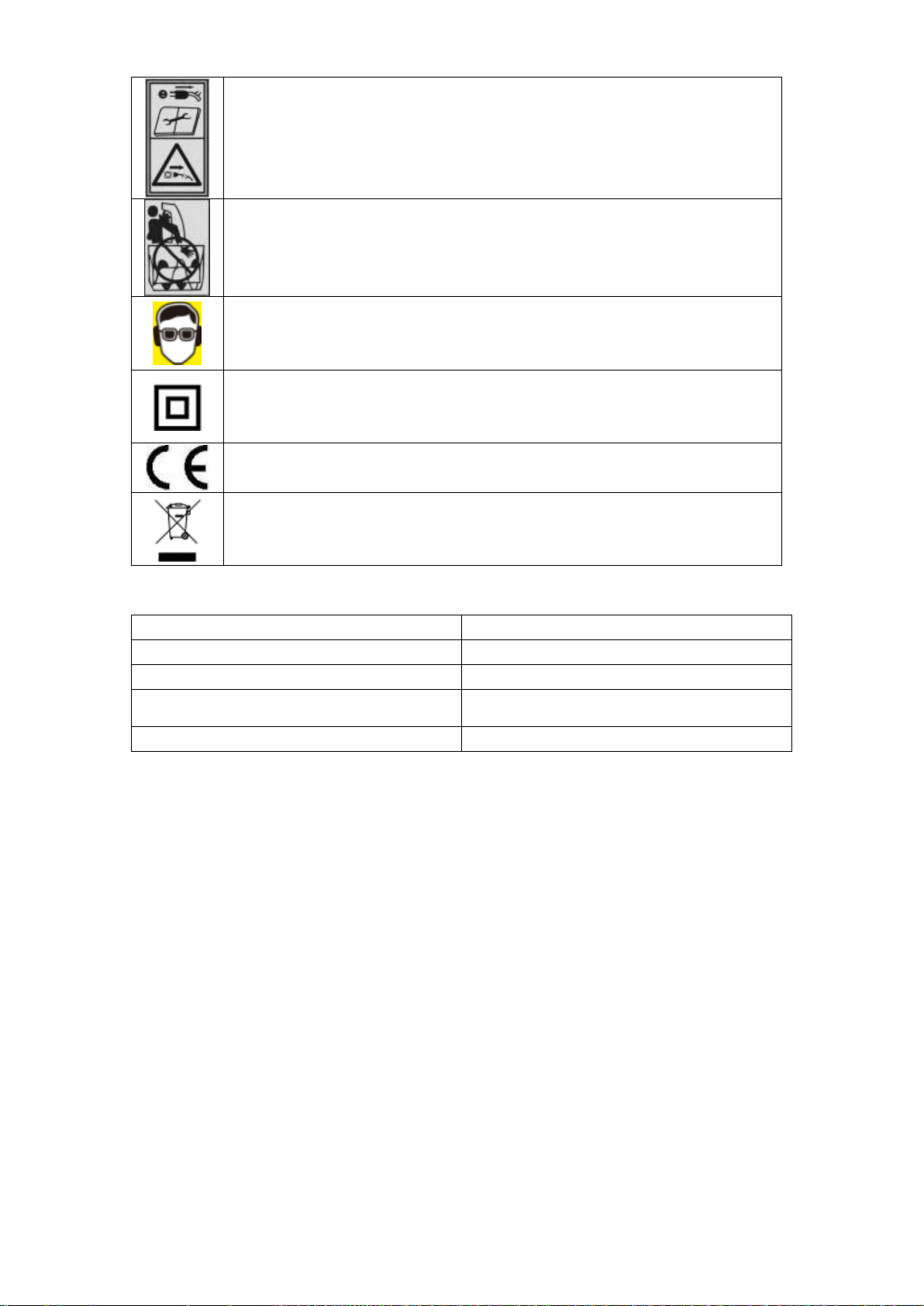

V. Explanation of Symbols
The rating plate on your tool may show symbols. These represent important information about the product or
instructions on its use.
Read the instruction manual
The following warning symbols are to remind you of the safety precautions you should take
when operating the snow thrower.
Always keep the children or pets away from the working area.
Always keep away from the working area. The throwing snow may hurt you.
Keep hands away from the moving parts of the snow thrower. The rotating parts will hurt you.
Keep foot way from the moving parts of the snow thrower. The rotating parts will hurt you.

To reduce the risk of electric shock, disconnect from supply mains and replace damaged cord
immediately.
Do not use hands to unclog chute.
Wear safety goggles and ear protectors
Double insulated for additional protection.
Conforms to relevant safety standards.
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your local authority or retailer for recycling advice.
VI. Tecnical Data
Rated Voltage:
18V 4.0Ah
Rotation Speed:
2400 min-1
Clearing width:
280 mm
Maximum clearing depth:
150 mm
Max throwing Distance:
5 M
