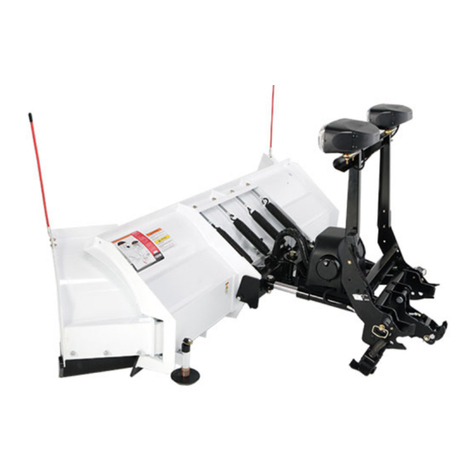

POWER PLOW™Snowplow
Models 8100PP & 86110LP
Owner's Manual
May 1, 2021
Lit. No. 40691, Rev. 05
This manual supersedes all editions with an earlier date.
CAUTION
Read this manual before operating or
servicing snowplow.
A DIVISION OF DOUGLAS DYNAMICS, LLC

Lit. No. 40691, Rev. 05 3 May 1, 2021
SNOWPLOW OWNER DATA SHEET
Register your snowplow online at www.blizzardplows.com
Owner Name: ______________________________________________________________________________
Date Purchased: ____________________________________________________________________________
Outlet Name: _______________________________________________ Phone: _________________________
Outlet Address: _____________________________________________________________________________
Vehicle Model/Year: _________________________________________________________________________
Snowplow Model/Year: _______________________________________________________________________
Snowplow Type/Size: ______________________________________________ Weight: ______________ lb/kg
Ballast: No ___ Yes ___ Amount: ___________lb/kg
Hydraulic Unit Serial Number: __________________________________________________________________
Blade Serial Number: ________________________________________________________________________

Lit. No. 40691, Rev. 05 5 May 1, 2021
TABLE OF CONTENTS
SNOWPLOW OWNER DATA SHEET ..................... 3
PREFACE................................................................... 7
SAFETY ..................................................................... 8
VEHICLE APPLICATION INFORMATION ........... 11
Ballast Requirements.......................................... 11
GETTING TO KNOW YOUR SNOWPLOW .......... 12
Snowplow Headlamps ........................................ 12
Vehicle Mount ..................................................... 12
Hydraulic System ................................................ 13
System Capacity .......................................... 13
Pump Motor Specifications .......................... 13
Cab Controls....................................................... 13
ACCESSORIES & OPTIONS ................................. 14
MOUNTING SNOWPLOW TO VEHICLE.............. 16
OPERATING YOUR SNOWPLOW ........................ 17
Joystick Control................................................... 17
POWER GRIP™ Hand-Held Control .................. 19
Snowplow Headlamp Check............................... 21
Disc Shoe Adjustment......................................... 21
Hydraulic System ................................................ 23
Blade Drop Speed Adjustment ........................... 24
Transporting Snowplow ...................................... 25
Driving and Plowing on Snow and Ice ................ 25
Plowing Snow ..................................................... 26
General Instructions ..................................... 26
Hard-Packed Snow ...................................... 26
Deep Snow................................................... 26
Clearing Driveways....................................... 27
Clearing Parking Lots ................................... 27
Parking with Snowplow Attached .......................27
Towing a Disabled or Stuck Vehicle.................... 27
REMOVING SNOWPLOW FROM VEHICLE
& STORAGE......................................................... 28
MAINTENANCE ......................................................30
Aiming Headlamp Beams ...................................30
Preseason Check................................................ 31
Postseason Maintenance.................................... 31
Maintenance and Adjustment ............................. 32
Hydraulic System ............................................... .33
Fluid Level .................................................... 33
Annual Fluid Change....................................33
Air Removal............................................34
Hose or Fitting Replacement........................35
Procedure for Installing Hydraulic
Fittings and Hoses .................................... 35
Fuse Replacement.............................................. 36
Vehicle ................................................................36
Recycle ...............................................................36
Blade Finish ........................................................36
Emergency Parts/Tools ......................................36
Troubleshooting .................................................. 36
TECHNICAL SPECIFICATIONS............................ 37
HARNESS DIAGRAMS..........................................38
Vehicle Side, 3-Port, 2-Plug System ..................38

Lit. No. 40691, Rev. 05 6 May 1, 2021

Lit. No. 40691, Rev. 05 7 May 1, 2021
PREFACE
PREFACE
Congratulations on purchasing the finest
POWER PLOW™ snowplow available!
BLIZZARD POWER PLOW®snowplows are clearing
new trails for innovative design, rugged durability,
quality craftsmanship, and superior performance. Our
innovative products are tested all over the snowbelt.
This manual provides safety, operation, and
maintenance information for your new BLIZZARD
snowplow. To keep your snowplow in good condition,
read and understand this manual and follow its
recommendations. Failure to do so may affect your
warranty coverage.
When service is necessary, your local BLIZZARD
distributor knows your snowplow best. Contact your
BLIZZARD outlet for maintenance, service, or any
other assistance you may require.
If you have not already done so, please visit
www.blizzardplows.com to register your new
BLIZZARD snowplow!
AUTHENTIC PARTS AND ACCESSORIES
Your BLIZZARD snowplow is a valuable investment.
The best way to assure original equipment reliability
and efficiency is to purchase only Authentic Parts
and Accessories. "Will-fit" parts and accessories can
alter your snowplow's performance characteristics and
may affect your product warranty.
Protect your investment by staying with the best—
original BLIZZARD parts and accessories from your
local BLIZZARD outlet.

Lit. No. 40691, Rev. 05 8 May 1, 2021
SAFETY
SAFETY DEFINITIONS
NOTE: Indicates a situation or action that can lead
to damage to your snowplow and vehicle or other
property. Other useful information can also be
described.
WARNING
Indicates a potentially hazardous situation
that, if not avoided, could result in death or
serious personal injury.
CAUTION
Indicates a potentially hazardous situation
that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
WARNING/CAUTION AND INSTRUCTION
LABELS
Become familiar with and inform users about the
warning and instruction labels on the back of the
blade.
NOTE: If labels are missing or cannot be read, see
your sales outlet.

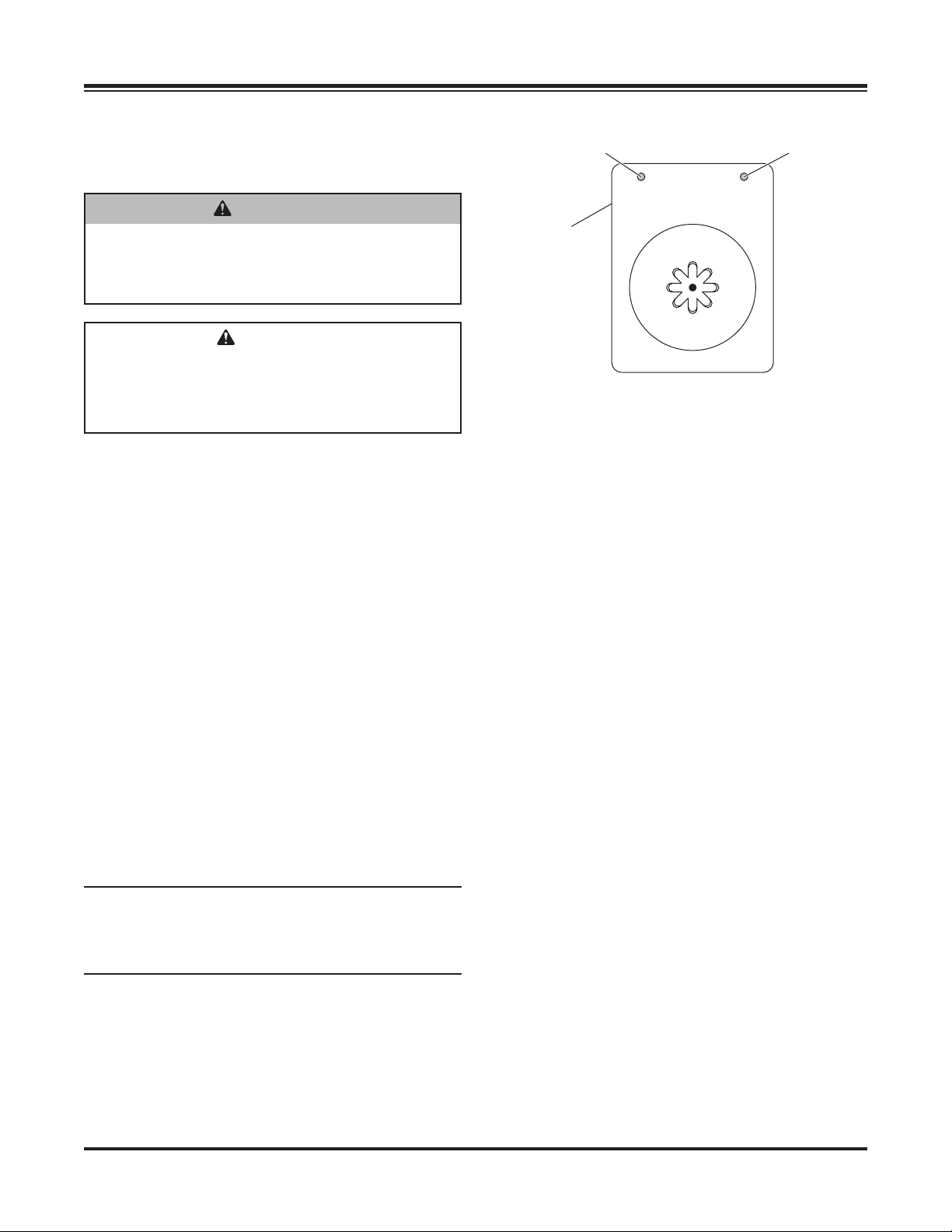

POWER PLOW®&
SPEEDWING™ Blades Only
(both sides)

Lit. No. 40691, Rev. 05 9 May 1, 2021
SAFETY
SAFETY PRECAUTIONS
Improper installation and operation could cause
personal injury, and/or equipment and property
damage. Read and understand labels and the
Owner's Manual before installing, operating, or making
adjustments.
WARNING
Lower blade when vehicle is parked.
Temperature changes could change
hydraulic pressure, causing the blade to
drop unexpectedly or damaging hydraulic
components. Failure to do this could result in
serious personal injury.
WARNING
Remove blade assembly before placing
vehicle on hoist.
CAUTION
Read Owner's Manual before operating or
servicing snowplow.
WARNING
Do not exceed GVWR or GAWR including the
blade and ballast. The rating label is found on
the driver-side vehicle door cornerpost.
CAUTION
Plowing speed should not exceed 10 mph
(16 km/h).
CAUTION
See your BLIZZARD®outlet for application
recommendations.
CAUTION
Transport speed should not exceed 45 mph
(72 km/h). Further reduce speed under
adverse travel conditions.
HYDRAULIC SAFETY
• Always inspect hydraulic components and hoses
before using. Replace any damaged or worn parts
immediately.
• If you suspect a hose leak, DO NOT use your
hand to locate it. Use a piece of cardboard or
wood.
FUSES
The BLIZZARD electrical and hydraulic systems
contain several automotive-style fuses. If a problem
should occur and fuse replacement is necessary,
the replacement fuse must be of the same type and
amperage rating as the original. Installing a fuse with
a higher rating can damage the system and could start
a fire. Fuse Replacement, including fuse ratings and
locations, is located in the Maintenance section of this
Owner's Manual.
PERSONAL SAFETY
• Remove ignition key and put the vehicle in PARK
or in gear to prevent others from starting the
vehicle during installation or service.
• Wear only snug-fitting clothing while working on
your vehicle or snowplow.
• Do not wear jewelry or a necktie, and secure long
hair.
• Wear safety goggles to protect your eyes from
battery acid, gasoline, dirt, and dust.
• Avoid touching hot surfaces such as the engine,
radiator, hoses, and exhaust pipes.
• Always have a fire extinguisher handy, rated BC
for flammable liquids and electrical fires.
WARNING
Hydraulic fluid under pressure can cause skin
injection injury. If you are injured by hydraulic
fluid, get medical attention immediately.
WARNING
To prevent accidental movement of the blade,
always turn the control OFF whenever the
snowplow is not in use. The power indicator
light will turn OFF.

Lit. No. 40691, Rev. 05 10 May 1, 2021
SAFETY
FIRE AND EXPLOSION
Be careful when using gasoline. Do not use gasoline
to clean parts. Store only in approved containers away
from sources of heat or flame.
CELL PHONES
A driver's first responsibility is the safe operation of
the vehicle. The most important thing you can do
to prevent a crash is to avoid distractions and pay
attention to the road. Wait until it is safe to operate
mobile communication equipment such as cell
phones, text messaging devices, pagers, or two-way
radios.
VENTILATION
WARNING
Gasoline is highly flammable and gasoline
vapor is explosive. Never smoke while
working on vehicle. Keep all open flames
away from gasoline tank and lines. Wipe up
any spilled gasoline immediately.
WARNING
Vehicle exhaust contains lethal fumes.
Breathing these fumes, even in low
concentrations, can cause death. Never
operate a vehicle in an enclosed area without
venting exhaust to the outside.
BATTERY SAFETY
NOISE
Airborne noise emission during use is below 70 dB(A)
for the snowplow operator.
CAUTION
Batteries normally produce explosive gases,
which can cause personal injury. Therefore,
do not allow flames, sparks, or lit tobacco
to come near the battery. When charging or
working near a battery, always cover your
face and protect your eyes, and also provide
ventilation.
• Batteries contain sulfuric acid, which burns
skin, eyes, and clothing.
• Disconnect the battery before removing or
replacing any electrical components.

Lit. No. 40691, Rev. 05 11 May 1, 2021
Vehicle application recommendations are based on
the following:
• The vehicle with the snowplow installed must
comply with applicable Federal Motor Vehicle
Safety Standards (FMVSS).
• The vehicle with the snowplow installed must
comply with the vehicle manufacturer's stated
gross vehicle and axle weight ratings (found on
the driver-side door cornerpost of the vehicle) and
the front and rear weight distribution ratio. In some
cases, rear ballast may be required to comply with
these requirements. See Ballast Requirements
Section.
• BLIZZARD Power Match selection system is
based on available vehicle capacity for snowplow
equipment on a representative vehicle equipped
with options commonly used for plowing and with
300 lb of front seat occupant weight.
• Weights of front seat occupants can be adjusted
above 300 lb, but vehicle with snowplow must not
exceed vehicle GVWR or GAWR.
• In some cases there may be additional limitations
and requirements.
• Installation, modification, and addition of
accessories must comply with published
BLIZZARD recommendations and instructions.
Available capacity decreases as the vehicle is
loaded with cargo or other truck equipment, or
snowplow accessories are installed.
• If there is uncertainty as to whether available
capacity exists, the actual vehicle as configured
must be weighed.
VEHICLE APPLICATION INFORMATION
CAUTION
See your BLIZZARD®outlet for specific
vehicle application recommendations before
installation. The Power Match selection
system has specific vehicle and snowplow
requirements.
BALLAST REQUIREMENTS
Ballast (additional weight) is an important part of
qualifying vehicles for snowplow eligibility. Rear
ballast must be used when necessary to remain in
compliance with axle ratings and ratios as specified by
the vehicle manufacturer.
If ballast is required, it is important that it be secured
properly behind the rear axle. A ballast retainer kit is
available from your BLIZZARD outlet, PN 62849.
NOTE: The ballast retainer kit is for snowplow
vehicles requiring ballast. See your BLIZZARD
outlet for the correct amount of ballast required.
Include the weight of the retainer as part of the
ballast requirement. Sand bags are recommended
for use as ballast.
NOTE: Ballast recommended and its weight
calculations assume the entire width of the bed is
filled as close to tailgate as possible.
Position
and secure ballast
as close to the tailgate
as possible.

Lit. No. 40691, Rev. 05 12 May 1, 2021
GETTING TO KNOW YOUR SNOWPLOW
SNOWPLOW HEADLAMPS
The snowplow headlamps feature state-of-the-art
optics with long-life (H13) halogen bulbs, combination
park/turn signals and dual mounting studs. A prewired
harness with a plug-in module requires no headlamp
wire splicing. The headlamps conform to Federal
Motor Vehicle Safety Standards (FMVSS).
When the electrical plugs are connected, the vehicle
headlamps will automatically switch to the snowplow
headlamps when they are turned ON. When the
electrical plugs are disconnected, the headlamps will
automatically switch to vehicle headlamps when they
are turned ON.
Replacement parts are available through your local
BLIZZARD®outlet.

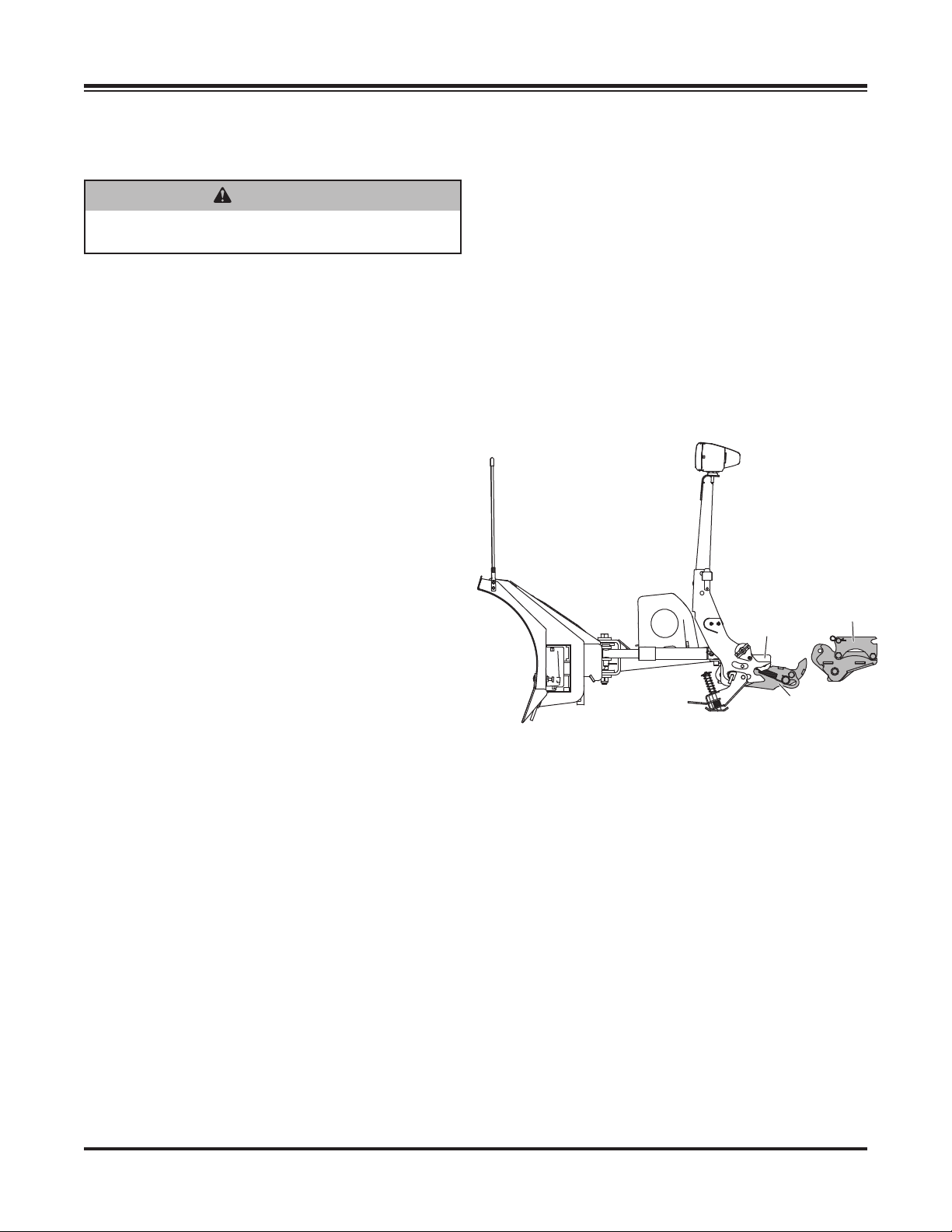

VEHICLE MOUNT
Blizzard has designed custom mounts for most
vehicles. Due to differences among vehicle models,
mounts are generally not interchangeable.
The mount is fastened to the underside of the vehicle
frame and provides the primary connecting point
between the snowplow and the vehicle.
Attached to the mount is a removable mount adapter.
The mount adapter is attached to the mount with clevis
pins and hairpin cotters. The mount adapter is easily
removed to provide even more road clearance during
the nonplowing months of the year.
A-Frame
Arm
Mount
Adapte
r
WARNING
Your vehicle must be equipped with snowplow
headlamps and directional lights.

Lit. No. 40691, Rev. 05 13 May 1, 2021

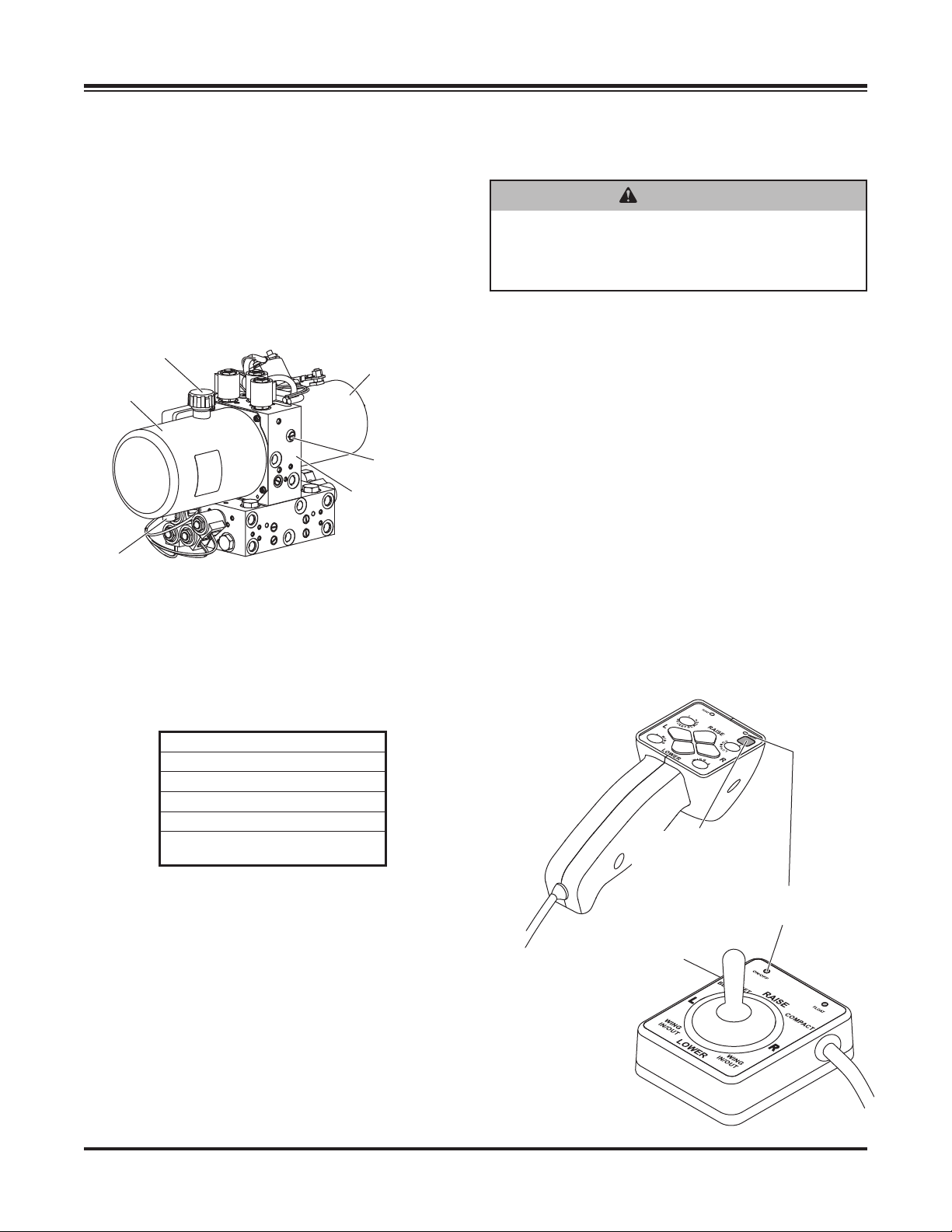

HYDRAULIC SYSTEM
The hydraulic unit delivers fast and uniform speed
for lifting and angling. POWER PLOW™ blades are
raised in approximately 3 seconds and angled side to
side in approximately 3 seconds.
For hydraulic fluid type and filling instructions, see
Hydraulic System, Annual Fluid Change, in the
Maintenance section of this Owner's Manual.
System Capacity
• Unit Reservoir ............................ 2-1/2 quarts
• System Total ................. 4-1/4 to 4-1/2 quarts
Pump Motor Specifications
12V DC with +/– connection
1600–1700 psi pump relief valve
3000 psi angling relief valve
4.5" dia 1.5 kW motor
0.000652 gal/rev pump
Hydraulic hose 1/4 SAE 100R1
and 3/8 SAE 100R17
Breather
Motor
Blade Drop
Speed
Adjustment
Valve
Manifold
Drain
Plug
Reservoir
GETTING TO KNOW YOUR SNOWPLOW
CAB CONTROLS
BLIZZARD®snowplows come equipped with one of
two special controls: the POWER GRIP™ hand-held
control or a joystick-style control.
Each control has its own ON/OFF switch with an
indicator light to show when the control is powered
up. Your vehicle ignition (key) switch controls a fused
circuit that powers your cab control directly from the
battery.
The ON/OFF switch on the cab control allows you to
turn OFF the control and prevent blade movement
even when the ignition switch is ON.
The control ON/OFF switch serves as an
emergency stop if required.
All controls are protected by a replaceable fuse
located in the under hood snowplow electrical system.
See Fuse Replacement in the Maintenance section of
this Owner's Manual.
WARNING
To prevent accidental movement of the blade,
always turn the control OFF whenever the
snowplow is not in use. The power indicator
light will turn OFF.
Power Indicator
Light (red)
ON/OFF Button
(emergency stop)
ON/OFF Switch
(emergency stop)
POWER GRIP
Hand-Held Control
Joystick Control

Lit. No. 40691, Rev. 05 14 May 1, 2021
BLIZZARD®hydraulic fluid is specially formulated for
use in BLIZZARD snowplows and can significantly
enhance the operation and performance of the
hydraulic system. BLIZZARD zinc-free hydraulic fluid
maintains its viscosity to temperatures as low as
–40°F (–40°C). BLIZZARD hydraulic fluid is available
by the quart, gallon, case, or 55-gallon drum.

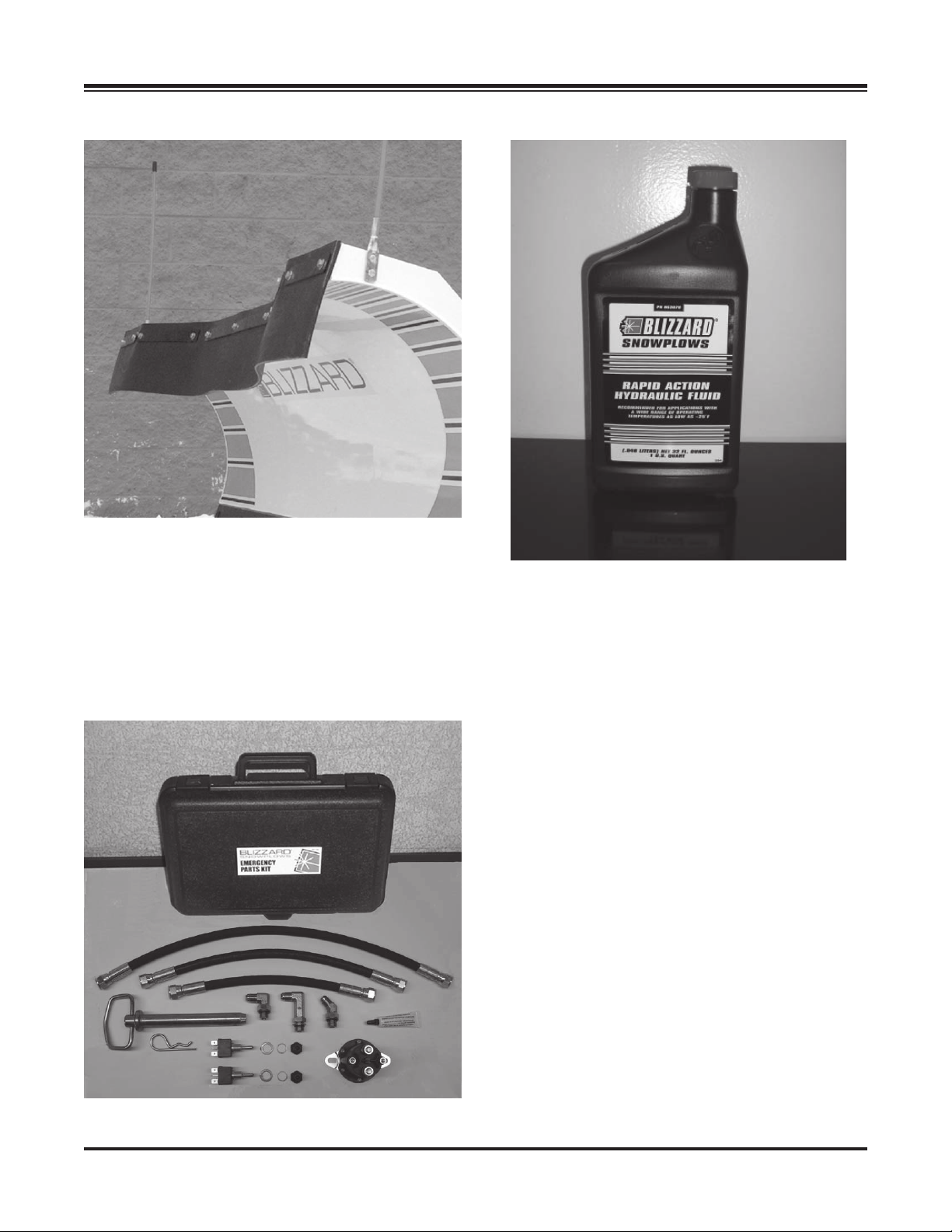

ACCESSORIES & OPTIONS
The emergency parts kit (PN 41143) includes the most
common replacement parts: angle ram hose, wing ram
hose, lift ram hoses, hitch pin w/hairpin cotter, one of
each type of hose fitting, POWER HITCH™ 2 toggle
switches, 0.25 oz dielectric grease, and 1 quart of
BLIZZARD hydraulic fluid. The compact and durable
plastic case (13.5" x 9" x 3.3") allows for easy storage
behind or under your seat.
Rugged and durable, the 3/8" thick, 2-ply rubber snow
deflector keeps snow offyour windshield and in its
place—on the ground! One-piece design provides
optimum snow deflection. The deflector is shipped
complete with mounting hardware.

Lit. No. 40691, Rev. 05 15 May 1, 2021
Putting your snowplow away for the winter? Have
a deep scratch to cover? Clean up your blade
and snowplow parts with our gloss spray paints.
BLIZZARD®touch-up paint provides an excellent
finish to help keep your snowplow looking its best.
Paint provided in 12-oz spray cans.
ACCESSORIES & OPTIONS
Ballast (additional weight) is an important part of
qualifying vehicles for snowplow eligibility. Rear
ballast must be used when necessary to remain in
compliance with axle ratings and ratios as specified
by the vehicle manufacturer. If ballast is required, it
is important that it be secured properly behind the
rear axle. A ballast retainer kit is available from your
BLIZZARD outlet, PN 62849.
NOTE: The ballast retainer kit is for snowplow
vehicles requiring ballast. See your BLIZZARD
outlet for the correct amount of ballast required.
Include the weight of the retainer as part of the
ballast requirement. Sand bags are recommended
for use as ballast.
Passenger-Side
Ballast Retainer
Driver-Side
Ballast Retainer

Lit. No. 40691, Rev. 05 16 May 1, 2021
MOUNTING SNOWPLOW (ON)
NOTE: Use dielectric grease to prevent corrosion
on all connections.
1. Slowly drive vehicle forward to engage mount
adapter into A-frame.
2. Move power switch to center, or "OFF," position.
3. Plug in electrical harnesses.
4. Push and hold power switch RIGHT and push UP
and hold Arm/Blade Operation switch. Arm will
engage mount adapter and pull snowplow toward
vehicle.
MOUNTING SNOWPLOW TO VEHICLE
WARNING
Keep 8' clear of the blade when blade is being
raised, lowered, or angled. Do not stand
between the vehicle and blade or directly in
front of blade. If the blade hits or drops on
you, you could be seriously injured.
WARNING
Inspect snowplow components and fasteners
for wear or damage whenever mounting or
removing the snowplow. Worn or damaged
components could allow the snowplow to
drop unexpectedly.
5. Rotate and release the hitch pin. The hitch pin is
fully engaged when the pin handle is against the
pin guide plate.
6. Repeat Step 5 on the passenger's side.
7. While holding power switch RIGHT, push DOWN
and hold Arm/Blade Operation switch. Arm will
disengage mount adapter to relieve tension on
the stand.
8. Pull the stand handle up. The stand will lift offthe
ground. Pull the stand pin out. Rotate the stand up
until the stand pin seats into the upper hole on the
A-frame. The pin must lock into the upper A-frame
hole.
9. Repeat Step 8 on the passenger's side.
10. Move the power switch to the left or "PLOWING"
position.
Light
Tower
Power
Switch
Arm / Blade
Operation
Switch
Switch
Label
ARM/BLADE
OPERATION
POWER
OFF
Raise
Lower
Plowing
Arm/Blade
Operation
OFF
48207
Power Switch
Arm/Blade
Operation Switch
Hitch Pin
Mount
Adapte
r
Arm
A-Frame
Stand
Upper Hole
Stand Pin
Stand Handle
Light Tower
BootBlade
Shoe ON
Hitch
Pin
Pin
Handle
Mount
Adapter
Pin
Guide Plate

Lit. No. 40691, Rev. 05 17 May 1, 2021
Automatic Shutdown
The control will automatically turn OFF after being
idle for 20 minutes. To reactivate the control after a
shutdown, move the ON/OFF switch to OFF, then back
to ON.
Smooth Stop
The control automatically allows the blade to coast to
a stop when the lever returns to center position. This
results in smoother operation, reduces the shock to
the hydraulic system and increases hose and valve
life.
POWER PLOW™ BLADE
JOYSTICK SOLENOID CONTROL
1. Turn the vehicle ignition switch to the "ON" or
"ACCESSORY" position.
2. Move control ON/OFF switch to the "ON" position.
The power indicator light glows red, indicating
the control is ON. The power indicator light glows
red whenever the control and the vehicle ignition
switch are both ON, the electrical connections to
the snowplow are completed and the power switch
on the light tower is in the "PLOWING" position.
If the power switch is in the "OFF" position, the
power indicator light will flash.
The ON/OFF switch operates as an emergency
stop, if required.
Function Time-Outs
All control functions, except LOWER/FLOAT, time out
(stop) automatically after a period of time. This is to
limit the amount of electrical energy required from the
vehicle.
NOTE: If control function times out before desired
blade movement is complete, release the lever
to the center position, then move back into the
desired function.
OPERATING YOUR SNOWPLOW
WARNING
To prevent accidental movement of the blade,
always move the ON/OFF switch to OFF
whenever the snowplow is not in use. The
power indicator light will turn OFF.
CAUTION
DO NOT hold control lever in RAISE, ANGLE
LEFT, or ANGLE RIGHT position after blade
has reached desired position. To do so will
use excess current and overheat components.
LR
RAISE
LOWER
ON/OFF FLOAT
COMPACT
WING
IN/OUT
3
WING
IN/OUT
WING
IN/OUT
4
WING
IN/OUT
21
BUCKET
BLADE™
Float Light
(green)
ON/OFF
Switch
(emergency
stop)
Power Indicator
Light (red)

Lit. No. 40691, Rev. 05 18 May 1, 2021
Control Lever Movement
From the center position, the control lever can be
moved in one of eight directions to control various
movements of the snowplow blade. To change from
one movement of the blade to another, the control
lever must be moved back to the center position
before selecting the desired function. Whenever the
lever is released, it should spring back into the center
position to stop any blade movement.
Function Description of Operation
RAISE Move control lever toward top of control body to raise snowplow and cancel FLOAT mode. Function times
out after 6.25 seconds.
LOWER Move the control lever toward bottom of control body to lower the snowplow. Release the lever to stop blade
at desired height.
FLOAT
Move the control lever to LOWER position and hold for .75 second to activate this mode. The FLOAT light
in upper right corner of control face will illuminate. The blade will lower to the ground surface and follow
the contour of surface as it dips or raises. Function does not time out; however, control will shut down after
20 minutes of nonuse.
Move lever to RAISE position momentarily to cancel FLOAT. Angling left or right will interrupt (stop) FLOAT
function, but FLOAT will resume when angling is complete.
L
(Angle Left)
Move the control lever straight to the left to move the blade to the angle left position to cast snow to the
driver's left side. Function times out after 4.5 seconds.
R
(Angle Right)
Move the control lever straight to the right to move the blade to the angle right position to cast snow to the
driver's right side. Function times out after 4.5 seconds.
BUCKET
BLADE™
Move the control lever toward the words BUCKET BLADE on the control face to extend both wings forward
into the BUCKET BLADE position. Function times out after 7.25 seconds.
COMPACT Move the control lever toward the word COMPACT on the control face to draw both wings into the fully
retracted position. Function times out after 5.5 seconds.
L WING
IN/OUT
Move the control lever toward the left side of LOWER on the control face to move the left wing. The first
time the lever is moved into the slot after the control is turned ON or another function is used, the wing will
extend. Repeated use of lever in the same slot, without using another function, results in movement in the
opposite direction from the previous movement. Function times out after 4.5 seconds.
R WING
IN/OUT
Move the control lever toward the right side of LOWER on the control face to move the right wing. The first
time the lever is moved into the slot after the control is turned ON or another function is used, the wing will
extend. Repeated use of lever in the same slot, without using another function, results in movement in the
opposite direction from the previous movement. Function times out after 4.5 seconds.
LR
RAISE
LOWER
ON/OFF FLOAT
COMPACT
WING
IN/OUT
3
WING
IN/OUT
WING
IN/OUT
4
WING
IN/OUT
21
BUCKET
BLADE™
Float Light
(green)
Control Functions
Raise, Lower, Float, Angle
Moving the control lever in straight lines up and down
or from side to side on the control body will result in
the blade movements described in the following table.
NOTE: If control function times out before desired
blade movement is complete, release the lever
to the center position, then move back into the
desired function.
OPERATING YOUR SNOWPLOW

Lit. No. 40691, Rev. 05 19 May 1, 2021
POWER PLOW™ BLADE
POWER GRIP™ HAND-HELD CONTROL
1. Turn the vehicle ignition switch to the "ON" or
"ACCESSORY" position.
2. Press the ON/OFF button on the control. The power
indicator light glows red, indicating the control is
ON. The power indicator light glows red whenever
the control ON/OFF switch and the vehicle ignition
switch are both ON, the electrical connections to
the snowplow are completed and the power switch
on the light tower is in the "PLOWING" position. If
the power switch is in the "OFF" position, the power
indicator light will flash.
The ON/OFF button operates as an emergency
stop, if required.
Function Time-Outs
All control functions, except LOWER/FLOAT,
automatically time out (stop) after a period of time.
This helps prevent unnecessary battery drain.
WARNING
To prevent accidental movement of the blade,
always push the ON/OFF button to switch the
control OFF whenever the snowplow is not in
use. The power indicator light will turn OFF.
NOTE: If control function times out before desired
blade movement is complete, release button and
press again.
Automatic Shutdown
The control automatically
turns OFF after being idle
for 20 minutes.
Smooth Stop
The control automatically
allows the blade to coast
to a stop. This results in
smoother operation, reduces
the shock to the hydraulic
system, and increases hose
and valve life.
Control Functions
Raise, Lower, Float, Angle
The four diamond-shaped buttons in the center of the
control face, when pressed, will result in the blade
movements described in the table.
RAISE
LOWER
R
L
ON/OFFFLOAT
B
U
C
K
E
T
B
L
A
D
E
™
W
I
N
G
C
O
M
P
A
C
T
W
I
N
G
1
3
2
4
OPERATING YOUR SNOWPLOW
Function Description of Operation
RAISE Press this button to raise the snowplow and cancel the FLOAT mode. Function times out after 6.25 seconds.
LOWER Press this button to lower the snowplow. Release the button to stop blade at desired height.
FLOAT
Press the LOWER button and hold for .75 second to activate this mode. The FLOAT light in the upper left
corner of the control face will illuminate. The blade will lower to the ground surface and follow the contour of
the surface as it dips or raises. Function does not time out; however, control will shut down after 20 minutes
of nonuse.
Press RAISE button momentarily to cancel FLOAT. Angling left or right will interrupt (stop) FLOAT function,
but FLOAT will resume when angling is complete.
L
(Angle Left)
Press the Lbutton to move the blade to the angle left position to cast snow to the driver's left side. Function
times out after 4.5 seconds.
R
(Angle Right)
Press the Rbutton to move the blade to the angle right position to cast snow to the driver's right side.
Function times out after 4.5 seconds.
BUCKET
BLADE™
Press this button to extend both wings forward into the BUCKET BLADE position. Function times out after
7. 2 5 s ec o n ds .
COMPACT Press this button to draw both wings into the fully retracted position. Function times out after 5.5 seconds.
L WING
Press the round WING button on the left side of the control to move the left wing. The first time the button is
pressed after the control is turned ON or another function is used, the wing will extend. Repeated use of the
same button, without using another function, results in movement in the opposite direction from the previous
movement. Function times out after 4.5 seconds.
R WING
Press the round WING button on the right side of the control to move the right wing. The first time the button
is pressed after the control is turned ON or another function is used, the wing will extend. Repeated use
of the same button, without using another function, results in movement in the opposite direction from the
previous movement. Function times out after 4.5 seconds.

Lit. No. 40691, Rev. 05 20 May 1, 2021
Your snowplow is the most advanced and versatile
POWER PLOW™ snowplow on the market. The
easy-to-use controls allow you to automatically adjust
the snowplow blade into an infinite number of plowing
positions. Review the illustrations below for instruction
on maneuvering your snowplow.
A.
B.
C.
D.
OPERATING YOUR SNOWPLOW
A. Compact Position
(8' or 8'6" Blade Width)
• Primary position when transporting the
snowplow
• For use in heavy snow conditions with poor
visibility, initial clearing and tight quarters
• Ideal application: residential driveways, small
roads
B. WIDE PASS™ Position
(10' or 11'3" Blade Width)
• Primary position for clearing large surfaces
• For use in light snow conditions with good
visibility, final clearing and clean-up
• Ideal application: large parking lots, widening
roadways
C. BUCKET BLADE™ Position
(9'3" or 9'10" Blade Width)
• Primary position for transporting snow
• For use in initial clearing with decent visibility,
transporting large volumes of snow, final
clean-up
• Ideal application: roadway intersections
D. WIDE PASS Position Angled with Wing
Forward
• Primary position for accelerated angled plowing
• For use in directional plowing, cornering,
diverting snow away from objects or buildings
• Ideal application: plowing adjacent to buildings,
driveway/road intersections
NOTE: To prevent premature failure of the power
contactor (solenoid), return the joystick to its
neutral (center) position, or release the keypad
button, immediately after the blade reaches
the limit of any position. Continuing to hold the
control after the blade has reached the limit of
movement in any position will reduce the life of
the solenoid.
