AS MOTOR AS 900 ENDURO User manual

Operating Instructions
Ride-on Allmäher®
AS 900 ENDURO + AS 915 ENDURO
From serial number: AS 900: 021415010001, AS 915: 018215010015
Issued: 09 April 2015, V21.0
EN-Translation of the Original Operating Instructions

2
dummy
Preface
Please fill in all data referring to your device.
When ordering spare parts, provide your deal-
er with the device and engine number.
Serial number:
Pleases adhere the sticker from the warranty
card here.
Engine number:
Date of purchase:
Address of dealer:
Dear customer:
Congratulations on your purchase. You have
acquired a reliable quality product by “AS-
Motor Germany”.
This product has been manufactured according
to modern manufacturing methods and com-
prehensive quality assurance measures. Only
when you are satisfied with your device, we
have attained our goal.
Read these operating instructions carefully and
attentively so that your device operates
smoothly and you and others are safe from any
hazards. If you have questions concerning
your device, please contact your dealer or call
our customer service (tele-
phone [phone]). For international
AS partners, please see:
www.as-motor.de/worldwide.
“AS-Motor Germany” wishes you much joy with
your new device.
Intended use
The device is exclusively intended for cutting
grass or similar vegetation in agriculture, for-
estry, and landscape conservation.
Only use attachments and cutting tools author-
ised by “AS-Motor Germany”.
Any use exceeding this purpose is inadmissi-
ble. The manufacturer is not responsible for
any damage resulting from this. Observe the
required maintenance and repair measures.
The user of the device is responsible for acci-
dents or damage to other persons or their
property!
The device must not be used:
–To cut hard objects, rocks, rubble, or pieces
of wood.
–To trim bushes, hedges, and shrubbery.
–To cut plants on rooftops.
–To clean (vacuum) footpaths.
–As shredder for shredding tree and hedge
cuttings.
–As drive unit for work tools and any type of
tool sets that are not authorised by “AS-
Motor Germany”.
The device is not licensed for driving on public
roads.

3
Contents
dummy
2
Preface.....................................................
2
Intended use............................................
2
dummy Inhalts verzeichnis
4
Explanation of the symbols ....................
4
Symbols in the instructions ....................
4
Symbols on the device...........................
4
Safety instructions ..................................
6
Get informed!.........................................
6
User restrictions and hours of operation.
6
Safe handling of fuel..............................
6
Check the device prior to use.................
7
Use caution during operation .................
7
Prior to mowing......................................
7
Use caution when mowing.....................
7
Caution when using accessories............
9
When work is completed........................
9
Hydraulic components ...........................
9
Use caution during maintenance and
repair.....................................................
9
Device description...................................
11
Control elements.....................................
12
Front area..............................................
12
Brake.....................................................
12
Control lever at seat...............................
13
Drive/idle mode......................................
14
Fuel valve..............................................
14
Transport .................................................
14
Transport on pallets...............................
14
Transport of ready-to-use device ...........
14
Assembly .................................................
15
Scope of delivery...................................
15
Unpacking..............................................
15
Mounting................................................
15
Information on mowing...........................
16
Prior to starting........................................
17
Checking the oil level.............................
17
Fuel .......................................................
17
Tanking up.............................................
17
Adjusting the seating position.................
17
Starting.....................................................
17
Safety switches......................................
17
Starting the engine.................................
17
Engaging the blade................................
18
Oil pressure switch.................................
18
Towing......................................................
18
Driving......................................................
19
Braking ..................................................
19
Driving ...................................................
19
Reversing...............................................
19
Differential lock ......................................
19
Switching off and parking.......................
20
Maintenance and cleaning ......................
21
Preparations ..........................................
23
Cleaning the device ...............................
23
General inspection.................................
23
Operating hours counter ........................
23
Checking the parking brake....................
24
Checking the foot brake.........................
24
Grease lubrication..................................
24
Checking the blade................................
24
Maintaining the engine...........................
26
Checking the engine oil level..................
26
Checking the spark plug.........................
26
Maintaining the air filter..........................
27
Checking and charging the battery.........
27
Hydrostat transmission...........................
27
Storage.....................................................
28
Storing the device..................................
28
Longer storage.......................................
28
Restarting..............................................
28
Spare parts...............................................
28
Wear parts................................................
28
Disposal ...................................................
28
Warranty...................................................
29
Troubleshooting ......................................
30
Technical data..........................................
34
Accessories .............................................
35
Declaration of conformity........................
36
Marketing
40

4
dummy Inhalts verzeichnis
Explanation of the symbols
Symbols in the instructions
In these operating instructions, the following
symbols are used to denote special dangers.
Warning.
These symbols denote special
dangers.
Prohibition sign.
These symbols denote inadmis-
sible procedures.
Directive sign.
These symbols denote required
protective measures.
Symbols on the device
The following symbols are placed on the de-
vice to inform you must be careful and atten-
tive when using the device:
Working with the device requires
extreme caution. The quickly
rotating blade of the device can
cause life-threatening injuries or
major property damage
Read the operating instructions
before you use the device.
Make sure that no one is within
the danger zone of the device.
Hot surfaces or components. Do
not touch the engine or the
silencer.
Risk of injury due to running belt
drive! When the engine is run-
ning, never reach into the belt
drive.
Risk of injury caused by rotating
components!
Danger of bursting while tires
are inflated. Observe the admis-
sible tire pressure (see Tech-
nical data).
The device generates poisonous
exhaust fumes as soon as the
engine is running. Some of these
gases are odourless and invisi-
ble. Never let the engine run in
closed rooms.
Risk of tipping!
max. 20°
When positioned sideways to the
slope, the device is stable up to
20°(in accordance with the
standard measuring method).
98
LWA
dB
Sound level on the device.
Noise is causing health prob-
lems. Use personal ear protec-
tion to avoid hearing damage.

5
Warning!
Risk of injury caused by rotating blades or
parts.
Objects can be ejected. Make sure that no
one is within the danger zone of the blade (at
least 50 metres).
Warning!
Explosion hazard! Keep the fuel away from
ignition sources and do not smoke while
handling the device.
Observe the safety instructions regarding the
fuel!
34
125
GREASE
Lubrication chart
Position of grease nipples for grease lubrica-
tion. Observe the maintenance instructions.
Type plate
The type plate on the device provides you
with information on the device type and
the technical data.
1
Name and address of the manufac-
turer
2
Device designation
3
Type designation
4
Rated power output in kW / engine
speed
5
Weight
6
Year of manufacture
7
Serial number
8
CE marking
9
Sound level LWA

6
Safety instructions
Get informed!
For your safety, read these operating instruc-
tions with care. Familiarize yourself with the
control elements and the proper use of the
device. Share these operating instructions with
other users of the device.
Before you use the device for the first time, let
the dealer instruct you regarding safe use.
Get familiar with the device in a wide, open
and flat terrain first.
User restrictions and hours of
operation
Never allow children or persons who are not
familiar with the operating instructions to use
the device. Persons under 18 years of age
may operate the device only under proper
supervision. Local regulations determine the
minimum age of the operator und the operating
times.
Unsuitable for operation of the device are
persons who
–are under the influence of alcohol, drugs or
reaction retarding medicines.
–have physical and mental/emotional impair-
ments.
–are tired or sick.
People fitted with pace makers
are not allowed to touch any
current carrying parts of the
ignition system.
Safe handling of fuel
Danger!
Fuel is toxic and highly inflamma-
ble.
Danger of fire and explosion!
Keep the fuel away from ignition
sources and do not smoke while
handling the device.
Do not inhale fuel vapours; they are
dangerous to your health.
Use gloves and avoid skin
contact with the fuel.
Fuel up outdoors only when the engine is cool
and not running. Use a filler or funnel.
Do not spill any fuel and do not let the fuel get
into the canalisation or ground water.
If you spilled fuel, do not start the device until
the fuel vapours have evaporated (wipe dry).
Move the device away from the area where the
fuel was spilled.
Always close the tank cap securely and do not
open it while the engine is running or the de-
vice is still hot.
Drain the fuel tank only when outdoors. Use a
suitable container or run the tank empty.
Keep the fuel away from children and store it in
a suitable container in a dark, cool, and dry
location.
Never park the device with fuel in the tank
inside a building where fuel vapours could
come in contact with open fire or sparks.
Immediately replace a damaged fuel tank or
tank cap (authorised dealership).
First aid
When swallowing fuel or inhaling fuel vapours,
do not force vomiting and immediately consult
a doctor.

7
In case of skin contact, immediately wash with
water and soap. Change your soiled clothing
as soon as you can.
Measures in case of a fire
In case of a fire, use foam, dry powder extin-
guisher, or carbon dioxide (CO2). Never douse
with water!
Check the device prior to use
Prior to each use, carry out a visual inspection
of the blade, protection flap, drive and fas-
tening parts for proper condition and firm
seating.
Never use the device when covers, impact
protection or protection flaps are defective or
not installed.
Do not remove, change or override any safety
devices or control elements.
Observe the maintenance instructions and
replace damaged or worn parts immediately.
Check the blade brake for proper function by
switching off the blade clutch. The blade must
come to a standstill from full speed within less
than 5 seconds.
Check the parking brake for proper function
(see Maintenance).
Use caution during operation
Do not start the engine
–if fuel was spilled.
–in closed or poorly ventilated rooms (danger
of poisoning!).
–if there are other persons nearby.
After every stop and before you shut down the
engine, actuate the parking brake. This pre-
vents the device from accidentally rolling away.
Do not touch the exhaust, the engine, and the
gearbox. They become very hot during opera-
tion and you can get burned. Resulting unin-
tentional movements constitute an additional
injury hazard.
Switch off the blade and wait until the blade
comes to a standstill,
–when you drive on surfaces other than
grass.
Switch off the engine and wait until the blade
comes to a standstill and remove the ignition
key,
–before you transport the device.
–if you step away from the device, even for
just a short time.
–before you clean or check the device or
before you carry out work on the device.
–before you unblock or unclog the discharge
area.
Prior to mowing
Personal protective measures
While mowing, always wear
sturdy footwear with good grip,
long trousers, and gloves. Do
not mow in open sandals or
bare feet.
Noise is causing health prob-
lems. Use personal ear protec-
tion to avoid hearing damage.
Wear safety glasses and head-
gear.
Ask your specialised dealer about suitable
protective equipment.
Preparing the mowing area
Prior to mowing, carefully check the perimeter
of the lawn. Remove rocks, pieces of wood,
bones, wires, and other objects that could be
picked up and thrown out by the device.
Use caution when mowing
Risk of injury
Stay within shouting distance to other people
who can help you in case of an emergency.
Danger!
Risk of injury caused by thrown out
objects.
Never mow while persons, children,
pets, or property are in the vicinity.

8
The area in front of and to the right of the
device is especially dangerous.
Keep your hands and feet away from the
rotating parts.
Only mow during daylight or with adequate
artificial lighting. Never mow in the event of
uncertain weather conditions and risk of light-
ning.
Be especially carefully when mowing on soft
ground, nearby landfills, ditches and dikes.
Do not transport any person on the device.
Be extremely cautious when moving in re-
verse.
Pay attention to traffic when working close to
roads.
When using the device over a longer period of
time, vibrations can cause disturbances in the
blood supply of the hands. A generally accept-
ed usage time cannot be determined. Use
gloves.
Take breaks on time.
Have an authorised service centre check the
device immediately
–if the blade hit an object.
–if the device starts to vibrate unusually
severely.
Caution when mowing slopes
Danger!
If the device, while in use, stops in
steep terrain or the engine cuts out,
the device can roll away.
Immediately actuate the parking
brake to prevent the device from
rolling away.
Observe the information regarding the oil
pressure switch in chapter Starting.
max. 20°
When mowing slopes, there
is a risk of slipping and
tilting!
–Do not mow excessively steep slopes. For
safety reasons, use the device only on less
than 20° slopes.
–Use a clinometer if you are not familiar with
the slope (see accessories).
–Never unlock the drive at the slope because
the device can roll away.
–Always mow up- and downhill, never in
horizontal direction.
–Always move upwards first. If you are un-
successful at moving upwards first, you must
not mow the slope. Never move downwards
if you were not successful at moving up-
wards.
–Be extremely cautious when changing the
direction.
–Do not turn on a slope.
–Only mow when you are familiar with the
terrain and the terrain is clear of obstacles.
–Pay attention to bumps, holes, and other
visible hazards.
–Do not mow close to danger zones (e.g.
walls, steep declines, etc.).
–Prior to entering the slope, always actuate
the differential lock. Move on slopes only
when the differential lock is actuated.
–Always keep the speed low when moving on
slopes.
–Do not start abruptly and do not brake ab-
ruptly.
–Hold the steering wheel tightly so that the
device does not swerve.
Only park the device on flat surfaces.
The drive has good braking efficiency which
can only provide sufficient grip on a non-slip
surface.
If the mower starts to slide you can regain
control by actuating the brake. Uncontrolled
handling is due to:
–poor tire grip.

9
–speeding.
–abrupt braking.
–an inappropriate task for the device.
–poor knowledge of the area.
–slope angles that are too steep.
Risk of tilting
If the wheels facing uphill encounter obstacles
such as roots, branches, rocks, bumps, etc.,
the mower can tilt or slide.
Keep in mind that all attachments and loads
increase the risk of tilting.
Risk of slipping
When the ground is wet or loose, use extreme
caution to prevent the mower from slipping.
Use extreme caution when moving downhill.
On cut plant material, no matter if wet or dry,
the risk of slipping is high.
Mowing surfaces with fire hazard
–Carry a sufficient amount of suitable extin-
guishing agent.
–If side inclination is too great, fuel may leak
from the carburetor or the tank. This poses a
fire hazard!
–Observe the mowed surface also after mov-
ing is completed to ensure that no fire will
start.
To avoid risk of fire, keep the following compo-
nents free of dirt, grass, hay, leaking oil,
grease, etc:
–Engine
–Silencer (manifold, guard, clearances)
–Battery
–Area around the fuel tank
Caution when using accessories
Be careful when pulling loads:
–Only use tow-bars authorized by
“AS-Motor Germany”.
–Observe the maximum load carrying capaci-
ty (Technical data).
–Observe the safety instructions in the oper-
ating instructions of the tow-bar.
–Only transport loads that you can handle
safely.
–Only drive on slopes up to 10°.
–Do not take tight corners.
–Be extremely cautious when moving in
reverse.
When work is completed
After each mowing, close both fuel valves.
Prior to leaving the device, wait until the engine
comes to a standstill and remove the ignition
key.
After switching it off, let the device cool down
for at least 20 minutes before you store it in a
dry, closed, sufficiently ventilated room.
Never store the device when there is fuel in the
tank inside a building where fuel vapours might
come into contact with open fire or sparks.
Hydraulic components
The device contains hydraulic components.
In case of improper repair or damage to the
hydraulic components, pressurised hydraulic
fluid may leak. The fluid may enter the skin and
thus cause severe injuries.
–Only carry out maintenance work as de-
scribed in these operating instructions.
–If hydraulic fluid has entered your skin,
contact a doctor immediately.
Use caution during maintenance
and repair
Only carry out maintenance work as described
in these operating instructions. Have an au-
thorised service centre carry out all other work.
Only use the knives and spare parts authorized
by “AS-Motor Germany”. Unauthorized knives
and spare parts can cause severe injuries.
Prior to all maintenance work, wait until the
engine comes to a standstill and pull off the
spark plug connector.
We explicitly point out that, in accordance with
the Product Liability Act, we are not liable for
damages that were caused by our devices if

10
–worn or damaged parts were not repaired or
replaced on time.
–these damages were caused by improper
repair.
–when changing a part, our original parts or
parts authorised by use were not used.
–the repair work was not carried out by an
authorised service station.
The same applies for spare parts and accesso-
ries.

11
Device description
Figure shows AS 915 ENDURO
1
5
2
3
7
10
6
9
4
811
12
1
Impact protection front
2
Tank cap
3
Lateral supports
4
Fuel valve 1
5
Fuel valve 2
6
Engine oil filler neck
7
Ventilation grid
8
Fuses circuit protection
9
Side plates impact protection/cover
10
Engine
11
Type plate
12
Support pipe (only AS 915)

12

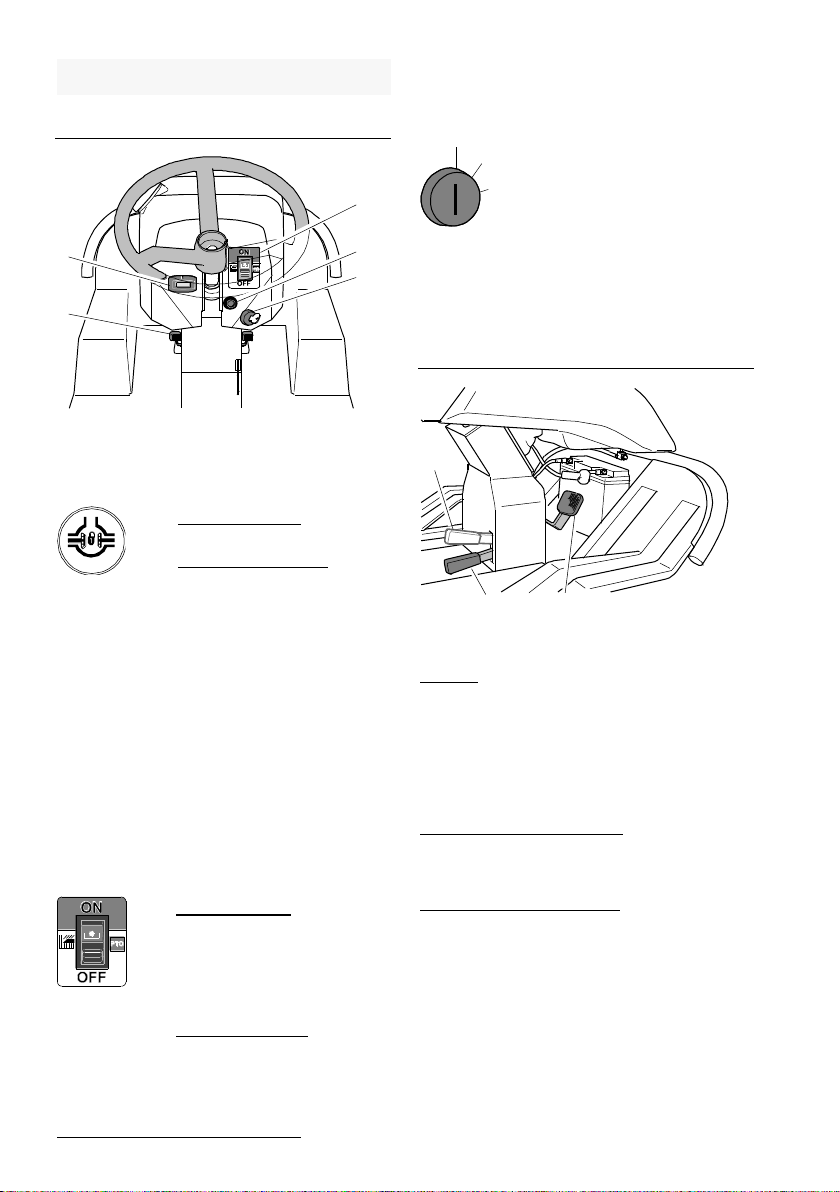

Control elements
Front area
1
2
3
5
4
Differential lock (1)
With the left foot pedal, actuate the differential
lock.
P
U
S
H
Pedal is actuated:
Differential lock is on
Pedal is not actuated:
Differential lock is off
Operating hours counter (2)
The operating hours are counted as soon as
the engine is running. The display remains
visible also when the engine is standing still.
Observe the information in chapter Mainte-
nance.
Blade clutch switch (3)
The blade clutch switch is a protective device.
If you declutch the blade the blade comes to
a standstill within 5 seconds
Clutching blade:
Press the lock at the bottom
part of the rocker switch
upwards and press the
rocker switch upward (ON).
Declutching blade:
Press the switch down
(OFF).
Ignition lock (5)
The ignition lock has three positions.
12
3
1:
Ignition off.
The key can be re-
moved.
2:
Ignition on.
Control lamp (4) illumi-
nates.
3:
Electro starter on.
leerer Absatz
Brake
1a 2
1b
Foot brake
Braking:
Release the drive
lever and press the
right foot pedal (2)
down.
Parking brake
Releasing the parking brake:
Press the right foot pedal down, press the
locking lever (1a) down.
Putting on the parking brake
Press down the right foot pedal and pull the
locking lever all the way up (1b). Then the
foot pedal remains in down position.

13
Control lever at seat
1 2 3
4
5
Cutting height adjustment (1)
4
3
2
1
The cutting height of the lawn
can be set to four positions.
Position "Stop" is the transport
position.
Sitting position
Press the lever (2) to the left and move the
seat to the desired position.
Lever for choke (3)
The choke is only closed when the cold en-
gine is started. As soon as the engine is
running, open the choke.
Closing the choke:
Pull out the lever for the
choke (3) by pulling if forward.
Opening choke:
Push back the lever for the
choke (3).
Accelerator (4)
Via the accelerator, you change the engine
speed.
Highest speed (full throttle):
Press the accelerator all the way
down.
Lowest speed (idling speed):
Pull the accelerator all the way
up.
Drive lever (5)
The drive lever is required for moving the
mower forward, reversing as well as stopping
the mower. The further you move the lever in
one or the other direction, the faster the device
moves.
The drive lever automatically goes to neutral
position when it is released from the position
“Driving in reverse”. This prevents accidental
reversing.
Moving forward
Stopping (neutral position)
Reversing

14
Drive/idle mode
To push the mower without engine drive,
unlock the drive below the driver seat and
release the parking brake. Subsequently, the
mower can only be braked via the foot brake.
1
2
1: Locked
2: Unlocked (idling)
Fuel valve
At the bottom of the tank, at the left rear and at
the right front, there is one fuel valve each.
1
23
1: Reserve (R)
2: Open
3: Closed (C)
Turning to the left: Open
Turning to the right: Closed
Transport
Transport the device on a freight vehicle or a
trailer which is designed for a carrying capacity
of at least as great as the empty weight of the
device.
Transport on pallets
For transport over short distances, use a fork
lift or a lift truck.
For longer distances, load the device with a
fork lift onto a freight vehicle or trailer.
The user must be authorised to operate a fork
lift. When the machine is lifted, all persons
must step away from the working area of the
fork lift.
Notice! Drive the fork lift completely under the
longitudinal beams of the wooden pallets.
Transport of ready-to-use device
Warning!
Risk of injury due to the heavy
weight of the device. The device
can fall over and fall down and
cause severe injuries.
Observe the following notices.
Prior to transport, let the device cool down for
at least 20 minutes. Close the fuel valves.
Loading
Use suitable ramps for loading that
–can carry the empty weight of the de-
vice + 100 kg.
–are wider than the device.
–have a slip-free surface.

15
1. Put the device in front of the ramps and
make sure that the ramps
–are as wide as the wheel gauge of the
device.
–are tightly secured to the platform.
–are not steeper than 15°.
2. Carefully drive the device via the ramps
onto the platform.
3. Secure the device against rolling, sliding,
tilting, and fuel leakage.

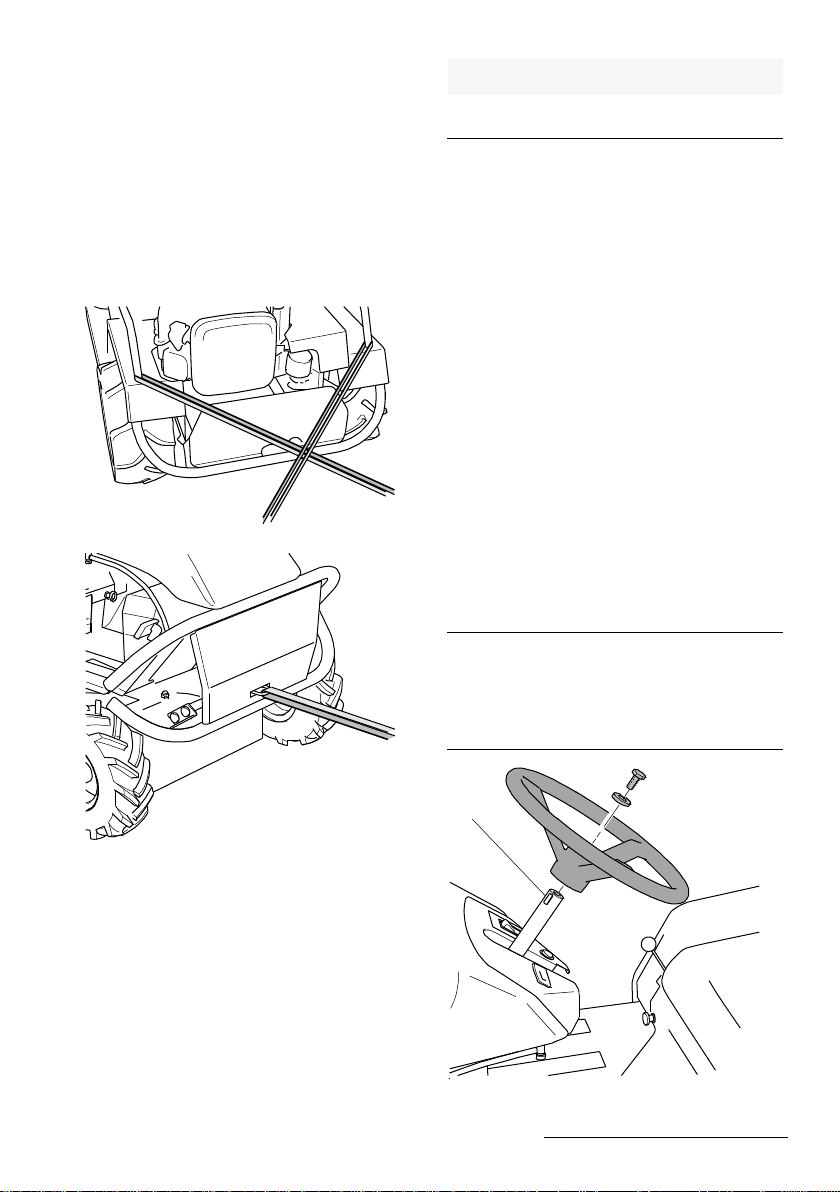

4. Secure the device with belts to the frame
elements that can hold the weight.
Caution! To prevent damages to the de-
vice, we recommend to fasten the straps
exactly as shown in the illustration. Do not
overtighten the straps.
Unloading the device
1. Undo the transport fastenings.
2. Drive the device carefully down the ramps
of the platform.
Assembly
Scope of delivery
The device is shipped in a carton on a pallet.
The scope of delivery included:
–The device.
–This operating manual.
–Warranty card.
–Steering wheel with feather key.
–2 side supports.
–2 protective coverings for side supports.
–Support pipe (only AS 915).
–Protective covering for support pipe (only
AS 915).
–Ignition key.
–Screws, nuts and discs for the assembly of
the steering wheel, support pie and side
supports.
–See operating instructions of the engine
manufacturer
Unpacking
1. Remove the carton, the frame and the film.
2. Check the air pressure of all tires (see
Technical data).
Mounting
1

16

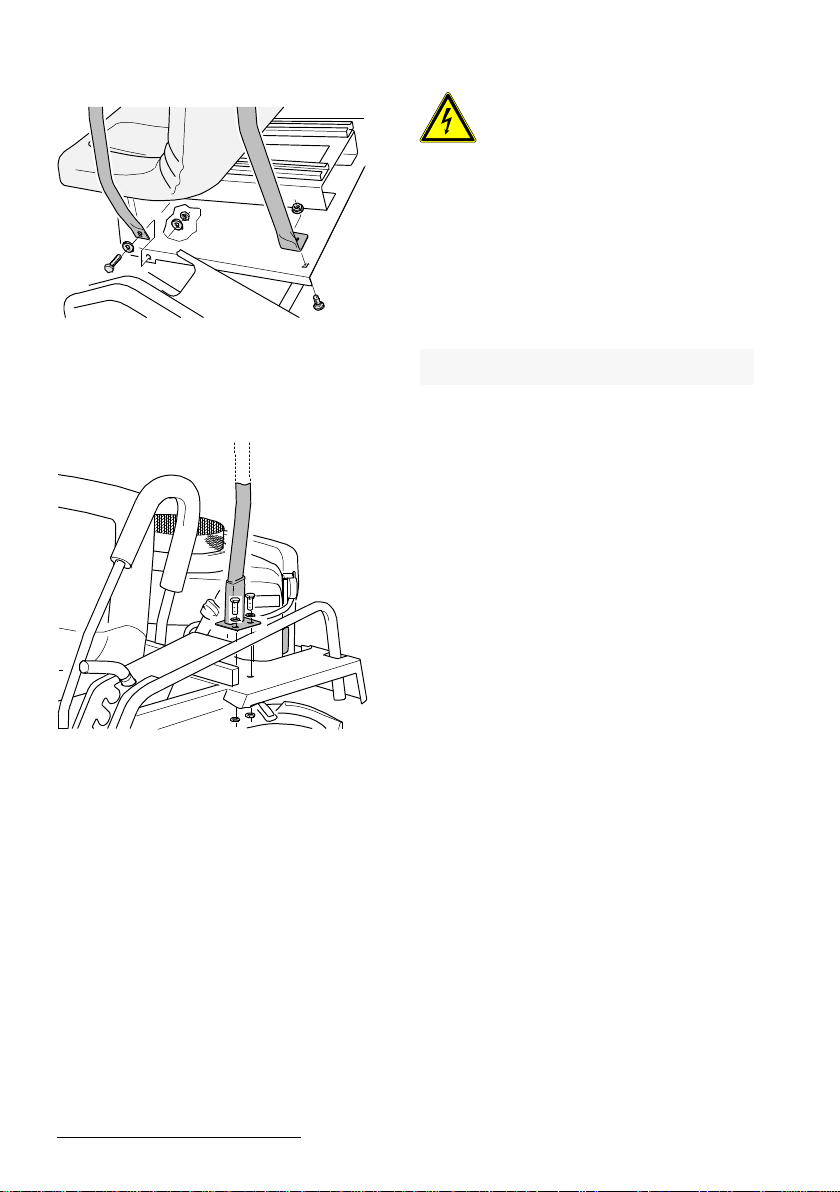

1. Mount the assembly wheel. (observe the
feather key (1)).
2. Slide the protective coverings over the side
supports and close the Velcro closures of
the protective coverings.
3. Screw both side supports to the device.
4. Applies only to AS 915: Slide the protective
covering over the support pipe and close
the Velcro closure of the protective cover-
ing.
5. Applies only to AS 915: Screw the support
pipe to the device.
6. Remove the two metal transport securing
devices (one metal hook each is screwed
to the front and the rear).
7. Release the parking break, unlock the drive
and push the mower off the pallet.
8. Relock the drive.
Connecting the battery
Caution!
When the battery is connected,
there is a risk of short circuit.
Do not put tools or metal objects
onto the battery. Observe the as-
sembly order when connecting and
disconnecting the battery.
1. Connect the red cable (+) to the battery.
2. Connect the black cable (-) to the battery.
Information on mowing
Prior to mowing, check your device for com-
pleteness, proper functioning, and cleanliness.
A dirty ventilation grid causes overheating of
the engine, this can damage the engine. A dirty
protective grid at the silencer poses a fire
hazard.
Frequent engagement and disengagement of
the clutch increases wear of the blade drive
belt and the blade brake. Especially in case of
high grass, clutch engagement leads to over-
load.
To keep the area well maintained, mow fre-
quently and keep the grass short.
Only mow with a sharp and undamaged blade.
Have the blade sharpened and balanced
regularly (by authorised service centre).
Do not mow when the grass is wet or when it is
raining. The turf may be damaged and there is
a danger of slipping!
Turn the device around only in already mown
sections. Do not leave the device unattended
while the engine is running
Set the cutting height so that the blade does
not touch the ground even in case of terrain
unevenness.
Always set the blade to transport position when
you do not mow.
For mowing, always turn the accelerator lever
to full throttle to achieve the best mowing
performance.

17

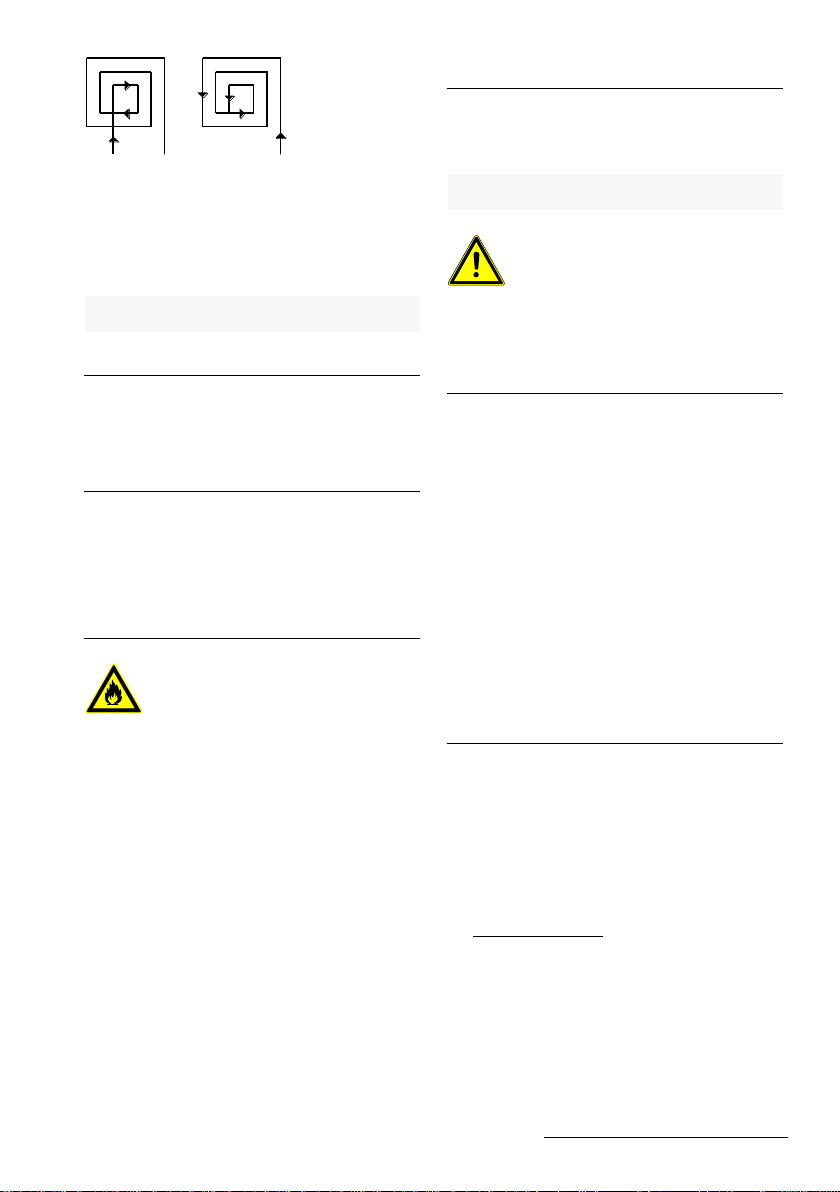

To avoid blockage during the ejection of grass,
we recommend, for flat terrain, to proceed
according to the mowing patterns. Mulch is
shredded into much smaller pieces when you
mow the terrain once again in the opposite
direction.
Prior to starting
Checking the oil level
Caution! Before mowing, always check the
engine oil level and the oil level in the hydro-
stat (see Maintenance).
Fuel
As fuel, use unleaded petrol (see operating
instructions of the engine manufacturer).
You can use E10 petrol. Do not store E10
petrol longer than 30 days.
Tanking up
Danger!
Fuel is ignited by hot engine parts.
Prior to filling up, switch off the
engine and wait for at least
20 minutes until the engine has
cooled down. Observe the safety
instructions regarding the fuel!
Filling in the fuel:
1. For filling, use a canister with a filler spout
or use as funnel.
2. Open the canister carefully so that the
existing overpressure is discharged slowly
and no fuel spurts out.
3. Open the tank cap carefully so that the
existing overpressure is discharged slowly
and no fuel spurts out.
4. Fill the fuel tank.
5. Screw the tank cap on tightly.
Adjusting the seating position
Adjust the seat in the longitudinal direction until
your feet are positioned on the inclined support
plates and you sit comfortably.
Starting
Danger!
During startup, there is a risk of
injury caused by the rotating blade.
Make sure that no one is within the
danger zone of the blade.
Safety switches
The device is equipped with safety switches.
To start the engine, the following requirements
must be met:
–A driver sits in the driver seat.
–The blade clutch is switched off.
–The drive lever is in neutral position.
If the engine is running and the driver leaves
the seat, the engine is shut off.
If the engine was shut down due to a safety
switch, turn the ignition key to position “Ignition
off”. By this, you will avoid discharging the
battery.
Starting the engine
Start the device only when it is positioned on
even and firm terrain.
1. Open both fuel valves.
2. Sit down on the driver seat.
3. Switch off the blade clutch.
4. Move the drive lever to neutral position.
5. Only for cold start: Move out the lever for
the choke.
6. Move the accelerator lever to middle posi-
tion.
7. Turn the ignition key to start position.
8. After the engine starts, release the ignition
key and press the lever for the choke back
in.

18
9. For mowing, set the accelerator lever to
max. speed.
If the engine does not start after 5 seconds,
release the key and wait for approx.
15 seconds before trying to start the device
again.
Engaging the blade
Only engage the blade when it turns freely and
does not come into contact with objects or the
floor.
Do not engage the blade in uncut grass be-
cause the blade drive otherwise becomes
overloaded, can be damaged, or can wear
prematurely.
1. Start the engine.
2. Move the lever for the cutting height ad-
justment to the highest cutting position.
3. Release the Foot brake.
4. Switch on the blade clutch switch - the
blade starts up.
5. Set the desired cutting height.
If you set the cutting height to transport posi-
tion during mowing, the blade is automatically
disengaged.
Reengaging
1. Switch off blade clutch switch.
2. Move the lever for the cutting height ad-
justment to the highest cutting position.
3. Release the Foot brake.
4. Switch on the blade clutch switch - the
blade starts up.
5. Set the desired cutting height.
Disengaging the blade when running over
paths:
1. Switch off blade clutch switch.
Oil pressure switch
Danger!
If the engine shuts down while you
are mowing, the device can roll
away.
Immediately actuate the parking
brake to prevent the device from
rolling away.
The oil pressure switch ensures that the en-
gine is not damaged when the device is used
in steep terrain.
The oil pressure switch switches off the engine
when damage to the engine may occur due to
lack of oil pressure. This may occur when:
–Oil level is too low.
–The device is in too steep a sloping position
while in steep terrain.
How steep the gradient for the oil pressure
switch to switch off the engine may be de-
pends on the engine type, direction of inclina-
tion, and the oil level.
In order to restart the engine, let the device roll
to terrain that is less steep while in idle state.
In every case, check the oil level.
Towing
Danger!
The device can roll away without
the drive.
Never unlock the drive in steep
terrain without securing the device
against rolling away.
If the engine cannot be started again, the
device must be towed.
1. While using the brakes, let the device roll to
terrain that is less steep.
2. Secure the device against rolling away or
sliding.
3. Secure the device with a cable winch that
has got enough load capacity.
4. For towing unlock the drive and release the
parking brake.

19
Driving
Danger!
Mowing on a slope is dangerous.
There is a risk of tilting and slipping.
Observe the safety instruction for
mowing on slopes.
In case of a hazardous situation, switch off the
drive and declutch the blade.
Braking
Warning!
The brake does not work if you
continue to hold the drive lever
while braking.
Release the drive lever when you
actuate the foot brake.
To stop, move the drive lever slowly to neutral
position or step on the foot brake.
The foot brake acts on the rear wheels. When
the foot brake is actuated, the drive moves to
direction "STOP" (neutral position). When the
foot brake is pressed quickly and fully, the
drive lever swivels all the way to neutral posi-
tion.
Use the actuation via foot pedal only in excep-
tional circumstances because the mower stops
abruptly.
Driving
1. Start the engine.
2. Release the parking brake.
3. Slowly move the drive lever to the desired
driving direction. The further the lever is
moved away from the neutral position, the
faster the mower moves.
4. To stop, move the drive lever slowly to
neutral position or step on the foot brake.
When you actuate the foot brake and switch on
the drive, you can hear an alarm tone.
Reversing
Danger!
Danger of injury when reversing.
Make sure that your path is clear of
obstacles and that no other persons
stand behind your device.
Always reverse slowly. Be especially cautious
when the blade is engaged.
1. Release the parking brake.
2. Slowly move the drive lever to the rear. The
move you move the lever away from the
neutral position, the faster the mower
moves.
3. In order to stop, move the drive lever slowly
to neutral position.
The drive lever automatically goes to neutral
position when it is released from the position
“Driving in reverse”. This prevents accidental
reversing.
Differential lock
The differential lock connects the two rear
wheels rigidly to each other. This improves
traction. Actuate the differential lock when a
wheel slips.
Always actuate the differential lock when
moving downhill. This improves the driving
stability of the device. The risk of sliding or
swerving of the rear is reduced and safe brak-
ing is possible.
Driving in curves while the differential lock is
actuated is only possible with limitations.
To avoid excessive wear,
–actuate the differential lock only when the
device is stopped, if possible.
–always step on the pedal all the way.
–release the differential lock when it is no
longer absolutely needed.

20
Switching off and parking
Warning!
Risk of injury in case of unauthor-
ised use.
Always remove the ignition key
when you do not use the device.
1. Move the drive lever slowly to neutral
position.
2. Turn the accelerator lever to idle speed.
3. Switch off the blade clutch.
4. Move the lever for the cutting height ad-
justment to transport position.
5. Actuate the parking brake.
6. Turn the ignition key to “ignition off”.
7. Wait until the engine comes to a standstill
before you step away from the device.
8. Remove the ignition key.
9. Close both fuel valves.
leerer Absatz 11 Z eilen
leerer Absatz
leerer Absatz
leerer Absatz
leerer Absatz
leerer Absatz 11 Z eilen
leerer Absatz
leerer Absatz
leerer Absatz
leerer Absatz
