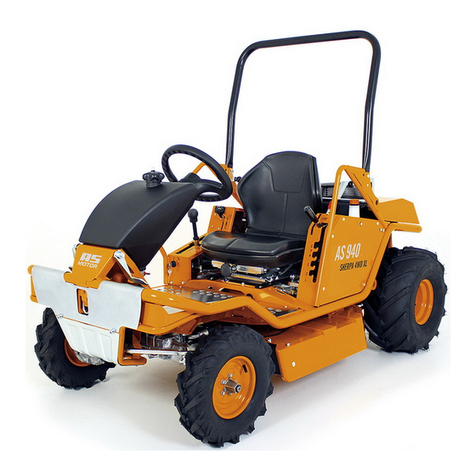

AS MOTOR AS 940 SHERPA 4WD RC User manual

Operating Instructions
Ride-on Allmäher®
AS 940 Sherpa 4WD RC
From serial number: 027415110001
Issued: 11 May 2016, V3.0
en-Translation of the Original Operating Instructions

Notes on the operating manual
2
Notes on the operating manual
Dear customer,
Congratulations on your purchase. You have acquired a reli-
able quality product by “AS-Motor Germany”.
This product has been manufactured according to modern
manufacturing methods and comprehensive quality assur-
ance measures. Only when you are satisfied with your
device, we have attained our goal.
These operating instructions contain important information to
help you avoid hazards and to increase the reliability and the
life span of the device.
Read the operating instructions before using the
device. Share these operating instructions with
other users of the device.
Contact
If you have questions concerning your device, please contact
you dealer or call our customer service ([phone]).
For international AS partners, please see: www.as‑motor.de.
Device data
Please fill in all data referring to your device. When ordering
spare parts, provide your dealer with the serial and engine
numbers.
Serial number (see manufacturer’s certificate or type plate):
Engine number:
Date of purchase:
Address of dealer:
Intended use
The device is intended for cutting and mulching grass or sim-
ilar vegetation in agriculture, forestry, and landscape conser-
vation. Woody growth must not be older than maximally one
year.
The device can be used in the ride-on operation (MC) as well
as the remote control operation (RC).
Only use attachments and cutting tools authorised by “AS-
Motor Germany”.
Any other use exceeding this purpose is inadmissible.
Observe the instructions chapter Maintenance and cleaning.
Otherwise, operational safety is endangered.
The user of the device is responsible for accidents or dam-
age that can happen to other persons or their property!
In particular, the device must not be used:
– as a toy.
– to transport people.
– to cut hard objects, stones, rubble, or pieces of wood.
– to trim bushes, hedges, and shrubbery.
– to cut plants on rooftops.
– to clean (vacuum) footpaths.
– as shredder for shredding tree and hedge cuttings.
– as drive unit for work tools and any type of tool sets that
are not authorised by “AS-Motor Germany”.
The device is not licensed for driving on public roads.

Contents
Notes on the operating manual.................................... 2
Contact............................................................................ 2
Device data..................................................................... 2
Intended use................................................................... 2
Explanation of the symbols.......................................... 5
Symbols in the instructions........................................... 5
Symbols on the device................................................. 5
Safety instructions......................................................... 7
Get informed!................................................................ 7
User restrictions and hours of operation....................... 7
Safe handling of fuel..................................................... 7
Check the device prior to use....................................... 7
General danger area.................................................... 8
Additional danger area in the RC mode....................... 8
Use caution during operation........................................ 9
Prior to mowing............................................................. 9
Use caution when mowing............................................ 9
Caution when mowing slopes....................................... 10
Caution when using accessories.................................. 11
When work is completed.............................................. 11
Use caution during maintenance and repair................. 11
Device description......................................................... 12
Control elements at the device..................................... 13
Front area..................................................................... 13
Control lever at seat..................................................... 14
Rear part....................................................................... 15
Rollbar.......................................................................... 16
Control elements at the transmitter............................. 18
Optical and acoustic signals ........................................ 20
Acoustic signals............................................................ 20
Status indicators........................................................... 20
Display.......................................................................... 20
Operating modes ........................................................... 20
Ride-on mode (MC):..................................................... 20
Remove control mode (RC).......................................... 20
Safety functions............................................................ 20
Driving on steep terrain................................................. 21
Checking the slope....................................................... 21
Suitability on slopes in the MC mode:.......................... 21
Suitability on slopes in the RC mode:........................... 21
Oil pressure switch........................................................ 21
After a drop in oil pressure........................................... 21
Differential lock ............................................................. 22
Information on mowing................................................. 22
Prior to starting.............................................................. 22
Checking the oil level.................................................... 22
Fuel............................................................................... 22
Tanking up.................................................................... 22
Checking and changing the battery at the transmitter.. 22
Adjusting the seating position....................................... 23
Adjusting the seat suspension...................................... 23
Putting up the rollbar.................................................... 23
Transport rack.............................................................. 23
Switching on receiver and transmitter......................... 24
Selecting radio frequency............................................. 24
Working in the MC mode............................................... 25
Starting the engine in the MC mode............................. 25
Steering in the MC mode.............................................. 25
Driving in the MC mode................................................ 25
Setting the cutting height.............................................. 26
Engaging the blade in the MC mode............................ 26
Moving blade to transport position................................ 26
Actuating the differential lock in the MC mode............. 26
Switching off and parking in the MC mode................... 27
Switching from the MC mode to the RC mode............. 27
Emergency stop in the MC mode................................. 27
Practising the RC mode ................................................ 28
Working in the RC mode............................................... 29
Starting the engine in the RC mode............................. 29
Steering in the RC mode.............................................. 29
Driving in the RC mode................................................ 30
Setting the cutting height.............................................. 30
Engaging the blade in the RC mode............................. 31
Moving blade to transport position................................ 31
Actuating the differential lock in the RC mode.............. 31
Switching off and parking in the RC mode................... 32
Switching from the RC mode to the MC mode............. 32
Emergency stop in the RC mode.................................. 33
Transport ....................................................................... 34
Transport on pallets...................................................... 34
Transport of ready-to-use device.................................. 34
Towing.......................................................................... 35
Maintenance and cleaning............................................ 36
Prior to maintenance and cleaning............................... 37
Maintenance and cleaning position.............................. 37
Cleaning the device...................................................... 37
General inspection........................................................ 38
Checking the safety functions....................................... 38
Checking the Emergency stop switch........................... 38
Checking the start-stop switch with key........................ 38
Checking the parking brake.......................................... 38
Check the foot brake.................................................... 38
Checking the blade....................................................... 39
Checking the blade clutch............................................ 39
Maintaining the engine................................................. 40
Opening the engine cover............................................ 40
Checking the engine oil level........................................ 40
Checking the spark plug............................................... 40
Maintaining the air filter................................................ 40
Checking and charging the battery of the device......... 41
Hydrostat transmission................................................. 41
Assembly........................................................................ 42
Scope of delivery.......................................................... 42
Unpacking..................................................................... 42
Mounting....................................................................... 42
Storage............................................................................ 42
Storing the device......................................................... 42
Longer storage............................................................. 42
Restarting..................................................................... 42
3
Contents

Spare parts..................................................................... 43
Wear parts ...................................................................... 43
Tyres ............................................................................... 43
Disposal.......................................................................... 43
Warranty ......................................................................... 43
Troubleshooting............................................................. 44
Error codes................................................................... 48
Technical data................................................................ 50
Fuses............................................................................ 51
Accessories.................................................................... 52
Declaration of conformity ............................................. 53
4
Contents

Explanation of the symbols
5
dummy Inhaltsverzeichnis
Explanation of the symbols
Symbols in the instructions
In these operating instructions, the following symbols are
used to denote special dangers.
Warning.
These symbols denote special dangers.
Prohibition sign.
These symbols denote inadmissible procedures.
Directive sign.
These symbols denote required protective meas-
ures.
Symbols in the text
1. A numbered text requests you to act or shows a process
sequence.
ðAn indented arrow marks the result of a step.
ðAn arrow that is not indented refers to the result of a se-
quence of actions.
Notice: An additional piece of information is marked by the
work "Notice" written in bold letters.
Symbols on the device
The following symbols are placed on the device to inform you
must be careful and attentive when using the device:
Working with the device requires extreme
cautiousness.
Read the operating instructions before you
use the device.
Risk of injury!
Make sure that no one is within the danger
zone of the device. Objects may be ejec-
ted.
The quickly rotating blade can cause life
threatening injuries or immense property
damage! Be especially careful to keep your
hands and feet away from the blade when
the device is put into operation.
Prior to any repair and maintenance work,
pull off the spark plug connector.
Risk of tipping!
In the ride-on mode (MC), when positioned
sideways to the slope, the device is stable
up to 21° (in accordance with the standard
measuring method).
Prior to repair and maintenance work, pull
off the key.
Risk of tipping!
In the ride-on mode (MC), when
positioned sideways to the slope,
the device is stable up to 21° (in
accordance with the standard
measuring method).
Risk of tipping!
In the remote control mode (RC),
when positioned sideways to the
slope, the device is stable up to
33°.
Danger to life!
On slopes, the device can topple
over and slide towards you or run
you over.
Never stay below the device when
on a slope.
Clean the ventilation grid! The cool-
ing air of the motor is sucked in
through the ventilation grid of the
engine cover. Always keep the en-
tire surface open and free!
Noise is causing health problems. Use personal
ear protection to avoid hearing damage. Wear
safety glasses.
Hot surface. Do not touch the engine or the silen-
cer. These parts become very hot during operation
and you can get burned.
Do not clean the device with water spray or high-
pressure cleaner!

Explanation of the symbols
6
Type plate
The type plate on the device provides you with informa-
tion on the device type and the technical data.
1 Name and address of the manufacturer
2 Device designation
3 Type designation
4 Rates power output in kW / engine speed
5 Weight
6 Year of manufacture
7 Serial number
8 CE marking

Safety instructions
7
Safety instructions
Get informed!
For your safety, read these operating instructions carefully.
Familiarize yourself with the control elements and the proper
use of the device. Share these operating instructions with
other users of the device.
Also read the operating instructions of the transmitter and re-
ceiver.
Before starting to work: Have skilled personnel who were
trained by AS-Motor show you the safe handling of the
device.
Get familiar with the device in a wide, open and flat terrain
first.
User restrictions and hours of operation
Never allow children or persons who are not familiar with the
operating instructions to use the device. Persons under 18
years of age may operate the device only under proper su-
pervision. Local regulations determine the minimum age of
the operator und the operating times.
Unsuitable for operation of the device are persons who
– are under the influence of alcohol, drugs or reaction retard-
ing medicines.
– have physical and mental/emotional impairments.
– are tired or sick.
Persons with pace makers must not touch live
parts of the ignition system.
Safe handling of fuel
Danger!
Fuel is toxic and highly inflammable.
Danger of fire and explosion!
Keep the fuel away from ignition sources and do not
smoke while handling the device.
Do not inhale fuel vapours; they are dangerous to
your health.
Use glove and avoid skin contact with the fuel.
Fuel up outdoors only when the engine is cool and not run-
ning. Use a filler or funnel.
Do not spill any fuel and do not let the fuel get into the canal-
isation or ground water.
If you spilled fuel, do not start the device until the fuel va-
pours have evaporated (wipe dry). Move the device away
from the area where the fuel was spilled.
Always close the tank cap securely and do not open it while
the engine is running or the device is still hot.
Drain the fuel tank only when outdoors. Use a suitable con-
tainer or run the tank empty.
Keep the fuel away from children and store it in a suitable
container in a dark, cool, and dry location.
Never park the device with fuel in the tank inside a building
where fuel vapours could come in contact with open fire or
sparks.
Immediately replace a damaged fuel tank or tank cap (au-
thorised dealership).
First aid
When swallowing fuel or inhaling fuel vapours, do not force
vomiting and immediately consult a doctor.
In case of skin contact, immediately wash with water and
soap. Change your soiled clothing as soon as you can.
Measures in case of a fire
In case of a fire, use foam, dry powder extinguisher, or car-
bon dioxide (CO2). Never douse with water!
Check the device prior to use
Prior to each use, check the knife, protection skirt, ejection
rubber, drive and fastening parts, cables and cable connec-
tions for proper working condition and firm seating by visual
inspection.
Never use the device if covers, impact protection, ejection
rubber or protection skirt are defective or not mounted.
Do not remove, change or override any safety devices or
control elements.
Observe the maintenance instructions and replace damaged
or worn parts immediately.
Check the blade brake for proper function by switching off the
blade clutch. The blade must come to a standstill from full
speed in less than 5 seconds.
Check the parking brake for proper function (see mainten-
ance).

Safety instructions
8
General danger area
Within the danger area of the device, there is a risk of death.
The rotating knife can cause injuries and objects can be
thrown out. On slopes, the device can topple over and slide
towards you or run you over.
Also when in the RC mode, always keep away from the
danger zone of the device. When you approach the device to
change the operating mode, always do so coming from the
left rear.
Make sure
– that nobody else is in the area that will be mowed.
– that you or another person are never positioned in the dir-
ection of travel in front of the device.
– that you have a complete overview of the danger area at all
times.
Danger area for persons other than the operator
– A 50 metre radius around the device.
– On the entire area to be mowed.
Additional danger area in the RC mode
Due to incorrect or unintended steering or driving move-
ments, dangerous situations can result. Persons or obstacles
can be hit or run over. The device can flip over or slide down.
First, get familiar with the device in the MC mode. Practise
the RC mode before you work with it.
Danger area for the operator with unclutched blade
– A 5 metre radius around the device.
Danger area for the operator with running blade
– A 15 metre radius around the device.
– The area in front of and to the right of the device is espe-
cially dangerous.
Additional danger zone at the slope
– Below the device.
– Above the device.
Recommended position for the operator at the
slope
X = danger area
Outside the danger area, on the side of the device.

Safety instructions
9
Use caution during operation
Danger of injury during motor start
The motor must not be started:
– When fuel was spilled.
– In closed or badly ventilated rooms (danger of poisoning!).
– In the MC mode: When other persons are in close proxim-
ity.
– In the RC mode: When you or other persons are in close
proximity.
Risk of injury when the blade is running
Switch off the blade and wait until the blade stops
– when you drive on surfaces other than grass.
– when you do not mow.
– before you enter the danger area.
– when you cannot overlook completely the area to be
mowed.
– when the device must be manoeuvred out of a dangerous
position.
– when the trafficability of the area to be mowed is too un-
safe.
Risk of injury when the motor is running
Switch off the engine, wait for the blade and the engine to
stop and remove the key at the start-stop switch
– before you transport the device.
– before you step away from the device, even for just a short
time.
– before you clean or check the device or before you carry
out work on the device.
– before you unblock or unclog the discharge area.
Risk of injury due to uncontrolled rolling
In the MC mode, actuate the parking brake after each stop
and before shutting off the engine. By doing so, you can pre-
vent the device from rolling away in an uncontrolled way.
In the RC mode, never switch off the engine via the main
switch. Otherwise, the parking is not activated any longer and
the device can roll away.
Risk of burns
Do not touch the muffler, the engine, and the gearbox. These
parts become very hot during operation and you can get
burned. If a jumpy movement occurs, the risk of additional in-
juries can result.
Prior to mowing
Personal protective measures
During mowing, always wear safety shoes with
good grip and long trousers. Do not mow with open
sandals or while shoeless.
Wear safety gloves to protect yourself against injur-
ies and vibrations.
Noise is causing health problems. Use personal
ear protection to avoid hearing damage. Wear
safety glasses and headgear.
Ask your specialised dealer about suitable protective equip-
ment.
Preparing the mowing area
Prior to mowing, carefully check the perimeter of the lawn.
Remove rocks, pieces of wood, bones, wires, and other ob-
jects that could be picked up and thrown out by the device.
Use caution when mowing
Risk of injury
Stay within shouting distance to other people who can help
you in case of an emergency.
Danger!
Risk of injury caused by thrown out objects.
Never mow while persons, children, pets, or prop-
erty are in the vicinity.
Make sure that neither the operator of the device nor other
persons are in the danger area.
Keep your hands and feet away from the rotating parts.
Only mow during daylight or with adequate artificial lighting.
Never mow in the event of uncertain weather conditions and
risk of lightning.
Be especially carefully when mowing on soft ground, nearby
landfills, ditches and dikes.
Do not transport any person on the device.
Be extremely cautious when moving in reverse.
Pay attention to traffic when working close to roads.
Vibrations
If you use the device over a longer period of time, the vibra-
tions can cause circulatory disorders. A generally accepted
usage time cannot be determined.
– Use gloves.
– Change between MC mode and RC mode.
– Take breaks on time.
Have an authorised service centre check the device
– when the blade has hit an object.
– if the device starts to vibrate unusually severely.

Safety instructions
10
Mowing surfaces with fire hazard
– Carry a sufficient amount of suitable extinguishing media.
– If the device leans too much to the side, fuel can leak from
the carburetor or the tank. This presents a fire hazard!
– Observe the moved area even after mowing to make sure
that no fire breaks out.
To prevent a fire hazard, always keep the following compon-
ents free of dirt, grass, hay, leaking oil, grease, etc.:
– engine, ventilation grid
– silencer (manifold, protection, spaces)
– battery, cable connections, electric drive units
– area around the fuel tank
– belt drives
Caution when mowing slopes
Danger!
If the device, while in use, stops in steep terrain or
the engine cuts out, the device can roll away.
Immediately actuate the parking brake to prevent
the device from rolling away.
Observe the information regarding the oil pressure switch in
chapter Starting.
Sliding and tipping risk
Danger!
Mowing on the slope is dangerous. There is a tilting
and slipping hazard.
Please observe the following information.
– Use the device in the ride-on mode (MC) only on less than
21° slopes.
– Use the device in the remote control mode (RC) only on
less than 33° slopes.
– Observe the notices for the danger area and the operating
modes.
– Never unlock the drive at the slope because the device can
roll away.
– Always mow uphill and downhill, avoid mowing in hori-
zontal direction.
– Never drive on a slope that you cannot drive up backwards
without sliding.
– Be extremely cautious when changing the direction.
– Do not turn on a slope.
– Prior to entering the slope, always actuate the differential
lock. Move on slopes only when the differential lock is actu-
ated.
– Always keep the speed low when moving on slopes.
– Do not start abruptly and do not brake abruptly.
– In the MC mode, hold the steering wheel tightly so that the
device does not swerve.
– In both operating modes, drive with the bow raised. If the
device tips over, the rollbar can prevent the device from
overturning.
When the uphill wheels encounter obstacles such as roots,
branches, rocks, mounds etc., the device can tilt or slip.
– Only mow when the terrain is clear of obstacles and you
are familiar with it.
– Pay attention to bumps, holes, and other visible hazards.
– Do not mow close to danger zones (e.g. walls, steep de-
clines, etc.).
Danger due to uncontrolled slipping
Only park the device on flat surfaces.
Proceed with extreme caution in case the ground is wet or
loose. The danger of slipping is very high on cut growth, no
matter if it is wet or dry.
If the mower starts to slide you cannot regain control by actu-
ating the brake.
Uncontrolled sliding can occur because of:
– slope angles that are too steep.
– slippery ground.
– poor tire grip.
– speeding.
– abrupt braking.
– an inappropriate task for the device.
If the device tilts or slips
– Never try to stop a tilting or sliding device. Severe injuries
can result.
– Remove leaking fluids (oil, fuel, battery acid) from the
device and the floor. Deposit of contaminated soil environ-
ment friendly according to the local regulation.
– Undetectable damage may have occurred to the device. In
case of malfunctions, there is a risk of injury. Have an au-
thorised service centre check the device.

Safety instructions
11
Caution when using accessories
Be careful when pulling loads:
– Only use tow-bars authorized by
“AS-Motor Germany”.
– Observe the maximum load carrying capacity (Technical
data).
– Observe the safety instructions in the operating instructions
of the tow-bar.
– Only transport loads that you can handle safely.
– Only drive on slopes up to 10°.
– Do not take tight corners.
– Be extremely cautious when moving in reverse.
When work is completed
After each mowing, close the fuel valve and the tank ventila-
tion.
Before you leave the device, wait for the blade and engine to
stop and pull off the key at the start-stop switch.
After switching it off, let the device cool down for at least 20
minutes before you store it in a dry, closed, sufficiently ventil-
ated room.
Never store the device when there is fuel in the tank inside a
building where fuel vapours might come into contact with
open fire or sparks.
Use caution during maintenance and
repair
Only carry out maintenance work as described in these oper-
ating instructions. Have an authorised service centre carry
out all other work.
Only use the knives and spare parts authorized by “AS-Motor
Germany”. Unauthorized knives and spare parts can cause
severe injuries.
Prior to all maintenance work, wait until the engine comes to
a standstill and pull off the spark plug connector.
We explicitly point out that, in accordance with the Product
Liability Act, we are not liable for damages that were caused
by our devices if
– worn or damaged parts were not repaired or replaced on
time.
– these damages were caused by improper repair.
– when changing a part, our original parts or parts authorised
by use were not used.
– the repair work was not carried out by an authorised ser-
vice station.
The same applies for spare parts and accessories.

Device description
12
Device description
1Gearbox fan
2Silencer grid
3Transport deposit
4Antenna
5Receiver
6Ventilation grid
7Oil surge tank
8Bow
9Emergency stop
10 Status indicator (on both the right side and the left
side of the device)
11 Power socket
12 Fuse circuit (see Technical data)
13 Steering wheel
14 Tank ventilation
15 Tank cap
16 Transmitter in transmitter holder
17 Fuel valve
18 Protection skirt
19 Frame
20 Type plate
21 Side plates impact protection
22 Ejection rubber
23 Unlocking drive

Control elements at the device
13
Control elements at the device
Front area
Fig.1:
Clinometer(1)
The clinometer shows the lateral inclination of the device.
Foot brake/parking brake (2)
When you actuate the right foot pedal, the parking brake is
applied. Press the foot pedal for activation of the brake only
in exceptional situations because the mower stops abruptly.
Brakes:
Release the drive lever and press the
right foot pedal (2) down.
Differential lock (3)
With the left foot pedal, actuate the differential lock.
Pedal is actuated:
Differential lock is on
Pedal is not actuated:
Differential lock is off
Fuel valve(4 )
2
3
1
1: Reserve
2: Open
3: Closed
Transmitter holder (3)
Insert the transmitter into the transmitter holder
1. Place the transmitter onto the rollers (A) and press down.
2. Insert the transmitter completely into the holder and swing
forward.
ðThe transmitter engages in the transmitter holder.
Remove the transmitter from the transmitter holder
1. Press the transmitter down.
2. Swing the transmitter back.

Control elements at the device
14
Control lever at seat
Fig.2:
Accelerator lever with choke (1)
With the accelerator lever, you can change the engine
speed and thus control the engine output. When you start
the device when the engine is cold, move the accelerator
lever to choke position (choke is closed).
Choke: Choke closed (only for engine
start when engine is cold). Press the ac-
celerator lever all the way down.
MAX: Full throttle position
MIN: Idling speed. Pull the accelerator
lever all the way up
Drive lever with parking brake (2)
The drive lever is required for moving the mower forward, re-
versing as well as stopping the mower. The further you move
the lever in one or the other direction, the faster the device
moves.
In the neutral position, the parking brake is active.
Moving forward
Stopping (neutral position/parking brake)
Reversing
In the RC mode, the crank (7) flips up.
Operating hours counter (3)
The operating hours are counted as soon as the engine is
running.
Display:
– When engine is running: engine speed
– When engine is off: operating hours
Cutting height indicator (4)
The top position (0) is the transport posi-
tion.
The cutting height of the lawn can be con-
tinuously adjusted from 1 to 5.
Seat suspension(5)
The seat suspension can be adjusted to the driver’s weight.
Heavier drivers: Turn clockwise.
Lighter weight drivers: Turn anti-
clockwise.
Sitting position
Press the lever (6) to the right, move the seat to the desired
position, and engage it.

Control elements at the device
15
Rear part
Status indicators (1)
The status indicators at the device flash when the blade is
engaged.
For meaning of the other signals, see chapter Optical and
acoustic signals.
Main switch (2)
You can switch on/off the circuit of the control with the main
switch.
0: OFF
I: ON
Emergency stop(3)
Actuate Emergency stop:
Press the switch.
Revoke Emergency stop:
Turn the switch in the direction of the arrow.
Clinometer(4)
The clinometer shows the lateral inclination of the device.
Drive/idle mode (5)
To push the mower without motor drive, unlock the drive at
the rear of the device and release the parking break.
Disconnect the drive (idle mode):
Press the lever (5) to the left.
Lock the drive:
Press the lever (5) to the right.
Selection lever operating modes (6)
Fig.3:
Read the selection lever position at the stickers to the left and
right of the selection lever.
Operating mode MC (ride-on mode):
Operating mode RC (remote control mode):
Switching from RC to MC:
Pull out the latch knob (B). Move lever (A) to MC.
Switching from MC to RC:
Move lever (A) to RC.

Control elements at the device
16
Rollbar
1
2
Putting down the rollbar
1. Pull out the lever(1).
2. Put down the rollbar(2).
3. Swivel the lever forwards and engage the lever.
Putting up the rollbar
1. Pull out the lever(1).
2. Put up the rollbar(2).
3. Swivel the lever down and engage the lever.

Control elements at the device
17

Control elements at the transmitter
18
Control elements at the transmitter

Control elements at the transmitter
19
Pos. Symbol Function Type Active in operating
mode
1 - Start-stop switch with key Switch with key RC+MC
2Drive forward Joystick RC
Drive backward:
3Steering to the left Joystick RC
Steering to the right
4Horn/acknowledge Button RC+MC
5Engine start Button RC+MC
6Differential lock off Toggle switch RC
Differential lock on
7Steering normal position Toggle switch RC
Steering reversing
8Disengaging blade Toggle switch RC+MC
Engaging blade
9Higher cutting height Toggle switch RC+MC
Lower cutting height
10 Transport position blade Button RC+MC
11 Displaying frequency Button RC+MC
12 L. R. Trimming steering Rotary knob RC
13 Fast maximum speed Rotary knob RC
Slow maximum speed
14 Oil pressure Control lamp RC+MC
15 Blade engaged Status indicator RC+MC
16 - Display - RC+MC

Optical and acoustic signals
20
Optical and acoustic signals
Acoustic signals
Signals of the device
– Single honk signal after the transmitter is switched on: Ra-
dio contact between transmitter and receiver was success-
fully established.
– Horn sounds at intervals: Receiver is in operation. No radio
contact to transmitter. Warning of battery consumption.
– Horn sounds at intervals (only in RC mode): The device
sits in a too inclined position.
Signals of the transmitter
– Horn sounds twice when the transmitter is switched on:
Transmitter is ready for operation.
– Horn sounds for a long time when the transmitter is
switched off: Transmitter is switched off.
Status indicators
Signals at the device
– Continuous light: Receiver is in operation. Receiver waits
for radio contact to transmitter to be established.
– Continuous light: An Emergency stop has occurred.
– Flashing: Beware, blade is engaged.
Signals at the sender
– Control lamp oil pressure is flashing: No oil pressure.
– Flashing: Beware, blade is engaged.
Display
Frequency: After a radio contact has been estab-
lished between transmitter and receiver, the fre-
quency number is briefly displayed.
Transmitter in operation: Red dot jumps here
and there.
Warning battery capacity: Quick flashing of an
“L”. As soon as the display appears, the trans-
mitter can be operated for another approx. 30
minutes.
Error code: When the control detects an error,
the error code is displayed. For meaning of this
code, see chapter Error codes.
Energy saving mode: If you do not actuate a but-
ton over a longer period of time, the transmitter
switches off automatically.
Operating modes
The device can either be operated via remote control (Re-
mote Control = RC mode) or while riding on the device
(Manual Control = MC mode).
You can switch between operating modes at any time. How-
ever, it requires a great degree of knowledge to avoid faults
and risks. Please read the corresponding chapter carefully.
First, familiarize yourself with the device in the MC mode and
practise the procedures on a spacious, obstacle-free and flat
area.
Ride-on mode (MC):
We recommend working in the ride-on mode, for example,
– to efficiently mow big, flat areas.
– to precisely navigate around sensitive
obstacles.
– to easily detect obstacles and foreign objects
and thus be safe from ejected parts.
– to easily detect obstacles and foreign objects
and thus avoid damage of the device.
Remove control mode (RC)
We recommend working in the remote control mode, for ex-
ample,
– when you want to protect yourself against
noise, physical strain, vibrations, exhaust
fumes, dust, sun, or rain.
– at inaccessible places such as in the under-
growth, low branches or thorns.
– in steep terrain.
– to have a better overview of the danger area
and thus avoid accidents.
– at the water’s edge or in the proximity of
edges with a risk of falling.
– on soft, sensitive grounds.
– to keep insects or pollen away.
Safety functions
To ensure safe operation at all times, the device is equipped
with safety functions. To make the engine run, depending on
the operating mode certain requirements need to be fulfilled.
These requirements are described in the corresponding
chapters.
