Dear customer!
Thank you for choosing this quality product from ASKO. We hope it will
meet your expectations and fulfil your needs for many years to come.
Scandinavian design combines clean lines, everyday functionality and
high quality. These are key characteristics of all our products and the
reason they are greatly appreciated throughout the world.
Operating instructions
BO4CM4T1-42 OCM8476S

2
We thank you for your trust and the
purchase of our appliance.
This detailed instruction manual is supplied to make the
use of this product easier. The instructions should allow
you to learn about your new appliance as quickly as
possible.
Make sure you have received an undamaged appliance.
If you do find transport damage, please contact the
seller from which you purchased the appliance, or the
regional warehouse from which it was supplied. The
telephone number can be found on the invoice or on the
delivery note.
Instructions for installation and connection are supplied
on a separate sheet.
Instructions for use are also available at our website:
www.asko.com / < http://www.asko.com />
Important information
Tip, note

3
IMPORTANT SAFETY INSTRUCTIONS 4
BEFORE CONNECTING THE APPLIANCE: 6
COMBINED MICROWAVE OVEN 7
TECHNICAL SPECIFICATIONS 7
CONTROL UNIT 9
BEFORE USING THE APPLIANCE FOR
THE FIRST TIME 10
STEPS OF THE COOKING
PROCESS (1–6) 11
STEP 1: SWITCHING ON THE APPLIANCE
FOR THE FIRST TIME 11
STEP 2: CHOOSING THE BASIC COOKING
MENUS AND SETTINGS 12
STEP 3: STARTING THE COOKING PROCESS 20
STEP 4: END OF COOKING AND SWITCHING
OFF THE OVEN 20
STEP 5: SELECTING ADDITIONAL FUNCTIONS/
EXTRAS 21
STEP 6: CHOOSING THE GENERAL SETTINGS 23
DESCRIPTIONS OF SYSTEMS (COOKING
MODES) AND COOKING TABLES 24
MAINTENANCE & CLEANING 41
CONVENTIONAL OVEN CLEANING 41
USING THE AQUA CLEAN FUNCTION TO CLEAN
THE OVEN 42
REMOVING AND CLEANING THE WIRE GUIDES 43
REPLACING THE BULB 44
TROUBLESHOOTING TABLE 45
DISPOSAL 46
CONTENTS

4
CAREFULLY READ THE INSTRUCTIONS AND SAVE THEM FOR FUTURE REFERENCE.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
This appliance is not intended for use by persons (including children)with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
WARNING: The appliance and its accessible parts become hot during use. Care should be
taken to avoid touching heating elements. Children less than 8 years of age shall be kept
away unless continuously supervised.
WARNING: Accessible parts may become hot during use. Young children should be kept
away.
During use the appliance becomes hot. Care should be taken to avoid touching heating
elements inside the oven.
Only use the temperature probe recommended for use in
this oven.
WARNING: Ensure that the appliance is switched offbefore replacing the lamp to avoid the
possibility of electric shock.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass/
the glass of hinged lids of the hob (as appropriate), since they can scratch the surface, which
may result in shattering of the glass.
Do not use steam cleaners or high pressure cleaners to clean the appliance as this may
result in an electric shock.
Means for disconnection must be incorporated in the fixed wiring in accordance with the
wiring rules.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard (only for appliances supplied with
connection cord).
The appliance must not be installed behind a decorative door in order to avoid overheating.
The appliance is intended for household use. Do
not use it for any other purpose, such as room heating,
drying of pets or other animals, paper, fabrics, herbs etc.
As this may lead to injury or fire hazard.
The appliance may only be connected to the power
mains by an authorized service technician or expert.
Tampering with the appliance or nonprofessional repair
thereof may result in risk of severe injury or damage to
the product.
If the power cords of other appliances located near
this appliance are caught in the oven door, they may
be damaged, which may in turn result in a short circuit.
Therefore, keep the power cords of other appliances at a
safe distance.
IMPORTANT SAFETY INSTRUCTIONS

5
Do not line the oven walls with aluminium foil and do
not place baking trays or other cookware on the oven
bottom. Aluminium foil would prevent air circulation
in the oven, hinder the cooking process, and ruin the
enamel coating.
Oven door become very hot duringoperation. A third
glass is installed for extra protection, reducing the
temperature of the outside surface (only with some
models).
Oven door hinges may be damaged when under
excessive load. Do not place heavy pans on open oven
door and do not lean against open oven door when
cleaning the oven cavity. Never stand on the open oven
door and do not let children to sit on it.
Appliance operation is safe with and without tray guides.
Make sure the vents are never covered or obstructed in
any other way.
Safe use of the microwave oven
WARNING: When the appliance is operated in the combination mode, children should only use
the oven under adult supervision due to the temperatures generated.
WARNING: If the door or door seals are damaged, the oven must not be operated until it has
been repaired by a competent person.
WARNING: It is hazardous for anyone other than a competent person to carry out any service or
repair operation that involves the removal of a cover which gives protection against exposure to
microwave energy.
WARNING: Liquids and other foods must not be heated in sealed
containers since they are liable to explode.
This appliance is intended to be used in household and similar applications such as:
• staffkitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential environments;
• bed and breakfast type environments.
Only use utensils suitable for use in microwave ovens.
Metallic containers for food and beverages are not allowed during microwave cooking.
When heating food in plastic or paper containers, keep an eye on the oven as such
packaging may ignite.
Microwave heating of beverages can result in delayed eruptive boiling, therefore care must
be taken when handling the container.
The contents of feeding bottles and baby food jars shall be stirred or shaken and the
temperature checked before consumption, in order to avoid burns.
Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens
since they may explode, even after microwave heating has ended.
If smoke is observed, switch offor unplug the appliance and keep the door closed in order to
stifle any flames.
If smoke is emitted, switch offor unplug the appliance and keep the door closed in order to
stifle any flames.

6
Heed the minimum distance between the upper edge of the
oven and the nearest object above it.
The microwave oven is intended for heating food and
beverages. Drying food or clothing and heating of hot
packs or pads, slippers, sponges, moist cloths etc. may
result in injury, ignition, or fire.
Always use oven mitts to remove dishes from the
oven. Some pots, pans, or trays absorb the heat of foods
and therefore become very hot.
Make sure to only use the cookware that is suitable for
use in a microwave oven. Do not use cookware made of
steel or cookware with golden or sliver rims.
Do not leave any accessories or utensils in your
oven when it is off. To avoid damage, o not switch on an
empty oven.
Do not use receptacles made of porcelain, ceramics,
or clay, if there are pores in the material or if the inside
is not glazed. Once heated up, the moisture that would
penetrate these pores could cause cracking. Only use
the cookware intended for use in a microwave oven.
Always read and observe the instructions for heating in a
microwave oven, specified on the food packaging.
Be careful when heating alcohol-containing food, as a
combustible mixture of alcohol and air may form inside
the oven. Open the door carefully.
When using the microwave or the combined
microwave and convection functions, use of metallic
cookware, forks, spoons, knives or metal clips/fasteners
for frozen food is not recommended. After heating,
stir the food or leave it to rest until the heat is evenly
distributed.
BEFORE CONNECTING THE APPLIANCE:
Carefully read the instructions for use before
connecting theappliance. Repair or any warranty
claim resulting from incorrect connection or use of the
appliance shall not be covered by the warranty.
The microwave oven is intended for heating food and beverages. Drying of food or clothing
and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of
injury, ignition or fire.
The oven should be cleaned regularly and any food deposits removed.
Failure to maintain the oven in a clean condition could lead to deterioration of the surface
that could adversely affect the life of the appliance and possibly result in a hazardous
situation.
The appliance must be operated with any cabinet door open.

7
3.1 kW
XXXXXX
SER. Nr: XXXXXX
ART. Nr:
max
TN XXXXX
Pn :
TYPE:
XXXXXX
220-240V ~
220V-240V, 50/60Hz Freq. : 2,45 GHz
4
3
2
1

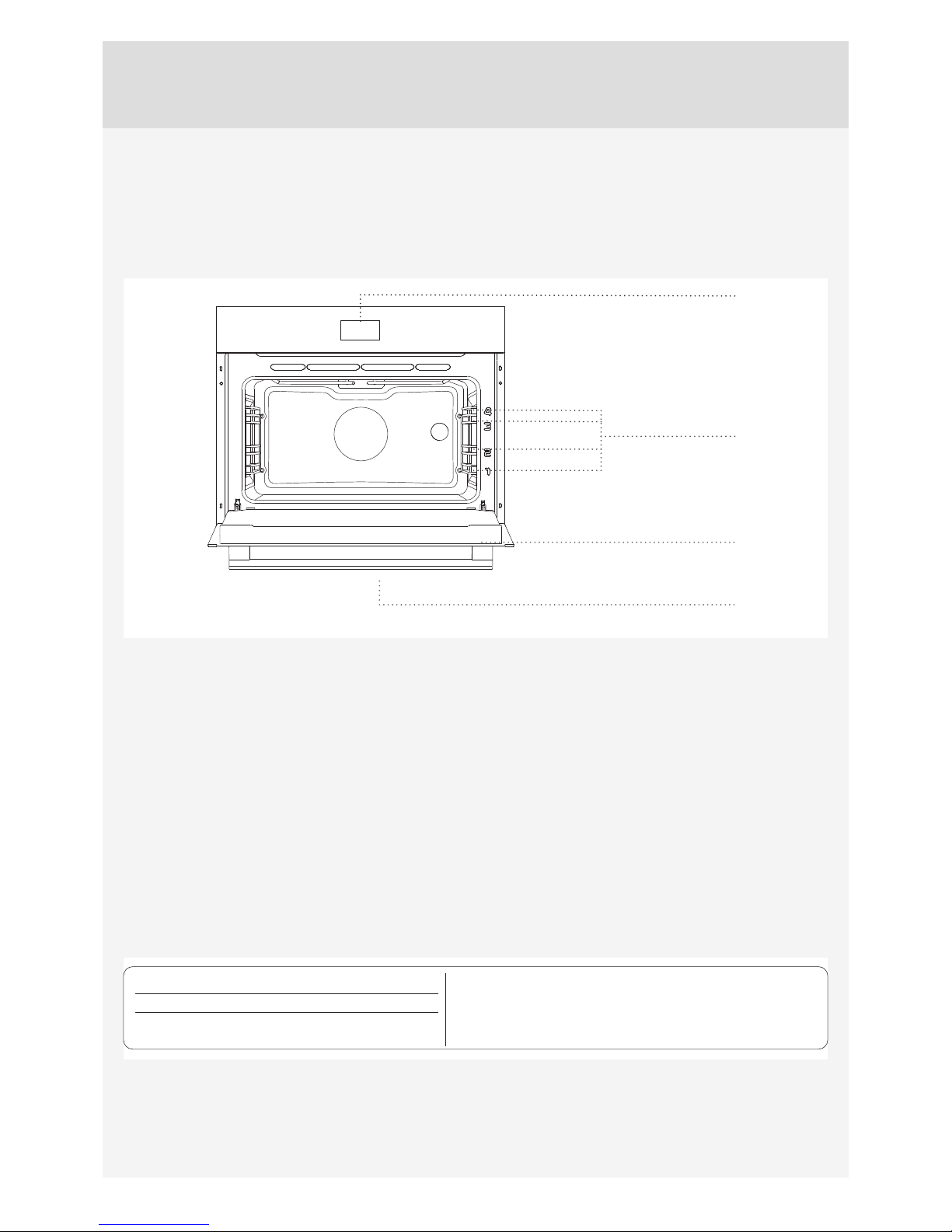

Control unit
Oven door
Oven handle
Guides
- Cooking levels
(DESCRIPTION OF THE OVEN AND EQUIPMENT – DEPENDING ON THE MODEL)
The figure represents one of the built-in appliance models. Since the appliances for which these instructions were drawn
up may have different equipment, some functions or equipment may be described in the manual that may not be present
in your appliances.
TECHNICAL SPECIFICATIONS
(DEPENDING ON THE MODEL)
The rating plate indicating the basic information about
the appliance is located at the edge of the oven and it is
visible when the oven door is opened.
COMBINED MICROWAVE OVEN

8
WIRE GUIDES
Wire guides allow preparation of the food on four levels
(please note that the levels/guides are counted from the
bottom up).
Guides 3 and 4 are intended for grilling, and guide 1 is
used with microwave systems when food is prepared in
a glass baking dish.
OVEN DOOR SWITCH
The switches deactivate oven heating, the fan, and the
microwaves when the oven door is opened during the
cooking process. When the door is closed, the switches
turn the heaters and microwaves back on.
COOLING FAN
The appliance is fitted with a cooling fan that cools the
housing and the appliance control panel.
EXTENDED OPERATION OF THE COOLING FAN
After the oven is switched off, the cooling fan continues
to operate for a short while in order to provide additional
cooling for the oven. (Extended cooling fan operation
depends on the temperature in the center of the oven.)
OVEN EQUIPMENT AND ACCESSORIES
GLASS BAKING DISH is used for cooking with all oven
systems and for cooking with microwaves. It can also be
used as a serving tray.
Never use the grid, the shallow baking sheet or the
deep baking tray or any other metal part or accessory
when operating a system with microwaves!
The GRID is used for grilling or as support for a pan,
baking tray or baking dish with the food.
There is a safety latch on the grid. Therefore, the grid
has to be lifted slightly at the front when pulling it out from
the oven.
The SHALLOW BAKING SHEET is used for baking
pastry and cakes.
The DEEP BAKING TRAY is used for roasting meat and
baking moist pastry. It can also be used as a drip tray.
Never place the deep baking tray in the first guide during
the cooking process, except when grilling food or using the
roasting spit and you are only using the deep tray as a drip
tray.
As baking accessories heat up, their form may
change. This does not affect their functionality and
their original form will be restored when they cool
down.
The grid or the tray should always be inserted into the
groove between the two wire profiles.
Never use the grid, the shallow baking sheet or the
deep baking tray or any other metal part or accessory
when operating a system with microwaves!

9
CONTROL UNIT
NOTE:
The keys will respond better if you touch them with a larger area of your fingertip. Each time you press a key, this will be
acknowledged by a short acoustic signal.
Navigate the menu by sliding your finger up and down or left and right. Confirm your selection with a touch.
1ON/OFF KEY 2BACK KEY
Touch briefly to
return to previous
menu.
Touch and hold
to return to main
menu.
3DISPLAY – For
selection and
display of settings 4START/STOP
KEY 5CHILD LOCK KEY

10
Upon receiving the appliance, remove all parts, including
any transport equipment, from the oven.
Clean all accessories and utensils with warm water and
regular detergent. Do not use any abrasive cleaners.
When the oven heats up for the first time, the
characteristic smell of a new appliance will be emitted.
Ventilate the room thoroughly during the first use.

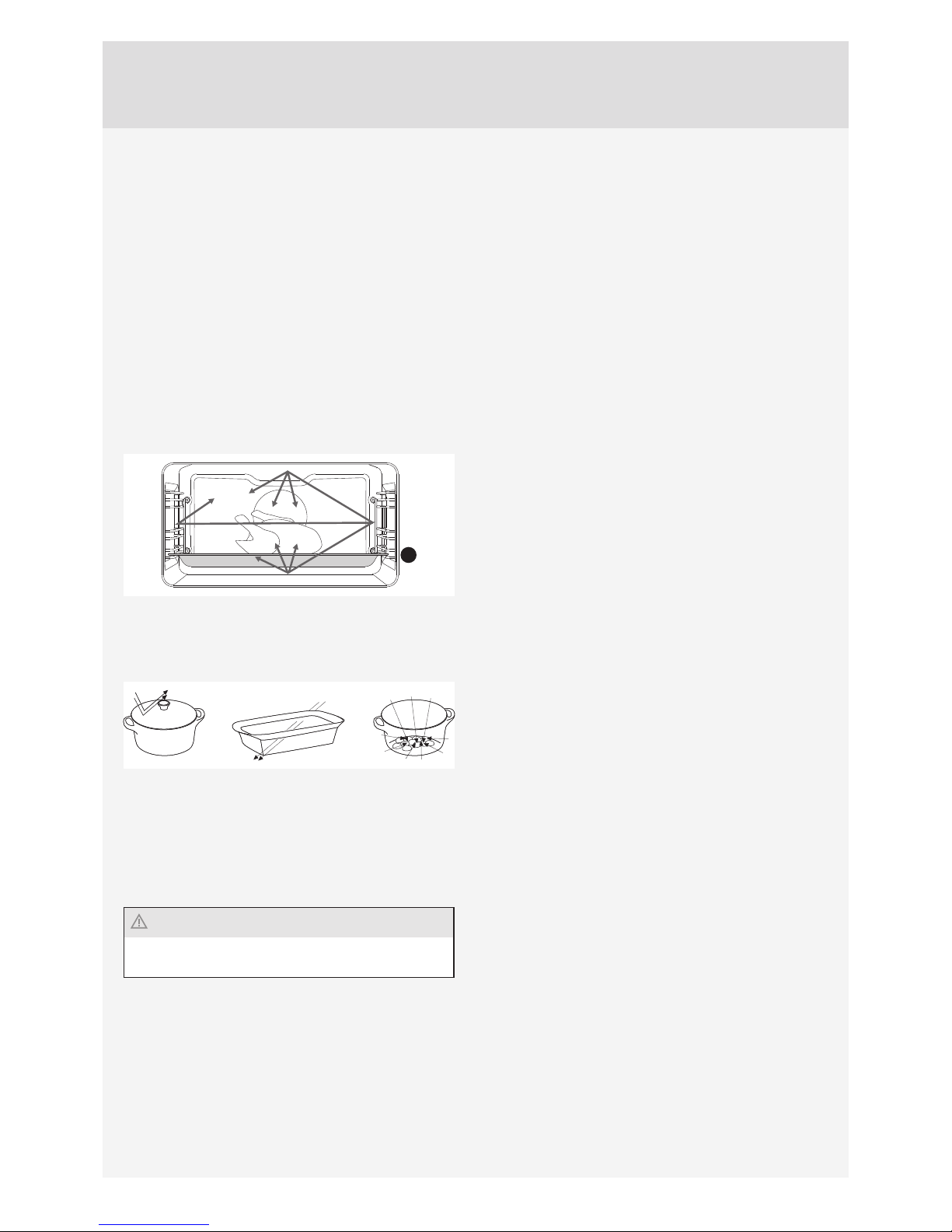

MICROWAVE FUNCTION
Microwaves are used for cooking, roasting, and
defrosting of food. They allow quick and efficient cooking
without changing the colour or shape of the food.
Microwaves are used for cooking, roasting, and
defrosting of food. They allow quick and efficient cooking
without changing the colour or shape of the food.
1
Their behaviour:
–They are reflected by metals.
–They travel through all other materials.
–They are absorbed by water, fat and sugar molecules.
When food is exposed to microwaves, the molecules
begin to move rapidly, thereby generating heat.The
microwaves penetrate approximately 2.5 centimeters
deep into the food. If the food is thicker, the core of the
food will be cooked by conduction, as in conventional
cooking.
Never use or activate a microwave system if the oven
is empty.
BEFORE USING THE APPLIANCE FOR THE FIRST TIME

11

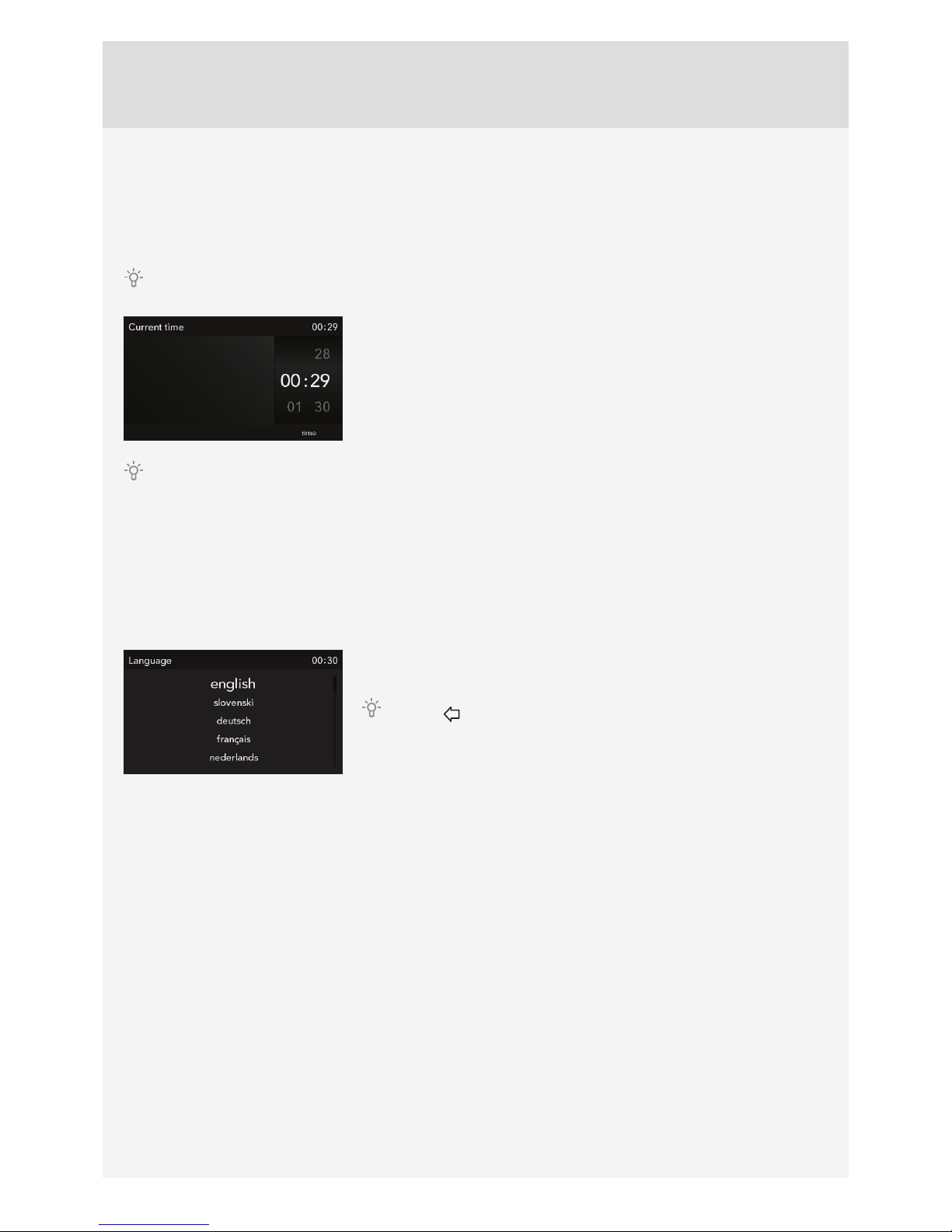

STEP 1: SWITCHING ON THE APPLIANCE FOR THE FIRST TIME
SETTING THE CLOCK
After connecting your appliance to the power mains or after an extended power outage, CLOCK settings will appear on
the display.
Navigate the menu by sliding your finger up and down.
Set the CLOCK by touching the display. Confirm the setting with the START/
STOP key.
The oven will also work if the clock is not set. However, timer functions are not available in this case (see chapter
SETTING THE TIMER FUNCTIONS). After a few minutes of idling, the appliance will switch to standby mode.
CHANGING THE CLOCK SETTING
Clock settings may be changed when no timer function is activated (see chapter CHOOSING THE GENERAL
SETTINGS).
SELECTING THE LANGUAGE
If you are not happy with the language in which the messages on the display are presented, select another one. English
is the preset language.
When you touch the line with the desired language, the size of the letters in
that line will increase.
Press the key to return to MAIN MENU.
STEPS OF THE COOKING PROCESS (1–6)

12
STEP 2: CHOOSING THE BASIC COOKING MENUS AND SETTINGS
The process of preparing food in your oven can be controlled in several ways:
Navigate the menu by sliding your finger left and right.
Select the desired mode by touching the corresponding image. The name of
the selected menu will appear at the top.
Professional mode
Use this mode when you wish to prepare any type and amount of food. All settings are selected by the user.
Automatic mode
In this mode, first select the type of food. This is followed by automatic setting of the quantity, level of doneness, and
cooking end time.The program offers a broad choice of preset recipes reviewed by professional chefs and nutrition
experts.
My recipes
This mode allows you to prepare your food the way you like it, with the same steps and settings each time. Save your
favourite recipes to oven memory and retrieve them the next time you need them.
Microwaves
This mode is suitable for cooking, roasting and defrosting of food.

13

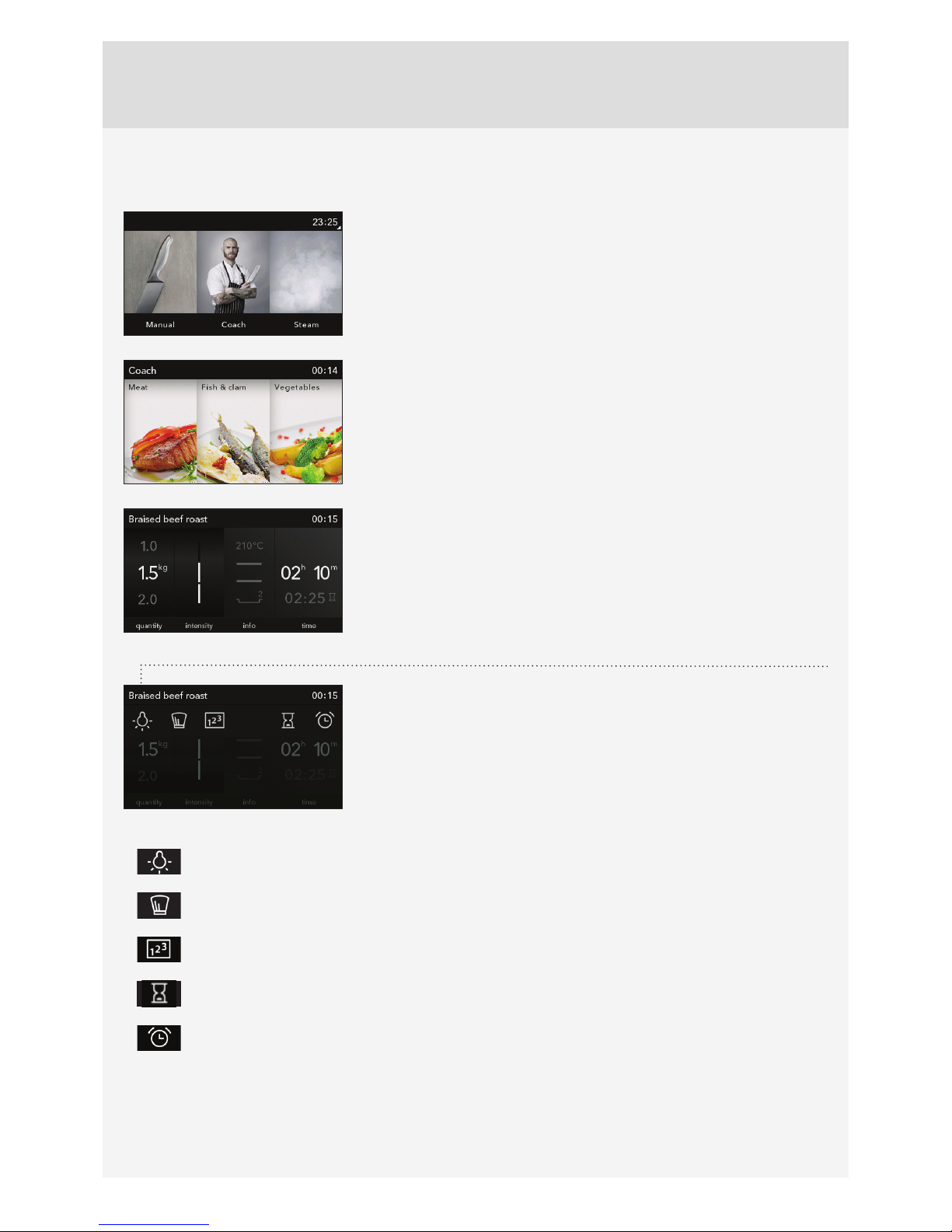

A) COOKING BY SELECTING THE TYPE OF FOOD (Auto mode)
Choose the Auto mode.
Select the type of food and the dish.
Preset values will be displayed:
- amount,
- doneness level (intensity),
- cooking time (cooking end time is displayed in grey).
Amount and doneness level can be adjusted. Selected values will appear.
EXTRA SETTINGS (EXTRAS)Choose them by touching the upper strip or the
corresponding sign.
- oven lighting
- method and ingredients for the selected recipe
- step mode (see chapter STEP COOKING)
- cooking end time setting (see chapter TIMER FUNCTIONS)
In microwave systems, the timer function –delayed start is not available.
- minute minder (see chapter EXTRA SETTINGS/EXTRAS)

14
PREHEAT
Some dishes in the Auto mode also include the preheat function ..
When you select the food, the following note will appear: »Selected program includes preheating.« Preheating
started. Do not insert the food yet. The symbol °C will flash on the display.
When the selected temperature is reached, the preheating process stops and an acoustic signal is emitted.
The following note will appear on the display: »Preheating complete«. Please insert the food. Open the door. The
program then resumes the cooking process with selected settings.
When the preheat function is set, delayed start function cannot be used.

15
B) COOKING BY SELECTING THE OPERATING MODE (Professional mode and microwaves)
Choose the Professional (Pro) mode or cooking with microwaves.
Choose your own default settings:
- system
-oven temperature
Selected values will appear.
-operating power (in combined systems and systems with microwaves).
Touch the symbol to select the cooking time.
- cooking time (cooking end time is displayed in grey).
EXTRA SETTINGS (EXTRAS):Choose them by touching the upper strip or the
corresponding sign.
- oven lighting
- preheating
In systems that include microwaves, preheat function is not available.
- step mode (see chapter STEP COOKING)
- minute minder (see chapter EXTRA SETTINGS/EXTRAS)
If you select Duration, extra settings will allow you to select delayed start (see chapter TIMER
FUNCTIONS)In systems that include microwaves, preheat function is not available.
Touch the START key.
All selected settings are indicated on the display.
Increasing temperature in the oven and elapsed cooking time are displayed, which can also be changed during the
cooking progress.
PREHEAT
Use the preheat function if you wish to heat the oven to the desired temperature as quickly as possible. When this
symbol is selected, the preheat function will be switched on and a warning will appear. »Preheating started.« Do
not insert the food yet. The symbol °C will flash on the display.
When the selected temperature is reached, the preheating process stops and an acoustic signal is emitted. The
following note will appear on the display: »Preheating complete«. Please insert the food. The program then resumes
the cooking process with selected settings.
When the preheat function is set, delayed start function cannot be used.

16
COOKING SYSTEMS (depending on the model)
SYSTEM DESCRIPTION PRESET TEMPERATURE
(°C)
COOKING SYSTEMS
UPPER AND BOTTOM HEATER
The heaters in the bottom and in the ceiling of the oven cavity will radiate
heat evenly into the oven interior. Pastry or meat can only be baked/
roasted at a single height level.
200
UPPER HEATER
Only the heater on the oven cavity ceiling will radiate heat. Use this heater
to brown the upper side of the dish.
150
BOTTOM HEATER
Only the heater on the bottom of the oven cavity will radiate heat. Use this
heater to brown the lower side of the dish.
160
GRILL
Only grill heater, a part of the large grill set, will operate.
Use this heater to grill a few open sandwiches or beer sausages, or for
toasting bread.
240
LARGE GRILL
The upper heater and the grill heater will operate. The heat is radiated directly
by the grill heater installed in the oven ceiling. To boost the heating effect, the
upper heater is activated as well. This system is used for grilling a smaller
amount of open sandwiches or beer sausages, and for toasting bread.
240
GRILL WITH FAN
Grill heater and the fan will operate. This combination is used to grill meat
and to roast larger chunks of meat or poultry at a single height level. It is
also appropriate for dishes au gratin and for browning to a crispy crust.
170
HOT AIR AND BOTTOM HEATER
Bottom heater, round heater, and the fan will operate. This is used to bake
pizza, moist pastry, fruitcakes, leavened dough and shortcrust on several
levels simultaneously.
200
3D HOT AIR
Round heater and the fan will operate. The fan installed in the back wall
of the oven cavity makes sure the hot air constantly circulates around the
roast or pastry. This mode is used for roasting meat and baking pastry at
several levels simultaneously.
180
ECO COOKING 1)
In this mode, power consumption during the cooking process is optimized.
This mode is used for roasting meat and baking pastry.
180
BOTTOM HEATER AND FAN
This is used for baking leavened but low-rising pastry and for preserving
fruit and vegetables.
180
AUTOMATIC COOKING OF MEAT – AUTO ROAST MODE
In the Auto Roast mode/system, the upper heater will operate in
combination with the grill heater and the round heater. It is used for
roasting all types of meat.
180
1)It is used for determining the energy efficiency class pursuant to the EN 60350-1 standard.
In this mode, the actual temperature in the oven is not displayed due to a special appliance operation algorithm and use of
residual heat.

17
COOKING
SYSTEMS
DESCRIPTION PRESET
TEMPERATURE
(°C)
POWER (W)
COMBINED SYSTEMS / MICROWAVE SYSTEMS
MICROWAVE SYSTEMS
Microwaves are used for cooking and defrosting. They allow
quick and efficient cooking without changing the colour or
shape of the food.
- 1000
HOT AIR AND MICROWAVES
Use this for all types of meat, stews, vegetables, pies,
cakes, bread, and dishes au gratin (i.e. food that require
longer cooking time).
160 600
GRILL WITH FAN AND MICROWAVES
Use this combination for smaller chunks of meat, fish and
vegetables. It allows fast cooking and the food will have a
nicely browned crispy crust.
200 600
POWER LEVEL USE
1000 W • Quickly reheating beverages, water and dishes containing a large volume of liquid.
• Cooking dishes with high water content (soups, sauces etc.).
750 W • Cooking fresh or frozen vegetables.
600 W
• Melting chocolate.
• Cooking fish and seafood; reheating on two levels.
• Cooking dried beans at low heat.
• Reheating and cooking of delicate egg-based dishes.
360 W • Low-heat cooking of dairy products or jams.
180 W • Manual defrosting; softening butter or ice cream.
90 W • Defrosting cream-filled pastry.

18
TIMER FUNCTIONS – DURATION
Timer functions can be selected in the basic Professional (Pro) mode, the
Auto mode, and in the Microwaves mode by choosing the corresponding
symbol.
Setting the cooking time
In this mode, you can define the duration of oven operation (cooking time). Set the desired cooking time
and confirm the setting. Cooking end time is adjusted accordingly.Press START to start the cooking
process. All selected settings are indicated on the display.All timer functions can be cancelled by setting
the time to ”0”.
Setting the delayed start
In this mode, you may specify the duration of the cooking process (cooking time)and the time when you
wish the cooking process to stop (end time). Make sure the clock is accurately set to current time.
Example:
Current time: noon
Cooking time: 2 hours
End of cooking: 6 pm
First, set the cooking time (cooking duration), i.e. 2 hours.The sum of the current time and cooking time is
automatically displayed (2 pm).
How, set the COOKING END TIME and set the time (6 PM). Press START to start the cooking process.The timer
will wait for the start of the cooking process.The following note will appear on the display: »Your program is
delayed. It will start at 4 pm.«
After the set time expires, the oven will automatically stop operating (end of cooking). An acoustic
signal will be heard which you may turn offby pressing the ALARM key. After one minute, the acoustic
signal will be switched offautomatically.
After a few minutes of idling, the appliance will switch to standby mode. The time of day will appear.

19
STEP COOKING
This mode allows you to combine three different settings successively in a single cooking process.
Choose different settings or cooking end time to cook your food just the way you want it.
Touch the corresponding sign to select the Step Cooking symbol in EXTRA
SETTINGS (EXTRAS).
Touch the display twice to select Step 2 and Step 3.Touch the corresponding
sign (step name)to confirm or delete a step.
Touch the START symbol to turn on the oven. The oven starts operating immediately, with the settings defined in Step
1. (Selected step will be highlighted in red.)After the set cooking time elapses, Step 2 and then Step 3 are activated, if
specified.
To delete a step during operation, select the step and select the cross symbol by touching its name. This can only be
done with steps that have not started yet.

20
STEP 3: STARTING THE COOKING PROCESS
The START/STOP key will flash before the start of the cooking process.
Start the cooking process by touching the START key.
Some settings can be changed during operation by touching the display unit (temperature, cooking duration, and step
mode/program).
Touch the START/STOP key to change other settings or to end the cooking process. The following warning will appear:
”Program paused. Do you wish to end it?”

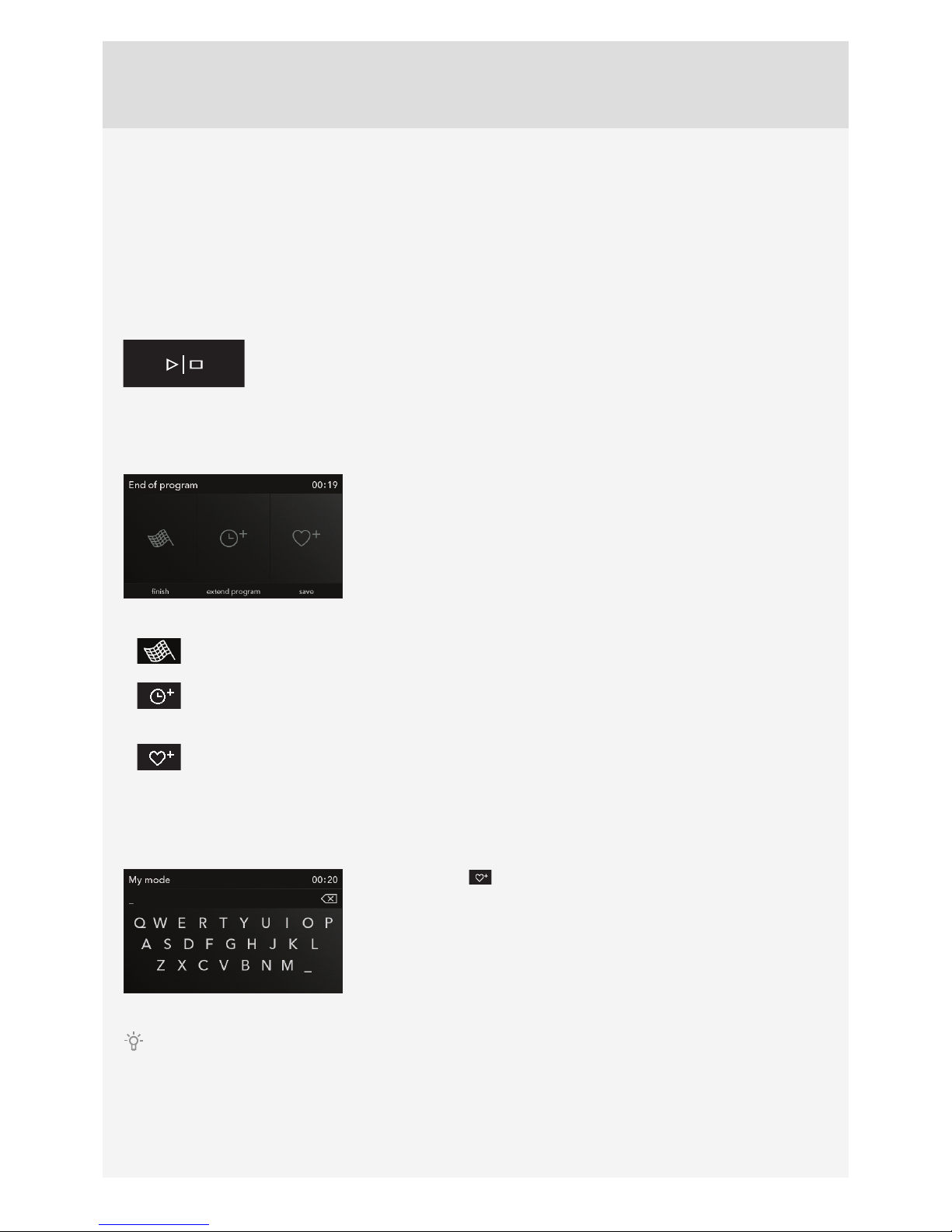

STEP 4: END OF COOKING AND SWITCHING OFF THE OVEN
After the cooking process, menu with symbols will appear.
End!
Select the symbol and end the cooking process. Main menu will appear on the display.
Extend the cooking time
Cooking time can be extended by selecting the symbol. New cooking end time can be selected (see
chapter TIMER FUNCTIONS).
Add to my recipes – save
This mode allows you to save the selected settings into the oven memory and use them again at a later
time.
SAVING USER-DEFINED PROGRAMS (MY RECIPES)
Select the symbol and specify the name by touching the corresponding
letters. If required, delete a character using the arrow.
Touch the START/STOP key to save the settings.
Your favourite recipes that you have previously stored in the memory can be retrieved and used at any time. Choose
the process and the settings in the My Recipes main menu.
