Chapter 1 Introduction
ank you for purchasing ASRock A520M-HDVP R2.0 motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
1.1 Package Contents
• ASRock A520M-HDVP R2.0 Motherboard (Micro ATX Form Factor)
• ASRock A520M-HDVP R2.0 User Manual
• ASRock A520M-HDVP R2.0 Support CD
• 1 x I/O Panel Shield
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 1 x Screw for M.2 Socket (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRock’s
website as well. ASRock website http://www.asrock.com.

English
2
1.2 Specications
Platform • Micro ATX Form Factor
CPU • Supports AMD AM4 Socket RyzenTM 3000, 4000 G-Series
and 5000 and 5000 G-Series Desktop Processors*
* Not compatible with AMD RyzenTM 5 3400G and RyzenTM 3
3200G.
Chipset • AMD A520
Memory • Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM Slots
• AMD Ryzen series CPUs (Vermeer) support DDR4
4600+(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4266
(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/
3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133
ECC & non-ECC, un-buered memory*
• AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC
)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4333(OC)/4266
(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/
3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133
ECC & non-ECC, un-buered memory*
• AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC
)/4666(OC)/4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333
(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/
3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/
2400/2133 ECC & non-ECC, un-buered memory*
• AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC
)/4666(OC)/4600(OC)/4533(OC)/4466(OC)/4400(OC)
/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/
3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/
3200/2933/2667/2400/2133 ECC & non-ECC, un-buered
memory*
* For Ryzen Series APUs (Cezanne and Renoir), ECC is only
supported with PRO CPUs.
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
• Max. capacity of system memory: 64GB
• Supports Extreme Memory Prole (XMP) memory modules

English
3
A520M-HDVP R2.0
* Please refer to page 21 for AMD non-XMP memory frequency
support. For more details, please refer to the QVL on ASRock's
website.
Expansion
Slot
CPU:
• 1 x PCIe 3.0 x16 Slot (PCIE2), supports x16 mode*
Chipset:
• 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE3)*
• 1 x PCI Slot
* Supports NVMe SSD as boot disks
Graphics • Integrated AMD RadeonTM Vega Series Graphics in Ryzen
Series APU (Actual support may vary by CPU)
• 1 x HDMI 2.1, supports HDR, HDCP 2.3, 4K Ultra HD
(UHD) playback and max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4, supports HDCP 2.3, 4K Ultra HD (UHD)
playback and max. resolution up to 5K 120Hz*
• 1 x DVI-D, supports max. resolution up to Full HD
(1920x1200) 60Hz*
• 1 x D-Sub, supports max. resolution up to Full HD
(1920x1200) 60Hz
* Only DVI-D will function if DVI-D and DisplayPort 1.4 ports
are both connected.
Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN • Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111HN
USB • 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection

English
4
Rear Panel
I/O
• 1 x PS/2 Mouse Port
• 1 x PS/2 Keyboard Port
• 1 x Serial Port: COM2
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 2 x USB 2.0 Ports
• 4 x USB 3.2 Gen1 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone
Storage CPU:
• 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2280
SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
Chipset:
• 4 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks
RAID • Supports RAID 0, RAID 1 and RAID 10 for SATA storage
devices
Connector • 1 x Print Port Header
• 1 x SPI TPM Header
• 1 x COM Port Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)*
• 1 x Chassis Fan Connector (4-pin)**
• 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)***
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
* CPU_FAN1 supports the fan power up to 1A (12W).
** CHA_FAN2 supports the fan power up to 1A (12W).
*** CHA_FAN1/WP supports the fan power up to 2A (24W).
*** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in
use.

English
5
A520M-HDVP R2.0
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tools. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.
* For detailed product information, please visit our website: http://www.asrock.com
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
OS • Microso® Windows® 10 64-bit / 11 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)

English
6

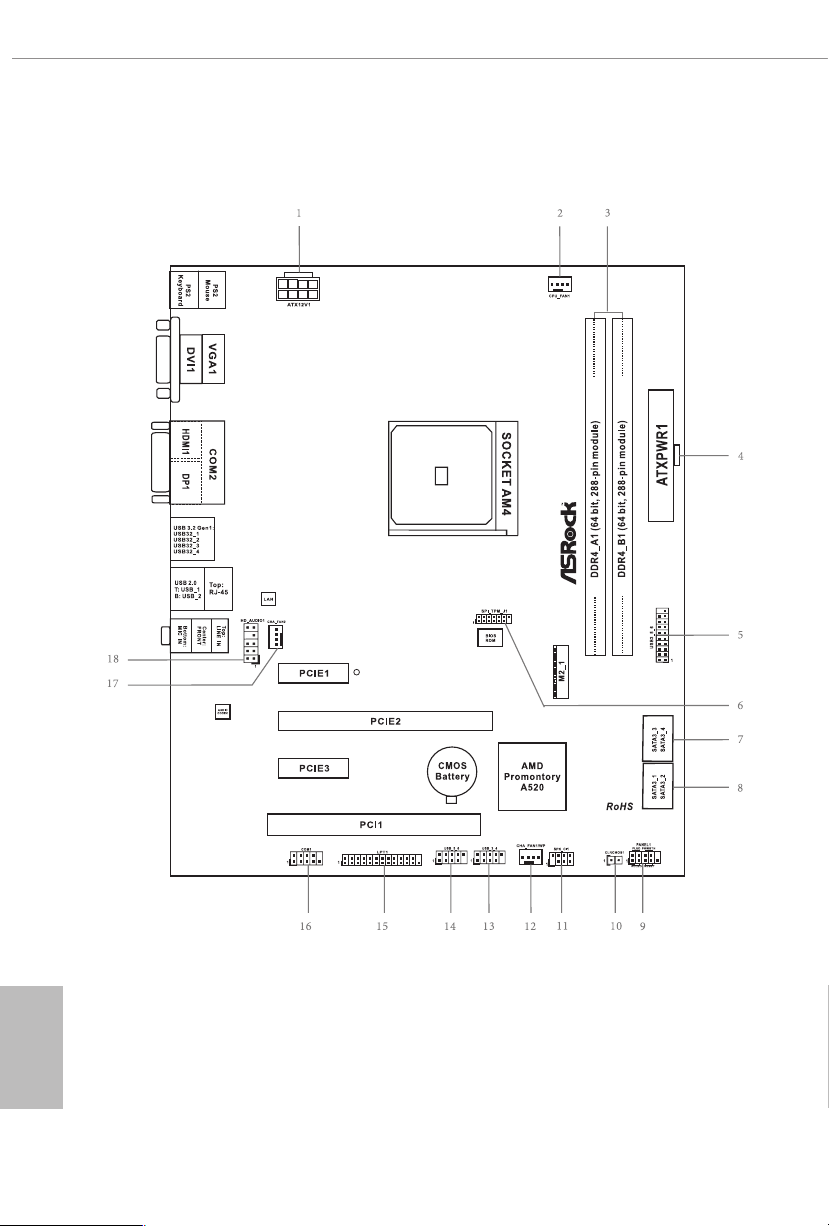

1.3 Motherboard Layout

English
7
A520M-HDVP R2.0
No. Description
1 8 pin 12V Power Connector (ATX12V1)
2 CPU Fan Connector (CPU_FAN1)
3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
4 ATX Power Connector (ATXPWR1)
5 USB 3.2 Gen1 Header (USB3_5_6)
6 SPI TPM Header (SPI_TPM_J1)
7 SATA3 Connector (SATA3_3) (Upper), SATA3 Connector (SATA3_4) (Lower)
8 SATA3 Connector (SATA3_1) (Upper), SATA3 Connector (SATA3_2) (Lower)
9 System Panel Header (PANEL1)
10 Clear CMOS Jumper (CLRCMOS1)
11 Chassis Intrusion and Speaker Header (SPK_CI1)
12 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)
13 USB 2.0 Header (USB_3_4)
14 USB 2.0 Header (USB_5_6)
15 Print Port Header (LPT1)
16 COM Port Header (COM1)
17 Chassis Fan Connector (CHA_FAN2)
18 Front Panel Audio Header (HD_AUDIO1)

English
8

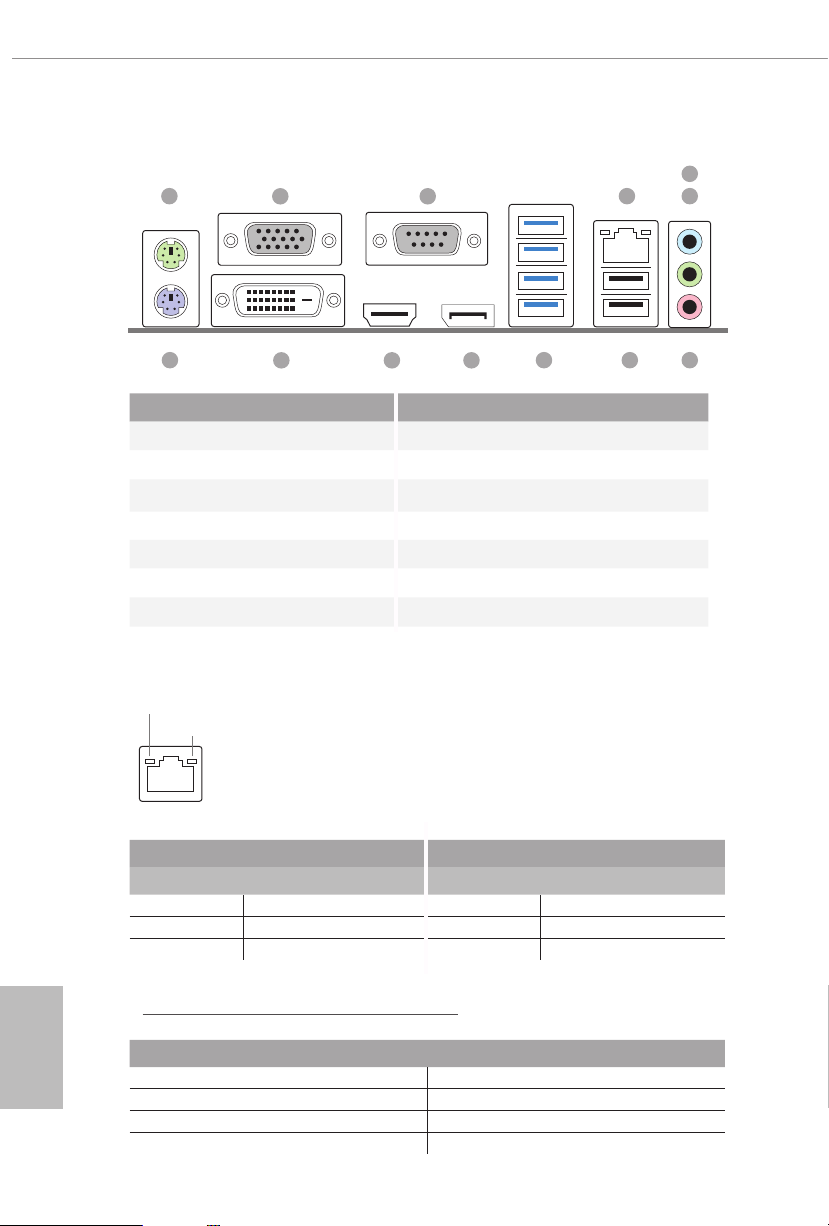

1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 8 USB 2.0 Ports (USB_12)
2 D-Sub Port 9 USB 3.2 Gen1 Ports (USB32_1234)
3 Serial Port (COM2) 10 DisplayPort 1.4
4 LAN RJ-45 Port* 11 HDMI Port
5 Line In (Light Blue)** 12 DVI-D Port
6 Front Speaker (Lime)** 13 PS/2 Keyboard Port
7 Microphone (Pink)**
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
11
32
12
13 78
6
5
1 4
9
10

English
9
A520M-HDVP R2.0
1.5 Block Diagram
x1 Gen3
Realtek RTL8111HN 1G LAN
PCIe to PCI bridge ASM1083
A520 Chipset
AMD AM4 Processor
x1 Gen3 x1 Gen3
PCIe x1 Gen3 Slot PCIe x1 Gen3 Slot
SATA 4 ports SATA 6Gb
Front USB 2.0 4 ports (USB_3_4,USB_5_6)
5Gb/s Rear USB 3.2 Gen1 4 ports
(USB32_1234)
DP0
VIDEO SWITCH
DP0
DP Port DVI-D Port
DP2
VGA Port
DP1
HDMI Port
5Gb/s
Front USB 3.2 Gen1 2 ports (USB32_5_6)
Channel B Channel A
DDR4 Slot x1
DDR4 Slot x1
AZ(HD Audio)
SPI
LPC SIO NCT6683D-T
Flash ROM
Audio Codec ALC897
480Mb/s
Rear USB 2.0 2 ports (LAN_USB_12)
480Mb/s
PCIe x16 Gen3 Slot
x4 Gen3 M2_1(PCIe Gen3 x4 & SATA)
PCIe x4 Gen3 BUS
x16 Gen3
x1 Gen3
Only DVI-D will function if DVI-D and DisplayPort 1.4 ports are both connected.
PCI PCI Slot
DP0

English
10
is is a Micro ATX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard.
Failure to do so may cause physical injuries to you and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a
grounded wrist strap or touch a safety grounded object before you handle the
components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

English
11
A520M-HDVP R2.0
2.1 Installing the CPU
Unplug all power cables before installing the CPU.
2
1

English
12
3

English
13
A520M-HDVP R2.0
2.2 Installing the CPU Fan and Heatsink
Aer you install the CPU into this motherboard, it is necessary to install a larger
heatsink and cooling fan to dissipate heat. You also need to spray thermal grease
between the CPU and the heatsink to improve heat dissipation. Make sure that the
CPU and the heatsink are securely fastened and in good contact with each other.

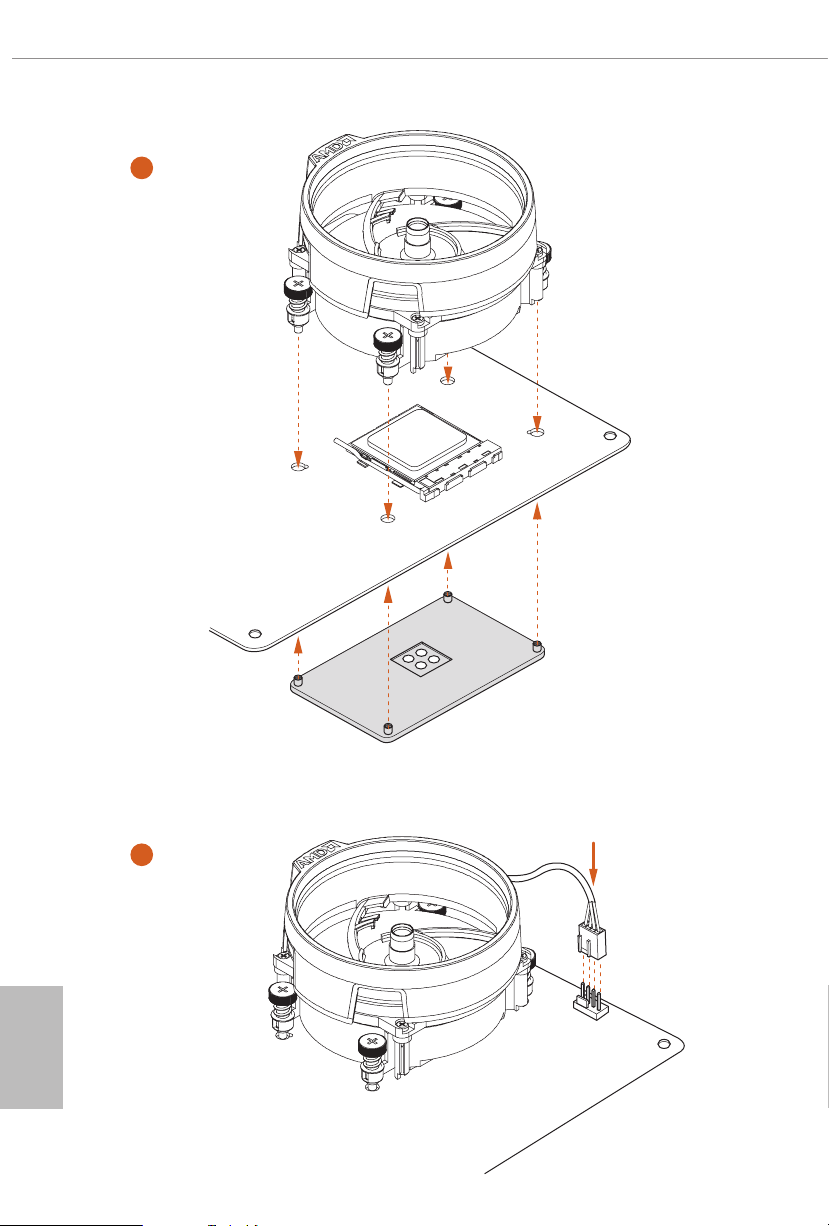

Installing the CPU Box Cooler SR1
Please turn o the power or remove the power cord before changing a CPU or heatsink.
1
2

English
14

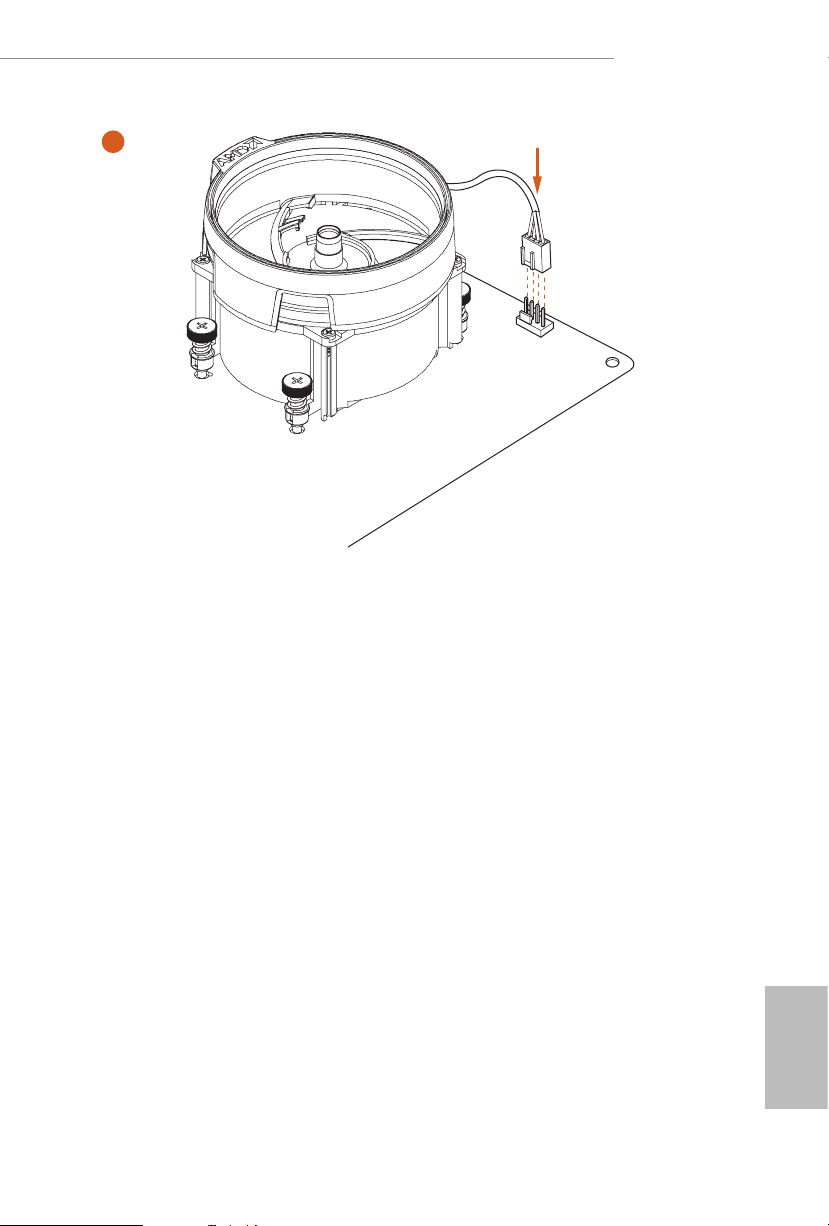

3
4
CPU_FAN1

English
15
A520M-HDVP R2.0
Installing the AM4 Box Cooler SR2
1
2

English
16
3

English
17
A520M-HDVP R2.0
*e diagrams shown here are for reference only. e headers might be in a dierent position on
your motherboard.
4
CPU_FAN1
