ASROCK AB350 Pro4 User manual

Version 1.0
Published January 2017
Copyright©2017 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com

AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRock Tel
: [phone] ext.123 (Standard International call charges apply)
e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 6
1.4 I/O Panel 8
Chapter 2 Installation 10
2.1 Installing the CPU 11
2.2 Installing the CPU Fan and Heatsink 13
2.3 Installing Memory Modules (DIMM) 22
2.4 Expansion Slots (PCI Express Slots) 24
2.5 Jumpers Setup 25
2.6 Onboard Headers and Connectors 26
2.7 M.2_SSD (NGFF) Module Installation Guide (M2_1) 31
2.8 M.2_SSD (NGFF) Module Installation Guide (M2_2) 34
Chapter 3 Software and Utilities Operation 37
3.1 Installing Drivers 37
3.2 ASRock Live Update & APP Shop 38
3.2.1 UI Overview 38
3.2.2 Apps 39
3.2.3 BIOS & Drivers 42
3.2.4 Setting 43
3.3 ASRock RGB LED 44

Chapter 4 UEFI SETUP UTILITY 46
4.1 Introduction 46
4.1.1 UEFI Menu Bar 46
4.1.2 Navigation Keys 47
4.2 Main Screen 48
4.3 OC Tweaker Screen 49
4.4 Advanced Screen 51
4.4.1 CPU Conguration 52
4.4.2 North Bridge Conguration 53
4.4.3 South Bridge Conguration 54
4.4.4 Storage Conguration 55
4.4.5 Super IO Conguration 56
4.4.6 ACPI Conguration 57
4.4.7 USB Conguration 58
4.4.8 Trusted Computing 59
4.5 Tools 60
4.6 Hardware Health Event Monitoring Screen 62
4.7 Security Screen 64
4.8 Boot Screen 65
4.9 Exit Screen 67

AB350 Pro4
1
English
Chapter 1 Introduction
ank you for purchasing ASRock AB350 Pro4 motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
In this manual, Chapter 1 and 2 contains the introduction of the motherboard
and step-by-step installation guides. Chapter 3 contains the operation guide of the
soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.
1.1 Package Contents
• ASRock AB350 Pro4 Motherboard (ATX Form Factor)
• ASRock AB350 Pro4 Quick Installation Guide
• ASRock AB350 Pro4 Support CD
• 1 x I/O Panel Shield
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 2 x Screws for M.2 Sockets (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this manual will be subject to change without notice. In case any modica-
tions of this manual occur, the updated version will be available on ASRock’s website
without further notice. If you require technical support related to this motherboard,
please visit our website for specic information about the model you are using. You
may nd the latest VGA cards and CPU support list on ASRock’s website as well.
ASRock website http://www.asrock.com.

English
2
1.2 Specications
Platform • ATX Form Factor
• Solid Capacitor design
CPU • Supports AMD Socket AM4 A-Series APUs (Bristol Ridge)
and Ryzen CPUs (Summit Ridge)
• Digi Power design
• 9 Power Phase design
• Supports 95W Air Cooling
Chipset • AMD Promontory B350
Memory • Dual Channel DDR4 Memory Technology
• 4 x DDR4 DIMM Slots
• AMD Ryzen series CPUs support DDR4 3200+(OC)/2933
(OC)/2667/2400/2133 ECC & non-ECC, un-buered
memory*
• AMD 7th Gen A-Series APUs support DDR4 2400/2133 ECC
& non-ECC, un-buered memory*
* Please refer to Memory Support List on ASRock’s website for
more information. (http://www.asrock.com/)
* Please refer to page 22 for DDR4 UDIMM maximum frequency
support.
• Max. capacity of system memory: 64GB
• 15μ Gold Contact in DIMM Slots
Expansion
Slot
• 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
* Supports NVMe SSD as boot disks
* AMD Ryzen series CPUs support PCIE2: x16 mode
* AMD 7th A-Series APUs support PCIE2: x8 mode
• 1 x PCI Express 3.0 x16 Slot (PCIE4: x4 mode)**
** AMD Ryzen series CPUs support PCIE4: x4 mode
** AMD 7th A-Series APUs support PCIE4: x2 mode
** If M2_1 is occupied, PCIE4 will be disabled.
• 4 x PCI Express 2.0 x1 Slots

AB350 Pro4
3
English
Graphics • Integrated AMD RadeonTM R7/R5 Series Graphics in A-series
APU
• DirectX 12, Pixel Shader 5.0
• Max. shared memory 2GB
• ree graphics output options: D-Sub, DVI-D and HDMI
• Supports Triple Monitor
• Supports HDMI with max. resolution up to 4K x 2K
(4096x2160) @ 24Hz / (3840x2160) @ 30Hz
• Supports DVI-D with max. resolution up to 1920x1200 @
60Hz
• Supports D-Sub with max. resolution up to 1920x1200 @
60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
HBR (High Bit Rate Audio) with HDMI Port (Compliant
HDMI monitor is required)
• Supports HDCP with DVI-D and HDMI Ports
• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D
and HDMI Ports
Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC892
Audio Codec)
* To congure 7.1 CH HD Audio, it is required to use an HD
front panel audio module and enable the multi-channel audio
feature through the audio driver.
• Premium Blu-ray Audio support
• Supports Surge Protection
• ELNA Audio Caps
LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111GR
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports LAN Cable Detection
• Supports Energy Ecient Ethernet 802.3az
• Supports PXE

English
4
Rear Panel
I/O
• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 1 x USB 3.0 Type-C Port (Supports ESD Protection)
• 5 x USB 3.0 Ports (Supports ESD Protection (Supports ESD
Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone
Storage • 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,
RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
• 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, sup-
port NCQ, AHCI and Hot Plug
* M2_2 and SATA3_3 share lanes. If either one of them is in use,
the other one will be disabled.
• 1 x Ultra M.2 Socket (M2_1), supports type 2242/2260/2280
M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Ryzen
CPU) or Gen3 x2 (16 Gb/s) (with A-Series APU)**
• 1 x M.2 Socket (M2_2), supports type
2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module**
** If M2_1 is occupied, PCIE4 will be disabled.
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Connector • 1 x COM Port Header
• 1 x TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
* Supports up to 12V/3A, 36W LED Strip
• 1 x AMD Fan LED Header
• 1 x CPU Fan Connector (4-pin)
* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.
• 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed
Control)
* CHA_FAN2 and CHA_FAN3 can auto detect if 3-pin or 4-pin
fan is in use.

AB350 Pro4
5
English
* For detailed product information, please visit our website: http://www.asrock.com
Please realize that there is a certain risk involved with overclocking, including adjust-
ing the setting in the BIOS, applying Untied Overclocking Technology, or using third-
party overclocking tools. Overclocking may aect your system’s stability, or even cause
damage to the components and devices of your system. It should be done at your own
risk and expense. We are not responsible for possible damage caused by overclocking.
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD
Protection)
• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD
Protection)
BIOS
Feature
• AMI UEFI Legal BIOS with multilingual GUI support
• Supports “Plug and Play”
• ACPI 5.1 compliance wake up events
• Supports jumperfree
• SMBIOS 2.3 support
• DRAM Voltage multi-adjustment
Hardware
Monitor
• CPU/Chassis temperature sensing
• CPU/Chassis Fan Tachometer
• CPU/Chassis Quiet Fan
• CPU/Chassis Fan multi-speed control
• Voltage monitoring: +12V, +5V, +3.3V, Vcore
OS • Microso® Windows® 10 64-bit
* For the updated Windows® 10 driver, please visit ASRock’s web-
site for details: http://www.asrock.com
Certica-
tions
• FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready power supply is required)

English
6

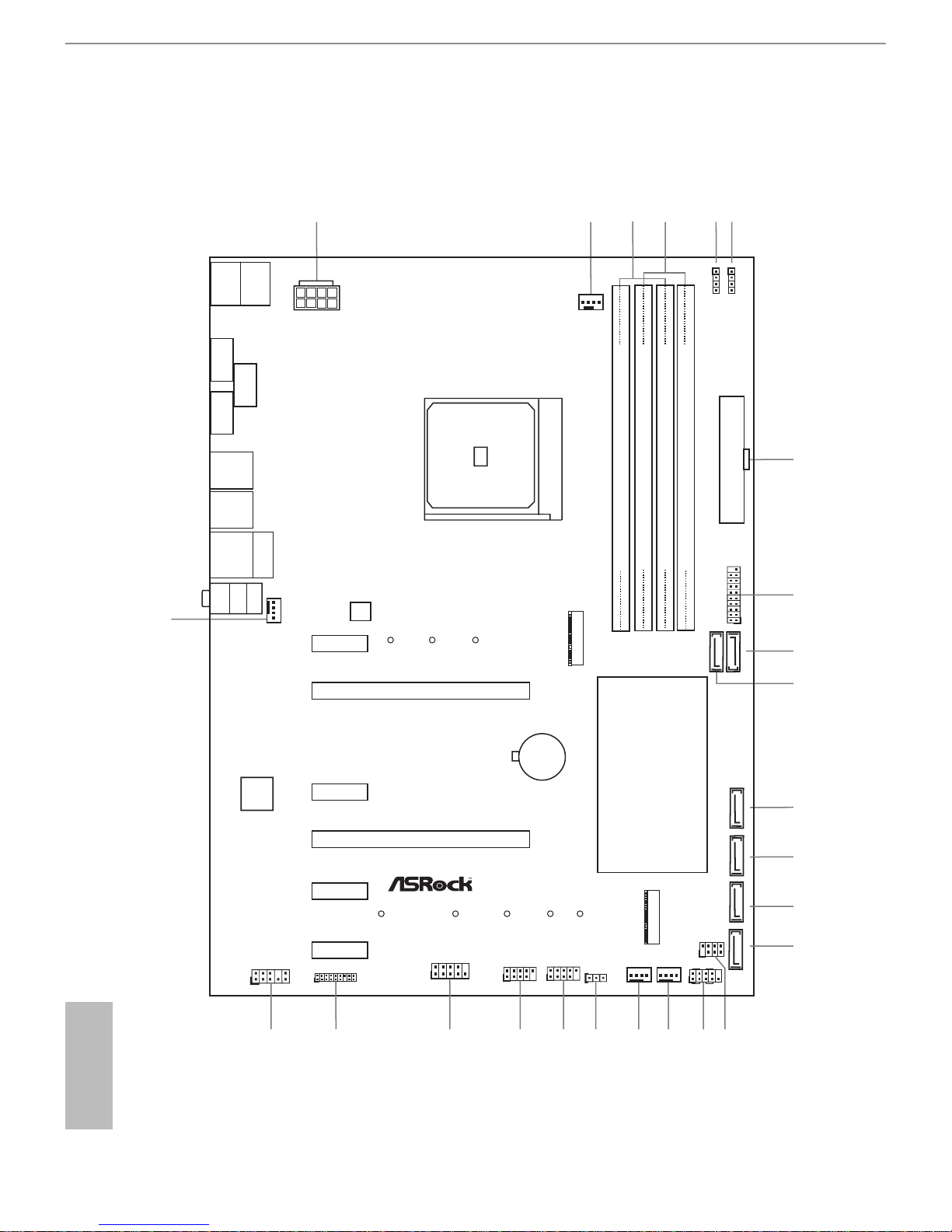

1.3 Motherboard Layout
34
2
7
5 6
8
9
10
11
1
15
16
18
17
13
12
19
14
21
20
22
23
BIOS
ROM
ATXPWR1
Super
I/O
CLRCMOS1
1
1
USB_3_4
HD_AUDIO1
1
CPU_FAN1
Top:
LINE I N
Center:
FRONT
Bottom:
MIC IN
RJ-45 LAN
SOCKET AM4
Front USB 3.0
1
COM1
HDMI1
CMOS
Battery
ATX12V1
M2_1
Ultra M.2
PCIe Gen3 x4
USB3_5_6
1
CHA_FAN3
HDLED RESET
PLED PWRBTN
PANEL1
1
RoHS
SPK_PLED1
1
PCI Express 3.0
DDR4_A1 (64 bit, 288-pin module)
DDR4_A2 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
DDR4_B2 (64 bit, 288-pin module)
PCIE1
M2_2
AMD
Promontory
B350
USB 3.0
T: USB1
B: USB2
USB 3.0
T: USB3
B: USB4
AMD_FAN_LED1
1
1
USB_1_2
TPMS1
1
SATA3_1
SATA3_2
SATA3_A1
AB350 Pro4
PCIE2
PCIE3
PCIE5
PCIE6
PCIE4
CHA_FAN1 CHA_FAN2
RGB_HEADER1
1
SATA3_A2
SATA3_3
SATA3_4
USB 3. 0
T: USB31_TA_1
B: USB31_TC_1
USB 2.0
T: USB1
B: USB2
PS2
Keyboard
/Mouse
24
25
DVI1
VGA1

AB350 Pro4
7
English
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 CPU Fan Connector (CPU_FAN1)
3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
4 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
5 AMD Fan LED Header (AMD_FAN_LED1)
6 RGB LED Header (RGB_HEADER1)
7 ATX Power Connector (ATXPWR1)
8 USB 3.0 Header (USB3_5_6)
9 SATA3 Connector (SATA3_2)
10 SATA3 Connector (SATA3_1)
11 SATA3 Connector (SATA3_A1)
12 SATA3 Connector (SATA3_A2)
13 SATA3 Connector (SATA3_3)
14 SATA3 Connector (SATA3_4)
15 Power LED and Speaker Header (SPK_PLED1)
16 System Panel Header (PANEL1)
17 Chassis Fan Connector (CHA_FAN2)
18 Chassis Fan Connector (CHA_FAN1)
19 Clear CMOS Jumper (CLRCMOS1)
20 USB 2.0 Header (USB_3_4)
21 USB 2.0 Header (USB_1_2)
22 COM Port Header (COM1)
23 TPM Header (TPMS1)
24 Front Panel Audio Header (HD_AUDIO1)
25 Chassis Fan Connector (CHA_FAN3)

English
8

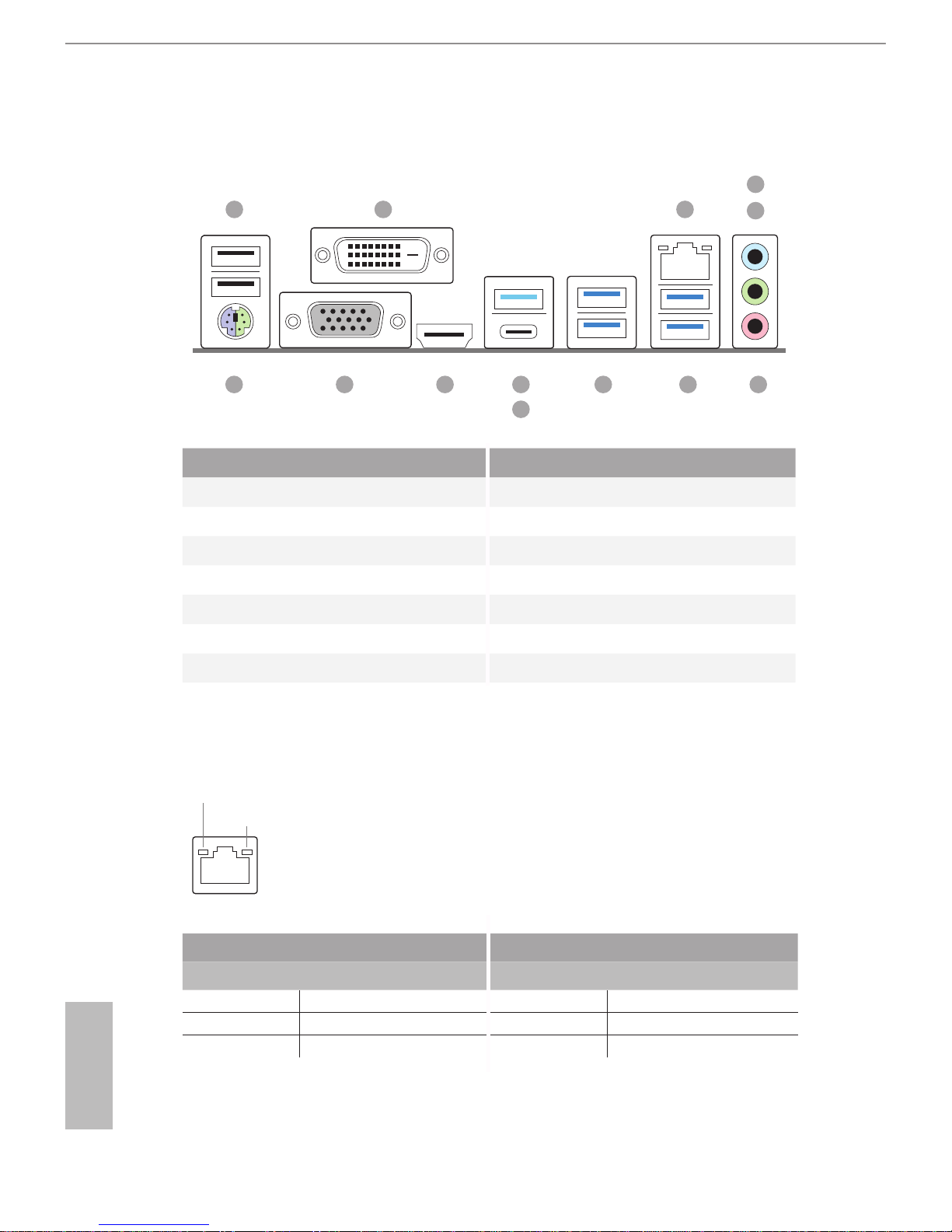

1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB12) 8 USB 3.0 Ports (USB3_12)
2 DVI-D Port 9 USB 3.0 Port (USB31_TA_1)
3 LAN RJ-45 Port* 10 USB 3.0 Type-C Port (USB31_TC_1)
4 Line In (Light Blue)** 11 HDMI Port
5 Front Speaker (Lime)** 12 D-Sub Port
6 Microphone (Pink)** 13 PS/2 Mouse/Keyboard Port
7 USB 3.0 Ports (USB3_34)
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1
8 791113
3
6
5
4
10
2
12

AB350 Pro4
9
English
** To congure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-
channel audio feature through the audio driver.

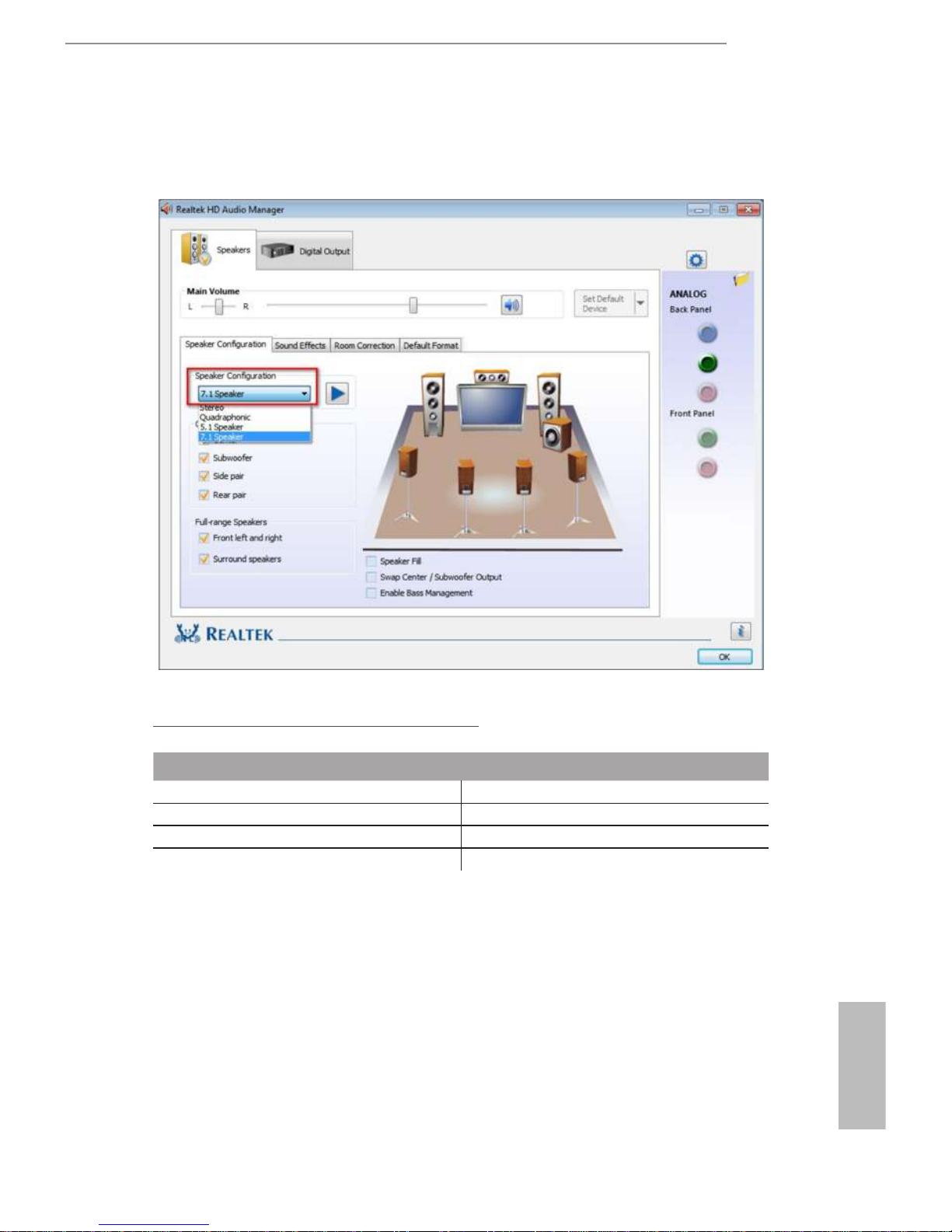

Please set Speaker Conguration to “7.1 Speaker”in the Realtek HD Audio Manager.
Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

English
10
is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard.
Failure to do so may cause physical injuries to you and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

AB350 Pro4
11
English

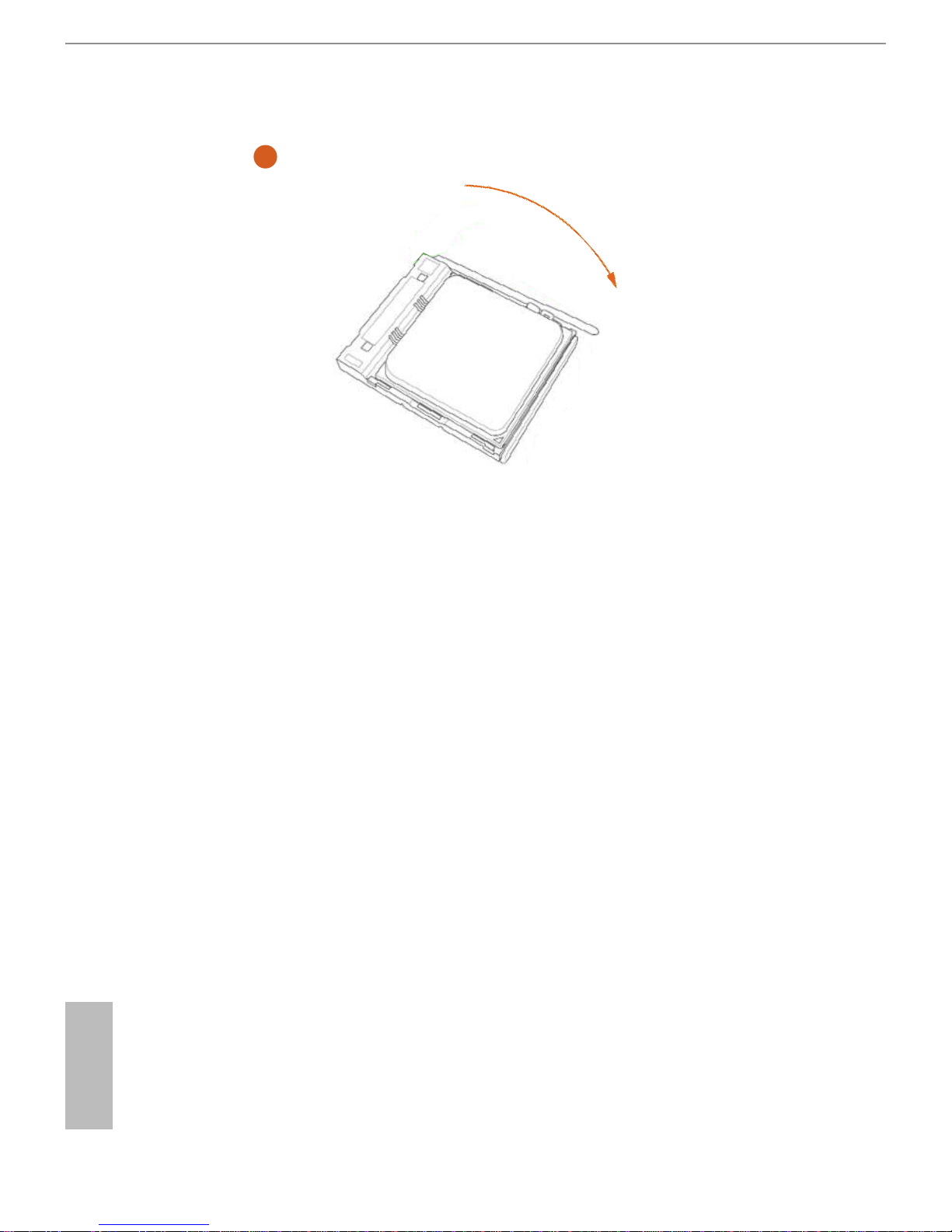

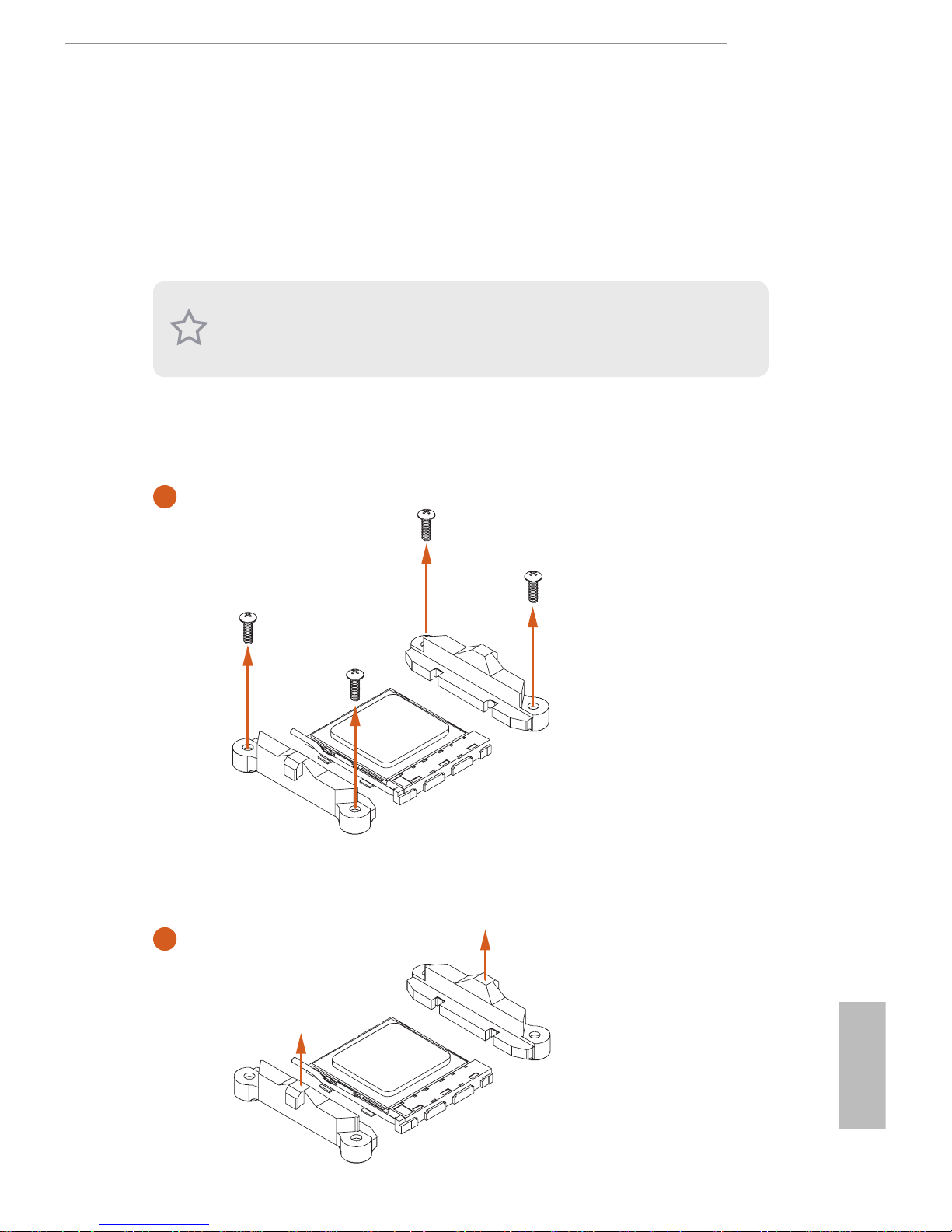

2.1 Installing the CPU
Unplug all power cables before installing the CPU.
2
1

English
12
3

AB350 Pro4
13
English
2.2 Installing the CPU Fan and Heatsink
Aer you install the CPU into this motherboard, it is necessary to install a larger
heatsink and cooling fan to dissipate heat. You also need to spray thermal grease
between the CPU and the heatsink to improve heat dissipation. Make sure that the
CPU and the heatsink are securely fastened and in good contact with each other.
Installing the CPU Box Cooler SR1
Please turn o the power or remove the power cord before changing a CPU or heatsink.
1
2

English
14
3
4
CPU_FAN1

AB350 Pro4
15
English
Installing the AM4 Box Cooler SR2
1
2
