ASROCK B150M-HDV User manual

Version 1.0
Published June 2015
Copyright©2015 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

1
English
B150M-HDV
Motherboard Layout
Intel
B150
DDR4_B1 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module)
USB 3.0
T: USB0
B: USB1
ATXPWR1
PCIE1
Top:
RJ-45
USB 2.0
T: USB0
B: USB1
HDLED RESET
PLED PWRBTN
PANEL1
1
USB2_3
1
1
SPK_CI1
COM1
1
1
HD_AUDIO1
B150M-HDV
RoHS
HDMI1
DVI1
USB 3.0
T: USB2
B: USB3
PS2
Keyboard
/Mouse
CMOS
Battery
CLRMOS1
1
USB3_4_5
1
CPU_FAN1
USB_4_5
1
1
TPMS1
PCI Express 3.0
Front USB 3.0
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
SATA3_2_3
CHA_FAN1
PCIE2
PCIE3
ATX12V1
SATA3_4_5
SATA3_0
SATA3_1
VGA1

2
English

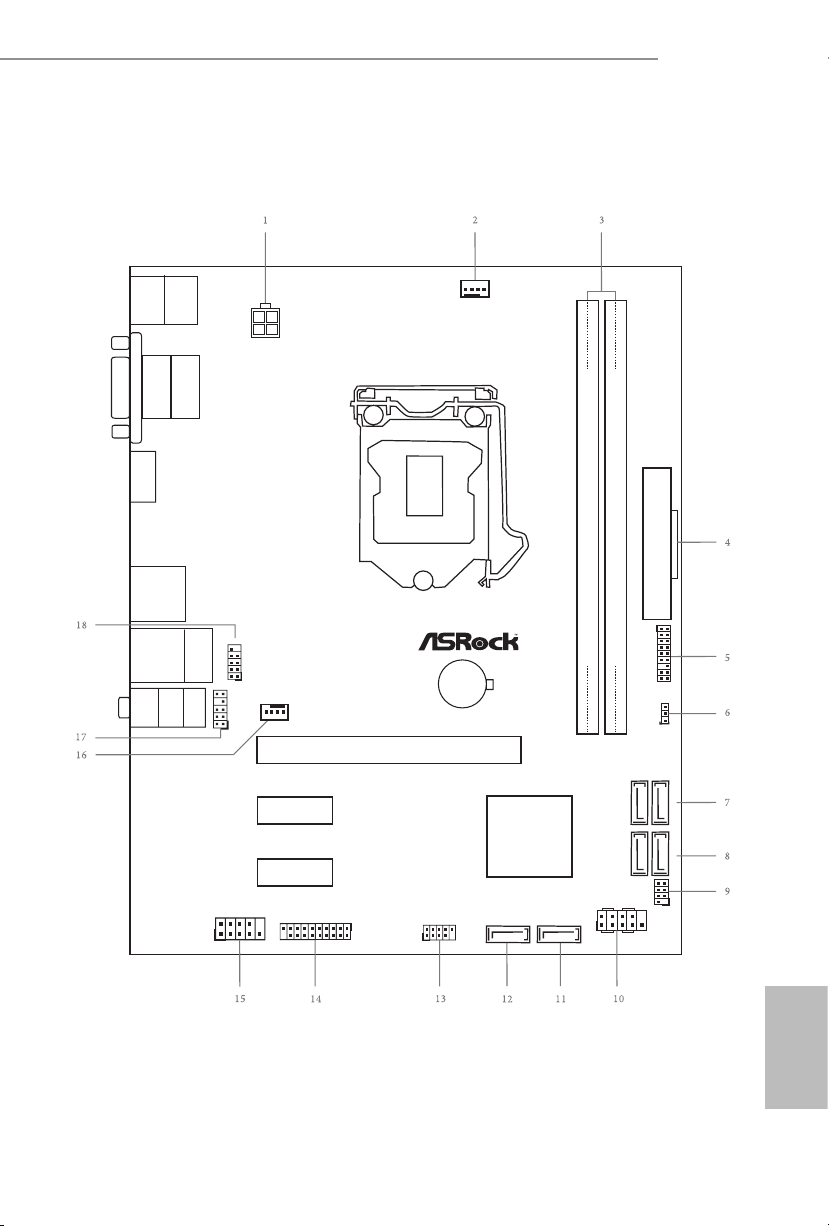

No. Description
1 ATX 12V Power Connector (ATX12V1)
2 CPU Fan Connector (CPU_FAN1)
3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
4 ATX Power Connector (ATXPWR1)
5 TPM Header (TPMS1)
6 Clear CMOS Jumper (CLRMOS1)
7 SATA3 Connectors (SATA3_2_3)
8 SATA3 Connectors (SATA3_4_5)
9 Chassis Intrusion and Speaker Header (SPK_CI1)
10 System Panel Header (PANEL1)
11 SATA3 Connector (SATA3_0)
12 SATA3 Connector (SATA3_1)
13 USB 2.0 Header (USB_4_5)
14 USB 3.0 Header (USB3_4_5)
15 COM Port Header (COM1)
16 Chassis Fan Connector (CHA_FAN1)
17 Front Panel Audio Header (HD_AUDIO1)
18 USB 2.0 Header (USB2_3)

3
English
B150M-HDV
I/O Panel
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 7 USB 2.0 Ports (USB01)
2 D-Sub Port 8 USB 3.0 Ports (USB_23)
3 LAN RJ-45 Port* 9 HDMI Port
4 Line In (Light Blue)** 10 DVI-D Port
5 Front Speaker (Lime)** 11 USB 3.0 Ports (USB3_01)
6 Microphone (Pink)**
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
11 679
10
5
4
1 3
8
2

4
English
** To congure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-
channel audio feature through the audio driver.

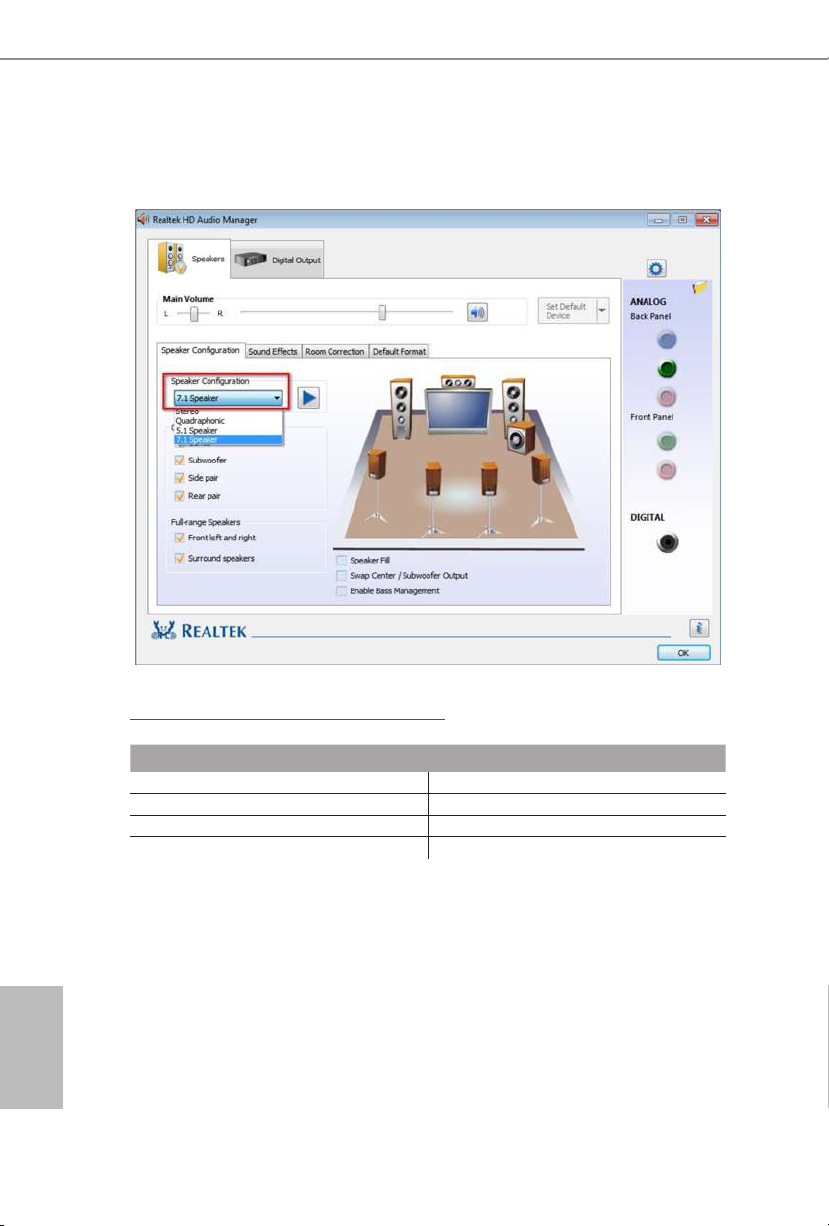

Please set Speaker Conguration to “7.1 Speaker”in the Realtek HD Audio Manager.
Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

5
English
B150M-HDV
Chapter 1 Introduction
ank you for purchasing ASRock B150M-HDV motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
1.1 Package Contents
• ASRock B150M-HDV Motherboard (Micro ATX Form Factor)
• ASRock B150M-HDV Quick Installation Guide
• ASRock B150M-HDV Support CD
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 1 x I/O Panel Shield
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRock’s
website as well. ASRock website http://www.asrock.com.

6
English
1.2 Specications
Platform • Micro ATX Form Factor
• Solid Capacitor design
• High Density Glass Fabric PCB
CPU • Supports 6th Generation Intel® CoreTM i7/i5/i3/Pentium®/
Celeron® Processors (Socket 1151)
• Supports Intel® Turbo Boost 2.0 Technology
Chipset • Intel® B150
• Supports Intel® Small Business Advantage 4.0
Memory • Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM Slots
• Supports DDR4 2133 non-ECC, un-buered memory
• Max. capacity of system memory: 32GB
• Supports Intel® Extreme Memory Prole (XMP) 2.0
Expansion
Slot
• 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
• 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
Graphics • Intel® HD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick
Sync Video with AVC, MVC (S3D) and MPEG-2 Full
HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD
Technology, Intel® InsiderTM, Intel® HD Graphics 510/530
• Pixel Shader 5.0, DirectX 12
• Max. shared memory 1792MB
• ree graphics output options: D-Sub, DVI-D and HDMI
• Supports Triple Monitor
• Supports HDMI with max. resolution up to 4K x 2K
(4096x2304) @ 24Hz
• Supports DVI-D with max. resolution up to 1920x1200 @
60Hz
• Supports D-Sub with max. resolution up to 1920x1200 @
60Hz

7
English
B150M-HDV
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
HBR (High Bit Rate Audio) with HDMI Port (Compliant
HDMI monitor is required)
• Supports Accelerated Media Codecs: HEVC, VP8, VP9
• Supports HDCP with DVI-D and HDMI Ports
• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D
and HDMI Ports
Audio • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
* To congure 7.1 CH HD Audio, it is required to use an HD
front panel audio module and enable the multi-channel audio
feature through the audio driver.
• Supports Surge Protection (ASRock Full Spike Protection)
• ELNA Audio Caps
LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111E
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection (ASRock Full Spike
Protection)
• Supports LAN Cable Detection
• Supports Energy Ecient Ethernet 802.3az
• Supports PXE
Rear Panel
I/O
• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full
Spike Protection))
• 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full
Spike Protection))
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone
Storage • 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and
Hot Plug

8
English
Connector • 1 x COM Port Header
• 1 x TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Con-
trol)
• 1 x 24 pin ATX Power Connector
• 1 x 4 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports
ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports
ESD Protection (ASRock Full Spike Protection))
BIOS
Feature
• 128Mb AMI UEFI Legal BIOS with multilingual GUI sup-
port
• ACPI 1.1 Compliant wake up events
• SMBIOS 2.3.1 Support
• CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VC-
CPLL, VCCSA Voltage Multi-adjustment
Hardware
Monitor
• CPU/Chassis temperature sensing
• CPU/Chassis Fan Tachometer
• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by
CPU temperature)
• CPU/Chassis Fan multi-speed control
• CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU,
DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA
OS • Microso® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-
bit
* To install Windows® 7 OS, a modied installation disk with
xHCI drivers packed into the ISO le is required. Please refer to
page 64 for more detailed instructions.
* For the updated Windows® 10 driver, please visit ASRock’s
website for details: http://www.asrock.com

9
English
B150M-HDV
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tools. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.
* For detailed product information, please visit our website: http://www.asrock.com
Certica-
tions
• FCC, CE, WHQL
• ErP/EuP Ready (ErP/EuP ready power supply is required)

10
English
1.3 Jumpers Setup
e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”
when a jumper cap is placed on these 2 pins.
Clear CMOS Jumper
(CLRMOS1)
(see p.1, No. 6)
CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system
parameters to default setup, please turn o the computer and unplug the power
cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to
short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear the
CMOS right aer you update the BIOS. If you need to clear the CMOS when you
just nish updating the BIOS, you must boot up the system rst, and then shut it
down before you do the clear-CMOS action. Please be noted that the password,
date, time, and user default prole will be cleared only if the CMOS battery is
removed.
Clear CMOSDefault
If you clear the CMOS, the case open may be detected. Please adjust the BIOS option
“Clear Status” to clear the record of previous chassis intrusion status.

11
English
B150M-HDV
1.4 Onboard Headers and Connectors
System Panel Header
(9-pin PANEL1)
(see p.1, No. 10)
Connect the power
switch, reset switch and
system status indicator on
the chassis to this header
according to the pin
assignments below. Note
the positive and negative
pins before connecting
the cables.
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure the way to
turn o your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset switch to restart
the computer if the computer freezes and fails to perform a normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. e LED is on when
the system is operating. e LED keeps blinking when the system is in S1/S3 sleep
state. e LED is o when the system is in S4 sleep state or powered o (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. e LED is on
when the hard drive is reading or writing data.
e front panel design may dier by chassis. A front panel module mainly consists
of power switch, reset switch, power LED, hard drive activity LED, speaker and etc.
When connecting your chassis front panel module to this header, make sure the wire
assignments and the pin assignments are matched correctly.
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over
these headers and connectors. Placing jumper caps over the headers and connectors
will cause permanent damage to the motherboard.

12
English
Chassis Intrusion and
Speaker Header
(7-pin SPK_CI1)
(see p.1, No. 9)
Please connect the
chassis intrusion and the
chassis speaker to this
header.

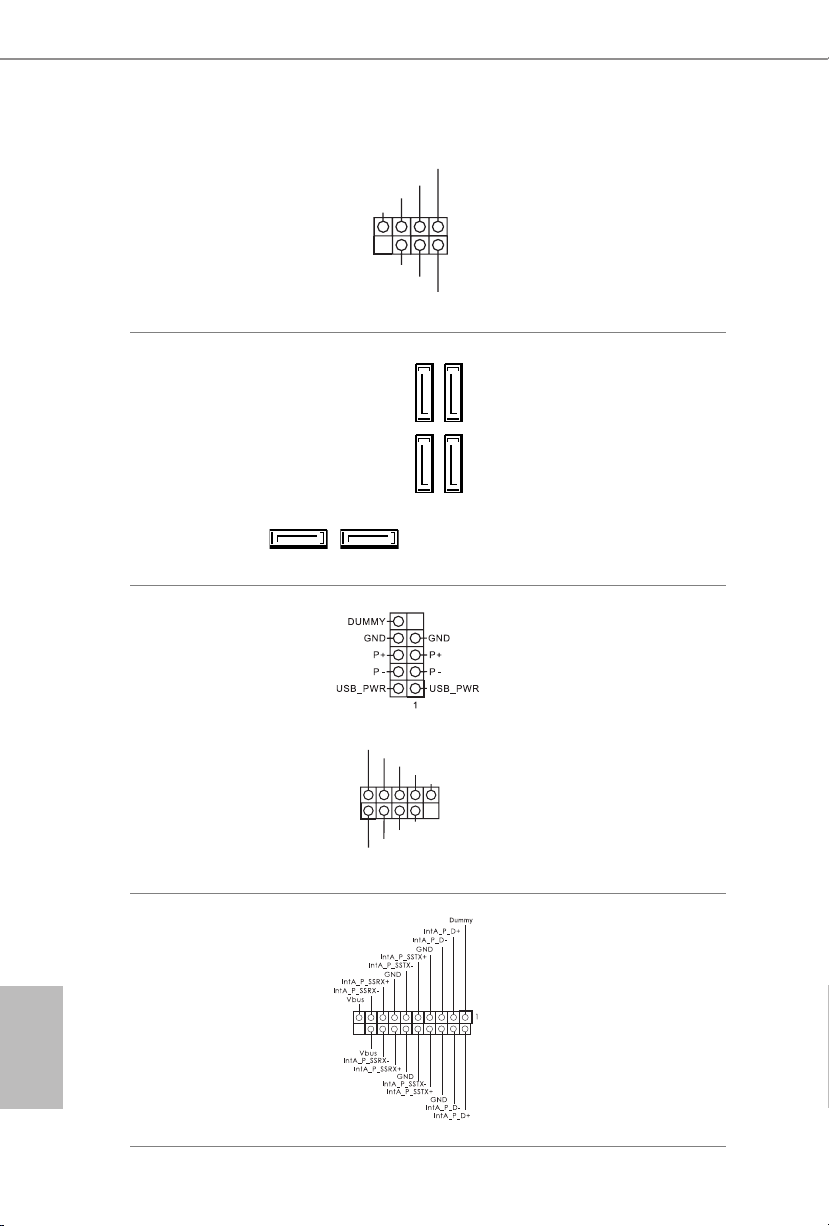

Serial ATA3 Connectors
(SATA3_4_5:
see p.1, No. 8)
(SATA3_2_3:
see p.1, No. 7)
(SATA3_0:
see p.1, No. 11)
(SATA3_1:
see p.1, No. 12)
ese six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB2_3)
(see p.1, No. 18)
(9-pin USB_4_5)
(see p.1, No. 13)
ere are two headers
on this motherboard.
Each USB 2.0 header can
support two ports.
USB 3.0 Header
(19-pin USB3_4_5)
(see p.1, No. 14)
Besides four USB 3.0
ports on the I/O panel,
there is one header on this
motherboard. Each USB
3.0 header can support
two ports.
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
SATA3_1 SATA3_0
SATA3_4 SATA3_5
SATA3_2 SATA3_3
1
+5V
DUMMY
SIGNAL
GND
DUMMY
SPEAKER
DUMMY

13
English
B150M-HDV
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 17)
is header is for
connecting audio devices
to the front audio panel.
Chassis Fan Connector
(4-pin CHA_FAN1)
(see p.1, No. 16)
Please connect fan cables
to the fan connector and
match the black wire to
the ground pin.
CPU Fan Connector
(4-pin CPU_FAN1)
(see p.1, No. 2)
is motherboard pro-
vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 4)
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis
must support HDA to function correctly. Please follow the instructions in our
manual and chassis manual to install your system.
2. If you use an AC’97 audio panel, please install it to the front panel audio header by
the steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don’t need to
connect them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel
and adjust “Recording Volume”.
J_SENSE
OUT2_L
MIC_RET
PRESENCE#
G N D
OUT2_R
MIC2_R
MIC2_L
OUT_RET
1
GN D
FAN_VOLTAGE
CHA_FAN_SPEED
FAN_SPEED_CONTROL
GND
FAN_VOLTAGE_CONTROL
FAN_SPEED
FAN_SPEED_CONTROL
12
1
24
13

14
English

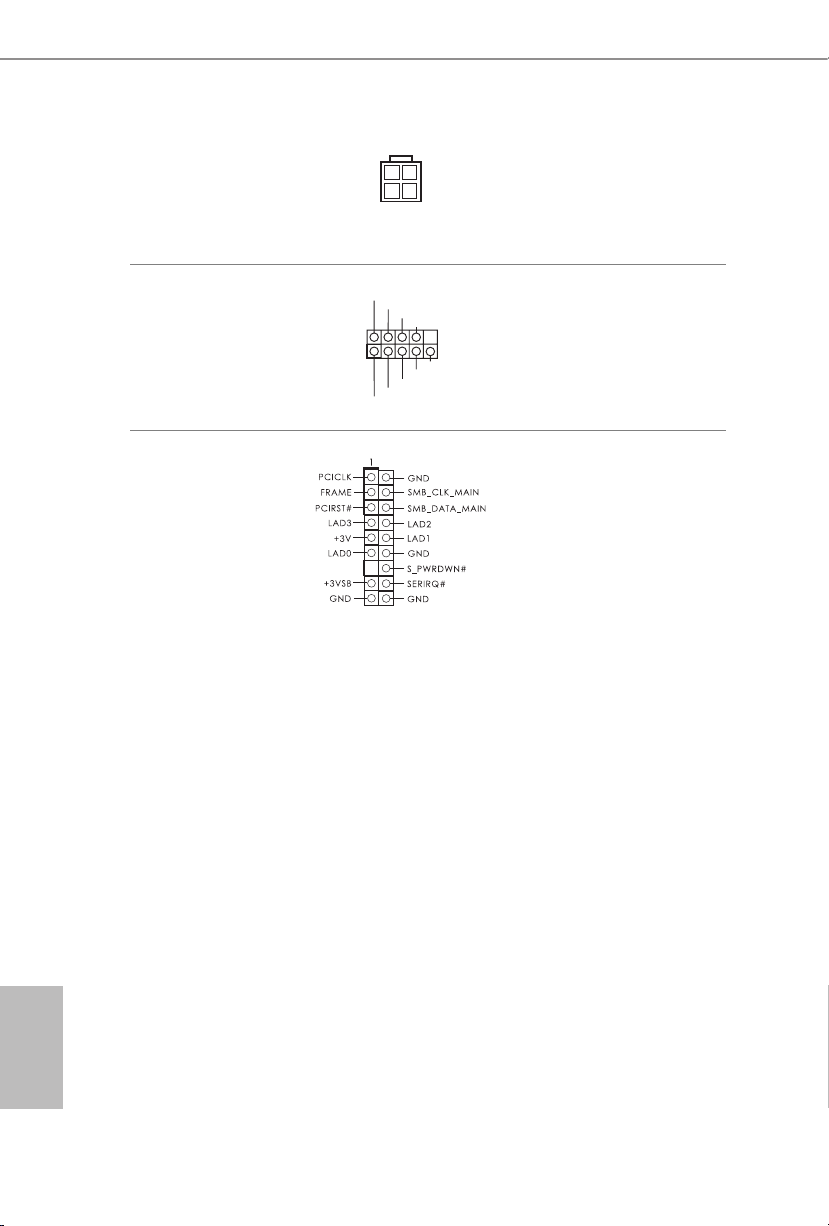

ATX 12V Power
Connector
(4-pin ATX12V1)
(see p.1, No. 1)
is motherboard
provides an 4-pin ATX
12V power connector.
Serial Port Header
(9-pin COM1)
(see p.1, No. 15)
is COM1 header
supports a serial port
module.
TPM Header
(17-pin TPMS1)
(see p.1, No. 5)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1

15
Deutsch
B150M-HDV
Technische Daten
Plattform • Micro-ATX-Formfaktor
• Feststoondensator-Design
• Leiterplatte mit hochdichtem Glasgewebe
Prozessor • Unterstützt die Prozessoren Intel® CoreTM i7/i5/i3/Pentium®/
Celeron® der 6. Generation (Sockel 1151)
• Unterstützt Intel® Turbo Boost 2.0-Technologie
Chipsatz • Intel® B150
• Unterstützt Intel® Small Business Advantage 4.0
Speicher • Dualkanal-DDR4-Speichertechnologie
• 2 x DDR4-DIMM-Steckplätze
• Unterstützt DDR4 2133 non-ECC, ungepuerter Speicher
• Systemspeicher, max. Kapazität: 32GB
• Unterstützt Intel® Extreme Memory Prole (XMP) 2.0
Erweiter-
ungssteck-
platz
• 1 x PCI-Express 3.0-x16-Steckplatz (PCIE1:x16-Modus)
• 2 x PCI-Express 3.0-x1-Steckplätze (Flexible PCIe)
Grakkarte • Integrierte Intel® HD Graphics-Visualisierung und VGA-
Ausgänge können nur mit Prozessoren unterstützt werden,
die GPU-integriert sind.
• Unterstützt integrierte Intel® HD Graphics-Visualisierung:
Intel® Quick Sync Video mit AVC, MVC (S3D) und MPEG-2
Full HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD
Technology, Intel® InsiderTM, Intel® HD Graphics 510/530
• Pixel Shader 5.0, DirectX 12
• Max. geteilter Speicher: 1792 MB
• Drei VGA-Ausgangsoptionen: D-Sub, DVI-D und HDMI
• Unterstützt drei Monitore
• Unterstützt HDMI mit maximaler Auösung von 4K x 2K
(4096 x 2304) bei 24 Hz
• Unterstützt DVI-D mit maximaler Auösung von 1920 x 1200
bei 60 Hz

16
Deutsch
• Unterstützt D-Sub mit maximaler Auösung von 1920 x 1200
bei 60 Hz
• Unterstützt Auto-Lippensynchronizität, hohe Farbtiefe (12
bpc), xvYCC und HBR (Audio mit hoher Bitrate) mit HDMI-
Port (konformer HDMI-Monitor erforderlich)
• Unterstützt beschleunigte Mediencodecs: HEVC, VP8, VP9
• Unterstützt HDCP mit DVI-D- und HDMI-Ports
• Unterstützt Blu-ray- (BD) Wiedergabe (Full HD/1080p) mit
DVI-D- und HDMI-Ports
Audio • 7.1-Kanal-HD-Audio (Realtek ALC887-Audiocodec)
*Zur Konguration von 7.1-Kanal-HD-Audio müssen Sie ein
HD-Frontblenden-Audiomodul nutzen und den Mehrkanalton
über den Audiotreiber aktivieren.
• Unterstützt Überspannungsschutz (ASRock Full Spike Protec-
tion)
• ELNA-Audiokondensatoren
LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111E
• Unterstützt Wake-On-LAN
• Unterstützt Blitzschutz/Schutz gegen elektrostatische Entla-
dung (ASRock Full Spike Protection)
• Unterstützt LAN-Kabelerkennung
• Unterstützt energieezientes Ethernet 802.3az
• Unterstützt PXE
Rück-
blende, E/A
• 1 x PS/2-Maus-/Tastaturanschluss
• 1 x D-Sub-Port
• 1 x DVI-D-Port
• 1 x HDMI-Port
• 2 x USB 2.0-Ports (unterstützt Schutz gegen elektrostatische
Entladung (ASRock Full Spike Protection))
• 4 x USB 3.0-Ports (unterstützt Schutz gegen elektrostatische
Entladung (ASRock Full Spike Protection))
• 1 x RJ-45-LAN-Port mit LED (Aktivität/Verbindung-LED
und Geschwindigkeit-LED)
• HD-Audioanschlüsse: Line-in / Vorderer Lautsprecher /
Mikrofon

17
Deutsch
B150M-HDV
Speicher • 6 x SATA-III-6,0-Gb/s-Anschlüsse, unterstützt NCQ, AHCI
und Hot-Plugging
Anschluss • 1 x COM-Anschluss-Stileiste
• 1 x TPM-Stileiste
• 1 x Gehäuseeingri- und Lautsprecher-Stileiste
• 1 x CPU-Lüeranschluss (4-polig) (intelligente Lüerge-
schwindigkeitssteuerung)
• 1 x Gehäuselüeranschluss (4-polig) (intelligente
Lüergeschwindigkeitssteuerung)
• 1 x 24-poliger ATX-Netzanschluss
• 1 x 4-poliger 12-V-Netzanschluss
• 1 x Audioanschluss an Frontblende
• 2 x USB 2.0-Stileisten (unterstützen 4 USB 2.0-Ports) (unter-
stützt Schutz gegen elektrostatische Entladung (ASRock Full
Spike Protection))
• 1 x USB 3.0-Stileiste (unterstützt 2 USB 3.0-Ports) (unter-
stützt Schutz gegen elektrostatische Entladung (ASRock Full
Spike Protection))
BIOS-
Funktion
• 128-Mb-AMI-UEFI-Legal-BIOS mit Unterstützung
mehrsprachiger grascher Benutzerschnittstellen
• ACPI 1.1-konforme Aufweckereignisse
• SMBIOS 2.3.1-Unterstützung
• CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL,
VCCSA Mehrfachspannungsanpassung
Hard-
wareüber-
wachung
• CPU-/Gehäusetemperaturerkennung
• CPU-/Gehäuselüertachometer
• Lautloser CPU-/Gehäuselüer (automatische Anpassung der
Gehäuselüergeschwindigkeit durch CPU-Temperatur)
• CPU-/Gehäuselüer-Mehrfachgeschwindigkeitssteuerung
• Gehäuse-oen-Erkennung
• Spannungsüberwachung: +12 V, +5 V, +3,3 V, CPU Vcore,
GT_CPU, DRAM, VPPM, PCH 1,0 V, VCCIO, VCCSA

18
Deutsch
Betrieb-
ssystem
• Microso® Windows® 10, 64 Bit / 8.1, 64 Bit / 7, 32 Bit / 7, 64
Bit
* Zur Installation einer Version des Windows® 7-Betriebssystems
wird ein modiziertes Installationslaufwerk mit xHCI-Treibern
in der ISO-Datei benötigt. Detaillierte Anweisungen nden Sie
auf Seite 64.
* Einzelheiten zum aktualisierten Windows® 10-Treiber entneh-
men Sie bitte der ASRock-Webseite:http://www.asrock.com
Zerti-
zierungen
• FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready-Netzteil erforderlich)
* Detaillierte Produktinformationen nden Sie auf unserer Webseite: http://www.asrock.com
