ASROCK B560M-HDV/M.2 User manual

Contact Information
If you need to contact ASRock or want to know more about ASRock, you’re welcome
to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer
for further information. For technical questions, please submit a support request
form at https://event.asrock.com/tsd.asp
ASRock Incorporation
e-mail: [e-mail]
ASRock EUROPE B.V.
e-mail: [e-mail]
ASRock America, Inc.
e-mail: sa[email protected]
Scan the QR code to view more manuals and documents.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 6
1.4 I/O Panel 8
Chapter 2 Installation 10
2.1 Installing the CPU 11
2.2 Installing the CPU Fan and Heatsink 14
2.3 Installing Memory Modules (DIMM) 15
2.4 Expansion Slots (PCI Express Slots) 17
2.5 Jumpers Setup 18
2.6 Onboard Headers and Connectors 19
2.7 M.2_SSD (NGFF) Module Installation Guide (M2_1) 24
Chapter 3 Software and Utilities Operation 28
3.1 Auto Driver Installer (ADI) 28
3.1.1 Installing Drivers for the First Time 28
3.1.2 Updating Drivers 32
3.2 ASRock Motherboard Utility (A-Tuning) 33
3.2.1 Installing ASRock Motherboard Utility (A-Tuning) 33
3.2.2 Using ASRock Motherboard Utility (A-Tuning) 33
3.3 ASRock Live Update & APP Shop 36
3.3.1 UI Overview 36

3.3.2 Apps 37
3.3.3 BIOS & Drivers 40
3.3.4 Setting 41
Chapter 4 UEFI SETUP UTILITY 42
4.1 Introduction 42
4.2 EZ Mode 43
4.3 Advanced Mode 44
4.3.1 UEFI Menu Bar 44
4.3.2 Navigation Keys 45
4.4 Main Screen 46
4.5 OC Tweaker Screen 47
4.6 Advanced Screen 57
4.6.1 CPU Conguration 58
4.6.2 Chipset Conguration 60
4.6.3 Storage Conguration 63
4.6.4 Super IO Conguration 64
4.6.5 ACPI Conguration 65
4.6.6 USB Conguration 66
4.6.7 Trusted Computing 67
4.7 Tools 68
4.8 Hardware Health Event Monitoring Screen 69
4.9 Security Screen 71
4.10 Boot Screen 72
4.11 Exit Screen 75

1
English
B560M-HDV/M.2
Chapter 1 Introduction
ank you for purchasing ASRock B560M-HDV/M.2 motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
In this documentation, Chapter 1 and 2 contains the introduction of the
motherboard and step-by-step installation guides. Chapter 3 contains the operation
guide of the soware and utilities. Chapter 4 contains the conguration guide of
the BIOS setup.
1.1 Package Contents
• ASRock B560M-HDV/M.2 Motherboard (Micro ATX Form Factor)
• ASRock B560M-HDV/M.2 User Manual
• ASRock B560M-HDV/M.2 Support CD
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 1 x Screw for M.2 Socket (Optional)
• 1 x I/O Panel Shield
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRock’s
website as well. ASRock website http://www.asrock.com.

2
English
1.2 Specications
Platform • Micro ATX Form Factor
• Solid Capacitor design
CPU • Supports 10th Gen Intel® CoreTM Processors and 11th Gen
Intel® CoreTM Processors (LGA1200)
• 5 Power Phase design
• Supports Intel® Turbo Boost Max 3.0 Technology
Chipset • Intel® B560
Memory • Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM Slots
• 11th Gen Intel® CoreTM Processors support DDR4 non-ECC,
un-buered memory up to 4000+(OC)*
• 10th Gen Intel® CoreTM Processors support DDR4 non-ECC,
un-buered memory up to 3600+(OC)*
* 11th Gen Intel® CoreTM (i9/i7/i5) support DDR4 up to
3200(OC); CoreTM (i3), Pentium® and Celeron® support DDR4 up
to 2666.
* 10th Gen Intel® CoreTM (i9/i7) support DDR4 up to 2933;
CoreTM (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
• Supports ECC UDIMM memory modules (operate in non-
ECC mode)
• Max. capacity of system memory: 64GB
• Supports Intel® Extreme Memory Prole (XMP) 2.0
Expansion
Slot
11th Gen Intel® CoreTM Processors
• 1 x PCI Express 4.0 x16 Slot*
10th Gen Intel® CoreTM Processors
• 1 x PCI Express 3.0 x16 Slot*
* Supports NVMe SSD as boot disks
• 1 x PCI Express 3.0 x1 Slot

3
English
B560M-HDV/M.2
Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
* Graphics specications may vary between CPU types.
• 11th Gen Intel® CoreTM Processors support Intel® XeGraphics
Architecture (Gen 12). 10th Gen Intel® CoreTM Processors
support Gen 9 Graphics
• ree graphics output options: D-Sub, DVI-D and HDMI
* Supports up to 2 displays simultaneously
• Supports HDMI 2.0 with max. resolution up to 4K x 2K
(4096x2160) @ 60Hz with 11th Gen Intel® CoreTM Processors
• Supports HDMI 1.4 with max. resolution up to 4K x 2K
(4096x2160) @ 30Hz with 10th Gen Intel® CoreTM Processors
• Supports DVI-D with max. resolution up to 1920x1200 @
60Hz
• Supports D-Sub with max. resolution up to 1920x1200 @
60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant
HDMI monitor is required)
• Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports
• Supports HDCP 2.2 with DVI-D and HDMI Ports (HDCP
2.3 ready with 11th Gen Intel® Core™ Processors)
Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Supports Surge Protection
LAN • Gigabit LAN 10/100/1000 Mb/s
• Giga PHY Intel® I219V
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Ecient Ethernet 802.3az
• Supports PXE

4
English
Rear Panel
I/O
• 1 x PS/2 Keyboard Port
• 1 x PS/2 Mouse Port
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 4 x USB 2.0 Ports (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone
Storage • 4 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage
Technology 18, NCQ, AHCI and Hot Plug
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will
be disabled.
• 1 x Ultra M.2 Socket (M2_1), supports M Key type
2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI
Express module up to Gen3 x4 (32 Gb/s)*
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
Connector • 1 x COM Port Header
• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)
* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.
• 1 x Chassis Fan Connector (4-pin)
* e Chassis Fan supports the Chassis fan of maximum 1A
(12W) fan power.
• 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)
* e Chassis/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
* CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector

5
English
B560M-HDV/M.2
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports
ESD Protection)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
(Supports ESD Protection)
BIOS
Feature
• AMI UEFI Legal BIOS with multilingual GUI support
• ACPI 6.0 Compliant wake up events
• SMBIOS 2.7 Support
• CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO,
VCCST, VCCIN AUX Voltage Multi-adjustment
Hardware
Monitor
• Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
• Quiet Fan (Auto adjust chassis fan speed by CPU tempera-
ture): CPU, Chassis, Chassis/Water Pump Fans
• Fan Multi-Speed Control: CPU, Chassis, Chassis/Water
Pump Fans
• CASE OPEN detection
• Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V
OS • Microso® Windows® 10 64-bit / 11 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP Ready (ErP/EuP ready power supply is required)
* For detailed product information, please visit our website: http://www.asrock.com
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tools. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.

6
English

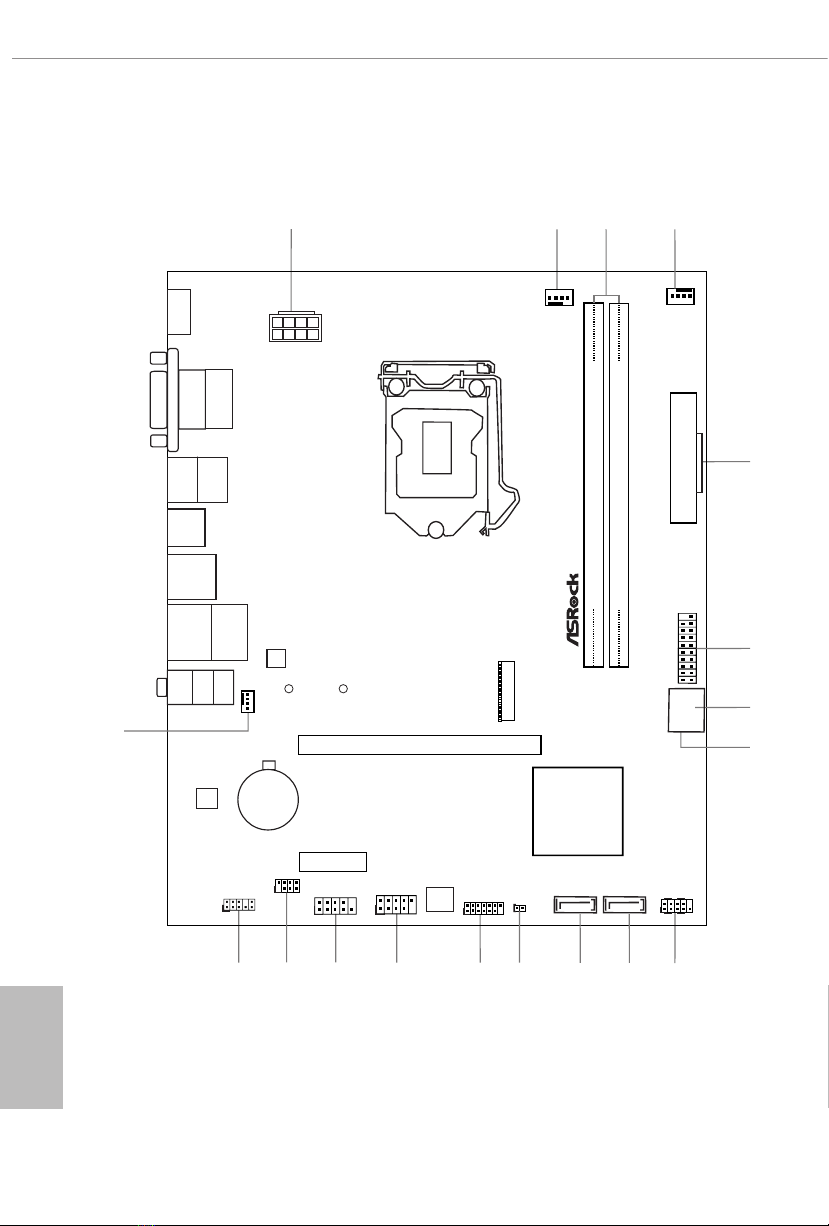

1.3 Motherboard Layout
4
5
1
13
15
18
6
14 9
8
7
3
2
17
Intel
B560
ATXPWR1
HDLED RESET
PLED PWRBTN
PANEL1
1
RoHS
CPU_FAN1
PCIE1
1
SPK_CI1
1
DDR4_B1 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module)
ATX12V1
SATA3_2
USB3_3_4
CLRMOS1
1
1
HD_AUDIO1
M2_1
Top: RJ-45
HDMI1
USB 2.0
T: USB1
B: USB2
USB 2.0
T: USB_3
B: USB_4
CHA_FAN2
PCIE2
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
VGA1
1
SPI_TPM_J1
DVI1
BIOS
ROM
1
USB_5_6
COM1
1
CMOS
Battery
SATA3_0
SATA3_1
11
LAN
AUDIO
CODEC
12
SATA3_3
10
CHA_FAN1/WP
USB 3.2 Gen1
T:
USB3_2
B: USB3_1
PS2
Keyboard
PS2
Mouse
16
B560M-HDV/M.2

7
English
B560M-HDV/M.2
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 CPU Fan Connector (CPU_FAN1)
3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
4 Chassis Fan Connector (CHA_FAN2)
5 ATX Power Connector (ATXPWR1)
6 USB 3.2 Gen1 Header (USB3_3_4)
7 SATA3 Connector (SATA3_1)(Lower)
8 SATA3 Connector (SATA3_0)(Upper)
9 System Panel Header (PANEL1)
10 SATA3 Connector (SATA3_3)
11 SATA3 Connector (SATA3_2)
12 Clear CMOS Jumper (CLRMOS1)
13 SPI TPM Header (SPI_TPM_J1)
14 USB 2.0 Header (USB_5_6)
15 COM Port Header (COM1)
16 Chassis Intrusion and Speaker Header (SPK_CI1)
17 Front Panel Audio Header (HD_AUDIO1)
18 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

8
English
1.4 I/O Panel
No. Description No. Description
1D-Sub Port 7 USB 2.0 Ports (USB_34)
2 PS/2 Mouse Port 8 USB 3.2 Gen1 Ports (USB3_12)
3 LAN RJ-45 Port* 9 USB 2.0 Ports (USB_1_2)
4 Line In (Light Blue)** 10 PS/2 Keyboard Port
5 Front Speaker (Lime)** 11 DVI-D Port
6 Microphone (Pink)** 12 HDMI Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
12 6710
11
5
4
2 3
9
1
8

9
English
B560M-HDV/M.2
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

10
English
is is a Micro ATX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

11
English
B560M-HDV/M.2
2.1 Installing the CPU
1. Before you insert the 1200-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
2
A
B

12
English
4
5
3

13
English
B560M-HDV/M.2
Please save and replace the cover if the processor is removed. e cover must be placed if
you wish to return the motherboard for aer service.

14
English
2.2 Installing the CPU Fan and Heatsink
1 2
CPU_FAN

15
English
B560M-HDV/M.2
2.3 Installing Memory Modules (DIMM)
is motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.
e DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the DIMM if you force the DIMM into the slot at incorrect
orientation.
1. For dual channel conguration, you always need to install identical (the same
brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory
module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.

16
English
1
2
3
