ASROCK Z170 Extreme7+ User manual

Version 1.0
Published June 2015
Copyright©2015 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535;
7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, &
DTS and the Symbol together is a registered trademark & DTS Connect, DTS Interactive,
DTS Neo:PC are trademarks of DTS, Inc. Product includes soware.
© DTS, Inc., All Rights Reserved.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 7
1.4 I/O Panel 9
1.5 ASRock Front USB 3.1 Panel 11
Chapter 2 Installation 14
2.1 Installing the CPU 15
2.2 Installing the CPU Fan and Heatsink 18
2.3 Installing Memory Modules (DIMM) 19
2.4 Expansion Slots (PCI Express Slots) 21
2.5 Jumpers Setup 22
2.6 Onboard Headers and Connectors 23
2.7 Smart Switches 28
2.8 Dr. Debug 29
2.9 SLITM and Quad SLITM Operation Guide 31
2.9.1 Installing Two SLITM-Ready Graphics Cards 31
2.9.2 Driver Installation and Setup 33
2.10 CrossFireXTM, 3-Way CrossFireXTM and Quad CrossFireXTM
Operation Guide 34
2.10.1 Installing Two CrossFireXTM-Ready Graphics Cards 34
2.10.2 Installing Three CrossFireXTM-Ready Graphics Cards 36

2.10.3 Driver Installation and Setup 37
2.11 M.2_SSD (NGFF) Module Installation Guide 38
Chapter 3 Software and Utilities Operation 41
3.1 Installing Drivers 41
3.2 A-Tuning 42
3.3 ASRock Live Update & APP Shop 46
3.3.1 UI Overview 46
3.3.2 Apps 47
3.3.3 BIOS & Drivers 50
3.3.4 Setting 51
3.4 Enabling USB Ports for Windows® 7 Installation 52
Chapter 4 UEFI SETUP UTILITY 55
4.1 Introduction 55
4.1.1 UEFI Menu Bar 55
4.1.2 Navigation Keys 56
4.2 Main Screen 57
4.3 OC Tweaker Screen 58
4.4 Advanced Screen 68
4.4.1 CPU Conguration 69
4.4.2 Chipset Conguration 71
4.4.3 Storage Conguration 74
4.4.4 Intel® Thunderbolt™ 2 76
4.4.5 Super IO Conguration 77
4.4.6 ACPI Conguration 78

4.4.7 USB Conguration 80
4.4.8 Trusted Computing 81
4.5 Tools 82
4.6 Hardware Health Event Monitoring Screen 86
4.7 Security Screen 88
4.8 Boot Screen 89
4.9 Exit Screen 92

1
English
Z170 Extreme7+
Chapter 1 Introduction
ank you for purchasing ASRock Z170 Extreme7 motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
In this documentation, Chapter 1 and 2 contains the introduction of the
motherboard and step-by-step installation guides. Chapter 3 contains the operation
guide of the soware and utilities. Chapter 4 contains the conguration guide of
the BIOS setup.
1.1 Package Contents
•ASRock Z170 Extreme7 Motherboard (ATX Form Factor)
•ASRock Z170 Extreme7 Quick Installation Guide
•ASRock Z170 Extreme7 Support CD
•4 x Serial ATA (SATA) Data Cables (Optional)
•1 x I/O Panel Shield
•1 x ASRock SLI_Bridge_2S Card
•3 x Screw for M.2 Sockets
•1 x Screw for mini-PCIe Slot
•1 x ASRock Front USB 3.1 Panel
•4 x Screws for Front USB 3.1 Panel
•1 x SATA Express Cable
•1 x USB Power Cable
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any modi-
cations of this documentation occur, the updated version will be available on ASRock’s
website without further notice. If you require technical support related to this mother-
board, please visit our website for specic information about the model you are using. You
may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock
website http://www.asrock.com.

2
English
1.2 Specications
Platform •ATX Form Factor
•High Density Glass Fabric PCB
CPU •Supports 6th Generation Intel® CoreTM i7/i5/i3/Pentium®/
Celeron® Processors (Socket 1151)
•Digi Power design
•12 Power Phase design
•Supports Intel® Turbo Boost 2.0 Technology
•Supports Intel® K-Series unlocked CPUs
•Supports ASRock BCLK Full-range Overclocking
•Supports ASRock Hyper BCLK Engine
Chipset •Intel®Z170
Memory •Dual Channel DDR4 Memory Technology
•4 x DDR4 DIMM Slots
•Supports DDR4 3600+(OC)*/3200(OC)/2933(OC)/2800(OC)
/2400(OC)/2133 non-ECC, un-buered memory
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
•Max. capacity of system memory: 64GB
•Supports Intel® Extreme Memory Prole (XMP) 2.0
•15 Gold Contact in DIMM Slots
Expansion
Slot
•4 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single
at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8
(PCIE2) / x8 (PCIE4) / x4 (PCIE6). PCIE3: x4 mode)
•1 x PCI Express 3.0 x1 Slot (PCIE5) (Flexible PCIe)
•1 x PCI Express 2.0 x1 Slot (PCIE1)
•1 x Half-size Mini-PCI Express Slot
•Supports AMD Quad CrossFireXTM, 3-Way CrossFireXTM
and CrossFireXTM
•Supports NVIDIA® Quad SLITM and SLITM
•15 Gold Contact in VGA PCIe Slot (PCIE2)
Graphics •Intel® HD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.

3
English
Z170 Extreme7+
•Supports Intel® HD Graphics Built-in Visuals : Intel® Quick
Sync Video with AVC, MVC (S3D) and MPEG-2 Full
HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD
Technology, Intel® InsiderTM, Intel® HD Graphics 510/530
•Pixel Shader 5.0, DirectX 12
•Max. shared memory 1792MB
•ree graphics output options: DVI-D, HDMI and
DisplayPort 1.2
•Supports Triple Monitor
•Supports HDMI with max. resolution up to 4K x 2K
(4096x2304) @ 24Hz
•Supports DVI-D with max. resolution up to 1920x1200 @
60Hz
•Supports DisplayPort 1.2 with max. resolution up to 4K x 2K
(4096x2304) @ 24Hz or 4K x 2K (3840x2160) @ 60Hz
•Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
HBR (High Bit Rate Audio) with HDMI Port (Compliant
HDMI monitor is required)
•Supports Accelerated Media Codecs: HEVC, VP8, VP9
•Supports HDCP with DVI-D, HDMI and DisplayPort 1.2
Ports
•Supports Full HD 1080p Blu-ray (BD) playback with DVI-D,
HDMI and DisplayPort 1.2 Ports
Audio •7.1 CH HD Audio with Content Protection (Realtek
ALC1150 Audio Codec)
•Premium Blu-ray Audio support
•Supports Surge Protection (ASRock Full Spike Protection)
•Supports Purity SoundTM 3
- Nichicon Fine Gold Series Audio Caps
- 115dB SNR DAC with Dierential Amplier
- TI® NE5532 Premium Headset Amplier (Supports up to
600 Ohms headsets)
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
•Supports DTS Connect

4
English
LAN •Gigabit LAN 10/100/1000 Mb/s
•1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT
•Supports Wake-On-LAN
•Supports Lightning/ESD Protection (ASRock Full Spike
Protection)
•Supports Dual LAN with Teaming
•Supports Energy Ecient Ethernet 802.3az
•Supports PXE
Rear Panel
I/O
•1 x PS/2 Mouse/Keyboard Port
•1 x DVI-D Port
•1 x HDMI Port
•1 x DisplayPort 1.2
•1 x Optical SPDIF Out Port
•2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full
Spike Protection))
•1 x USB 3.1 Type-A Port (10 Gb/s) (ASMedia ASM1142)
(Supports ESD Protection (ASRock Full Spike Protection))
•1 x USB 3.1 Type-C Port (10 Gb/s) (ASMedia ASM1142)
(Supports ESD Protection (ASRock Full Spike Protection))
•4 x USB 3.0 Ports (Intel® Z170) (Supports ESD Protection
(ASRock Full Spike Protection))
•2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED
LED)
•HD Audio Jacks: Rear Speaker / Central / Bass / Line in /
Front Speaker / Microphone
ASRock
Front USB
3.1 Panel
•1 x USB 3.1 Type-A Port (10 Gb/s) (Supports ESD Protection
(ASRock Full Spike Protection))
•1 x USB 3.1 Type-C Port (10 Gb/s) (Supports ESD Protection
(ASRock Full Spike Protection))
Storage •6 x SATA3 6.0 Gb/s Connectors by Intel® Z170, support
RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid
Storage Technology 14 and Intel Smart Response
Technology), NCQ, AHCI and Hot Plug
•4 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, sup-
port NCQ, AHCI and Hot Plug

5
English
Z170 Extreme7+
•3 x SATA Express 10 Gb/s Connectors*
* Support to be announced
* M2_1, SATA3_0, SATA3_1 and SATA_EXP0 share lanes. If
either one of them is in use, the others will be disabled.
* M2_2, SATA3_2, SATA3_3 and SATA_EXP1 share lanes. If
either one of them is in use, the others will be disabled.
* M2_3, SATA3_4, SATA3_5 and SATA_EXP2 share lanes. If
either one of them is in use, the others will be disabled.
•3 x Ultra M.2 Sockets, support M.2 SATA3 6.0 Gb/s module
and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
* Supports ASRock U.2 Kit
Connector •1 x COM Port Header
•1 x TPM Header
•1 x Power LED and Speaker Header
•2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
•4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Con-
trol)
•1 x 24 pin ATX Power Connector
•1 x 8 pin 12V Power Connector (Hi-Density Power Connec-
tor)
•1 x Front Panel Audio Connector
•1 x underbolt AIC Connector
•3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Supports
ESD Protection (ASRock Full Spike Protection))
•2 x USB 3.0 Headers (Support 4 USB 3.0 ports) (ASMedia
ASM1074 hub) (Supports ESD Protection (ASRock Full Spike
Protection))
•1 x Dr. Debug with LED
•1 x Power Switch with LED
•1 x Reset Switch with LED
•1 x Clear CMOS Switch
•1 x BIOS Selection Switch
BIOS
Feature
•2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI
support (1 x Main BIOS and 1 x Backup BIOS)
•Supports Secure Backup UEFI Technology
•ACPI 1.1 Compliant wake up events
•SMBIOS 2.3.1 Support
•CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VC-
CPLL, VCCSA Voltage Multi-adjustment

6
English
Hardware
Monitor
•CPU/Chassis temperature sensing
•CPU/Chassis Fan Tachometer
•CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by
CPU temperature)
•CPU/Chassis Fan multi-speed control
•Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU,
DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA
OS - Microso® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit
* To install Windows® 7 OS, a modied installation disk with
xHCI drivers packed into the ISO le is required. Please refer to
page 52 for more detailed instructions.
* For the updated Windows® 10 driver, please visit ASRock’s
website for details: http://www.asrock.com
Certica-
tions
•FCC, CE, WHQL
•ErP/EuP Ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your own risk and expense.
We are not responsible for possible damage caused by overclocking.
* For detailed product information, please visit our website: http://www.asrock.com

7
English
Z170 Extreme7+
Intel
Z170
DDR4_A2 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module) DDR4_B2 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
ATX12V1
USB 2.0
T: USB1
B: USB2
ATXPWR1
LAN
PCIE2
Top:
RJ-45
USB 3.0
T: USB1
B: USB2
Top:
Central/Bass
Center:
REAR SPK
Top:
LINE IN
Center:
FRONT
Bottom:
Optical
SPDIF
Bottom:
MIC IN
PCIE4
HDLED RESET
PLED PWRBTN
PANEL1
1
USB7_8
1
USB5_6
1
USB3_4
11
SPK_PLED1
COM1
1
1
HD_AUDIO1
Z170 Extreme7+
PCIE6
SATA3 _0 _2
SATA3 _1 _3
SATA3 _5 _4
SATA_ EX P0
SATA_ EX P1
SATA_ EX P2
PCIE1
CPU_FAN1
RoHS
10
9
8
7
13
15
19
20
21
22
23
16
17
26
27 25
3233
DVI1
HDMI 1
SATA3 _A 3_ A4
1
35
34
235
4
31
Dr.
Debug
Purity
Sound 3
TM
Ultra M.2
PCIe Gen3 x4
BIOS_B1
BIOS _B_ LED
128Mb
BIOS
PS2
Keyboard
/Mouse
CMOS
Battery
CLRMOS1
1
M2_2
CT22CT23CT24CT25
CT35
T B1
1
29
30
6
USB3_5_ 6
1
24
CPU_FAN2
CHA_FAN4
CHA_FAN2
CHA_FAN3
CHA_FAN1
CLRCBTN1
14
12
11
18
28
1
TPMS1
PCIE5
DISP LAY1
USB 3.1
T: USB31_TA_1
B: USB31_TC_1
CT21
Reset
Power
MINI_PCIE1
USB3_7_ 8
1
SATA3 _A 1_ A2
BIOS_A1
BIOS _A_ LED
128Mb
BIOS
BIO S_ SEL 1
AB
PCIE3
M2_1
CT12CT13CT14
LAN
Top:
RJ-45
USB 3.0
T: USB3
B: USB4
M2_2
CT32CT33 CT31
1.3 Motherboard Layout

8
English
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 CPU Fan Connector (CPU_FAN1)
3 CPU Fan Connector (CPU_FAN2)
4 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
5 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
6 Chassis Fan Connector (CHA_FAN4)
7 Clear CMOS Button (CLRCBTN1)
8Power Switch (PWRBTN1)
9 Reset Switch (RSTBTN1)
10 ATX Power Connector (ATXPWR1)
11 USB 3.0 Header (USB3_7_8)
12 USB 3.0 Header (USB3_5_6)
13 Chassis Fan Connector (CHA_FAN1)
14 Chassis Fan Connector (CHA_FAN2)
15 SATA3 Connectors (SATA3_0_2)
16 SATA3 Connectors (SATA3_1_3)
17 SATA Express Connector (SATA_EXP0)
18 SATA Express Connector (SATA_EXP1)
19 SATA3 Connectors (SATA3_A3_A4)
20 SATA3 Connectors (SATA3_A1_A2)
21 SATA3 Connector (SATA3_4)
22 SATA3 Connector (SATA3_5)
23 SATA Express Connector (SATA_EXP2)
24 Power LED and Speaker Header (SPK_PLED1)
25 USB 2.0 Header (USB7_8)
26 USB 2.0 Header (USB5_6)
27 USB 2.0 Header (USB3_4)
28 System Panel Header (PANEL1)
29 BIOS Selection Switch (BIOS_SEL1)
30 Clear CMOS Jumper (CLRMOS1)
31 TPM Header (TPMS1)
32 COM Port Header (COM1)
33 Front Panel Audio Header (HD_AUDIO1)
34 underbolt AIC Connector (TB1)
35 Chassis Fan Connector (CHA_FAN3)

9
English
Z170 Extreme7+
1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB12) 10 Optical SPDIF Out Port
2DVI-D Port 11 USB 3.0 Ports (USB3_12)
3 LAN RJ-45 Port (Intel® I219V)* 12 USB 3.0 Ports (USB3_34)
4 LAN RJ-45 Port (Intel® I211AT)* 13 USB 3.1 Type-A Port (USB31_TA_1)
5 Central / Bass (Orange) 14 USB 3.1 Type-C Port (USB31_TC_1)
6 Rear Speaker (Black) 15 HDMI Port
7 Line In (Light Blue) 16 DisplayPort 1.2
8 Front Speaker (Lime)** 17 PS/2 Mouse/Keyboard Port
9Microphone (Pink)
1
17 91013
14
12 111516
2 3 6
5
8
7
4

10
English
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below
for connection details in accordance with the type of speaker you use.
Audio Output
Channels
Front Speaker
(No. 8)
Rear Speaker
(No. 6)
Central / Bass
(No. 5)
Line In
(No. 7)
2V -- -- --
4V V -- --
6V V V --
8V V V V
To enable Multi-Streaming, you need to connect a front panel audio cable to the front
panel audio header. Aer restarting your computer, you will nd the “Mixer” tool on your
system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and
click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select
“Realtek HDA Primary output” to use the Rear Speaker, Central/Bass, and Front Speaker,
or select “Realtek HDA Audio 2nd output” to use the front panel audio.
ACT/LINK LED
SPEED LED
LAN Port

11
English
Z170 Extreme7+
1.5 ASRock Front USB 3.1 Panel
Specications
Dimension •75mm (W) x 42.8mm (H) x 148mm (L)
Controller •ASMedia ASM1142 Controller
Front Panel
I/O
•1 x USB 3.1 Type-A Port (10 Gb/s) (Supports ESD Protection
(ASRock Full Spike Protection))
* For charging Type-A USB devices, we suggest using the Type-A
connectors on your motherboard.
•1 x USB 3.1 Type-C Port (10 Gb/s) (Supports ESD Protection
(ASRock Full Spike Protection))
* is port supports power outputs up to 5V/3A. For charging Type-C
USB devices, the device should support Type-C standards to adjust the
current because it will be dierent in Power On state (3 Amp) and Sleep
state (1 Amp).
* Some Type-C USB devices may only be charged by its own adapter.
Connector
•1 x SATA Express 10 Gb/s Connector
•1 x USB Power Connector
OS •Microso® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit
* It is recommended to install the ASRock Front USB 3.1 Panel into the drive bay of
your chassis before connecting other USB devices.

12
English

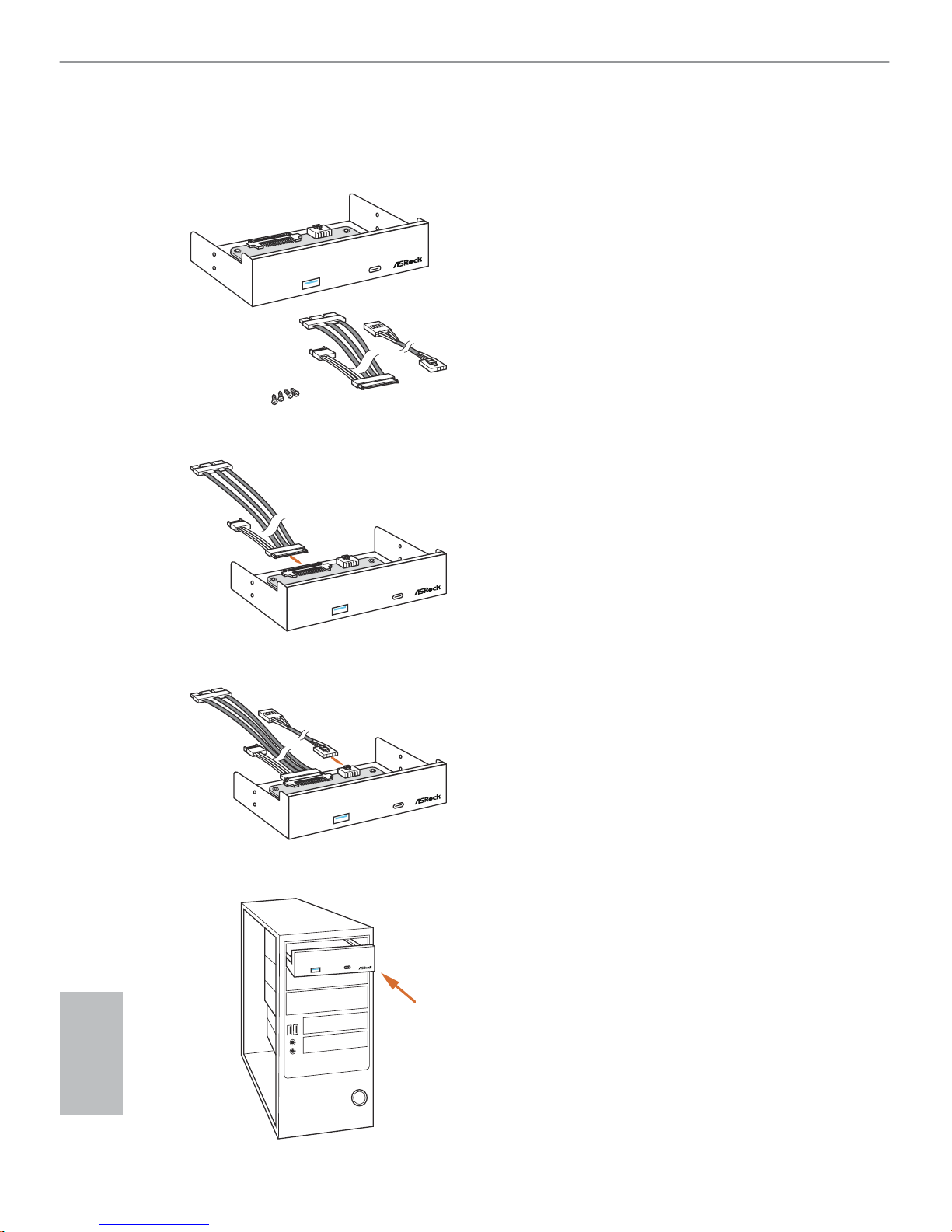

ASRock Front USB 3.1 Panel Installation Guide
Step 1
Prepare the bundled ASRock Front USB 3.1 Panel,
SATA Express Cable, USB Power Cable and screws.
Step 2
Connect one end of the SATA Express Cable to the
SATA Express Connector on the ASRock Front USB
3.1 Panel.
Step 3
Connect one end of the USB Power Cable to the
USB Power Connector on the ASRock Front USB 3.1
Panel.
Step4
Install ASRock Front USB 3.1 Panel into the drive
bay of the chassis.
Front
USB
3.1
Panel
F
ro
n
t
U
SB
3
.1
Pa
n
el
F
ro
n
t
U
SB
3
.1
Pa
n
e
l

13
English
Z170 Extreme7+
Step 5
Screw ASRock Front USB 3.1 Panel to the
drive bay with screws.
Step 6
Connect the PSU’s SATA Power Cable to
the SATA Power Connector.
Step 7
Connect the other end of the SATA Express
Cable to the SATA Express Connector on
the motherboard.
Step 8
Connect the other end of the USB Power
Cable to the USB 2.0 Header on the
motherboard.
USB
3.0USB
3.0
SATA_EXP0SATA3_1_3
SATA3_A1_A2
SA
TA3_4_5
SATA3_A3_A4SATA3_0_2
USB3_4
SATA_EXP0SATA3_1_3
SATA3_A1_A2
SATA3_4_5
SATA3_A3_A4SATA3_0_2
USB3_4

14
English
is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
•Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
•In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
•Hold components by the edges and do not touch the ICs.
•Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
•When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation
