ASROCK B760M PRO RS User manual

Contact Information
If you need to contact ASRock or want to know more about ASRock, you’re
welcome to visit ASRock’s website at http://www.asrock.com; or you may contact
your dealer for further information. For technical questions, please submit a
support request form at https://event.asrock.com/tsd.asp
ASRock Incorporation
e-mail: [e-mail]
ASRock EUROPE B.V.
e-mail: [e-mail]
ASRock America, Inc.
e-mail: [e-mail]
Scan the QR code to view more manuals and documents.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 6
1.4 I/O Panel 8
1.5 Block Diagram 9
Chapter 2 Installation 10
2.1 Installing the CPU 11
2.2 Installing the CPU Fan and Heatsink 13
2.3 Installing Memory Modules (DIMM) 14
2.4 Connecting the Front Panel Header 16
2.5 Installing the Motherboard 17
2.6 Installing SATA Drives 18
2.7 Installing a Graphics Card 20
2.8 Connecting Peripheral Devices 22
2.9 Connecting the Power Connectors 23
2.10 Power On 24
2.11 Jumpers Setup 25
2.12 Onboard Headers and Connectors 26
2.13 Post Status Checker 37
2.14 M.2 WiFi/BT PCIe WiFi Module and Intel® CNVi (Integrated WiFi/
BT) Installation Guide 38

2.15 M.2 SSD Module Installation Guide (M2_1) 40
2.16 M.2 SSD Module Installation Guide (M2_2 and M2_3) 44

English
1
B760M Pro RS
Chapter 1 Introduction
ank you for purchasing ASRock B760M Pro RS motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
1.1 Package Contents
• ASRock B760M Pro RS Motherboard (Micro ATX Form Factor)
• ASRock B760M Pro RS User Manual
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 4 x Screws for M.2 Sockets (Optional)
• 1 x Stando for M.2 Socket (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRock’s
website as well. ASRock website http://www.asrock.com.

English
2
1.2 Specications
Platform • Micro ATX Form Factor
CPU • Supports 13th Gen & 12th Gen Intel® CoreTM Processors
(LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® ermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)
Chipset • Intel® B760
Memory • Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buered memory up to
7200+(OC)*
• Max. capacity of system memory: 128GB
• Supports Intel® Extreme Memory Prole (XMP) 3.0
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
Expansion
Slot
CPU:
• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
• 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe
WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/
BT)
* Supports NVMe SSD as boot disks
• Supports AMD CrossFireTM
Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
• Intel® XeGraphics Architecture (Gen 12)
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and
max. resolution up to 4K 60Hz

English
3
B760M Pro RS
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP
2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio
LAN • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Soware
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and
Streaming Modes
- User Customized Priority Control
USB • 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
• 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection
Rear Panel
I/O
• 2 x Antenna Mounting Points
• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen1 Type-C Port
• 3 x USB 3.2 Gen1 Type-A Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone
Storage CPU:
• 1 x Hyper M.2 Socket (M2_1, Key M), supports type
2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280
PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280
PCIe Gen4x4 (64 Gb/s) mode*
• 4 x SATA3 6.0 Gb/s Connectors

English
4
* Supports Intel® Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
RAID • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA
storage devices
Connector • 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)****
• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)*****
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connec-
tor)
• 1 x Front Panel Audio Connector
• 1 x underbolt AIC Connector (5-pin) (Supports ASRock
underbolt 4 AIC Card)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen1 Header
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~4/WP support the fan power up to 2A (24W).
***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect
if 3-pin or 4-pin fan is in use.
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
OS • Microso® Windows® 10 64-bit / 11 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)

English
5
B760M Pro RS
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tools. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.
* For detailed product information, please visit our website: http://www.asrock.com

English
6

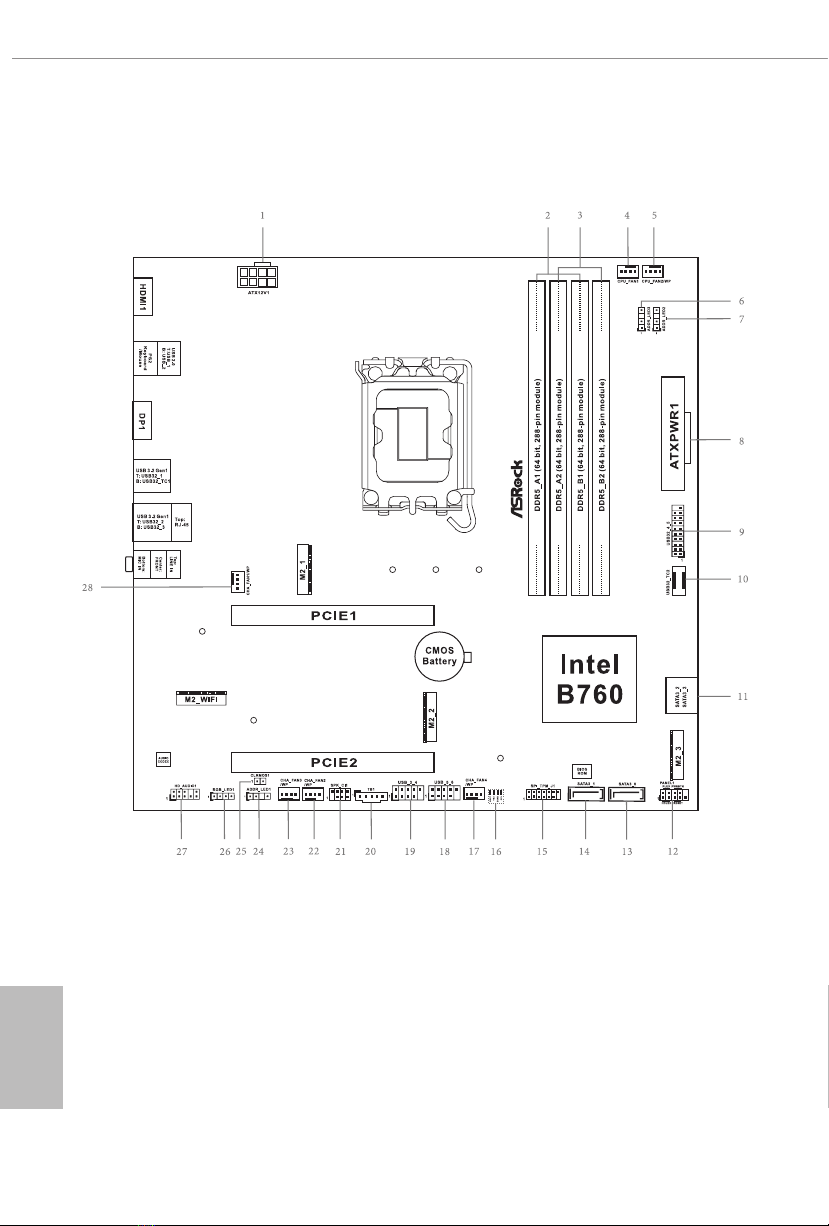

1.3 Motherboard Layout

English
7
B760M Pro RS
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1)
3 2 x 288-pin DDR5 DIMM Slots (DDR5_A2, DDR5_B2)
4 CPU Fan Connector (CPU_FAN1)
5 CPU/Water Pump Fan Connector (CPU_FAN2/WP)
6 Addressable LED Header (ADDR_LED3)
7 Addressable LED Header (ADDR_LED2)
8 ATX Power Connector (ATXPWR1)
9 USB 3.2 Gen1 Header (USB32_4_5)
10 Front Panel Type C USB 3.2 Gen1 Header (USB32_TC2)
11 SATA3 Connectors (SATA3_2)(Upper), (SATA3_3)(Lower)
12 System Panel Header (PANEL1)
13 SATA3 Connector (SATA3_0)
14 SATA3 Connector (SATA3_1)
15 SPI TPM Header (SPI_TPM_J1)
16 Post Status Checker (PSC)
17 Chassis/Water Pump Fan Connector (CHA_FAN4/WP)
18 USB 2.0 Header (USB_5_6)
19 USB 2.0 Header (USB_3_4)
20 5-pin underbolt AIC Connector (TB1)
21 Chassis Intrusion and Speaker Header (SPK_CI1)
22 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)
23 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)
24 Addressable LED Header (ADDR_LED1)
25 Clear CMOS Jumper (CLRMOS1)
26 RGB LED Header (RGB_LED1)
27 Front Panel Audio Header (HD_AUDIO1)
28 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

English
8

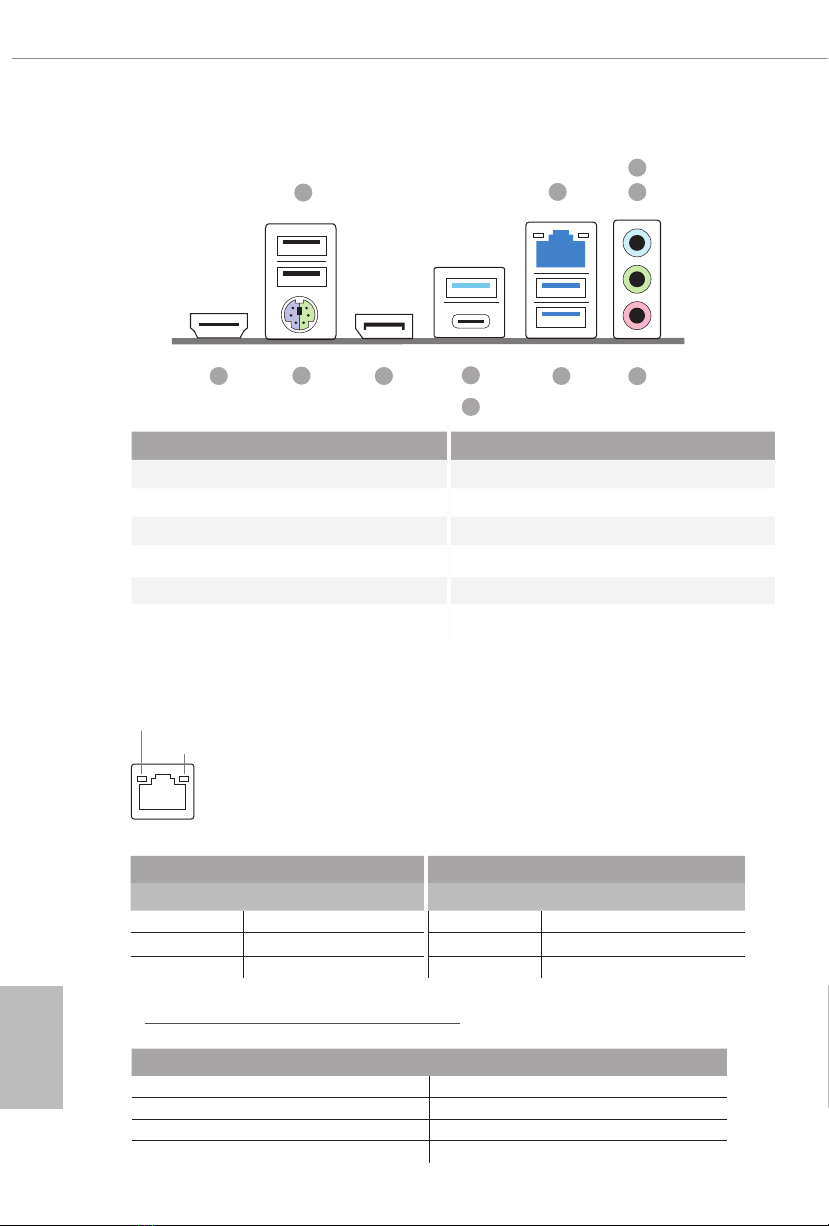

1.4 I/O Panel
ACT/LINK LED
SPEED LED
LAN Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
No. Description No. Description
1 USB 2.0 Ports (USB_12) 7 USB 3.2 Gen1 Type-A Port (USB32_1)
2 2.5G LAN RJ-45 Port* 8 USB 3.2 Gen1 Type-C Port (USB32_TC1)
3 Line In (Light Blue)** 9 DisplayPort 1.4
4 Front Speaker (Lime)** 10 PS/2 Mouse/Keyboard Port
5 Microphone (Pink)** 11 HDMI Port
6 USB 3.2 Gen1 Type-A Ports (USB32_23)
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
7
8
9
11 6
2
5
4
3
10
1

English
9
B760M Pro RS
1.5 Block Diagram
ALC897 (3 jack Audio)
AZ(HD Audio)
RTL8125 2.5G LAN Flash ROM 128Mb
Gen3 x1
M.2 Key E
ASM1074 => 3 port USB 3.2 Gen1 Type A + 1 port USB 3.2 Gen1 Type C
480Mb/s
LED MCU 3* 5V LED Header
1* 12V LED Header Board Side LED *3
Display Port
Channel B
DDR5 Slot x2
5Gb/s 5Gb/s
480Mb/s
Gen4 x4 Gen3 x4 Gen3 x1
Intel 700 Series Chipset
Intel Raptor Lake Processor Socket 1700
Channel A
128-bit Dual-Channel Memory x 4 Slots
DDR5 Slot x2
SIO NCT6796D
PCIe x16 Slot (x16)
DMI Gen4 x4
M.2 Key M(PCIe Gen4 x4) PCIe x4 Slot
Gen4 x4
M.2 Key M PCIe Gen4 x4
Gen5 x16
HDMI
eSPI
UART port x1 KB/MS
FAN x6
H/W Monitor
DDIB DDIC
SATA 4 port
SATA 6Gb
Rear USB 2.0 2 port
480Mb/s
5Gb/s
Front USB 3.2 Gen1 Type C Front USB 3.2 Gen1 Type A 2 port Front USB 2.0 4 port
Gen4 x4
M.2 Key M(PCIe Gen4 x4)
SPI

English
10
is is a Micro ATX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a
grounded wrist strap or touch a safety grounded object before you handle the
components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

English
11
B760M Pro RS
2.1 Installing the CPU
1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap
is on the socket, if the CPU surface is unclean, or if there are any bent pins in the
socket. Do not force to insert the CPU into the socket if above situation is found.
Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
A
B
2 3

English
12
5
76
4
Please save and replace the cover if the processor is removed. e cover must be
placed if you wish to return the motherboard for aer service.

English
13
B760M Pro RS
2.2 Installing the CPU Fan and Heatsink
1 2
CPU_FAN

English
14
2.3 Installing Memory Modules (DIMM)
is motherboard provides four 288-pin DDR5 (Double Data Rate 5) DIMM slots,
and supports Dual Channel Memory Technology.
Recommended Memory Conguration
1 DIMM
2 DIMMs
4 DIMMs
A1 A2 B1 B2
V
A1 A2 B1 B2
VV
A1 A2 B1 B2
VVVV
1. For dual channel conguration, you always need to install identical (the same
brand, speed, size and chip-type) DDR5 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three
memory module installed.
3. It is not allowed to install a DDR, DDR2 , DDR3 or DDR4 memory module into a
DDR5 slot; otherwise, this motherboard and DIMM may be damaged.
4. e DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the DIMM if you force the DIMM into the slot at incorrect
orientation.

English
15
B760M Pro RS
1
2
3

English
16
2.4 Connecting the Front Panel Header
A B C D
1
2
32:(56:
5(6(76:
32:(5/('
32:(5/('
+''/('
3$1(/
Power SW (-) RESET SW (+)
HDD LED (-)
HDD LED (+)
12
910
RESET SW (-)Power SW (+)
Power LED (-)
Power LED (+)
A
B
C
D
PANEL1
HDD LED
RESET SW
System Panel Header Front Panel Wires
