Chapter 1 Introduction
ank you for purchasing ASRock Rack EP2C622D16FM / EP2C621D16FM
motherboard, a reliable motherboard produced under ASRock Rack’s consistently
stringent quality control. It delivers excellent performance with robust design
conforming to ASRock Rack’s commitment to quality and endurance.
In this manual, chapter 1 and 2 contains introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contains the conguration
guide to BIOS setup and information of the Support CD.
1.1 Package Contents
• ASRock Rack EP2C622D16FM / EP2C621D16FM Motherboard
(SSI CEB Form Factor: 12'' x 10.5'', 30.5 cm x 26.7 cm)
• Support CD
• Quick Installation Guide
• 1 x SATA3 Cable (60 cm) (for EP2C621D16FM only)
• 1 x Mini SAS HD (12G) to 4SATA Cable (60cm)
• 2 x Screws for M.2 Sockets (for EP2C621D16FM only)
• 1 x VGA Cable (15 cm) (for EP2C621D16FM only)
*Please refer to p.28 for the pin denition of the VGA connector.
If any items are missing or appear damaged, contact your authorized dealer.
Because the motherboard specications and the BIOS soware might be updated, the con-
tent of this manual will be subject to change without notice. In case any modications of
this manual occur, the updated version will be available on ASRock Rack website without
further notice. You may nd the latest memory and CPU support lists on ASRock Rack
website as well. ASRock Rack’s Website: www.ASRockRack.com
If you require technical support related to this motherboard, please visit our website for
specic information about the model you are using.
http://www.asrockrack.com/support/

2 3
English
1.2 Specications
EP2C622D16FM / EP2C621D16FM
MB Physical Status
Form Factor SSI CEB
Dimension 12'' x 10.5'' (30.5 cm x 26.7 cm)
Processor System
CPU Intel® Xeon® Scalable Processors
Socket Dual Socket LGA-3647
Chipset EP2C622D16FM:
Intel® C622
EP2C621D16FM:
Intel® C621
System Memory
Capacity 16 x 288-pin DDR4 DIMM slots
Type - Six Channels DDR4 memory technolgy
- Supports DDR4 2133/2400/2666 RDIMM,LR DIMM,NV
DIMM ECC
Voltage 1.2V
DIMM Sizes - RDIMM: 32GB, 16GB, 8GB, 4GB
- LRDIMM: 64GB, 32GB
Expansion Slot
M.2 2x M.2 from PCH (2230/2242/2260/2280, support PCIe x2 or
SATA3 M.2)
Mezzanine - 2 x x8 Mezzanine Type A (1x for OCP LAN, 1x for Storage )
- 2 x x8 Mezzanine Type B
- 1 xx8 Mezzanine Type C (support OCP type)
Additional PCIe
Slots
- 2 x x8 Slimline Connectors
Storage
SATA Controller Intel® C622/C621 :14 x SATA3 6.0 Gb/s (12 from 3 x mini SAS
connector + 2 x SATA connector or 2 x M.2 from PCH)
*e 2 x M.2 slot is shared with the 2 x SATA connector.
Management
BMC Controller ASPEED AST2500 : IPMI (Intelligent Platform Management
Interface) 2.0 with ikvm and vMedia support
IPMI Dedicated
GLAN
1 x Realtek RTL8211E for dedicated management LAN
Features - Watch Dog
- NMI

EP2C622D16FM / EP2C621D16FM
2 3
English
Graphics
Controller ASPEED AST2500
VRAM DDR4L 256Mb
Output Supports D-Sub with max. resolution up to 1920x1200 @
60Hz
Rear Panel I/O
USB 3.0 Port 2
LAN Port LAN Ports with LED (ACT/LINK LED and SPEED LED),
dedicate for IPMI
Dedicate LAN RT8211E
UID Buttom/LED 1
NMI Button 1
Internal Connector
Auxiliary Panel
Header
1 (includes chassis intrusion, location button & LED, front
LAN LED)
TPM Header 1
IPMB Header 1
COM Header 1
VGA Header 1
Fan Header 6 x System Fans (6-pin)
ATX Power 1x (24-pin) + 2x (8-pin)
Front Panel 1
System BIOS
BIOS Ty pe 256Mb AMI UEFI Legal BIOS
BIOS Features - Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash
Hardware Monitor
Temperature - CPU Temperature Sensing
- System Temperature Sensing
Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by
CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,
+1.1V,+1.0V, +BAT, 3VSB, 5VSB

4 5
English
Support OS
OS Microso® Windows® (Server OS)
- Server 2012 R2 (64 bit)
- Server 2016 (64 bit)
Linux®
- RedHat Enterprise Linux Server 6.8 (64 bit) / 7.4 (64 bit)
- CentOS 6.8 (64 bit) / 7. 4 (64 bit)
- SUSE Enterprise Linux Server 11 SP4 (64 bit) /12 SP3 (64 bit)
- FreeBSD 11 (64 bit)
- Ubuntu 16.04/15.10 (64 bit)
Virtual:
- VMWare ESXi 6.5
* Please refer to our website for the latest OS support list.
* Before installing the Linux OS, please rst enter the BIOS settings, go to
“Advanced” > “Chipset Conguration” and set “IGPU Multi-Monitor” option
to “Disabled”.
Environment
Temperature - Operation temperature: 10°C ~ 35°C /
Non operation temperature: -40°C ~ 70°C
*Install a CPU Fan when the airow through the heatsink is below 2CFM.
NOTE: Please refer to our website for the latest specications.
is motherboard supports Wake from on Board LAN. To use this function, please make
sure that the “Wake on Magic Packet from power o state” is enabled in Device Manager
> Intel® Ethernet Connection > Power Management. And the “PCI Devices Power On” is
enabled in UEFI SETUP UTILITY > Advanced > ACPI Conguration. Aer that, onboard
LAN1&2 can wake up S5 under OS.
If you install Intel® LAN utility or Marvell SATA utility, this motherboard may fail Win-
dows® Hardware Quality Lab (WHQL) certication tests. If you install the drivers only, it
will pass the WHQL tests.

EP2C622D16FM / EP2C621D16FM
4 5
English
1.3 Unique Features
ASRock Rack Instant Flash is a BIOS ash utility embedded in Flash ROM. is con-
venient BIOS update tool allows you to update system BIOS without entering operat-
ing systems rst like MS-DOS or Windows®. With this utility, you can press the <F6>
key during the POST or the <F2> key to enter into the BIOS setup menu to access
ASRock Rack Instant Flash. Just launch this tool and save the new BIOS le to your
USB ash drive, oppy disk or hard drive, then you can update your BIOS only in a
few clicks without preparing an additional oppy diskette or other complicated ash
utility. Please be noted that the USB ash drive or hard drive must use FAT32/16/12
le system.

6 7
English

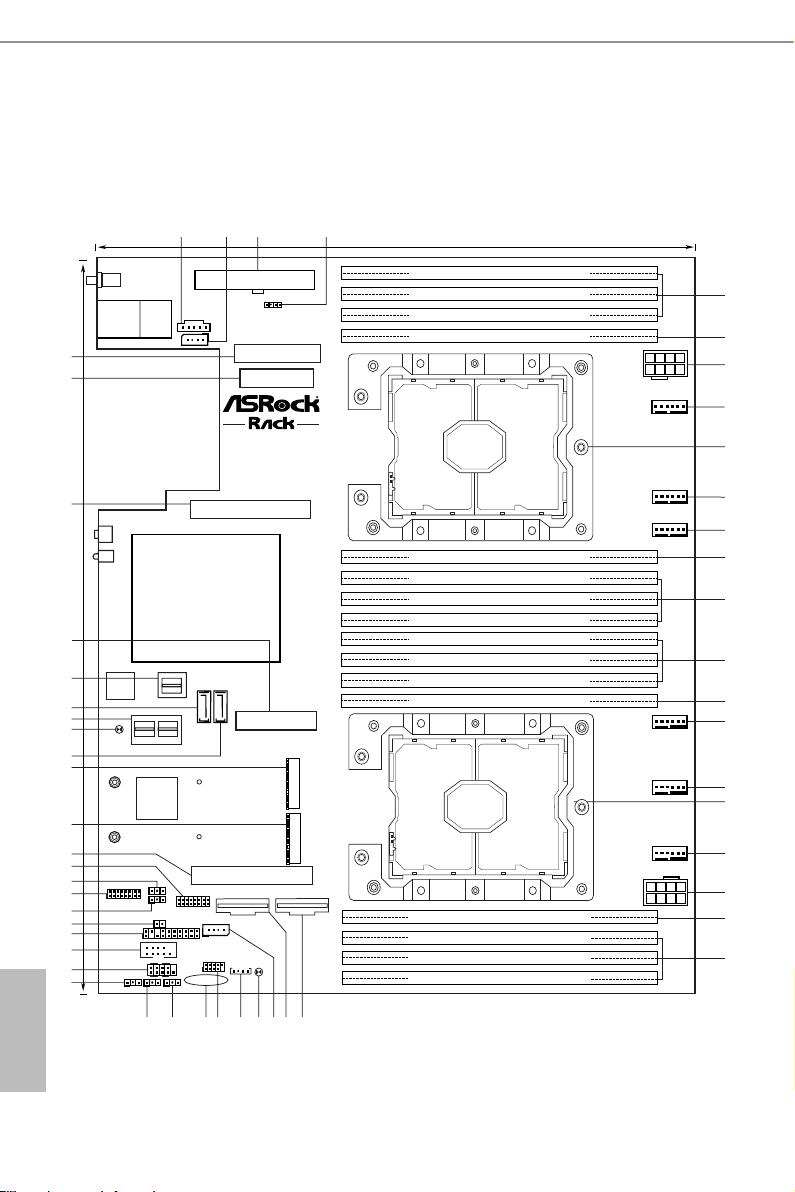

1.4 Motherboard Layout
EP2C622D16FM / EP2C621D16FM
26.7 cm (10.5 in)
USB 3.0
T: USB2
B: USB1
DDR4_A2 (64 bit, 288-pin module, White)
DDR4_A1 (64 bit, 288-pin module, Blue)
DDR4_B1 (64 bit, 288-pin module, Blue)
DDR4_C1 (64 bit, 288-pin module, Blue)
Intel
C622/C621
DDR4_F1 (64 bit, 288-pin module, Blue)
DDR4_E1 (64 bit, 288-pin module, Blue)
DDR4_D1 (64 bit, 288-pin module, Blue)
DDR4_D2 (64 bit, 288-pin module, White)
DDR4_L1 (64 bit, 288-pin module, Blue)
DDR4_K1 (64 bit, 288-pin module ), Blue
DDR4_J1 (64 bit, 288-pin module), Blue
DDR4_J2 (64 bit, 288-pin module), White
DDR4_G2 (64 bit, 288-pin module, White)
DDR4_G1 (64 bit, 288-pin module, Blue)
DDR4_H1 (64 bit, 288-pin module, Blue)
DDR4_I1 (64 bit, 288-pin module, Blue)
RoHS
IPMI_LAN
CPU1_PWR
5
CPU2_PWR
6
12
14
15
16
21
20
CPU1_FAN1
FRNT_FAN1
FRNT_FAN2
CPU2_FAN1
FRNT_FAN3
FRNT_FAN4
1
MEZZ_B1
MEZZ_A1
UID1
SATA_0_7
MAIN_PWR
42
1
NUT42
NUT80
3
7
9
8
10
11
13
17
18
19
22
30.5 cm (12 in)
CPU1
MEZZ_C1
CPU2
1
M2_1
M2_2
NUT42_2
NUT80_2
MEZZ_A2
MEZZ_B2
SSATA_0
SSATA_1
11
1
1
1
1
1
HDLED RESET
PLED PWRBTN
1
NMI1
SYS_LED1
BIOS
ROM
BMC
SLIMLIN1
SLIMLIN2
BATT(CR2032)
ME_RECOVERY
AUX_PENEL1
IPMB1
USB1_2
CHASSIS_ID1CHASSIS_ID2CHASSIS_ID3
PWR_PMB
BPB_SMB
NCSI_SEL1
VGA
RAID_1
TPM1
PENEL1
COM
1
FRONT_LED_LAN34
CLRMOS1
1
SSATA_2_5
NMI_BTN1
SYS_RST1
1
232425262728293031
33
32
35
34
36
37
38
39
40
41
42
43
44
45
46
47
48
49
51
52
50

EP2C622D16FM / EP2C621D16FM
6 7
English
No. Description
1 PWR PMBus Header (PWR_PMB1)
2 BPB SMBus Header (BPB_SMB)
3 ATX Power Connector (MAIN_PWR)
4 Front Lan LED Connector (FRONT_LED_LAN34)
5 3 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1, DDR4_C1)
6 1 x 288-pin DDR4 DIMM Slot (DDR4_A2)
7 CPU1 ATX 12V Power Connector (CPU1_PWR)
8 CPU1 Fan Connector (CPU1_FAN1)
9 CPU Socket 1 LGA-3647 (Socket P) (CPU1)
10 Front Fan Connector (FRNT_FAN1)
11 Front Fan Connector (FRNT_FAN2)
12 1 x 288-pin DDR4 DIMM Slot (DDR4_D2)
13 3 x 288-pin DDR4 DIMM Slots (DDR4_D1, DDR4_E1, DDR4_F1)
14 3 x 288-pin DDR4 DIMM Slots (DDR4_G1, DDR4_H1, DDR4_I1)
15 1 x 288-pin DDR4 DIMM Slot (DDR4_G2)
16 CPU2 Fan Connector (CPU2_FAN1)
17 Front Fan Connector (FRNT_FAN3)
18 CPU Socket 2 LGA-3647 (Socket P) (CPU2)
19 Front Fan Connector (FRNT_FAN4)
20 CPU2 ATX 12V Power Connector (CPU2_PWR)
21 1 x 288-pin DDR4 DIMM Slot (DDR4_J2)
22 3 x 288-pin DDR4 DIMM Slots (DDR4_J1, DDR4_K1, DDR4_L1)
23 Slimline NVMe Connector (SLIMLIN1)
24 Slimline NVMe Connector (SLIMLIN2)
25 Intelligent Platform Management Bus header (IPMB_1)
26 Clear CMOS Pad (SYS_RST1)
27 Virtual RAID On CPU Header (RAID_1)
28 USB 2.0 Header (USB1_2)
29 Battery (BATT(CR2032))
30 Chassis ID3 Jumper (CHASSIS_ID3)
31 Chassis ID2 Jumper (CHASSIS_ID2)
32 Chassis ID1 Jumper (CHASSIS_ID1)
33 System Panel Header (PANEL1)
34 COM Port Header (COM)

8 9
English
No. Description
35 Auxiliary Panel Header (AUX_PANEL1)
36 Non Maskable Interrupt Button (NMI_BTN1)
37 NCSI Mode Jumper (NCSI_SEL1)
38 VGA Header (VGA)
39 ME Recovery Jumper (ME_RECOVERY1)
40 TPM Header (TPM1)
41 Mezzanine Card Slot (MEZZ_A2)
42 M.2 Socket (M2_2) (Type 2242 / 2280)
43 M.2 Socket (M2_1) (Type 2242 / 2280)
44 SATA3 Connector (SSATA_0)
45 Clear CMOS Pad (CLRMOS1)
46 MINI-SAS HD Connector (SATA_0_7)
47 SATA3 Connector (SSATA_1)
48 MINI-SAS HD Connector (SSATA_2_5)
49 Mezzanine Card Slot (MEZZ_B2)
50 Mezzanine Card Slot (MEZZ_A1)
51 Mezzanine Card Slot (MEZZ_C1)
52 Mezzanine Card Slot (MEZZ_B1)

EP2C622D16FM / EP2C621D16FM
8 9
English
1.5 Onboard LED Indicators
DDR4_A2 (64 bit, 288-pin module, White)
DDR4_A1 (64 bit, 288-pin module, Blue)
DDR4_B1 (64 bit, 288-pin module, Blue)
DDR4_C1 (64 bit, 288-pin module, Blue)
Intel
C622/C621
DDR4_F1 (64 bit, 288-pin module, Blue)
DDR4_E1 (64 bit, 288-pin module, Blue)
DDR4_D1 (64 bit, 288-pin module, Blue)
DDR4_D2 (64 bit, 288-pin module, White)
DDR4_L1 (64 bit, 288-pin module, Blue)
DDR4_K1 (64 bit, 288-pin module ), Blue
DDR4_J1 (64 bit, 288-pin module ), Blue
DDR4_J2 (64 bit, 288-pin module ), White
DDR4_G2 (64 bit, 288-pin module, White)
DDR4_G1 (64 bit, 288-pin module, Blue)
DDR4_H1 (64 bit, 288-pin module, Blue)
DDR4_I1 (64 bit, 288-pin module, Blue)
RoHS
1
MEZZ_B1
MEZZ_A1
NUT42
NUT80
CPU1
MEZZ_C1
CPU2
1
M2_1
M2_2
NUT42_2
NUT80_2
MEZZ_A2
MEZZ_B2
11
1
1
1
1
1
1
BIOS
ROM
BMC
1
1
1
1
8
5
6
7
2
3
4
9
10

10 11
English
No. Item Status Description
1 Power Supply Power Good Green Power supply ready
2 CPU1_FAN1 Error LED Amber CPU1_FAN1 failed
3 FRNT_FAN1 Error LED Amber FRNT_FAN1 failed
4 FRNT_FAN2 Error LED Amber FRNT_FAN2 failed
5 CPU2_FAN1 Error LED Amber CPU2_FAN1 failed
6 FRNT_FAN3 Error LED Amber FRNT_FAN3 failed
7 FRNT_FAN4 Error LED Amber FRNT_FAN4 failed
8 BMC heart beat LED Green BMC heartbeat LED
9CATERR LED Amber CPU failed
10 80 port LED Green Debug port

EP2C622D16FM / EP2C621D16FM
10 11
English
1.6 I/O Panel
1
2
3 4 5
No. Description No. Description
1 UID Switch (UID1) 4 NMI Button (NMI1)
2 LAN RJ-45 Port (IPMI_LAN) 5 System Stats LED (SYS_LED1)
3 USB 3.0 Ports (USB3_1_2)
System Stats LED Indications
System Event LED
Status Description
O Running or normal operation
Red At least one sensor has critical alert
LAN Port LED Indications
ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Orange 100M bps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port

12 13
English
1.7 Block Diagram
EP2C622D16FM Block Diagram

EP2C622D16FM / EP2C621D16FM
12 13
English
Chapter 2 Installation
is is a SSI CEB form factor (12'' x 10.5'', 30.5 cm x 26.7 cm) motherboard. Before you
install the motherboard, study the configuration of your chassis to ensure that the
motherboard ts into it.
2.1 Screw Holes
Place screws into the holes indicated by circles to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components or
change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the motherboard’s components due to static electricity, NEVER
place your motherboard directly on the carpet or the like. Also remember to use a
grounded wrist strap or touch a safety grounded object before you handle the compo-
nents.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-static pad or in
the bag that comes with the component.
5. When placing screws into the screw holes to secure the motherboard to the chassis,
please do not over-tighten the screws! Doing so may damage the motherboard.
Before you install or remove any component, ensure that the power is switched o or the
power cord is detached from the power supply. Failure to do so may cause severe damage to
the motherboard, peripherals, and/or components.
Make sure to unplug the power cord before installing or removing the motherboard. Failure
to do so may cause physical injuries to you and damages to motherboard components.

14 15
English
2.3 Installing the CPU and Heatsink
1. Before you insert the CPU into the socket, please check if the PnP cap is on the socket,
if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to
insert the CPU into the socket if above situation is found. Otherwise, the CPU will be
seriously damaged.
2. Unplug all power cables before installing the CPU.
1
2
