ASRock G41M-VGS3 / G41M-VS3 Motherboard
EnglishEnglish EnglishEnglish
English
Copyright Notice:Copyright Notice:
Copyright Notice:Copyright Notice:
Copyright Notice:
No part of this installation guide may be reproduced, transcribed, transmitted, or trans-
lated in any language, in any form or by any means, except duplication of documen-
tation by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this guide may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identifica-
tion or explanation and to the owners’ benefit, without intent to infringe.
Disclaimer:Disclaimer:
Disclaimer:Disclaimer:
Disclaimer:
Specifications and information contained in this guide are furnished for informational
use only and subject to change without notice, and should not be constructed as a
commitment by ASRock. ASRock assumes no responsibility for any errors or omissions
that may appear in this guide.
With respect to the contents of this guide, ASRock does not provide warranty of any kind,
either expressed or implied, including but not limited to the implied warranties or
conditions of merchantability or fitness for a particular purpose. In no event shall
ASRock, its directors, officers, employees, or agents be liable for any indirect, special,
incidental, or consequential damages (including damages for loss of profits, loss of
business, loss of data, interruption of business and the like), even if ASRock has been
advised of the possibility of such damages arising from any defect or error in the guide
or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Published December 2013
Copyright©2013 ASRock INC. All rights reserved.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic
substance controlled in Perchlorate Best Management Practices (BMP) regulations
passed by the California Legislature. When you discard the Lithium battery in
California, USA, please follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate”
ASRock Website: http://www.asrock.com

22
22
2ASRock G41M-VGS3 / G41M-VS3 Motherboard
EnglishEnglish
EnglishEnglish
English
Motherboard LayoutMotherboard Layout
Motherboard LayoutMotherboard Layout
Motherboard Layout
(G41M-(G41M-
(G41M-(G41M-
(G41M-VGS3 / G41M-VGS3 / G41M-
VGS3 / G41M-VGS3 / G41M-
VGS3 / G41M-VS3)VS3)
VS3)VS3)
VS3)
1 PS2_USB_PWR1 Jumper 15 USB 2.0 Header (USB4_5, Blue)
2 ATX 12V Connector (ATX12V2) 16 Chassis Fan Connector (CHA_FAN1)
3 CPU Fan Connector (CPU_FAN1) 17 USB 2.0 Header (USB6_7, Blue)
4 ATX Power Connector (ATXPWR1) 18 Clear CMOS Jumper (CLRCMOS1)
5 2 x 240-pin DDR3 DIMM Slots 19 BIOS SPI Chip
(Dual Channel: DDR3_A1, DDR3_B1; Blue) 20 PCI Slot (PCI1)
6 North Bridge Controller 21 PCI Express x16 Slot (PCIE1)
7 South Bridge Controller 22 EUP Audio Jumper (EUP_AUDIO1)
8 System Panel Header (PANEL1, White) 23 EUP LAN Jumper (EUP_LAN1)
9 IDE1 Connector (IDE1, Blue) 24 Front Panel Audio Header
10 Primary SATAII Connector (SATAII_1; Blue) (HD_AUDIO1, White)
11 Secondary SATAII Connector (SATAII_2;Blue) 25 Serial Port Connector (COM1)
12 Third SATAII Connector (SATAII_3; Blue) 26 Print Port Header (LPT1, White)
13 Fourth SATAII Connector (SATAII_4; Blue) 27 FSB1 Jumper
14 Chassis Speaker Header (SPEAKER 1, White) 28 775-Pin CPU Socket
1
PS2_USB_PWR1
IDE1
CHA_FAN1
SPEAKER1
1
HD_AUDIO1
Intel
G41
Chipset
CLRCMOS1
PANEL1
HDLED RESET
PLED PWRBTN
1
8Mb
BIOS
1
AUDIO
CODEC
17.0cm (6.7 in)
22.6cm (8.9 in)
ATX12V2
Super
IO
124
5
7
6
8
910
12
13
14 11
15
16
17
18
19
3
20
21
Intel
ICH7
FSB800
DDR3_A1 (64 bit, 240-pin module)
FSB800
DDR3_B1 (64 bit, 240-pin module)
SATAII_1SATAII_2
PCIE1
LAN
PHY
USB 2.0
T: USB2
B: USB3
USB 2.0
T: USB0
B: USB1
Top:
RJ-45
PS2
Mouse
PS2
Keyboard
VGA1
Top:
Line In
Center:
Line Out
Bottom:
Mic In
CPU_FAN1
1
USB6_7
PCI1
1
USB4_5
FSB1333
ErP/
DDR3 1333
Dual Channel
EuP Ready
Designed in Taipei
RoHS
CMOS
Battery
1
LPT1
22
DX10
EUP_LAN
1
EUP_AUDIO1
1
23
SATAII_3SATAII_4
1
FSB1
24
25
26
COM1
1
27
28

33
33
3
ASRock G41M-VGS3 / G41M-VS3 Motherboard
EnglishEnglish EnglishEnglish
English
I/O PI/O P
I/O PI/O P
I/O Panel (G41M-anel (G41M-
anel (G41M-anel (G41M-
anel (G41M-VGS3)VGS3)
VGS3)VGS3)
VGS3)
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Activity Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
Green 1Gbps connection LAN Port
ACT/LINK
LED SPEED
LED
1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB01)
* 2 RJ-45 Port 7 USB 2.0 Ports (USB23)
3 Line In (Light Blue) 8 VGAPort
4 Line Out (Lime) 9 PS/2 Keyboard Port (Purple)
5 Microphone (Pink)
To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. Please refer to below steps for the software setting of Multi-Streaming.
For Windows®XP:
After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer
ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or
“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker
and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then
reboot your system.
For Windows®7 / VistaTM:
After restarting your computer, please double-click “Realtek HD Audio Manager” on the
system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device
advanced settings”, choose “Make front and rear output devices playbacks two different audio
streams simultaneously”, and click “ok”. Then reboot your system.

44
44
4ASRock G41M-VGS3 / G41M-VS3 Motherboard
EnglishEnglish
EnglishEnglish
English
I/O PI/O P
I/O PI/O P
I/O Panel (G41M-anel (G41M-
anel (G41M-anel (G41M-
anel (G41M-VS3)VS3)
VS3)VS3)
VS3)
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Activity Off 10Mbps connection
Blinking Data Activity Green 100Mbps connection
LAN Port
ACT/LINK
LED SPEED
LED
1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB01)
* 2 RJ-45 Port 7 USB 2.0 Ports (USB23)
3 Line In (Light Blue) 8 VGAPort
4 Line Out (Lime) 9 PS/2 Keyboard Port (Purple)
5 Microphone (Pink)
To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. Please refer to below steps for the software setting of Multi-Streaming.
For Windows®XP:
After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer
ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or
“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker
and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then
reboot your system.
For Windows®7 / VistaTM:
After restarting your computer, please double-click “Realtek HD Audio Manager” on the
system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device
advanced settings”, choose “Make front and rear output devices playbacks two different audio
streams simultaneously”, and click “ok”. Then reboot your system.

55
55
5
ASRock G41M-VGS3 / G41M-VS3 Motherboard
1. Introduction1. Introduction
1. Introduction1. Introduction
1. Introduction
Thank you for purchasing ASRock G41M-VGS3 / G41M-VS3 motherboard, a reli-
able motherboard produced under ASRock’s consistently stringent quality control. It
delivers excellent performance with robust design conforming to ASRock’s commit-
ment to quality and endurance.
This Quick Installation Guide contains introduction of the motherboard and step-by-
step installation guide. More detailed information of the motherboard can be found in
the user manual presented in the Support CD.
Because the motherboard specifications and the BIOS software might
be updated, the content of this manual will be subject to change without
notice. In case any modifications of this manual occur, the updated
version will be available on ASRock website without further notice. You
may find the latest VGA cards and CPU support lists on ASRock website
as well. ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
our website for specific information about the model you are using.
www.asrock.com/support/index.asp
1.1 Package Contents1.1 Package Contents
1.1 Package Contents1.1 Package Contents
1.1 Package Contents
ASRock G41M-VGS3 / G41M-VS3 Motherboard
(Micro ATX Form Factor: 8.9-in x 6.7-in, 22.6 cm x 17.0 cm)
ASRock G41M-VGS3 / G41M-VS3 Quick Installation Guide
ASRock G41M-VGS3 / G41M-VS3 Support CD
Two Serial ATA (SATA) Data Cables (Optional)
One I/O Panel Shield
EnglishEnglish EnglishEnglish
English

66
66
6ASRock G41M-VGS3 / G41M-VS3 Motherboard
EnglishEnglish
EnglishEnglish
English
1.21.2
1.21.2
1.2 SpecificationsSpecifications
SpecificationsSpecifications
Specifications
Platform - Micro ATX Form Factor: 8.9-in x 6.7-in, 22.6 cm x 17.0 cm
CPU - LGA 775 for Intel®CoreTM 2 Extreme / CoreTM 2 Quad / CoreTM
2 Duo / Pentium®Dual Core / Celeron®Dual Core / Celeron®,
supporting Penryn Quad Core Yorkfield and Dual Core
Wolfdale processors
- Supports FSB1333/1066/800/533 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset - Northbridge: Intel®G41
- Southbridge: Intel®ICH7
Memory - Dual Channel DDR3 Memory Technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered
memory (see CAUTION 1)
- Max. capacity of system memory: 8GB (see CAUTION 2)
Expansion Slot - 1 x PCI Express x16 slot
- 1 x PCI slot
Graphics - Intel®Graphics Media Accelerator X4500
- Pixel Shader 4.0, DirectX 10
- Max. shared memory 1759MB
- Supports D-Sub with max. resolution up to 2048x1536 @
75Hz
Audio - 5.1 CH HDAudio (Realtek ALC662 / VIA®VT1705 Audio Codec)
LAN - G41M-VGS3
Atheros®PCIE x1 Gigabit LAN AR8151,
speed 10/100/1000 Mb/s
- G41M-VS3
Atheros®PCIE x1 LAN AR8152, speed 10/100 Mb/s
- Supports Wake-On-LAN
Rear Panel I/O I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone

77
77
7
ASRock G41M-VGS3 / G41M-VS3 Motherboard
EnglishEnglish EnglishEnglish
English
Connector - 4 x SATAII 3.0 Gb/s connectors (No Support for RAID and
“Hot Plug” functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Print port header
- 1 x COM port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
BIOS Feature - 8Mb AMI BIOS
- AMI Legal BIOS
- Supports “Plug and Play”
- ACPI 1.1 Compliance Wake Up Events
- AMBIOS 2.3.1 Support
- VCCM, NB, VTT, GTLRef Voltage Multi-adjustment
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),
Google Chrome Browser and Toolbar
Unique Feature - ASRock OC Tuner (see CAUTION 3)
- Intelligent Energy Saver (see CAUTION 4)
- Instant Boot
- ASRock Instant Flash (see CAUTION 5)
- ASRock OC DNA (see CAUTION 6)
- ASRock APP Charger (see CAUTION 7)
- Hybrid Booster:
- CPU Frequency Stepless Control (see CAUTION 8)
- ASRock U-COP (see CAUTION 9)
- Boot Failure Guard (B.F.G.)
Hardware - CPU Temperature Sensing
Monitor - Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
OS - Microsoft® Windows®7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP
/ XP 64-bit compliant
Certifications - FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
* For detailed product information, please visit our website: http://www.asrock.com

88
88
8ASRock G41M-VGS3 / G41M-VS3 Motherboard
EnglishEnglish
EnglishEnglish
English
CAUTION!
1. Please check the table below for the CPU FSB frequency and its
corresponding memory support frequency.
CPU FSB Frequency Memory Support Frequency
1333 DDR3 800, DDR3 1066, DDR3 1333
1066 DDR3 800, DDR3 1066
800 DDR3 800
533 DDR3 800
* DDR3 1333 memory modules will operate in overclocking mode.
* When you use a FSB533-CPU on this motherboard, it will run at
DDR3 533 if you adopt a DDR3 800 memory module.
* If you adopt FSB1333-CPU and DDR3 1333 memory module on this
motherboard, you need to adjust the jumper. Please refer to page 11
for proper jumper settings.
2. Due to the operating system limitation, the actual memory size may be
less than 4GB for the reservation for system usage under Windows®7 /
VistaTM / XP. For Windows®OS with 64-bit CPU, there is no such limitation.
3. It is a user-friendly ASRock overclocking tool which allows you to surveil
your system by hardware monitor function and overclock your hardware
devices to get the best system performance under Windows®
environment. Please visit our website for the operation procedures of
ASRock OC Tuner. ASRock website: http://www.asrock.com
4. Featuring an advanced proprietary hardware and software design,
Intelligent Energy Saver is a revolutionary technology that delivers
unparalleled power savings. In other words, it is able to provide excep-
tional power saving and improve power efficiency without sacrificing
computing performance. Please visit our website for the operation pro-
cedures of Intelligent Energy Saver.
ASRock website: http://www.asrock.com
WARNING
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using the third-
party overclocking tools. Overclocking may affect your system stability, or even
cause damage to the components and devices of your system. It should be done at
your own risk and expense. We are not responsible for possible damage caused by
overclocking.

99
99
9
ASRock G41M-VGS3 / G41M-VS3 Motherboard
EnglishEnglish EnglishEnglish
English
5. ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM.
This convenient BIOS update tool allows you to update system BIOS
without entering operating systems first like MS-DOS or Windows®. With
this utility, you can press <F6> key during the POST or press <F2> key to
BIOS setup menu to access ASRock Instant Flash. Just launch this tool
and save the new BIOS file to your USB flash drive, floppy disk or hard
drive, then you can update your BIOS only in a few clicks without prepar-
ing an additional floppy diskette or other complicated flash utility. Please
be noted that the USB flash drive or hard drive must use FAT32/16/12 file
system.
6. The software name itself – OC DNA literally tells you what it is capable
of. OC DNA, an exclusive utility developed by ASRock, provides a conve-
nient way for the user to record the OC settings and share with others. It
helps you to save your overclocking record under the operating system
and simplifies the complicated recording process of overclocking settings.
With OC DNA, you can save your OC settings as a profile and share with
your friends! Your friends then can load the OC profile to their own system
to get the same OC settings as yours! Please be noticed that the OC
profile can only be shared and worked on the same motherboard.
7. If you desire a faster, less restricted way of charging your Apple devices,
such as iPhone/iPod/iPad Touch, ASRock has prepared a wonderful
solution for you - ASRock APP Charger. Simply installing the APP Charger
driver, it makes your iPhone charged much quickly from your computer
and up to 40% faster than before. ASRock APP Charger allows you to
quickly charge many Apple devices simultaneously and even supports
continuous charging when your PC enters into Standby mode (S1),
Suspend to RAM (S3), hibernation mode (S4) or power off (S5). With
APP Charger driver installed, you can easily enjoy the marvelous charg-
ing experience than ever.
ASRock website: http://www.asrock.com/Feature/AppCharger/index.asp
8. Although this motherboard offers stepless control, it is not recom-
mended to perform over-clocking. Frequencies other than the recom-
mended CPU bus frequencies may cause the instability of the system
or damage the CPU.
9. While CPU overheat is detected, the system will automatically shutdown.
Before you resume the system, please check if the CPU fan on the
motherboard functions properly and unplug the power cord, then plug it
back again. To improve heat dissipation, remember to spray thermal
grease between the CPU and the heatsink when you install the PC
system.

1010
1010
10 ASRock G41M-VGS3 / G41M-VS3 Motherboard
EnglishEnglish
EnglishEnglish
English
1.3 Jumpers Setup1.3 Jumpers Setup
1.3 Jumpers Setup1.3 Jumpers Setup
1.3 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose pin1
and pin2 are “Short” when jumper cap is
placed on these 2 pins.
Jumper Setting Description
PS2_USB_PWR1 Short pin2, pin3 to enable
(see p.2 No. 1) +5VSB (standby) for PS/2
or USB wake up events.
Note: To select +5VSB, it requires 2 Amp and higher standby current provided by
power supply.
Clear CMOS
(CLRCMOS1, 2-pin jumper)
(see p.2 No. 18)
Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes
system setup information such as system password, date, time, and system
setup parameters. To clear and reset the system parameters to default setup,
please turn off the computer and unplug the power cord from the power
supply. After waiting for 15 seconds, use a jumper cap to short 2 pins on
CLRCMOS1 for 5 seconds.
2-pin jumper
Short Open
EUP LAN / EUP Audio Jumper
(EUP_LAN1, 3-pin jumper, see p.2 No. 23)
(EUP_AUDIO1, 3-pin jumper, see p.2 No. 22)
Note: EUP_LAN and EUP_AUDIO jumper design decreases the power consumption
of this motherboard to meet EuP standard. With an ASRock EuP ready
motherboard and a power supply that the 5VSB power efficiency is higher
than 50% under 100mA current consumption, your system is able to submit
EuP standard. The default setting (short pin1 and pin2) is EuP enabled. If you
want to disable this power saving function, you may short pin2 and pin3.
Please be noticed that when EUP_LAN jumper is set to enabled, the
Wake-On-LAN function under S3 (Suspend to RAM), S4 (Suspend to Disk),
and S5 (Soft Off) will be disabled.
Default (Enable EuP)
(Disable EuP)

1111
1111
11
ASRock G41M-VGS3 / G41M-VS3 Motherboard
EnglishEnglish EnglishEnglish
English
FSB1 Jumper
(FSB1, 3-pin jumper, see p.2 No. 27)
If you adopt FSB1333-CPU and DDR3 1333 memory module on this motherboard, you
need to adjust the jumper. Please short pin2, pin3 for FSB1 jumper. Otherwise, the
CPU and memory module may not work properly on this motherboard. Please refer to
below jumper setting.
Default

1212
1212
12 ASRock G41M-VGS3 / G41M-VS3 Motherboard
EnglishEnglish
EnglishEnglish
English

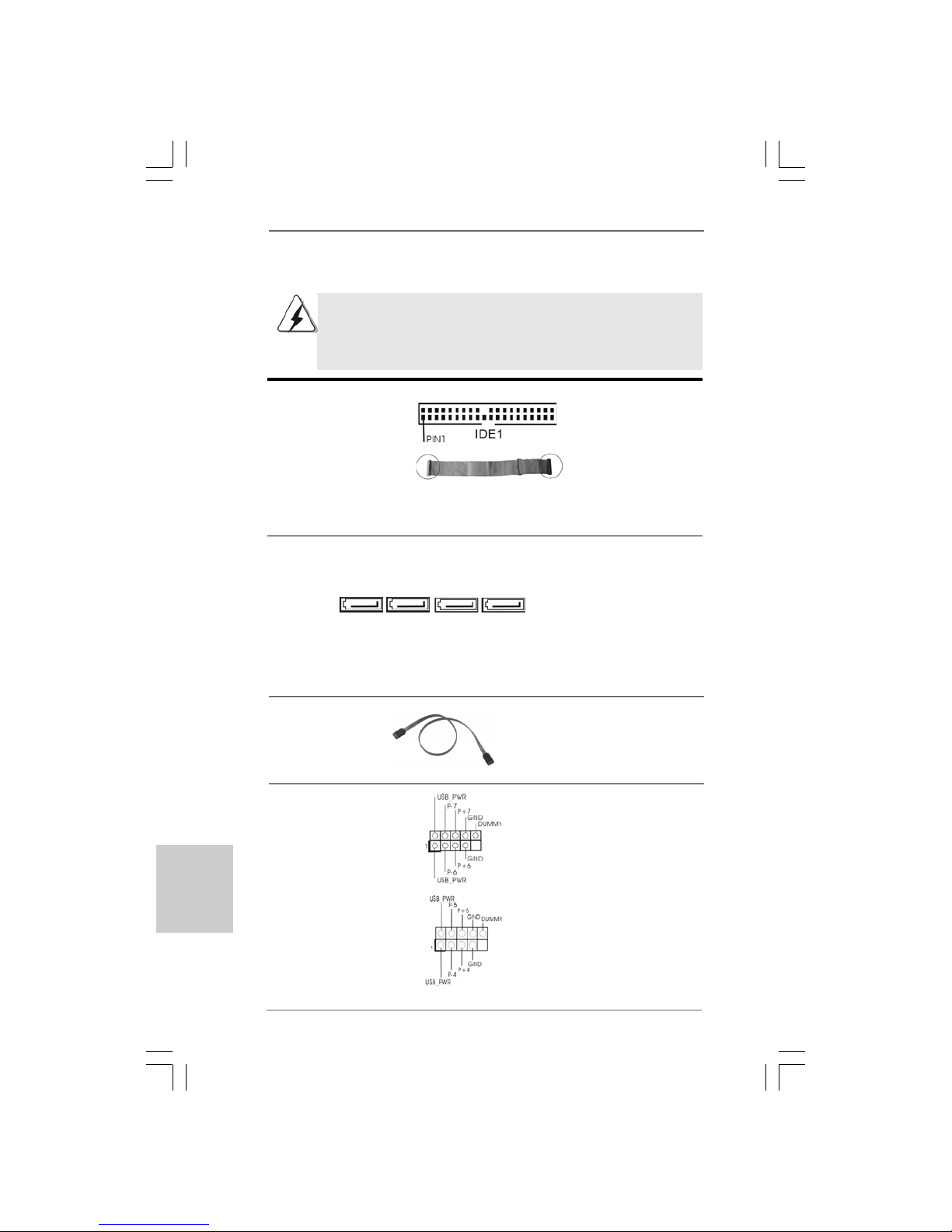

USB 2.0 Headers Besides four default USB 2.0
(9-pin USB6_7) ports on the I/O panel, there are
(see p.2 No. 17) two USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB
2.0 ports.
(9-pin USB4_5)
(see p.2 No. 15)
1.4 Onboard Headers and Connectors1.4 Onboard Headers and Connectors
1.4 Onboard Headers and Connectors1.4 Onboard Headers and Connectors
1.4 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Primary IDE connector (Blue)
(39-pin IDE1, see p.2 No. 9)
Note: Please refer to the instruction of your IDE device vendor for the details.
Serial ATAII Connectors These Serial ATAII (SATAII)
(SATAII_1: connectors support SATAII
see p.2, No. 10) or SATA hard disk for internal
(SATAII_2: storage devices. The current
see p.2, No. 11) SATAII interface allows up to
(SATAII_3: 3.0 Gb/s data transfer rate.
see p.2, No. 12)
(SATAII_4:
see p.2, No. 13)
Serial ATA (SATA) Either end of the SATA data cable
Data Cable can be connected to the SATA /
(Optional) SATAII hard disk or the SATAII
connector on the motherboard.
connect the black end
to the IDE devices
connect the blue end
to the motherboard
80-conductor ATA 66/100 cable
SATAII_2 SATAII_1
SATAII_4 SATAII_3

1313
1313
13
ASRock G41M-VGS3 / G41M-VS3 Motherboard
1. High Definition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
Print Port Header This is an interface for print
(25-pin LPT1) port cable that allows
(see p.2 No. 26) convenient connection of printer
devices.
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.2 No. 24) convenient connection and
control of audio devices.
EnglishEnglish EnglishEnglish
English
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.2 No. 8) functions.
Chassis Speaker Header Please connect the chassis
(4-pin SPEAKER 1) speaker to this header.
(see p.2 No. 14)
Chassis Fan Connector Please connect a chassis fan
(3-pin CHA_FAN1) cable to this connector and
(see p.2 No. 16) match the black wire to the
ground pin.
CPU Fan Connector Please connect a CPU fan cable
(4-pin CPU_FAN1) to this connector and match
(see p.2 No. 3) the black wire to the ground pin.
1 2 3 4

1414
1414
14 ASRock G41M-VGS3 / G41M-VS3 Motherboard
EnglishEnglish
EnglishEnglish
English
20-PinATX Power Supply Installation
ATX 12V Connector Please note that it is necessary
(4-pin ATX12V2) to connect a power supply with
(see p.2 No. 2) ATX 12V plug to this connector
so that it can provides sufficient
power. Failing to do so will cause
the failure to power up.
ATX Power Connector Please connect an ATX power
(24-pin ATXPWR1) supply to this connector.
(see p.2 No. 4)
Though this motherboard provides 24-pin ATX power connector, it can still work
if you adopt a traditional 20-pin ATX power supply. To use the 20-pin ATX power
supply, please plug your power supply along with Pin 1 and Pin 13.
24 13
12 1
24 13
12 1
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
Serial port Header This COM1 header supports a
(9-pin COM1) serial port module.
(see p.2 No. 25)

1515
1515
15
ASRock G41M-VGS3 / G41M-VS3 Motherboard
EnglishEnglish EnglishEnglish
English
2. BIOS Information2. BIOS Information
2. BIOS Information2. BIOS Information
2. BIOS Information
The Flash Memory on the motherboard stores BIOS Setup Utility. When you start up
the computer, please press <F2> during the Power-On-Self-Test (POST) to enter
BIOS Setup utility; otherwise, POST continues with its test routines. If you wish to
enter BIOS Setup after POST, please restart the system by pressing <Ctl> + <Alt> +
<Delete>, or pressing the reset button on the system chassis. The BIOS Setup pro-
gram is designed to be user-friendly. It is a menu-driven program, which allows you to
scroll through its various sub-menus and to select among the predetermined choices.
For the detailed information about BIOS Setup, please refer to the User Manual (PDF
file) contained in the Support CD.
3. Software Support CD information3. Software Support CD information
3. Software Support CD information3. Software Support CD information
3. Software Support CD information
This motherboard supports various Microsoft®Windows®operating systems: 7 / 7
64-bit / VistaTM / VistaTM 64-bit / XP / XP 64-bit. The Support CD that came with the
motherboard contains necessary drivers and useful utilities that will enhance
motherboard features. To begin using the Support CD, insert the CD into your CD-
ROM drive. It will display the Main Menu automatically if “AUTORUN” is enabled in
your computer. If the Main Menu does not appear automatically, locate and double-
click on the file “ASRSETUP.EXE” from the BIN folder in the Support CD to display the
menus.

1616
1616
16 ASRock G41M-VGS3 / G41M-VS3 Motherboard
DeutschDeutsch
DeutschDeutsch
Deutsch
SpezifikationenSpezifikationen
SpezifikationenSpezifikationen
Spezifikationen
Plattform - Micro ATX-Formfaktor: 22.6 cm x 17.0 cm; 8.9 Zoll x 6.7 Zoll
CPU - LGA 775 für Intel®CoreTM 2 Extreme / CoreTM 2 Quad / CoreTM
2 Duo / Pentium®Dual Core / Celeron®Dual Core / Celeron®
unterstützt Penryn Quad Core Yorkfield und Dual Core
Wolfdale Prozessoren
- FSB1333/1066/800/533 MHz
- Unterstützt Hyper-Threading-Technologie
- Unterstützt Untied-Übertaktungstechnologie
- Unterstützt EM64T-CPU
Chipsatz - Northbridge: Intel®G41
- Southbridge: Intel®ICH7
Speicher - Unterstützung von Dual-Kanal-Speichertechnologie
- 2 x Steckplätze für DDR3
- Unterstützt DDR3 1333(OC)/1066/800 non-ECC,
ungepufferter Speicher
- Max. Kapazität des Systemspeichers: 8GB
Erweiterungs- - 1 x PCI Express x16-Steckplätze
steckplätze - 1 x PCI -Steckplätze
Onboard-VGA - Intel®Graphics Media Accelerator X4500
- Pixel Shader 4.0, DX10 VGA
- Maximal gemeinsam genutzter Speicher 1759MB
- Unterstützt D-Sub mit einer maximalen Auflösung von
2048 x 1536 bei 75 Hz
Audio - 5.1 CH HDAudio (Realtek ALC662 / VIA®VT1705 Audio Codec)
LAN - G41M-VGS3
Atheros®PCIE x1 Gigabit LAN AR8151,
speed 10/100/1000 Mb/s
- G41M-VS3
Atheros®PCIE x1 LAN AR8152, speed 10/100 Mb/s
- Unterstützt Wake-On-LAN
E/A-Anschlüsse I/O Panel
an der - 1 x PS/2 Mouse Port
Rückseite - 1 x PS/2 Keyboard Port
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port mit LED (ACT/LINK LED und SPEED LED)
- Audioanschlüsse: Line In / Line Out / Mikrofon

1717
1717
17
ASRock G41M-VGS3 / G41M-VS3 Motherboard
Anschlüsse - 4 x SATAII-Anschlüsse, unterstützt bis 3.0 Gb/s
Datenübertragungsrate (Unterstützt keine “RAID”- und “Hot-
Plug”-Funktionen)
- 1 x ATA100 IDE-Anschlüsse (Unterstützt bis 2 IDE-Geräte)
- 1 x Druckerport-Anschlussleiste
- 1 x COM-Anschluss-Header
- CPU/Gehäuse-Lüfteranschluss
- 24-pin ATX-Netz-Header
- 4-pin anschluss für 12V-ATX-Netzteil
- Anschluss für Audio auf der Gehäusevorderseite
- 2 x USB 2.0 Buchse (unterstützt 4 USB 2.0 Ports)
BIOS - 8Mb AMI BIOS
- AMI legal BIOS mit Unterstützung für “Plug and Play”
- ACPI 1.1-Weckfunktionen
- SMBIOS 2.3.1
- VCCM, NB, VTT, GTLRef Stromspannung Multianpassung
Support-CD - Treiber, Dienstprogramme, Antivirussoftware
(Probeversion), Google Chrome Browser und Toolbar
Hardware Monitor - Überwachung der CPU-Temperatur
- Motherboardtemperaturerkennung
- Drehzahlmessung für CPU-Lüfter
- Drehzahlmessung für Gehäuselüfter
- CPU-Lüftergeräuschdämpfung
- Spannungsüberwachung: +12V, +5V, +3.3V, Vcore
Betriebssysteme - Unterstützt Microsoft®Windows®7 / 7 64-Bit / VistaTM /
VistaTM 64-Bit / XP / XP 64-Bit
Zertifizierungen - FCC, CE, WHQL
- Gemäß Ökodesign-Richtlinie (ErP/EuP) (Stromversorgung
gemäß Ökodesign-Richtlinie (ErP/EuP) erforderlich)
* Für die ausführliche Produktinformation, besuchen Sie bitte unsere Website:
http://www.asrock.com
DeutschDeutsch DeutschDeutsch
Deutsch

1818
1818
18 ASRock G41M-VGS3 / G41M-VS3 Motherboard
FrançaisFrançais
FrançaisFrançais
Français
SpécificationsSpécifications
SpécificationsSpécifications
Spécifications
Format - Facteur de forme Micro ATX:
8.9 pouces x 6.7 pouces, 22.6 cm x 17.0 cm
CPU - LGA 775 pour Intel®CoreTM 2 Extreme / CoreTM 2 Quad /
CoreTM 2 Duo / Pentium®Dual Core / Celeron®Dual Core /
Celeron®acceptant les processeurs Penryn Quad Core
Yorkfield et Dual Core Wolfdale
- FSB1333/1066/800/533MHz CPUs
- Prise en charge de la technologie Hyper-Threading
- Prend en charge la technologie Untied Overclocking
- Prise en charge de la technologie EM64T par le CPU
Chipsets - Northbridge: Intel®G41
- Southbridge: Intel®ICH7
Mémoire - Compatible avec la Technologie de Mémoire à Canal Double
- 2 x slots DIMM DDR3
- Supporter DDR3 1333(OC)/1066/800 non-ECC, sans
amortissement mémoire
- Capacité maxi de mémoire système: 8GB
Slot d’extension - 1 x slot PCI Express x16
- 1 x slot PCI
VGA sur carte - Intel®Graphics Media Accelerator X4500
- nuanceur de pixels 4.0, VGA DX10
- mémoire partagée max 1759MB
- Prend en charge le D-Sub avec une résolution maximale
jusqu’à 2048x1536 @ 75Hz
Audio - 5.1 Son haute définition de CH (codec audio Realtek ALC662 /
VIA®VT1705)
LAN - G41M-VGS3
Atheros®PCIE x1 Gigabit LAN AR8151,
Vitesse 10/100/1000 Mb/s
- G41M-VS3
Atheros®PCIE x1 LAN AR8152, Vitesse 10/100 Mb/s
- Support du Wake-On-LAN
Panneau arrière I/O Panel
E/S - 1 x port souris PS/2
- 1 x port clavier PS/2
- 1 x port VGA
- 4 x ports USB 2.0 par défaut
- 1 x port LAN RJ-45 avec LED (ACT/LED CLIGNOTANTE et
LED VITESSE)

1919
1919
19
ASRock G41M-VGS3 / G41M-VS3 Motherboard
- Jack audio: entrée ligne / sortie ligne / microphone
Connecteurs - 4 x connecteurs SATAII, prennent en charge un taux de
transfert de données pouvant aller jusqu’à 3.0Go/s
(Ne supporte pas les fonctions “RAID” et “Hot-Plug”
(Connexion à chaud))
- 1 x ATA100 IDE connecteurs
(prend en charge jusqu’à 2 périphériques IDE)
- 1 x embase de port d’impression
- 1 x En-tête de port COM
- Connecteur pour ventilateur de CPU/Châssis
- br. 24 connecteur d’alimentation ATX
- br. 4 connecteur d’alimentation 12V ATX
- Connecteur audio panneau avant
- 2 x en-tête USB 2.0 (accepte 4 ports USB 2.0)
BIOS - 8Mb BIOS AMI
- BIOS AMI
- Support du “Plug and Play”
- Compatible pour événements de réveil ACPI 1.1
- Support SMBIOS 2.3.1
- VCCM, NB, VTT, GTLRef Tension Multi-ajustement
CD d’assistance - Pilotes, utilitaires, logiciel anti-virus (Version d’essai), Google
Chrome Browser et Toolbar
Surveillance - Contrôle de la température CPU
système - Mesure de température de la carte mère
- Tachéomètre ventilateur CPU
- Tachéomètre ventilateur châssis
- Ventilateur silencieux d’unité centrale
- Monitoring de la tension: +12V, +5V, +3.3V, Vcore
Certifications - FCC, CE, WHQL
- Prêt pour ErP/EuP (alimentation Prêt pour ErP/EuP requise)
* Pour de plus amples informations sur les produits, s’il vous plaît visitez notre site web:
http://www.asrock.com
FranFran FranFran
Françaisçais
çaisçais
çais

2020
2020
20 ASRock G41M-VGS3 / G41M-VS3 Motherboard
ItalianoItaliano
ItalianoItaliano
Italiano
SpecificheSpecifiche
SpecificheSpecifiche
Specifiche
Piattaforma - Micro ATX Form Factor: 8.9-in x 6.7-in, 22.6 cm x 17.0 cm
Processore - LGA 775 per Intel®CoreTM 2 Extreme / CoreTM 2 Quad / CoreTM 2
Duo / Pentium®Dual Core / Celeron®Dual Core / Celeron®in
grado di supportare processori Penryn Quad Core Yorkfield e
Dual Core Wolfdale
- FSB1333/1066/800/533 MHz
- Supporto tecnologia Hyper Threading
- Supporta la tecnologia overclocking “slegata”
- Supporto CPU EM64T
Chipset - Northbridge: Intel®G41
- Southbridge: Intel®ICH7
Memoria - Supporto tecnologia Dual Channel Memory
- 2 x slot DDR3 DIMM
- Supporto DDR3 1333(OC)/1066/800 non-ECC, momoria senza
buffer
- Capacità massima della memoria di sistema: 8GB
Slot di - 1 x slot PCI Express x16
espansione - 1 x slot PCI
VGA su scheda -Intel®Graphics Media Accelerator X4500
- Pixel Shader 4.0, VGA DX10
- Memoria massima condivisa 1759MB
- Supporta D-Sub con risoluzione massima fino a 2048x1536 @
75Hz
Audio - 5.1 Audio HD CH (Realtek ALC662 / VIA®VT1705 Audio Codec)
LAN - G41M-VGS3
Atheros®PCIE x1 Gigabit LAN AR8151,
Velocità 10/100/1000 Mb/s
- G41M-VS3
Atheros®PCIE x1 LAN AR8152, Velocità 10/100 Mb/s
- Supporta Wake-On-LAN
Pannello I/O Panel
posteriore I/O - 1 x porta PS/2 per mouse
- 1 x porta PS/2 per tastiera
- 1 x Porta VGA
- 4 x porte USB 2.0 già integrate
- 1 x porte LAN RJ-45 con LED (LED azione/collegamento e LED
velocità)
- Audio Jack: Line In / Line Out / Microfono
