ASROCK Z390 Phantom Gaming 9 User manual

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per AsRock Z390 Phantom
Gaming X o cerca il tuo prodotto tra le migliori offerte di Schede Madri

Version 1.0
Published April 2019
Copyright©2019 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com

AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
compensation for any other reasonably foreseeable loss or damage caused by our
goods. You are also entitled to have the goods repaired or replaced if the goods fail
to be of acceptable quality and the failure does not amount to a major failure. If
you require assistance please call ASRock Tel : [phone] ext.123 (Standard
International call charges apply)
e terms HDMI® and HDMI High-Denition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.

CE Warning
is device complies with directive 2014/53/EU issued by the Commision of the European
Community.
is equipment complies with EU radiation exposure limits set forth for an uncontrolled
environment.
is equipment should be installed and operated with minimum distance 20cm between
the radiator & your body.
Operations in the 5.15-5.35GHz band are restricted to indoor usage only.
Radio transmit power per transceiver type
Function Frequency Maximum Output Power (EIRP)
WiFi
2400-2483.5 MHz 18.5 + / -1.5 dbm
5150-5250 MHz 21.5 + / -1.5 dbm
5250-5350 MHz 18.5 + / -1.5 dbm (no TPC)
21.5 + / -1.5 dbm (TPC)
5470-5725 MHz 25.5 + / -1.5 dbm (no TPC)
28.5 + / -1.5 dbm (TPC)
Bluetooth 2400-2483.5 MHz 8.5 + / -1.5 dbm

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 9

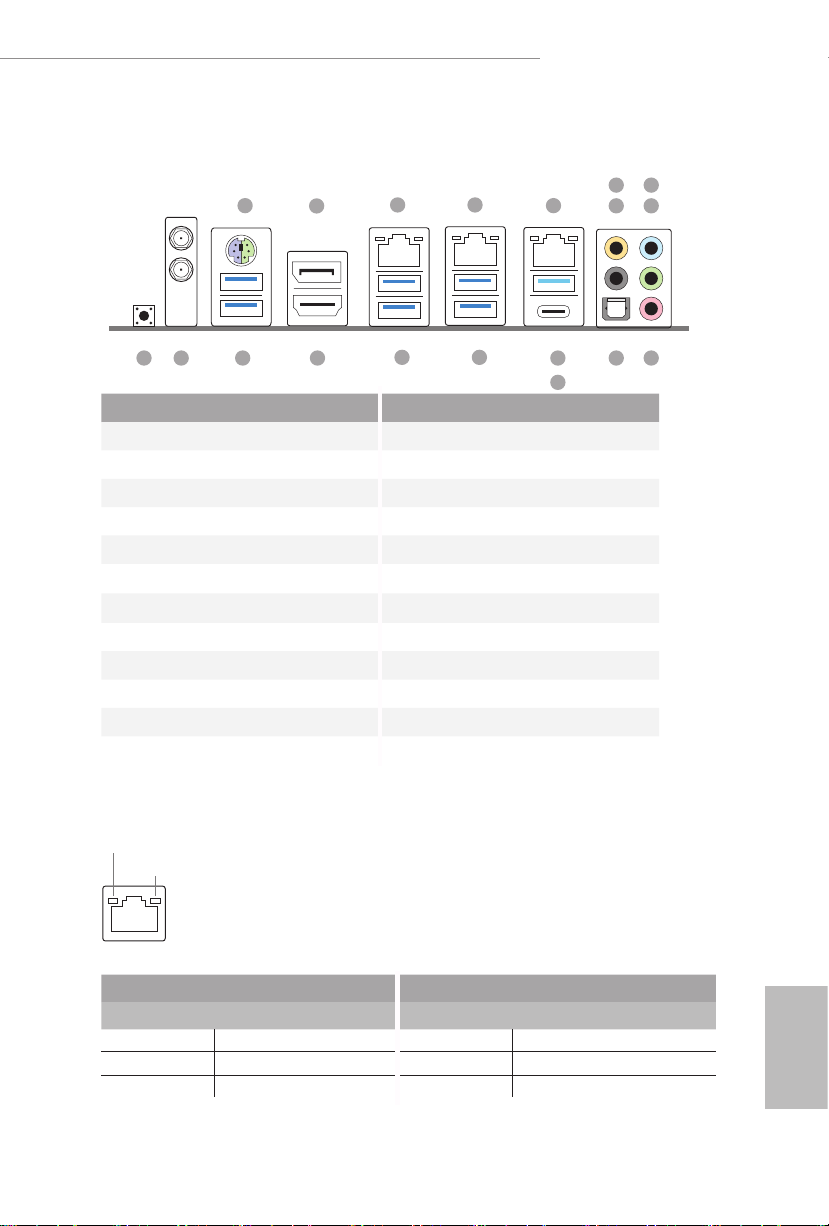

1.4 I/O Panel 11
1.5 WiFi-802.11ax Module and ASRock WiFi 2.4/5 GHz Antenna 13
Chapter 2 Installation 14
2.1 Installing the CPU 15
2.2 Installing the CPU Fan and Heatsink 18
2.3 Installing Memory Modules (DIMM) 19
2.4 Expansion Slots (PCI Express Slots) 21
2.5 Jumpers Setup 22
2.6 Onboard Headers and Connectors 23
2.7 Smart Switches 29
2.8 Dr. Debug 30
2.9 Post Status Checker 36
2.10 SLITM and Quad SLITM Operation Guide 37
2.10.1 Installing Two SLITM-Ready Graphics Cards 37
2.10.2 Driver Installation and Setup 39
2.11 CrossFireXTM , 3-Way CrossFireXTM and Quad CrossFireXTM
Operation Guide 40
2.11.1 Installing Two CrossFireXTM-Ready Graphics Cards 40

2.11.2 Installing Three CrossFireXTM-Ready Graphics Cards 42
2.11.3 Driver Installation and Setup 43
2.12 M.2_SSD (NGFF) Module Installation Guide (M2_1) 44
2.13 M.2_SSD (NGFF) Module Installation Guide (M2_2) 48
2.14 M.2_SSD (NGFF) Module Installation Guide (M2_3) 52
Chapter 3 Software and Utilities Operation 56
3.1 Installing Drivers 56
3.2 Phantom Gaming Tuning 57
3.3 ASRock Live Update & APP Shop 60
3.3.1 UI Overview 60
3.3.2 Apps 61
3.3.3 BIOS & Drivers 64
3.3.4 Setting 65
3.4 Creative SoundBlaster Cinema5 66
3.5 ASRock Polychrome SYNC 67
Chapter 4 UEFI SETUP UTILITY 70
4.1 Introduction 70
4.2 EZ Mode 71
4.3 Advanced Mode 72
4.3.1 UEFI Menu Bar 72
4.3.2 Navigation Keys 73
4.4 Main Screen 74
4.5 OC Tweaker Screen 75
4.6 Advanced Screen 89

4.6.1 CPU Conguration 90
4.6.2 Chipset Conguration 92
4.6.3 Storage Conguration 96
4.6.4 Intel® Thunderbolt 98
4.6.5 Super IO Conguration 100
4.6.6 ACPI Conguration 101
4.6.7 USB Conguration 103
4.6.8 Trusted Computing 104
4.6.9 Intel(R) Rapid Storage Technology 105
4.7 Tools 106
4.8 Hardware Health Event Monitoring Screen 108
4.9 Security Screen 113
4.10 Boot Screen 114
4.11 Exit Screen 117

English
1
Z390 Phantom Gaming X
Chapter 1 Introduction
ank you for purchasing ASRock Z390 Phantom Gaming X motherboard, a
reliable motherboard produced under ASRock’s consistently stringent quality
control. It delivers excellent performance with robust design conforming to
ASRock’s commitment to quality and endurance.
In this documentation, Chapter 1 and 2 contains the introduction of the
motherboard and step-by-step installation guides. Chapter 3 contains the operation
guide of the soware and utilities. Chapter 4 contains the conguration guide of
the BIOS setup.
1.1 Package Contents
• ASRock Z390 Phantom Gaming X Motherboard (ATX Form Factor)
• ASRock Z390 Phantom Gaming X Quick Installation Guide
• ASRock Z390 Phantom Gaming X Support CD
• 4 x Serial ATA (SATA) Data Cables (Optional)
• 1 x ASRock SLI_HB_Bridge_2S Card (Optional)
• 1 x ASRock WiFi 2.4/5 GHz Antenna (Optional)
• 1 x ASRock Screwdriver (Optional)
• 3 x Screws for M.2 Sockets (Optional)
• 3 x Standos for M.2 Sockets (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRock’s
website as well. ASRock website http://www.asrock.com.

English
2
1.2 Specications
Platform • ATX Form Factor
CPU • Supports 9th and 8th Gen Intel® CoreTM Processors (Socket
1151)
• Digi Power design
• 14 Power Phase design
• Supports Intel® Turbo Boost 2.0 Technology
• Supports Intel® K-Series unlocked CPUs
• Supports ASRock BCLK Full-range Overclocking
• Supports ASRock Hyper BCLK Engine II
Chipset • Intel® Z390
Memory • Dual Channel DDR4 Memory Technology
• 4 x DDR4 DIMM Slots
• Supports DDR4 4266+(OC)*/4133(OC)/4000(OC)/3866(OC)
/3800(OC)/3733(OC)/3600(OC)/3200(OC)/2933(OC)/2800(
OC)/2666/2400/2133 non-ECC, un-buered memory
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
• Supports ECC UDIMM memory modules (operate in non-
ECC mode)
• Max. capacity of system memory: 128GB
• Supports Intel® Extreme Memory Prole (XMP) 2.0
• 15μ Gold Contact in DIMM Slots
Expansion
Slot
• 3 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3/PCIE5: single
at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3); triple at x8
(PCIE1) / x4 (PCIE3) / x4 (PCIE5))*
* Supports NVMe SSD as boot disks
• 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
• Supports AMD Quad CrossFireXTM, 3-Way CrossFireXTM
and CrossFireXTM
• Supports NVIDIA® Quad SLITM and SLITM
• Supports NVIDIA® NVLinkTM with dual NVIDIA® GeForce®
RTX series graphics cards*
* NVIDIA NVLink Bridge does not come with the package.
Please purchase it from NVIDIA® if necessary.

English
3
Z390 Phantom Gaming X
• 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-
802.11ax module (on the rear I/O)
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Graphics * Intel® UHD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
• Supports Intel® UHD Graphics Built-in Visuals : Intel®
Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full
HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD
Technology, Intel® InsiderTM, Intel® UHD Graphics
• DirectX 12
• HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit,
HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode
only), MPEG2, MJPEG, VC-1 (Decode only)
• Dual graphics output: Support HDMI and DisplayPort 1.2
ports by independent display controllers
• Supports HDMI 1.4 with max. resolution up to 4K x 2K
(4096x2160) @ 30Hz
• Supports DisplayPort 1.2 with max. resolution up to 4K x 2K
(4096x2304) @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant
HDMI monitor is required)
• Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2
Ports
• Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and
DisplayPort 1.2 Ports
Audio • 7.1 CH HD Audio with Content Protection (Realtek
ALC1220 Audio Codec)
• Premium Blu-ray Audio support
• Supports Surge Protection
• Nichicon Fine Gold Series Audio Caps
• 120dB SNR DAC with Dierential Amplier
• NE5532 Premium Headset Amplier for Front Panel Audio
Connector (Supports up to 600 Ohm headsets)
• Pure Power-In
• Direct Drive Technology
• PCB Isolate Shielding

English
4
• Impedance Sensing on Rear Out port
• Individual PCB Layers for R/L Audio Channel
• Gold Audio Jacks
• 15μ Gold Audio Connector
• Supports Creative SoundBlaster Cinema5
LAN 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon
RTL8125AG):
• Supports Phantom Gaming LAN Soware
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and
Streaming Modes
- User Customized Priority Control
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Ecient Ethernet 802.3az
• Supports PXE
2 x Gigabit LAN 10/100/1000 Mb/s (1 x Intel® I219V, 1 x Intel®
I211AT):
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Dual LAN with Teaming*
* Teaming is supported on Windows® 10 RS2 and above.
• Supports Energy Ecient Ethernet 802.3az
• Supports PXE
Wireless
LAN
• Intel® 802.11ax WiFi Module
• Supports IEEE 802.11a/b/g/n/ax
• Supports Dual-Band (2.4/5 GHz)
• Supports high speed wireless connections up to 2.4Gbps
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity
technology
• Supports Bluetooth 5.0 + High speed class II
• Supports MU-MIMO

English
5
Z390 Phantom Gaming X
Rear Panel
I/O
• 2 x Antenna Ports
• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 1 x DisplayPort 1.2
• 1 x Optical SPDIF Out Port
• 3 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver)
(Supports ESD Protection)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports
ESD Protection)
• 4 x USB 3.2 Gen1 Ports (Intel® Z390) (Supports ESD
Protection)
* Ultra USB Power is supported on USB31_TA12 ports.
* ACPI wake-up function is not supported on USB31_TA12
ports.
• 3 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED
LED)
• 1 x Clear CMOS Button
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in /
Front Speaker / Microphone (Gold Audio Jacks)
Storage • 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,
RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology
16), NCQ, AHCI and Hot Plug*
• 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, sup-
port NCQ, AHCI and Hot Plug
* M2_1, SATA3_0 and SATA3_1 share lanes. If either one of
them is in use, the others will be disabled.
* If M2_2 is occupied by a SATA-type M.2 device, SATA3_3
will be disabled.
* M2_3, SATA3_4 and SATA3_5 share lanes. If either one of
them is in use, the others will be disabled.
• 1 x Ultra M.2 Socket (M2_1), supports M Key type
2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI
Express module up to Gen3 x4 (32 Gb/s)**
• 1 x Ultra M.2 Socket (M2_2), supports M Key type
2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Ex-
press module up to Gen3 x4 (32 Gb/s)**

English
6
• 1 x Ultra M.2 Sockets (M2_3), supports M Key type
2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module
and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
** Supports Intel® OptaneTM Technolog y
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Connector • 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 2 x RGB LED Headers
* Support in total up to 12V/3A, 36W LED Strip
• 1 x Addressable LED Header
* Supports in total up to 5V/3A, 15W LED Strip
• 1 x CPU Fan Connector (4-pin)
* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)
* e CPU/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
• 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)
* e Chassis/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
* CPU_FAN2/WP, CHA_FAN1~6/WP can auto detect if 3-pin
or 4-pin fan is in use.
• 1 x 24 pin ATX Power Connector (Hi-Density Power
Connector)
• 1 x 8 pin 12V Power Connector (Hi-Density Power
Connector)
• 1 x 4 pin 12V Power Connector (Hi-Density Power
Connector)
• 1 x Front Panel Audio Connector (15μ Gold Audio Connec-
tor)
• 1 x underbolt AIC Connector (5-pin)
• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Intel® Z390)
(Supports ESD Protection)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
(ASMedia ASM1074 hub) (Supports ESD Protection)

English
7
Z390 Phantom Gaming X
• 1 x Front Panel Type C USB 3.2 Gen2 Header (ASMedia
ASM1562 Retimer)
• 1 x Dr. Debug with LED
• 1 x Power Button with LED
• 1 x Reset Button with LED
BIOS
Feature
• 2 x AMI UEFI Legal BIOS with multilingual GUI support (1
x Main BIOS and 1 x Backup BIOS)
• Supports Secure Backup UEFI Technology
• ACPI 6.0 Compliant wake up events
• SMBIOS 2.7 Support
• CPU Core/Cache, GT Core/Cache, DRAM, VTT DDR, PCH
1.05V, VCCIO, CPU PLL 2, VCCSA, VCCPLL, CPU Cold
Bug Killer, CPU PLL 1, CLK VDD, DMI, CPU Internal PLL,
GT PLL, Ring PLL, System Agent PLL, Memory Controller
PLL Voltage Multi-adjustment
Hardware
Monitor
• Temperature Sensing: CPU, CPU/Water Pump, Chassis/Wa-
ter Pump Fans
• Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water
Pump Fans
• Quiet Fan (Auto adjust chassis fan speed by CPU tempera-
ture): CPU, CPU/Water Pump, Chassis/Water Pump Fans
• Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/
Water Pump Fans
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,
PCH 1.05V, VCCIO, DRAM VPP, VCCSA, VCCST, DMI,
CPU Cold Bug Killer
OS • Microso® Windows® 10 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
* For detailed product information, please visit our website: http://www.asrock.com

English
8
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tools. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.

English
9
Z390 Phantom Gaming X
1.3 Motherboard Layout
Intel
Z390
DDR4_A2 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module)
DDR4_B2 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
ATX12V1
ATXPWR1
LAN
PCIE1
Top:
Central/Bass
Center:
REAR SPK
Top:
LIN E IN
Center:
FRONT
Bottom:
Optical
SPDIF
Bottom:
MIC I N
PCIE3
PANEL1
HDLED RESET
PLED PWRBTN
1
1
SPK_PLED1
1
HD_AUDIO1
PCIE5
SATA3_2_3
SATA3_4_5
SATA3_A1_A2
RoHS
7
10
12
11
14
15
16
17
USB_1_2
1
26
27
33
34
SATA3_0_1
16 5
22
PS2
Keyboard
/Mouse
CMOS
Battery
PCIE2
M2_3
CT2
CT3
M2_1
CT1CT2CT3
CT3
M2_2
CT4
CT4
CT5
T B1
1
28
USB3_5_6
1
23
9
29
PCIE4
CT1
CHA_FAN1
/WP
CHA_FAN2/WP
CHA_FAN6/WP
CHA_FAN5/WP
CPU_FAN2
/WP
CHA_FAN3/WP
CHA_FAN4
/WP
4
USB3_7_8
1
30
LAN
USB31_TC_2
ATX12V2
2
RGB_HEADER2
1
ADDR_LED1
1
31
RGB_HEADER1
1
32
BIOS_A1 BIOS_B1
BIOS BIOS
18
3
CPU_FAN1
CLRMOS1
1
25
20
1
USB_3
RSTBTN1PWRBTN1
24
AUDIO
CODEC
CLRBTN1
M2_WIFI
Dr.
Debug
13
Top:
LAN1
(Intel I211AT)
HDMI1
DP_1
USB 3.2 G en1
T: USB3_1
B: USB3_2
USB 3.2 Gen2
T: USB31_TA1
B: USB31_TA2
Top:
LAN2
(Intel I219V)
USB 3.2 Gen2
T: USB31_TA_3
B: USB31_TC_1
Top:
2.5GLAN
(Realtek
RTL8125AG)
USB 3.2 Gen1
T: USB3_3
B: USB3_4
8
1
SPI_TPM_J1
19
CPU
DRAM
VGA
BOOT
21

English
10
No. Description
1 ATX 12V Power Connector (ATX12V2)
2 ATX 12V Power Connector (ATX12V1)
3 CPU Fan Connector (CPU_FAN1)
4 CPU Fan / Waterpump Fan Connector (CPU_FAN2/WP)
5 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
6 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
7 ATX Power Connector (ATXPWR1)
8 Chassis Fan / Waterpump Fan Connector (CHA_FAN4/WP)
9 USB 3.2 Gen1 Header (USB3_7_8)
10 USB 3.2 Gen1 Header (USB3_5_6)
11 Chassis Fan / Waterpump Fan Connector (CHA_FAN5/WP)
12 Front Panel Type C USB 3.2 Gen2 Header (USB31_TC_2)
13 Chassis Fan / Waterpump Fan Connector (CHA_FAN6/WP)
14 SATA3 Connectors (SATA3_0_1)
15 SATA3 Connectors (SATA3_2_3)
16 SATA3 Connectors (SATA3_4_5)
17 SATA3 Connectors (SATA3_A1_A2)
18 Chassis Fan / Waterpump Fan Connector (CHA_FAN3/WP)
19 SPI TPM Header (SPI_TPM_J1)
20 Power LED and Speaker Header (SPK_PLED1)
21 Post Status Checker (PSC)
22 System Panel Header (PANEL1)
23 Power Button with LED (PWRBTN1)
24 Reset Button with LED (RSTBTN1)
25 Clear CMOS Jumper (CLRMOS1)
26 USB 2.0 Header (USB_1_2)
27 USB 2.0 Header (USB3)
28 underbolt AIC Header (TB1)
29 Chassis Fan / Waterpump Fan Connector (CHA_FAN2/WP)
30 RGB LED Header (RGB_HEADER2)
31 RGB LED Header (RGB_HEADER1)
32 Addressable LED Header (ADDR_LED1)
33 Front Panel Audio Header (HD_AUDIO1)
34 Chassis Fan / Waterpump Fan Connector (CHA_FAN1/WP)

English
11
Z390 Phantom Gaming X
1.4 I/O Panel
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 12 USB 3.2 Gen2 Type-A Port
2DisplayPort 1.2 (USB31_TA_3)
3 2.5G LAN RJ-45 Port 13 USB 3.2 Gen2 Type-C Port
(Dragon RTL8125AG)* (USB31_TC_1)
4 LAN RJ-45 Port (Intel® I211AT)** 14 USB 3.2 Gen2 Type-A Ports
5 LAN RJ-45 Port (Intel® I219V)** (USB31_TA_12)****
6 Central / Bass (Orange) 15 USB 3.2 Gen1 Ports (USB3_3_4)
7 Rear Speaker (Black) 16 HDMI Port
8 Line In (Light Blue) 17 USB 3.2 Gen1 Ports (USB3_12)
9 Front Speaker (Lime)*** 18 Antenna Ports
10 Microphone (Pink) 19 Clear CMOS Button
11 Optical SPDIF Out Port
1
101112
13
17 1619
27
6
9
8
5
18 14
4
15
3

English
12
*** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below
for connection details in accordance with the type of speaker you use.
Audio Output
Channels
Front Speaker
(No. 9)
Rear Speaker
(No. 7)
Central / Bass
(No. 6)
Line In
(No. 8)
2V -- -- --
4V V -- --
6V V V --
8V V V V
** ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
**** ACPI wake-up function is not supported on USB31_TA12 ports.

English
13
Z390 Phantom Gaming X
1.5 WiFi-802.11ax Module and ASRock WiFi 2.4/5 GHz
Antenna
WiFi-802.11ax + BT Module
is motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ax + BT v5.0
module (pre-installed on the rear I/O panel) that oers support for WiFi 802.11 a/b/
g/n/ax connectivity standards and Bluetooth v5.0. WiFi + BT module is an easy-to-
use wireless local area network (WLAN) adapter to support WiFi + BT. Bluetooth
v5.0 standard features Smart Ready technology that adds a whole new class of
functionality into the mobile devices. BT 5.0 also includes Low Energy Technology
and ensures extraordinary low power consumption for PCs. e 2T2R WiFi
solution sets a WiFi high speed standard and oers max link rate up to 2.4Gbps.
* e transmission speed may vary according to the environment.
