ASROCK H310D4-P1 User manual

Version 1.0
Published April 2018
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”

AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

English
1
H310D4-P1
RJ-45
T: USB 2.0
USB3
B: USB 2.0
USB4
RoHS
2
4
5
Headset
VGA1
8
6
DDR4_A1DDR4_A1 DDR4_B1
HP OUT
HDMI1
DP1
1
CI1
BIOS
ROM
M.2 W LAN
COM1
1
CPU_FAN1
3
ROM_R
SATA1
CLRMOS1
1
1
Mic In
Power
Button
1
M.2 S SD
7
MONO1
1
CMOS
Battery
DC Jack
BUZZER1
T: USB 2.0
USB3
B: USB 2.0
USB4
H310D4-P1
USB 3.1 Gen1
T: USB_2
B: USB31_TC_2
USB 3.1 Gen1
T: USB_1
B: USB31_TC_1
Motherboard Layout

English
2
No. Description
1 Clear CMOS Jumper (CLRMOS1)
2 2 x 260-pin DDR4 SO-DIMM Slots (DDR4_A1, DDR4_B1)
3 CPU Fan Connector (CPU_FAN1)
4 2.5W Mono Out Speaker Header (MONO1)
5 SATA3 Connector (SATA0)
6 ROM Recovery Header (ROM_R)
7 Chassis Intrusion Header (CI1)
8 COM Port Header (COM1)

English
3
H310D4-P1
Front Panel
No. Description No. Description
1 Power Button (SW1) 5 USB 3.1 Gen1 Type-C Port
2 USB 3.1 Gen1 Type-A Port (USB_1) (USB31_TC_2)
3 USB 3.1 Gen1 Type-C Port 6 Microphone Input (AUDIO2)
(USB31_TC_1) 7Headphone/Headset Jack
4 USB 3.1 Gen1 Type-A Port (USB_2)
7
2
3 5
146

English
4
Rear Panel
No. Description No. Description
1 Headphone Jack 5 LAN RJ-45 Port*
2 Display Port 6 USB 2.0 Ports (USB_4_5)
3 HDMI Port 7 USB 2.0 Ports (USB_6_7)
4D-Sub Port 8 DC Jack
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Green 100Mbps connection
On Link Orange 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1 2 3 4 5 6 7 8
Chapter 1 Introduction
ank you for purchasing H310D4-P1 motherboard. In this documentation,
Chapter 1 and 2 contains the introduction of the motherboard and step-by-step
installation guides. Chapter 3 contains the operation guide of the soware and
utilities. Chapter 4 contains the conguration guide of the BIOS setup.
1.1 Package Contents
• H310D4-P1 Motherboard
• H310D4-P1 Quick Installation Guide
• H310D4-P1 Support CD
• 1 x Serial ATA(SATA) Data with Power Cable (Optional)
• 1 x Screw for M.2 Socket (M2*2) (Optional)
• 1 x Screw for WiFi Module (M2*2) (Optional)

English
5
H310D4-P1
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice.
Chapter 1 Introduction
ank you for purchasing H310D4-P1 motherboard. In this documentation,
Chapter 1 and 2 contains the introduction of the motherboard and step-by-step
installation guides. Chapter 3 contains the operation guide of the soware and
utilities. Chapter 4 contains the conguration guide of the BIOS setup.
1.1 Package Contents
• H310D4-P1 Motherboard
• H310D4-P1 Quick Installation Guide
• H310D4-P1 Support CD
• 1 x Serial ATA(SATA) Data with Power Cable (Optional)
• 1 x Screw for M.2 Socket (M2*2) (Optional)
• 1 x Screw for WiFi Module (M2*2) (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice.

English
6
1.2 Specications
Platform • 6.7-in x 6.8-in, 17.0 cm x 17.2 cm
CPU • Supports 8th Generation Intel® CoreTM Processors (Socket
1151)
• Supports CPU up to 65W
• 5 Power Phase design
• Supports Intel® Turbo Boost 2.0 Technology
Chipset • Intel®H310
Memory • Dual Channel DDR4 Memory Technology
• 2 x DDR4 SO-DIMM Slots
• Supports DDR4 2666/2400/2133 non-ECC, un-buered
memory
• Max. capacity of system memory: 32GB
• Supports Intel® Extreme Memory Prole (XMP) 2.0
Expansion
Slot • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
• Supports Intel® UHD Graphics Built-in Visuals : Intel®
Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full
HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD
Technology, Intel® InsiderTM, Intel® UHD Graphics
• DirectX 12
• HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit,
HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode
only), MPEG2, MJPEG, VC-1 (Decode only)
• Max. shared memory 1024MB

English
7
H310D4-P1
* e size of maximum shared memory may vary from dierent
operating systems.
• ree graphics output options: D-Sub, HDMI and
DisplayPort 1.2
* Supports up to 2 displays simultaneously
• Supports HDMI with max. resolution up to 4K x 2K
(4096x2160) @ 30Hz
• Supports D-Sub with max. resolution up to 1920x1200 @
60Hz
• Supports DisplayPort 1.2 with max. resolution up to 4K x 2K
(4096x2304) @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
HBR (High Bit Rate Audio) with HDMI Port (Compliant
HDMI monitor is required)
• Supports HDCP with HDMI and DisplayPort 1.2 Ports
• Supports 4K Ultra HD (UHD) playback with HDMI and
DisplayPort 1.2 Ports
Audio • Realtek ALC233 Audio Codec
• 1 x Headphone/Headset Jack
• 1 x MIC-In
LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111GH
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Ecient Ethernet 802.3az
• Supports PXE
Front
Panel I/O
• 1 x Power Button
• 1 x Headphone/Headset Jack
• 2 x USB 3.1 Gen1 Type-A Ports (Supports ESD Protection)
• 2 x USB 3.1 Gen1 Type-C Ports (Supports ESD Protection)
• 1 x Microphone Input Jack

English
8
Rear Panel
I/O
• 1 x DC Jack (Compatible with the 19V power adapter)*
* Please use 90W power adapter for 65W CPU and 65W power
adapter for 35W CPU.
• 1 x Headphone Jack
• 1 x D-Sub Port
• 1 x HDMI Port
• 1 x DisplayPort 1.2
• 4 x USB 2.0 Ports (Support ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
Storage • 1 x SATA3 6.0 Gb/s with Power Connector , support NCQ,
AHCI and Hot Plug
• 1 x Ultra M.2 Socket, support type 2280 M.2 SATA3 6.0 Gb/s
module and M.2 PCI Express module up to Gen3 x4
(32 Gb/s)*
* Supports NVMe SSD as boot disks
Connector • 1 x COM Port Header
• 1 x Chassis Intrusion Header
• 1 x CPU Fan Connector (4-pin)
• 1 x Internal Speaker Header
• 1 x Front Panel Header
• 1 x Mono-Out Header
• 1 x ROM Recovery Header
BIOS
Feature
• AMI UEFI Legal BIOS with multilingual GUI support
• ACPI 5.0 Compliant wake up events
• SMBIOS 2.7 Support
Hardware
Monitor
• CPU Temperature Sensing
• CPU Fan Tachometer
• CPU Quiet Fan (Auto adjust chassis fan speed by CPU
temperature)
• CPU Fan Multi-Speed Control
• CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
OS • Microso® Windows® 10 64-bit

English
9
H310D4-P1
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your own risk and expense.
We are not responsible for possible damage caused by overclocking.

English
10
is is a Proprietary form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

English
11
H310D4-P1

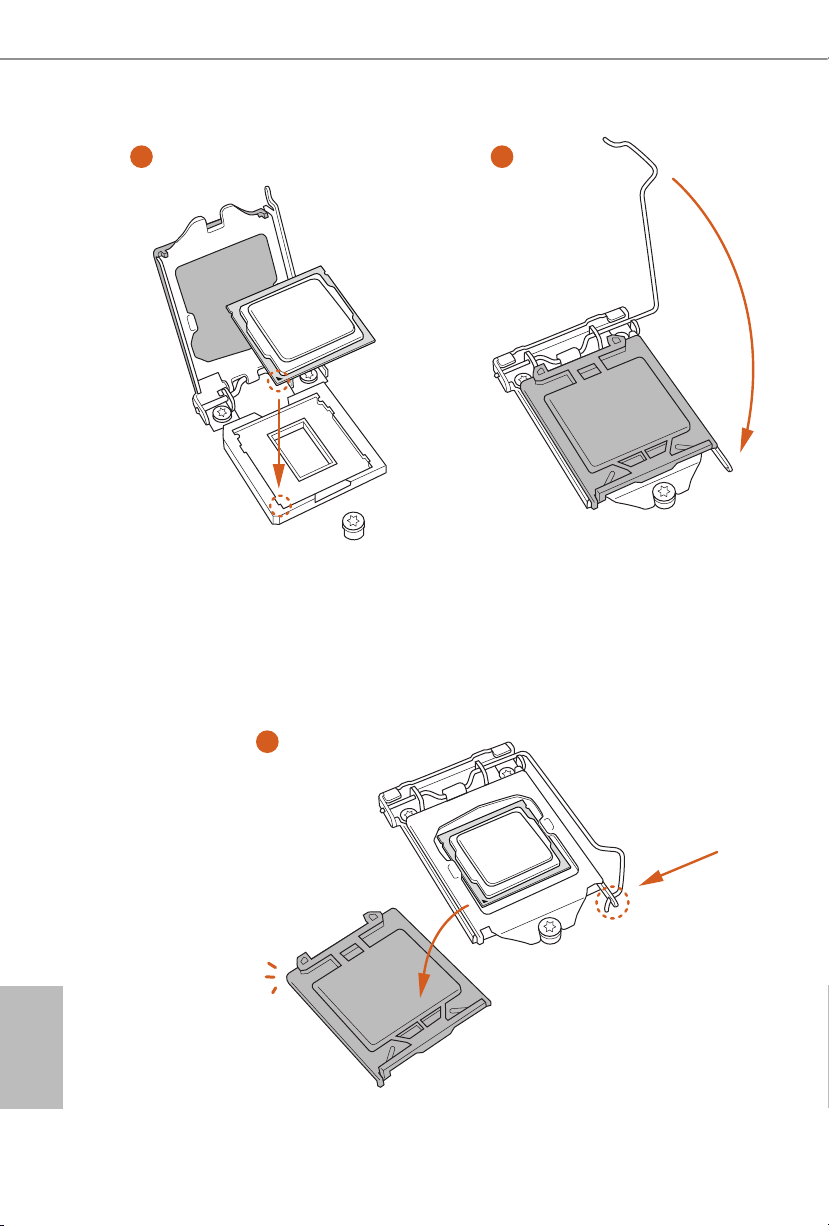

2.1 Installing the CPU
1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
2
A
B

English
12
4
5
3

English
13
H310D4-P1
Please save and replace the cover if the processor is removed. e cover must be placed if
you wish to return the motherboard for aer service.

English
14
1 2
CPU_FAN
2.2 Installing the CPU Fan and Heatsink

English
15
H310D4-P1
2.3 Installing Memory Modules (SO-DIMM)
is motherboard provides two 260-pin DDR4 (Double Data Rate 4) SO-DIMM
slots.
1. Carefully insert the SO-DIMM memory modules into the slot at a 30-degree angle.
2. Push down until the modules snap into place.
e SO-DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at incorrect
orientation.
It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot;
otherwise, this motherboard and SO-DIMM may be damaged.

English
16
2.4 Jumpers Setup
e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”
when a jumper cap is placed on these 2 pins.
Clear CMOS Jumper
(CLRMOS1)
(see p.1, No. 1)
CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system
parameters to default setup, please turn o the computer and unplug the power
cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to
short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear the
CMOS right aer you update the BIOS. If you need to clear the CMOS when you
just nish updating the BIOS, you must boot up the system rst, and then shut it
down before you do the clear-CMOS action. Please be noted that the password,
date, time, and user default prole will be cleared only if the CMOS battery is
removed.
Clear CMOS
Default
1. e Clear CMOS Button has the same function as the Clear CMOS jumper.
2. If you clear the CMOS, the case open may be detected. Please adjust the BIOS option “Clear
Status” to clear the record of previous chassis intrusion status.

English
17
H310D4-P1
2.5 Onboard Headers and Connectors
Serial ATA3 Connector
(SATA0:
see p.1, No. 5)
is SATA3 connector
supports SATA data cables
for internal storage devices
with up to 6.0 Gb/s data
transfer rate.
CPU Fan Connectors
(4-pin CPU_FAN1)
(see p.1, No. 3)
is motherboard
provides a 4-Pin CPU fan
(Quiet Fan) connector. If
you plan to connect a 3-Pin
CPU fan, please connect it
to Pin 1-3.
Serial Port Header
(9-pin COM1)
(see p.1, No. 8)
is COM1 header supports
a serial port module.
Chassis Intrusion Header
(2-pin CI1)
(see p.1, No. 7)
is motherboard supports
CASE OPEN detection
feature that detects if the
chassis cove has been
removed. is feature
requires a chassis with
chassis intrusion detection
design.
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
headers and connectors. Placing jumper caps over the headers and connectors will cause
permanent damage to the motherboard.
CPU_F
FAN_VOLTAGE
GND
AN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
1
Signa
l
GND
1
RRI#1
CCTS#1
RRTS#1
DDSR#1
GND
DDTR#1
TTXD#1
RRXD#1
DDCD#
1

English
18
2.5W Audio Amp Output
Header
(2-pin MONO1)
(see p.1, No. 4)
Please connect the chassis
speaker to this header.
ROM Recovery
Header
(7-pin ROM_R)
(see p.1, No. 6)
is ROM Recovery Connector
allows qualied technicians to
reload rmware into the SPI boot
ash in case there is problem with
the data.
MONO_OUT
+
MONO_OUT
-
1
2
SPI_CS0#
SPI_MOSI
SPI_CS#_R
SPI_MISO
SPI_CLK
+3P3VSB
GND
1
