Chapter 1: Introduction
Thank you for purchasing ASRock IMB-1002J motherboard, a reliable motherboard
produced under ASRock’s consistently stringent quality control. It delivers excellent
performance with robust design conforming to ASRock’s commitment to quality and
endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
You may nd the latest CPU support lists on ASRockind website as well.
ASRockind website https://www.asrockind.com/
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
https://www.asrockind.com/support/index.asp
1.1 Package Contents
ASRock IMB-1002J Motherboard
(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
ASRock IMB-1002J Driver CD
ASRock IMB-1002J Jumper Setting Instruction
1 x I/O Panel Shield

6
1.2 Specications
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU J3455, QC, 1.50 GHz, 10W
Chipset SoC
Expansion
Slot
PCIe 1 x PCIe x1
Mini-PCIe N/A
mSATA N/A
M.2
1 x M.2 (KEY E, 2230) with PCIe x1 and shared
USB2.0 for Wireless
1 x M.2 (KEY M, 2242/2260/2280) with SATA3
for SSD
1 x M.2 (KEY B, 3042) with shared USB2.0 and
SIM for 4G
SIM 1 x Socket connected to M.2 Key_B
Memory
Technology Dual Channel DDR3L 1867MHz
Max. 8GB
Socket 2 x SO-DIMM
Graphics
Controller Intel®HD Graphics
VGA N/A
DVI N/A
LVDS Dual Channel 24-bit, max resolution up to 1920
x 1200@60Hz
HDMI Supports max resolution up to 4096 x
2160@24Hz
DisplayPort N/A
MultiDisplay Triple Display
eDP N/A
Ethernet
Ethernet 10/100/1000 Mbps
Controller 2 x Realtek RTL8111G
Connector 2 x RJ-45
SATA
Max Data
Transfer
Rate
SATA3 (6.0Gb/s)

7
Rear I/O
VGA N/A
DVI N/A
HDMI 2
DisplayPort N/A
Ethernet 2
USB 4 x USB3.1
Audio 2 (Mic-in, Line-out)
Serial 1 x COM (RS-232/422/485), 1 x COM (RS-
232)
PS/2 N/A
Internal
Connector
USB 4 x USB2.0 (1 x shared with M.2 Key E, 1 x
shared with M.2 Key B)
LVDS/
Inverter 1
eDP N/A
VGA N/A
Serial 2 x COM (RS-232)
SATA 1 x SATA3 (6.0Gb/s)
Parallel 1 (shared with GPIO)
GPIO 8 x GPI, 8 x GPO (shared with LPT header)
SATA PWR
Output 1
Speaker
Header 1
TPM 1 x TPM Header
Watchdog
Timer
Output Output from super I/O to drag RESETCON#
Interval 256 Segments, 0,1,2…255 Sec
Power
Requirements
Input PWR +12V DC-In (4-pin ATX PWR Con)
Power On
AT/ATX Supported
-AT : Directly PWR on as power input ready
-ATX : Press button to PWR on after power
input ready
Environment
Operating
Temp 0ºC – 60ºC
Storage
Temp -40ºC – 85ºC

8

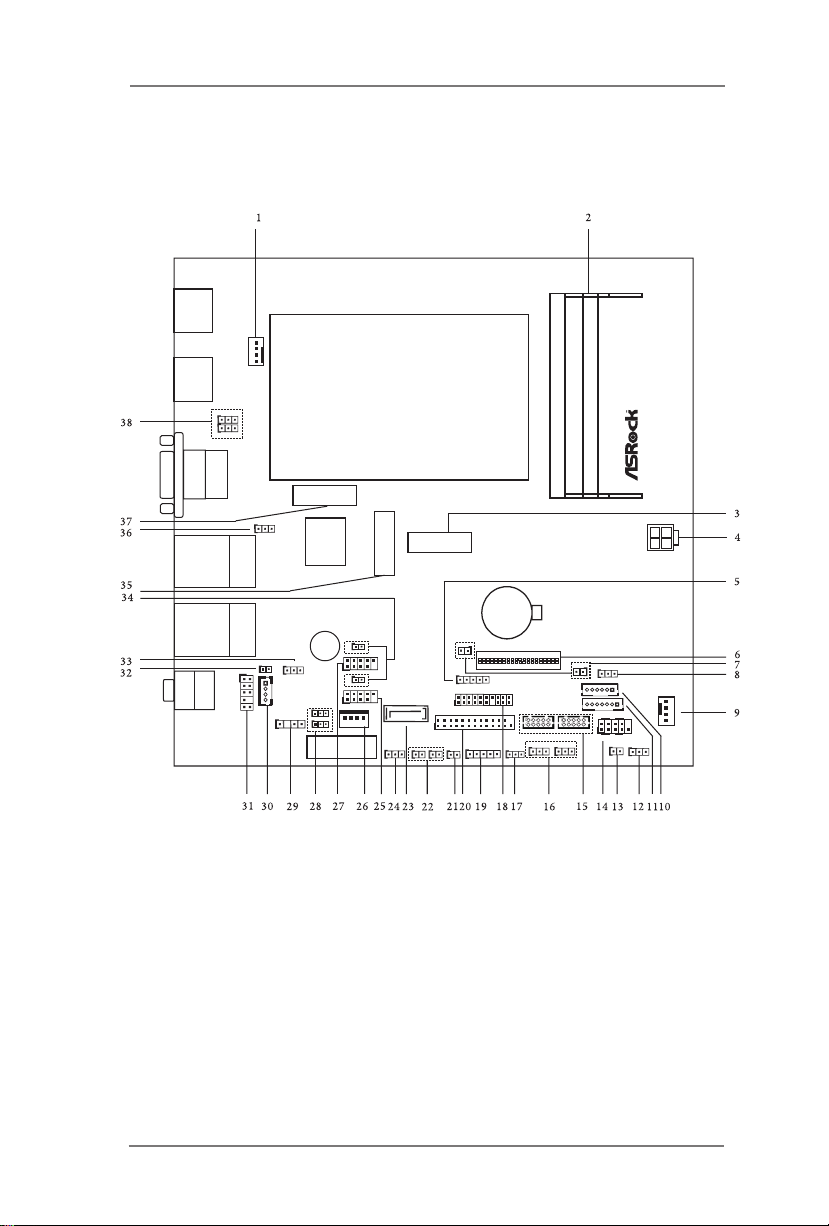

1.3 Motherboard Layout
BUZZ1
IMB-1002J
HDMI1
Industrial
DDR3_A1 (Support DDR3L Only)
DDR3_B1 (Support DDR3L Only)
SATA3_1
CPU_FAN1
1
LPC 1
CHA_FAN1
SPEAKER1
1
ATX1 2V 1
SATA_PWR1
LVDS1
1
Top:
LAN1
USB 3.0
T: USB0
B: USB1
Top:
Line Out
Bottom:
Mic In
1
BLT_VOL1
1
BLT_PWR1
1
PNL_PWR1
PCIE1
SPDIF1
1
COM5
1
COM6
1
PANEL1
HDLED RESET
PLED PWRBTN
1
1
JGPIO_PWR1
1
BUZZ2
1
LPT_GPIO1
1
BL2
1
USB2_PWR_H1
1
USB2_PWR_H2
M2_B1
1
1
USB2_6_7
1
USB2_4_5
1
USB7_S_M2
HDMI2
COM3
COM4
Top:
LAN2
USB 3.0
T: USB2
B: USB3
1
PWR_COM3
1
PWR_COM4
1
USB3_PWR_H1
1
USB3_PWR_H2
1
HD_AUDIO1
USB6_S_M2
CMOS
Battery
M2_2
M2_1
SIM1
1
BL1
1
BKT_PWR1
1
CLRMOS1
1
PWR_BAT2
1
PWR_COM6
1
PWR_COM5
1
JGPIO_SET1
1
CLRMOS2
1
CI2
1
CI1
1
PWR_JP1

9
1 : 4-Pin CPU FAN Connector (+12V)
2 : DDR3 SO-DIMM Slots (DDR3_A1, DDR3_B1)
3 : M.2 Key-E Socket (M2_2)
4 : 4-pin ATX PWR Con (Input +12V)
5 : Panel Power Select (LCD_VCC) (PNL_PWR1)
6 : LVDS Panel Connector
7 : BL1, BL2
8 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)
9 : 4-Pin Chassis FAN Connector (+12V)
10 : Backlight Power Connector (BLT_PWR1)
11 : Backlight Volume Control (BLT_VOL1)
12 : Clear CMOS Header (CLRMOS1)
13 : PWR_BAT2
14 : System Panel Header
15 : COM5, 6 Headers (RS232)
16 : COM Port PWR Setting Jumpers
PWR_COM5 (For COM Port5)
PWR_COM6 (For COM Port6)
17 : Digital Input / Output Default Value Setting (JGPIO_SET1)
18 : LPC Header
19 : Digital Input / Output Power Select (JGPIO_PWR1)
20 : Printer Port / GPIO Header (LPT_GPIO1)
21 : Clear CMOS Header (CLRMOS2)
22 : Chassis Intrusion Headers (CI1, CI2)
23 : SATA3 Connector (SATA3_1)
24 : ATX/AT Mode Select (PWR_JP1)
25 : USB2.0 Connector (USB2_4_5)
26 : SATA Power Output Connector
27 : USB2.0 Connector (USB2_6_7)
28 : USB Power Setting Jumpers
(USB2_PWR_H1 (For USB2_4_5),
USB2_PWR_H2 (For USB2_6_7))
29 : SPDIF Header
30 : 3W Audio AMP Output Wafer
31 : Front Panel Audio Header
32 : Buzzer Header
33 : USB Power Setting Jumper
(USB3_PWR_H2 (For USB3_23 ))
34 : USBPort7_S_M2 Slot, USBPort6_S_M2 Slot
35 : M.2 Key-M Socket (M2_1)
36 : USB Power Setting Jumper
(USB3_PWR_H1 (For USB3_01 ))
37 : M.2 Key-M Socket (M2_B1)
38 : COM Port PWR Setting Jumpers
PWR_COM3 (For COM Port3)
PWR_COM4 (For COM Port4)

10
1.4 I/O Panel

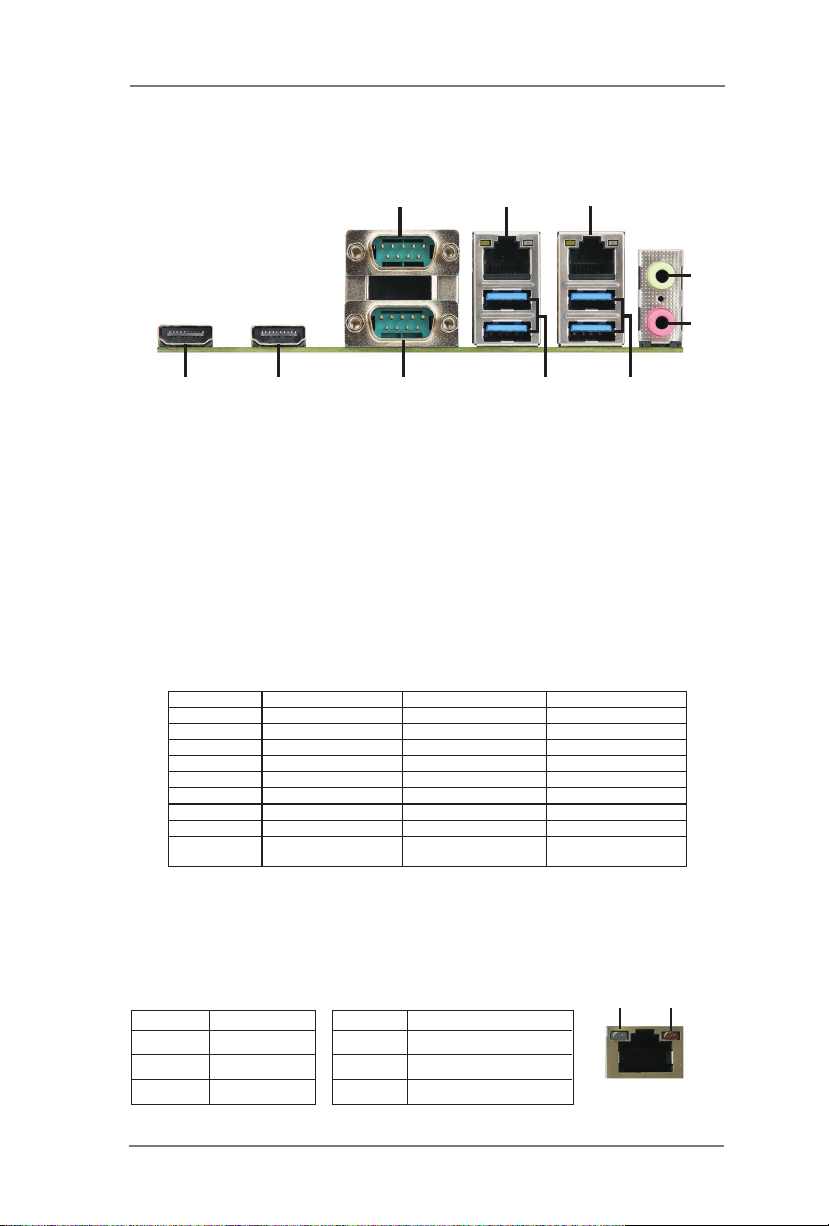

** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
1 COM Port 3 (COM3)*
2 LAN RJ-45 Port**
3 LAN RJ-45 Port**
4 Line out (Green)
5 Microphone (Pink)
6 USB 3.0 Ports (USB3_2_3)
7 USB 3.0 Ports (USB3_0_1)
8 COM Port 4 (COM4)
9 HDMI Port (HDMI2)
10 HDMI Port (HDMI1)
ACT/LINK
LED
SPEED
LED
LAN Port
* This motherboard supports RS232/422/485 on COM3 port. Please refer to below table for
the pin denition. In addition, COM3 port (RS232/422/485) can be adjusted in BIOS setup
utility > Advanced Screen > Super IO Conguration. You may refer to page 29 for details.
COM3 Port Pin Denition
PIN RS232 RS422 RS485
1 DCD TX- RTX-
2 RXD RX+ N/A
3 TXD TX+ RTX+
4 DTR RX- N/A
5 GND GND GND
6 DSR N/A N/A
7 RTS N/A N/A
8 CTS N/A N/A
9COM1: +5V/+12V/+5VSB
COM2, 3: +5V/+12V
COM1: +5V/+12V/+5VSB
COM2, 3: +5V/+12V
COM1: +5V/+12V/+5VSB
COM2, 3: +5V/+12V
6
12
4
3
5
87
10 9

11
Chapter 2: Installation
This is a Mini-ITX form factor (6.7" x 6.7", 17.0 x 17.0 cm) motherboard. Before you
install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched off or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12

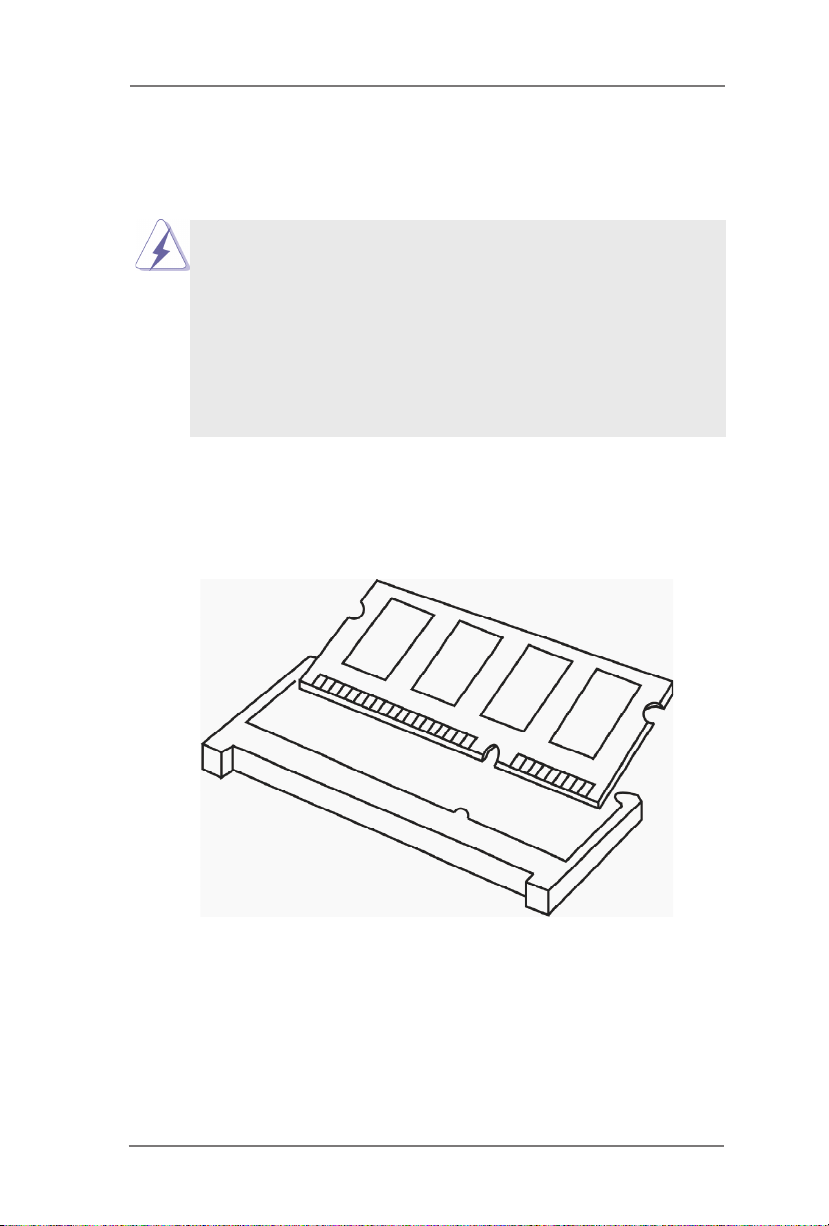

2.3 Installation of Memory Modules (SO-DIMM)
IMB-1002J motherboard provides two 204-pin DDR3 (Double Data Rate 3) SO-
DIMM slots, which support Dual Channel DDR3L (low voltage).
1. If you install one memory module only, please install it on DDR3_A1.
2. It is not allowed to install a DDR or DDR2 memory module into a
DDR3 slot; otherwise, this motherboard and SO-DIMM may be
damaged.
2. Please make sure to disconnect the power supply before adding or
removing SO-DIMMs or the system components.
3. The SO-DIMM only ts in one correct orientation. It will cause
permanent damage to the motherboard and the SO-DIMM if you force
the SO-DIMM into the slot at incorrect orientation.
Installing a SO-DIMM
Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

13
2.4 Expansion Slots (PCI Express, SIM and M.2 Slots)
There is 1 PCI Express slot, 1 SIM socket and 3 M.2 sockets on this motherboard.
PCIE slot: PCIE1 (PCIE x1 slot) is used for PCI Express x1 lane width cards.
SIM socket:
SIM1 socket is connected to M.2 Key_B.
M.2 sockets:
M2_2 (Key-E, 2230) supports PCIe x1 and is shared with USB2.0 for Wireless.
M2_1 (Key-M, 2242/2260/2280) supports SATA3 for SSD.
M_B1 (Key-B, 3042) is shared with USB2.0 and SIM for 4G.
M.2 Socket Pin Denition
M.2 Key-E Socket (M2_2): M.2 Key-M Socket (M2_1): M.2 Key-M Socket (M2_B1):

14

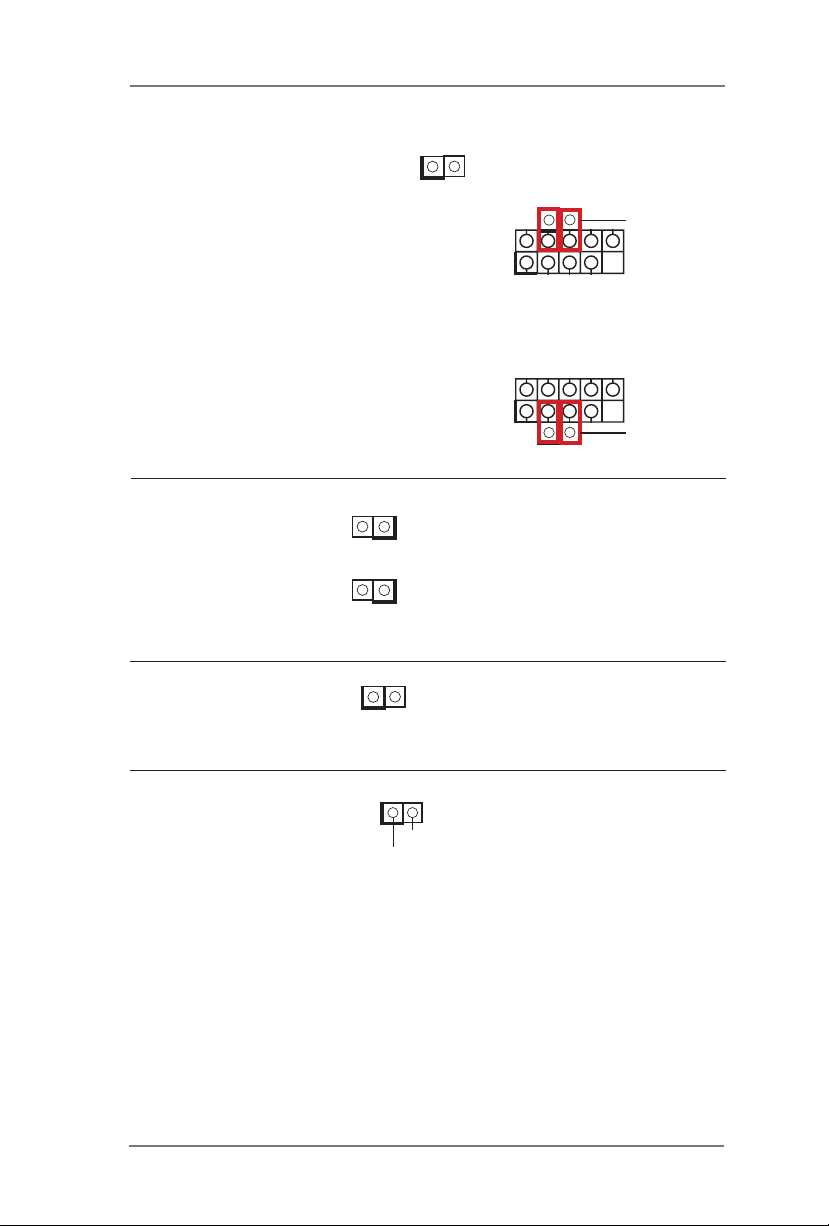

2.5 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Clear CMOS Jumper Open: Normal
(2-pin CLRMOS2) Short: Auto Clear CMOS
(see p.8, No. 21) (Power Off)
Note: CLRMOS2 allows you to clear the data in CMOS. The data in CMOS includes
system setup information such as system password, date, time, and system
setup parameters. To clear and reset the system parameters to default setup,
please turn off the computer and unplug the power cord, then use a jumper
cap to short the pins on CLRMOS2 for 3 seconds. Please remember to re-
move the jumper cap after clearing the CMOS. If you need to clear the CMOS
when you just nish updating the BIOS, you must boot up the system rst,
and then shut it down before you do the clear-CMOS action.
Clear CMOS Jumper 1-2: Normal
(3-pin CLRMOS1) 2-3: Clear CMOS
(see p.8, No. 12)
Note: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date, time, user default prole and MAC
address will be cleared only if the CMOS battery is removed.
Digital Input / Output Power Select 1-2: +12V
(5-pin JGPIO_PWR1) 2-3: +5V
(see p.8 No. 19) 3-4: +5V
4-5: GND
2-pin jumper
Clear CMOSDefault

15
Backlight Power Select Use this to set up the backlight
(LCD_BLT_VCC) power of the LVDS connector.
(3-pin BKT_PWR1) 1-2: LCD_BLT_VCC: +5V
(see p.8 No. 8) 2-3: LCD_BLT_VCC: +12V
COM Port PWR Setting Jumpers 1-2: +5V
(3-pin PWR_COM3, for COM Port3) 2-3: +12V
(3-pin PWR_COM4, for COM Port4)
(see p.8, No. 38)
(3-pin PWR_COM5, for COM Port5) 1-2: +5V
(3-pin PWR_COM6, for COM Port6) 2-3: +12V
(see p.8, No. 16)
USB Power Setting Jumpers
(3-pin USB2_PWR_H1 (For USB2_4_5),
1-2: +5V
USB2_PWR_H2 (For USB2_6_7)) 2-3: +5VSB
(see p.8, No. 28)
(3-pin USB3_PWR_H2 (For USB3_23))
1-2: +5V
(see p.8, No. 33) 2-3: +5VSB
(3-pin USB3_PWR_H1 (For USB3_01))
1-2: +5V
(see p.8, No. 36) 2-3: +5VSB
Panel Power Select (LCD_VCC) Use this to set up the VDD
(5-pin PNL_PWR1) power of the LVDS connector.
(see p.8 No. 5) 1-2: LVDD: +3V
2-3: LVDD: +5V
4-5: LVDD: +12V
ATX/AT Mode Select 1-2: AT Mode
(3-pin PWR_JP1) 2-3: ATX Mode
(see p.8 No. 24)
Digital Input / Output Default Value Setting 1-2: Pull-High
(3-pin JGPIO_SET1) 2-3: Pull-Low
(see p.8, No. 17)

16
USB7_S_M2, USB6_S_M2 USBPort7_S_M2 Slot:
(2-pin USB7_S_M2, USB6_S_M2)
Open: USB2.0 Connector
(see p.8, No. 34) Short: M2_1 slot Function
USBPort6_S_M2 Slot:
Open: USB2.0 Connector
Short: M2_2 slot Function
1
1
1
USBPort6_S_M2 Slot
USB2.0 Connector
(USB2_6_7)
1
1
USBPort7_S_M2 Slot
USB2.0 Connector
(USB2_6_7)
BL1, BL2
(2-pin BL1)
Open : Protect LCD_BLT_VCC
(see p.8 No. 7) Short : No Protect LCD_BLT_VCC
(2-pin BL2)
Open : Protect R_LVDD
(see p.8 No. 7) Short : No Protect R_LVDD
1
1
PWR_BAT2 Open: Normal
(2-pin PWR_BAT2) Short: Charge Battery
(see p.8, No. 13)
1
1
Signal
GND
Chassis Intrusion Headers This motherboard supports
(2-pin CI1, CI2: see p.8, No. 22) CASE OPEN detection feature
that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
CI1 :
Close : Active Case Open
Open : Normal
CI2 :
Close : Normal
Open : Active Case Open

17
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!

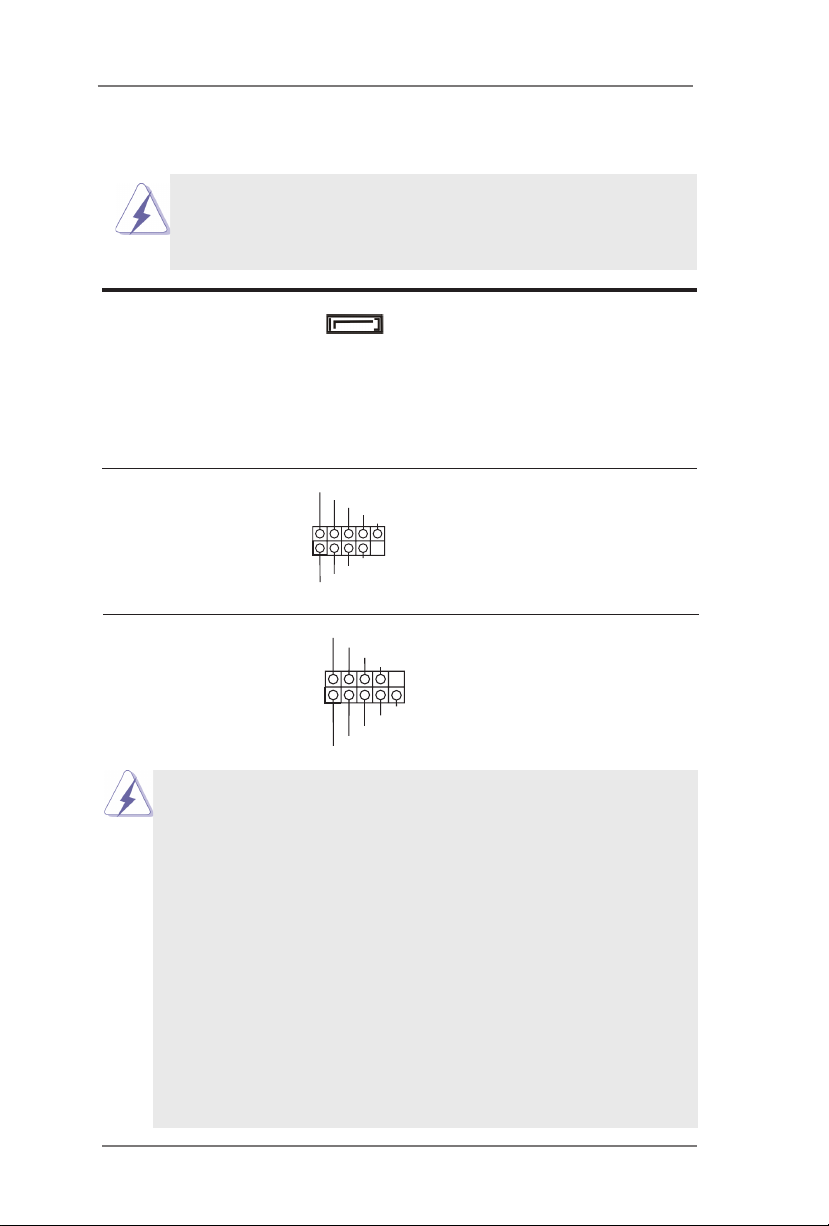

SATA3 Connector This Serial ATA3
(SATA3_1: see p.8, No. 23) (SATA3) connector supports
SATA data cables for internal
storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
USB 2.0 Connectors There are two USB 2.0
(9-pin USB2_4_5: see p.8 No. 25) connectors on this
(9-pin USB2_6_7: see p.8 No. 27) motherboard. Each USB 2.0
connector can support two USB
ports.
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8 No. 14) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep
state or powered off (S5).
SATA3_1
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
USB7_S_M2, USB6_S_M2 USBPort7_S_M2 Slot:
(2-pin USB7_S_M2, USB6_S_M2)
Open: USB2.0 Connector
(see p.8, No. 34) Short: M2_1 slot Function
USBPort6_S_M2 Slot:
Open: USB2.0 Connector
Short: M2_2 slot Function
DUMMY
GND
GND
+B
-B
USB_PWR
+A
-A
USB_PWR
1
USBPort6_S_M2 Slot
USBPort7_S_M2 Slot

18
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.

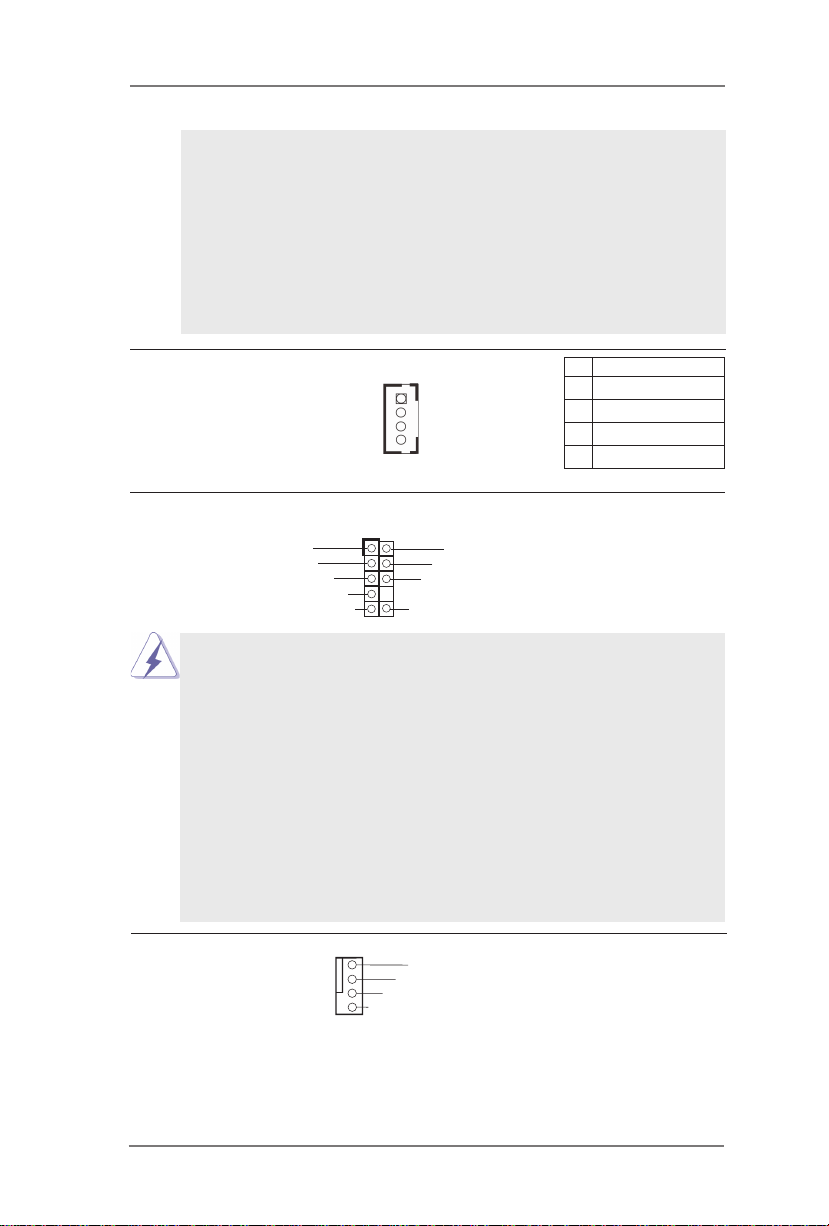

3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p.8 No. 30)
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.8 No. 31) convenient connection and
control of audio devices.
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
1PIN Signal Name
1 OUTLN
2 OUTLP
3 OUTRP
4 OUTRN
Chassis Fan Connector Please connect the fan cable
(4-pin CHA_FAN1) to the fan connector and
(see p.8 No. 9) match the black wire to the
ground pin.
FAN_SPEED
FAN_SPEED_CONTROL
+12V
GND
4
3
2
1
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET

19
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
4-pin ATX PWR Con Please connect a DC
(Input +12V) +12V power supply to this
(4-pin ATX12V1) connector.
(see p.8 No. 4) 1-2: GND
3-4: DC Input
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.8 No. 1) match the black wire to the
ground pin.
4
2
3
1
Printer Port / GPIO Header
(25-pin LPT_GPIO1)
(see p.8 No. 20) Printer Port: GPIO:
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL 4
3
2
1
1
SPD0
STB#
SPD1
SPD2
SPD3
SPD4
SPD6
SPD7
GND GND
SLIN#
PINIT#
ERROR#
AFD#
GND GND GND GND GND GND
SPD5 ACK# BUSY PE SLCT
PIN Signal Name PIN Signal Name
26 NC 25 NA 24 GND 23 SIO_GP30 22 GND 21 SIO_GP31 20 GND 19 SIO_GP32 18 GND 17 SIO_GP33 16 GND 15 SIO_GP34 14 GND 13 SIO_GP35 12 JGPIOPWR 11 SIO_GP36 10 JGPIOPWR 9 SIO_GP37
8 SIO_GP43 7 SIO_GP40 6 SIO_GP44 5 SIO_GP41 4 SIO_GP45 3 SIO_GP42 2 SIO_GP46 1 SIO_GP47
* If you want to use the printer port function, please short pin4 and pin5 on
Digital Input / Output Power Select (JGPIO_PWR1).
Buzzer Header
(2-pin BUZZ2)
(see p.8, No. 32)
1
+5V
SPKR

20
LVDS Connector
(40-pin LVDS1)
(see p.8 No. 6)
Backlight Volume Control
(7-pin BLT_VOL1)
(see p.8 No. 11)
Backlight Power Connector
(6-pin BLT_PWR1)
(see p.8 No. 10)
1
PIN Signal Name
1 GND
2 GND
3 BL CTL
4 BL EN
5 LCD_BLT_VCC
6 LCD_BLT_VCC
SATA Power Output Connector
(4-pin SATA_PWR1)
(see p.8 No. 26)
COM5, 6 Headers (RS232)
(10-pin COM5/COM6: see p.8, No. 15)
1
2
GN D
+5 V
+12V
1
GN D
PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name PIN Signal Name
1DDCD# 3TTXD 5GND 7RRTS# 9PWR
2RRXD 4DDTR# 6DDSR# 8CCTS# 10 N/A
139
40
2
PIN Signal Name PIN Signal Name
39 LCD_BLT_VCC 40 LCD_BLT_VCC 37 CON_LBKLT_CTL 38 LCD_BLT_VCC 35 GND 36 CON_LBKLT_EN 33 LVDS_B_CLK# 34 LVDS_B_CLK 31 LVDS_B_DATA3 32 GND 29 DPLVDD_EN 30 LVDS_B_DATA3# 27 LVDS_B_DATA2# 28 LVDS_B_DATA2 25 LVDS_B_DATA1 26 GND 23 GND 24 LVDS_B_DATA1# 21 LVDS_B_DATA0# 22 LVDS_B_DATA0 19 LVDS_A_CLK 20 GND 17 GND 18 LVDS_A_CLK# 15 LVDS_A_DATA3# 16 LVDS_A_DATA3 13 LVDS_A_DATA2 14 GND
11 GND 12 LVDS_A_DATA2#
9 LVDS_A_DATA1# 10 LVDS_A_DATA1 7 LVDS_A_DATA0 8 GND 5 LDDC_DATA 6 LVDS_A_DATA0# 3 +3.3V 4 LDDC_CLK 1 LCD_VCC 2 LCD_VCC
PIN Signal Name
1 GPIO_VOL_UP
2 GPIO_VOL_DW
3 PWRDN
4 LVDS1 BLUP
5 LVDS1 BLDW
6 GND
7 GND
1
