ASROCK B660M-HDVP/D5 User manual

Version 1.0
Published December 2021
Copyright©2021 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com

AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRock Tel
: [phone] ext.123 (Standard International call charges apply)
e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
INTEL END USER SOFTWARE LICENSE AGREEMENT
IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING.
LICENSE. Licensee has a license under Intel’s copyrights to reproduce Intel’s Soware
only in its unmodied and binary form, (with the accompanying documentation, the
“Soware”) for Licensee’s personal use only, and not commercial use, in connection with
Intel-based products for which the Soware has been provided, subject to the following
conditions:
(a) Licensee may not disclose, distribute or transfer any part of the Soware, and You agree
to prevent unauthorized copying of the Soware.
(b) Licensee may not reverse engineer, decompile, or disassemble the Soware.
(c) Licensee may not sublicense the Soware.
(d) e Soware may contain the soware and other intellectual property of third party
suppliers, some of which may be identied in, and licensed in accordance with, an enclosed
license.txt le or other text or le.
(e) Intel has no obligation to provide any support, technical assistance or updates for the
Soware.
OWNERSHIP OF SOFTWARE AND COPYRIGHTS. Title to all copies of the Soware
remains with Intel or its licensors or suppliers. e Soware is copyrighted and protected
by the laws of the United States and other countries, and international treaty provisions.
Licensee may not remove any copyright notices from the Soware. Except as otherwise
expressly provided above, Intel grants no express or implied right under Intel patents,
copyrights, trademarks, or other intellectual property rights. Transfer of the license termi-
nates Licensee’s right to use the Soware.
DISCLAIMER OF WARRANTY. e Soware is provided “AS IS” without warranty of
any kind, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PUR-
POSE.
LIMITATION OF LIABILITY. NEITHER INTEL NOR ITS LICENSORS OR SUPPLIERS
WILL BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF
BUSINESS, OR INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAG

ES OF ANY KIND WHETHER UNDER THIS AGREEMENT OR OTHERWISE, EVEN
IF INTEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
LICENSE TO USE COMMENTS AND SUGGESTIONS. is Agreement does NOT
obligate Licensee to provide Intel with comments or suggestions regarding the Soware.
However, if Licensee provides Intel with comments or suggestions for the modication,
correction, improvement or enhancement of (a) the Soware or (b) Intel products or
processes that work with the Soware, Licensee grants to Intel a non-exclusive, worldwide,
perpetual, irrevocable, transferable, royalty-free license, with the right to sublicense, under
Licensee’s intellectual property rights, to incorporate or otherwise utilize those comments
and suggestions.
TERMINATION OF THIS LICENSE. Intel or the sublicensor may terminate this license
at any time if Licensee is in breach of any of its terms or conditions. Upon termination,
Licensee will immediately destroy or return to Intel all copies of the Soware.
THIRD PARTY BENEFICIARY. Intel is an intended beneciary of the End User License
Agreement and has the right to enforce all of its terms.
U.S. GOVERNMENT RESTRICTED RIGHTS. e Soware is a commercial item (as
dened in 48 C.F.R. 2.101) consisting of commercial computer soware and commercial
computer soware documentation (as those terms are used in 48 C.F.R. 12.212), consistent
with 48 C.F.R. 12.212 and 48 C.F.R 227.7202-1 through 227.7202-4. You will not provide
the Soware to the U.S. Government. Contractor or Manufacturer is Intel Corporation,
2200 Mission College Blvd., Santa Clara, CA 95054.
EXPORT LAWS. Licensee agrees that neither Licensee nor Licensee’s subsidiaries will
export/re-export the Soware, directly or indirectly, to any country for which the U.S.
Department of Commerce or any other agency or department of the U.S. Government
or the foreign government from where it is shipping requires an export license, or other
governmental approval, without rst obtaining any such required license or approval. In
the event the Soware is exported from the U.S.A. or re-exported from a foreign destina-
tion by Licensee, Licensee will ensure that the distribution and export/re-export or import
of the Soware complies with all laws, regulations, orders, or other restrictions of the U.S.
Export Administration Regulations and the appropriate foreign government.
APPLICABLE LAWS. is Agreement and any dispute arising out of or relating to it will
be governed by the laws of the U.S.A. and Delaware, without regard to conict of laws
principles. e Parties to this Agreement exclude the application of the United Nations
Convention on Contracts for the International Sale of Goods (1980). e state and federal
courts sitting in Delaware, U.S.A. will have exclusive jurisdiction over any dispute arising
out of or relating to this Agreement. e Parties consent to personal jurisdiction and venue
in those courts. A Party that obtains a judgment against the other Party in the courts iden-
tied in this section may enforce that judgment in any court that has jurisdiction over the
Parties.
Licensee’s specic rights may vary from country to country.

English
1
B660M-HDVP/D5
H610M-HDVP/D5

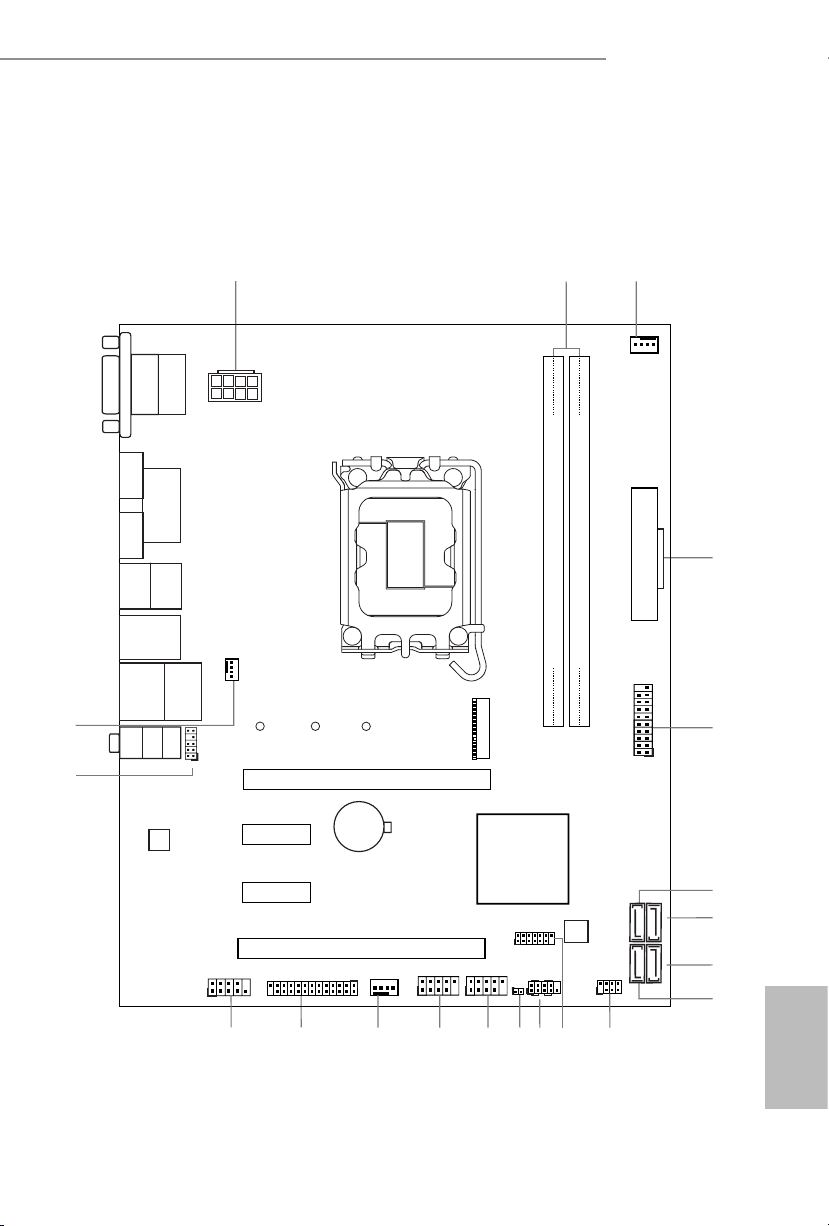

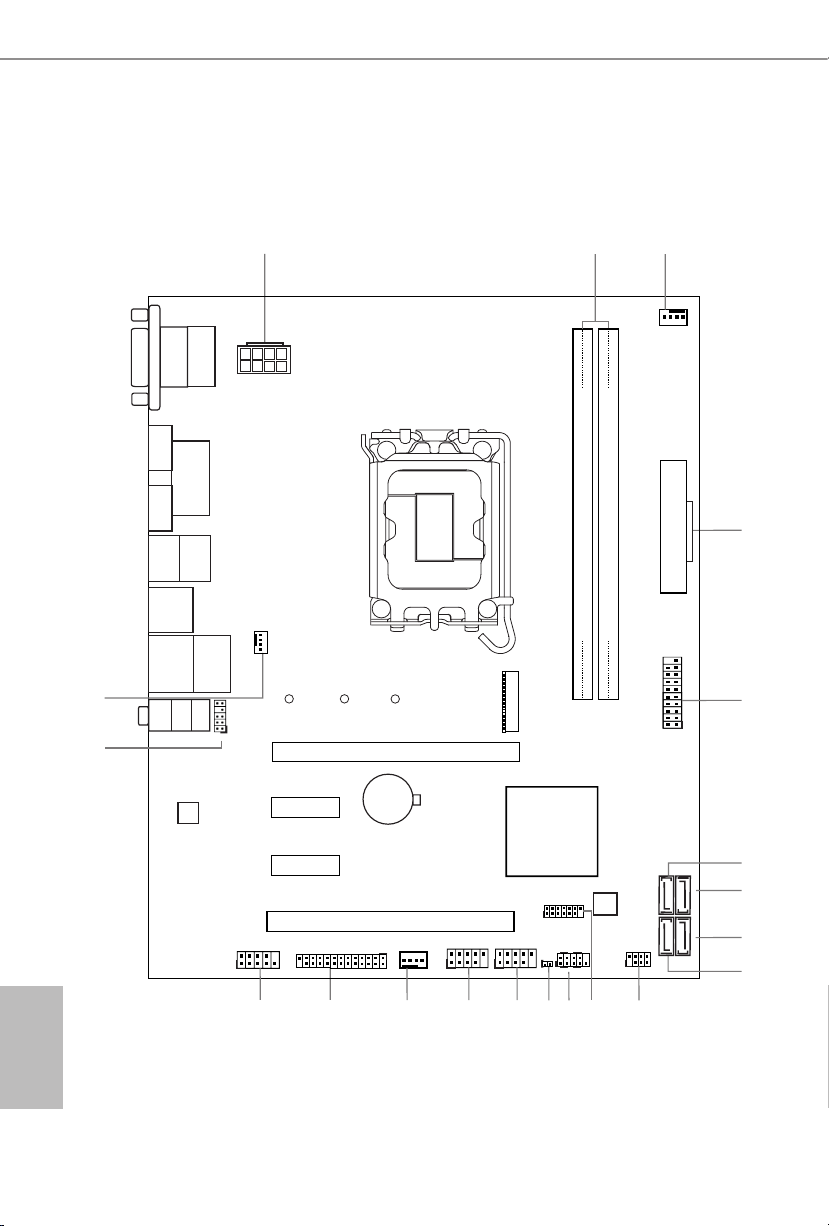

Motherboard Layout
B660M-HDVP/D5
3
4
1
16
17
20
5
7
6
2
ATXPWR1
HDLED RESET
PLED PWRBTN
PANEL1
1
RoHS
CPU_FAN1
PCIE1
PCI1
1
SPK_CI1
1
DDR5_B1 (64 bit, 288-pin module)
DDR5_A1 (64 bit, 288-pin module)
ATX12V1
USB3_1_2
1
HD_AUDIO1
M2_1
Top: RJ-45
HDMI1
COM1
USB 2.0
T: USB_1
B: USB_2
CHA_FAN2
PCIE2
PCIE3
Top:
LINE I N
Center:
FRONT
Bottom:
MIC IN
VGA1
DVI1
1
USB_5_6
COM2
1
12 11
AUDIO
CODEC
B660M-HDVP/D5
14 10
CHA_FAN1/WP
PS2
Keyboard
PS2
Mouse
18
Intel
B660
9
8
BIOS
ROM
1
SPI_TPM_J1
13
1
USB_3_4
15
LPT1
1
CMOS
Battery
19
USB 3.2 Gen1
USB3_3456
DP1
SATA3_0 SATA3_2
SATA3_1 SATA3_3
CLRMOS1
1

English
2
H610M-HDVP/D5
3
4
1
16
17
20 5
7
6
2
ATXPWR1
HDLED RESET
PLED PWRBTN
PANEL1
1
RoHS
CPU_FAN1
PCIE1
PCI1
1
SPK_CI1
1
DDR5_B1 (64 bit, 288-pin module)
DDR5_A1 (64 bit, 288-pin module)
ATX12V1
USB3_1_2
1
HD_AUDIO1
M2_1
Top: RJ-45
HDMI1
COM1
USB 2.0
T: USB_1
B: USB_2
CHA_FAN2
PCIE2
PCIE3
Top:
LINE I N
Center:
FRONT
Bottom:
MIC IN
VGA1
DVI1
1
USB_5_6
COM2
1
12 11
AUDIO
CODEC
H610M-HDVP/D5
14 10
CHA_FAN1/WP
PS2
Keyboard
PS2
Mouse
18
Intel
H610
9
8
BIOS
ROM
1
SPI_TPM_J1
13
1
USB_3_4
15
LPT1
1
CMOS
Battery
19
USB 3.2 Gen1
USB3_34
DP1
SATA3_0 SATA3_2
SATA3_1 SATA3_3
CLRMOS1
1

English
3
B660M-HDVP/D5
H610M-HDVP/D5
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1)
3 CPU Fan Connector (CPU_FAN1)
4 ATX Power Connector (ATXPWR1)
5 USB 3.2 Gen1 Header (USB3_1_2)
6 SATA3 Connector (SATA3_3)
7 SATA3 Connector (SATA3_2)
8 SATA3 Connector (SATA3_0)
9 SATA3 Connector (SATA3_1)
10 Chassis Intrusion and Speaker Header (SPK_CI1)
11 SPI TPM Header (SPI_TPM_J1)
12 System Panel Header (PANEL1)
13 Clear CMOS Jumper (CLRMOS1)
14 USB 2.0 Header (USB_5_6)
15 USB 2.0 Header (USB_3_4)
16 Chassis Fan Connector (CHA_FAN2)
17 Print Port Header (LPT1)
18 COM Port Header (COM2)
19 Front Panel Audio Header (HD_AUDIO1)
20 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

English
4

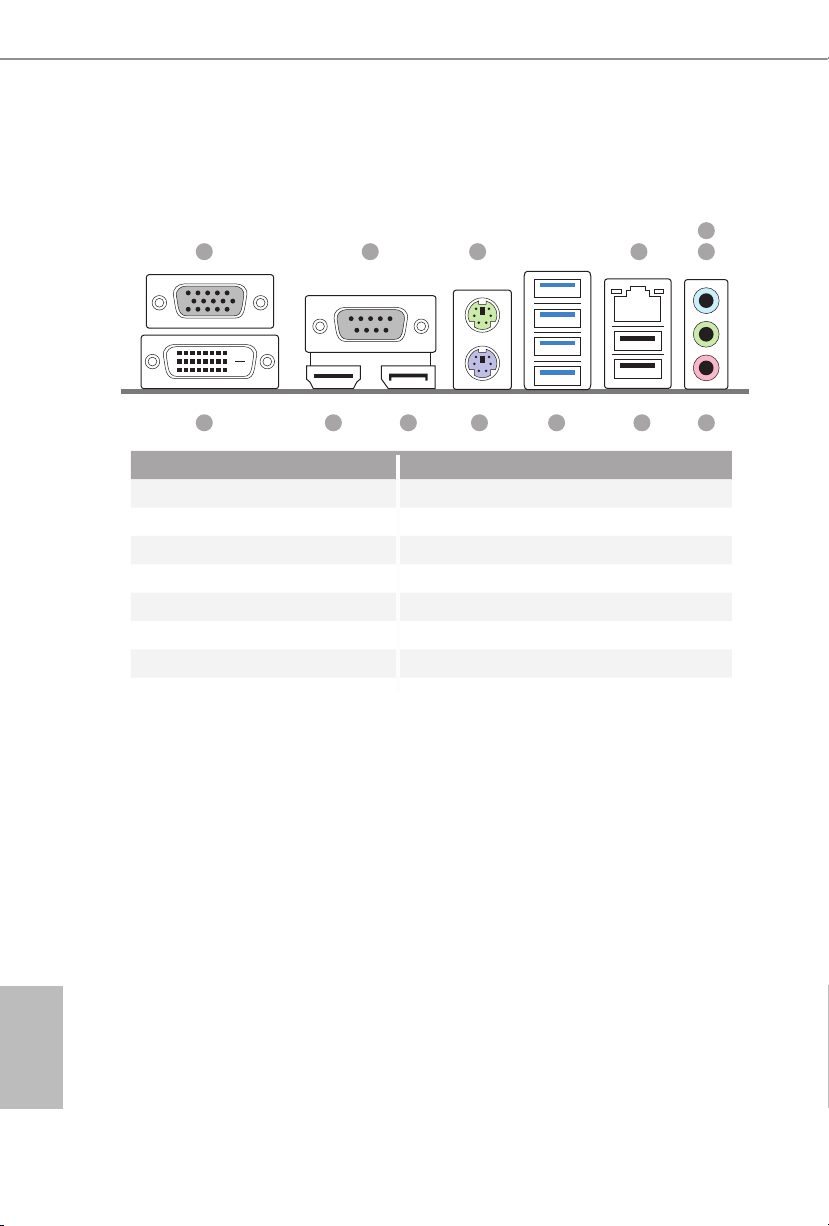

I/O Panel
No. Description No. Description
1D-Sub Port 8 USB 2.0 Ports (USB_12)
2 Serial Port: COM1 9 USB 3.2 Gen1 Ports (USB3_3456)
3 PS/2 Mouse Port 10 PS/2 Keyboard Port
4 LAN RJ-45 Port* 11 DisplayPort 1.4
5 Line In (Light Blue)** 12 HDMI Port
6 Front Speaker (Lime)** 13 DVI-D Port
7 Microphone (Pink)**
78101112
13
6
5
3 4
9
1 2
B660M-HDVP/D5

English
5
B660M-HDVP/D5
H610M-HDVP/D5
No. Description No. Description
1D-Sub Port 8 USB 2.0 Ports (USB_12)
2 Serial Port: COM1 9 USB 3.2 Gen1 Ports (USB3_34)
3 PS/2 Mouse Port 10 PS/2 Keyboard Port
4 LAN RJ-45 Port* 11 DisplayPort 1.4
5 Line In (Light Blue)** 12 HDMI Port
6 Front Speaker (Lime)** 13 DVI-D Port
7 Microphone (Pink)**
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
ACT/LINK LED
SPEED LED
LAN Port
H610M-HDVP/D5
78101112
13
6
5
3 4
9
1 2

English
6
Chapter 1 Introduction
ank you for purchasing ASRock B660M-HDVP/D5 / H610M-HDVP/D5
motherboard, a reliable motherboard produced under ASRock’s consistently
stringent quality control. It delivers excellent performance with robust design
conforming to ASRock’s commitment to quality and endurance.
1.1 Package Contents
• ASRock B660M-HDVP/D5 / H610M-HDVP/D5 Motherboard (Micro ATX Form
Factor)
• ASRock B660M-HDVP/D5 / H610M-HDVP/D5 Quick Installation Guide
• ASRock B660M-HDVP/D5 / H610M-HDVP/D5 Support CD
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 1 x Screw for M.2 Socket
• 1 x I/O Panel Shield
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRock’s
website as well. ASRock website http://www.asrock.com.

English
7
B660M-HDVP/D5
H610M-HDVP/D5
1.2 Specications
Platform • Micro ATX Form Factor
• Solid Capacitor design
CPU • Supports 12th Gen Intel® CoreTM Processors (LGA1700)
• 5 Power Phase design
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
Chipset B660M-HDVP/D5:
• Intel® B660
H610M-HDVP/D5:
• Intel® H610
Memory • 2 x DDR5 DIMM Slots
• Max. capacity of system memory: 64GB
• Supports Intel® Extreme Memory Prole (XMP) 3.0
B660M-HDVP/D5:
• Supports DDR5 non-ECC, un-buered memory*
* Supports DDR5 4800 (1DPC) natively.
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
H610M-HDVP/D5:
• Supports DDR5 non-ECC, un-buered memory up to 4800*
* Supports DDR5 4800 (1DPC) natively.
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
Expansion
Slot
• 1 x PCIe Gen4x16 Slot
* Supports NVMe SSD as boot disks
• 2 x PCIe Gen3x1 Slots
• 1 x PCI Slot
Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
• Intel® XeGraphics Architecture (Gen 12)

English
8
• Four graphics output options: D-Sub, DVI-D, HDMI and
DisplayPort 1.4
*Supports up to 3 displays simultaneously (for H610M-HDVP/
D5 only)
• Supports Quad Monitor (for B660M-HDVP/D5 only)
• Supports HDMI 2.1 TMDS Compatible with max. resolution
up to 4K x 2K (4096x2160) @ 60Hz
• Supports DVI-D with max. resolution up to 1920x1200 @
60Hz
• Supports D-Sub with max. resolution up to 1920x1200 @
60Hz
• Supports DisplayPort 1.4 with DSC (compressed) max.
resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @
120Hz
• Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and
DisplayPort 1.4 Ports
Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Supports Surge Protection
LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111H
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Ecient Ethernet 802.3az
• Supports PXE
Rear Panel
I/O
• 1 x PS/2 Keyboard Port
• 1 x PS/2 Mouse Port
• 1 x Serial Port: COM1
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

English
9
B660M-HDVP/D5
H610M-HDVP/D5
B660M-HDVP/D5:
• 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
H610M-HDVP/D5:
• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
Storage • 4 x SATA3 6.0 Gb/s Connectors*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will
be disabled.
• 1 x Ultra M.2 Socket (M2_1, Key M), supports type
2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3 x4 (32 Gb/s)
mode**
** Supports Intel® OptaneTM Technolog y (for B660M-HDVP/D5
only)
** Supports Intel® Volume Management Device (VMD) (for
B660M-HDVP/D5 only)
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
RAID (for
B660M-
HDVP/D5
only)
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA
storage devices
Connector • 1 x Print Port Header
• 1 x COM Port Header
• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)
* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.
• 1 x Chassis Fan Connector (4-pin)
* e Chassis Fan supports the Chassis fan of maximum 1A
(12W) fan power.
• 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)
* e Chassis/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
* CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector

English
10
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports
ESD Protection)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
(Supports ESD Protection)
BIOS
Feature
• AMI UEFI Legal BIOS with multilingual GUI support
• ACPI 6.0 Compliant wake up events
• SMBIOS 2.7 Support
B660M-HDVP/D5:
• CPU Core/Cache, CPU GT, VDD_CPU, VDD_IMC, VCCIN
AUX, +1.05V PROC, +0.82V PCH , +1.05V PCH Voltage
Multi-adjustment
H610M-HDVP/D5:
• CPU Core/Cache, CPU GT, VDD_CPU, VCCIN AUX,
+1.05V PROC, +0.82V PCH , +1.05V PCH Voltage Multi-
adjustment
Hardware
Monitor
• Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
• Quiet Fan (Auto adjust chassis fan speed by CPU tempera-
ture): CPU, Chassis, Chassis/Water Pump Fans
• Fan Multi-Speed Control: CPU, Chassis, Chassis/Water
Pump Fans
• CASE OPEN detection
• Voltage monitoring: CPU Vcore, +1.05V_PCH, VDD_CPU,
VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V,
+3.3V, VCCSA
OS • Microso® Windows® 10 64-bit / 11 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP Ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tools. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.
* For detailed product information, please visit our website: http://www.asrock.com

English
11
B660M-HDVP/D5
H610M-HDVP/D5
is is a Micro ATX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

English
12

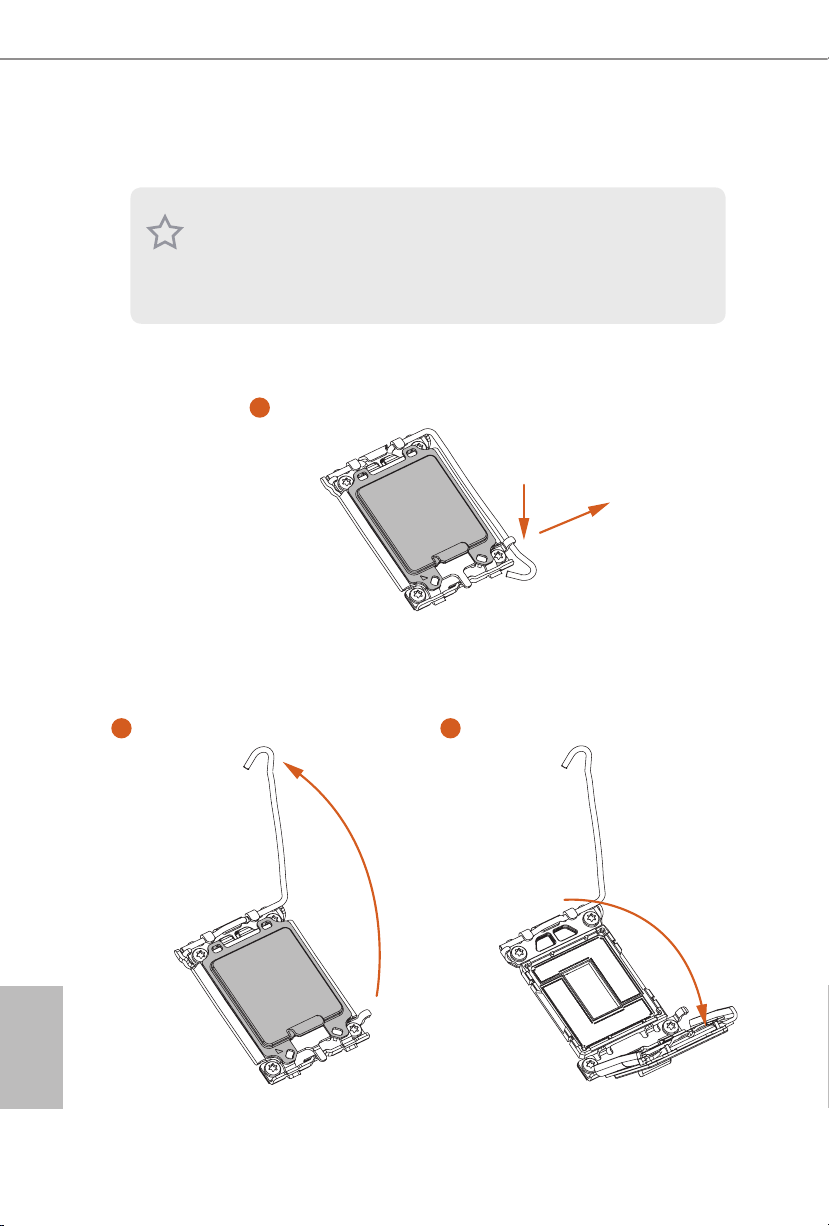

2.1 Installing the CPU
1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
A
B
2 3

English
13
B660M-HDVP/D5
H610M-HDVP/D5
5
76
4

English
14
Please save and replace the cover if the processor is removed. e cover must be placed if
you wish to return the motherboard for aer service.

English
15
B660M-HDVP/D5
H610M-HDVP/D5
2.2 Installing the CPU Fan and Heatsink
1 2
CPU_FAN

English
16
2.3 Installing Memory Modules (DIMM)
is motherboard provides two 288-pin DDR5 (Double Data Rate 5) DIMM slots,
and supports Dual Channel Memory Technology.
e DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the DIMM if you force the DIMM into the slot at incorrect
orientation.
1. For dual channel conguration, you always need to install identical (the same
brand, speed, size and chip-type) DDR5 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory
module installed.
3. It is not allowed to install a DDR, DDR2, DDR3 or DDR4 memory module into a
DDR5 slot; otherwise, this motherboard and DIMM may be damaged.

English
17
B660M-HDVP/D5
H610M-HDVP/D5
1
2
3
