ASROCK IMB-1211-D R2 User manual

1
IMB-1211-D R2
IMB-1211-L R2
IMB-1210-D R2
IMB-1210-L R2
User Manual
Version 1.0
Published May 2018
Copyright©2018 ASRockInd INC. All rights reserved.

2
Version 1.0
Published May 2018
Copyright©2018 ASRockInd INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRockInd Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRockInd. ASRockInd assumes no responsibility
for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRockInd does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRockInd, its directors, ocers, employees, or agents be liable
for any indirect, special, incidental, or consequential damages (including damages
for loss of prots, loss of business, loss of data, interruption of business and the
like), even if ASRockInd has been advised of the possibility of such damages arising
from any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRockInd Website: http://www.asrockind.com

3
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

4
Contents
1 Introduction ....................................................... 5
1.1 Package Contents ......................................................... 5
1.2 Specications................................................................. 6

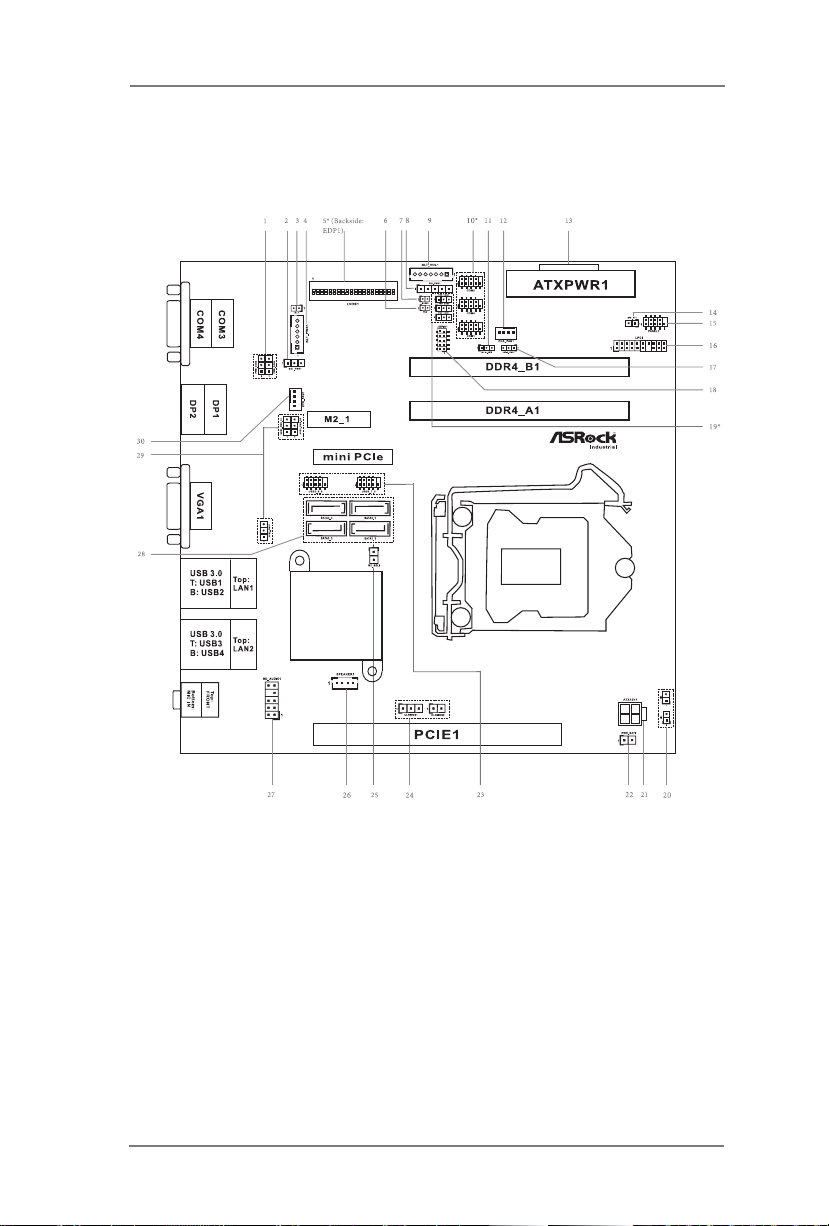

1.3 Motherboard Layout....................................................... 14

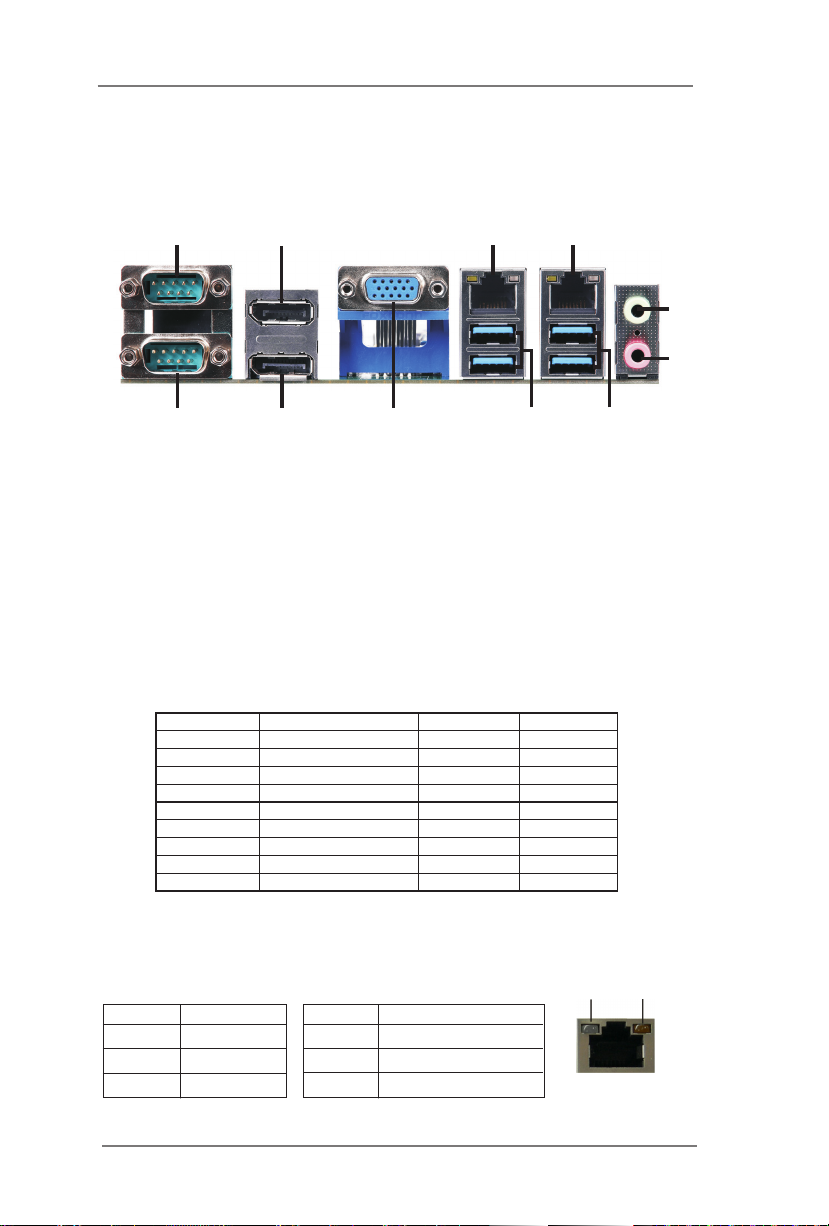

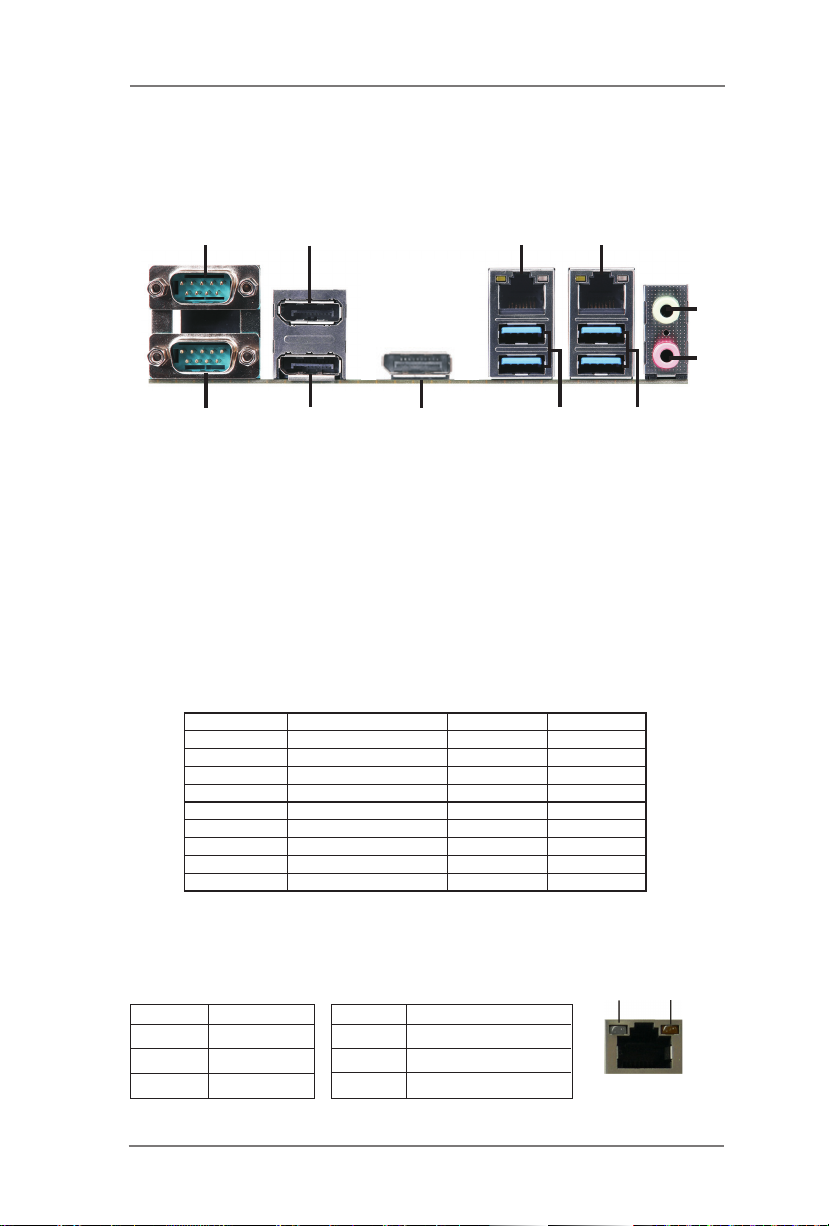

1.4 I/O Panel........................................................................ 16
2 Installation ......................................................... 20
2.1 Screw Holes................................................................... 20
2.2 Pre-installation Precautions ........................................... 20
2.3 Installation of Memory Modules (SO-DIMM).................. 21
2.4 Expansion Slots ............................................................ 23
2.5 Jumpers Setup............................................................... 25
2.6 Onboard Headers and Connectors................................ 28
3 UEFI SETUP UTILITY......................................... 33
3.1 Introduction .................................................................... 33
3.1.1 UEFI Menu Bar .................................................... 33
3.1.2 Navigation Keys ................................................... 34
3.2 Main Screen................................................................... 34
3.3 Advanced Screen........................................................... 35
3.3.1 CPU Conguration ............................................... 36
3.3.2 Chipset Conguration........................................... 38
3.3.3 Storage Conguration .......................................... 40
3.3.4 Super IO Conguration ........................................ 41
3.3.5 AMT Conguration ............................................... 42
3.3.6 ACPI Conguration............................................... 44
3.3.7 USB Conguration ............................................... 45
3.3.8 Trusted Computing............................................... 46
3.4 Hardware Health Event Monitoring Screen ................... 47
3.5 Security Screen ............................................................. 48
3.6 Boot Screen ................................................................... 49
3.7 Exit Screen .................................................................... 51
4 Software Support .............................................. 52
4.1 Install Operating System................................................ 52
4.2 Support CD Information ................................................. 52
4.2.1 Running Support CD............................................ 52
4.2.2 Drivers Menu........................................................ 52
4.2.3 Utilities Menu........................................................ 52
4.2.4 Contact Information.............................................. 52

5
Chapter 1: Introduction
Thank you for purchasing ASRockInd IMB-1211-D R2 / IMB-1211-L R2 / IMB-
1210-D R2 / IMB-1210-L R2 motherboard, a reliable motherboard produced under
ASRockInd’s consistently stringent quality control. It delivers excellent performance
with robust design conforming to ASRockInd’s commitment to quality and endur-
ance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRockInd website without further notice. You may
nd the latest VGA cards and CPU support lists on ASRockInd website
as well. ASRockInd website http://www.asrockind.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrockind.com/support/index.asp
1.1 Package Contents
ASRockInd IMB-1211-D R2 / IMB-1211-L R2 / IMB-1210-D R2 / IMB-1210-L R2
Motherboard (Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
ASRockInd IMB-1211-D R2 / IMB-1211-L R2 / IMB-1210-D R2 / IMB-1210-L R2
Driver CD
ASRockInd IMB-1211-D R2 / IMB-1211-L R2 / IMB-1210-D R2 / IMB-1210-L R2
Jumper setting instruction
1 x I/O Panel Shield

6
1.2 Specications
IMB-1211-D R2:
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU
Socket LGA 1151 for 8th Intel®Core i7/i5/i3/
Celeron (Supports up to 65W)
* The Performance of CPUs over 65W will be
limited due to power design.
Chipset Intel®Q370
Expansion
Slot
PCIe 1 x PCIe x16
Mini-PCIe 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0
mSATA N/A
M.2
1x M.2 (Key E, 2230) with PCIe x1, CNVI and
USB2.0 for Wireless
1x M.2 (Key M, 2242/2260/2280) with PCIe x4
and SATA3 for SSD
Memory
Technology Dual Channel DDR4 2400/2666 MHz
Max.
64GB*
* Intel® Core i9/i7/i5 CPUs support up to 64GB
(32GB per DIMM)
Intel®Core i3/Pentium®/Celeron®CPUs
support up to 32GB (16GB per DIMM)
Socket 2 x SO-DIMM
Graphics
Controller Intel® HD Graphics (By CPU)
VGA N/A
DVI N/A
LVDS N/A
HDMI N/A
DisplayPort Supports max resolution up to
4096x2304@60Hz
MultiDisplay Triple Display
eDP Supports max resolution up to
4096x2304@60Hz
Ethernet Ethernet 10/100/1000 Mbps
Controller 1 x Intel®I210, 1 x Intel®I219LM

7
Rear I/O
VGA N/A
HDMI N/A
DisplayPort 3
Ethernet 2
USB 4 x USB support USB3.1
Audio 2 (Mic-in, Line-out)
Serial 2 x COM(RS-232/422/485)
PS2 N/A
Internal
Connector
USB 4 x USB 2.0
LVDS/
inverter N/A
eDP 1
VGA N/A
Serial 3 x COM(RS-232)
SATA 4 x SATA3 (6.0Gb/s)
GPIO 4 x GPI, 4 x GPO
SATA PWR
Output N/A
Speaker
Header 1
TPM 1 x Onboard TPM 2.0 IC
Watchdog
Timer
Output From super I/O to drag RESETCON#
Interval 256 Segments, 0,1,2…255 Sec
Power
Requirements
Input PWR ATX PWR 24+4-pin
Power On
AT/ATX Supported
AT: Directly PWR on as Power input ready
ATX: Press Button to PWR on after Power
input ready
Environment
Operating
Temp 0ºC – 60ºC
Storage
Temp -40ºC – 85ºC

8
IMB-1211-L R2:
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU
Socket LGA 1151 for 8th Intel®Core i7/i5/i3/
Celeron (Supports up to 65W)
* The Performance of CPUs over 65W will be
limited due to power design.
Chipset Intel®Q370
Expansion
Slot
PCIe 1 x PCIe x16
Mini-PCIe 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0
mSATA N/A
M.2
1x M.2 (Key E, 2230) with PCIe x1, CNVI and
USB2.0 for Wireless
1x M.2 (Key M, 2242/2260/2280) with PCIe x4
and SATA3 for SSD
Memory
Technology Dual Channel DDR4 2400/2666 MHz
Max.
64GB*
* Intel® Core i9/i7/i5 CPUs support up to 64GB
(32GB per DIMM)
Intel®Core i3/Pentium®/Celeron®CPUs
support up to 32GB (16GB per DIMM)
Socket 2 x SO-DIMM
Graphics
Controller Intel® HD Graphics (By CPU)
VGA Supports max resolution up to
1920x1200@60Hz
DVI N/A
LVDS Supports max resolution up to
1920x1200@60Hz
HDMI N/A
DisplayPort Supports max resolution up to
4096x2304@60Hz
MultiDisplay Triple Display
eDP N/A
Ethernet Ethernet 10/100/1000 Mbps
Controller 1 x Intel®I210, 1 x Intel®I219LM

9
Rear I/O
VGA 1
HDMI N/A
DisplayPort 2
Ethernet 2
USB 4 x USB support USB3.1
Audio 2 (Mic-in, Line-out)
Serial 2 x COM(RS-232/422/485)
PS2 N/A
Internal
Connector
USB 4 x USB 2.0
LVDS/
inverter 1
eDP N/A
VGA N/A
Serial 3 x COM(RS-232)
SATA 4 x SATA3 (6.0Gb/s)
GPIO 4 x GPI, 4 x GPO
SATA PWR
Output N/A
Speaker
Header 1
TPM 1 x Onboard TPM 2.0 IC
Watchdog
Timer
Output From super I/O to drag RESETCON#
Interval 256 Segments, 0,1,2…255 Sec
Power
Requirements
Input PWR ATX PWR 24+4-pin
Power On
AT/ATX Supported
AT: Directly PWR on as Power input ready
ATX: Press Button to PWR on after Power
input ready
Environment
Operating
Temp 0ºC – 60ºC
Storage
Temp -40ºC – 85ºC

10
IMB-1210-D R2:
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU
Socket LGA 1151 for 8th Intel®Core i7/i5/i3/
Celeron (Supports up to 65W)
* The Performance of CPUs over 65W will be
limited due to power design.
Chipset Intel®H310
Expansion
Slot
PCIe 1 x PCIe x16
Mini-PCIe 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0
mSATA N/A
M.2
1x M.2 (Key E, 2230) with PCIe x1, CNVI and
USB2.0 for Wireless
1x M.2 (Key M, 2242/2260/2280) with shared
SATA3 for SSD
Memory
Technology Dual Channel DDR4 2400/2666 MHz
Max.
64GB*
* Intel® Core i9/i7/i5 CPUs support up to 64GB
(32GB per DIMM)
Intel®Core i3/Pentium®/Celeron®CPUs
support up to 32GB (16GB per DIMM)
Socket 2 x SO-DIMM
Graphics
Controller Intel® HD Graphics (By CPU)
VGA N/A
DVI N/A
LVDS N/A
HDMI N/A
DisplayPort Supports max resolution up to
4096x2304@60Hz
MultiDisplay Dual Display
eDP Supports max resolution up to
4096x2304@60Hz
Ethernet Ethernet 10/100/1000 Mbps
Controller 1 x Intel®I210, 1 x Intel®I219V

11
Rear I/O
VGA N/A
HDMI N/A
DisplayPort 3
Ethernet 2
USB 4 x USB support USB3.1
Audio 2 (Mic-in, Line-out)
Serial 1 x COM(RS-232/422/485), 1 x COM (RS-
232)
PS2 N/A
Internal
Connector
USB 4 x USB 2.0
LVDS/
inverter N/A
eDP 1
VGA N/A
Serial 2 x COM(RS-232)
SATA 4 x SATA3 (6.0Gb/s), one is shared with M.2
Key M
GPIO 4 x GPI, 4 x GPO
SATA PWR
Output N/A
Speaker
Header 1
TPM 1 x Header
Watchdog
Timer
Output From super I/O to drag RESETCON#
Interval 256 Segments, 0,1,2…255 Sec
Power
Requirements
Input PWR ATX PWR 24+4-pin
Power On
AT/ATX Supported
AT: Directly PWR on as Power input ready
ATX: Press Button to PWR on after Power
input ready
Environment
Operating
Temp 0ºC – 60ºC
Storage
Temp -40ºC – 85ºC

12
IMB-1210-L R2:
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU
Socket LGA 1151 for 8th Intel®Core i7/i5/i3/
Celeron (Supports up to 65W)
* The Performance of CPUs over 65W will be
limited due to power design.
Chipset Intel®H310
Expansion
Slot
PCIe 1 x PCIe x16
Mini-PCIe 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0
mSATA N/A
M.2
1x M.2 (Key E, 2230) with PCIe x1, CNVI and
USB2.0 for Wireless
1x M.2 (Key M, 2242/2260/2280) with shared
SATA3 for SSD
Memory
Technology Dual Channel DDR4 2400/2666 MHz
Max.
64GB*
* Intel® Core i9/i7/i5 CPUs support up to 64GB
(32GB per DIMM)
Intel®Core i3/Pentium®/Celeron®CPUs
support up to 32GB (16GB per DIMM)
Socket 2 x SO-DIMM
Graphics
Controller Intel® HD Graphics (By CPU)
VGA Supports max resolution up to
1920x1200@60Hz
DVI N/A
LVDS Supports max resolution up to
1920x1200@60Hz
HDMI N/A
DisplayPort Supports max resolution up to
4096x2304@60Hz
MultiDisplay Dual Display
eDP N/A
Ethernet Ethernet 10/100/1000 Mbps
Controller 1 x Intel®I210, 1 x Intel®I219V

13
Rear I/O
VGA 1
HDMI N/A
DisplayPort 2
Ethernet 2
USB 4 x USB support USB3.1
Audio 2 (Mic-in, Line-out)
Serial 1 x COM(RS-232/422/485), 1 x COM (RS-
232)
PS2 N/A
Internal
Connector
USB 4 x USB 2.0
LVDS/
inverter 1
eDP N/A
VGA N/A
Serial 2 x COM(RS-232)
SATA 4 x SATA3 (6.0Gb/s), one is shared with M.2
Key M
GPIO 4 x GPI, 4 x GPO
SATA PWR
Output N/A
Speaker
Header 1
TPM 1 x Header
Watchdog
Timer
Output From super I/O to drag RESETCON#
Interval 256 Segments, 0,1,2…255 Sec
Power
Requirements
Input PWR ATX PWR 24+4-pin
Power On
AT/ATX Supported
AT: Directly PWR on as Power input ready
ATX: Press Button to PWR on after Power
input ready
Environment
Operating
Temp 0ºC – 60ºC
Storage
Temp -40ºC – 85ºC

14
1.3 Motherboard Layout

15
1 : COM Port PWR Setting Jumpers
PWR_COM3 (For COM Port3)
PWR_COM4 (For COM Port4)
2 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)
3 : BL1
4 : Inverter Power Control Wafer (BLT_PWR1)
5* : LVDS Panel Connector (For IMB-1210-L R2 / IMB-1211-L R2 only)
* eDP Connector (For IMB-1210-D R2 / IMB-1211-D R2 only) ( on the Backside of PCB)
6 : BL2
7 : Buzzer
8 : Panel Power Select (LCD_VCC) (PNL_PWR1)
9 : Backlight Volume Control (BLT_VOL1)
10* : COM Port Headers (COM1, 2, 5)
(COM5 is for IMB-1211-D R2 / IMB-1211-L R2 only)
(COM1, COM2, COM5 support RS232 only)
11 : Digital Input / Output Default Value Setting (JGPIO_SET1)
12 : 4-Pin Chassis FAN Connector (+12V)
13 : 24-pin ATX Power Input Connector
14 : ATX/AT Mode Jumper (SIO_AT1)
15 : System Panel Header
16 : LPC Header
17 : Digital Input / Output Power Select (JGPIOPWR) (JGPIO_PWR1)
18 : Digital Input/Output Pin Header (JGPIO1)
19* : COM Port PWR Setting Jumpers
( PWR_COM5 is for IMB-1211-D R2 / IMB-1211-L R2 only)
PWR_COM1 (For COM Port1)
PWR_COM2 (For COM Port2)
PWR_COM5 (For COM Port5)
20 : Chassis Intrusion Headers (CI1, CI2)
21 : 4-pin ATX Power Input/Output Connector
22 : PWR_BAT1
23 : USB2.0 Headers ( USB2_5_6, USB2_7_8 )
24 : Clear CMOS Headers (CLRMOS1, CLRMOS2)
25 : M.2 Select (M2_SEL1) (For IMB-1210-D R2 / IMB-1210-L R2 only)
2 6 : 3W Audio AMP Output Wafer
27 : Front Panel Audio Header
28 : SATA3 Connectors (SATA3_1~4)
29 : USB Power Setting Jumpers
(USB2_PWR_H1 (For USB2_5_6))
(USB2_PWR_H2 (For USB2_7_8))
(USB3_PWR1 (For USB3_1_2 ))
30 : 4-Pin CPU FAN Connector (+12V) (CPU_FAN1)
* IMB-1211-D R2 / IMB-1210-D R2 supports DisplayPort on the rear I/O panel.
IMB-1211-L R2 / IMB-1210-L R2 supports VGA port on the rear I/O panel.
Back Side :
M.2 Socket ( Key-M) (M2_2) :
* M2_2 supports either PCIe or SATA mode for IMB-1211-D R2. M2_2 supports SATA mode
only for IMB-1210-L R2.
* M2_2 and SATA3_1 share lanes. If either one of them is in use, the other one will be
disabled.

16
1.4 I/O Panel
IMB-1211-D R2:
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
1 COM Port (COM3) (RS232/422/485)*
2 DisplayPort (DP1)
3 LAN RJ-45 Port**
4 LAN RJ-45 Port**
5 Line out (Lime)
6 Microphone (Pink)
7 USB 3.0 Ports (USB3_3_4) (Only +5VSB)
8 USB 3.0 Ports (USB3_1_2)
9 DisplayPort (DP3)
10 DisplayPort (DP2)
11 COM Port (COM4) (RS232/422/485)*
* This motherboard supports RS232/422/485 on COM3, 4 ports. Please refer to below table for
the pin denition. In addition, COM3, 4 ports (RS232/422/485) can be adjusted in BIOS setup
utility > Advanced Screen > Super IO Conguration. You may refer to page 41 for details.
COM3, 4 Port Pin Denition
124 3
5
6
7
8
9
10
11
PIN RS232 RS422 RS485
1 DCD TX- RTX-
2 RXD RX+ N/A
3 TXD TX+ RTX+
4 DTR RX- N/A
5GND GND GND
6 DSR N/A N/A
7 RTS N/A N/A
8 CTS N/A N/A
9 +5V / +12V N/A N/A

17
7 USB 3.0 Ports (USB3_3_4) (Only +5VSB)
8 USB 3.0 Ports (USB3_1_2)
9 DisplayPort (DP3)
10 DisplayPort (DP2)
11 COM Port (COM4) (RS232/422/485)*
IMB-1211-L R2:
1 COM Port (COM3) (RS232/422/485)*
2 DisplayPort (DP1)
3 LAN RJ-45 Port**
4 LAN RJ-45 Port**
5 Line out (Lime)
6 Microphone (Pink)
7 USB 3.0 Ports (USB3_3_4) (Only +5VSB)
8 USB 3.0 Ports (USB3_1_2)
9 D-Sub Port (VGA1)
10 DisplayPort (DP2)
11 COM Port (COM4) (RS232/422/485)*
* This motherboard supports RS232/422/485 on COM3, 4 ports. Please refer to below table for
the pin denition. In addition, COM3, 4 ports (RS232/422/485) can be adjusted in BIOS setup
utility > Advanced Screen > Super IO Conguration. You may refer to page 41 for details.
COM3, 4 Port Pin Denition
124 3
5
6
7
8
9
10
11
PIN RS232 RS422 RS485
1 DCD TX- RTX-
2 RXD RX+ N/A
3 TXD TX+ RTX+
4 DTR RX- N/A
5GND GND GND
6 DSR N/A N/A
7 RTS N/A N/A
8 CTS N/A N/A
9 +5V / +12V N/A N/A
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port

18
IMB-1210-D R2:
1 COM Port (COM3) (RS232/422/485)*
2 DisplayPort (DP1)
3 LAN RJ-45 Port**
4 LAN RJ-45 Port**
5 Line out (Lime)
6 Microphone (Pink)
7 USB 3.0 Ports (USB3_3_4) (Only +5VSB)
8 USB 3.0 Ports (USB3_1_2)
9 DisplayPort (DP3)
10 DisplayPort (DP2)
11 COM Port (COM4) (RS232)*
* This motherboard supports RS232/422/485 on COM3 port. Please refer to below table for
the pin denition. In addition, COM3 port (RS232/422/485) can be adjusted in BIOS setup
utility > Advanced Screen > Super IO Conguration. You may refer to page 41 for details.
COM3 Port Pin Denition
124 3
5
6
7
8
9
10
11
PIN RS232 RS422 RS485
1 DCD TX- RTX-
2 RXD RX+ N/A
3 TXD TX+ RTX+
4 DTR RX- N/A
5GND GND GND
6 DSR N/A N/A
7 RTS N/A N/A
8 CTS N/A N/A
9 +5V / +12V N/A N/A
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port

19
7 USB 3.0 Ports (USB3_3_4) (Only +5VSB)
8 USB 3.0 Ports (USB3_1_2)
9 DisplayPort (DP3)
10 DisplayPort (DP2)
11 COM Port (COM4) (RS232)*
IMB-1210-L R2:
1 COM Port (COM3) (RS232/422/485)*
2 DisplayPort (DP1)
3 LAN RJ-45 Port**
4 LAN RJ-45 Port**
5 Line out (Lime)
6 Microphone (Pink)
7 USB 3.0 Ports (USB3_3_4) (Only +5VSB)
8 USB 3.0 Ports (USB3_1_2)
9 D-Sub Port (VGA1)
10 DisplayPort (DP2)
11 COM Port (COM4) (RS232)*
* This motherboard supports RS232/422/485 on COM3 port. Please refer to below table for
the pin denition. In addition, COM3 port (RS232/422/485) can be adjusted in BIOS setup
utility > Advanced Screen > Super IO Conguration. You may refer to page 41 for details.
COM3 Port Pin Denition
124 3
5
6
7
8
9
10
11
PIN RS232 RS422 RS485
1 DCD TX- RTX-
2 RXD RX+ N/A
3 TXD TX+ RTX+
4 DTR RX- N/A
5GND GND GND
6 DSR N/A N/A
7 RTS N/A N/A
8 CTS N/A N/A
9 +5V / +12V N/A N/A
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port

20
Chapter 2: Installation
This is a Mini-ITX form factor (6.7” x 6.7”, 17.0 x 17.0 cm) motherboard. Before you
install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched o󰀨 or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.
