Chapter 1: Introduction
Thank you for purchasing ASRock IMB-158 motherboard, a reliable motherboard
produced under ASRock’s consistently stringent quality control. It delivers excellent
performance with robust design conforming to ASRock’s commitment to quality and
endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRock website without further notice. You may nd
the latest VGA cards and CPU support lists on ASRock website as well.
ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrock.com/support/index.asp
1.1 Package Contents
ASRock IMB-158 Motherboard
(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
ASRock IMB-158 Driver CD
ASRock IMB-158 Jumper Setting Instruction
1 x I/O Panel Shield

6
1.2 Specications
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU BGA1090 for Intel Gemini Lake SoC
Chipset N/A
BIOS UEFI
Expansion
Slot
PCIe 1 xPCIe x1
mini-PCIe 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0
M.2
1 x M.2 (Key E, 2230) with PCIe x1, CNVI and
USB2.0 for Wireless
1 x M.2 (Key M, 2242/2260/2280) with SATA3
for SSD
Memory
Technology Dual Channel DDR4 2400 MHz
Max 8GB
Socket 2 x SO-DIMM
Graphics
VGA Supports max resolution up to 1920x1200
DVI N/A
LVDS Dual Channel 24-bit, max resolution up to
1920x1200@60Hz
eDP Max resolution up to 4096x2160@60Hz
HDMI N/A
DisplayPort Max resolution up to 4096x2160@60Hz
Multi Display Triple Display
Ethernet Interface 10/100/1000 Mbps
Controller 2 x Realtck RTL8111H
Rear I/O
VGA 1
DVI N/A
HDMI N/A
DisplayPort 1 x DP++ 1.2
Ethernet 2
USB 4 x USB3.0
Audio Jack 2 (Mic-in, Line-out)
Serial 3 x COM (RS-232/422/485)
PS/2 2

7
Internal
Connector
USB 4 x USB2.0 (2 x headers)
LVDS 1 (BOM option with eDP)
eDP 1 (BOM option with LVDS)
VGA 1 (shared with VGA connector)
Serial 3 x COM (RS-232)
SATA 1 x SATA3 (6.0Gb/s)
Parallel 1 (shared with GPIO)
GPIO 8 x GPI, 8 x GPO
SATA PWR
Output Con 1
Speaker
Header 1
SPI TPM 1 x header
Watchdog
Timer
Output Output from super I/O to drag RESETCON#
Interval 256 Segments, 0,1,2…255 Sec/Min
Power
Requirements
Input PWR 12V/19V~28V DC-in (20+4-pin ATX PWR
Con.)
Power On
AT/ATX Supported
-AT : Directly PWR on as power input ready
-ATX : Press button to PWR on after power
input ready
Environment Temperature 0ºC – 60ºC

8
1.3 Motherboard Layout
13 24
12
10
7
6 (*Backside: EDP1)
9
15
13
14
16
17
18
20
21
19
22
23
24
28
29
30
32
33
31
26
27 25
35
38
37
36
34
BUZZ1
BIOS
Chip
1
HD_AUDIO1
IMB-158
SATA3_1
CPU_FAN1
PCIE1
mini-PCIe
1
LPC1
VGA2
1
SPEAKER1
1
COM5
DISPLAY1
1
BLT_VOL1
HDLED RESET
PLED PWRBTN
PANEL1
1
1
CI1
SATA_PWR1
1
BLT_PWR1
1
PNL_PWR1
Industrial
SPDIF1
1
M.2 KEY M
LVDS1
1
CHA_FAN1
1
CI2
1
BL2
1
PWR_COM3
1
USBH_PWR1
1
PWR_COM1
COM1
1
COM2
1
COM6
1
M.2 KEY E
DDR4_A1
DDR4_B1
PS2
Keyboard
PS2
Mouse
COM4
VGA1
COM3
Top:
LAN1
USB 3.0
T: USB0
B: USB1
Top:
LAN2
USB 3.0
T: USB2
B: USB3
FRONT
MIC IN
ATXPWR1
ATX12V1
1
LPT_GPIO1
1
USBH_0_1
1
USB2_0_1
1
PWR_LOSS1
1
CLRMOS2
1
BL1
1
JGPIO_SET1
1
USB_PWR2
1
BKT_PWR1
1
JGPIO_PWR1
1
PWR_COM2
1
PWR_COM6
1
PWR_COM5
1
PWR_COM4
1
USB_PWR1
1
USB3_PWR1
1
CLRMOS1
1
PWR_BAT1
1
BUZZ2
1
BLT_P WM1
8
11
1
TPM1
5

9
1 : COM Port Pin9 PWR Setting Jumpers (PWR_COM3 ~ 5) (For COM Port3 ~ 5)
2 : M.2 (Key-M)
3 : M.2 (Key-E)
4 : SPI TPM Header
5 : 4-Pin CPU FAN Connector (+12V)
6 : eDP Connector (Optional) (on the Backside of PCB)
7 : Power Loss Jumper
8 : ATX Power Connector
9 : Clear CMOS Jumper
10 : Backlight Control Level (BLT_PWM1)
11 : LVDS Panel Connector (Optional)
12 : Backlight Volume Control (BLT_VOL1)
13 : Backlight Power Connector (BLT_PWR1)
14 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)
15 : 24-pin ATX Power Input Connector
16 : Panel Power Select (LCD_VCC) (PNL_PWR1)
17 : System Panel Header
18 : Digital Input / Output Power Select (JGPIOPWR) (JGPIO_PWR1)
19 : 4-Pin Chassis FAN Connector (+12V)
20 : Buzzer
21 : COM Port Pin9 PWR Setting Jumpers (PWR_COM1, 2, 6) (For COM Port1, 2, 6)
22 : Internal COM Port Headers COM1, 2, 6 (RS232)
23 : SATA Power Output Connector
24 : Digital Input / Output Default Value Setting (JGPIO_SET1)
25 : Printer Port / GPIO Header (LPT_GPIO1)
26 : Chassis Intrusion Headers (CI1, CI2)
27 : SATA3 Connector (SATA3_1)
28 : LPC Header
29 : SPDIF Header
30 : USB2.0 Connectors (USBH_0_1, USB2_0_1)
31 : USB Power Setting Jumpers (USBH_PWR1 (For USBH_0_1 ), USB_PWR2 (For USB2_0_1 ))
32 : 3W Audio AMP Output Wafer
33 : Front Panel Audio Header
34 : PWR_BAT1
35 : BL1, BL2
36 : Clear CMOS Header
37 : USB Power Setting Jumpers (USB_PWR1 (For USB3_0_1 ), USB3_PWR1 (For U SB3_2_3) )
38 : VGA Header

10

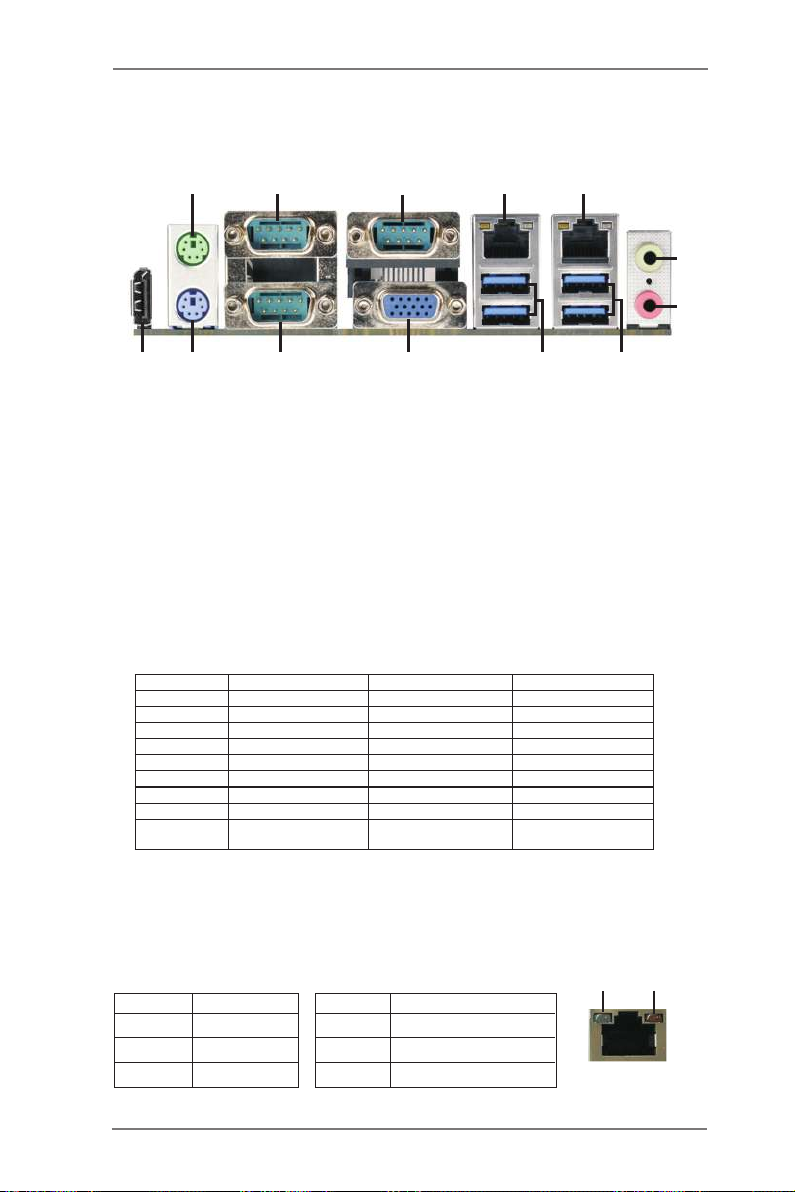

1.4 I/O Panel
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
1 PS/2 Mouse Port
2 COM Port 4 (COM4)*
3 COM Port 3 (COM3)*
4 LAN RJ-45 Port**
5 LAN RJ-45 Port**
6 Line out (Green)
7 Microphone (Pink)
8 USB 3.0 Ports (USB3_2_3)
9 USB 3.0 Ports (USB3_0_1)
10 VGA Port (VGA1)
11 COM Port 5 (COM5)*
12 PS/2 Keyboard Port
13 DisplayPort (DISPLAY1)
ACT/LINK
LED
SPEED
LED
LAN Port
* This motherboard supports RS232/422/485 on COM3~5 ports. Please refer to below table for
the pin denition. In addition, COM3~5 ports (RS232/422/485) can be adjusted in BIOS setup
utility > Advanced Screen > Super IO Conguration. You may refer to page 31 for details.
COM3~5 Port Pin Denition
6
124
35
8
7
13 12 10
11 9
PIN RS232 RS422 RS485
1 DCD TX- RTX-
2 RXD RX+ N/A
3 TXD TX+ RTX+
4 DTR RX- N/A
5 GND GND GND
6 DSR N/A N/A
7 RTS N/A N/A
8 CTS N/A N/A
9COM4: +5V/+12V/+5VSB
COM3, 5: +5V/+12V
COM4: +5V/+12V/+5VSB
COM3, 5: +5V/+12V
COM4: +5V/+12V/+5VSB
COM3, 5: +5V/+12V

11
Chapter 2: Installation
This is a Mini-ITX form factor (6.7" x 6.7", 17.0 x 17.0 cm) motherboard. Before you
install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched off or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12
2.3 Installation of Memory Modules (SO-DIMM)
IMB-158 motherboard provides two 260-pin DDR4 (Double Data Rate 4) SO-DIMM
slots, and supports Dual Channel Memory Technology.
1. If you install one memory module only, please install it on DDR4_A1.
2. It is not allowed to install a DDR, DDR2 or DDR3 memory module
into a DDR4 slot; otherwise, this motherboard and SO-DIMM may
be damaged.
2. Please make sure to disconnect the power supply before adding or
removing SO-DIMMs or the system components.
3. The SO-DIMM only ts in one correct orientation. It will cause
permanent damage to the motherboard and the SO-DIMM if you force
the SO-DIMM into the slot at incorrect orientation.
Installing a SO-DIMM

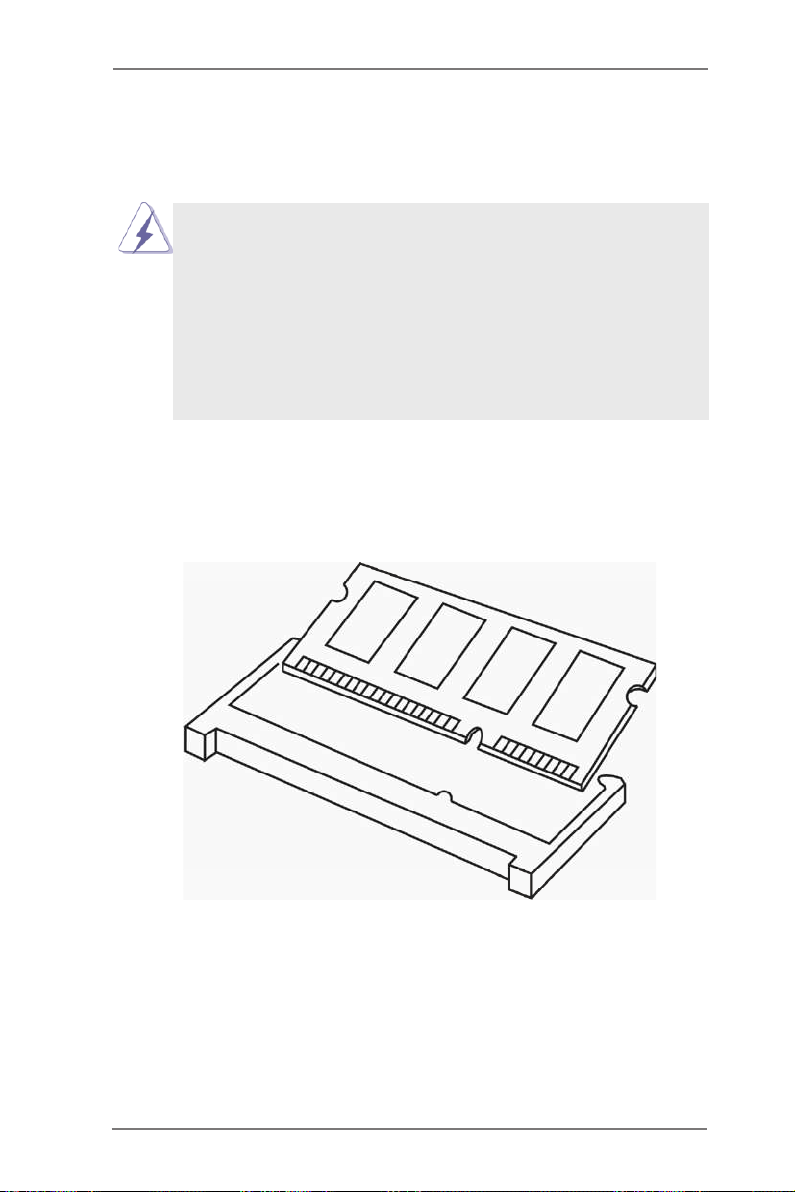

Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

13
2.4 Expansion Slots (mini-PCIe, PCI Express and M.2 Slots)
There is 1 mini-PCIe slot, 1 PCI Express slot and 2 M.2 slots on this motherboard.
mini-PCIe slot:
MINI_PCIE1 (mini-PCIe slot; half/full size) is used for PCI Express mini
cards.
PCIE slot: PCIE1 (PCIE x1 slot) is used for PCI Express x1 lane width cards.
M.2 slots: M2_1 Slot (Key M) supports type 2242/2260/2280 M.2 SATA3 6.0 Gb/s
module.
M2_2 Slot (Key E) supports type 2230 WiFi/BT module and CNVI mod-
ule.
Installing an expansion card
Step 1. Before installing the expansion card, please make sure that the power
supply is switched off or the power cord is unplugged. Please read the
documentation of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed
in a chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the
screws for later use.
Step 4. Align the card connector with the slot and press rmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.

14
2.5 Jumpers Setup

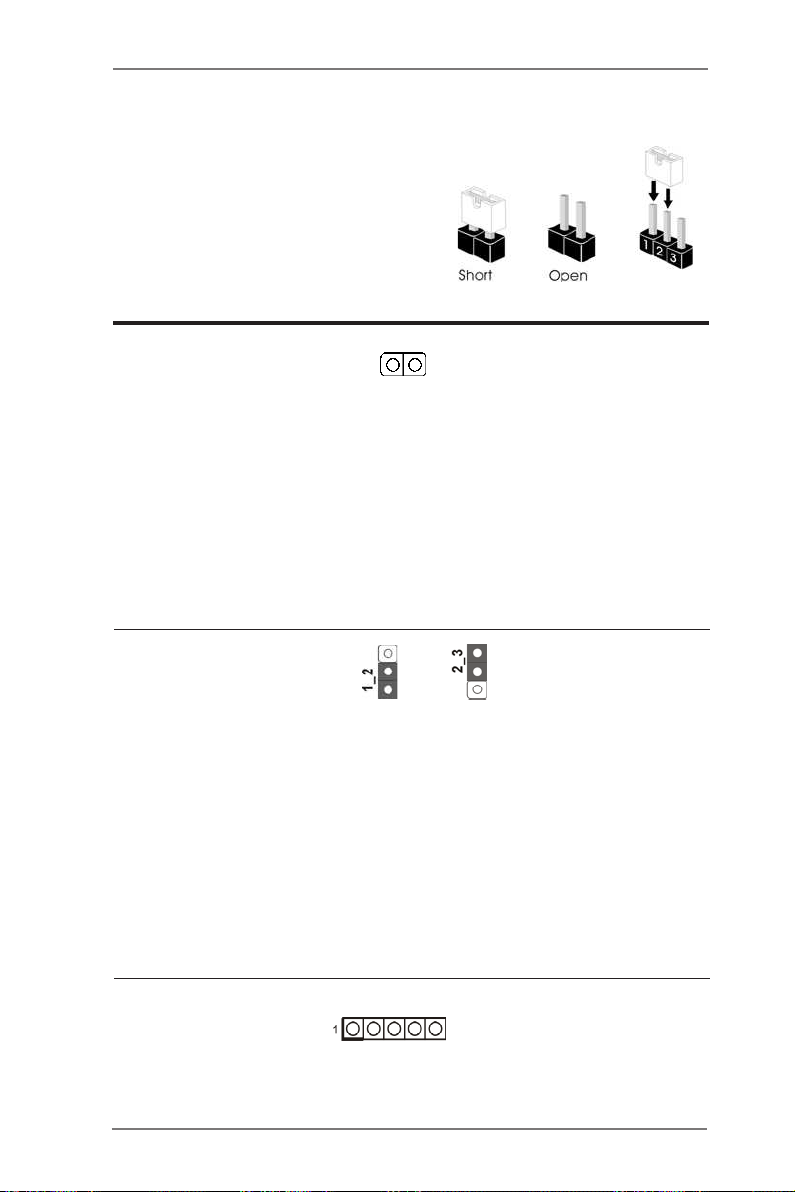

The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Clear CMOS Jumper Open: Normal
(2-pin CLRMOS2) Short: Auto Clear CMOS When
(see p.8, No. 9) AC Power On
Note: CLRMOS2 allows you to clear the data in CMOS. The data in CMOS includes
system setup information such as system password, date, time, and system
setup parameters. To clear and reset the system parameters to default setup,
please turn off the computer and unplug the power cord, then use a jumper
cap to short the pins on CLRMOS2 for 3 seconds. Please remember to re-
move the jumper cap after clearing the CMOS. If you need to clear the CMOS
when you just nish updating the BIOS, you must boot up the system rst,
and then shut it down before you do the clear-CMOS action.
Clear CMOS Jumper
(3-pin CLRMOS1)
(see p.8, No. 36)
Note: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date, time, user default prole and MAC
address will be cleared only if the CMOS battery is removed.
Digital Input / Output Power Select (JGPIOPWR) 1-2: +12V
(5-pin JGPIO_PWR1) 2-3: +5V
(see p.8 No. 18) 4-5: GND
2-pin jumper
Clear CMOSDefault

15
Backlight Power Select Use this to set up the backlight
(LCD_BLT_VCC) power of the LVDS connector
(5-pin BKT_PWR1) and the panel backlight power
(see p.8 No. 14) of BLT_PWM1.
1-2: LCD_BLT_VCC: +5V
2-3: LCD_BLT_VCC: +12V
4-5: LCD_BLT_VCC: DC Input
Backlight Control Level (CON_LBKLT_CTL) 1-2: From eDP PWM to CON_LBKLT_CTL
(3-pin BLT_PWM1) 2-3: From LVDS PWM to CON_LBKLT_CTL
(see p.8, No. 10)
COM Port PWR Setting Jumpers 1-2: +5V
(3-pin PWR_COM3, for COM Port3) 2-3: +12V
(3-pin PWR_COM4, for COM Port4)
(3-pin PWR_COM5, for COM Port5)
(see p.8, No. 1)
(3-pin PWR_COM1, for COM Port1) 1-2: +5V
(3-pin PWR_COM2, for COM Port2) 2-3: +12V
(3-pin PWR_COM6, for COM Port6)
(see p.8, No. 21)
USB Power Setting Jumpers
(3-pin USBH_PWR1, for USBH_0_1)
1-2: +5V
(3-pin USB_PWR2, for USB2_0_1) 2-3: +5VSB
(see p.8, No. 31)
(3-pin USB_PWR1, for USB3_0_1)
1-2: +5V
(3-pin USB3_PWR1, for USB3_2_3) 2-3: +5VSB
(see p.8, No. 37)
Panel Power Select (LCD_VCC) Use this to set up the VDD
(5-pin PNL_PWR1) power of the LVDS connector.
(see p.8 No. 16) 1-2: LVDD_VCC: +3V
2-3: LVDD_VCC: +5V
4-5: LVDD_VCC: +12V

16
Digital Input / Output Default Value Setting 1-2: Pull-High
(3-pin JGPIO_SET1) 2-3: Pull-Low
(see p.8, No. 24)
1
PWR_BAT1 Open: Normal
(2-pin PWR_BAT1) Short: When Using Rechargeable Battery
(see p.8, No. 34)
+5VSB_ATX
Power Loss Jumper Open: Power Loss
(2-pin PWR_LOSS1) Short: no Power Loss
(see p.8, No. 7)

17
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!

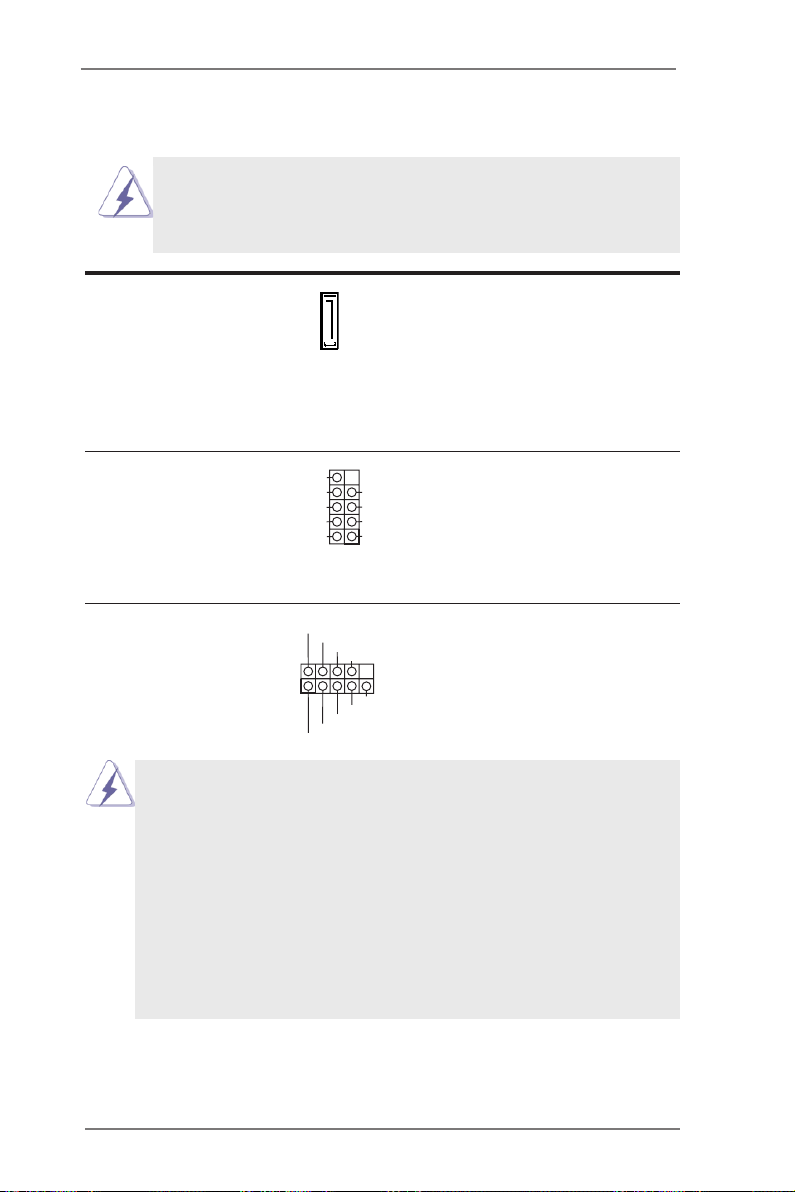

SATA3 Connector This Serial ATA3
(SATA3_1: see p.8, No. 27) (SATA3) connector supports
SATA data cables for internal
storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
USB 2.0 Connectors There are two USB 2.0
(9-pin USBH_0_1, USB2_0_1) connectors on this
(see p.8 No. 30) motherboard. Each USB 2.0
connector can support two USB
ports.
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8 No. 17) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
SATA3_1
DUMMY
GND GND
+B
-B
+A
-A
USB_PWR USB_PWR
1
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND

18
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep
state or powered off (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p.8 No. 32)
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.8 No. 33) convenient connection and
control of audio devices.
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
1PIN Signal Name
1 OUTLN
2 OUTLP
3 OUTRP
4 OUTRN
MIC2_R
GND
OUT2_R
J_SENSE
MIC_RET
OUT_RET
MIC2_L
1
OUT2_L

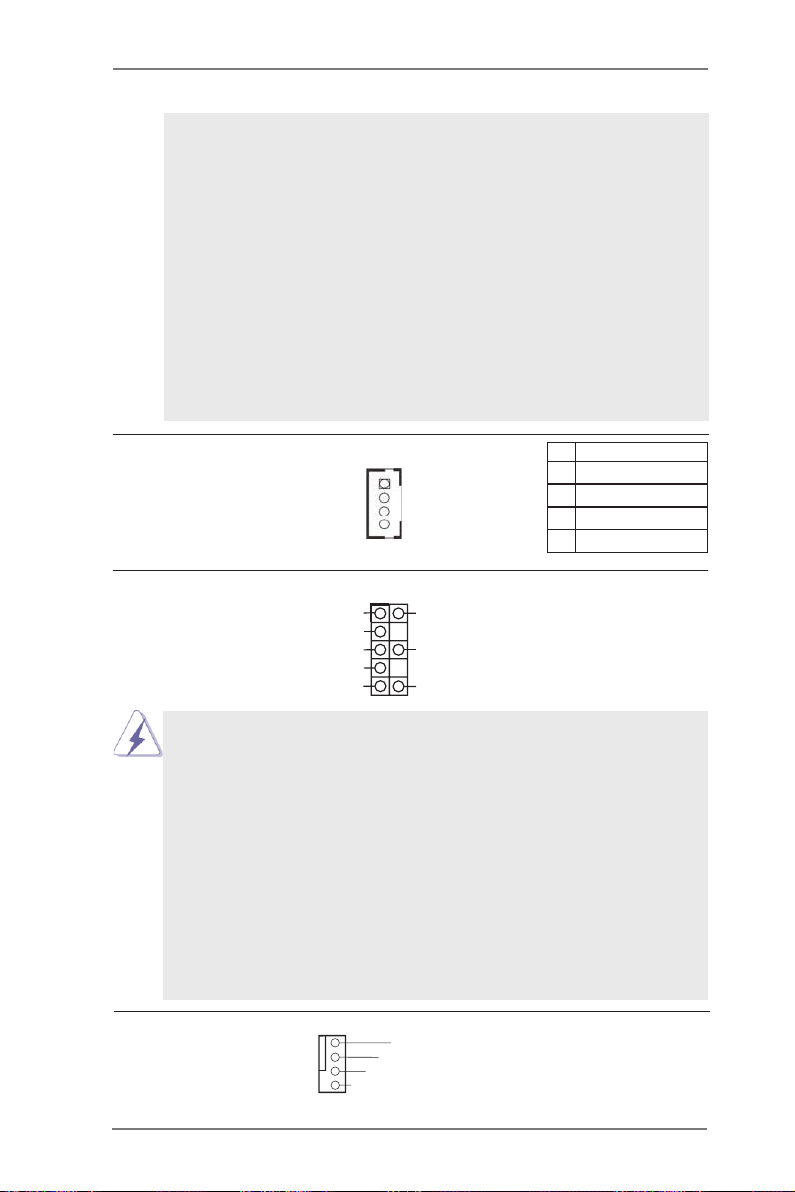

Chassis Fan Connector Please connect the fan cable
(4-pin CHA_FAN1) to the fan connector and
(see p.8 No. 19) match the black wire to the
ground pin.
FAN_SPEED
FAN_SPEED_CONTROL
+12V
GND
4
3
2
1

19
* If you want to use the printer port function, please short pin4
and pin5 on Digital Input / Output Power Select (JGPIO_PWR1).
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
ATX Power Connector Please connect a DC
(Input 12V/19V~28V) 12V/19V~28V power supply to this
(4-pin ATX12V1) connector.
(see p.8 No. 8) 1-2: GND
3-4: DC Input
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.8 No. 5) match the black wire to the
ground pin.
ATX Power Connector Please connect an ATX power
(20-pin ATXPWR1) supply to this connector.
(see p.8 No. 15)
10
1
20
11
4
2
3
1
Printer Port / GPIO Header
(25-pin LPT_GPIO1)
(see p.8 No. 25) Printer Port: GPIO:
FAN_SPEED
FAN_SPEED_CONTROL
GND
+12V
1 2 3 4
1
SPD0
STB#
SPD1
SPD2
SPD3
SPD4
SPD6
SPD7
GND GND
SLIN#
PINIT#
ERROR#
AFD#
GND GND GND GND GND GND
SPD5 ACK# BUSY PE SLCT
PIN Signal Name PIN Signal Name
26 NC 25 NA 24 GND 23 SIO_GP30 22 GND 21 SIO_GP31 20 GND 19 SIO_GP32 18 GND 17 SIO_GP33 16 GND 15 SIO_GP34 14 GND 13 SIO_GP35 12 JGPIOPWR 11 SIO_GP36 10 JGPIOPWR 9 SIO_GP37
8 SIO_GP43 7 SIO_GP40 6 SIO_GP44 5 SIO_GP41 4 SIO_GP45 3 SIO_GP42
2 SIO_GP46 1 SIO_GP47
Parameter Range
GPI/O input Low Voltage Max. 0.8V
GPI/O input High Voltage Min. 2.0V
GPI/O output Low Voltage Max. 0.4V
GPI/O output High Voltage Min. 2.4V
Note :
Max. load per GPI/O pin : 12mA
Current Max. 1A per power pin.

20
LVDS Connector (Optional)
(40-pin LVDS1)
(see p.8 No. 11)
Backlight Volume Control
(7-pin BLT_VOL1)
(see p.8 No. 12)
Backlight Power Connector
(6-pin BLT_PWR1)
(see p.8 No. 13)
PIN Signal Name
1 GPIO_VOL_UP
2 GPIO_VOL_DW
3 PWRDN
4 LVDS1 BLUP
5 LVDS1 BLDW
6 GND
7 GND
1
1
SATA Power Output Connector
(4-pin SATA_PWR1)
(see p.8 No. 23)
Buzzer Header
(2-pin BUZZ2)
(see p.8, No. 20)
Chassis Intrusion Headers This motherboard supports
(2-pin CI1, CI2: see p.8, No. 26) CASE OPEN detection feature
that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
1
Signal
GND
PIN Signal Name PIN Signal Name
2 LCD_VCC 1 LCD_VCC 4 LDDC_CLK 3 +3.3V 6 LVDS_A_DATA0# 5 LDDC_DATA 8 GND 7 LVDS_A_DATA0
10 LVDS_A_DATA1 9 LVDS_A_DATA1# 12 LVDS_A_DATA2# 11 GND 14 GND 13 LVDS_A_DATA2 16 LVDS_A_DATA3 15 LVDS_A_DATA3# 18 LVDS_A_CLK# 17 GND 20 GND 19 LVDS_A_CLK 22 LVDS_B_DATA0 21 LVDS_B_DATA0# 24 LVDS_B_DATA1# 23 GND 26 GND 25 LVDS_B_DATA1 28 LVDS_B_DATA2 27 LVDS_B_DATA2# 30 LVDS_B_DATA3# 29 DPLVDD_EN 32 GND 31 LVDS_B_DATA3 34 LVDS_B_CLK 33 LVDS_B_CLK# 36 CON_LBKLT_EN 35 GND 38 LCD_BLT_VCC 37 CON_LBKLT_CTL 40 LCD_BLT_VCC 39 LCD_BLT_VCC
139
40
2
PIN Signal Name
1 GND
2 GND
3 CON_LBKLT_CTL
4 CON_LBKLT_EN
5 LCD_BLT_VCC
6 LCD_BLT_VCC
GND
+5V
+12V
GND
1
+5V
Signal
1
