Chapter 1: Introduction
Thank you for purchasing ASRock IMB-197-D motherboard, a reliable motherboard
produced under ASRock’s consistently stringent quality control. It delivers excellent
performance with robust design conforming to ASRock’s commitment to quality and
endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRock website without further notice. You may nd
the latest VGA cards and CPU support lists on ASRock website as well.
ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrock.com/support/index.asp
1.1 Package Contents
ASRock IMB-197-D Motherboard
(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
ASRock IMB-197-D Driver CD
ASRock IMB-197-D Jumper setting instruction
1 x I/O Panel Shield

6
1.2 Specications
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU BGA1356 for Intel®Core i3 (Skylake-U)
Core
Number (By CPU, Max 2)
Max Speed (By CPU)
L2 Cache (By CPU)
Chipset N/A
BIOS UEFI
Expansion
Slot
PCIe 0
Mini-PCIe 1 (full/half size, supports PCIe x1 and USB
devices)
mSATA 1 (Supports SATA devices only)
Memory
Technology Dual Channel DDR4 2133MHz SDRAM
Max. 32GB
Socket 2 x SO-DIMM
Graphics
Controller Intel®HD Graphics 520
VRAM Shared Memory
VGA
(Optional) Supports max. resolution 1920 x 1200
LVDS Dual channel 24-bit co-lay with eDP, max
resolution 1920 x 1200 @ 60Hz
HDMI Supports HDMI 2.0, max resolution 4096 x 2160
@ 60Hz
DVI N/A
DisplayPort Supports DP 1.2, max resolution 4096 x 2160 @
60Hz
Multi Display Yes (Triple Display)
Ethernet
Ethernet 10/100/1000 Mbps
Controller 1 x Intel®I219LM
1 x Realtek RTL8111G
Connector 2 x RJ-45
SATA
Max Data
Transfer
Rate
SATA3 (6.0Gb/s)
Rear I/O
VGA 0
DVI 0
HDMI 1
DisplayPort 1

7
Ethernet 2
USB 4 x USB 3.0
Audio 2 (Mic-in. Line-out)
Serial 0
PS/2 0
Internal
Connector
USB 4 x USB 2.0 (2 x 2.54 pitch header)
LVDS/
inverter 1/1
eDP 1 (colay with LVDS)
VGA 1 (Optional)
Serial 6 x RS-232 (COM1, 2 support RS-
232/422/485)
SATA 2
mPCIe 1
Parallel 0
mSATA 1
IrDA 0
GPIO 8 x GPI, 8 x GPO
SATA PWR
Output Con 1
Speaker
Header 1
Watchdog
Timer Interval 1,2…255 Sec
Power
Requirements
Input PWR 12V / 19~24V DC-in (DC Jack / 4-pin ATX
PWR Con)
Power On
AT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power
input ready
Environment Temperature 0ºC – 60ºC

8

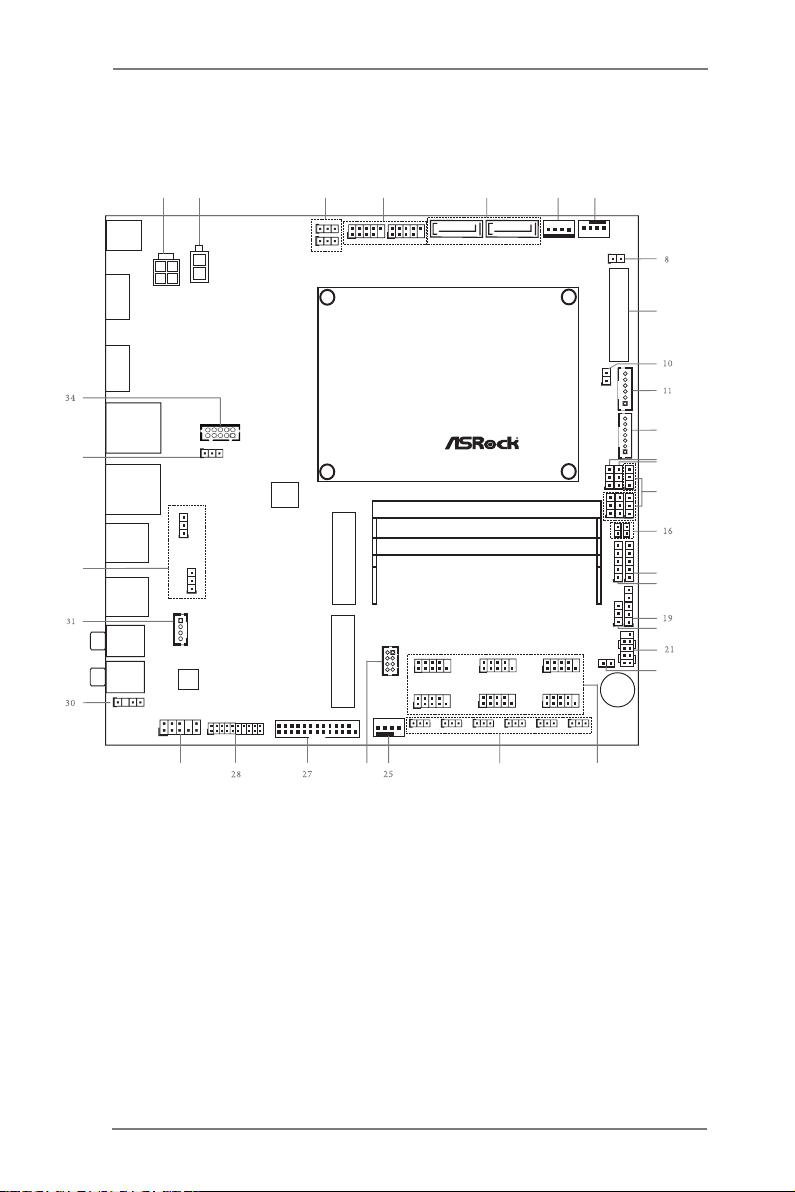

1.3 Motherboard Layout
Mic In
AUDIO
CODEC
BUZZ1
BIOS
ROM
1
HD_AUDIO1
IMB-197
LVDS1
CPU_FAN2
DC_JACK1
mini-PCIe
1
VGA_H1
1
CLRMOS1
1
SPEAKER1
1
USB 3.0
T: USB0
B: USB1
LAN1
Line Out
SPDIF1
TO_UPS1
mini-SATA
FROM_UPS1
1
HDLED RESET
PLED PWRBTN
PANEL1
1
1
CI2
Industrial
PS2_KB_MS1
1
SATA3_1
1
USB2_6_7
PWR_COM1
1
PWR_COM2
1
PWR_COM3
1
PWR_COM4
1
PWR_COM5
1
PWR_COM6
1
1
COM1
1
COM2
1
COM3
1
COM4
1
COM5
1
COM6
1
CI1
LPT_GPIO1
1
BLT_VOL1
1
BLT_PWR1
1
JGPIO_PWR1
1
1
PWR_JP1
JGPIO_SET1
USB3_PWR0_1
HDMI1
DP1
LAN2
USB 3.0
T: USB2
B: USB3
1
LPC1
1
BUZZ2
SATA3 _2
CPU_FAN1
SATA_PWR1
1
1
BL1
1
BL2
USB2_PWR6_7
1
USB2_PWR4_5
1
1
1
BKT_PWR1
1
PNL_PWR1
EDP_LVDS_J1 EDP_LVDS_J2 EDP_LVDS_J3
1
BLT_PWM1
DDR4_A1
DDR4_B1
USB3_PWR2_3
USB2_4_5
13
12
1
9 (*Backside: EDP1)
3
24567
17
15
18
22
20
23
24
26
32
33
29
111
EDP_LVDS_J4
1
1
1
14

9
1 : ATX Power Connector
2 : 2-pin UPS Module Power Input Connector
3 : USB Power Setting Jumpers
(USB2_PWR4_5 (For USB2_4_5))
(USB2_PWR6_7 (For USB2_6_7))
4 : USB2.0 Headers ( USB2_4_5, USB2_6_7)
5 : SATA3 Connectors (SATA3_1, SATA3_2 )
6 : SATA Power Output Connector
7 : CPU FAN Connector
8 : BL2
9 : LVDS Panel Connector
* eDP Connector (on the Backside of PCB)
10 : BL1
11 : Backlight Power Connector (BLT_PWR1)
12 : Backlight Volume Control (BLT_VOL1)
13 : Backlight Control Level (CON_LBKLT_CTL) (BLT_PWM1)
14 : ATX/AT Mode Select (PWR_JP1)
15 : EDP_LVDS_J1~EDP_LVDS_J4
16 : Chassis Intrusion Headers (CI1, CI2)
17 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)
18 : Panel Power Select (LCD_VCC) (PNL_PWR1)
19 : Digital Input / Output Power Select (JGPIOPWR) (JGPIO_PWR1)
20 : Digital Input / Output Default Value Setting (JGPIO_SET1)
21 : System Panel Header
22 : Buzzer
23 : COM1, 2, 3, 4, 5, 6 Headers
24 : COM Port Pin9 PWR Setting Jumpers
PWR_COM1 (For COM Port1)
PWR_COM2 (For COM Port2)
PWR_COM3 (For COM Port3)
PWR_COM4 (For COM Port4)
PWR_COM5 (For COM Port5)
PWR_COM6 (For COM Port6)
25 : CPU FAN Connector
26 : PS2 Keyboard/Mouse Header
27 : Printer Port / GPIO Header (LPT_GPIO1)
28 : LPC Header
29 : Front Panel Audio Header
30 : SPDIF Header
31 : 3W Audio AMP Output Wafer
32 : USB Power Setting Jumpers
(USB3_PWR0_1 (For USB3_0_1 ))
(USB3_PWR2_3 (For USB3_2_3 ))
33 : Clear CMOS Header
34 : VGA Connector (Optional)

10

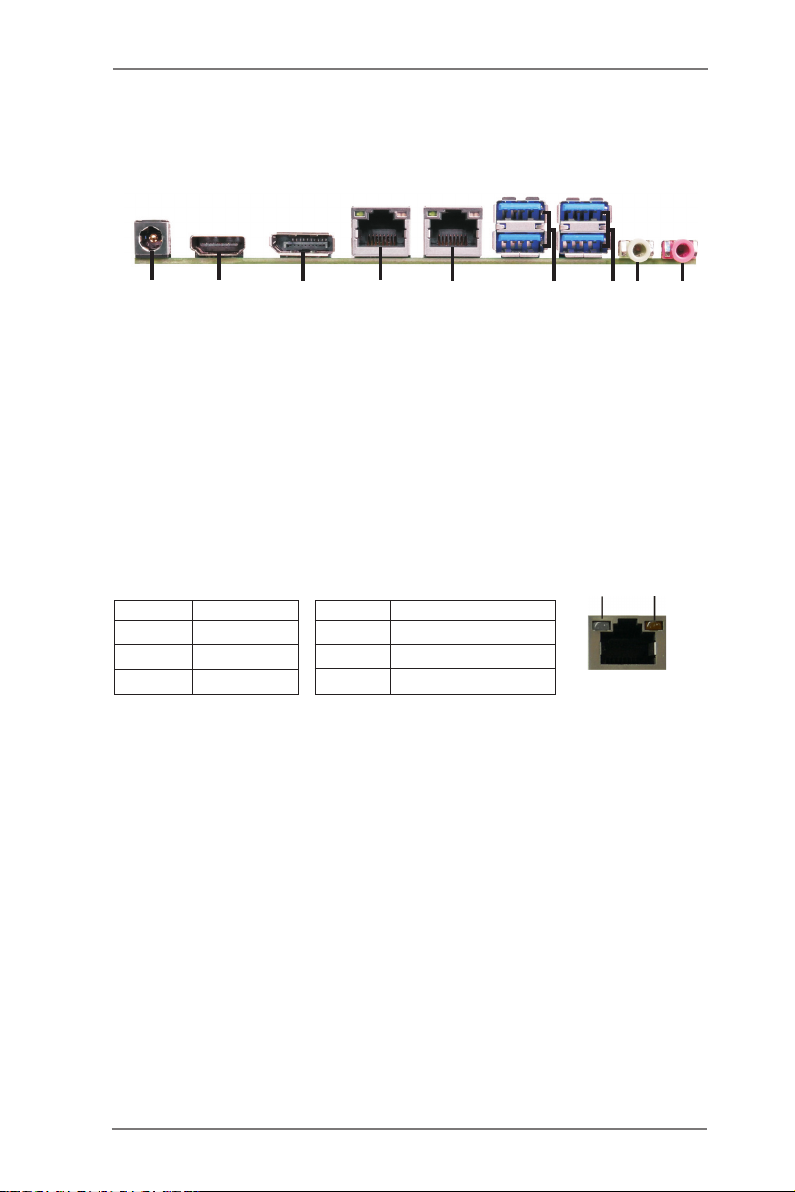

1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Off 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
1 DC Jack (DC_JACK1)
2 HDMI Port (HDMI1)
3 DisplayPort (DISPLAY1)
4 LAN RJ-45 Port*
5 LAN RJ-45 Port*
6 USB 3.0 Ports (USB3_0_1)
7 USB 3.0 Ports (USB3_2_3)
8 Line out (Lime)
9 Microphone (Pink)
124
35678 9

11
Chapter 2: Installation
This is a Mini-ITX form factor (6.7” x 6.7”, 17.0 x 17.0 cm) motherboard. Before you
install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched off or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12
2.3 Installation of Memory Modules (SO-DIMM)
IMB-197-D provides two 204-pin DDR4 (Double Data Rate 4) SO-DIMM slots.

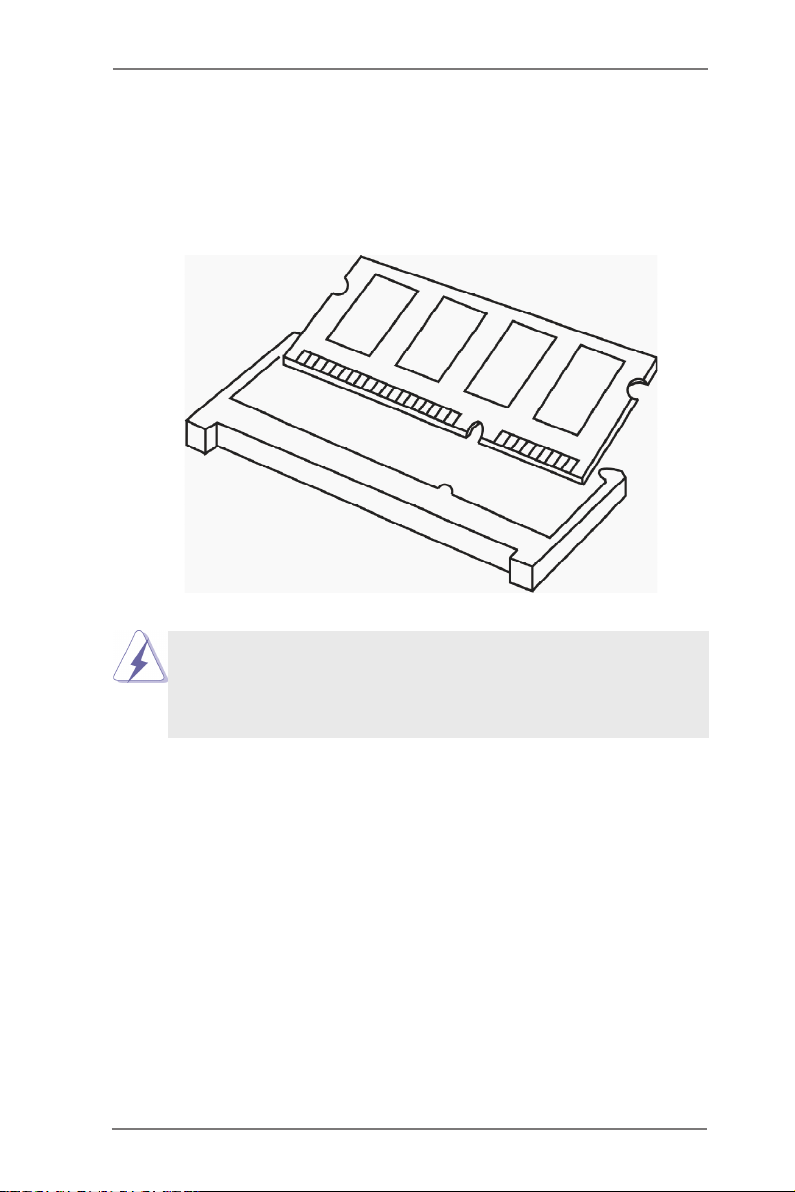

Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
1. The SO-DIMM only ts in one correct orientation. It will cause permanent damage
to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at
incorrect orientation.
2. Please do not intermix different voltage SO-DIMMs on this motherboard.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

13
2.4 Expansion Slots (mini-PCIe and mini-SATA Slots)
There is 1 mini-PCIe slot and 1 mini-SATA slot on this motherboard.
mini-PCIe slot:
MINI_PCIE1 (mini-PCIe slot; half size) is used for PCI Express mini
cards.
mini-SATA slot:
MINI_SATA1 (mini-SATA slot; full size) is used for mSATA cards.
Installing an expansion card
Step 1. Before installing the expansion card, please make sure that the power
supply is switched off or the power cord is unplugged. Please read the
documentation of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed
in a chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the
screws for later use.
Step 4. Align the card connector with the slot and press rmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.

14
2.5 Jumpers Setup

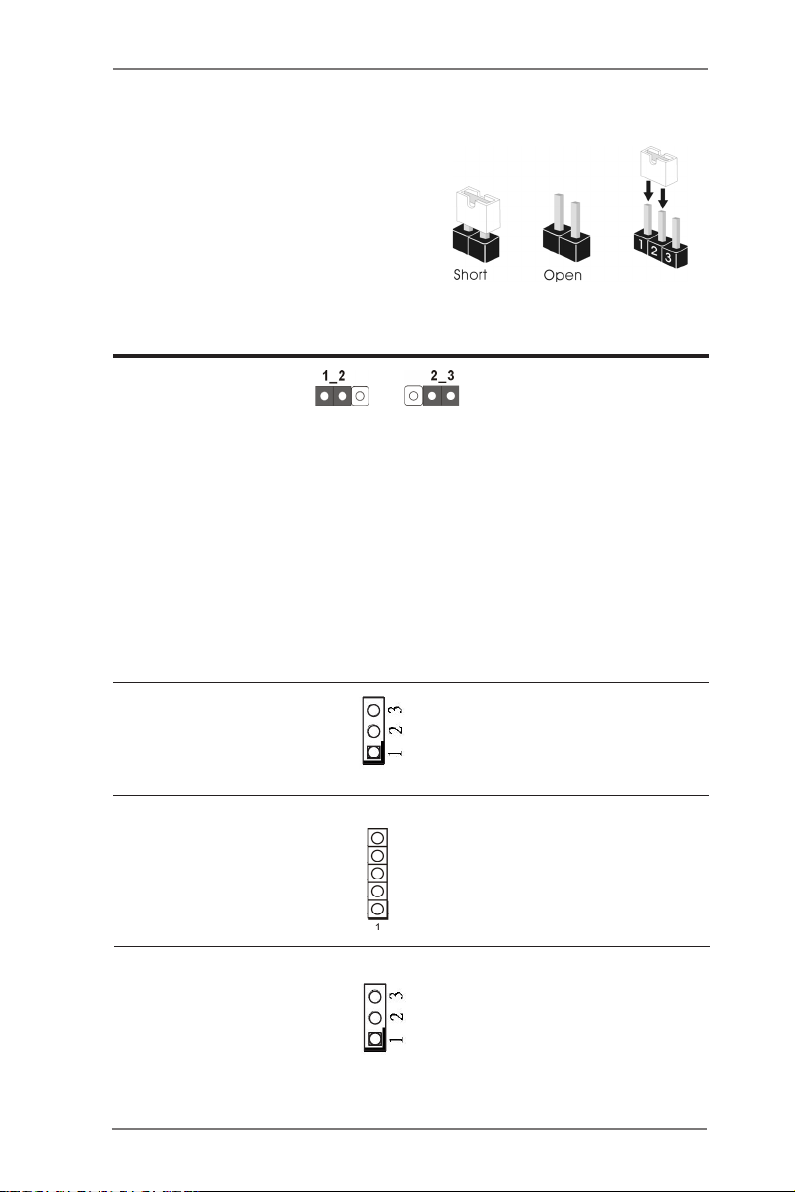

The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Jumper Setting Description
Clear CMOS Jumper
(3-pin CLRCMOS1)
(see p.8, No. 33)
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date, time, user default prole and MAC
address will be cleared only if the CMOS battery is removed.
AT/ATX Mode Select 1-2 : AT Mode
(3-pin PWR_JP1)
2-3 : ATX Mode
(see p.8, No. 14)
Digital Input / Output Power Select (JGPIOPWR) 1-2 : +12V
(5-pin JGPIO_PWR1)
2-3 : +5V
(see p.8, No. 19)
3-4 : +5V
4-5 : GND
Digital Input / Output Default Value Setting 1-2 : Pull-High
(3-pin JGPIO_SET1)
2-3 : Pull-Low
(see p.8, No. 20)
Clear CMOSDefault

15

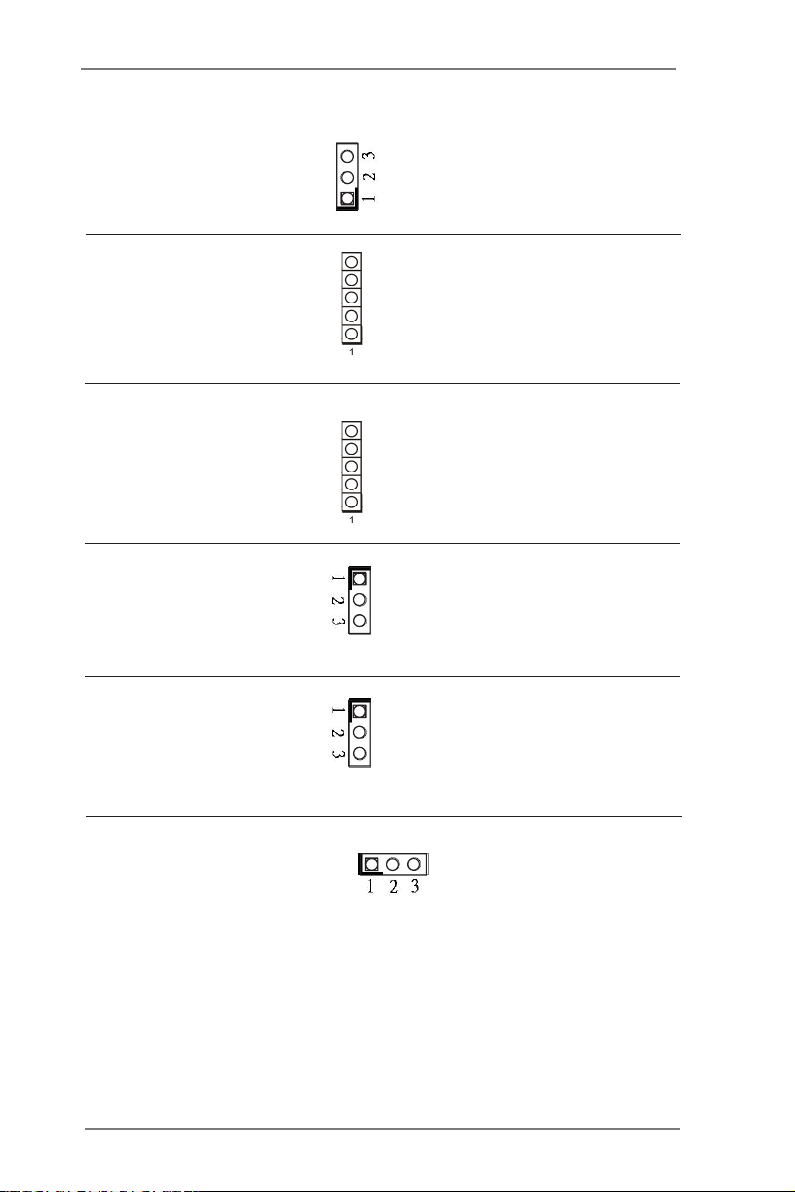

Backlight Control Level (CON_LBKLT_CTL) 1-2 : +3V
(3-pin BLT_PWM1)
2-3 : +5V
(see p.8, No. 13)
Panel Power Select (LCD_VCC) 1-2 : LCD_VCC : +3V
(5-pin PNL_PWR1)
2-3 : LCD_VCC : +5V
(see p.8, No. 18)
4-5 : LCD_VCC : +12V
USB2.0 Power Setting Jumpers 1-2 : +5V
(3-pin USB2_PWR4_5 (For USB2_4_5))
2-3 : +5VSB
(3-pin USB2_PWR6_7 (For USB2_6_7))
(see p.8, No. 3)
COM Port Pin9 PWR Setting Jumpers 1-2 : +5V
(3-pin PWR_COM1 (For COM Port1))
2-3 : +12V
(3-pin PWR_COM2 (For COM Port2))
(3-pin PWR_COM3 (For COM Port3))
(3-pin PWR_COM4 (For COM Port4))
(3-pin PWR_COM5 (For COM Port5))
(3-pin PWR_COM6 (For COM Port6))
(see p.8, No. 24)
Backlight Power Select (LCD_BLT_VCC) 1-2 : LCD_BLT_VCC : +5V
(5-pin BKT_PWR1)
2-3 : LCD_BLT_VCC : +12V
(see p.8, No. 17)
4-5 : LCD_BLT_VCC : DC_IN
USB3.0 Power Setting Jumpers 1-2 : +5V
(3-pin USB3_PWR0_1 (For USB3_0_1))
2-3 : +5VSB
(3-pin USB3_PWR2_3 (For USB3_2_3))
(see p.8, No. 32)

16
EDP_LVDS_J1~J4 Jumpers 1-2 : LVDS
(3-pin EDP_LVDS_J1~J4)
2-3 : eDP
(see p.8, No. 15)

17
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Chassis Intrusion Headers This motherboard supports
(2-pin CI1, CI2: see p.8, No. 16) CASE OPEN detection feature
that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
Close: Active Case Open
Open: Normal
1
Signal
GND

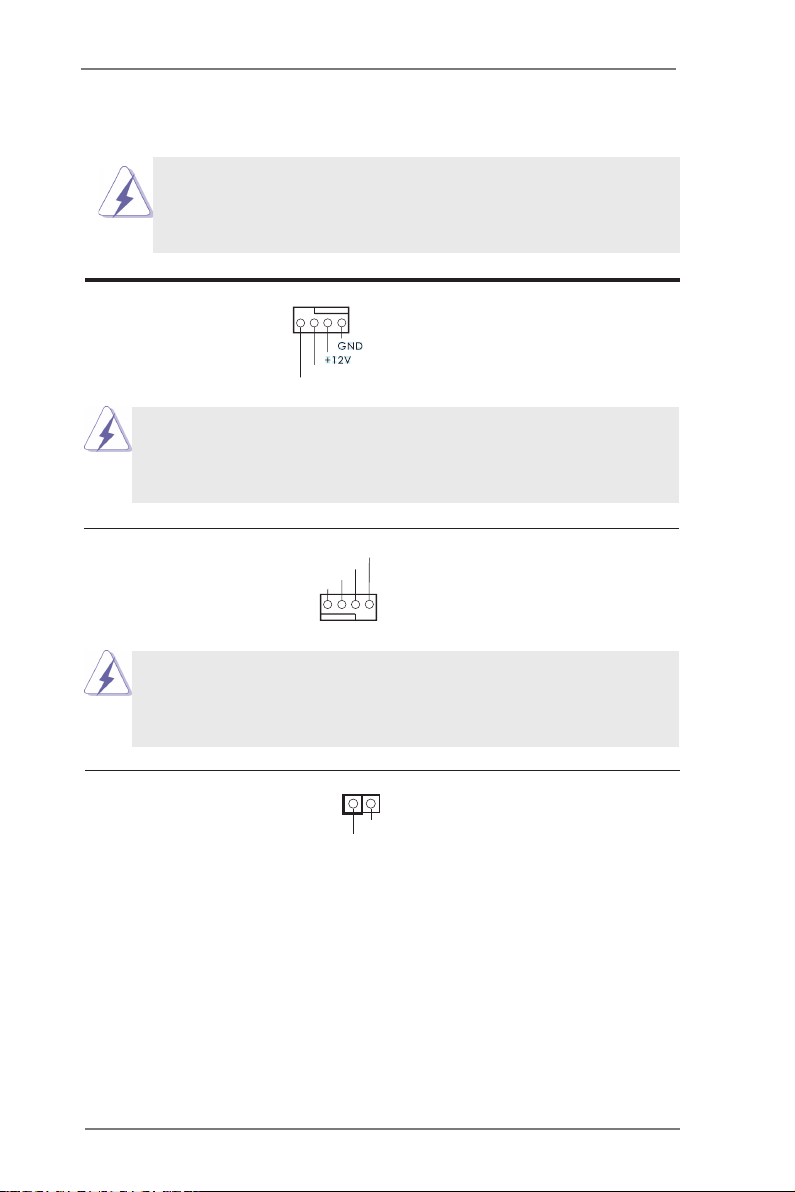

CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.8 No. 7) match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
Chassis Fan Connector Please connect the chassis fan
(4-pin CHA_FAN1) cable to the connector and
(see p.8 No. 25) match the black wire to the
ground pin.
Though this motherboard provides 4-Pin chassis fan (Quiet Fan) support,
the 3-Pin chassis fan still can work successfully even without the fan speed
control function. If you plan to connect the 3-Pin chassis fan to the chassis
fan connector on this motherboard, please connect it to Pin 1-3.
CPU_FAN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
FAN_SPEED
FAN_SPEED_CONTROL
GND
+12V
1 2 3 4

18
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8, No. 21) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
COM Port Headers
(10-pin COM1~6: see p.8, No. 23)
This motherboard supports RS232/422/485 on COM1, 2 ports. Please refer to below
table for the pin denition. In addition, COM1, 2 ports (RS232/422/485) can be
adjusted in BIOS setup utility > Advanced Screen > Super IO Conguration. You
may refer to page 34 for details.
COM1, 2 Port Pin Denition
GND RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
PIN RS232 RS422 RS485
1 DCD TX- RTX-
2 RXD RX+ N/A
3 TXD TX+ RTX+
4 DTR RX- N/A
5 GND GND GND
6 DSR N/A N/A
7 RTS N/A N/A
8 CTS N/A N/A
9 PWR PWR PWR
PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name PIN Signal Name
2RRXD 4DDTR# 6DDSR# 8CCTS# 10 NC
1DDCD# 3TTXD 5GND 7RRTS# 9PWR
1

19
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1/S3 sleep state. The LED is off when the system is in S4 sleep
state or powered off (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
USB 2.0 Headers There are two headers on this
(9-pin USB2_4_5, USB2_6_7: motherboard. Each USB 2.0
see p.8, No. 4) header can support two ports.

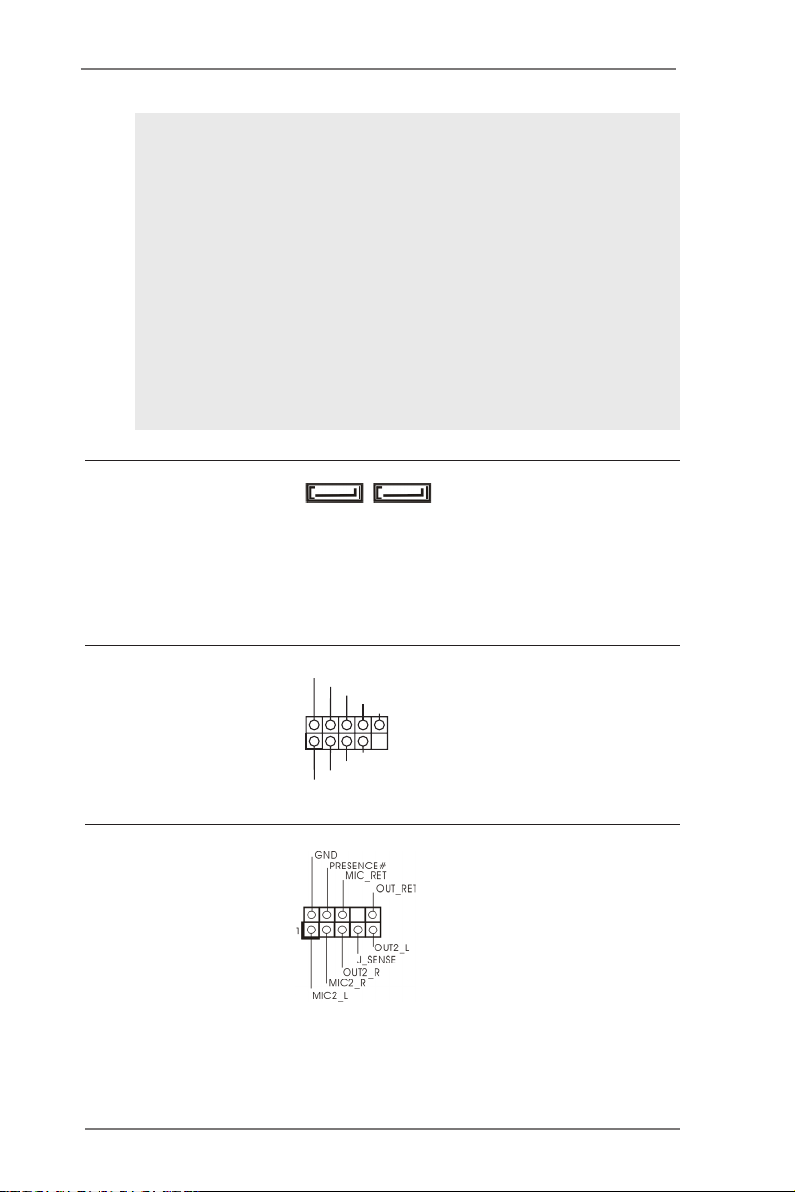

SATA3 Connectors These two Serial ATA3 (SATA3)
(SATA3_1, SATA3_2: see p.8, No. 5) connectors support SATA data
cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate.
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.8 No. 29) convenient connection and
control of audio devices.
SATA3_1 SATA3_2
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1

20
LPC Header This connector supports a
(19-pin LPC1) Trusted Platform Module (TPM)
(see p.8, No. 28) system, which can
securely store keys, digital
certicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
ATX Power Connector Please connect a DC 12V or
(4-pin FROM_UPS1) 19~24V power supply to this
(see p.8 No. 1) connector.
1-2: GND
3-4: DC Input (12V or 19~24V)
PS2 Keyboard/Mouse Header
(8-pin PS2_KB_MS1)
(see p.8 No. 26)
1
GND
GND
S_PWRDWN#
LAD2
SMB_CLK_MAIN
PCICLK
PCIRST#
LAD3
+3 V
LAD0
GND
FRAME
SMB_DATA_MAIN
LAD1
SERIRQ#
GND +3 V SB
48MHz +5 V
4
2
3
1
PIN Signal Name PIN Signal Name
2+5VSB 1KBCLK
4+5VSB 3KBDATA
6GND 5MSDATA
8GND 7MSCLK
