ASROCK IMB-A1000 User manual

1
IMB-A1000
User Manual
Version 1.0
Published September 2019
Copyright©2019 ASRockInd INC. All rights reserved.

2
Version 1.0
Published September 2019
Copyright©2019 ASRockInd INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRockInd Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRockInd. ASRockInd assumes no responsibility
for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRockInd does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRockInd, its directors, ocers, employees, or agents be liable
for any indirect, special, incidental, or consequential damages (including damages
for loss of prots, loss of business, loss of data, interruption of business and the
like), even if ASRockInd has been advised of the possibility of such damages arising
from any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRockInd Website: http://www.asrockind.com

3
Contents
1. Introduction ................................................................ 5
1.1 Package Contents.......................................................... 5
 1.2 Specications ................................................................. 6
1.3 Motherboard Layout ..................................................... 7
1.4 I/O Panel ...................................................................... 9
2. Installation .................................................................. 10
2.1 Installing Memory Modules (DIMM) ............................... 11
2.2 Expansion Slot ............................................................... 12
2.3 Jumpers Setup ............................................................... 14
2.4 Onboard Headers and Connectors ................................ 16
3. UEFI SETUP UTILITY.................................................. 20
3.1 Introduction .................................................................... 20
3.1.1 UEFI Menu Bar ..................................................... 20
3.1.2 Navigation Keys .................................................... 21
3.2 Main Screen ................................................................... 22
3.3 Advanced Screen........................................................... 23
  3.3.1CPUConguration ............................................... 24
  3.3.2ChipsetConguration........................................... 25
  3.3.3StorageConguration .......................................... 27
  3.3.4SuperIOConguration ........................................ 28
  3.3.5ACPIConguration............................................... 29
  3.3.6USBConguration ............................................... 30
3.3.7 Trusted Computing............................................... 31
3.4 Hardware Health Event Monitoring Screen.................... 32
3.5 Security Screen.............................................................. 33
3.6 Boot Screen ................................................................... 34
3.7 Exit Screen..................................................................... 36
4. Software Support ....................................................... 37
4.1 Install Operating System ................................................ 37
4.2 Support CD Information ................................................. 37
4.2.1 Running The Support CD..................................... 37
4.2.2 Drivers Menu........................................................ 37
4.2.3 Utilities Menu........................................................ 37
4.2.4 Contact Information.............................................. 37
 4.3 AMDEyenityMultidisplayTechnologySetting.............. 38

4
1. Introduction
Thank you for purchasing ASRockInd IMB-A1000 motherboard, a reliable
motherboard produced under ASRockInd’s consistently stringent quality
control. It delivers excellent performance with robust design conforming to
ASRockInd’s commitment to quality and endurance.
In this manual, chapter 1 and 2 contains the introduction of the mother-
board and step-by-step hardware installation guide. Chapter 3 and 4 con-
tainsthecongurationguideofUEFIsetupandinformationoftheSupport
CD.
BecausethemotherboardspecicationsandtheBIOSsoftware
might be updated, the content of this manual will be subject to
changewithoutnotice.Incaseanymodicationsofthismanual
occur, the updated version will be available on ASRockInd web-
sitewithoutfurthernotice.YoumayndthelatestCPUsupport
lists on ASRockInd website as well.
ASRockInd website https://www.asrockind.com/
If you require technical support related to this motherboard,
pleasevisitourwebsiteforspecicinformationaboutthemodel
you are using.
https://www.asrockind.com/support/index.asp
1.1 Package Contents
ASRockInd IMB-A1000 Motherboard
(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
ASRockInd IMB-A1000 Quick Installation Guide
ASRockInd IMB-A1000 Support CD
1 x I/O Panel Shield

5
1.2 Specications
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU
AMD Ryzen Series-Raven Ridge (2200G, QC,
3.5GHz, 65W) (2400G, QC, 3.6GHz, 65W)
AMD Ryzen 3000-Matisse CPU, sku TBD, up to
TDP 95W
Chipset AMD Promontory B450
Expansion
Slot
PCIe 1 x PCIe x16 (PCIe GEN III x8 for Raven Ridge
CPU) (PCIe GEN IV x16 for Matisse CPU)
M.2
1 x Key M (2242/2260/2280) with PCIe x4 and
SATA3 for SSD
1 x Key M (2242/2280) with PCIe x1 for SSD
1 x Key B (3042) with PCIe x1, USB 2.0 and
SIM Socket for 4G
1 x Key E (2230) with PCIe x1 and USB2.0 for
Wireless
Memory
Technology Raven Ridge: Dual Channel DDR4 2933 MHz
Matisse: Dual Channel DDR4 3200 MHz
Max. 32 GB
Socket 2 x SO-DIMM
ECC
Support N/A
Graphics
Controller AMD Radeon™ Vega Series Graphics in Ryzen
Series APU (For Raven Ridge CPU)
VGA N/A
DVI N/A
LVDS N/A
HDMI N/A
DisplayPort DisplayPort 1.2 with max resolution up to
4096x2160@60Hz
MultiDisplay Triple Display
eDP eDP 1.4 (share with DisplayPort) with max
resolution up to 4096x2160@60Hz
Ethernet Ethernet 10/100/1000 Mbps
Controller 2 x Intel®I210-AT

6
* For detailed product information, please visit our website: http://www.asrockind.com
Rear I/O
VGA N/A
DVI N/A
HDMI N/A
DisplayPort 3
Ethernet 2
USB 6 x USB 3.1
Audio 1 (Mic-in, Line-out)
Serial N/A
PS2 N/A
Internal
Connector
USB 2 x USB3.0, 4 x USB2.0
LVDS/
inverter N/A
eDP 1 (share with DisplayPort)
VGA N/A
Serial 2 x COM(RS-232/422/485)
SATA 3 x SATA3
Parallel N/A
GPIO N/A
SATA PWR
Output 1
Speaker
Header 1
TPM 1 x Onboard TPM 2.0 IC
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec
Power
Requirements
Input PWR ATX PWR 24+8-pin
Power On
AT/ATX Supported
AT: Directly PWR on as Power input ready
Environment ATX: Press Button to PWR on
after Power input ready
Environment
Temperature 0ºC – 60ºC
Operating
Temp -40ºC – 85ºC

7
1.3 Motherboard Layout
ATXPWR1
1
HD_AUDIO1
HDLED RESET
PLED PW RBTN
PANEL1
1
Top:
LAN1
USB 3.0
T: USB0
B: USB1
Line Out
ATX1 2V 2
LPC1
1
Industrial
BIOS
ROM
USB3_16_17
1
CLRCMOS1
1
USB 3. 0
T: USB14
B: USB15
DP0
SATA3_1
M2_KEYM1
SPDIF1
1
SOCKET AM4
PCIE1
DP1
USB2_4_5
1
USB2_6_7
1
SATA_PWR1
CPU_FAN1
DDR4_A1 DDR4_B1
DP2
Mic In
Top:
LAN2
USB 3.0
T: USB2
B: USB3
M2_KEYE1
BUZZ2
1
CI2
1
CI1
1
BUZZ1
PWR_JP1
1
M2_KEYB1
PWR_COM3
1
PWR_COM4
1
COM3
1
COM4
1
SATA3_2
SATA3_3
CHA_FAN1
BL1
1
BL2
1
EDP1
CLRCMOS2
1
PWR_BAT2
1
IMB-A1000

8
1 : ATX 12V Power Connector
2 : PWR_BAT2
3 : Clear CMOS Header (CLRMOS2)
4 : CPU FAN Connector (+12V)
5 : Clear CMOS Header (CLRMOS1)
6 : eDP Connector
7 : BL1, BL2
8 : Chassis FAN Connector (+12V)
9 : 24-pin ATX Power Input Connector
10 : SATA Power Output Connector
11 : SATA3 Connectors (SATA3_1~3)
12 : USB 2.0 Headers ( USB2_4_5, USB2_6_7 )
13 : USB 3.0 Header ( USB3_16_17 )
14 : System Panel Header
15 : COM Port Headers (COM3, 4) (RS232)
16 : COM Port PWR Setting Jumpers
PWR_COM3 (For COM Port3)
PWR_COM4 (For COM Port4)
17 : M.2 Key-B Socket (M2_KEYB1)
18 : ATX/AT Mode Select (PWR_JP1)
19 : LPC Header
20 : M.2 Key-E Socket (M2_KEYE1)
21 : Buzzer (BUZZ2)
22 : Chassis Intrusion Headers (CI1, CI2)
23 : Front Panel Audio Header
24 : SPDIF Header
25 : M.2 Key-M Socket (M2_KEYM1)
Back Side :
M.2 Key-M Socket (M2_KEYM2)
SIM Card Socket (SIM1)

9
1.4 I/O Panel
1 LAN RJ-45 Port (LAN1)*
2 LAN RJ-45 Port (LAN2)*
3 USB 3.0 Ports (USB3_2_3)
4 USB 3.0 Ports (USB3_0_1)
5 USB 3.0 Ports (USB3_14_15)
6 Microphone (Pink)
7 Front Speaker (Lime)
8 DisplayPort (DP2)
9 DisplayPort (DP0)
10 DisplayPort (DP1)
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
6
12
43
5
7
98 10

10
Chapter 2: Installation
This is a Mini-ITX form factor motherboard. Before you install the mother-
board,studythe conguration of yourchassistoensurethat the mother-
boardtsintoit.
Pre-installation Precautions
Take note of the following precautions before you install motherboard com-
ponents or change any motherboard settings.
1. Make sure to unplug the power cord before installing or
removing the motherboard. Failure to do so may cause
physical injuries to you and damages to motherboard com-
ponents.
2. In order to avoid damage from static electricity to the moth-
erboard’s components, NEVER place your motherboard
directly on a carpet. Also remember to use a grounded wrist
strap or touch a safety grounded object before you handle
the components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any components, place them on a
grounded anti-static pad or in the bag that comes with the
components.
5. When placing screws to secure the motherboard to the
chassis, please do not over-tighten the screws! Doing so
may damage the motherboard.

11
2.1 Installing Memory Modules (DIMM)
This motherboard provides two DDR4 (Double Data Rate 4) SO-DIMM
slots.
Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align a DIMM on the slot such that the notch on the DIMM
matches the break on the slot.
TheDIMMonlytsinonecorrectorientation.Itwillcause
permanent damage to the motherboard and the DIMM if you
force the DIMM into the slot at incorrect orientation.
Step 3. Firmly insert the DIMM into the slot until the retaining clips at both
ends fully snap back in place and the DIMM is properly seated.
notch
break
notch break

12
2.2 Expansion Slots (PCI Express and M.2 Slots)
There is 1 PCI Express slot and 4 M.2 sockets on this motherboard.
PCIE Slot: 1 x PCIe x16 slot (PCIe GEN III x8 for Raven Ridge CPU) (PCIe
GEN IV x16 for Matisse CPU).
M.2 Sockets:
1 x Key M (2242/2260/2280) with PCIe x4 and SATA3 for SSD.
1 x Key M (2242/2280) with PCIe x1 for SSD.
1 x Key B (3042) with PCIe x1, USB 2.0 and SIM Socket for 4G.
1 x Key E (2230) with PCIe x1 and USB2.0 for Wireless.

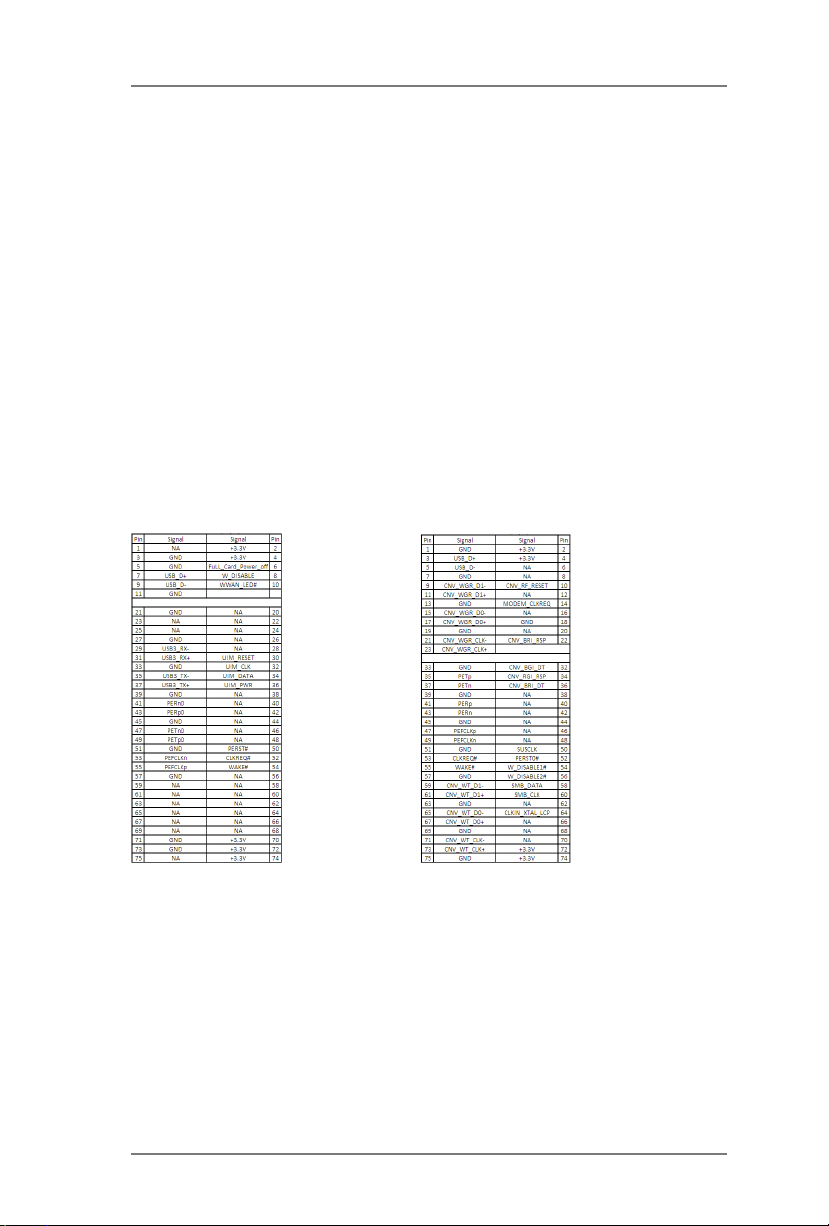

M.2 Socket Pin Denition:
M.2 Key-B Socket (M2_KEYB1) M.2 Key-E Socket (M2_KEYE1)

13
M.2 Key-M Socket (M2_KEYM1) M.2 Key-M Socket (M2_KEYM2)

14

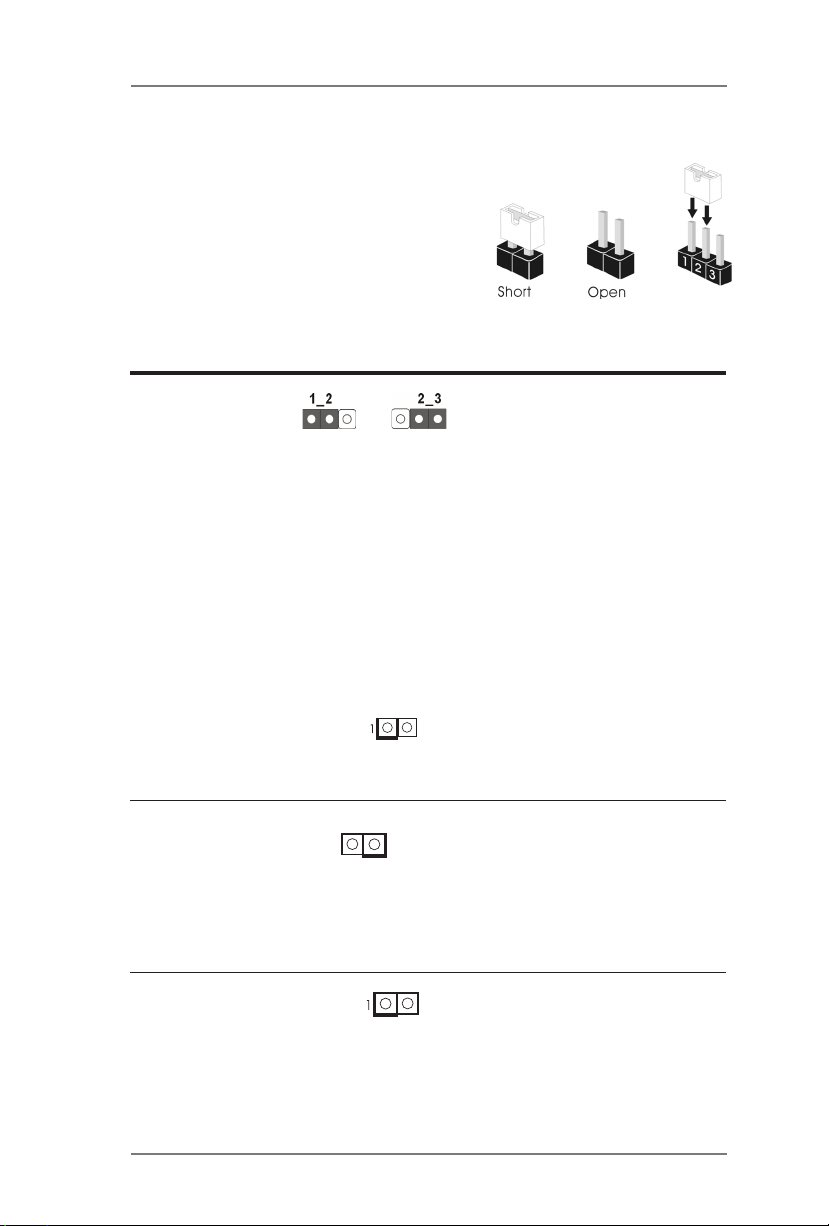

2.3 Jumpers Setup
The illustration shows how jumpers are setup.
When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap is
placed on pins, the jumper is “Open”. The illus-
tration shows a 3-pin jumper whose pin1 and
pin2 are “Short” when jumper cap is placed on
these 2 pins.
Jumper Setting Description
Clear CMOS Jumpers CLRCMOS1 :
(3-pin CLRCMOS1)
1-2 : Normal
(see p.7, No. 5)
2-3 : Clear CMOS
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn off the computer and unplug the
power cord from the power supply. After waiting for 15 seconds, use a jumper
cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not
clear the CMOS right after you update the BIOS. If you need to clear the CMOS
when you just nish updating the BIOS, you must boot up the system rst, and
then shut it down before you do the clear-CMOS action. Please be noted that the
password,date,time,userdefaultproleandMACaddresswillbeclearedonlyif
the CMOS battery is removed.
(2-pin CLRCMOS2)
CLRCMOS2 :
(see p.7, No. 3)
Open : Normal
Short : Auto Clear CMOS (Power Off)
Clear CMOSDefault
BL1, BL2
(2-pin BL1)
Open : Protect LCD_BLT_VCC
(see p.7 No. 7) Short : No Protect LCD_BLT_VCC
(2-pin BL2)
Open : Protect R_LVDD
(see p.7 No. 7) Short : No Protect R_LVDD
PWR_BAT2 Open : Normal
(2-pin PWR_BAT2)
Close : Charge Battery
(see p.7, No. 2)
1

15

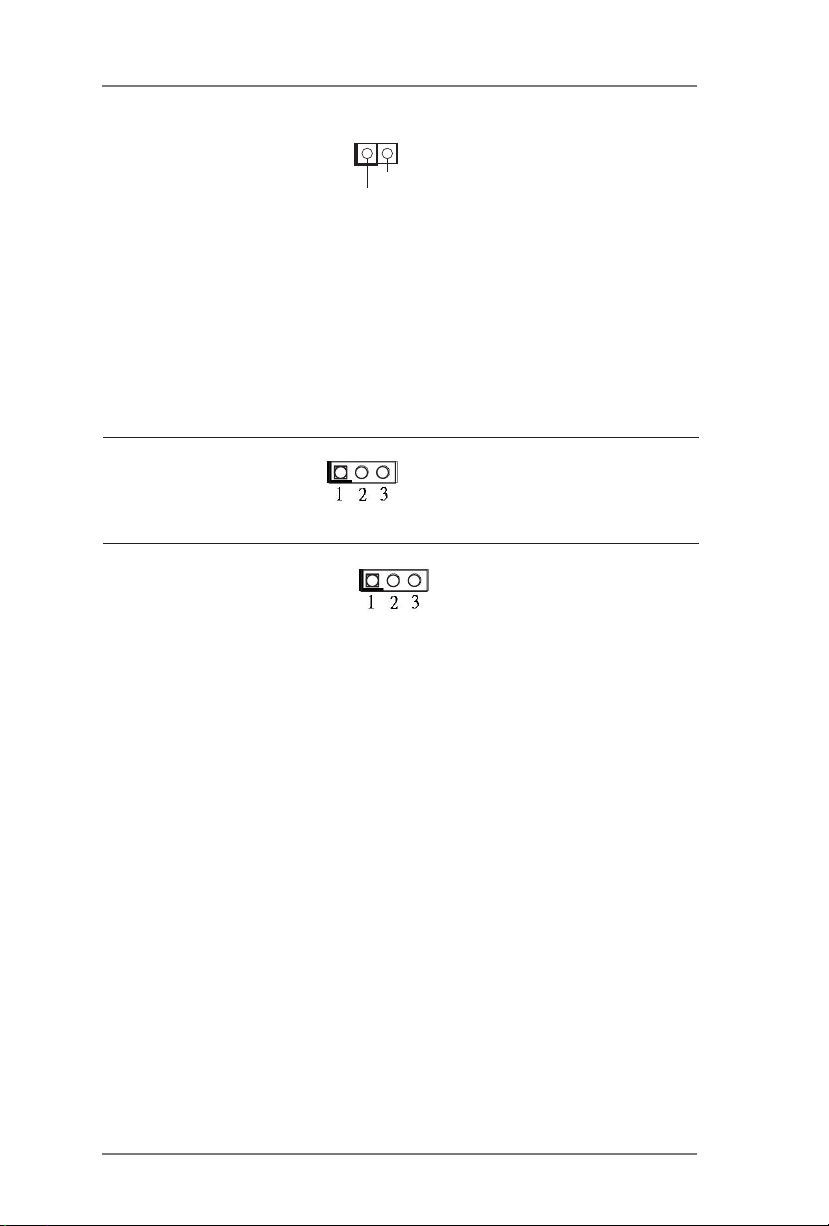

Chassis Intrusion Headers This motherboard supports
(2-pin CI1: see p.7, No. 22) CASE OPEN detection feature
(2-pin CI2: see p.7, No. 22) that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
CI1 :
Close : Active Case Open
Open : Normal
CI2 :
Close : Normal
Open : Active Case Open
1
Signal
GND
ATX/AT Mode Select 1-2 : AT Mode
(3-pin PWR_JP1)
2-3 : ATX Mode
(see p.7, No. 18)
COM Port PWR Setting Jumpers 1-2 : +5V
(3-pin PWR_COM3 (For COM Port3))
2-3 : +12V
(3-pin PWR_COM4 (For COM Port4))
(see p.7, No. 16)

16
2.4 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.7 No. 4) match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even with the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.7, No. 14) functions.
Chassis Fan Connector Please connect the chassis fan
(4-pin CHA_FAN1) cable to the connector and
(see p.7 No. 8) match the black wire to the
ground pin.
Though this motherboard provides 4-Pin chassis fan (Quiet Fan) support,
the 3-Pin chassis fan still can work successfully even with the fan speed
control function. If you plan to connect the 3-Pin chassis fan to the chassis
fan connector on this motherboard, please connect it to Pin 1-3.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
 Connecttothepowerswitchonthechassisfrontpanel.Youmaycongure
the way to turn off your system using the power switch.
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4
GND RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND

17
COM Port Headers (RS232)
(9-pin COM3, 4: see p.7, No. 15)
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1/S3 sleep state. The LED is off when the system is in S4 sleep
state or powered off (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
USB 2.0 Headers There are two headers on this
(9-pin USB2_4_5, USB2_6_7) motherboard.
(see p.7, No. 12)
Buzzer
(2-pin BUZZ2)
(see p.7 No. 21)
SATA3 Connectors These three Serial ATA3 (SATA3)
(SATA3_1~3: see p.7, No. 11) connectors support SATA data
cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate.
12 PIN Signal
Name PIN Signal Name
2RRXD 1DDCD#
4DDTR# 3TTXD
6DDSR# 5GND
8CCTS# 7RRTS#
10 N/A 9+5V
SATA3_1
SATA3_3
SATA3_2
DUMMY
GND GND
+B
-B
+A
-A
USB_PWR USB_PWR
1

18

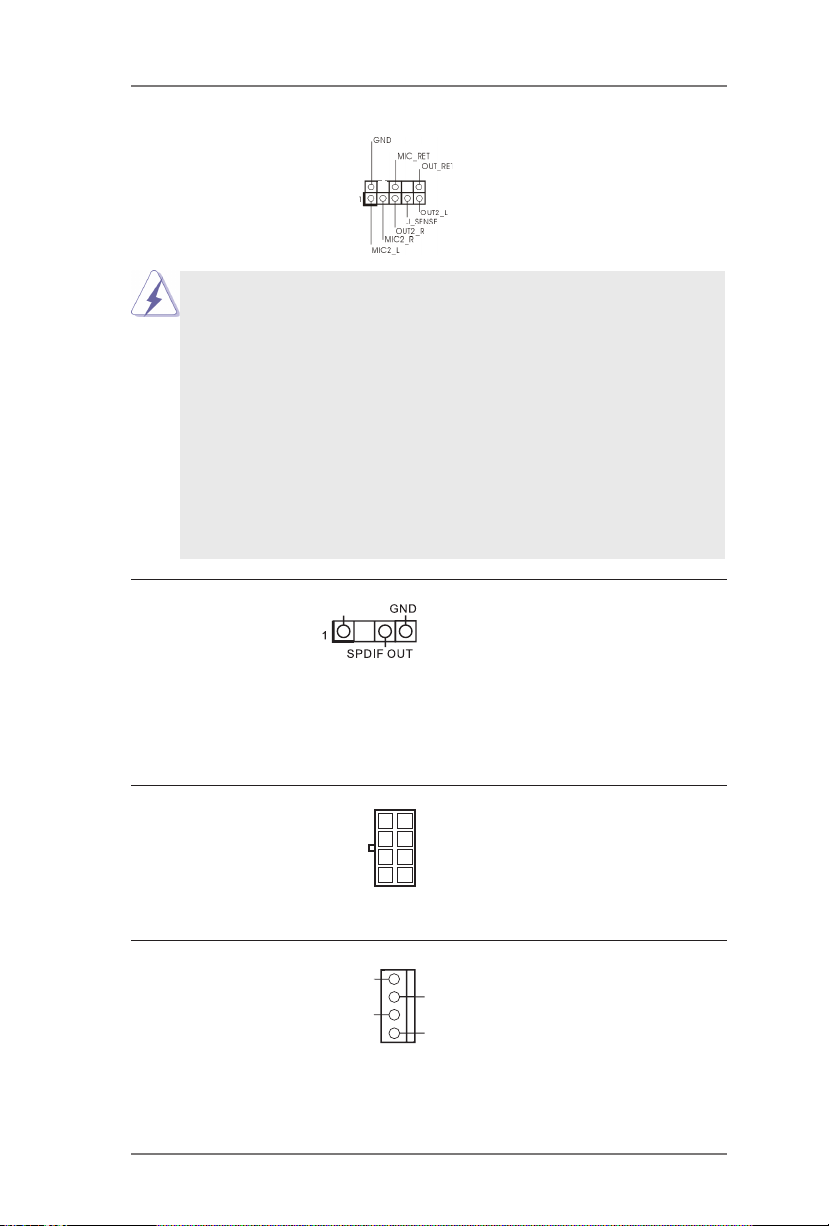

Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.7 No. 23) convenient connection and
control of audio devices.
 1.HighDenitionAudiosupportsJackSensing,butthepanelwireon
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
SATA Power Connector Please connect a SATA
(SATA_PWR1) power cable to this connector.
(see p.7 No. 10)
SPDIF Header SPDIF header, providing
(3-pin SPDIF1) SPDIF audio output to HDMI
(see p.7, No. 24) VGA card, allows the system to
connect HDMI Digital TV/
projector/LCD devices. Please
connect the SPDIF connector of
HDMI VGA card to this header.
+5V
5
8
1
4
ATX 12V Power Connector This motherboard provides an
(8-pin ATX12V1) 8-pin ATX 12V power
(see p.7 No. 1) connector. To use a 4-pin ATX
power supply, please plug it
along Pin 1 and Pin 5.
GND
+5V
+12V
1
GND

19
eDP Connector
(40-pin EDP1)
(see p.7 No. 6)
LPC Header This connector supports a
(19-pin LPC1) Trusted Platform Module (TPM)
(see p.7, No. 19) system, which can
securely store keys, digital
  certicates,passwords,and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
40 NA 39 LCD_BLT_VCC 38 LCD_BLT_VCC 37 LCD_BLT_VCC 36 LCD_BLT_VCC 35 NA 34 NA 33 CON_LBKLT_CTL 32 CON_LBKLT_EN 31 GND 30 GND 29 GND 28 GND 27 eDP_HPD_CON 26 GND 25 GND 24 GND 23 GND 22 NA 21 LCD_VCC 20 LCD_VCC 19 LCD_VCC 18 LCD_VCC 17 GND 16 eDP_AUX#_CON 15 eDP_AUX_CON 14 GND 13 eDP_TX0_CON 12 eDP_TX#0_CON
11 GND
10 eDP_TX1_CON
9 eDP_TX#1_CON 8 GND 7 eDP_TX2_CON 6 eDP_TX#2_CON 5 GND 4 eDP_TX3_CON 3 eDP_TX#3_CON 2 GND 1 NA
PIN Signal Name
1
EDP1
1
GND
GND
S_PWRDWN#
LAD2
SMB_CLK_MAIN
PCICLK
PCIRST#
LAD3
+3.3V
LAD0
GND
FRAME
SMB_DATA_MAIN
LAD1
SERIRQ#
GND
+3 .3V STAN D BY
48MHz
+5 V
ATX Power Input Connector This motherboard provides
(24-pin ATXPWR1) a 24-pin ATX power connector.
(see p.7 No. 9) To use a 20-pin ATX power
supply, please plug it along Pin
1 and Pin 13.
12
1
24
13
USB 3.0 Header There is one header on this
(19-pin USB3_16_17: see p.7, No. 13) motherboard. This USB 3.0
header can support two ports.
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
Vbus
Vbus
IntA_ PA_SSRX-
IntA_ PA_SSRX+
GND
IntA_ PA_SSTX-
IntA_ PA_SSTX+
GND
IntA_ PA_D-
IntA_ PA_D+

20
Chapter 3: UEFI SETUP UTILITY
3.1 Introduction
This section explains how to use the UEFI SETUP UTILITY to congure
your system. The UEFI chip on the motherboard stores the UEFI SETUP
UTILITY. You may run the UEFI SETUP UTILITY when you start up the
computer. Please press <F2> or <Del> during the Power-On-Self-Test
(POST) to enter the UEFI SETUP UTILITY, otherawise, POST will continue
with its test routines.
If you wish to enter the UEFI SETUP UTILITY after POST, restart the sys-
tem by pressing <Ctl> + <Alt> + <Delete>, or by pressing the reset button
on the system chassis. You may also restart by turning the system off and
then back on.
Because the UEFI software is constantly being updated, the following
UEFI setup screens and descriptions are for reference purpose only, and
they may not exactly match what you see on your screen.
3.1.1 UEFI Menu Bar
The top of the screen has a menu bar with the following selections:
Main For setting system time/date information
Advanced Foradvancedsystemcongurations
H/W Monitor Displays current hardware status
Security For security settings
Boot Forconguringbootsettingsandbootpriority
Exit Exit the current screen or the UEFI Setup Utility
