ASRock K10N7SLI Motherboard
EnglishEnglish EnglishEnglish
English
Copyright Notice:Copyright Notice:
Copyright Notice:Copyright Notice:
Copyright Notice:
No part of this installation guide may be reproduced, transcribed, transmitted, or trans-
lated in any language, in any form or by any means, except duplication of documen-
tation by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this guide may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identifica-
tion or explanation and to the owners’ benefit, without intent to infringe.
Disclaimer:Disclaimer:
Disclaimer:Disclaimer:
Disclaimer:
Specifications and information contained in this guide are furnished for informational
use only and subject to change without notice, and should not be constructed as a
commitment by ASRock. ASRock assumes no responsibility for any errors or omissions
that may appear in this guide.
With respect to the contents of this guide, ASRock does not provide warranty of any kind,
either expressed or implied, including but not limited to the implied warranties or
conditions of merchantability or fitness for a particular purpose. In no event shall
ASRock, its directors, officers, employees, or agents be liable for any indirect, special,
incidental, or consequential damages (including damages for loss of profits, loss of
business, loss of data, interruption of business and the like), even if ASRock has been
advised of the possibility of such damages arising from any defect or error in the guide
or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
PublishedNovember2008
Copyright©2008ASRock INC.All rights reserved.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic
substance controlled in Perchlorate Best Management Practices (BMP) regulations
passed by the California Legislature. When you discard the Lithium battery in
California, USA, please follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate”
ASRock Website: http://www.asrock.com

22
22
2ASRock K10N7SLI Motherboard
EnglishEnglish
EnglishEnglish
English
Motherboard LMotherboard L
Motherboard LMotherboard L
Motherboard Layoutayout
ayoutayout
ayout
1 PS2_USB_PW1 Jumper 21 System Panel Header (PANEL1, Orange)
2 ATX Power Connector (ATXPWR1) 22 Front Panel IEEE 1394 Header
3 ATX 12V Power Connector (ATX12V1) (FRONT_1394, Red)
4 CPU Fan Connector (CPU_FAN1) 23 Chassis Speaker Header
5 AM2 940-Pin CPU Socket (SPEAKER 1, Purple)
6 CPU Heatsink Retention Module 24 Chassis Fan Connector (CHA_FAN1)
7 2 x 240-pin DDR2 DIMM Slots 25 Floppy Connector (FLOPPY1)
(Dual Channel A: DDRII_1, DDRII_2; Yellow) 26 Infrared Module Header (IR1)
8 2 x 240-pin DDR2 DIMM Slots 27 HDMI_SPDIF Header
(Dual Channel B: DDRII_3, DDRII_4; Orange) (HDMI_SPDIF1, Yellow)
9 Primary IDE Connector (IDE1, Blue) 28 Front Panel Audio Header
10 NVIDIA nForce 740a SLI Chipset (HD_AUDIO1, Lime)
11 Clear CMOS Jumper (CLRCMOS1) 29 Internal Audio Connector: CD1 (Black)
12 SATAII Connector (SATAII_6 (PORT5), Orange) 30 PCI Slots (PCI1- 3)
13 SATAII Connector (SATAII_5 (PORT4), Red) 31 PCI Express x16 Slot (PCIE3, Blue)
14 SATAII Connector (SATAII_2 (PORT1), Red) 32 SLI/XFire Switch Card Retention Slot
15 SATAII Connector (SATAII_4 (PORT3), Red) 33 PCI Express x16 Slot (PCIE2, Green)
16 SATAII Connector (SATAII_3 (PORT2), Red) 34 PCI Express x1 Slot (PCIE1, White)
17 SATAII Connector (SATAII_1 (PORT0), Red) 35 SLI / XFIRE Power Connector
18 USB 2.0 Header (USB8_9, Blue) 36 COM Port Header (COM1)
19 USB 2.0 Header (USB6_7, Blue) 37 eSATAII Connector (eSATAII_TOP, Orange)
20 SPI BIOS Chip

33
33
3
ASRock K10N7SLI Motherboard
EnglishEnglish EnglishEnglish
English
I/O PI/O P
I/O PI/O P
I/O Panelanel
anelanel
anel
To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. After restarting your computer, you will find “Mixer” tool on your system.
Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click
“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA
Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek
HDA Audio 2nd output” to use front panel audio.
** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.
See the table below for connection details in accordance with the type of speaker you use.
TABLE forAudio Output Connection
Audio Output ChannelsFront Speaker Rear Speaker Central / Bass Side Speaker
(No. 8) (No. 5) (No. 6) (No. 4)
2 V -- -- --
4VV----
6 VVV--
8 VVVV
LAN Port
ACT/LINK
LED
SPEED
LED
1 PS/2 Mouse Port (Green) 9 Microphone (Pink)
2 IEEE 1394 Port 10 USB 2.0 Ports (USB01)
* 3 LAN RJ-45 Port 11 USB 2.0 Ports (USB23)
4 Side Speaker (Gray) 12 USB 2.0 Ports (USB45)
5 Rear Speaker (Black) 13 eSATAII Port
6 Central / Bass (Orange) 14 Optical SPDIF Out Port
7 Line In (Light Blue) 15 Coaxial SPDIF Out Port
**8 Front Speaker (Lime) 16 PS/2 Keyboard Port (Purple)
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
SPEED LED Activity/Link LED
Status Description Status Description
Off 10Mbps connection Off No link
Orange 100Mbps connection Orange Linked
Green 1Gbps connection Blinking DataActivity

44
44
4ASRock K10N7SLI Motherboard
EnglishEnglish
EnglishEnglish
English
1.1.
1.1.
1. IntroductionIntroduction
IntroductionIntroduction
Introduction
Thank you for purchasing ASRock K10N7SLI motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control. It de-
livers excellent performance with robust design conforming to ASRock’s commit-
ment to quality and endurance.
This Quick Installation Guide contains introduction of the motherboard and step-by-
step installation guide. More detailed information of the motherboard can be found in
the user manual presented in the Support CD.
Because the motherboard specifications and the BIOS software might
be updated, the content of this manual will be subject to change without
notice. In case any modifications of this manual occur, the updated
version will be available on ASRock website without further notice. You
may find the latest VGA cards and CPU support lists on ASRock website
as well. ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
our website for specific information about the model you are using.
www.asrock.com/support/index.asp
1.11.1
1.11.1
1.1 PP
PP
Packack
ackack
ackage Contentsage Contents
age Contentsage Contents
age Contents
ASRockK10N7SLI Motherboard
(ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm)
ASRock K10N7SLI Quick InstallationGuide
ASRock K10N7SLI Support CD
OneASRock SLI Bridge
OneASRock SLI/XFire Switch Card
One 80-conductor UltraATA66/100/133 IDE Ribbon Cable
One 3.5-in FloppyDrive Ribbon Cable
Two SerialATA(SATA)Data Cables (Optional)
One SerialATA(SATA) HDDPower Cable (Optional)
One I/O Panel Shield

55
55
5
ASRock K10N7SLI Motherboard
EnglishEnglish EnglishEnglish
English
1.21.2
1.21.2
1.2 SpecificationsSpecifications
SpecificationsSpecifications
Specifications
Platform -ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
-All Solid Capacitor design (100% Japan-made high-quality
Conductive Polymer Capacitors)
CPU - Support for SocketAM2+ / AM2 processors:AMDPhenomTM
FX / Phenom / Athlon 64 FX /Athlon 64 X2Dual-Core /Athlon
X2Dual-Core / Athlon 64 / Sempronprocessor
- Supports CPU up to 140W
-AMDLIVE!TM Ready
- SupportsAMD’s Cool ‘n’ QuietTM Technology
- FSB 2600 MHz (5.2GT/s) (see CAUTION 1)
- Supports Untied Overclocking Technology (see CAUTION 2)
- Supports Hyper-Transport 3.0 (HT 3.0) Technology
Chipset -NVIDIA®nForce 740a SLI
Memory -Dual ChannelDDR2 Memory Technology (see CAUTION 3)
- 4 xDDR2 DIMM slots
-SupportDDR21066/800/667/533non-ECC,un-bufferedmemory
(see CAUTION 4)
- Max. capacity of system memory: 8GB (see CAUTION 5)
Expansion Slot - 2 x PCI Express 2.0 x16 slots
(green @ x16 mode, blue @ x8 mode)
- 1 x PCI Express x1 slot
- 3 x PCI slots
- SupportsNVIDIA®SLITM (see CAUTION 6)
Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio with
Content Protection
-DAC with 110dB dynamic range (ALC890Audio Codec)
LAN -Gigabit LAN10/100/1000 Mb/s
-Giga PHY Realtek RTL8211B
- Supports Wake-On-LAN
Rear Panel I/O I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x eSATAII Port
- 1 x RJ-45 LANPort with LED(ACT/LINK LEDand SPEEDLED)
- 1 x IEEE 1394 Port
- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/
Line in/Front Speaker/Microphone (see CAUTION 7)

66
66
6ASRock K10N7SLI Motherboard
EnglishEnglish
EnglishEnglish
English
Connector - 6 x SATAII 3.0Gb/s connectors, support RAID(RAID 0,
RAID1, RAID0+1, JBOD and RAID5),NCQ,AHCI and “Hot
Plug” functions (see CAUTION 8)
- 1 x eSATAII 3.0Gb/s connector (shared with 1 SATAII
connector) (see CAUTION 9)
- 1 xATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- CPU/Chassis FANconnector
- 24 pinATX power connector
- 8 pin 12V power connector
-SLI/XFIREpower connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
(see CAUTION 10)
BIOS Feature - 8MbAMI BIOS
-AMI Legal BIOS
- Supports “Plug and Play”
-ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
-AMBIOS 2.3.1 Support
- CPU,DRAM, Chipset Core, HTTVoltage Multi-adjustment
- Supports Smart BIOS
Support CD -Drivers, Utilities,AntiVirus Software (TrialVersion)
Unique Feature -ASRock OC Tuner (see CAUTION 11)
- Intelligent Energy Saver (see CAUTION 12)
- Hybrid Booster:
- CPU Frequency Stepless Control (see CAUTION 13)
-ASRock U-COP (see CAUTION 14)
- Boot FailureGuard (B.F.G.)
-ASRockAM2 Boost: ASRock PatentedTechnology to boost
memory performance up to 12.5% (see CAUTION 15)
Hardware - CPU Temperature Sensing
Monitor - Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer

77
77
7
ASRock K10N7SLI Motherboard
EnglishEnglish EnglishEnglish
English
CAUTION!
1. If you install AM2 CPU on this motherbord, the system bus speed will be HT1.
0 (2000 MT/s). If you install AM2+ CPU on this motherbord, the system bus
speed will be HT3.0 (up to 5200 MT/s), and the HT Link frequency depends on
the ability of the AM2+ CPU you adopt. Please refer to the CPU support list
on our website for more information.
ASRock website http://www.asrock.com
2. This motherboard supports Untied Overclocking Technology. Please read “Un-
tied Overclocking Technology” on page 31 for details.
3. This motherboard supportsDual Channel Memory Technology. Before you
implement Dual Channel Memory Technology, make sure to read the
installation guide of memory modules on page 13 for proper installation.
4. Whether 1066MHz memory speed is supported depends on the AM2+ CPU
you adopt. If you want to adopt DDR2 1066 memory module on this
motherboard, please refer to the memory support list on our website for
the compatible memory modules.
ASRock website http://www.asrock.com
5. Due to the operating system limitation, the actual memory size may be
less than 4GB for the reservation for system usage under Windows®XP
and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM 64-
bit with 64-bit CPU, there is no such limitation.

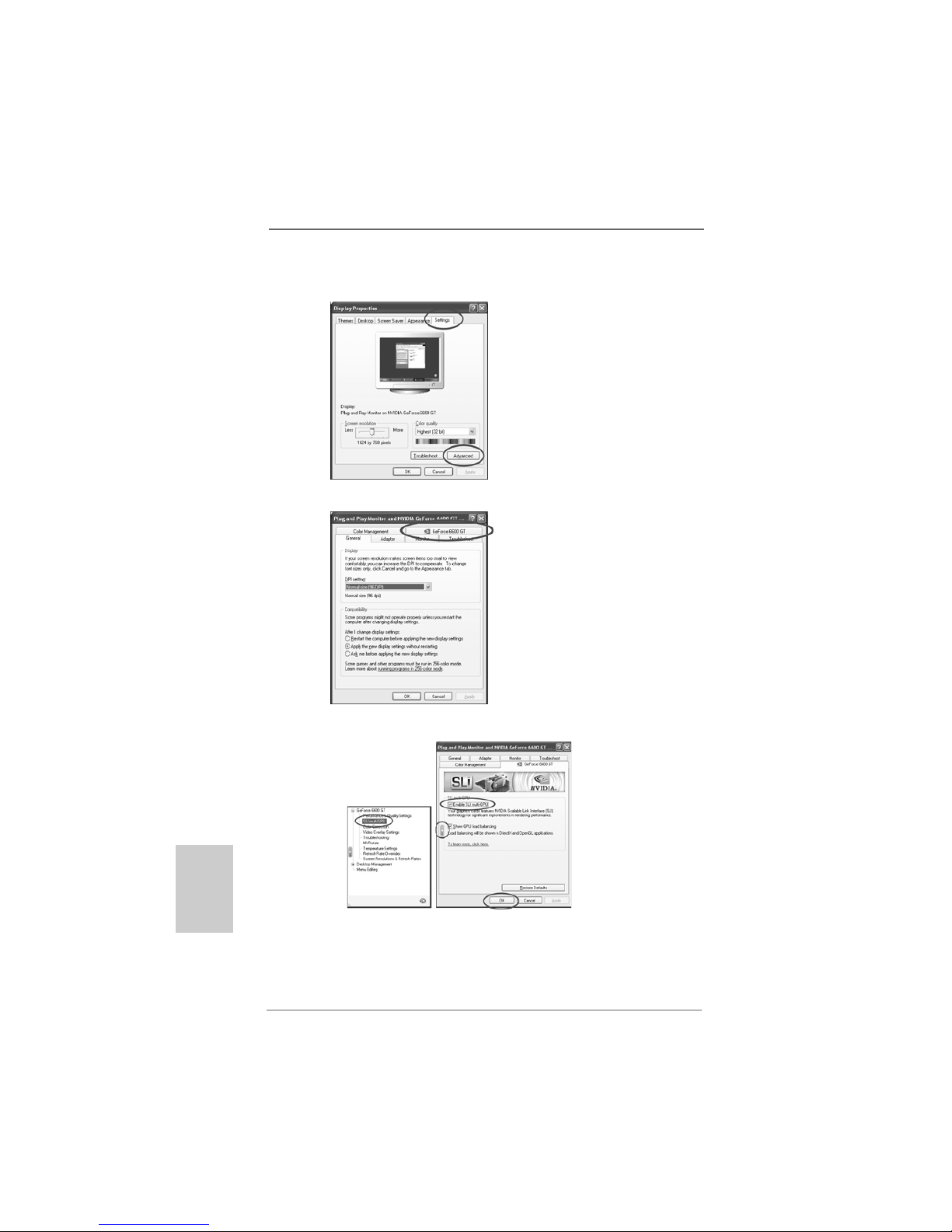

6. This motherboard supports NVIDIA®SLITM technology. If you want to use
SLITM function, please follow the instructions on page 17 to reverse the direc-
tion of ASRock SLI/XFire Switch Card. For the information of the compatible
SLITM Mode PCI Express VGA cards, please refer to the “Supported
PCI Express VGA Card List for SLITM Mode” on page 10. For the proper
installation of PCI Express VGA card, please refer to the installation guide on
page 15.
WARNING
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using the third-
party overclocking tools. Overclocking may affect your system stability, or even
cause damage to the components and devices of your system. It should be done at
your own risk and expense. We are not responsible for possible damage caused by
overclocking.
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS - Microsoft® Windows® XP / XP Media Center / XP 64-bit / VistaTM
/ VistaTM 64-bit compliant
Certifications - FCC, CE, WHQL
* For detailed product information, please visit our website: http://www.asrock.com

88
88
8ASRock K10N7SLI Motherboard
EnglishEnglish
EnglishEnglish
English
7. For microphone input, this motherboard supports both stereo and mono modes.
For audio output, this motherboard supports 2-channel, 4-channel, 6-channel,
and 8-channel modes. Please check the table on page 3 for proper connection.
8. Before installing SATAII hard disk to SATAII connector, please read the “SATAII
Hard Disk Setup Guide” on page 36 of “User Manual” in the support CD to
adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA
hard disk to SATAII connector directly.
9. This motherboard supports eSATAII interface, the external SATAII
specification. Please read “eSATAII Interface Introduction” on page 28 for
details about eSATAII and eSATAII installation procedures.
10. Power Management for USB 2.0 works fine under Microsoft®Windows®
VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2.
11. It is a user-friendly ASRock overclocking tool which allows you to surveil
your system by hardware monitor function and overclock your hardware
devices to get the best system performance under Windows® environment.
Please visit our website for the operation procedures of ASRock OC
Tuner. ASRock website: http://www.asrock.com
12. Featuring an advanced proprietary hardware and software design,
Intelligent Energy Saver is a revolutionary technology that delivers
unparalleled power savings. The voltage regulator can reduce the
number of output phases to improve efficiency when the CPU cores are
idle. In other words, it is able to provide exceptional power saving and
improve power efficiency without sacrificing computing performance. To
use Intelligent Energy Saver function, please enable Cool ‘n’ Quiet option
in the BIOS setup in advance. Please visit our website for the operation
procedures of Intelligent Energy Saver.
ASRock website: http://www.asrock.com
13. Although this motherboard offers stepless control, it is not recom-
mended to perform over-clocking. Frequencies other than the recom-
mended CPU bus frequencies may cause the instability of the system
or damage the CPU.
14. While CPU overheat is detected, the system will automatically shutdown.
Before you resume the system, please check if the CPU fan on the
motherboard functions properly and unplug the power cord, then plug it
back again. To improve heat dissipation, remember to spray thermal
grease between the CPU and the heatsink when you install the PC system.

99
99
9
ASRock K10N7SLI Motherboard
EnglishEnglish EnglishEnglish
English
15. This motherboard supports ASRock AM2 Boost overclocking technology
for AM2 CPU. If you enable this function in the BIOS setup, the memory
performance will improve up to 12.5%, but the effect still depends on the
AM2 CPU you adopt. Enabling this function will overclock the chipset/CPU
reference clock. However, we can not guarantee the system stability for all
CPU/DRAM configurations. If your system is unstable after AM2 Boost func-
tion is enabled, it may not be applicative to your system. You may choose to
disable this function for keeping the stability of your system.

1010
1010
10 ASRock K10N7SLI Motherboard
EnglishEnglish
EnglishEnglish
English
1.31.3
1.31.3
1.3 Supported PCI Express VGA Card List for SLISupported PCI Express VGA Card List for SLI
Supported PCI Express VGA Card List for SLISupported PCI Express VGA Card List for SLI
Supported PCI Express VGA Card List for SLITMTM
TMTM
TM ModeMode
ModeMode
Mode
(for Windows®XP / XP 64-bit / VistaTM / VistaTM 64-bit only)
Graphics Chip Model Name Chipset Name
Vendor
NVIDIA ASUS EN8800GTX
ASUS EN8600GT/2DHT
ASUS EN7950GX2 *
ASUS EN7900GT TOP
ASUS EN7800GT
ASUS EN7600GSSILENT
ASUS EN7600GT/2DHT
ASUS EN6800LE
ASUS Extreme N6800/TD
ALBATRON PC6600GT
GIGABYTE GV-NX66256DP2
LEADTEK PX7900GS TDH
LEADTEK PX7300GS TDH *
MSI 7300GT-TD256EH
* These two cards can only work under Windows®XP / XP 64-bit OS.
For the latest updates of the supported PCI Express VGA card list for SLITM Mode,
please visit our website for details.
ASRock website: http://www.asrock.com/support/index.htm
GeForce 8800GTX
GeForce 8600GT
GeForce 7950GX2
GeForce 7900GT
GeForce 7800GT
GeForce 7600GT
GeForce 7600GS
GeForce 6800LE
GeForce 6800
GeForce 6600GT
GeForce 6600
GeForce 7900GS
GeForce 7300GS
GeForce 7300GT

1111
1111
11
ASRock K10N7SLI Motherboard
2.2.
2.2.
2. InstallationInstallation
InstallationInstallation
Installation
This is an ATX form factor (12.0-in x 8.8-in, 30.5 cm x 22.4 cm) motherboard.
Before you install the motherboard, study the configuration of your chassis to en-
sure that the motherboard fits into it.
Pre-installation PrecautionsPre-installation Precautions
Pre-installation PrecautionsPre-installation Precautions
Pre-installation Precautions
Take note of the following precautions before you install motherboard
components or change any motherboard settings.
Before you install or remove any component, ensure that the
power is switched off or the power cord is detached from the
power supply. Failure to do so may cause severe damage to the
motherboard, peripherals, and/or components.
1. Unplug the power cord from the wall socket before touching any
component.
2. To avoid damaging the motherboard components due to static
electricity, NEVER place your motherboard directly on the carpet or
the like. Also remember to use a grounded wrist strap or touch a
safety grounded object before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-
static pad or in the bag that comes with the component.
5. When placing screws into the screw holes to secure the motherboard
to the chassis, please do not over-tighten the screws! Doing so may
damage the motherboard.
EnglishEnglish EnglishEnglish
English
800GTX
600GT
950GX2
900GT
800GT
600GT
600GS
800LE
800
600GT
600
900GS
300GS
300GT

1212
1212
12 ASRock K10N7SLI Motherboard
EnglishEnglish
EnglishEnglish
English
2.12.1
2.12.1

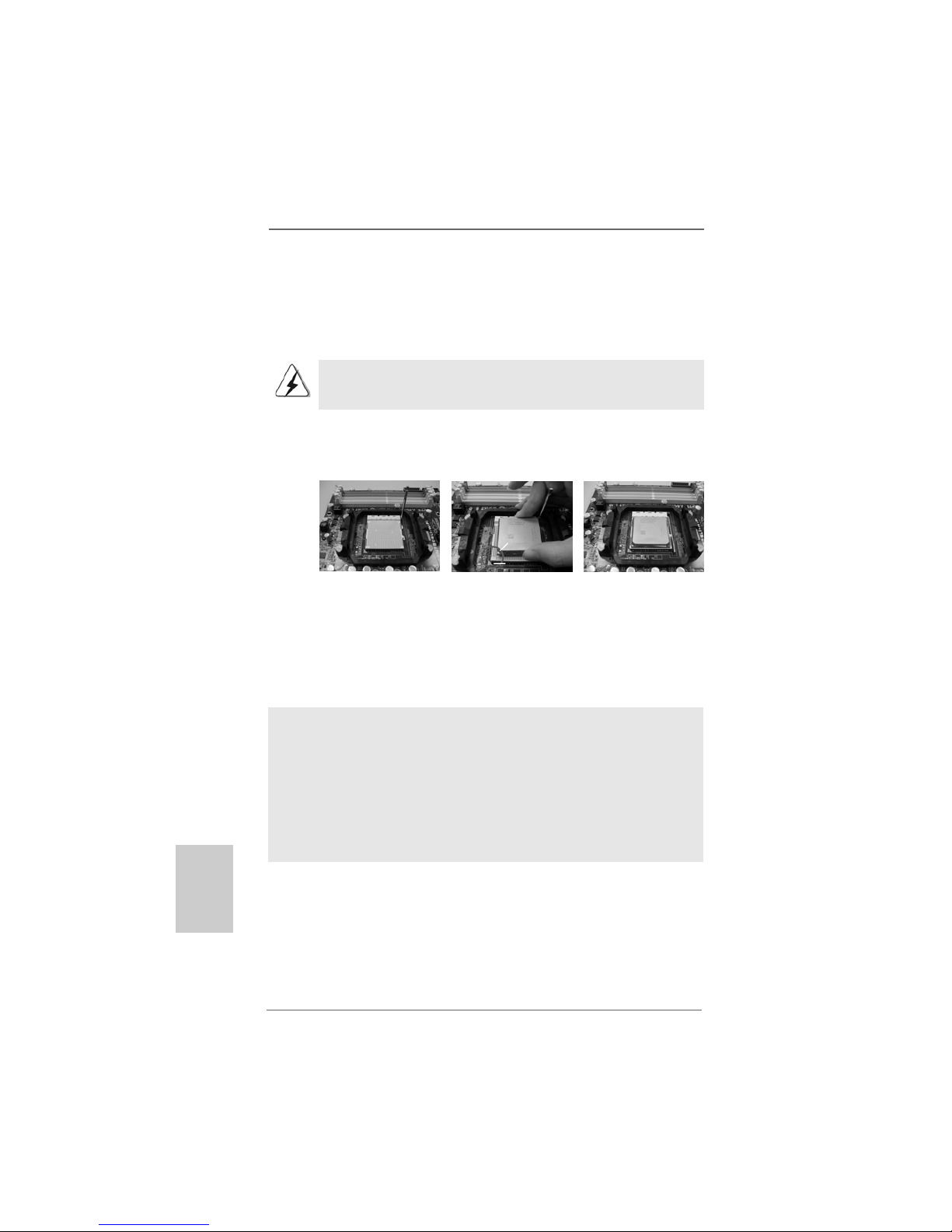

2.1 CPU InstallationCPU Installation
CPU InstallationCPU Installation
CPU Installation
Step 1. Unlock the socket by lifting the lever up to a 90oangle.
Step 2. Position the CPU directly above the socket such that the CPU corner with
the golden triangle matches the socket corner with a small triangle.
Step 3. Carefully insert the CPU into the socket until it fits in place.
The CPU fits only in one correct orientation. DO NOT force the CPU
into the socket to avoid bending of the pins.
Step 4. When the CPU is in place, press it firmly on the socket while you push
down the socket lever to secure the CPU. The lever clicks on the side tab
to indicate that it is locked.
2.22.2
2.22.2
2.2 Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink
Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink
Installation of CPU Fan and Heatsink
After you install the CPU into this motherboard, it is necessary to install a
larger heatsink and cooling fan to dissipate heat. You also need to spray
thermal grease between the CPU and the heatsink to improve heat
dissipation. Make sure that the CPU and the heatsink are securely fas-
tened and in good contact with each other. Then connect the CPU fan to
the CPU FAN connector (CPU_FAN1, see Page 2, No. 4). For proper
installation, please kindly refer to the instruction manuals of the CPU fan
and the heatsink.
STEP 1:
Lift Up The Socket Lever
STEP 2 / STEP 3:
Match The CPU Golden Triangle
To The Socket Corner Small
Triangle
STEP 4:
Push Down And Lock
The Socket Lever
Lever 90°Up
CPUGoldenTriangle
SocketCorner
SmallTriangle

1313
1313
13
ASRock K10N7SLI Motherboard
2.3 Installation of Memor2.3 Installation of Memor
2.3 Installation of Memor2.3 Installation of Memor
2.3 Installation of Memory Modules (DIMM)y Modules (DIMM)
y Modules (DIMM)y Modules (DIMM)
y Modules (DIMM)
This motherboard provides four 240-pin DDR2 (Double Data Rate 2)DIMM slots,
and supports Dual Channel Memory Technology. For dual channel configuration,
you always need to install identical (the same brand, speed, size and chip-type)
DDR2DIMM pair in the slots of the same color. In other words, you have to install
identicalDDR2DIMM pair in Dual Channel A(DDRII_1 and DDRII_2;Yellow slots;
see p.2 No.7) or identical DDR2 DIMM pair in Dual Channel B (DDRII_3 and
DDRII_4; Orange slots; see p.2 No.8), so thatDual Channel Memory Technology
can be activated.This motherboard also allows you to install fourDDR2DIMMs for
dual channel configuration, and please install identical DDR2DIMMs in all four
slots. You may refer to the Dual Channel Memory ConfigurationTable below.
Dual Channel Memory Configurations
DDRII_1 DDRII_2 DDRII_3 DDRII_4
(Yellow Slot) (Yellow Slot) (Orange Slot) (Orange Slot)
(1) Populated Populated - -
(2) - - Populated Populated
(3)* Populated Populated Populated Populated
* For the configuration (3), please install identicalDDR2DIMMs in all four slots.
1. If you want to install two memory modules, for optimal compatibil-
ity and reliability, it is recommended to install them in the slots of
the same color. In other words, install them either in the set of
yellow slots (DDRII_1 and DDRII_2), or in the set of orange slots
(DDRII_3 and DDRII_4).
2. If only one memory module or three memory modules are in-
stalled in the DDR2 DIMM slots on this motherboard, it is unable to
activate the Dual Channel Memory Technology.
3. If a pair of memory modules is NOT installed in the same Dual
Channel, for example, installing a pair of memory modules in
DDRII_1 and DDRII_3, it is unable to activate the Dual Channel
Memory Technology .
4. It is not allowed to install a DDR memory module into DDR2 slot;
otherwise, this motherboard and DIMM may be damaged.
EnglishEnglish EnglishEnglish
English

1414
1414
14 ASRock K10N7SLI Motherboard
EnglishEnglish
EnglishEnglish
English
Installing a DIMMInstalling a DIMM
Installing a DIMMInstalling a DIMM
Installing a DIMM
Please make sure to disconnect power supply before adding or
removing DIMMs or the system components.
Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align aDIMM on the slot such that the notch on the DIMM matches the break
on the slot.
The DIMM only fits in one correct orientation. It will cause permanent
damage to the motherboard and theDIMM if you force theDIMM into the
slot at incorrect orientation.
Step 3. Firmly insert theDIMM into the slot until the retaining clips at both ends fully
snap back in place and the DIMM is properly seated.

1515
1515
15
ASRock K10N7SLI Motherboard
EnglishEnglish EnglishEnglish
English
2.4 Expansion Slots (PCI and PCI Express Slots)2.4 Expansion Slots (PCI and PCI Express Slots)
2.4 Expansion Slots (PCI and PCI Express Slots)2.4 Expansion Slots (PCI and PCI Express Slots)
2.4 Expansion Slots (PCI and PCI Express Slots)
There are 3 PCI slots and 3 PCI Express slots on this motherboard.
PCI Slots: PCI slots are used to install expansion cards that have the 32-bit PCI
interface.
PCIE Slots:PCIE1 (PCIE x1 slot; White) is used for PCI Express cards with x1 lane
width cards, such as Gigabit LAN card, SATA2 card.
PCIE2 (PCIE x16 slot; Green) is used for PCI Express x16 lane width
graphics cards, or used to install PCI Express graphics cards to
support SLITM function.
PCIE3 (PCIE x16 slot; Blue) is used for PCI Express x1 lane width
cards, such as Gigabit LAN card, SATA2 card, etc., or used to install
PCI Express graphics cards to support SLITM function.
PCIE2 / PCIE3 / SLI/XFire Switch Card Retention Slot
Configurations
PCIE2 Slot PCIE3 Slot SLI/XFire Switch Card
(Green) (Blue) Retention Slot
Single Graphics Card PCIE x16 PCIE x1
Dual Graphics Cards PCIE x8 PCIE x8
in SLITM Mode

1616
1616
16 ASRock K10N7SLI Motherboard
EnglishEnglish
EnglishEnglish
English
1. If you plan to install only one PCI Express VGA card on this
motherboard, please install it on PCIE2 slot (Green). In this mode,
you do not need to adjust the default setting of ASRock SLI/XFire
Switch Card, and please do not remove or lose ASRock SLI/XFire
Switch Card when it is still in working condition.
2. For the information of the compatible SLITM Mode PCI Express VGA
cards and SLITM setup procedures, please refer to the “Supported
PCI Express VGA Card List for SLITM Mode” on page 10 and “SLITM
Operation Guide” on page 17.
Installing an expansion cardInstalling an expansion card
Installing an expansion cardInstalling an expansion card
Installing an expansion card
Step 1. Before installing the expansion card, please make sure that the power
supply is switched off or the power cord is unplugged. Please read the
documentation of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed in
a chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the
screws for later use.
Step 4. Align the card connector with the slot and press firmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.

1717
1717
17
ASRock K10N7SLI Motherboard
2.5 SLI2.5 SLI
2.5 SLI2.5 SLI
2.5 SLITMTM
TMTM
TM Operation GuideOperation Guide
Operation GuideOperation Guide
Operation Guide
Thismotherboard supportsNVIDIA®SLITM (ScalableLink Interface)technologythat allows
you to install two identicalNVIDIA®SLITM enabled PCI Express x16 graphics
cards. Currently,NVIDIA®SLITM technology supports Windows®XP, XP 64-bit, VistaTM
and VistaTM 64-bit OS. Please follow the installation procedures in this section.
SLITM Technology Requirements
1. You should have two identical SLITM-ready graphics cards that are NVIDIA®
certified.
2. Make sure that your graphics card driver supports the NVIDIA® SLITM
technology. Download the latest driver from the NVIDIA®website
(www.nvidia.com).
3. Make sure that your power supply unit (PSU) can provide at least the
minimum power required by your system.
Enjoy the benefit of SLIEnjoy the benefit of SLI
Enjoy the benefit of SLIEnjoy the benefit of SLI
Enjoy the benefit of SLITMTM
TMTM
TM

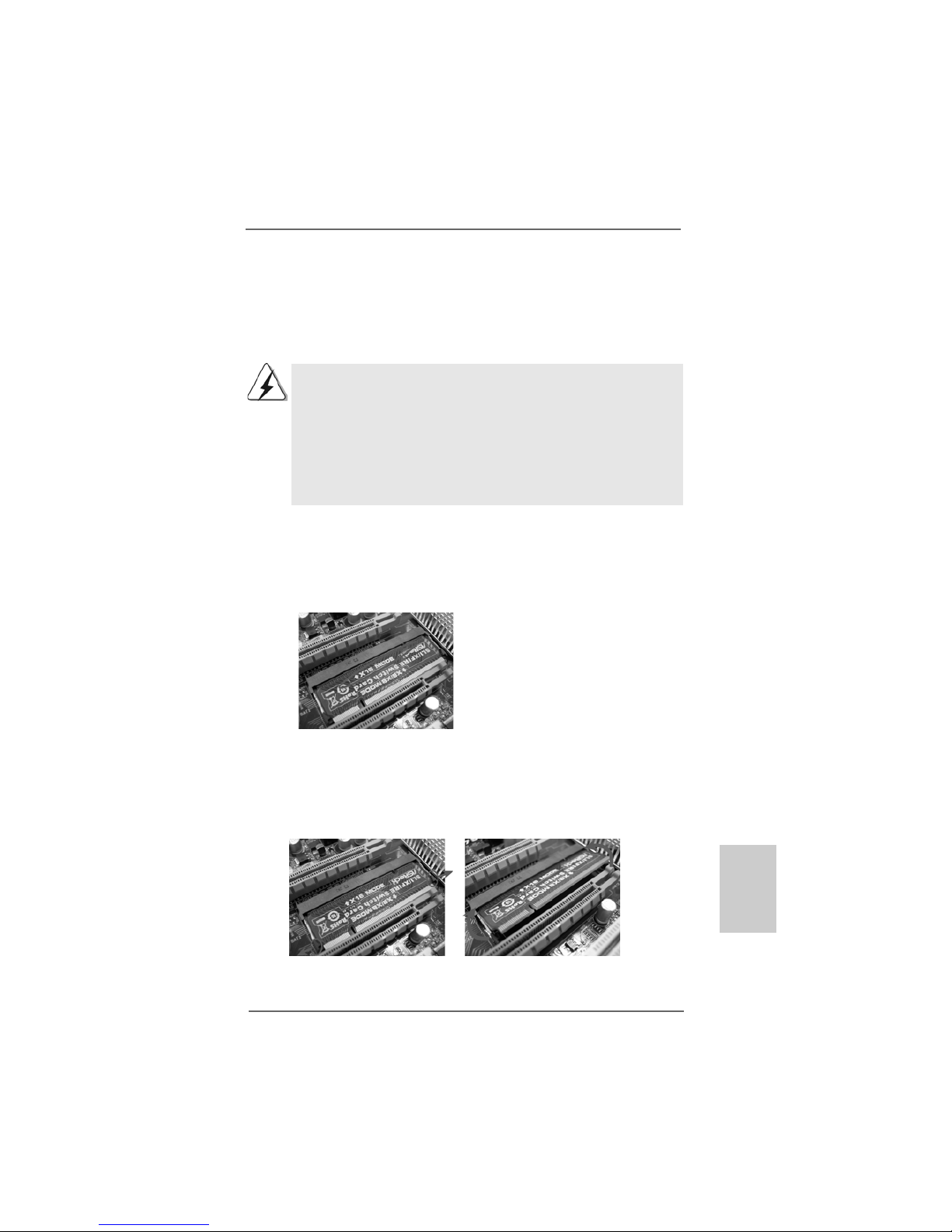

Step 1. There is oneASRock SLI/XFire Switch Card factory-mounted on this
motherboard. This card served as a switch between the default mode (x16)
and SLI mode (x8 / x8). ASRock SLI/XFire Switch Card is factory-mounted
with its default mode (x16) side toward the retention slot base.
Step 2. To change it to SLI Mode, you need to reverse the direction of ASRock SLI/
XFire Switch Card. Please simultaneously pull open both the retention arms
that hold the card in position. The card itself will spring away from the
retention slot. Take it out gently by holding its edges, and keep away from
touching the connectors (Golden Fingers).
EnglishEnglish EnglishEnglish
English

1818
1818
18 ASRock K10N7SLI Motherboard
EnglishEnglish
EnglishEnglish
English
Step 5. Install the identical SLITM-ready graphics cards that are NVIDIA®certified be-
cause different types of graphics cards will not work together properly. (Even
theGPU chips version shall be the same.) Insert one graphics card into PCIE2
slot and another graphics card to PCIE3 slot. Make sure that the cards are
properly seated on the slots.
Step 6. If required, connect an auxiliary power source to the PCI Express graphics
cards.
Step 7. Align and insert the SLI Bridge to the goldfingers on each graphics card. Make
sure that the SLI Bridge is firmly in place.
Step 3. Reverse the card direction so as to have the “X8 / X8 MODE” wording side
toward the retention slot base. Insert the card into the bottom of the base.
Step 4. Push the card down into the retention slot till both the retention arms firmly
hold the card into position.Also, keep away from touching the connectors
(GoldenFingers).

1919
1919
19
ASRock K10N7SLI Motherboard
Step 8. Connect a VGA cable or a DVI-I cable to the monitor connector and the DVI
connector of the graphics card that is inserted to PCIE2 slot.
Step 9. Connect a 4-pinATX power cable to SLI/XFIRE power connector.
Step 10. Install the graphics card drivers to your system.After that, you can enable the
Multi-Graphics Processing Unit (GPU) feature in theNVIDIA®nView
system tray utility. Please follow the below procedures to enable the multi-
GPUfeature.
For Windows®XP / XP 64-bit OS:
A. Click the NVIDIA Settings icon on your Windows®taskbar.
B. From the pop-up menu, select nView Desktop Manager, and then
click nView Properties.
C. From the nViewDesktop Manager window, select the Desktop
Management tab.
D. Click Properties to display theDisplay Properties dialog box.
EnglishEnglish EnglishEnglish
English

2020
2020
20 ASRock K10N7SLI Motherboard
EnglishEnglish
EnglishEnglish
English
E. From theDisplay Properties dialog box, select the Settings tab then click
Advanced.
F. Select the NVIDIA GeForce tab.
G. Click the slider to display the following screen, then select the SLI
multi-GPU item.
H. Click the Enable SLI multi-GPU check box.
I. Click OK when done.
