ASROCK K7 JUMPER User manual

AMD K7 Main Board Jumper Setting Detail
1 / 20
NOTE:
This is for AMD K7 main board to set the jumper setting. Please make
sure the CPU FSB before setting the jumper. It may cause PC unstable
or can not reboot if you didn’t set the correct jumper setting.
Model List (Please click your main board model directly)
K7-VIA Series
K7VT2
M810LMR
K7VM2
K7VM2 R3.0
K7VT4-4X
K7VT4A
K7VM4
K7VM3
K7VT4A+
K7VT6
K7V88
K7Upgrade-880
K7Upgrade-600
K7VT4A PRO
K7-SIS Series
K7S8X
K7S8X R3.0
K7S8XE
K7S8XE R3.0
K7S8XE+
746FX-M
K7S41
K7S41GX

AMD K7 Main Board Jumper Setting Detail
2 / 20

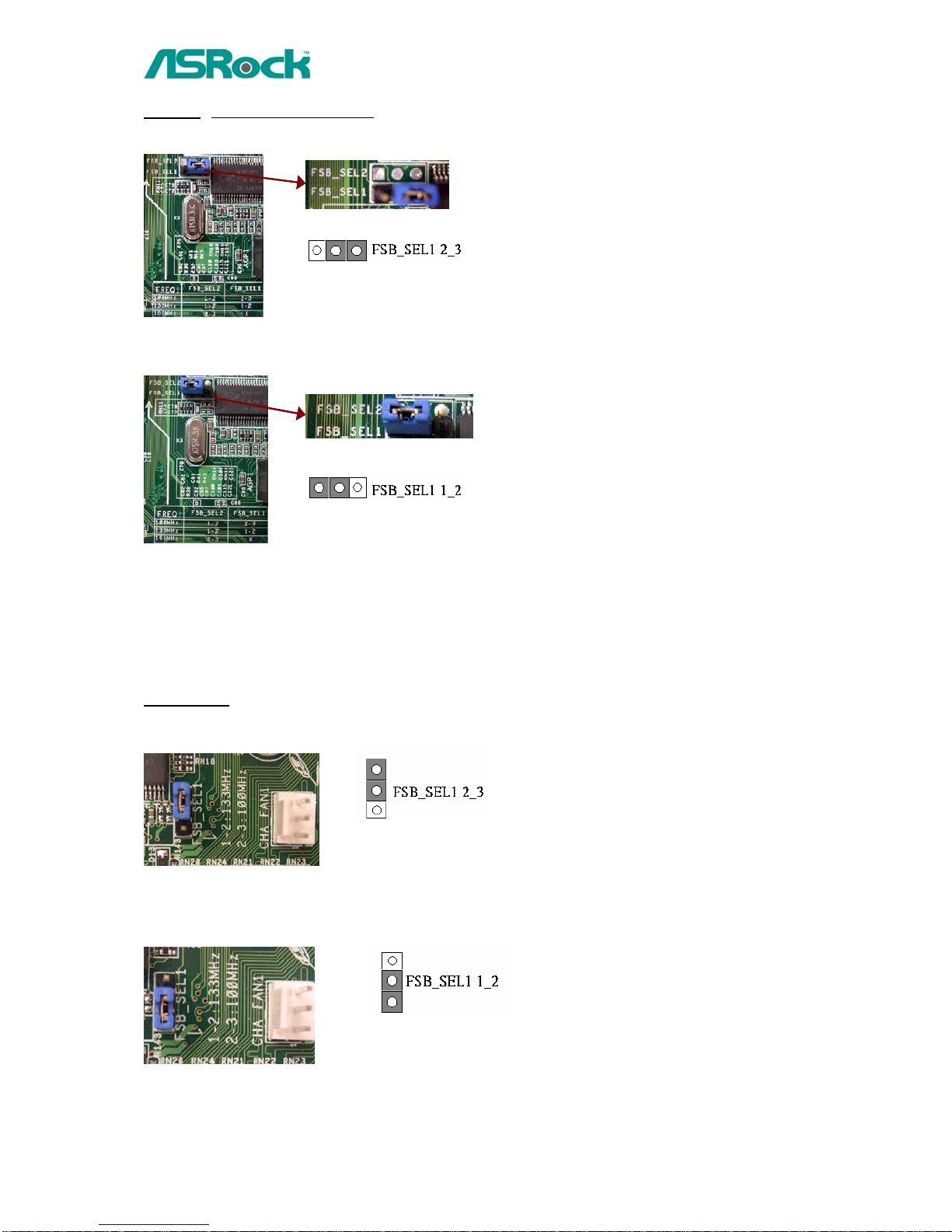

Please move the jumper cap to FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL1 : 2_3
K7VT2: Support FSB 200/266 (User Guide P.11)
Jumper Setting 100 (= FSB 200):FSB_SEL1 : 2_3
Jumper Setting 133 (= FSB 266):FSB_SEL1 : 1_2
M810LMR: Support FSB 200/266 (User Guide P.10)
Jumper Setting 100MHz (= FSB 200):FSB_SEL1 : 2_3
Jumper Setting 133MHz (= FSB 266):FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL1 : 1_2

AMD K7 Main Board Jumper Setting Detail
3 / 20
Please move the jumper cap to FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL1 : 1_2
K7VM2: Support FSB 200/266 (User Guide P.11)
Jumper Setting 100MHz (= FSB 200):FSB_SEL1 : 2_3
Jumper Setting 133MHz (= FSB 266):FSB_SEL1 : 1_2
K7VM2 R3.0: Support FSB 200/266 (User Guide P.11)
Jumper Setting 200MHz:FSB_SEL1 : 2_3
Jumper Setting 266MHz:FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL1 : 1_2

AMD K7 Main Board Jumper Setting Detail
4 / 20
Please move the jumper cap to FSB_SEL0 : 1_2
Please move the jumper cap away
Please move the jumper cap to FSB_SEL0 : 2_3
K7VT4-4X: Support FSB 200/266/333 (User Guide P.13)
Jumper Setting 200MHz:FSB_SEL1 : 1_2
Jumper Setting 266MHz:None
Jumper Setting 333:FSB_SEL1 : 2_3

AMD K7 Main Board Jumper Setting Detail
5 / 20
Please move the jumper cap to FSB_SEL0 : 1_2
Please move the jumper cap away
Please move the jumper cap to FSB_SEL0 : 2_3
K7VT4A: Support FSB 200/266/333 (User Guide P.13)
Jumper Setting 200MHz:FSB_SEL1 : 1_2
Jumper Setting 266MHz:None
Jumper Setting 333:FSB_SEL1 : 2_3

AMD K7 Main Board Jumper Setting Detail
6 / 20
Please move the jumper cap away
Please move the jumper cap to FSB_SEL1 : 2_3
K7VM4: Support FSB 200/266/333 (User Guide P.12)
Jumper Setting 200MHz:FSB_SEL1 : 1_2
Jumper Setting 266MHz:None
Jumper Setting 333MHz:FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL1 : 1_2

AMD K7 Main Board Jumper Setting Detail
7 / 20
Please move the jumper cap away
Please move the jumper cap to FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 1_2
K7VM3: Support FSB 200/266/333 (User Guide P.13)
Jumper Setting 200MHz:FSB_SEL0 : 1_2
Jumper Setting 266MHz:None
Jumper Setting 333MHz:FSB_SEL1 : 2_3

AMD K7 Main Board Jumper Setting Detail
8 / 20
Please move the jumper cap to FSB_SEL0 : 1_2 and
FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL1 :2_3 and
FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL1 : 1_2
and FSB_SEL2 : 2_3
K7VT4A+: Support FSB 200/266/333/400 (User Guide P.13)
Jumper Setting 200MHz:FSB_SEL0 : 1_2 FSB_SEL2 : 1_2
Jumper Setting 266MHz:FSB_SEL1 : 2_3 FSB_SEL2 : 1_2
Jumper Setting 333:FSB_SEL0 : 2_3 FSB_SEL2 : 1_2
Jumper Setting 400:FSB_SEL1 : 1_2 FSB_SEL2 : 2_3

AMD K7 Main Board Jumper Setting Detail
9 / 20

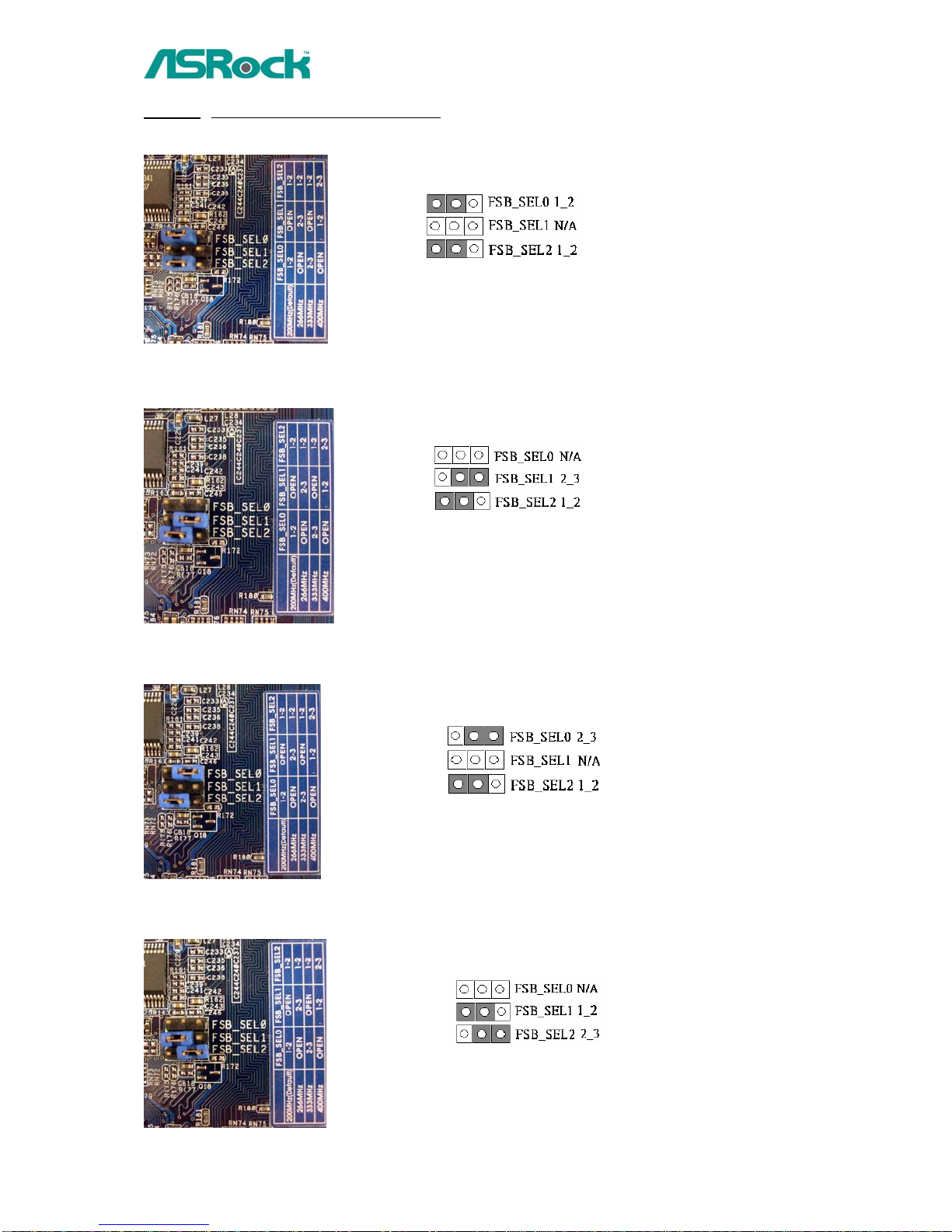

Please move the jumper cap to FSB_SEL0 : 1_2
and FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL1 :2_3 and
FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL1 : 1_2
and FSB_SEL2 : 2_3
K7VT6: Support FSB 200/266/333/400 (User Guide P.13)
Jumper Setting 200MHz:FSB_SEL0 : 1_2 FSB_SEL2 : 1_2
Jumper Setting 266MHz:FSB_SEL1 : 2_3 FSB_SEL2 : 1_2
Jumper Setting 333:FSB_SEL0 : 2_3 FSB_SEL2 : 1_2
Jumper Setting 400:FSB_SEL1 : 1_2 FSB_SEL2 : 2_3

AMD K7 Main Board Jumper Setting Detail
10 / 20
Please move the jumper cap to FSB_SEL0 : 1_2
FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 1_2
FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
FSB_SEL2 : 2_3
Please move the jumper cap to FSB_SEL0 : 2_3
FSB_SEL1 : 2_3
K7V88: Support FSB 200/266/333/400 (User Guide P.15)
Jumper Setting 200MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 2_3
Jumper Setting 266MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 1_2
Jumper Setting 333MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2
Jumper Setting 400MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 2_3

AMD K7 Main Board Jumper Setting Detail
11 / 20
Please move the jumper cap to FSB_SEL0 : 1_2
FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 1_2
FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
FSB_SEL2 : 2_3
Please move the jumper cap to FSB_SEL0 : 2_3
FSB_SEL1 : 2_3
K7Upgrade-880: Support FSB 200/266/333/400 (User Guide P.16)
Jumper Setting 200MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 2_3
Jumper Setting 266MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 1_2
Jumper Setting 333MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2
Jumper Setting 400MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 2_3

AMD K7 Main Board Jumper Setting Detail
12 / 20
Please move the jumper cap to FSB_SEL0 : 1_2
and FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL1 :2_3 and
FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL1 : 1_2
and FSB_SEL2 : 2_3
K7Upgrade-600: Support FSB 200/266/333/400 (User Guide P.15)
Jumper Setting 200MHz:FSB_SEL0 : 1_2 FSB_SEL2 : 1_2
Jumper Setting 266MHz:FSB_SEL1 : 2_3 FSB_SEL2 : 1_2
Jumper Setting 333:FSB_SEL0 : 2_3 FSB_SEL2 : 1_2
Jumper Setting 400:FSB_SEL1 : 1_2 FSB_SEL2 : 2_3

AMD K7 Main Board Jumper Setting Detail
13 / 20
Please move the jumper cap to FSB_SEL0 : 1_2
and FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL1 :2_3 and
FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL1 : 1_2
and FSB_SEL2 : 2_3
K7VT4A PRO: Support FSB 200/266/333/400 (User Guide P.13)
Jumper Setting 200MHz:FSB_SEL0 : 1_2 FSB_SEL2 : 1_2
Jumper Setting 266MHz:FSB_SEL1 : 2_3 FSB_SEL2 : 1_2
Jumper Setting 333:FSB_SEL0 : 2_3 FSB_SEL2 : 1_2
Jumper Setting 400:FSB_SEL1 : 1_2 FSB_SEL2 : 2_3

AMD K7 Main Board Jumper Setting Detail
14 / 20

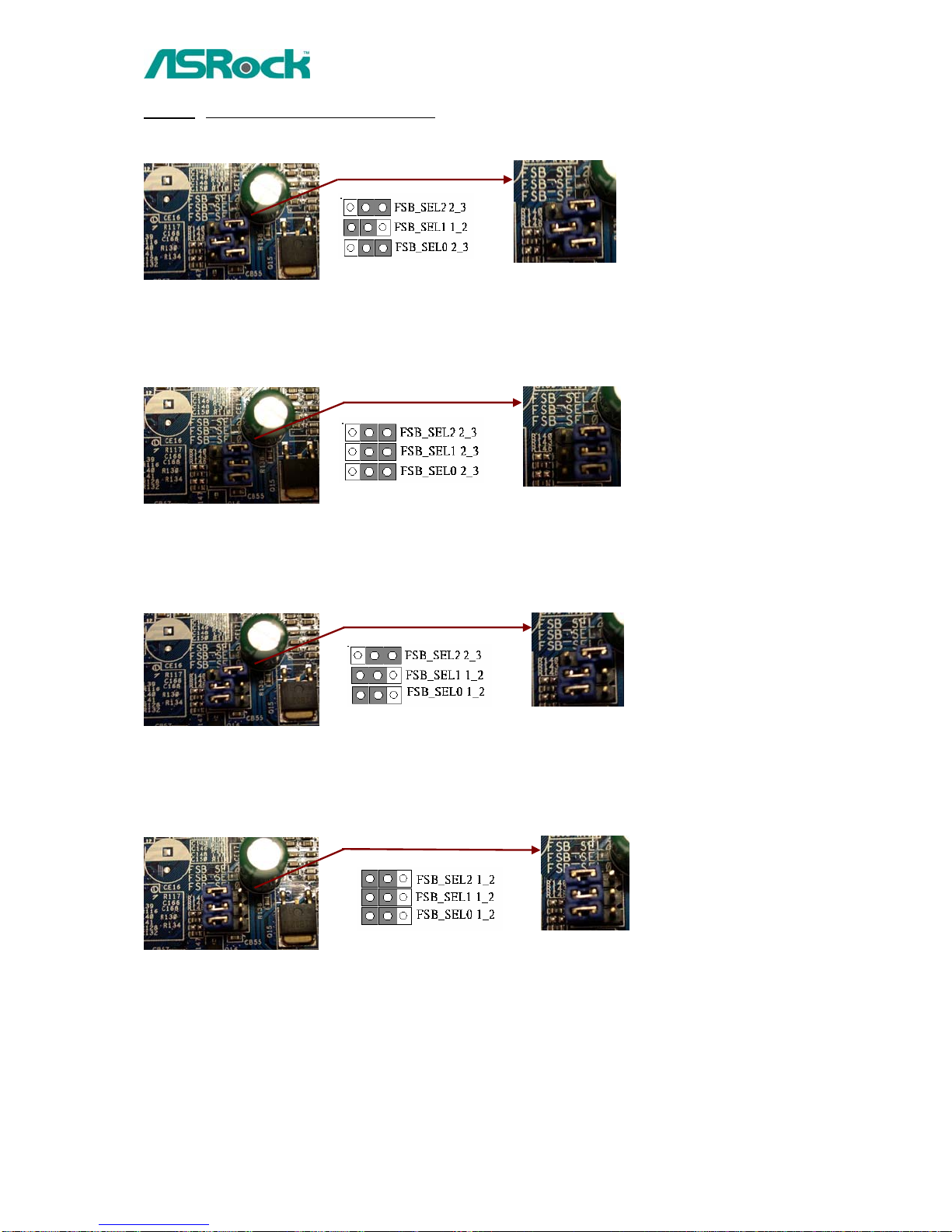

Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 1_2
K7S8X: Support FSB 200/266/333 (User Guide P.11)
Jumper Setting 100MHz (= FSB 200):FSB_SEL0 : 2_3 FSB_SEL1 : 1_2
Jumper Setting 133MHz (= FSB 266):FSB_SEL0 : 2_3 FSB_SEL1 : 2_3
Jumper Setting 166MHz (= FSB 333):FSB_SEL0 : 1_2 FSB_SEL1 : 1_2
K7S8X R3.0: Support FSB 200/266/333 (User Guide P.11)
Jumper Setting 200MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2
Jumper Setting 266MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 2_3
Jumper Setting 333MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 1_2

AMD K7 Main Board Jumper Setting Detail
15 / 20
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 2_3
K7S8XE: Support FSB 200/266/333/400 (User Guide P.12)
Jumper Setting 100MHz (= FSB 200):FSB_SEL0 : 2_3 FSB_SEL1 : 1_2
Jumper Setting 133MHz (= FSB 266):FSB_SEL0 : 2_3 FSB_SEL1 : 2_3
Jumper Setting 166MHz (= FSB 333):FSB_SEL0 : 1_2 FSB_SEL1 : 1_2
Jumper Setting 200MHz (= FSB 400):FSB_SEL0 : 1_2 FSB_SEL1 : 2_3

AMD K7 Main Board Jumper Setting Detail
16 / 20
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 2_3
K7S8XE R3.0: Support FSB 200/266/333/400 (User Guide P.12)
Jumper Setting 200MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2
Jumper Setting 266MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 2_3
Jumper Setting 333MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 1_2
Jumper Setting 400MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 2_3

AMD K7 Main Board Jumper Setting Detail
17 / 20
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 2_3
K7S8XE+: Support FSB 200/266/333/400 (User Guide P.13)
Jumper Setting 200MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2
Jumper Setting 266MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 2_3
Jumper Setting 333MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 1_2
Jumper Setting 400MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 2_3

AMD K7 Main Board Jumper Setting Detail
18 / 20
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 2_3
Please move the jumper cap to FSB
_
SEL0 : 1_2
and the other to FSB_SEL1 : 1_2
746FX-M: Support FSB 200/266/333 (User Guide P.13)
Jumper Setting 200MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2
Jumper Setting 266MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 2_3
Jumper Setting 333MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 1_2

AMD K7 Main Board Jumper Setting Detail
19 / 20
Please move the jumper cap to FSB_SEL0 : 2_3 and
the others to FSB_SEL1 : 1_2 FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3 and
the others to FSB_SEL1 : 1_2 FSB_SEL2 : 2_3
Please move the jumper cap to FSB_SEL0 : 1_2 and
the others to FSB_SEL1 : 1_2 FSB_SEL2 : 2_3
Please move the jumper cap to FSB_SEL0 : 1_2 and
the others to FSB_SEL1 : 1_2 FSB_SEL2 : 1_2
K7S41: Support FSB 200/266/333/400 (User Guide P.14)
Jumper Setting 200MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2 FSB_SEL2 : 2_3
Jumper Setting 266MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 2_3FSB_SEL2 : 2_3
Jumper Setting 333MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 1_2 FSB_SLE2 : 2_3
Jumper Setting 400MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 1_2FSB_SEL2 : 1_2

AMD K7 Main Board Jumper Setting Detail
20 / 20
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 1_2
K7S41GX: Support FSB 200/266/333 (User Guide P.14)
Jumper Setting 200MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2
Jumper Setting 266MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 2_3
Jumper Setting 333MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 1_2
