ASROCK PENRYN1600SLI-110DB - V1.1 User manual

11
11
1
Penryn1600SLI-110dB
User Manual
Version 1.1
Published May 2008
Copyright©2008ASRock INC.All rights reserved.

22
22
2
Copyright Notice:Copyright Notice:
Copyright Notice:Copyright Notice:
Copyright Notice:
No part of this manual may be reproduced, transcribed, transmitted, or translated in
any language, in any form or by any means, except duplication of documentation by
the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this manual may or may not be regis-
tered trademarks or copyrights of their respective companies, and are used only for
identification or explanation and to the owners’ benefit, without intent to infringe.
Disclaimer:Disclaimer:
Disclaimer:Disclaimer:
Disclaimer:
Specifications and information contained in this manual are furnished for informa-
tional use only and subject to change without notice, and should not be constructed
as a commitment by ASRock. ASRock assumes no responsibility for any errors or
omissions that may appear in this manual.
With respect to the contents of this manual, ASRock does not provide warranty of
any kind, either expressed or implied, including but not limited to the implied warran-
ties or conditions of merchantability or fitness for a particular purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of profits, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the manual or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic
substance controlled in Perchlorate Best Management Practices (BMP) regulations
passed by the California Legislature. When you discard the Lithium battery in
California, USA, please follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate”
ASRock Website: http://www.asrock.com

33
33
3
ContentsContents
ContentsContents
Contents
1 Introduction1 Introduction
1 Introduction1 Introduction
1 Introduction ......................................................................................................
......................................................................................................
................................................... 55
55
5
1.1 Package Contents .......................................................... 5
1.2 Specifications ................................................................. 6
1.3 Minimum Hardware Requirement Table for Windows®
VistaTM Premium 2008 and Basic Logo......................... 9
1.4 Supported PCI Express VGA Card List for SLITM Mode .. 10
1.5 Motherboard Layout........................................................ 11
1.6 ASRock WiFi_SPDIF I/OPlus ........................................ 12
2 Installation2 Installation
2 Installation2 Installation
2 Installation..........................................................................................................
..........................................................................................................
..................................................... 1313
1313
13
2.1 Screw Holes ................................................................... 13
2.2 Pre-installation Precautions............................................ 13
2.3 CPU Installation.............................................................. 14

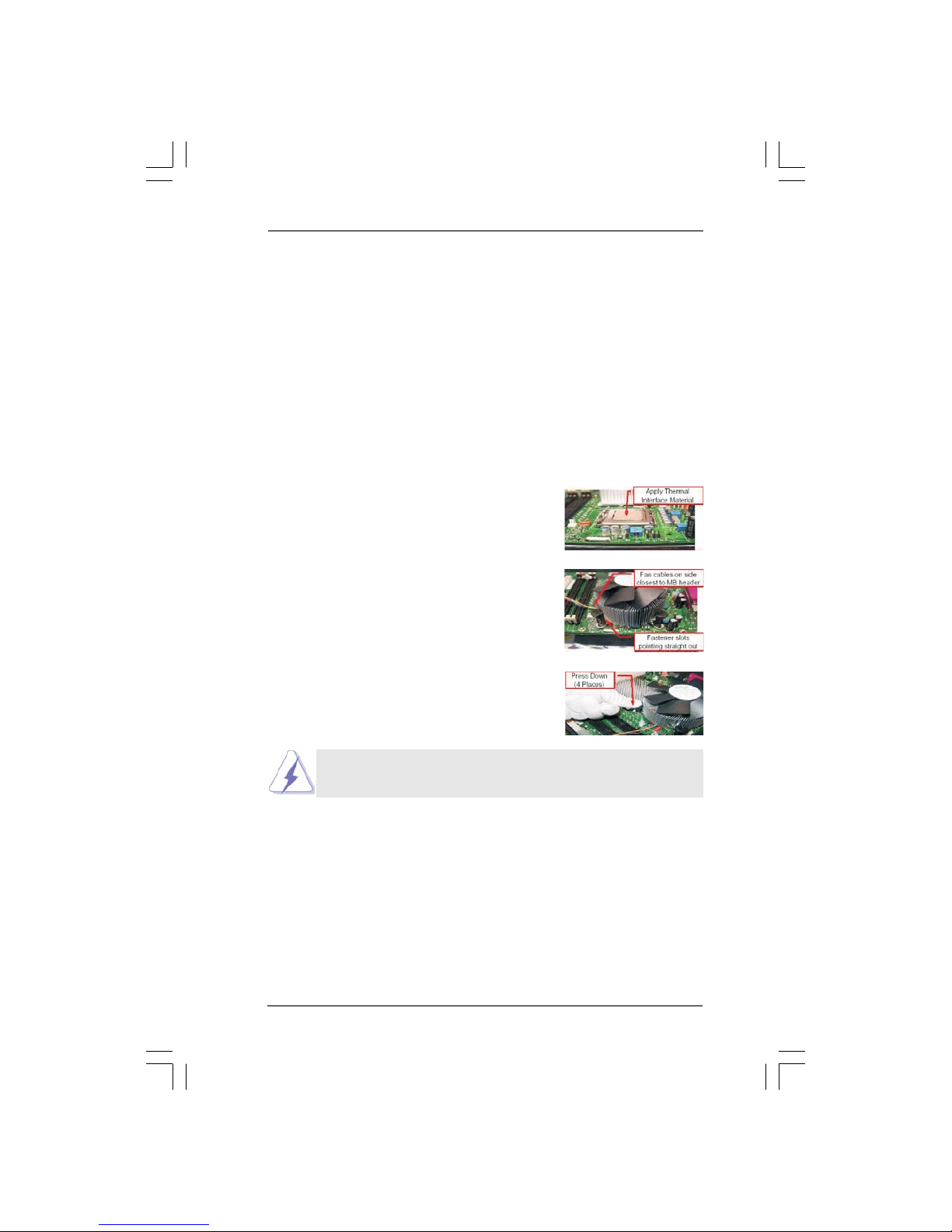

2.4 Installation of Heatsink and CPU fan ............................... 16

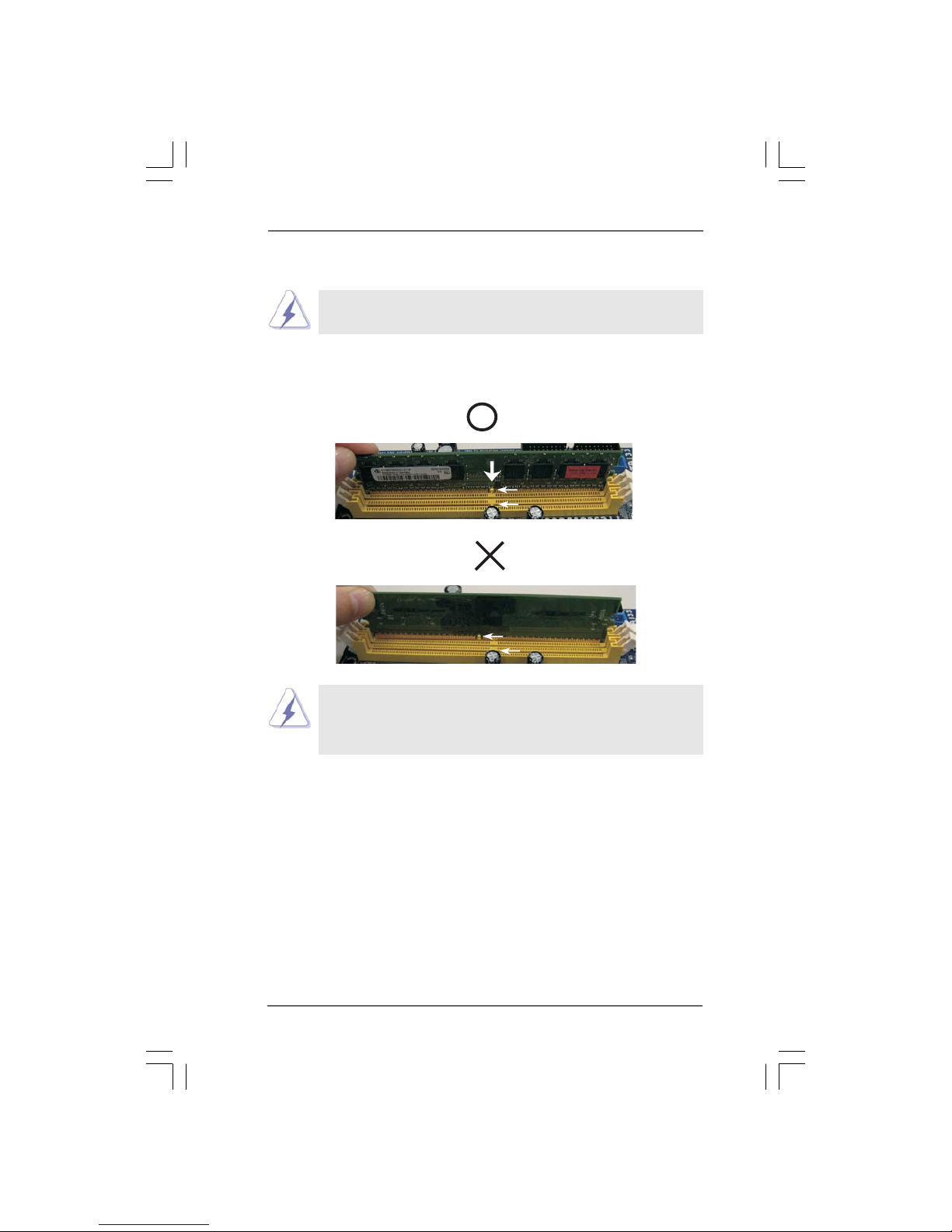

2.5 Installation of Memory Modules (DIMM) ......................... 17
2.6 Expansion Slots (PCI and PCI Express Slots) ..................... 19
2.7 SLITM OperationGuide .................................................... 20
2.8 SurroundDisplay Feature ............................................... 24
2.9 Jumpers Setup ............................................................... 24
2.10 Onboard Headers and Connectors .................................. 25
2.11 HDMI_SPDIF Header ConnectionGuide ......................... 30
2.12 SATAII HardDisk SetupGuide ........................................ 31
2.13 SerialATA(SATA) / SerialATAII (SATAII) HardDisks
Installation...................................................................... 32
2.14Driver InstallationGuide ................................................... 32
2.15 Installing Windows®2000 / XP / XP 64-bit / VistaTM /
VistaTM 64-bit Without RAID Functions ........................... 32
2.16 Installing Windows®2000 / XP / XP 64-bit / VistaTM /
VistaTM 64-bit With RAID Functions ................................ 33
2.16.1 Installing Windows®2000 / XP / XP 64-bit With
RAID Functions ................................................... 33
2.16.2 Installing Windows®VistaTM / VistaTM 64-bit With
RAID Functions ................................................... 34
2.17 Untied Overclocking Technology ................................... 35

44
44
4
3 BIOS S3 BIOS S
3 BIOS S3 BIOS S
3 BIOS SETUP UTILITYETUP UTILITY
ETUP UTILITYETUP UTILITY
ETUP UTILITY....................................................................................
....................................................................................
.......................................... 3636
3636
36
3.1 Introduction..................................................................... 36
3.1.1 BIOS Menu Bar..................................................... 36
3.1.2 Navigation Keys .................................................... 37
3.2 Main Screen ................................................................... 37
3.3 Advanced Screen ............................................................ 38
3.3.1 CPU Configuration ................................................ 38
3.3.2 Chipset Configuration ............................................ 40
3.3.3 ACPI Configuration ................................................ 43
3.3.4 IDE Configuration .................................................. 44
3.3.5 PCIPnP Configuration ........................................... 46
3.3.6 Floppy Configuration ............................................. 47
3.3.7 Super IO Configuration .......................................... 47
3.3.8 USB Configuration ................................................ 49
3.4 Hardware Health Event Monitoring Screen...................... 49
3.5 Boot Screen ................................................................... 50
3.5.1 Boot Settings Configuration ................................... 51
3.6 Security Screen.............................................................. 52
3.7 Exit Screen .................................................................... 53
4 Software Support4 Software Support
4 Software Support4 Software Support
4 Software Support ....................................................................................
....................................................................................
.......................................... 5454
5454
54
4.1 Install Operating System ................................................ 54
4.2 Support CD Information................................................... 54
4.2.1 Running Support CD ............................................. 54
4.2.2 Drivers Menu ......................................................... 54
4.2.3 Utilities Menu ........................................................ 54
4.2.4 Contact Information ............................................... 54

55
55
5
Chapter 1 IntroductionChapter 1 Introduction
Chapter 1 IntroductionChapter 1 Introduction
Chapter 1 Introduction
Thank you for purchasing ASRock Penryn1600SLI-110dB motherboard, a reliable
motherboard produced underASRock’s consistently stringent quality control. It delivers
excellent performance with robust design conforming toASRock’s commitment to qual-
ity and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-step
guide to the hardware installation. Chapter 3 and 4 contain the configuration guide to
BIOS setup and information of the Support CD.
Because the motherboard specifications and the BIOS software might
be updated, the content of this manual will be subject to change without
notice. In case any modifications of this manual occur, the updated
version will be available on ASRock website without further notice. You
may find the latest VGA cards and CPU support lists on ASRock website
as well. ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
our website for specific information about the model you are using.
www.asrock.com/support/index.asp
1.1 P1.1 P
1.1 P1.1 P
1.1 Packack
ackack
ackage Contentsage Contents
age Contentsage Contents
age Contents
1 xASRock Penryn1600SLI-110dB Motherboard
(ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm)
1 xASRock SLI Bridge
1 xASRock Penryn1600SLI-110dB Quick InstallationGuide
1 xASRock Penryn1600SLI-110dB Support CD
1 x UltraATA66/100/133 IDE Ribbon Cable (80-conductor)
1 x 3.5-in FloppyDrive Ribbon Cable
4 x SerialATA(SATA)Data Cables (Optional)
1 x SerialATA(SATA) HDDPower Cable (Optional)
1 x HDMI_SPDIF Cable (Optional)
1 x “ASRock WiFi_SPDIF I/O Plus” I/O Shield

66
66
6
1.21.2
1.21.2
1.2 SpecificationsSpecifications
SpecificationsSpecifications
Specifications
Platform -ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm
-All Solid Capacitor design
CPU - LGA 775 for Intel®CoreTM 2 Extreme / CoreTM 2 Quad / CoreTM
2Duo /Pentium®Dual Core / Celeron®,supporting Penryn Quad
Core Yorkfield andDual Core Wolfdale processors
- Compatible with all FSB1600/1333/1066/800MHz CPUs
(see CAUTION 1)
- Supports Hyper-Threading Technology (see CAUTION 2)
- Supports Untied Overclocking Technology (see CAUTION 3)
- Supports EM64T CPU
Chipset -Northbridge:NVIDIA®740i SLI / 650i SLI
- Southbridge:NVIDIA®nForce 430
Memory -Dual ChannelDDR2 Memory Technology (see CAUTION 4)
- 4 xDDR2DIMM slots
- SupportDDR2 800/667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB (see CAUTION 5)
Expansion Slot - 1 x PCI Express x16 slot (White)
- 2 x PCI Express x8 slots (Yellow; forNVIDIA®SLITM only)
- 1 x PCI Express x1 slot
- 3 x PCI slots
- SupportsNVIDIA®SLITM (see CAUTION 6)
Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio with
Content Protection
-DAC with 110dB dynamic range (ALC890Audio Codec)
LAN -Gigabit LAN10/100/1000 Mb/s
-Giga PHYRealtek RTL8211B
- Supports Wake-On-LAN
Rear Panel I/O ASRock WiFi_SDIF I/O Plus
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP Support)
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Port
- 1 x RJ-45 LAN Port
- 2 x RJ-45 LANPort LED(ACT/LINK LEDand SPEEDLED)
- 1 x IEEE 1394 Port

77
77
7
- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/
Line in/Front Speaker/Microphone (see CAUTION 7)
Connector - 4 x SATAII 3.0Gb/s connectors, support RAID(RAID0, RAID1,
RAID0+1, RAID 5 and JBOD) andNCQ functions
(see CAUTION 8)
- 2 x ATA133 IDE connectors (support 4 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- CPU/Chassis FANconnector
- 24 pinATX power connector
- 8 pin 12V power connector
-SLI/XFIRE power connector
- CD in header
- Front panel audio connector
- 1 x USB 2.0 header (supports 2 USB 2.0 ports)
(see CAUTION 9)
- 1 x WiFi/E header (see CAUTION 10)
BIOS Feature - 8MbAMI BIOS
-AMI Legal BIOS
- Supports “Plug and Play”
-ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
-AMBIOS 2.3.1 Support
- CPU, DRAM,NB, SB, VTT Voltage Multi-adjustment
Support CD -Drivers, Utilities,AntiVirus Software (Trial Version)
Unique Feature - ASRock OC Tuner (see CAUTION 11)
- Hybrid Booster:
- CPU Frequency Stepless Control (see CAUTION 12)
-ASRock U-COP (see CAUTION 13)
- Boot FailureGuard (B.F.G.)
Hardware - CPU Temperature Sensing
Monitor - Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS - Microsoft® Windows® 2000 / XP / XP 64-bit / VistaTM /
VistaTM 64-bit compliant
Certifications - FCC, CE, WHQL
* For detailed product information, please visit our website: http://www.asrock.com

88
88
8
CAUTION!
1. FSB1600-CPU will operate in overclocking mode.
2. About the setting of “Hyper Threading Technology”, please check page
40.
3. This motherboard supports Untied Overclocking Technology. Please read
“Untied Overclocking Technology” on page 35 for details.
4. This motherboard supports Dual Channel Memory Technology. Before
you implement Dual Channel Memory Technology, make sure to read
the installation guide of memory modules on page 17 for proper
installation.
5. Due to the operating system limitation, the actual memory size may be
less than 4GB for the reservation for system usage under Windows®XP
and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM
64-bit with 64-bit CPU, there is no such limitation.
6. This motherboard supports NVIDIA®SLITM technology. PCIE2 and PCIE4
slots (yellow) are intended for SLITM function. If you plan to install only one
PCI Express VGA card to this motherboard, please install it to PCIE3 slot.
For the information of the compatible SLITM Mode PCI Express VGA cards,
please refer to the “Supported PCI Express VGA Card List for SLITM Mode”
on page 10. For the proper installation of PCI Express VGA card, please
refer to the installation guide on page 19.
7. For microphone input, this motherboard supports both stereo and mono
modes. For audio output, this motherboard supports 2-channel, 4-
channel, 6-channel, and 8-channel modes. Please check the table on
page 12 for proper connection.
8. Before installing SATAII hard disk to SATAII connector, please read the
“SATAII Hard Disk Setup Guide” on page 31 to adjust your SATAII hard
disk drive to SATAII mode.You can also connect SATAhard disk to SATAII
connector directly.
9. Power Management for USB 2.0 works fine under Microsoft®Windows®
VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.
10. WiFi/E header supports WiFi+AP function with ASRock WiFi-802.11g or
WiFi-802.11n module, an easy-to-use wireless local area network
(WLAN) adapter. It allows you to create a wireless environment and
enjoy the convenience of wireless network connectivity. Please visit our
website for the availability of ASRock WiFi-802.11g or WiFi-802.11n
module. ASRock website http://www.asrock.com
WARNING
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using the third-
party overclocking tools. Overclocking may affect your system stability, or even
cause damage to the components and devices of your system. It should be done at
your own risk and expense. We are not responsible for possible damage caused by
overclocking.

99
99
9
1.31.3
1.31.3
1.3 Minimum Hardware RMinimum Hardware R
Minimum Hardware RMinimum Hardware R
Minimum Hardware Requirement Tequirement T
equirement Tequirement T
equirement Table for Wable for W
able for Wable for W
able for Windowsindows
indowsindows
indows®®
®®
®
VistaVista
VistaVista
VistaTMTM
TMTM
TM Premium 2008 and Basic LogoPremium 2008 and Basic Logo
Premium 2008 and Basic LogoPremium 2008 and Basic Logo
Premium 2008 and Basic Logo
For system integrators and users who purchase this motherboard and
plan to submit Windows®VistaTM Premium 2008 and Basic logo, please
follow below table for minimum hardware requirements.
CPU Celeron 420
Memory 1GB system memory (Premium)
512MB Single Channel (Basic)
VGA DX10.0 with WDDM Driver
with 128bit VGAmemory (Premium)
with 64bit VGAmemory (Basic)
* After June 1, 2008, all Windows®VistaTM systems are required to meet above
minimum hardware requirements in order to qualify for Windows®VistaTM Premium
2008 logo.
11. It is a user-friendly ASRock overclocking tool which allows you to surveil
your system by hardware monitor function and overclock your hardware
devices to get the best system performance under Windows®
environment. Please visit our website for the operation procedures of
ASRock OC Tuner. ASRock website: http://www.asrock.com
12. Although this motherboard offers stepless control, it is not recom-
mended to perform over-clocking. Frequencies other than the recom-
mended CPU bus frequencies may cause the instability of the system
or damage the CPU.
13. While CPU overheat is detected, the system will automatically shutdown.
Before you resume the system, please check if the CPU fan on the
motherboard functions properly and unplug the power cord, then plug it
back again. To improve heat dissipation, remember to spray thermal
grease between the CPU and the heatsink when you install the PC
system.

1010
1010
10
1.41.4
1.41.4
1.4 Supported PCI Express VGA Card List for SLISupported PCI Express VGA Card List for SLI
Supported PCI Express VGA Card List for SLISupported PCI Express VGA Card List for SLI
Supported PCI Express VGA Card List for SLITMTM
TMTM
TM ModeMode
ModeMode
Mode
(for Windows®XP / XP 64-bit / VistaTM / VistaTM 64-bit only)
Graphics Chip Model Name Chipset Name
Vendor
NVIDIA ASUS EN8800GTX
ASUS EN8600GT/2DHT
ASUS EN7950GX2 *
ASUS EN7900GT TOP
ASUS EN7800GT
ASUS EN7600GSSILENT
ASUS EN7600GT/2DHT
ASUS EN6800LE
ASUS Extreme N6800/TD
ALBATRON PC6600GT
GIGABYTE GV-NX66256DP2
LEADTEK PX7900GS TDH
LEADTEK PX7300GS TDH *
MSI 7300GT-TD256EH
* These two cards can only work under Windows®XP / XP 64-bit OS.
For the latest updates of the supported PCI Express VGA card list for SLITM Mode,
please visit our website for details.
ASRock website: http://www.asrock.com/support/index.htm
GeForce 8800GTX
GeForce 8600GT
GeForce 7950GX2
GeForce 7900GT
GeForce 7800GT
GeForce 7600GT
GeForce 7600GS
GeForce 6800LE
GeForce 6800
GeForce 6600GT
GeForce 6600
GeForce 7900GS
GeForce 7300GS
GeForce 7300GT

1111
1111
11
1.5 Motherboard Layout1.5 Motherboard Layout
1.5 Motherboard Layout1.5 Motherboard Layout
1.5 Motherboard Layout
NVIDIA
740i SLI /
650i SLI
Chipset
ATXPWR1
CD1
ATX12V1
1
PS2_USB_PWR1
Super
I/O
8Mb
LPC
LAN
PHY
PCIE2
CPU_FAN1
CMOS
Battery
PCI
EXPRESS
Penryn1600SLI-110dB
DDRII800
Quad Core CPU
IDE2
CLRCMOS1
1
CHA_FAN1
FLOPPY1
1
HD_AUDIO1
HDLED RESET
PLED PWRBTN
SPEAKER1
1
PANE L1
1
30.5cm (12.0 in)
22.9cm (9.0 in)
12345678
9
10
11
12
13
14
15
16
24
25 23 1718
19
20
21
22
26
27
28
29
30
31
32
DDRII_1 (64 bit, 240-pin module)
DDRII_2 (64 bit, 240-pin module)
RoHS
Yorkfield
Dual Channel
7.1CH HD
SATAII
1
HDMI_SPDIF1
IR1
1
USB4_5
11
Wolfdale
Gigabit LAN
FSB1600
Top:
SIDE SPK
Center:
REAR SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
PCI1
PCI2
PCI3
DDRII_3 (64 bit, 240-pin module)
DDRII_4 (64 bit, 240-pin module)
SATAII_1
RAID
SLI/XFIRE_PWR1
PARALLEL PORT
COM1
PS2
Mouse
PS2
Keyboard
USB 2.0
T: US B0
B: USB1
Top:
RJ-45
USB 2.0
T: US B2
B: USB3
33
34
IDE1
SATAII_3
SATAII_2 SATAII_4
Coaxial
SPDIF
Optical
SPDIF
Top:
IEEE
1394
PCIE1
PCIE3
PCIE4
FRONT_1394
11
1394a
WIFI/E
1
NVIDIA
nForce 430
Chipset
1 PS2_USB_PW1 Jumper 18 Chassis Speaker Header (SPEAKER 1)
2 ATX Power Connector (ATXPWR1) 19 USB 2.0 Header (USB4_5, Blue)
3 CPU Fan Connector (CPU_FAN1) 20 Front Panel IEEE 1394 Header
4 775-Pin CPU Socket (FRONT_1394)
5 North Bridge Controller 21 LPC
6 ATX 12V Power Connector (ATX12V1) 22 Chassis Fan Connector (CHA_FAN1)
7 2 x 240-pin DDR2 DIMM Slots 23 Infrared Module Header (IR1)
(Dual Channel A: DDRII_1, DDRII_3; Yellow) 24 Floppy Connector (FLOPPY1)
8 2 x 240-pin DDR2 DIMM Slots 25 Internal Audio Connector: CD1 (Black)
(Dual Channel B: DDRII_2, DDRII_4; Orange) 26 Front Panel Audio Header (HD_AUDIO1)
9 Secondary IDE Connector (IDE2, Black) 27 HDMI_SPDIF Header (HDMI_SPDIF1)
10 Primary IDE Connector (IDE1, Blue) 28 PCI Slots (PCI1- 3)
11 South Bridge Controller 29 PCI Express x8 Slot (PCIE4, Yellow)
12 Secondary SATAII Connector (SATAII_2) 30 PCI Express x16 Slot (PCIE3, White)
13 Fourth SATAII Connector (SATAII_4) 31 PCI Express x8 Slot (PCIE2, Yellow)
14 Third SATAII Connector (SATAII_3) 32 PCI Express x1 Slot (PCIE1, White)
15 Primary SATAII Connector (SATAII_1) 33 WiFi/E Header (WIFI/E)
16 System Panel Header (PANEL1) 34 SLI / XFIRE Power Connector
17 Clear CMOS Jumper (CLRCMOS1)

1212
1212
12
1.61.6
1.61.6
1.6 ASRock WiFi_SPDIF I/O PlusASRock WiFi_SPDIF I/O Plus
ASRock WiFi_SPDIF I/O PlusASRock WiFi_SPDIF I/O Plus
ASRock WiFi_SPDIF I/O Plus
1 PS/2 Mouse Port (Green) ** 9 Front Speaker (Lime)
2 Parallel Port 10 Microphone (Pink)
3 IEEE 1394 Port 11 USB 2.0 Ports (USB01)
* 4 LAN RJ-45 Port 12 USB 2.0 Ports (USB23)
5 Side Speaker (Gray) 13 Optical SPDIF Out Port
6 Rear Speaker (Black) 14 Coaxial SPDIF Out Port
7 Central / Bass (Orange) 15 COM Port
8 Line In (Light Blue) 16 PS/2 Keyboard Port (Purple)
To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. After restarting your computer, you will find “Mixer” tool on your system.
Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click
“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA
Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA
Audio 2nd output” to use front panel audio.
** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.
See the table below for connection details in accordance with the type of speaker you use.
TABLE forAudio Output Connection
Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker
(No. 9) (No. 6) (No. 7) (No. 5)
2 V -- -- --
4VV----
6VVV--
8VVVV
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No link Off 10Mbps connection
Orange Linked Orange 100Mbps connection
Blinking Data Activity Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
124
3
5
6
7
8
9
10
11
12
13
14
15
16

1313
1313
13
Chapter 2 InstallationChapter 2 Installation
Chapter 2 InstallationChapter 2 Installation
Chapter 2 Installation
This is an ATX form factor (12.0" x 9.0", 30.5 x 22.9 cm) motherboard. Before you install
the motherboard, study the configuration of your chassis to ensure that the motherboard
fits into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes2.1 Screw Holes
2.1 Screw Holes2.1 Screw Holes
2.1 Screw Holes
Place screws into the holes indicated by circles to secure the motherboard to the
chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions2.2 Pre-installation Precautions
2.2 Pre-installation Precautions2.2 Pre-installation Precautions
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity, NEVER
place your motherboard directly on the carpet or the like. Also remember to use
a grounded wrist strap or touch a safety grounded object before you handle
components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched off or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

1414
1414
14
2.3 CPU Installation2.3 CPU Installation
2.3 CPU Installation2.3 CPU Installation
2.3 CPU Installation
For the installation of Intel 775-LAND CPU,
please follow the steps below.
Before you insert the 775-LAND CPU into the socket, please check if
the CPU surface is unclean or if there is any bent pin on the socket.
Do not force to insert the CPU into the socket if above situation is
found. Otherwise, the CPU will be seriously damaged.
Step 1. Open the socket:
Step 1-1. Disengaging the lever by depressing
down and out on the hook to clear
retention tab.
Step 1-2. Rotate the load lever to fully open po-
sition at approximately 135 degrees.
Step 1-3. Rotate the load plate to fully open po-
sition at approximately 100 degrees.
Step 2. Insert the 775-LAND CPU:
Step 2-1. Hold the CPU by the edges where are
marked with black lines.
Step 2-2. Orient the CPU with IHS (Integrated
Heat Sink) up. Locate Pin1 and the two
orientation key notches.
775-Pin Socket Overview
black line
black line
775-PinSocket
Pin1
alignment key alignment key
Pin1
orientation
key notch orientation
key notch
775-LAND CPU

1515
1515
15
For proper inserting, please ensure to match the two orientation key
notches of the CPU with the two alignment keys of the socket.
Step 2-3. Carefully place the CPU into the socket
by using a purely vertical motion.
Step 2-4. Verify that the CPU is within the socket
and properly mated to the orient keys.
Step 3. Remove PnP Cap (Pick and Place Cap):
Use your left hand index finger and thumb to
support the load plate edge, engage PnP cap
with right hand thumb and peel the cap from the
socket while pressing on center of PnP cap to
assist in removal.
1. It is recommended to use the cap tab to handle and avoid kicking
off the PnP cap.
2. This cap must be placed if returning the motherboard for after
service.
Step 4. Close the socket:
Step 4-1. Rotate the load plate onto the IHS.
Step 4-2. While pressing down lightly on load
plate, engage the load lever.
Step 4-3. Secure load lever with load plate tab
under retention tab of load lever.

1616
1616
16
2.42.4
2.42.4
2.4 Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink
Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink
Installation of CPU Fan and Heatsink
This motherboard is equipped with 775-Pin socket that supports Intel 775-LAND CPU.
Please adopt the type of heatsink and cooling fan compliant with Intel 775-LAND CPU
to dissipate heat. Before you installed the heatsink, you need to spray thermal
interface material between the CPU and the heatsink to improve heat dissipation.
Ensure that the CPU and the heatsink are securely fastened and in good contact with
each other. Then connect the CPU fan to the CPU_FAN connector (CPU_FAN1, see
page 11, No. 3).
For proper installation, please kindly refer to the instruction manuals of
your CPU fan and heatsink.
Below is an example to illustrate the installation of the heatsink for 775-LAND CPU.
Step 1. Apply thermal interface material onto center
of IHS on the socket surface.
Step 2. Place the heatsink onto the socket. Ensure
fan cables are oriented on side closest to the
CPU fan connector on the motherboard
(CPU_FAN1, see page 11, No. 3).
Step 3. Align fasteners with the motherboard
throughholes.
Step 4. Rotate the fastener clockwise, then press
down on fastener caps with thumb to install
and lock. Repeat with remaining fasteners.
If you press down the fasteners without rotating them clockwise,
the heatsink cannot be secured on the motherboard.
Step 5. Connect fan header with the CPU fan
connector on the motherboard.
Step 6. Secure excess cable with tie-wrap to ensure
cable does not interfere with fan operation or
contact other components.

1717
1717
17
2.5 Installation of Memor2.5 Installation of Memor
2.5 Installation of Memor2.5 Installation of Memor
2.5 Installation of Memory Modules (DIMM)y Modules (DIMM)
y Modules (DIMM)y Modules (DIMM)
y Modules (DIMM)
This motherboard provides four 240-pin DDR2 (Double Data Rate 2) DIMM slots,
and supports Dual Channel Memory Technology. For dual channel configuration,
you always need to install identical (the same brand, speed, size and chip-type)
DDR2 DIMM pair in the slots of the same color. In other words, you have to install
identicalDDR2 DIMM pair in Dual Channel A(DDRII_1 and DDRII_3; Yellow slots;
see p.11 No.7) or identical DDR2 DIMM pair in Dual Channel B (DDRII_2 and
DDRII_4; Orange slots; see p.11 No.8), so that Dual Channel Memory Technology
can be activated. This motherboard also allows you to install four DDR2 DIMMs for
dual channel configuration, and please install identical DDR2 DIMMs in all four
slots. You may refer to the Dual Channel Memory Configuration Table below.
Dual Channel Memory Configurations
DDRII_1 DDRII_2 DDRII_3 DDRII_4
(Yellow Slot) (Orange Slot) (Yellow Slot) (Orange Slot)
(1) Populated - Populated -
(2) - Populated - Populated
(3)* Populated Populated Populated Populated
* For the configuration (3), please install identical DDR2 DIMMs in all four slots.
1. If you want to install two memory modules, for optimal compatibil-
ity and reliability, it is recommended to install them in the slots of
the same color. In other words, install them either in the set of
yellow slots (DDRII_1 and DDRII_3), or in the set of orange slots
(DDRII_2 and DDRII_4).
2. If only one memory module or three memory modules are in-
stalled in the DDR2 DIMM slots on this motherboard, it is unable to
activate the Dual Channel Memory Technology.
3. If a pair of memory modules is NOT installed in the same Dual
Channel, for example, installing a pair of memory modules in
DDRII_1 and DDRII_2, it is unable to activate the Dual Channel
Memory Technology .
4. It is not allowed to install a DDR memory module into DDR2 slot;
otherwise, this motherboard and DIMM may be damaged.

1818
1818
18
notch
break
notch
break
Installing a DIMMInstalling a DIMM
Installing a DIMMInstalling a DIMM
Installing a DIMM
Please make sure to disconnect power supply before adding or
removing DIMMs or the system components.
Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break
on the slot.
The DIMM only fits in one correct orientation. It will cause permanent
damage to the motherboard and the DIMM if you force the DIMM into the
slot at incorrect orientation.
Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully
snap back in place and the DIMM is properly seated.

1919
1919
19
2.6 Expansion Slots (PCI and PCI Express Slots)2.6 Expansion Slots (PCI and PCI Express Slots)
2.6 Expansion Slots (PCI and PCI Express Slots)2.6 Expansion Slots (PCI and PCI Express Slots)
2.6 Expansion Slots (PCI and PCI Express Slots)
There are 3 PCI slots and 4 PCI Express slots on this motherboard.
PCI Slots: PCI slots are used to install expansion cards that have the 32-bit PCI
interface.
PCIE Slots:
PCIE1 (PCIE x1 slot) is used for PCI Express cards with x1 lane width
cards, such as Gigabit LAN card, SATA2 card, etc.
PCIE2 / PCIE4 (PCIE x8 slot) is used to install PCI Express expansion
cards to support SLITM function. For the information of the compatible
SLITM Mode PCI Express VGA cards, please refer to the “Supported PCI
Express VGA Card List for SLITM Mode” on page 10.
PCIE3 (PCIE x16 slot) is used for PCI Express cards with x16 lane
width graphics cards.
1. This motherboard supports NVIDIA®SLITM technology. PCIE2 and
PCIE4 slots (yellow) are intended for SLITM function only. It is not
recommended to install other graphics cards on PCIE2 and PCIE4
slots, and we do not guarantee that your graphics cards can work
successfully under this situation.
2. You can only choose to use either PCIE3 slot or PCIE2 / PCIE4 slot
on this motherboard. If you plan to install only one PCI Express VGA
card to this motherboard, please install it to PCIE3 slot.
Installing an expansion cardInstalling an expansion card
Installing an expansion cardInstalling an expansion card
Installing an expansion card
Step 1. Before installing the expansion card, please make sure that the power
supply is switched off or the power cord is unplugged. Please read the
documentation of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed in a
chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the screws
for later use.
Step 4. Align the card connector with the slot and press firmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.

2020
2020
20
2.7 SLI2.7 SLI
2.7 SLI2.7 SLI
2.7 SLITMTM
TMTM
TM Operation GuideOperation Guide
Operation GuideOperation Guide
Operation Guide
This motherboard supports NVIDIA®SLITM (Scalable Link Interface) technology that
allows you to install two identical NVIDIA®SLITM enabled PCI Express x16 graphics
cards. Currently, NVIDIA®SLITM technology supports Windows®XP, XP 64-bit, VistaTM
and VistaTM 64-bit OS. Please follow the installation procedures in this section.
SLITM Technology Requirements
1. You should have two identical SLITM-ready graphics cards that are NVIDIA®
certified.
2. Make sure that your graphics card driver supports the NVIDIA® SLITM
technology. Download the latest driver from the NVIDIA®website
(www.nvidia.com).
3. Make sure that your power supply unit (PSU) can provide at least the
minimum power required by your system.
Enjoy the benefit of SLIEnjoy the benefit of SLI
Enjoy the benefit of SLIEnjoy the benefit of SLI
Enjoy the benefit of SLITMTM
TMTM
TM
Step 1. Install the identical SLITM-ready graphics cards that are NVIDIA®certified be-
cause different types of graphics cards will not work together properly. (Even
the GPU chips version shall be the same.) Insert one graphics card into PCIE2
slot and another graphics card to PCIE4 slot. Make sure that the cards are
properly seated on the slots.
Step2. If required, connect an auxiliary power source to the PCI Express graphics
cards.
Step3. Align and insert the SLI Bridge to the goldfingers on each graphics card. Make
sure that the SLI Bridge is firmly in place.
