ASROCK PHANTOM GAMING B650I LIGHTNING WiFi User manual

Contact Information
If you need to contact ASRock or want to know more about ASRock, you’re
welcome to visit ASRock’s website at http://www.asrock.com; or you may contact
your dealer for further information. For technical questions, please submit a
support request form at https://event.asrock.com/tsd.asp
ASRock Incorporation
e-mail: [email protected]
ASRock EUROPE B.V.
e-mail: sa[email protected]
ASRock America, Inc.
e-mail: sa[email protected]
Scan the QR code to view more manuals and documents.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 6
1.4 I/O Panel 9
1.5 Block Diagram 11
1.6 802.11ax Wi-Fi 6E Module and ASRock WiFi 2.4/5/6 GHz
Antennas 12
Chapter 2 Installation 14
2.1 Installing the CPU 15
2.2 Installing the CPU Fan and Heatsink 18
2.3 Installing Memory Modules (DIMM) 27
2.4 Connecting the Front Panel Header 29
2.5 Installing the Motherboard 30
2.6 Installing SATA Drives 31
2.7 Installing a Graphics Card 33
2.8 Connecting Peripheral Devices 35
2.9 Connecting the Power Connectors 36
2.10 Power On 37
2.11 Jumpers Setup 38
2.12 Onboard Headers and Connectors 39
2.13 Smart Button 47

2.14 M.2 SSD Module Installation Guide (M2_1) 48
2.15 M.2 SSD Module Installation Guide (M2_2) 52

1
B650I Lightning WiFi
Chapter 1 Introduction
ank you for purchasing ASRock B650I Lightning WiFi motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
1.1 Package Contents
• ASRock B650I Lightning WiFi Motherboard (Mini-ITX Form Factor)
• ASRock B650I Lightning WiFi User Manual
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 2 x ASRock WiFi 2.4/5/6 GHz Antennas (Optional)
• 1 x Screw for M.2 Socket (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRock’s
website as well. ASRock website http://www.asrock.com.

2
1.2 Specications
Platform • Mini-ITX Form Factor
• 8 Layer PCB
CPU • Supports AMD Socket AM5 RyzenTM 7000 Series Processors
Chipset • AMD B650
Memory • Dual Channel DDR5 Memory Technology
• 2 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buered memory up to
7200+(OC)*
• Max. capacity of system memory: 96GB
• Supports Extreme Memory Prole (XMP) and EXTended
Proles for Overclocking (EXPO) memory modules
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
Expansion
Slot
CPU:
• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
• 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/
BT PCIe WiFi module
* Supports NVMe SSD as boot disks
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Graphics • Integrated AMD RDNATM 2 graphics (Actual support may
vary by CPU)
• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR,
HDCP 2.3 and max. resolution up to 4K 120Hz
Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

3
B650I Lightning WiFi
LAN • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Phantom Gaming LAN Soware
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and
Streaming Modes
- User Customized Priority Control
Wireless
LAN
• 802.11ax Wi-Fi 6E Module
• Supports IEEE 802.11a/b/g/n/ac/ax
• Supports Dual-Band 2x2 with extended 6GHz band*
support
* Wi-Fi 6E (6GHz band) will be supported by Microso® Win-
dows® 11. e availability will depend on the dierent regula-
tion status of each country and region. It will be activated (for
supported countries) through Windows Update and soware
updates once available.
* A 6GHz compatible router is required for 6E functionality.
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity
technology
• Supports Bluetooth 5.2 + High speed class II
• Supports MU-MIMO
USB • 1 x USB 3.2 Gen2 Type-C (Rear)
• 3 x USB 3.2 Gen2 Type-A (Rear)
• 1 x USB 3.2 Gen1 Type-C (Front)
• 2 x USB 3.2 Gen1 Type-A (Front)
• 6 x USB 2.0 (4 Rear, 2 Front)
* All USB ports support ESD Protection

4
Rear Panel
I/O
• 2 x Antenna Ports
• 1 x HDMI Port
• 3 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_23 are
Lightning Gaming Ports.)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Line in / Front Speaker / Microphone
Storage CPU:
• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280
PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280
PCIe Gen4x4 (64 Gb/s) mode*
• 2 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks
RAID • Supports RAID 0 and RAID 1 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe
storage devices*
* Requires additional M.2 NVMe expansion cards to support
RAID 10
Connector • 2 x Addressable LED Headers*
• 2 x CPU/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)**
• 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)***
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connec-
tor)
• 1 x Front Panel Audio Connector
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen1 Header

5
B650I Lightning WiFi
* Support in total up to 5V/3A, 15W LED Strip
** CPU_FAN1/WP and CPU_FAN2/WP support the fan power
up to 2A (24W).
*** CHA_FAN1/WP supports the fan power up to 2A (24W).
*** CPU_FAN1/WP, CPU_FAN2/WP and CHA_FAN1/WP can
auto detect if 3-pin or 4-pin fan is in use.
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
OS • Microso® Windows® 10 64-bit / 11 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tools. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.
* For detailed product information, please visit our website: http://www.asrock.com

6
1.3 Motherboard Layout
BIOS
ROM
ATXPWR1
DDR5_B1 (64 bit, 288-pin module)
DDR5_A1 (64 bit, 288-pin module)
AMD
B650
PCIE1
ATX12V1
SATA3_2
SATA3_1
1
USB32_4_5
HDL ED RE SET
PLED PWRBTN
PANEL1
1
1
USB32_TC2
USB_5_6
CLRCMOS1
1
M2_1
CHA_FAN1/WP
1
SPEAKER1
1
HD_AUDIO1
CPU_FAN1/WP CPU_FAN2/WP
ADDR_LED2
1
ADDR_LED1
1
AUDIO
CODEC
USB 3.2 Gen2
T: USB32_1
B: USB32_TC1
Top:
LAN
USB 3.2 Gen2
T: USB32_3
B: USB32_2
HDMI1
USB 2.0:
USB_1234
M2_WIFI_1
1236
45
7
8
9
10
11
12
13
14
1517 16
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
BIOS
_FB1
Top Side View

7
B650I Lightning WiFi
Back Side View
M2_2

8
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 Addressable LED Header (ADDR_LED1)
3 Addressable LED Header (ADDR_LED2)
4 CPU/Water Pump Fan Connector (CPU_FAN1/WP)
5 CPU/Water Pump Fan Connector (CPU_FAN2/WP)
6 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1)
7 ATX Power Connector (ATXPWR1)
8SATA3 Connector (SATA3_2)
9SATA3 Connector (SATA3_1)
10 USB 3.2 Gen1 Header (USB32_4_5)
11 System Panel Header (PANEL1)
12 USB 2.0 Header (USB_5_6)
13 Front Panel Type C USB 3.2 Gen1 Header (USB32_TC2)
14 Clear CMOS Jumper (CLRCMOS1)
15 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)
16 Front Panel Audio Header (HD_AUDIO1)
17 Chassis Speaker Header (SPEAKER1)

9
B650I Lightning WiFi
1.4 I/O Panel
No. Description No. Description
1 2.5G LAN RJ-45 Port* 7 Microphone (Pink)***
2USB 3.2 Gen2 Type-A Ports (USB32_23)** 8 USB 2.0 Ports (USB_1234)
3Line In (Light Blue)*** 9HDMI Port
4Front Speaker (Lime)*** 10 USB 3.2 Gen2 Type-A Port (USB32_1)
5Antenna Ports 11 USB 3.2 Gen2 Type-C Port (USB32_TC1)
6BIOS Flashback Button
ACT/LINK LED
SPEED LED
LAN Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
56
79
42
3
10
11
8
1
** USB32_23 are Lightning Gaming Ports.

10
*** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

11
B650I Lightning WiFi
1.5 Block Diagram
DDR5 Slot x1 DDR5 Slot x1 Audio Codec ALC897 Flash ROM SIO NCT6686D Rear USB 3.2 Gen2 Type C
Rear USB 3.2 Gen2 1 port Rear USB 3.2 Gen2 1 port
Rear USB 3.2 Gen2 1 port Front USB 3.2 Gen1 Type C Front USB 3.2 Gen1 2 port Front USB 2.0 2 port Rear USB 2.0 4 port
M.2_2(PCIe x4) SATA 2 port RTL8125BG 2.5G LAN Key E WiFi
supports BIOS Update
Gen4 x4
SATA 6Gb
Gen3 x1 Gen3 x1
10Gb/s 5Gb/s 5Gb/s
480Mb/s 480Mb/s
Channel A Channel B
AZ(HD Audio)
SPI eSPI 10Gb/s 10Gb/s 10Gb/s
Gen4 x16 Gen5 x4
AMD PROM21 Chipset
AMD AM5 Processor LGA1718
PCIe x4 Gen4 BUS
M.2_1(PCIe x4) PCIe x16 Slot

12
1.6 802.11ax Wi-Fi 6E Module and ASRock WiFi 2.4/5/6 GHz
Antennas
802.11ax Wi-Fi 6E + BT Module
is motherboard comes with an exclusive 802.11 a/b/g/n/ac/ax Wi-Fi 6E + BT v5.2
module that oers support for 802.11 a/b/g/n/ac/ax Wi-Fi 6E connectivity standards
and Bluetooth v5.2. Wi-Fi 6E + BT module is an easy-to-use wireless local area
network (WLAN) adapter to support Wi-Fi 6E + BT. Bluetooth v5.2 standard features
Smart Ready technology that adds a whole new class of functionality into the mobile
devices. BT 5.2 also includes Low Energy Technology and ensures extraordinary low
power consumption for PCs.
* e transmission speed may vary according to the environment.
* Wi-Fi 6E (6GHz band) will be supported by Microso® Windows® 11. e availability
will depend on the dierent regulation status of each country and region. It will be
activated (for supported countries) through Windows Update and soware updates
once available.
* A 6GHz compatible router is required for 6E functionality.

13
B650I Lightning WiFi

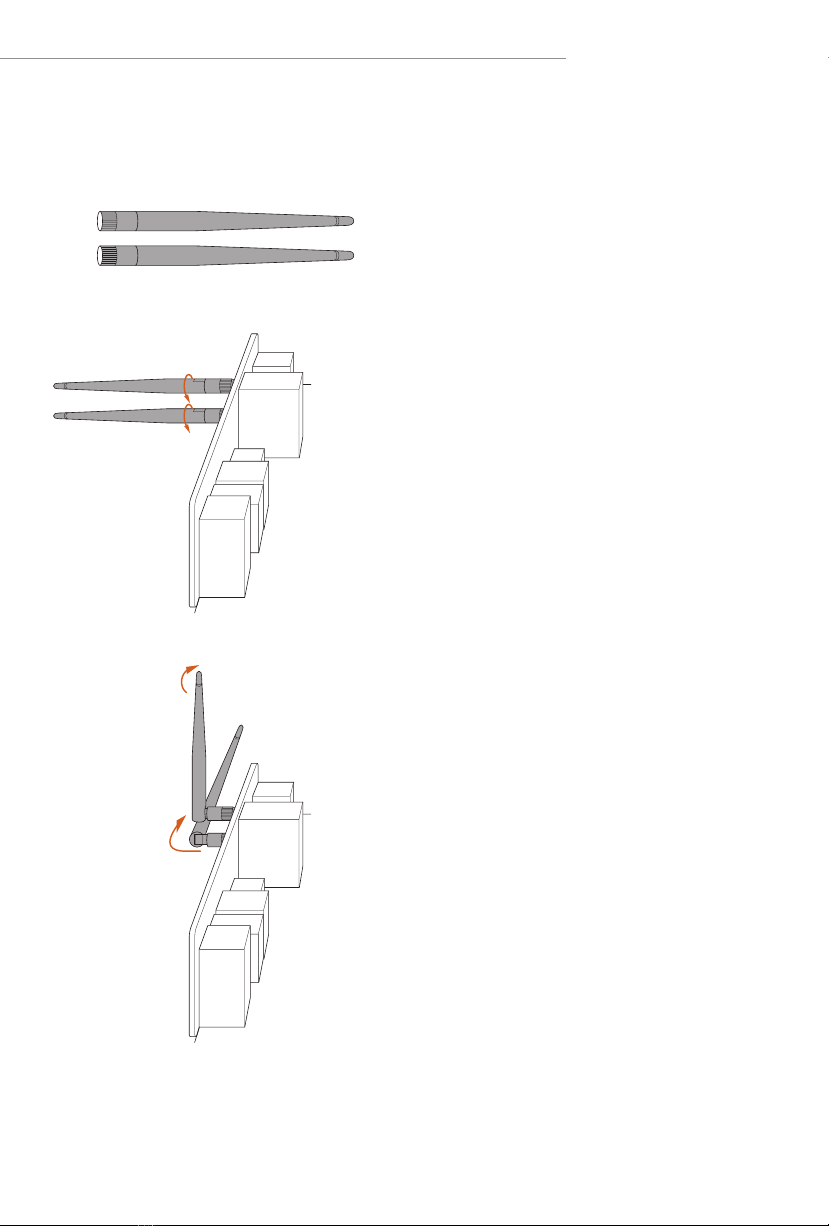

WiFi Antennas Installation Guide
Step 1
Prepare the WiFi 2.4/5/6 GHz Antennas that
come with the package.
Step 2
Connect the two WiFi 2.4/5/6 GHz Antennas
to the antenna connectors. Turn the antenna
clockwise until it is securely connected.
Step 3
Set the WiFi 2.4/5/6 GHz Antenna as shown in
the illustration.
*You may need to adjust the direction of
the antenna for a stronger signal.

14
is is a Mini-ITX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a
grounded wrist strap or touch a safety grounded object before you handle the
components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

15
B650I Lightning WiFi
2.1 Installing the CPU
1. Before you insert the 1718-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
Tutorial Video

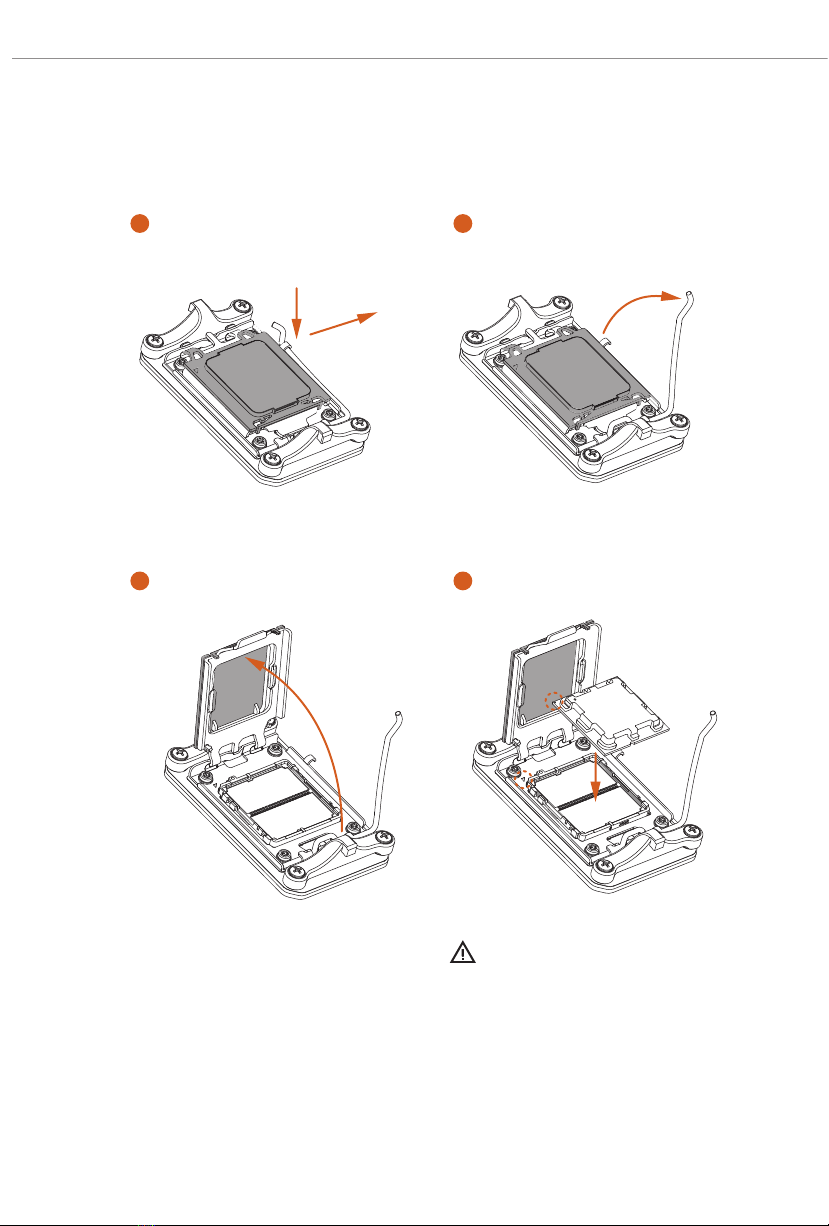

Turn your CPU to the correct orientation before opening
the CPU socket cover.

16
Carefully place the CPU in as at as
possible. Do not drop it.
4
12
A
B
3
