ASROCK SOM-P102 User manual

1
SOM-P102
User Manual
Version 1.0
Published August 2018
Copyright©2018 ASRock INC. All rights reserved.

2
Version 1.0
Published August 2019
Copyright©2018 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com

3
e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

4
Contents
1 Introduction ....................................................... 5
1.1 Package Contents ......................................................... 5
1.2 Specications................................................................. 6
1.3 Motherboard Layout....................................................... 8
1.4 I/O Panel........................................................................ 11
2 Installation ......................................................... 12
2.1 Screw Holes................................................................... 12
2.2 Pre-installation Precautions ........................................... 12
2.3 Installation of Memory Module (SO-DIMM) ................... 13
2.4 Expansion Slots ............................................................. 14
2.5 Onboard Headers and Connectors................................ 15
3 UEFI SETUP UTILITY......................................... 19
3.1 Introduction .................................................................... 19
3.1.1 UEFI Menu Bar .................................................... 19
3.1.2 Navigation Keys ................................................... 20
3.2 Main Screen................................................................... 20
3.3 Advanced Screen........................................................... 21
3.3.1 CPU Conguration ............................................... 22
3.3.2 Chipset Conguration........................................... 23
3.3.3 Storage Conguration .......................................... 25
3.3.4 Super IO Conguration ........................................ 26
3.3.5 ACPI Conguration............................................... 27
3.3.6 USB Conguration ............................................... 28
3.3.7 Trusted Computing............................................... 29
3.4 Hardware Health Event Monitoring Screen ................... 30
3.5 Security Screen ............................................................. 31
3.6 Boot Screen ................................................................... 32
3.7 Exit Screen .................................................................... 34
4 Software Support .............................................. 35
4.1 Install Operating System................................................ 35
4.2 Support CD Information ................................................. 35
4.2.1 Running Support CD............................................ 35
4.2.2 Drivers Menu........................................................ 35
4.2.3 Utilities Menu........................................................ 35
4.2.4 Contact Information.............................................. 35

5
Chapter 1: Introduction
Thank you for purchasing ASRock SOM-P102 motherboard, a reliable motherboard
produced under ASRock’s consistently stringent quality control. It delivers excellent
performance with robust design conforming to ASRock’s commitment to quality and
endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRock website without further notice. You may nd
the latest VGA cards and CPU support lists on ASRock website as well.
ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrock.com/support/index.asp
1.1 Package Contents
ASRock SOM-P102 Motherboard (PICO-ITX (3.9-in x 2.8-in))
ASRock SOM-P102 Driver CD
ASRock SOM-P102 Jumper Setting Instruction

6
1.2 Specications
Form
Factor Dimensions PICO-ITX (3.9-in x 2.8-in)
Processor
System
CPU BGA1296 for Intel®Apollo Lake SoC
Core
Number (By CPU, Max 4)
Max Speed (By CPU)
L2 Cache (By CPU)
Chipset (By CPU)
BIOS UEFI
Expansion
Slot
MIOe No
Mini-PCIe 1 (combo with mSATA, full size, Mini PCIe mode
supports PCIe x1 and USB device)
mSATA 1 (combo with Mini PCIe, full size, mSATA mode
supports SATA and USB device)
M.2 1 x M.2 Slot (Key E), supports type 2230 for
WiFi + BT Module
Memory
Technology DDR3L 1333/1600/1867 MHz
Max. 8GB
Socket 1 x SO-DIMM
Graphics
Controller Intel®HD Graphics 505
VRAM Shared Memory
VGA No
DVI No
LVDS Supports max resolution up to
1920x1200@60Hz
HDMI Supports max resolution up to
4096x2160@30Hz
DisplayPort No
Multi Display Yes (Dual Display, LVDS + HDMI)
Ethernet
Interface 10/100/1000 Mbps
Controller 1 x Intel®I210AT
Connector 1 x RJ45
SATA
Max Data
Transfer
Rate
SATA3 (6.0Gb/s)

7
Rear I/O
VGA 0
DVI 0
HDMI 1
DisplayPort 0
Ethernet 1
USB 1 x USB 3.0 compatible with USB 2.0
Audio 2 (Mic-in, Line-out)
Serial 0
PS/2 0
Internal
Connector
USB 2 x USB 2.0 (1 x 2.00 pitch header)
LVDS/
Inverter 1/1
eDP 0
VGA 0
Serial 2 x COM (COM1 supports RS-232/422/485,
COM2 supports RS232 only)
SATA 1
mPCIe 1 (combo with mSATA)
Parallel 0
mSATA 1 (combo with mPCIe)
IrDA 0
GPIO 8-bit 4 x GPI + 4 x GPO
SATA PWR
Output Con 1
Speaker
Header 1
Watchdog
Timer
Output Output from super I/O to drag RESETCON#
Interval 256 Segments, 0,1,2…255 Sec/Min
Power
Requirements
Input PWR 12V DC-in
Power On
AT/ATX Supported
AT: Directly PWR on as power input ready
ATX: Press button to PWR on after power
input ready
Environment Temperature 0ºC – 60ºC

8
1.3 Motherboard Layout
Top Side View
LAN1
mini-PCIe / mini-SATA
LVDS 1
1
USB 3.0
SPIROM
HDMI1
DC_IN1
1
J1
SATA3_1
1
USB2_4_5
1
JGPIO1
M2_1
M.2 TypeE
1
JP_SET1
1
BLT_SET1
SATA_PWR1
1
LVDS_PJ11
2
4
1
3
5
7
6
8
9
10
11

9
DDR3_A1 (Support DDR3L Only)
1
COM1
1
COM2
1
HD_AUDIO1
1
PANEL1
SOM-P102
Industrial
RoHS
13
12 14 15
Back Side View

10
1 : SATA3 Connector (SATA3_1)
2 : LVDS Panel Connector
3 : USB2.0 Connector (USB2_4_5)
4 : Digital Input / Output Pin Header (JGPIO1)
5 : M.2 TypeE with USB Connector
6 : SATA Power Output Connector
7 : mini-PCIe / mini-SATA Connector
8 : JP_SET1
9 : J1
10 : BLT_SET1
11 : LVDS_PJ1
12 : COM Port Header (RS232/422/485)
13 : COM Port Header (RS232)
14 : HD Audio Header
15 : System Panel Header

11
1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Off 100Mbps connection
On Link Green 1Gbps connection
1 USB 3.0 Port
2 LAN RJ-45 Port (LAN1)*
3 HDMI Port (HDMI1)
4 DC Jack (DC_IN1)
ACT/LINK
LED
SPEED
LED
LAN Port

12
Chapter 2: Installation
This is a PICO-ITX (3.9-in x 2.8-in) form factor motherboard. Before you install the
motherboard, study the conguration of your chassis to ensure that the motherboard
ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched off or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

13

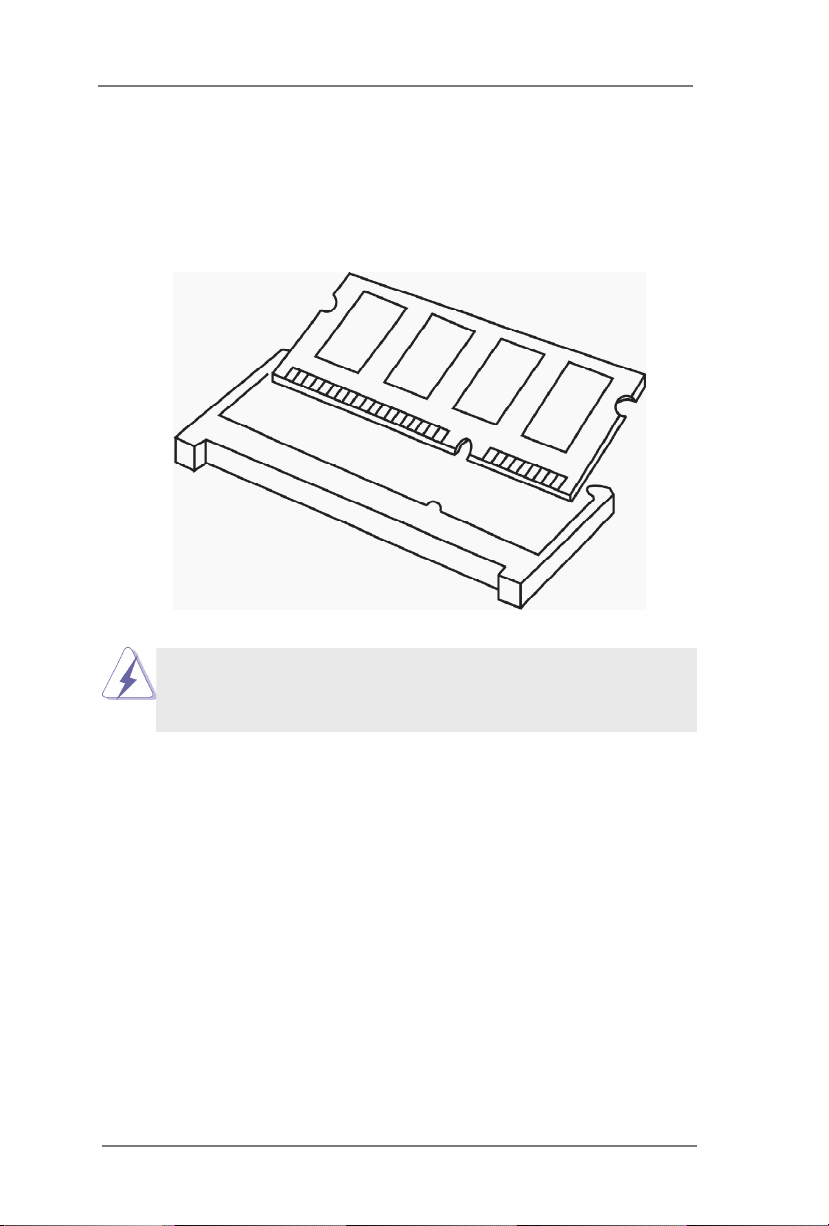

2.3 Installation of Memory Module (SO-DIMM)
SOM-P102 provides one 204-pin DDR3 (Double Data Rate 3) SO-DIMM slot.
Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
The SO-DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at
incorrect orientation.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

14
2.4 Expansion Slots (M.2 and mini-PCIe/mini-SATA
Slots)
There is 1 M.2 slot and 1 mini-PCIe/mini-SATA slot on this motherboard.
M.2 slot:
M2_1 (Key-E M.2 slot) is used for type 2230 for WiFi + BT Module.
mini-PCIe/mini-SATA slot:
MINI_SATA1 (mini-PCIe/mini-SATA slot; full size) is used for PCI Ex-
press mini cards or mSATA cards.
Installing an expansion card
Step 1. Before installing the expansion card, please make sure that the power
supply is switched off or the power cord is unplugged. Please read the
documentation of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed
in a chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the
screws for later use.
Step 4. Align the card connector with the slot and press rmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.

15

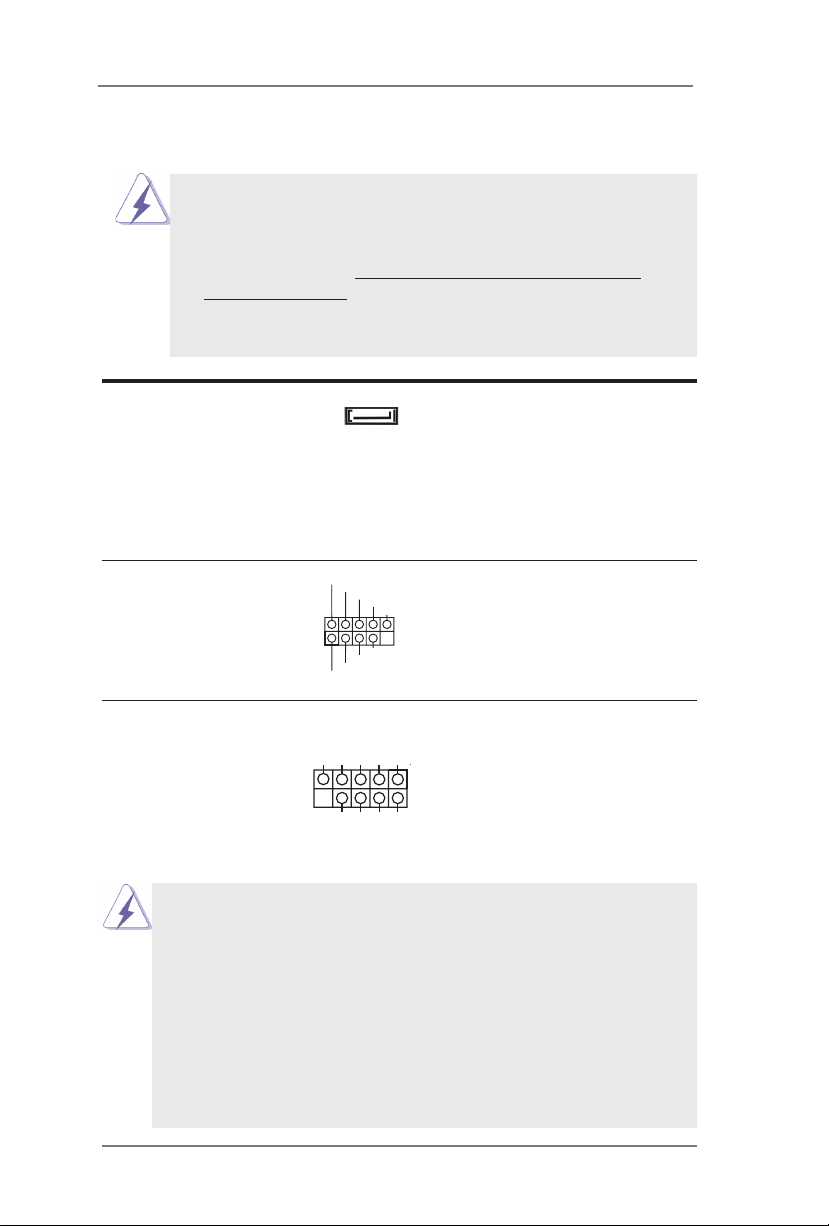

2.5 Onboard Headers and Connectors
1. Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
2. Jumper Guide link: http://asrock.pc.cdn.bitgravity.com/Manual/
Jumper/SOM-P102.pdf
Item 13~16: The pin denition of these headers depend on each M/B
manufacturer, please double-check the pin denition before testing.
SATA3 Connector This Serial ATA3
(SATA3_1: see p.8, No. 1) (SATA3) connector supports
SATA data cables for internal
storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
USB 2.0 Header There is one USB 2.0
(9-pin USB2_4_5) headers on this motherboard.
(see p.8 No. 3)
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.9 No. 15) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
SATA3_1
DUMMY
GND
GND
+B
-B
USB_PWR
+A
-A
USB_PWR
1
GND RESET#
PWRBTN#
PLED-
PLED+
GND HDLED-
HDLED+
1
GND
1

16
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep
state or powered off (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
SATA Power Output Connector
(4-pin SATA_PWR1)
(see p.8 No. 6)
COM Port Header (RS232)
(9-pin COM2)
(see p.9 No. 13)
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.9 No. 14) convenient connection and
control of audio devices.
+5V
+12V
1
GND
GND
GND
+5V
+5V
GND
COM Port Header (RS232/422/485)
(9-pin COM1)
(see p.9 No. 12)
RS232 RS422 RS485
PIN-1 DCD#_1 TX- DATA-
PIN-2 RXD_1 TX+ DATA+
PIN-3 TXD_1 RX+ X
PIN-4 DTR#_1 RX- X
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
1
MIC1_R MIC1_JD FRONT_L FRONT_JD FRONT_R
MIC1_L
AGND_A
LIN1_L
LIN1_JD
LIN1_R

17
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
LVDS Connector
(40-pin LVDS1)
(see p.8 No. 2)
139
40
2
40 2
39 1
PIN Signal Name PIN Signal Name
2 LCD_VCC 1 LCD_VCC
4 LDDC_CLK 3 +3.3V
6 LVDS_A_DATA0# 5 LDDC_DATA
8 GND 7 LVDS_A_DATA0
10 LVDS_A_DATA1 9 LVDS_A_DATA1#
12 LVDS_A_DATA2# 11 GND
14 GND 13 LVDS_A_DATA2
16 LVDS_A_DATA3 15 LVDS_A_DATA3#
18 LVDS_A_CLK# 17 GND
20 GND 19 LVDS_A_CLK
22 LVDS_B_DATA0 21 LVDS_B_DATA0#
24 LVDS_B_DATA1# 23 GND
26 GND 25 LVDS_B_DATA1
28 LVDS_B_DATA2 27 LVDS_B_DATA2#
30 LVDS_B_DATA3# 29 DPLVDD_EN
32 GND 31 LVDS_B_DATA3
34 LVDS_B_CLK 33 LVDS_B_CLK#
36 CON_LBKLT_EN 35 GND
38 LCD_BLT_VCC 37 CON_LBKLT_CTL
40 LCD_BLT_VCC 39 LCD_BLT_VCC

18
1
2
9
10
9 1
10 2
PIN Signal Name PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name
9JGPIO_VSET 7JGPIO_
VSET 5RTC RST# 3RTCRST2# 1AT/ATX mode
10 +3V 8GND 6GND 4GND 2SIO_PSIN#
1
2
9
10
2 10
1 9
PIN Signal Name PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name
2CASE
OPEN# 4GPIO_ TEST# 6GND 8
MPCIE/
MSATA
SEL
10 SOC SPKR
1GND 3MIPI_SDA 5MIPI_SCL 7GND 9+5V
1 2
9
10
10 9
2 1
PIN Signal Name PIN Signal Name
10 GND 9 GND
8 X 7 BLT_CTL
6 PWRDN 5 BLT_EN
4 BLUP 3 BLT_VCC
2 BUDN 1
1 2
9
10
1 2
9 10
PIN Signal Name PIN Signal Name
1 +3V 2 PLVDD
3 +5V 4
5 +5V 6
BLTVCC7 +12V 8
9 +12V 10
JP_SET1
(10-pin JP_SET1)
(see p.9 No. 8)
J1
(10-pin J1)
(see p.9 No. 9)
BLT_SET1
(10-pin BLT_SET1)
(see p.9 No. 10)
LVDS_PJ1
(10-pin LVDS_PJ1)
(see p.9 No. 11)
Digital Input/Output Pin Header
(10-pin JGPIO1)
(see p.8 No. 4)
1
2
9
10
9 1
10 2
PIN Signal Name PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name
9JGPIO_PWR 7SIO_GP23 5SIO_GP22 3SIO_GP21 1SIO_GP20
10 GND 8SIO_GP27 6SIO_GP26 4SIO_GP25 2SIO_GP24

19
Chapter 3: UEFI SETUP UTILITY
3.1 Introduction
This section explains how to use the UEFI SETUP UTILITY to congure your
system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You
may run the UEFI SETUP UTILITY when you start up the computer. Please press
<F2> or <Del> during the Power-On-Self-Test (POST) to enter the UEFI SETUP
UTILITY, otherwise, POST will continue with its test routines.
If you wish to enter the UEFI SETUP UTILITY after POST, restart the system by
pressing <Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system
chassis. You may also restart by turning the system off and then back on.
Because the UEFI software is constantly being updated, the
following UEFI setup screens and descriptions are for reference
purpose only, and they may not exactly match what you see on
your screen.
3.1.1 UEFI Menu Bar
The top of the screen has a menu bar with the following selections:
Main To set up the system time/date information
Advanced To set up the advanced UEFI features
H/W Monitor To display current hardware status
Security To set up the security features
Boot To set up the default system device to locate and load the
Operating System
Exit To exit the current screen or the UEFI SETUP UTILITY
Use < > key or < > key to choose among the selections on the menu
bar, and then press <Enter> to get into the sub screen. You can also use the
mouse to click your required item.

20
3.1.2 Navigation Keys
Please check the following table for the function description of each navigation
key.
Navigation Key(s) Function Description
/ Moves cursor left or right to select Screens
/ Moves cursor up or down to select items
+ / - To change option for the selected items
<Enter> To bring up the selected screen
<F1> To display the General Help Screen
<F7> Discard changes
<F9> To load optimal default values for all the settings
<F10> To save changes and exit the UEFI SETUP UTILITY
<F12> Print screen
<ESC> To jump to the Exit Screen or exit the current screen
3.2 Main Screen
When you enter the UEFI SETUP UTILITY, the Main screen will appear and display
the system overview.
