Chapter 1: Introduction
Thank you for purchasing ASRockInd UTX-115 motherboard, a reliable motherboard
produced under ASRockInd’s consistently stringent quality control. It delivers ex-
cellent performance with robust design conforming to ASRockInd’s commitment to
quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRockInd website without further notice. You may
nd the latest VGA cards and CPU support lists on ASRockInd website
as well. ASRockInd website http://www.asrockind.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrockind.com/support/index.asp
1.1 Package Contents
ASRockInd UTX-115 Motherboard (111.76 x 116.84 mm)
ASRockInd UTX-115 Driver CD
ASRockInd UTX-115 Jumper setting instruction

6
1.2 Specications
Form
Factor Dimensions 111.76 x 116.84 mm (10 layer)
Processor
System
CPU
Intel®Apollo Lake SoC Processor
- UTX-115D (N4200, QC, 1.10GHz, 6W)
- UTX-115J (J3455, QC, 1.50GHz, 10W)
- UTX-115L (N3350, DC, 1.10GHz, 6W)
Chipset SoC
Expansion
Slot
M.2
1 x M.2 (KEY E, 2230) with PCIe x1 and USB2.0
for Wireless
1 x M.2 (KEY B, 3042/3052) with USB 2.0+
SATA/PCIex2 + SIM for 4G
SIM 1 x Socket connected to M.2 Key B
Memory
Technology Dual Channel DDR3L 1867MHz
Max. 8GB
Socket 2 x SO-DIMM
Graphics
Controller Intel® HD Graphics
VGA N/A
DVI N/A
LVDS Dual Channel 24-bit, max resolution up to 1920
x 1200@60Hz
HDMI HDMI 1.4b: Up to 3840 x 2160@30 Hz
DisplayPort N/A
Multi Display Triple Display
eDP N/A
Ethernet Ethernet 10/100/1000 Mbps
Controller 2 x Realtek RTL8111G
Rear I/O
VGA N/A
HDMI 2
DisplayPort N/A
Ethernet 2
USB 2 x USB3.1, 1 x USB2.0
Audio 1 x Audio combo jack
Serial N/A
PS/2 N/A
eDP N/A

7
Internal
Connector
LVDS/
Inverter 1
Serial 1 x COM (RS-232/422/485)
Parallel N/A
LPC 1 x LPC Header
eMMC 32G/64G
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 segments, 0,1,2…255sec
Power
Requirements
Input PWR +12V DC-In
Power On
AT/ATX Supported
AT: Directly PWR on as power input ready
ATX: Press button to PWR on after power
input ready
Environment
Operating
Temp 0ºC – 60ºC
Storage
Temp -40ºC – 85ºC

8
1.3 Motherboard Layout
12
13
14
12345678
9
10
11
LAN1
AUDIO1
LVDS 1
1
Industrial
PWR_JP1
1
LAN2
USB3_0
1
BLT_VOL1
1
BLT_PWR1
DC_JACK1
CLRMOS1
1
BKT_PWR1
1
PNL_PWR1
1
PWRBTN1
BLT_PWM1
1
RESET1
UTX-115
DDR3_B1 (Support DDR3L Only)
DDR3_A1 (Support DDR3L Only)
USB3_1
HDMI2
HDMI1
USB2_2
1
LPC1
USB2_4_5
1
M.2 KEY E
M.2 KEY B
BL2
1
BL1
1
PANEL1
1
COM1
1
1

9
1 : Inverter Power Control Wafer (BLT_PWR1)
2 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)
3 : BL1, BL2
4 : Panel Power Select (LCD_VCC) (PNL_PWR1)
5 : LVDS Panel Connector
6 : System Panel Header
7 : COM Port Heder
8 : Battery Connector (BAT1)
9 : ATX/AT Mode Select (PWR_JP1)
10 : USB2.0 Connector (USB2_4_5)
11 : LPC Header (LPC1)
12 : Backlight & Amp Volume Control (BLT_VOL1)
13 : Clear CMOS Header (CLRMOS1)
14 : Backlight Control Level (BLT_PWM1)

10
1.4 I/O Panel
1 LAN RJ-45 Port (LAN1)
2 LAN RJ-45 Port (LAN2)
3 3.5mm Audio Jack (CTIA Standard)
4 USB 2.0 Port (USB2_2)
5 Reset Button
6 Power Button
1 HDMI Port (HDMI1)
2 HDMI Port (HDMI2)
3 USB 3.1 Port (USB3_1)
4 USB 3.1 Port (USB3_0)
5 DC Jack Port (+12V Only)
124
36
5
124
35

11
Chapter 2: Installation
This is a 111.76 x 116.84 mm form factor motherboard. Before you install the moth-
erboard, study the conguration of your chassis to ensure that the motherboard ts
into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched o󰀨 or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12
2.3 Installation of Memory Modules (SO-DIMM)
UTX-115 provides two 204-pin DDR3 (Double Data Rate 3) SO-DIMM slots, which
supports dual channel DDR3L SDRAM only.

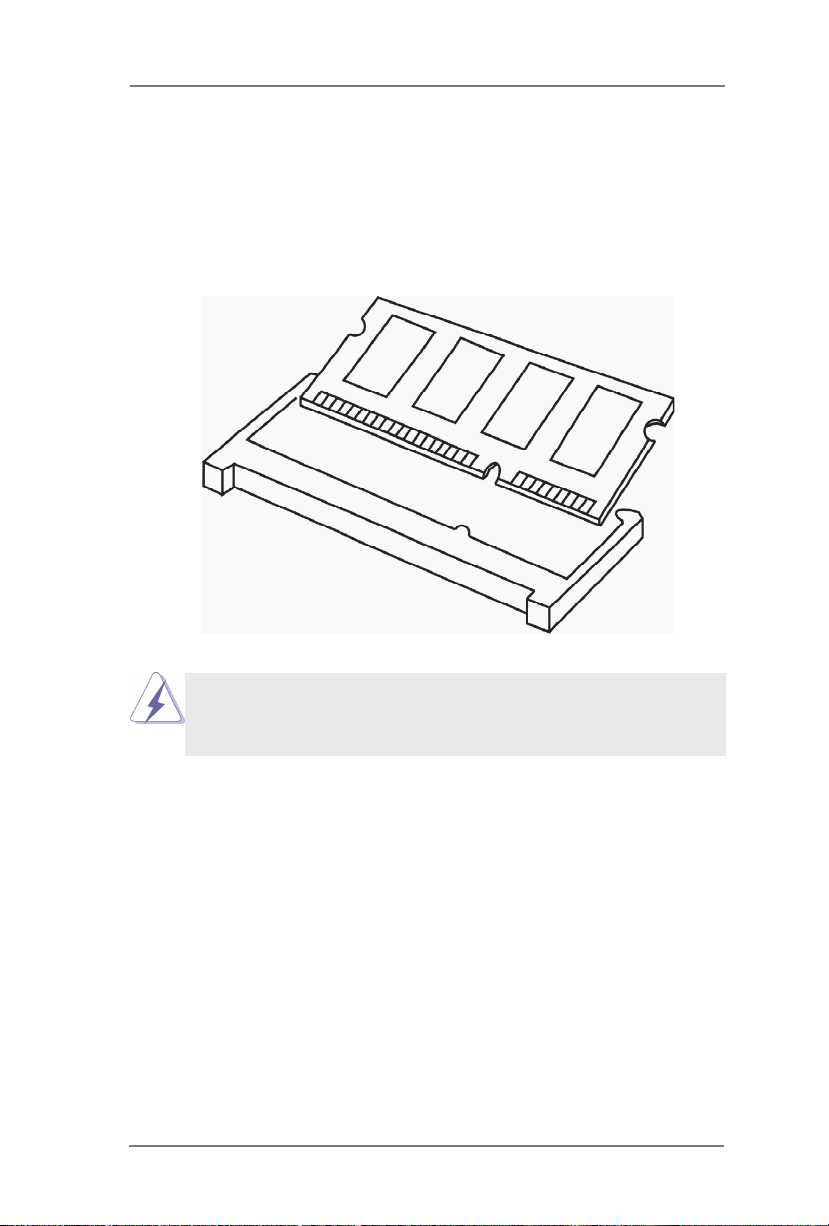

Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
The SO-DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at
incorrect orientation.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

13
2.4 Expansion Slots (M.2 and SIM Sockets)
There are 2 M.2 sockets and 1 SIM socket on this motherboard.
SIM Socket:
1 x SIM socket connected to M.2 Key B.
M.2 Sockets:
1 x M.2 (KEY E, 2230) socket supports PCIe x1 and USB2.0 for Wire-
less.
1 x M.2 (KEY B, 3042/3052) socket supports USB 2.0+ SATA/PCIex2 +
SIM for 4G.

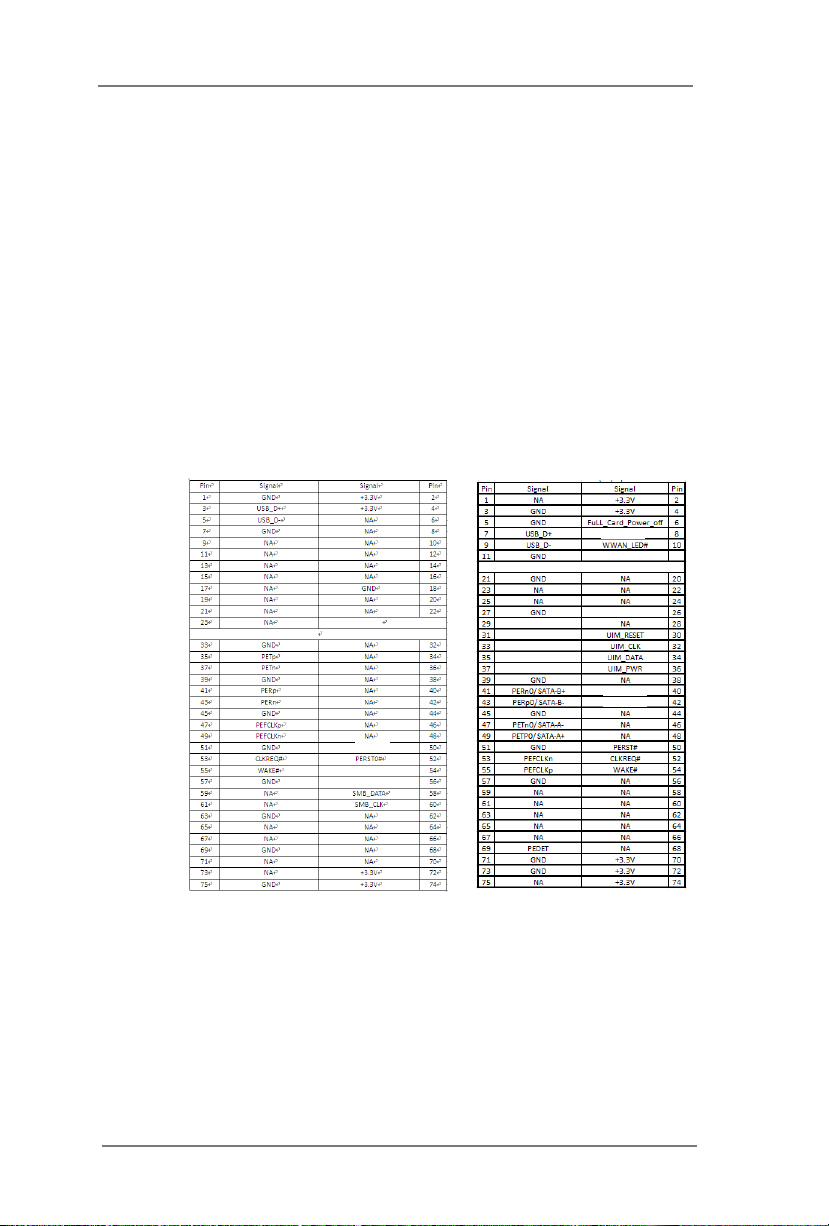

M.2 Socket Pin Denition:
M.2 Key-E Socket M.2 Key-B Socket
NA
NA
NA
PERn1
PERP1
GND
PETn1
PETp1
W_DISABLE1#
W_DISABLE2#
NA
NA

14
2.5 Jumpers Setup

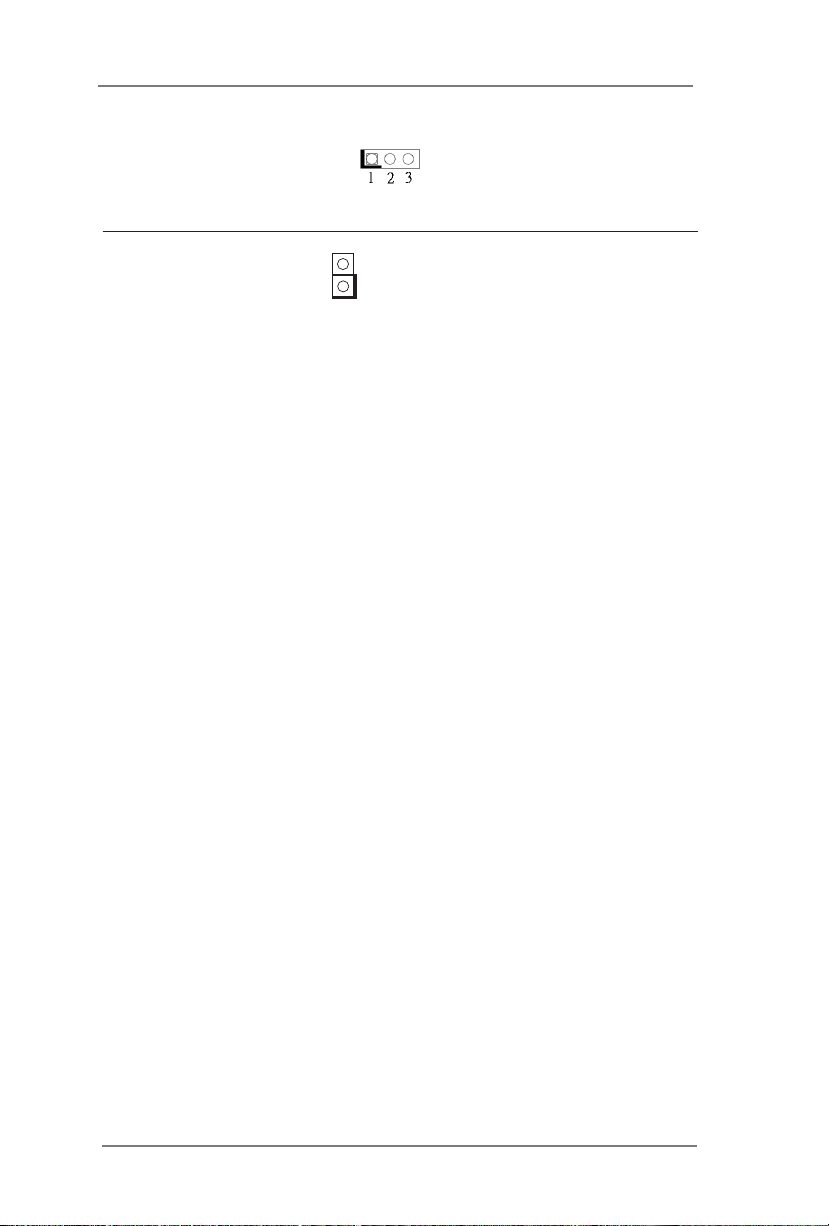

The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Clear CMOS Jumper
(CLRCMOS1)
(see p.8, No. 13)
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn o󰀨 the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date, time, user default prole and MAC
address will be cleared only if the CMOS battery is removed.
Clear CMOSDefault
Panel Power Select (LCD_VCC) Use this to set up the VDD
(5-pin PNL_PWR1) power of the LVDS connector.
(see p.8 No. 4) 1-2: +3V
2-3: +5V
3-4: +5V
4-5: +12V
ATX/AT Mode Select 1-2: AT Mode
(3-pin PWR_JP1) 2-3: ATX Mode
(see p.8 No. 9)
Backlight Power Select Use this to set up the backlight
(LCD_BLT_VCC) power of the LVDS connector.
(3-pin BKT_PWR1) 1-2: +5V
(see p.8 No. 2) 2-3: +12V

15
Backlight Control Level 1-2: From eDP PWM to CON_LBKLT_CTL
(3-pin BLT_PWM1) 2-3: From LVDS PWM to CON_LBKLT_CTL
(see p.8 No. 14)
BL1, BL2
(2-pin BL1)
Open : Protect LCD_BLT_VCC
(see p.8 No. 3) Short : No Protect LCD_BLT_VCC
(2-pin BL2)
Open : Protect R_LVDD
(see p.8 No. 3) Short : No Protect R_LVDD
1

16

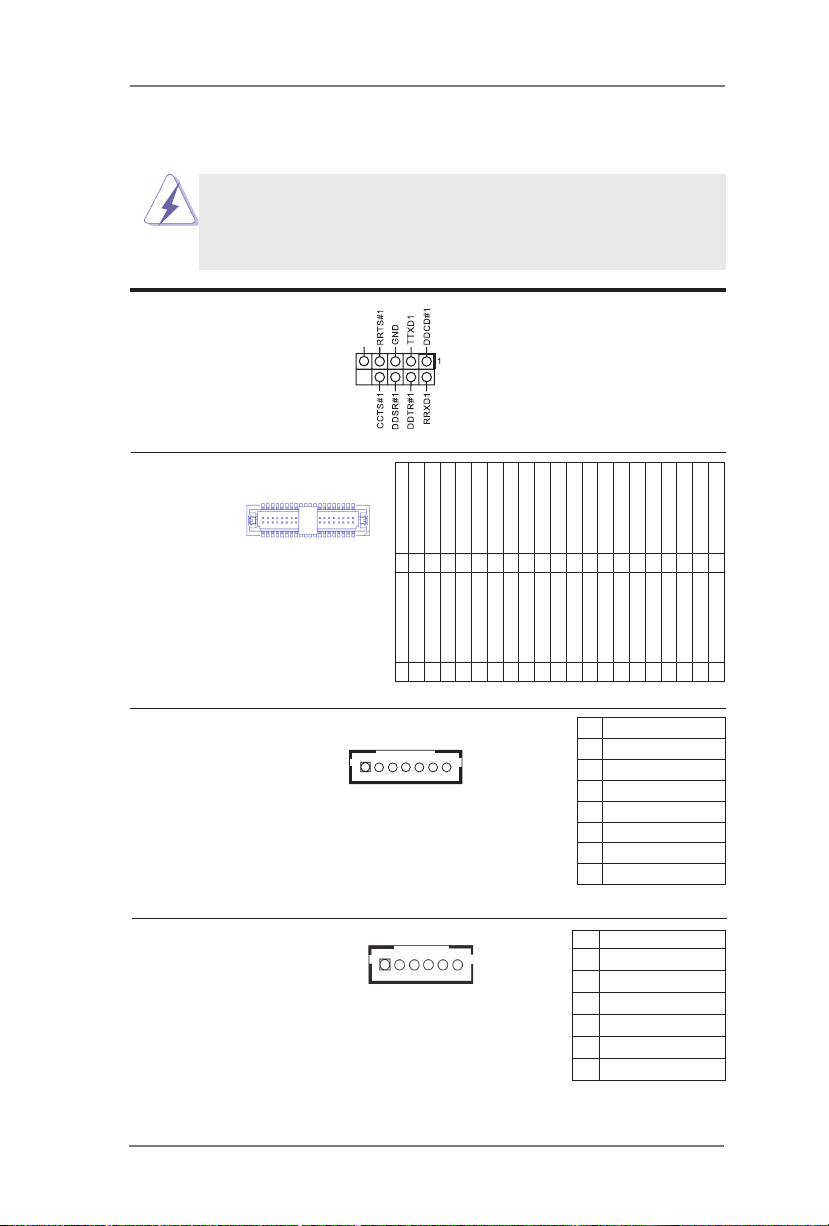

2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
LVDS Connector
(40-pin LVDS1)
(see p.8 No. 5)
Backlight & Amp Volume Control
(7-pin BLT_VOL1)
(see p.8 No. 12)
COM Port Header
(9-pin COM1)
(see p.8 No. 7)
N/A
139
40
2
PIN Signal Name PIN Signal Name
2LCD_VCC 1LCD_VCC 4 N/A 3 +3V 6LVDS_A_DATA0# 5 N/A 8GND1 7LVDS_A_DATA0
10 LVDS_A_DATA1 9LVDS_A_DATA1# 12 LVDS_A_DATA2# 11 GND6 14 GND2 13 LVDS_A_DATA2 16 LVDS_A_DATA3 15 LVDS_A_DATA3# 18 LVDS_A_CLK# 17 GND7 20 GND3 19 LVDS_A_CLK 22 LVDS_B_DATA0 21 LVDS_B_DATA0# 24 LVDS_B_DATA1# 23 GND8 26 GND4 25 LVDS_B_DATA1 28 LVDS_B_DATA2 27 LVDS_B_DATA2# 30 LVDS_B_DATA3# 29 DPLVDD_EN 32 GND5 31 LVDS_B_DATA3 34 LVDS_B_CLK 33 LVDS_B_CLK# 36 CON_LBKLT_EN 35 GND9 38 LCD_BLT_VCC 37 CON_LBKLT_CTL 40 LCD_BLT_VCC 39 LCD_BLT_VCC
PIN Signal Name
1 N/A
2 N/A
3PWRDN
4GPIO_BLT_UP
5GPIO_BLT_DW
6GND
7GND
1
Inverter Power Control Wafer
(6-pin BLT_PWR1)
(see p.8 No. 1)
PIN Signal Name
1GND
2GND
3CON_LBKLT_CTL
4CON_LBKLT_EN
5LCD_BLT_VCC
6LCD_BLT_VCC
1

17
PCIRST#
FRAME
PCICLK

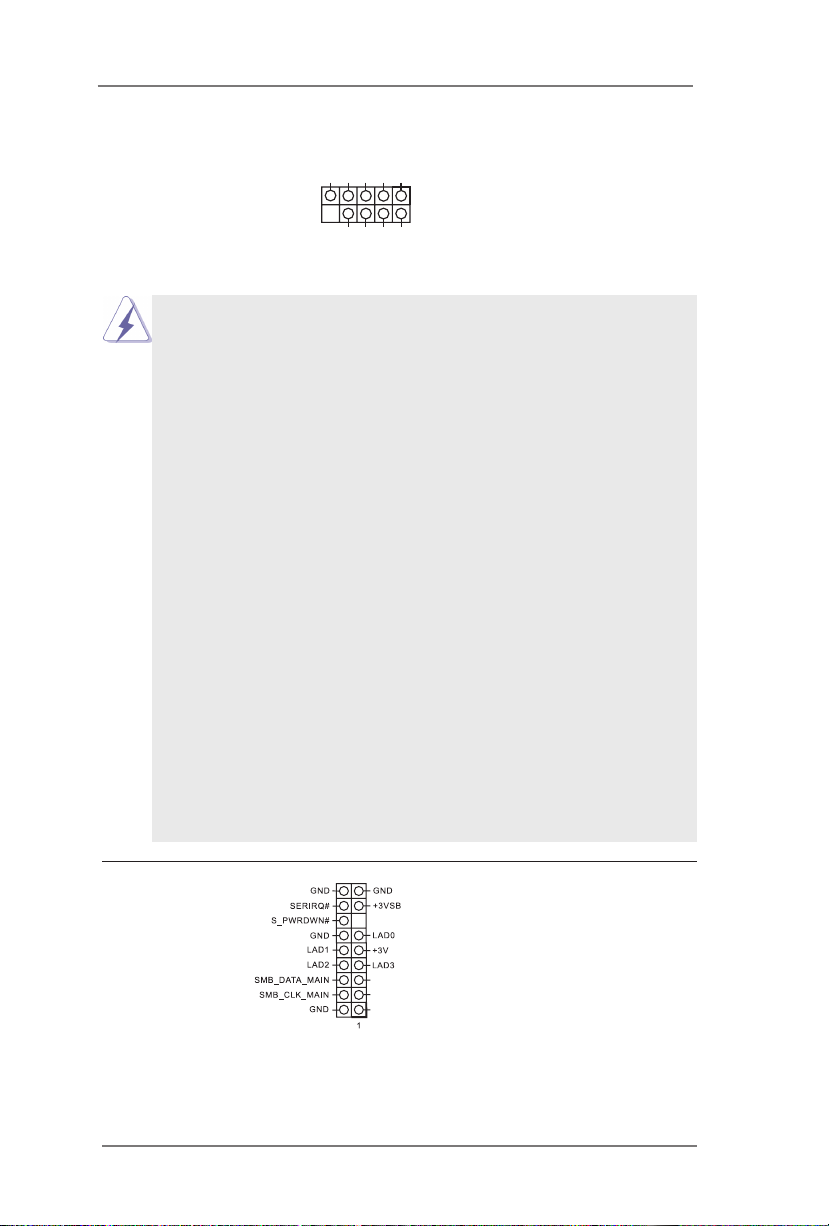

System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8, No. 6) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn o󰀨 your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1/S3 sleep state. The LED is o󰀨 when the system is in S4 sleep
state or powered o󰀨 (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may di󰀨er by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
LPC Header This connector supports a
(19-pin LPC1) Trusted Platform Module (LPC)
(see p.8, No. 11) system, which can
securely store keys, digital
certicates, passwords, and
data. A LPC system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
DUMMY
GND
1
N/A

18
+VBAT GND
1
USB 2.0 Header There is one header on this
(9-pin USB2_4_5) motherboard.
(see p.8, No. 10)
Battery Connector Connect the battery to this
(2-pin BAT1) connector.
(see p.8, No. 8)
N/A

19
Chapter 3: UEFI SETUP UTILITY
3.1 Introduction
This section explains how to use the UEFI SETUP UTILITY to congure your
system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You
may run the UEFI SETUP UTILITY when you start up the computer. Please press
<F2> or <Del> during the Power-On-Self-Test (POST) to enter the UEFI SETUP
UTILITY, otherwise, POST will continue with its test routines.
If you wish to enter the UEFI SETUP UTILITY after POST, restart the system by
pressing <Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system
chassis. You may also restart by turning the system o󰀨 and then back on.
Because the UEFI software is constantly being updated, the
following UEFI setup screens and descriptions are for reference
purpose only, and they may not exactly match what you see on
your screen.
3.1.1 UEFI Menu Bar
The top of the screen has a menu bar with the following selections:
Main To set up the system time/date information
Advanced To set up the advanced UEFI features
H/W Monitor To display current hardware status
Security To set up the security features
Boot To set up the default system device to locate and load the
Operating System
Exit To exit the current screen or the UEFI SETUP UTILITY
Use < > key or < > key to choose among the selections on the menu
bar, and then press <Enter> to get into the sub screen. You can also use the
mouse to click your required item.

20
3.1.2 Navigation Keys
Please check the following table for the function description of each navigation
key.
Navigation Key(s) Function Description
/ Moves cursor left or right to select Screens
/ Moves cursor up or down to select items
+ / - To change option for the selected items
<Enter> To bring up the selected screen
<F1> To display the General Help Screen
<F7> Discard changes
<F9> To load optimal default values for all the settings
<F10> To save changes and exit the UEFI SETUP UTILITY
<F12> Print screen
<ESC> To jump to the Exit Screen or exit the current screen
<Tab> Switch to next function
<PGUP> Go to the previous page
<PGDN> Go to the next page
<HOME> Go to the top of the screen
<END> Go to the bottom of the screen
3.2 Main Screen
When you enter the UEFI SETUP UTILITY, the Main screen will appear and display
the system overview.
