ASROCK X300TM-ITX User manual

Version 1.0
Published December 2020
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”

AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

English
1
X300TM-ITX
Motherboard Layout
12
Audio
CODEC
HDLED RESET
PLED PWRBTN
PANEL1
1
COM1
14
DC Jack
HDMI1
HDMI2
Super
I/O
BIOS
ROM
M.2 WiFi
M.2 SSD
CPU_FAN2
CPU_FAN1
8
X300TM-ITX
RoHS
17 16
DDR4_B1
DDR4_A1
SATA_1
3
1
USB_4_5
5
LVDS1
BKL_INVERTER
1
13
1
11
SPK_OUT1
1
USB 3.2 Gen1 T: USB_TA_2
USB 3.2 Gen1 B: USB_TC_1
USB 3.2 Gen1
T: USB3_0
B: USB3_1
RJ-45
Headphone
Mic In
ATX_PWR1
1
HD_AUDIO1
18
9
6
USB_6_7
24
1
SATAPWR1
M2_1_CT2
M2_1_CT1
MH1
1
CI1
10
PNL_
SW1
BKT_PWR1
1
1
SOCKETAM4
Ultra M.2
PCIe Gen3 x4
CLRMOS1
1
7
15
PNL_PWR1
11 1
1

English
2
No. Description
1 4 pin 19V Power Connector (ATX_PWR1)
2 SATA Power Connector (SATAPWR1)
3 SATA3 Connector (SATA_1)
4 Clear CMOS Jumper (CLRCMOS1)
5 USB 2.0 Header (USB_4_5)
6 USB 2.0 Header (USB_6_7)
7 Backlight Inverter Voltage Selection Header (BKT_PWR1)
8 FPD Brightness Header (BLT_INVERTER)
9 Panel O Header (PNL_SW1)
10 Panel Voltage Selection Header (PNL_PWR1)
11 LVDS Connector (LVDS1)
12 2 x 260-pin DDR4 SO-DIMM Slots (DDR4_A1, DDR4_B1)
13 CPU Fan Connector (CPU_FAN1)
14 CPU Fan Connector (CPU_FAN2)
15 Chassis Intrusion Header (CI1)
16 System Panel Header (PANEL1)
17 Internal Speaker Header (SPK_OUT1)
18 Front Panel Audio Header (HD_AUDIO1)

English
3
X300TM-ITX
ACT/LINK LED
SPEED LED
LAN Port
982 64
5
31 7
*Specication for DC plug
2.5 mm
5.5 mm

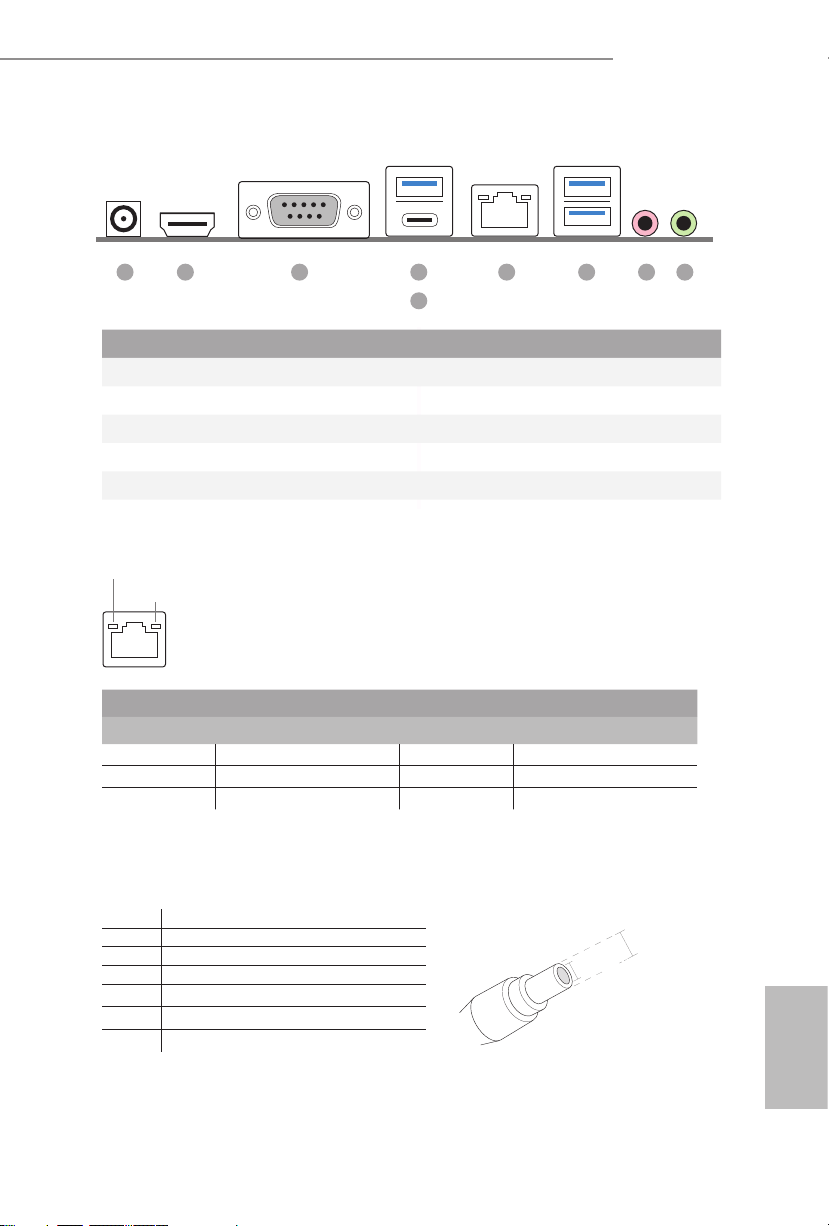

I/O Panel
No. Description No. Description
1 DC Jack** 6 LAN RJ-45 Port*
2HDMI Port (HDMI1) 7USB 3.2 Gen1 Type-A Port (USB3_01)
3COM Port 8Microphone (Pink)
4 USB 3.2 Gen1 Type-A Port (USB_TA_2) 9 Line out (Lime)
5 USB 3.2 Gen1 Type-C Port (USB_TC_1)
*ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Green 100Mbps connection
On Link Green 1Gbps connection
** Please use a 19V power adapter for the DC jack. is jack accepts dual barrel plugs with an inner diameter of 2.5
mm and an outer diameter of 5.5 mm, where the inner contact is +19 (±10%) DC and the shell is (centre positive).
DELTA DELTA-ADP-150TB-150W/19V
HP HP-TBC-BA52-150W/19V
FSP FSP-FSP150-ABAN1-150W/19V
DELL FA130PE1-00-130W/19.5V
DELL LA90PE0-01-90W/19.5V
DELTA DELTA-ADP-180TB-180W/19V
FSP FSP-FSP180-ABBN3-180W/19V
is motherboard is available with support for either 4-pin ATX 19V power or DC-in power supplies. Please do
not use two kinds of power supplies at the same time! Doing so may damage the motherboard components and
devices. When you use the DC-in power adapter, please use the onboard SATA power connector to get the power
for HDDs.

English
4
Chapter 1 Introduction
ank you for purchasing H410TM-ITX motherboard. In this documentation,
Chapter 1 and 2 contains the introduction of the motherboard and step-by-step
installation guides.
1.1 Package Contents
• X300TM-ITX Motherboard (in Mini-ITX Form Factor)
• X300TM-ITX Quick Installation Guide (Optional)
• 1 x in-Mini ITX I/O Shield (Optional)
• 1 x Mini ITX I/O Shield (Optional)
• 1 x Serial ATA (SATA) Data Cable (Optional)
• 1 x SATA Power Cable (Optional)
• 2 x Screws for M.2 Sockets (M2*2) (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice.

English
5
X300TM-ITX
1.2 Specications
Platform • in Mini-ITX Form Factor
• Solid Capacitor design
CPU • Supports AMD AM4 Socket CPUs (Renoir, Picasso, Raven
Ridge, up to 65W)
• Supports CPU up to 65W
• 5 Power Phase design
Chipset • AMD X300
Memory • Dual Channel DDR4 Memory Technology
• 2 x DDR4 SO-DIMM Slots
• AMD Renoir series APUs support DDR4
3200/2933/2667/2400/2133 non-ECC, un-buered memory*
• AMD Ryzen series CPUs (Picasso) support DDR4
2933/2667/2400/2133 non-ECC, un-buered memory*
• AMD Ryzen series CPUs (Raven Ridge) support DDR4
2933/2667/2400/2133 non-ECC, un-buered memory*
* Please refer to page 13 for DDR4 SO-DIMM maximum
frequency support.
• Max. capacity of system memory: 64GB
• 15μ Gold Contact in SO-DIMM Slots
Expansion
Slot • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Graphics • Integrated AMD RadeonTM Vega Series Graphics in Ryzen
Series APU*
* Actual support may vary by CPU
• DirectX 12, Pixel Shader 5.0
• Shared memory default 2GB. Max Shared memory supports
up to 16GB.
* e Max shared memory 16GB requires 32GB system memory
installed.
• ree graphics output options: 2 x HDMI, 1 x LVDS ports
• Supports 2 x HDMI 2.1 with max. resolution up to 4K@
60Hz
HDMI x 1 port (Rear)
HDMI x 1 port (Internal)

English
6
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR
(High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI
monitor is required)
• Supports LVDS with max. resolution up to 1920x1080 @ 60Hz
• Supports HDCP 2.3 with HDMI 2.1 Port
* Picasso supports HDCP 2.2 with HDMI 2.0 Port
Audio • Realtek ALC233 Audio Codec
• 1 x Headphone Jack
• 1 x MIC-In
LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111GR
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Ecient Ethernet 802.3az
• Supports PXE
I/O • 1 x DC Jack (Compatible with the 19V power adapter)
• 1 x Serial Port: COM
• 2 x HDMI Ports: HDMI1 (Rear), HDMI2 (Internal)
• 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
• 1 x USB 3.2 Gen1 Type-C (co-layout USB 3.2 Gen1 Type-A)
Port (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
• HD Audio Jacks: Line out / Microphone
Storage • 1 x SATA3 6.0 Gb/s Connector, supports NCQ, AHCI and Hot
Plug
• 1 x Ultra M.2 Socket, supports M Key type 2260/2280 M.2
SATA3 6.0 Gb/s module and M.2 PCI Express module up to
Gen3 x4 (32 Gb/s)
* Supports NVMe SSD as boot disks
* (Optional) 2 x SATA3 6.0 Gb/s Connectors, 1 x Ultra M.2
Socket, supports M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Connector • 1 x Chassis Intrusion Header
• 1 x Panel Voltage Selection Header
• 1 x Backlight Inverter Voltage Selection Header

English
7
X300TM-ITX
• 1 x FPD Brightness Header
• 1 x Panel O Header
• 1 x LVDS Connector
• 2 x CPU Fan Connectors (4-pin)
* e CPU Fan Connectors support the CPU fan of maximum 1A
(12W) fan power.
• 1 x 4 pin 19V Power Connector
• 1 x Front Panel Audio Connector
• 1 x Internal Speaker Header (4-Pin)
• 1 x SATA Power Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD
Protection)
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
• Supports "Plug and Play"
• ACPI 5.1 compliance wake up events
• Supports jumperfree
• SMBIOS 2.3 support
• DRAM Voltage adjustment
Hardware
Monitor
• CPU Temperature Sensing
• CPU Fan Tachometer
• CPU Quiet Fan (Auto adjust chassis fan speed by CPU
temperature)
• CPU Fan Multi-Speed Control
• CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
OS • Microso® Windows® 10 64-bit
Power • 1 x DC Jack (Supports 19V DC Power Adapters)
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your own risk and expense.
We are not responsible for possible damage caused by overclocking.

English
8
is is a in Mini-ITX form factor motherboard. Before you install the
motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard.
Failure to do so may cause physical injuries to you and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

English
9
X300TM-ITX

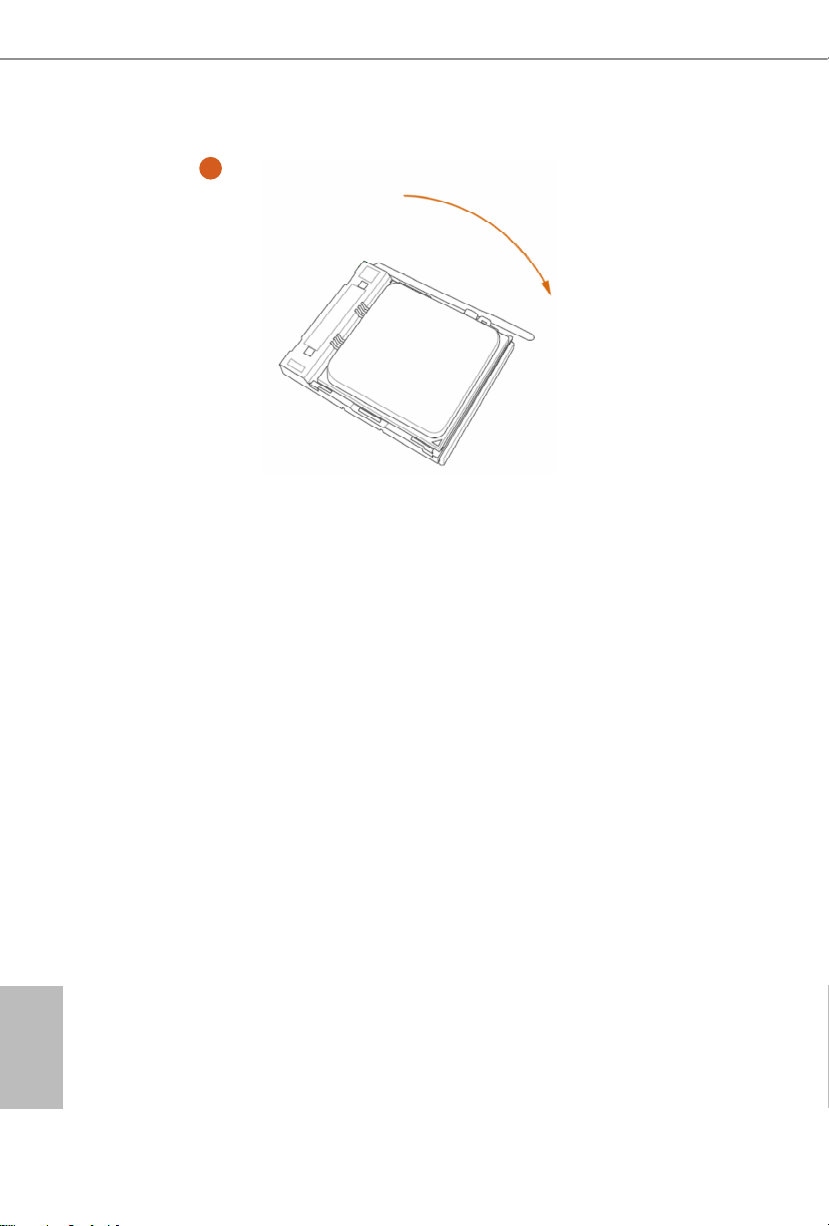

2.1 Installing the CPU
Unplug all power cables before installing the CPU.
2
1

English
10
3

English
11
X300TM-ITX
2.2 Installing the CPU Fan and Heatsink
Aer you install the CPU into this motherboard, it is necessary to install a larger
heatsink and cooling fan to dissipate heat. You also need to spray thermal grease
between the CPU and the heatsink to improve heat dissipation. Make sure that the
CPU and the heatsink are securely fastened and in good contact with each other.
Please turn o the power or remove the power cord before changing a CPU or heatsink.
1

English
12
2
CPU_FAN
1

English
13
X300TM-ITX
2.3 Installing Memory Modules (SO-DIMM)
is motherboard provides two 260-pin DDR4 (Double Data Rate 4) SO-DIMM
slots.
DDR4 SO-DIMM Maximum Frequency Support
Ryzen Series APUs (Renoir):
Ryzen Series CPUs (Picasso):
SO-DIMM Memory Slot Frequency
(Mhz)
A1 B1
SR -2933
-SR 2933
DR -2667
-DR 2667
SR SR 2993
DR DR 2667
UDIMM Memory Slot Frequency
(Mhz)
A1 B1
SR -3200
-SR 3200
DR -3200
-DR 3200
SR SR 3200
DR DR 3200

English
14
Ryzen Series CPUs (Raven Ridge):
SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label
SO-DIMM Memory Slot Frequency
(Mhz)
A1 B1
-SR 2933
SR -2933
-DR 2667
DR -2667
SR SR 2667
DR DR 2400
1
2

English
15
X300TM-ITX
1
2
It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot;
otherwise, this motherboard and SO-DIMM may be damaged.
e SO-DIMM only ts in one correct orientation. It will cause permanent damage
to the motherboard and the DIMM if you force the DIMM into the slot at incorrect
orientation.

English
16
2.4 Jumpers Setup
e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”
when a jumper cap is placed on these 2 pins.
Clear CMOS Jumper
(CLRMOS1)
(see p.1, No. 4)
CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system
parameters to default setup, please turn o the computer and unplug the power
cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to
short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear the
CMOS right aer you update the BIOS. If you need to clear the CMOS when you
just nish updating the BIOS, you must boot up the system rst, and then shut it
down before you do the clear-CMOS action. Please be noted that the password,
date, time, and user default prole will be cleared only if the CMOS battery is
removed.
Default
If you clear the CMOS, the case open may be detected. Please adjust the BIOS option
“Clear Status” to clear the record of previous chassis intrusion status.

English
17
X300TM-ITX
Backlight Inverter Voltage
Selection Header
(3-pin BKT_PWR1)
(see p.1, No. 7)
1-2 : +12V
2-3 : +19V
Panel Voltage Selection
Header
(6-pin PNL_PWR1)
(see p.1, No. 10)
Warning:
If selected Backlight Power or Panel Power is higher than panel's spec, it
may damage the panel.
+3V +5V [Default] +12V

English
18
2.5 Onboard Headers and Connectors
System Panel Header
(9-pin PANEL1)
(see p.1, No. 16)
Connect the power
button, reset button and
system status indicator on
the chassis to this header
according to the pin
assignments below. Note
the positive and negative
pins before connecting
the cables.
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
headers and connectors. Placing jumper caps over the headers and connectors will cause
permanent damage to the motherboard.
PWRBTN (Power Button):
Connect to the power button on the chassis front panel. You may congure the way to turn
o your system using the power button.
RESET (Reset Button):
Connect to the reset button on the chassis front panel. Press the reset button to restart the
computer if the computer freezes and fails to perform a normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. e LED is on when the
system is operating. e LED keeps blinking when the system is in S1/S3 sleep state. e
LED is o when the system is in S4 sleep state or powered o (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. e LED is on when the
hard drive is reading or writing data.
e front panel design may dier by chassis. A front panel module mainly consists of power
button, reset button, power LED, hard drive activity LED, speaker and etc. When connect-
ing your chassis front panel module to this header, make sure the wire assignments and the
pin assignments are matched correctly.
