ASROCK X99 WS-E/10G User manual

X99 WS-E/10GX99 WS-E/10G
X99 WS-E/10GX99 WS-E/10G
X99 WS-EX99 WS-E
X99 WS-EX99 WS-E

Version 1.0
Published November 2014
Copyright©2014 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535;
7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, &
DTS and the Symbol together is a registered trademark & DTS Connect, DTS Interactive,
DTS Neo:PC are trademarks of DTS, Inc. Product includes soware.
© DTS, Inc., All Rights Reserved.

Contents
Chapter 1 Introduction 7
1.1 Package Contents 7
1.2 Specications 8

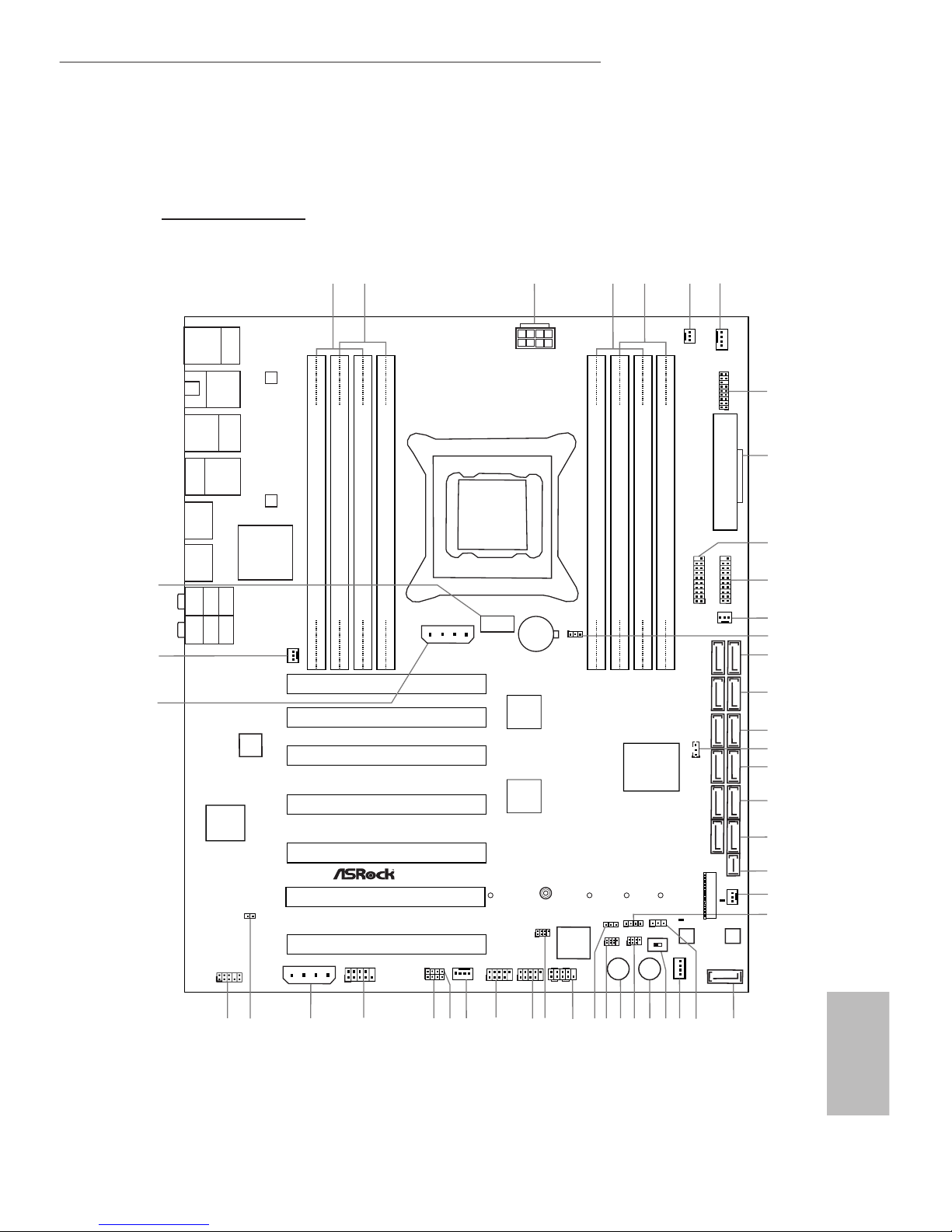

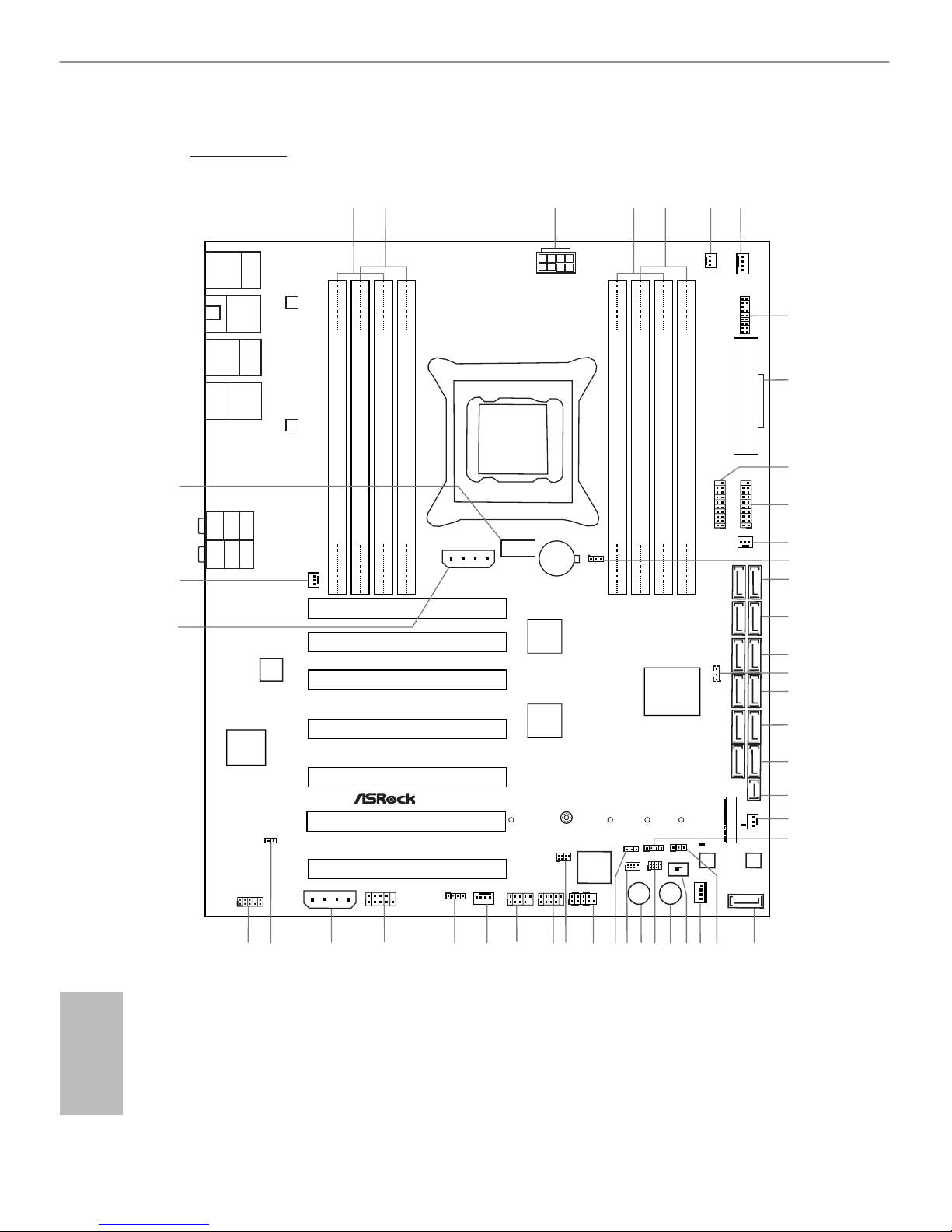

1.3 Motherboard Layout 13
1.4 I/O Panel 19
Chapter 2 Installation 23
2.1 Installing the CPU 24
2.2 Installing the CPU Fan and Heatsink 27
2.3 Installation of Memory Modules (DIMM) 28
2.4 Expansion Slots (PCI Express Slots) 30
2.5 Jumpers Setup 31
2.6 Onboard Headers and Connectors 32
2.7 Smart Switches 38
2.8 Dr. Debug 39
2.9 SLITM , 3-Way SLITM , 4-Way SLITM and Quad SLITM Operation
Guide 41
2.9.1 Installing Two SLITM-Ready Graphics Cards 41
2.9.2 Installing Three SLITM-Ready Graphics Cards 43
2.9.3 Installing Four SLITM-Ready Graphics Cards 45
2.9.4 Driver Installation and Setup 47
2.10 CrossFireXTM, 3-Way CrossFireXTM, 4-Way CrossFireXTM and
Quad CrossFireXTM Operation Guide 48

2.10.1 Installing Two CrossFireXTM-Ready Graphics Cards 48
2.10.2 Installing Three CrossFireXTM-Ready Graphics Cards 50
2.10.3 Installing Four CrossFireXTM-Ready Graphics Cards 51
2.10.4 Driver Installation and Setup 52
2.11 M.2_SSD (NGFF) Module Installation Guide 53
2.12 SATA DOM (Disk on Module) Installation Guide 56
2.13 Dual LAN and Teaming Operation Guide 57
Chapter 3 Software and Utilities Operation 58
3.1 Installing Drivers 58
3.2 A-Tuning 59
3.3 ASRock APP Shop 65
3.3.1 UI Overview 65
3.3.2 Apps 66
3.3.3 BIOS & Drivers 69
3.3.4 Setting 70
3.4 Start8 71
Chapter 4 UEFI SETUP UTILITY 74
4.1 Introduction 74
4.1.1 UEFI Menu Bar 74
4.1.2 Navigation Keys 75
4.2 Main Screen 76
4.3 OC Tweaker Screen 77
4.4 Advanced Screen 86
4.4.1 CPU Conguration 87

4.4.2 Chipset Conguration 89
4.4.3 Storage Conguration 92
4.4.4 Super IO Conguration 93
4.4.5 ACPI Conguration 94
4.4.6 USB Conguration 95
4.4.7 Trusted Computing 96
4.5 Tools 97
4.6 Hardware Health Event Monitoring Screen 101
4.7 Security Screen 103
4.8 Boot Screen 104
4.9 Exit Screen 107

7
English
X99 WS-E/10G / X99 WS-E
Chapter 1 Introduction
ank you for purchasing ASRock X99 WS-E/10G / X99 WS-E motherboard, a
reliable motherboard produced under ASRock’s consistently stringent quality
control. It delivers excellent performance with robust design conforming to
ASRock’s commitment to quality and endurance.
In this documentation, Chapter 1 and 2 contains the introduction of the
motherboard and step-by-step installation guides. Chapter 3 contains the operation
guide of the soware and utilities. Chapter 4 contains the conguration guide of
the BIOS setup.
1.1 Package Contents
•ASRock X99 WS-E/10G / X99 WS-E Motherboard (EATX Form Factor)
•ASRock X99 WS-E/10G / X99 WS-E Quick Installation Guide
•ASRock X99 WS-E/10G / X99 WS-E Support CD
•1 x I/O Panel Shield
•1 x ASRock Flexible SLI Bridge Connector Cable (14 cm)
•1 x ASRock 3-Way SLI Bridge Card
•1 x ASRock 4-Way SLI Bridge Card
•6 x Serial ATA (SATA) Data Cables (Optional)
•1 x Screw for M.2 Socket
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any modi-
cations of this documentation occur, the updated version will be available on ASRock’s
website without further notice. If you require technical support related to this mother-
board, please visit our website for specic information about the model you are using. You
may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock
website http://www.asrock.com.

8
English
1.2 Specications
Platform •EATX Form Factor
•8 Layer PCB
•4 x 2oz Copper PCB
•High Density Glass Fabric PCB
CPU •Supports Intel® CoreTM i7 and Xeon® E5-1600/2600 v3
Processor Family for the LGA 2011-3 Socket, up to 18 Cores
and 160W
•Digi Power design
•12 Power Phase design
•Supports Intel® Turbo Boost 2.0 Technology
•Supports Untied Overclocking Technology
Chipset •Intel® X99
Memory •Quad Channel DDR4 Memory Technology
•8 x DDR4 DIMM Slots
•Supports DDR4 3200+(OC)*/2933(OC)/2800(OC)/2400
(OC)/2133/1866/ 1600/1333/1066 non-ECC, un-buered
memory
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
•Supports non-ECC RDIMM (Registered DIMM)
•Supports DDR4 ECC, un-buered memory/RDIMM with
Intel® Xeon® processors E5 series in the LGA 2011-3 Socket
•Max. capacity of system memory: 128GB (see CAUTION)
•Supports Intel® Extreme Memory Prole (XMP) 2.0
•15 Gold Contact in DIMM Slots
Expansion
Slot
•7 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/
PCIE5/PCIE6/PCIE7: single at x16 (PCIE7); dual at x16
(PCIE7) / x16 (PCIE3); triple at x16 (PCIE7) / x16 (PCIE5) /
x16 (PCIE3); quad at x16 (PCIE7) / x16 (PCIE5) / x16 (PCIE3)
/ x16 (PCIE1))
•2 x embedded PLX PEX 8747
•Supports AMD Quad CrossFireXTM, 4-Way CrossFireXTM,
3-Way CrossFireXTM and CrossFireXTM
•Supports NVIDIA® Quad SLITM, 4-Way SLITM, 3-Way SLITM
and SLITM

9
English
X99 WS-E/10G / X99 WS-E
•15 Gold Contact in VGA PCIe Slot (PCIE1, PCIE3, PCIE5
and PCIE7)
Audio •7.1 CH HD Audio with Content Protection (Realtek
ALC1150 Audio Codec)
•Premium Blu-ray Audio support
•Supports Surge Protection (ASRock Full Spike Protection)
•Supports Purity Sound™ 2
- Nichicon Fine Gold Series Audio Caps
- 115dB SNR DAC with Dierential Amplier
- TI® NE5532 Premium Headset Amplier (Supports up to
600 Ohms headsets)
- Direct Drive Technology
- EMI Shielding Cover
- PCB Isolate Shielding
•Supports DTS Connect
LAN •2 x Gigabit LAN 10/100/1000 Mb/s (Supported by 2 x Intel®
I210AT)
•2 x 10G BASE-T LAN (Supported by Intel® X540 )
(for X99 WS-E/10G only)
•Supports Wake-On-LAN
•Supports Dual LAN with Teaming
•Supports Quad LAN with Teaming (for X99 WS-E/10G
only)
•Supports Lightning/ESD Protection (ASRock Full Spike
Protection)
•Supports Energy Ecient Ethernet 802.3az
•Supports PXE
Rear Panel
I/O
•1 x Optical SPDIF Out Port
•1 x eSATA Connector
•4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full
Spike Protection))
•4 x USB 3.0 Ports (ASMedia ASM1074 hub) (Supports ESD
Protection (ASRock Full Spike Protection))
•2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED
LED) (for X99 WS-E)
•4 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED
LED) (for X99 WS-E/10G)

10
English
•1 x Clear CMOS Switch
•HD Audio Jacks: Rear Speaker / Central / Bass / Line in /
Front Speaker / Microphone
Storage •10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID
0, RAID 1, RAID 5, RAID 10 and Intel Rapid Storage 13),
NCQ, AHCI and Hot Plug
(S_SATA3_2 is shared with the SATA DOM; S_SATA3_3 is
shared with the eSATA)
* RAID is supported on SATA3_0 ~ SATA3_5 ports only.
•2 x SATA3 6.0 Gb/s Connectors by Marvell SE9172, support
RAID (RAID 0 and RAID 1), NCQ, AHCI and Hot Plug
* Marvell SE9172 RAID is supported with Windows® OS only.
•1 x SATA DOM Connector (shared with S_SATA3_2)
•1 x SATA Express 10 Gb/s Connector (shared with SATA3_4
and SATA3_5)
* Support to be announced
•1 x eSATA Connector, support NCQ, AHCI and Hot Plug
•1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0
Gb/s module and M.2 PCI Express module up to Gen2 x 4 (20
Gb/s)
* If M2_1 is occupied by a SATA-type M.2 device, S_SATA3_0
will be disabled.
* If you install a M.2 PCI Express module and the SATA_EXP0
is in use, the M2_1 will downgrade to x2 mode.
Connector •1 x COM Port Header
•1 x Chassis Intrusion Header
•1 x TPM Header
•1 x Power LED Header
•2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
•3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan
Speed Control)
•1 x Power Fan Connector (3-pin)
•1 x SB Fan Connector (3-pin)
•1 x 24 pin ATX Power Connector
•1 x 8 pin 12V Power Connector (Hi-Density Power
Connector)
•1 x SATA DOM Power Header
•2 x PCIe Power Connectors

11
English
X99 WS-E/10G / X99 WS-E
•1 x SATA DOM Power Jumper
•3 x SATA Serial General Purpose Input/Output Headers
•1 x Front LAN LED Connector (for X99 WS-E)
•2 x Front LAN LED Connectors (for X99 WS-E/10G)
•1 x Front Panel Audio Connector
•2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports
ESD Protection (ASRock Full Spike Protection))
•1 x USB DOM Connector
•2 x USB 3.0 Headers (Support 4 USB 3.0 ports) (Supports
ESD Protection (ASRock Full Spike Protection))
•1 x Dr. Debug with LED
•1 x Power Switch with LED
•1 x Reset Switch with LED
•1 x BIOS Selection Switch
BIOS
Feature
•2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI
support (1 x Main BIOS and 1 x Backup BIOS)
•Supports Secure Backup UEFI Technology
•ACPI 1.1 Compliant wake up events
•SMBIOS 2.3.1 Support
•CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-
adjustment
Hardware
Monitor
•CPU/Chassis temperature sensing
•CPU/Chassis/Power/SB Fan Tachometer
•CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by
CPU temperature)
•CPU/Chassis/SB Fan multi-speed control
•Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage,
CPU Internal Voltages
OS •Microso® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-
bit / 7 32-bit / 7 64-bit / Server 2012 R2 64-bit / Server 2012
64-bit / Server 2008 R2 64-bit
Certica-
tions
•FCC, CE, WHQL
•ErP/EuP Ready (ErP/EuP ready power supply is required)
* For detailed product information, please visit our website: http://www.asrock.com

12
English
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your own risk and expense.
We are not responsible for possible damage caused by overclocking.
Due to limitation, the actual memory size may be less than 4GB for the reservation for sys-
tem usage under Windows® 32-bit operating systems. Windows® 64-bit operating systems
do not have such limitations. You can use ASRock XFast RAM to utilize the memory that
Windows® cannot use.

13
English
X99 WS-E/10G / X99 WS-E
Intel
X99
PEX
8747
ATX12V1
Supe r
I/O
ATXPWR1
1
USB3_5_6
LAN
Intel
X540
LAN
PCIE7
PCIE5
PCIE6
PCIE4
PCIE3
Top:
Central/Bass
Center:
REAR SPK
Top:
LINE IN
Center:
FRONT
Bottom:
Optical
SPDIF
Bottom:
MIC IN
PLED1
1
HDLED RESET
PLED PWRBTN
PANEL1
1
USB7_8
1 1
USB5_6
COM1
1
1
HD_AUDIO1
X99 WS-E 10G/
PCIE1
PCIE2
CHA_FAN1
CPU_FAN1
CPU_FAN2
PWR_FAN1
RoHS
9
8
14
11
15
16
17
18
19
22
23
10
29 283039
41
42
43
CLRC
BTN1
ESATA1
USB 2.0
T: USB3
B: USB4
Top:
RJ-45
USB 2.0
T: USB1
B: USB2
367
DDR4_A2 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module) DDR4_B2 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
2
1
46
Purity
Sound 2
TM
24
25
128Mb
BIOS
BIOS_A
128Mb
BIOS
BIOS_B
BIOS_A_LED
CMOS
Battery
CLRMOS1
1
CHA_FAN3
PCIE_PWR2
3540
12
13
45
SATA_PWR1
1
SB_FAN1
M2_1
CT2CT3CT4CT5CT1
DDR4_D1 (64 bit, 288-pin module)
DDR4_D2 (64 bit, 288-pin module) DDR4_C1 (64 bit, 288-pin module)
DDR4_C2 (64 bit, 288-pin module)
5
4
2011-3 Socket
1
USB3_7_8
Dr.
Debug
Reset Power
26
2738 37 32 31
34 3336
BIO S_ SEL 1
AB
Top:
RJ-45
USB 3.0
T: USB3
B: USB4
RJ-45
RJ-45
USB 3.0
T: USB1
B: USB2
SATA3 _M 0_ M1S_SATA3 _2 _3S_SATA3_ 0_1
SATA3 _0 _3
SATA3 _1 _4
PEX
8747
44
BIOS_B_LED
SATAE _1
20
SATA3 _2 _5
21
SATA_0
1
SATA_SGPIO1
1
SSATA_SGPIO1
1
SATA_SGPIO2
USB9
1
SATAPWR1
PCIE_PWR1
1
SPEAKER1
1
1
FRONT_LAN_1
FRONT_LAN_2
1
TPMS1
1
CI1
SATA_ EXP 0
CHA_FAN2
1.3 Motherboard Layout
X99 WS-E/10G

14
English
No. Description
1 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
2 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
3 ATX 12V Power Connector (ATX12V1)
4 2 x 288-pin DDR4 DIMM Slots (DDR4_D2, DDR4_C2)
5 2 x 288-pin DDR4 DIMM Slots (DDR4_D1, DDR4_C1)
6 CPU Fan Connector (CPU_FAN2)
7 CPU Fan Connector (CPU_FAN1)
8TPM Header (TPMS1)
9 ATX Power Connector (ATXPWR1)
10 USB 3.0 Header (USB3_7_8)
11 USB 3.0 Header (USB3_5_6)
12 Chassis Fan Connector (CHA_FAN3)
13 Clear CMOS Jumper (CLRCMOS1)
14 SATA3 Connectors (SATA3_M0_M1)
15 SATA3 Connectors (S_SATA3_2_3)
16 SATA3 Connectors (S_SATA3_0_1)
17 SB Fan Connector (SB_FAN1)
18 SATA3 Connectors (SATA3_0_3)
19 SATA3 Connectors (SATA3_1_4)
20 SATA3 Connectors (SATA3_2_5)
21 SATA Express Connector (SATAE_1)
22 Chassis Fan Connector (CHA_FAN2)
23 Chassis Speaker Header (SPEAKER1)
24 SATA DOM Connector (SATA_0)
25 SATA DOM Power Jumper (SATAPWR1)
26 SATA DOM Power Header (SATA_PWR1)
27 BIOS Selection Switch (BIOS_SEL1)
28 Power Switch (PWRBTN1)
29 SATA SGPIO Connector (SATA_SGPIO2)
30 Reset Switch (RSTBTN1)
31 SATA SGPIO Connector (SATA_SGPIO1)
32 Power LED Header (PLED1)
33 System Panel Header (PANEL1)
34 SATA SGPIO Connector (SSATA_SGPIO1)

15
English
X99 WS-E/10G / X99 WS-E
No. Description
35 USB 2.0 Header (USB5_6)
36 USB 2.0 Header (USB7_8)
37 Chassis Fan Connector (CHA_FAN1)
38 Front Lan LED Connector (FRONT_LAN_1)
39 Front Lan LED Connector (FRONT_LAN_2)
40 COM Port Header (COM1)
41 PCIe Power Connector (PCIE_PWR2)
42 Chassis Intrusion Header (CI1)
43 Front Panel Audio Header (HD_AUDIO1)
44 PCIe Power Connector (PCIE_PWR1)
45 Power Fan Connector (PWR_FAN1)
46 USB DOM Connector (USB9)

16
English
X99 WS-E
Intel
X99
PEX
8747
ATX12V1
Supe r
I/O
ATXPWR1
1
USB3_5_6
LAN
LAN
PCIE7
PCIE5
PCIE6
PCIE4
PCIE3
Top:
Central/Bass
Center:
REAR SPK
Top:
LINE IN
Center:
FRONT
Bottom:
Optical
SPDIF
Bottom:
MIC IN
PLED1
1
HDLED RESET
PLED PWRBTN
PANEL1
1
USB7_8
1 1
USB5_6
COM1
1
1
HD_AUDIO1
X99 WS-E
PCIE1
PCIE2
CHA_FAN1
CPU_FAN1
CPU_FAN2
RoHS
9
8
14
11
15
16
17
18
19
22
23
10
29 283038
40
41
42
CLRC
BTN1
ESATA1
USB 2.0
T: USB3
B: USB4
Top:
RJ-45
USB 2.0
T: USB1
B: USB2
367
DDR4_A2 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module) DDR4_B2 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
2
1
45
Purity
Sound 2
TM
24
25
128Mb
BIOS
BIOS_A
128Mb
BIOS
BIOS_B
BIOS_A_LED
CMOS
Battery
CLRMOS1
1
CHA_FAN3
CHA_FAN2
PCIE_PWR2
3539
12
13
44
SATA_PWR1
1
SB_FAN1
M2_1
CT2CT3CT4CT5CT1
DDR4_D1 (64 bit, 288-pin module)
DDR4_D2 (64 bit, 288-pin module) DDR4_C1 (64 bit, 288-pin module)
DDR4_C2 (64 bit, 288-pin module)
5
4
2011-3 Socket
1
USB3_7_8
Dr.
Debug
Reset Power
26
2737 32 31
34 3336
BIO S_ SEL 1
AB
Top:
RJ-45
USB 3.0
T: USB3
B: USB4
USB 3.0
T: USB1
B: USB2
SATA3 _M 0_ M1S_SATA3 _2 _3S_SATA3_ 0_1
SATA3 _0 _3
SATA3 _1 _4
PEX
8747
43
BIOS_B_LED
SATAE _1
20
SATA3 _2 _5
21
SATA_0
1
SATA_SGPIO1
1
SSATA_SGPIO1
1
SATA_SGPIO2
USB9
1
SATAPWR1
PCIE_PWR1
1
SPEAKER1
1
FRONT_LAN_1
1
TPMS1
1
CI1
SATA_ EXP 0
PWR_FAN1

17
English
X99 WS-E/10G / X99 WS-E
No. Description
1 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
2 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
3 ATX 12V Power Connector (ATX12V1)
4 2 x 288-pin DDR4 DIMM Slots (DDR4_D2, DDR4_C2)
5 2 x 288-pin DDR4 DIMM Slots (DDR4_D1, DDR4_C1)
6 CPU Fan Connector (CPU_FAN2)
7 CPU Fan Connector (CPU_FAN1)
8TPM Header (TPMS1)
9 ATX Power Connector (ATXPWR1)
10 USB 3.0 Header (USB3_7_8)
11 USB 3.0 Header (USB3_5_6)
12 Chassis Fan Connector (CHA_FAN3)
13 Clear CMOS Jumper (CLRCMOS1)
14 SATA3 Connectors (SATA3_M0_M1)
15 SATA3 Connectors (S_SATA3_2_3)
16 SATA3 Connectors (S_SATA3_0_1)
17 SB Fan Connector (SB_FAN1)
18 SATA3 Connectors (SATA3_0_3)
19 SATA3 Connectors (SATA3_1_4)
20 SATA3 Connectors (SATA3_2_5)
21 SATA Express Connector (SATAE_1)
22 Chassis Fan Connector (CHA_FAN2)
23 Chassis Speaker Header (SPEAKER1)
24 SATA DOM Connector (SATA_0)
25 SATA DOM Power Jumper (SATAPWR1)
26 SATA DOM Power Header (SATA_PWR1)
27 BIOS Selection Switch (BIOS_SEL1)
28 Power Switch (PWRBTN1)
29 SATA SGPIO Connector (SATA_SGPIO2)
30 Reset Switch (RSTBTN1)
31 SATA SGPIO Connector (SATA_SGPIO1)
32 Power LED Header (PLED1)
33 System Panel Header (PANEL1)
34 SATA SGPIO Connector (SSATA_SGPIO1)

18
English
No. Description
35 USB 2.0 Header (USB5_6)
36 USB 2.0 Header (USB7_8)
37 Chassis Fan Connector (CHA_FAN1)
38 Front Lan LED Connector (FRONT_LAN_1)
39 COM Port Header (COM1)
40 PCIe Power Connector (PCIE_PWR2)
41 Chassis Intrusion Header (CI1)
42 Front Panel Audio Header (HD_AUDIO1)
43 PCIe Power Connector (PCIE_PWR1)
44 Power Fan Connector (PWR_FAN1)
45 USB DOM Connector (USB9)

19
English
X99 WS-E/10G / X99 WS-E
1.4 I/O Panel
No. Description No. Description
1 LAN RJ-45 Port (Intel® I210AT)* 9 Microphone (Pink)
2 USB 3.0 Ports (USB3_12) 10 Optical SPDIF Out Port
3 LAN RJ-45 Port (Intel® I210AT)* 11 LAN RJ-45 Port (Intel® X540)*
4 USB 2.0 Ports (USB34) 12 LAN RJ-45 Port (Intel® X540)*
5 Central / Bass (Orange) 13 eSATA Connector (eSATA1)***
6 Rear Speaker (Black) 14 USB 3.0 Ports (USB3_34)
7 Line In (Light Blue) 15 Clear CMOS Switch
8 Front Speaker (Lime)** 16 USB 2.0 Ports (USB2_12)
1 2 3 4
16 9101112131415
6
5
8
7
X99 WS-E/10G

20
English
X99 WS-E
No. Description No. Description
1 LAN RJ-45 Port (Intel® I210AT)* 8 Front Speaker (Lime)**
2 USB 3.0 Ports (USB3_12) 9 Microphone (Pink)
3 LAN RJ-45 Port (Intel® I210AT)* 10 Optical SPDIF Out Port
4 USB 2.0 Ports (USB34) 11 eSATA Connector (eSATA1)***
5 Central / Bass (Orange) 12 USB 3.0 Ports (USB3_34)
6 Rear Speaker (Black) 13 Clear CMOS Switch
7 Line In (Light Blue) 14 USB 2.0 Ports (USB2_12)
1 2 3 4
14 910111213
6
5
8
7
