ASROCK K7VT4-4X User manual

1
K7VT4-4X
K7VT4-8X
User Manual
Version 3.1
Published July 2003
Copyright©2003 ASRock INC. All rights reserved.

2
Copyright Notice:
No part of this manual may be reproduced, transcribed, transmitted, or translated in
any language, in any form or by any means, except duplication of documentation by
the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this manual may or may not be regis-
tered trademarks or copyrights of their respective companies, and are used only for
identification or explanation and to the owners’ benefit, without intent to infringe.
Disclaimer:
Specifications and information contained in this manual are furnished for informa-
tional use only and subject to change without notice, and should not be constructed
as a commitment by ASRock. ASRock assumes no responsibility for any errors or
omissions that may appear in this manual.
With respect to the contents of this manual, ASRock does not provide warranty of
any kind, either expressed or implied, including but not limited to the implied warran-
ties or conditions of merchantability or fitness for a particular purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of profits, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from
any defect or error in the manual or product.
ASRock Website: http://www.asrock.com

3
Contents
1 Introduction.................................................... 4
1.1 Package Contents ........................................................... 4
1.2 Specifications ................................................................. 5
1.3 Motherboard Layout (K7VT4-4X) .................................. 7
1.4 Motherboard Layout (K7VT4-8X) .................................. 8
1.5 ASRock I/OTM (K7VT4-4X / K7VT4-8X).......................... 9
2 Installation ...................................................... 10
2.1 Screw Holes ................................................................... 10
2.2 Pre-installation Precautions ............................................ 10
2.3 CPU Installation ............................................................... 11
2.4 Installation of Heatsink and CPU fan .............................. 11
2.5 Installation of Memory Modules (DIMM) .......................... 12
2.6 Expansion Slots .............................................................. 12
2.7 Jumpers Setup ................................................................ 13
2.8 Connectors ..................................................................... 16
3 BIOS Setup ...................................................... 18
3.1 BIOS Setup Utility ............................................................ 18
3.1.1 BIOS Menu Bar ..................................................... 18
3.1.2 Legend Bar ........................................................... 18
3.2 Main Menu ....................................................................... 19
3.3 Advanced, Security, Power, Boot, and Exit Menus ...... 21
4 Software Support ........................................... 22
4.1 Installing Operating System ............................................ 22
4.2 Support CD Information ................................................... 22
4.2.1 Running Support CD ............................................. 22
4.2.2 Drivers Menu ........................................................ 22
4.2.3 Utilities Menu ......................................................... 22
4.2.4 ASRock “PC-DIY Live Demo” Program ................. 22
4.2.5 Contact Information............................................... 22
Appendix ........................................................... 23
1. Advanced Menu ............................................................. 23
2. Security Menu ................................................................. 27
3. Power Menu ................................................................... 28
4. Boot Menu ....................................................................... 29
5. Exit Menu ......................................................................... 30

4
Chapter 1 Introduction
Thank you for purchasing ASRock K7VT4-4X / K7VT4-8X motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s com-
mitment to quality and endurance.
Chapter 1 and 2 of this manual contain introduction of the motherboard and step-by-
step installation guide for new DIY system builders. Chapter 3 and 4 contain basic
BIOS setup and support CD information. For advanced users’ reference, the Appen-
dix appearing on page 23 offers more advanced BIOS setup information.
Because the motherboard specifications and the BIOS software
might be updated, the content of this manual will be subject to
change without notice. In case any modifications of this manual
occur, the updated version will be available on ASRock website
without further notice. You may find the latest memory and CPU
support lists on ASRock website as well.
ASRock website http://www.asrock.com
1.1 Package Contents
ASRock K7VT4-4X or K7VT4-8X motherboard
(ATX form factor: 12.0" x 7.0", 30.5 x 17.8 cm)
ASRock K7VT4-4X / K7VT4-8X Quick Installation Guide
ASRock AMD-VIA Series Support CD
1 cable for IDE devices (1 x ATA 66 / 100 / 133)
1 cable for floppy drive (1 x Ribbon cable)
1 ASRock I/O shield

5
1.2 Specifications
Platform: ATX form factor (12.0" x 7.0", 30.5 x 17.8 cm)
CPU: Supports Socket A (462 pins) for
AMD AthlonTM / AthlonTM XP / DuronTM processor
Chipsets: North Bridge (K7VT4-4X):
VIA KT400/4X (VT8367), FSB@333 MHz, AGP 4X;
North Bridge (K7VT4-8X):
VIA KT400/8X (VT8377), FSB@333 MHz, AGP 8X/4X
South Bridge: VIA VT8235CD, supports USB 2.0, ATA 133
Clock Generator:100 MHz - 200MHz
Memory: 2 DDR DIMM Slots: DDR1 and DDR2
supports PC1600 / PC2100 / PC2700, Max. 2GB
IDE: IDE1: ATA 133 / Ultra DMA Mode 6;
IDE2: ATA 133 / Ultra DMA Mode 6;
Can connect up to 4 IDE devices
Floppy Port: Supports 2 floppy disk drives
Audio: 5.1 channels AC’97 Audio
LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN
Hardware Monitor:CPU temperature sensing (ASRock U-COP);
Chassis temperature sensing;
CPU overheat shutdown to protect CPU life
(ASRock U-COP)(see CAUTION 1);
Voltage monitoring: +12V, +5V, +3V, Vcore;
CPU fan tachometer; Chassis fan tachometer
PCI slots: 5 slots with PCI Specification 2.2
AGP slot: K7VT4-4X: 1 AGP slot, supports 1.5V, 4X AGP card;
K7VT4-8X: 1 AGP slot, supports 1.5V, 8X/4X AGP card
(see CAUTION 2)
USB 2.0: 4 default USB 2.0 ports and 1 extra set of header for two
additional USB 2.0 ports upgrade (see CAUTION 3)

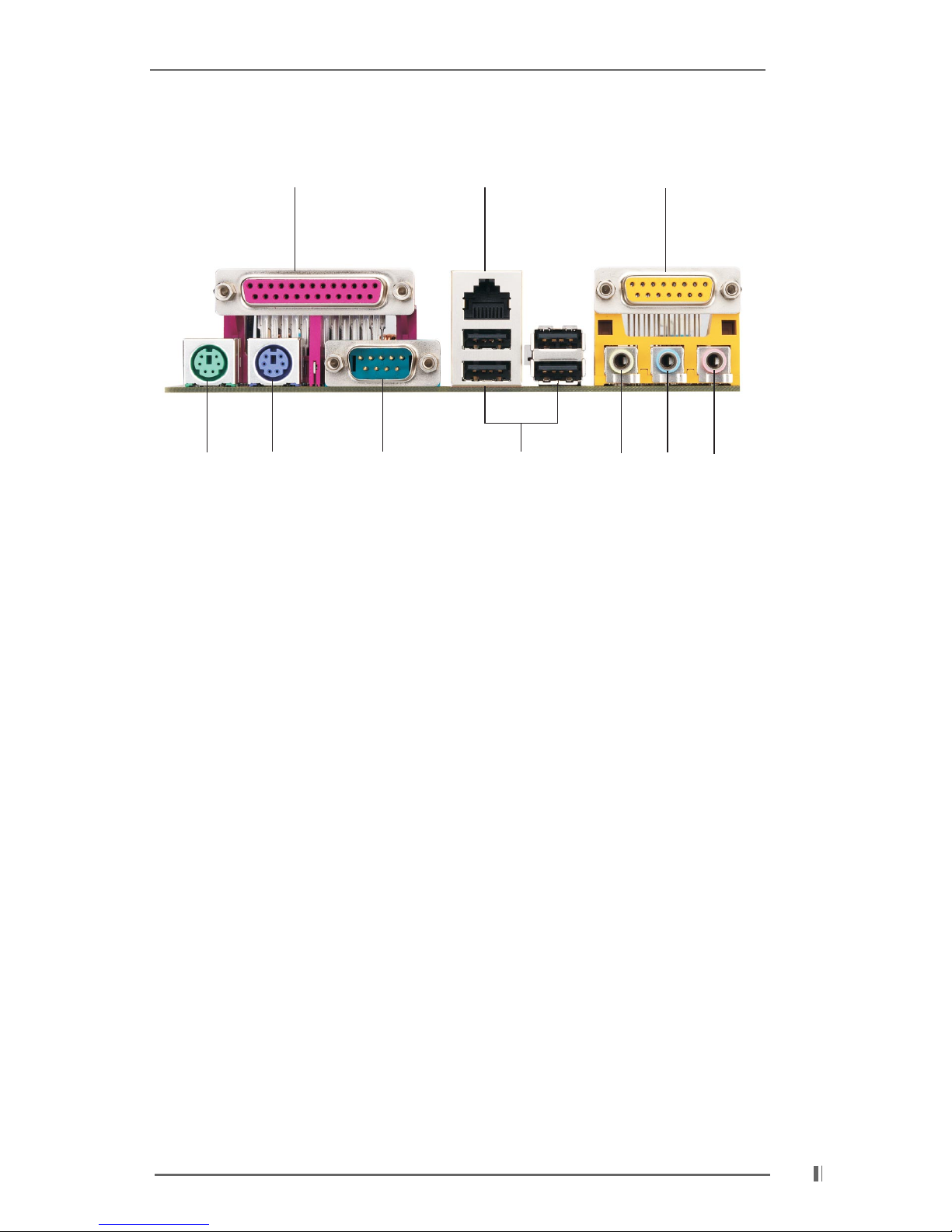

ASRock I/OTM:PS/2: 1 keyboard port / 1 mouse port;
1 RJ 45 port; 4 rear default USB 2.0 ports;
1 serial port: COM 1; 1 parallel port: ECP/EPP support;
Audio Jack: Line Out / Line In / Microphone + Game port
BIOS: AMI legal BIOS; Supports “Plug and Play”;
ACPI 1.1 compliance wake up events;
SMBIOS 2.3.1 support;
CPU frequency stepless control
(only for advanced users’ reference, see CAUTION 4)
OS: Microsoft® Windows® 98 SE / ME / 2000 / XP compliant

6
CAUTION!
1. While CPU overheat is detected, the system will automatically shut-
down. Please check if the CPU fan on the motherboard functions
properly before you resume the system. To improve heat dissipation,
remember to spray thermal grease between the CPU and the heatsink
when you install the PC system.
2. Do NOT insert a 3.3V AGP card into the AGP slot of K7VT4-4X
or K7VT4-8X motherboard! It may cause permanent damage!
3. Power Management for USB 2.0 works fine under Microsoft®
Windows®XP. It may not work properly under Microsoft®Windows®
98/ME/2000. Please refer to Microsoft®official document at
http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx
4. Although K7VT4-4X / K7VT4-8X offers stepless control, it is not
recommended to perform over clocking. When the CPU frequency of
K7VT4-4X / K7VT4-8X is set to perform over clocking, other clocks,
such as PCI clock, AGP clock, and Memory clock will also be
overclocked proportionally. Frequencies other than the recommended
CPU bus frequencies may cause the instability of the system or
damage the CPU.

7
17.8cm (7.0 in)
10
DDR 1 (64/72 bit, 184-pin module)
32
DDR2 (64/72 bit, 184-pin module)
5
PCI 2
PCI 3
PCI 4
PCI 5
PCI 1
21
AGP1
9
USB45
1
16
SPEAKER1
1
15
HDLED RST
PLED PWRBTN
1
PANEL 1
IR1
1
2MB
BIOS
20
FLOPPY1
Super
I/O
AUDIO1
1
JR1
JL1
CLRCMOS1 CLRCMOS2
VIA
VT8235
CPU_FAN1
CHA_FAN1
CMOS
Battery
PS2_USB_PWR1
1
IDE1 IDE2
USB2.0
5.1CH
ATA133
FSB333
K7VT4-4X
VIA
KT400/4X
Chipset
ATXPWR1
AUX1
CD1
Mic
In
GAME AUDIO1
Mic in
Line out
GAME AUDIO1
Line
In
Line in
USB23
USB01
LAN
PARALLEL PORT
PS/2
Mouse
PS/2
Keyboard
COM1
30.5cm (12.0 in)
1
FSB_SEL0
LAN
PHY
AUDIO CODEC
REV.3.00
1236
4
7
8
10
11
12
13
1417
18
19
22
23
24
27
26
25
28
1
1
1
1
FID3
FID2
FID1
FID0
FID4 1
29

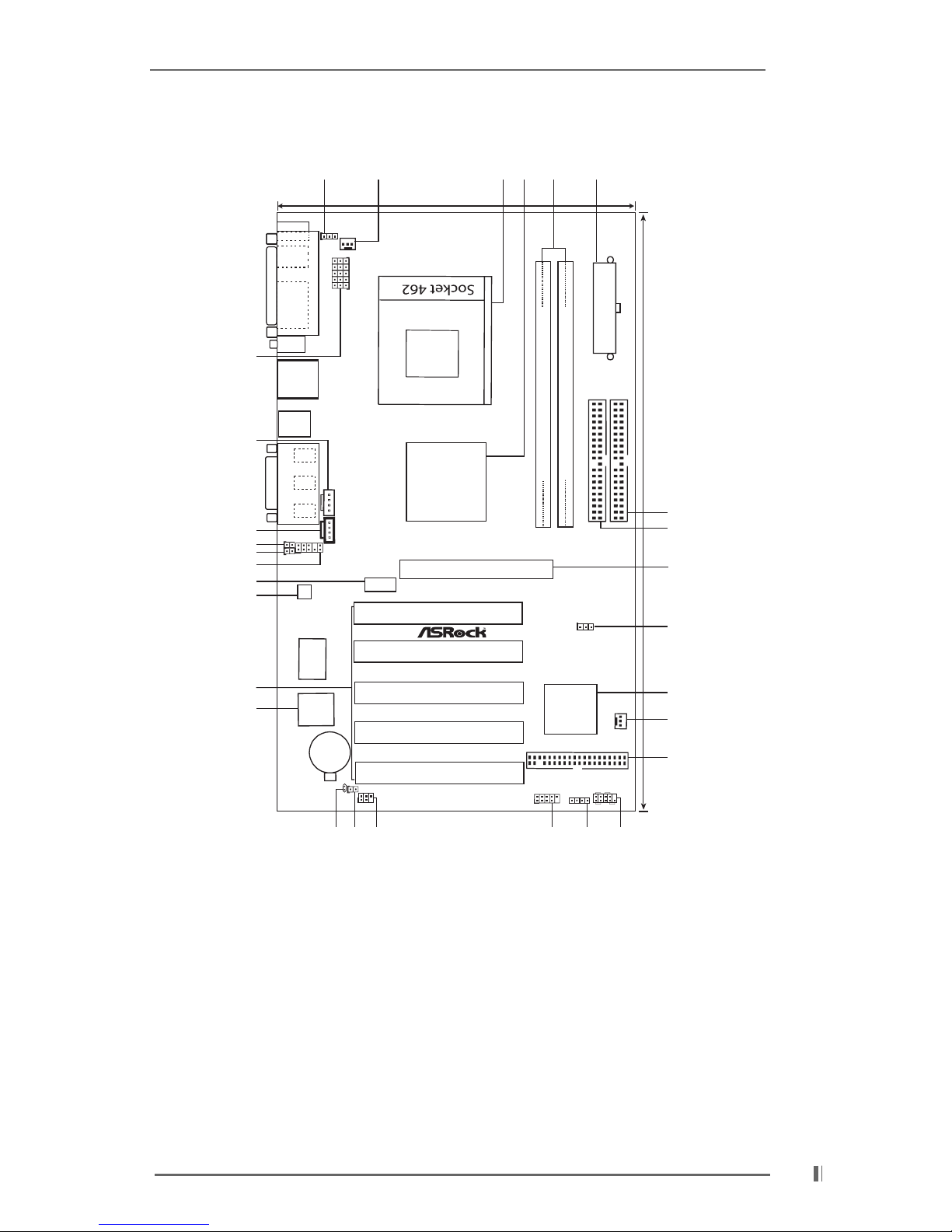

1.3 Motherboard Layout (K7VT4-4X)
1 PS2_USB_PWR1 jumper 2 CPU fan connector (CPU_FAN1)
3 CPU socket 4 North Bridge controller
5 184-pin DDR DIMM slots (DDR 1- 2) 6 ATX power connector (ATXPWR1)
7 Secondary IDE connector (IDE2, Black) 8 Primary IDE connector (IDE1, Blue)
9 AGP slot (AGP1) 10 FSB select jumper (FSB_SEL0)
11 South Bridge controller 12 Chassis fan connector (CHA_FAN1)
13 Floppy connector (FLOPPY1) 14 System panel connector (PANEL1)
15 External speaker connector (SPEAKER 1) 16 USB 2.0 header (USB45, Blue)
17 Infrared module connector (IR1) 18 Clear CMOS (CLRCMOS2, 2-pin jumper)
19 Clear CMOS (CLRCMOS1, solder points) 20 Flash Memory
21 PCI slots (PCI 1- 5) 22 AUDIO CODEC
23 LAN PHY 24 Front panel audio connector (AUDIO1)
25 JL1 jumper 26 JR1 jumper
27 Internal audio connector: CD1 (Black) 28 Internal audio connector: AUX1 (White)
29 FID Jumpers (FID0, FID1, FID2, FID3, FID4)

8
17.8cm (7.0 in)
10
DDR 1 (64/72 bit, 184-pin module)
32
DDR2 (64/72 bit, 184-pin module)
5
PCI 2
PCI 3
PCI 4
PCI 5
PCI 1
21
AGP1
9
USB45
1
16
SPEAKER1
1
15
HDLED RST
PLED PWRBTN
1
PANEL 1
IR1
1
2MB
BIOS
20
FLOPPY1
Super
I/O
AUDIO1
1
JR1
JL1
CLRCMOS1 CLRCMOS2
VIA
VT8235
CPU_FAN1
CHA_FAN1
CMOS
Battery
PS2_USB_PWR1
1
IDE1 IDE2
USB2.0
5.1CH
ATA133
FSB333
K7VT4-8X
VIA
KT400/8X
Chipset
ATXPWR1
AUX1
CD1
Mic
In
GAME AUDIO1
Mic in
Line out
GAME AUDIO1
Line
In
Line in
USB23
USB01
LAN
PARALLEL PORT
PS/2
Mouse
PS/2
Keyboard
COM1
30.5cm (12.0 in)
1
FSB_SEL0
LAN
PHY
AUDIO CODEC
REV.3.00
1236
4
7
8
10
11
12
13
1417
18
19
22
23
24
27
26
25
28
1
1
1
1
FID3
FID2
FID1
FID0
FID4 1
29
1.4 Motherboard Layout (K7VT4-8X)
1 PS2_USB_PWR1 jumper 2 CPU fan connector (CPU_FAN1)
3 CPU socket 4 North Bridge controller
5 184-pin DDR DIMM slots (DDR 1- 2) 6 ATX power connector (ATXPWR1)
7 Secondary IDE connector (IDE2, Black) 8 Primary IDE connector (IDE1, Blue)
9 AGP slot (AGP1) 10 FSB select jumper (FSB_SEL0)
11 South Bridge controller 12 Chassis fan connector (CHA_FAN1)
13 Floppy connector (FLOPPY1) 14 System panel connector (PANEL1)
15 External speaker connector (SPEAKER 1) 16 USB 2.0 header (USB45, Blue)
17 Infrared module connector (IR1) 18 Clear CMOS (CLRCMOS2, 2-pin jumper)
19 Clear CMOS (CLRCMOS1, solder points) 20 Flash Memory
21 PCI slots (PCI 1- 5) 22 AUDIO CODEC
23 LAN PHY 24 Front panel audio connector (AUDIO1)
25 JL1 jumper 26 JR1 jumper
27 Internal audio connector: CD1 (Black) 28 Internal audio connector: AUX1 (White)
29 FID Jumpers (FID0, FID1, FID2, FID3, FID4)

9
1.5 ASRock I/OTM (K7VT4-4X / K7VT4-8X)
1 Parallel port 2 RJ-45 port
3 Game port 4 Microphone (Pink)
5 Line In (Light Blue) 6 Line Out (Lime)
7 USB 2.0 ports 8 Serial port (COM1)
9 PS/2 keyboard port (Purple) 10 PS/2 mouse port (Green)
12
3
4567
8
910

10
Chapter 2 Installation
K7VT4-4X / K7VT4-8X is an ATX form factor (12.0" x 7.0", 30.5 x 17.8 cm)
motherboard. Before you install the motherboard, please study the configuration of
your chassis to ensure that themotherboard fits into it.
Make sure to unplug the power cord before installing or re-
moving the motherboard. Failure to do so may cause physical
injuries to you and damages to motherboard components.
2.1 Screw Holes
Please place screws into the holes indicated by circles to secure the motherboard to
the chassis.
Do not over-tighten the screws! Doing so may damage the
motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity, NEVER
place your motherboard directly on the carpet or the like. Also remember to use
a grounded wrist strap or touch a safety grounded object before you handle
components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, please place it on a grounded antistatic
pad or in the bag that comes with the component.
Before you install or remove any component, pleasse ensure that the
power is switched off or the power cord is detached from the power
supply. Failure to do so may cause severe damage to the motherboard,
peripherals, and/or components.

11
2.3 CPU Installation
Step 1. Unlock the socket by lifting the lever up to a 90oangle.
Step 2. Position the CPU directly above the socket such that its marked corner
matches the base of the socket lever.
Step 3. Carefully insert the CPU into the socket until it fits in place.
The CPU fits only in one correct orientation. DO NOT force the
CPU into the socket to avoid bending of the pins.
Step 4. When the CPU is in place, press it firmly on the socket while you push
down the socket lever to secure the CPU. The lever clicks on the side tab
to indicate that it is locked.

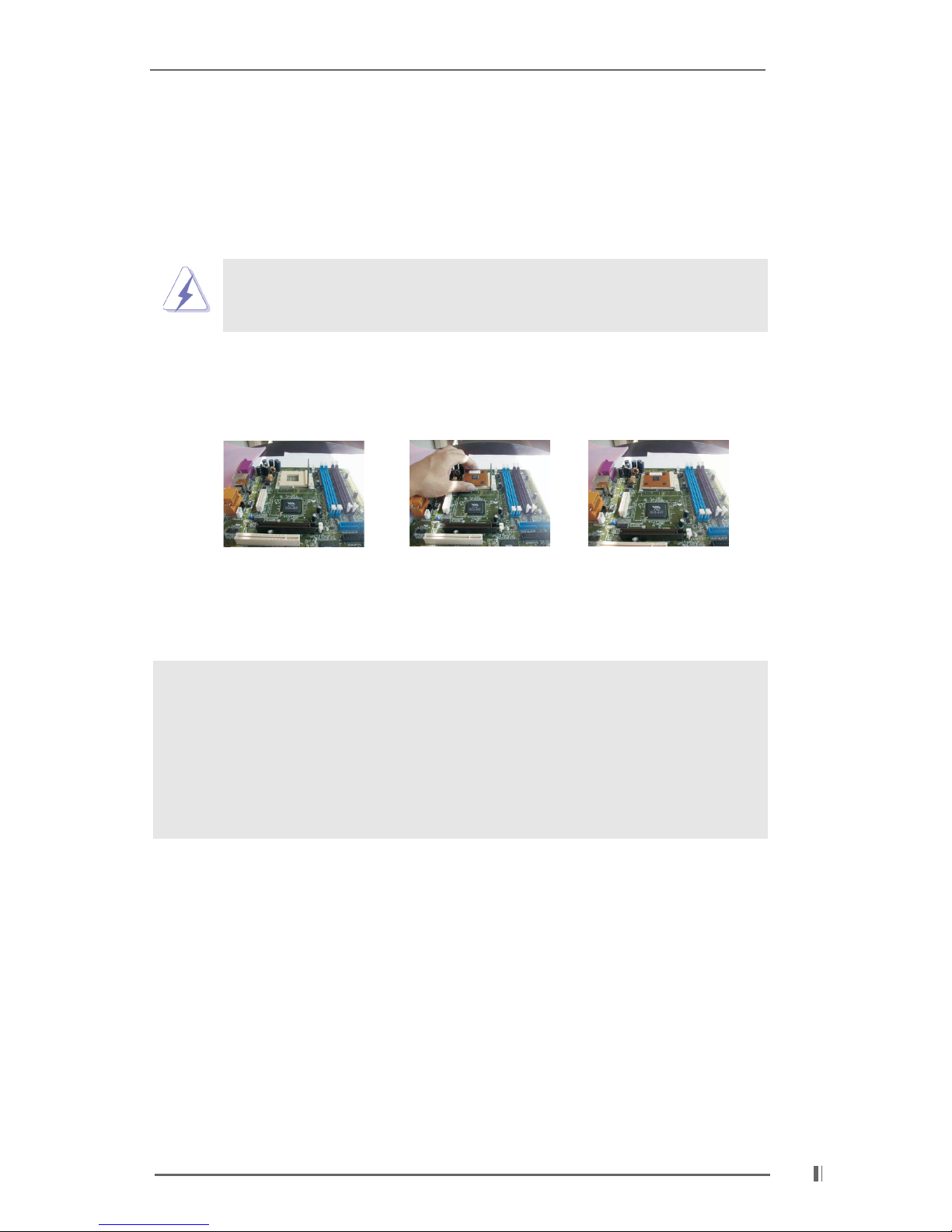

2.4 Installation of CPU Fan and Heatsink
AMDAthlonTM / AthlonTM XP/ DuronTM family CPUs with a speed of 600 MHz and
higher require larger heatsink and cooling fan. Thermal grease between the
CPU and the heatsink is also needed to improve heat transfer. Make sure that
the CPU and the heatsink are securely fastened and in good contact with
each other. For proper installation, please kindly refer to the instruction
manuals of vendors of CPU fan and heatsink.
Step 1 Step 2, 3 Step 4

12

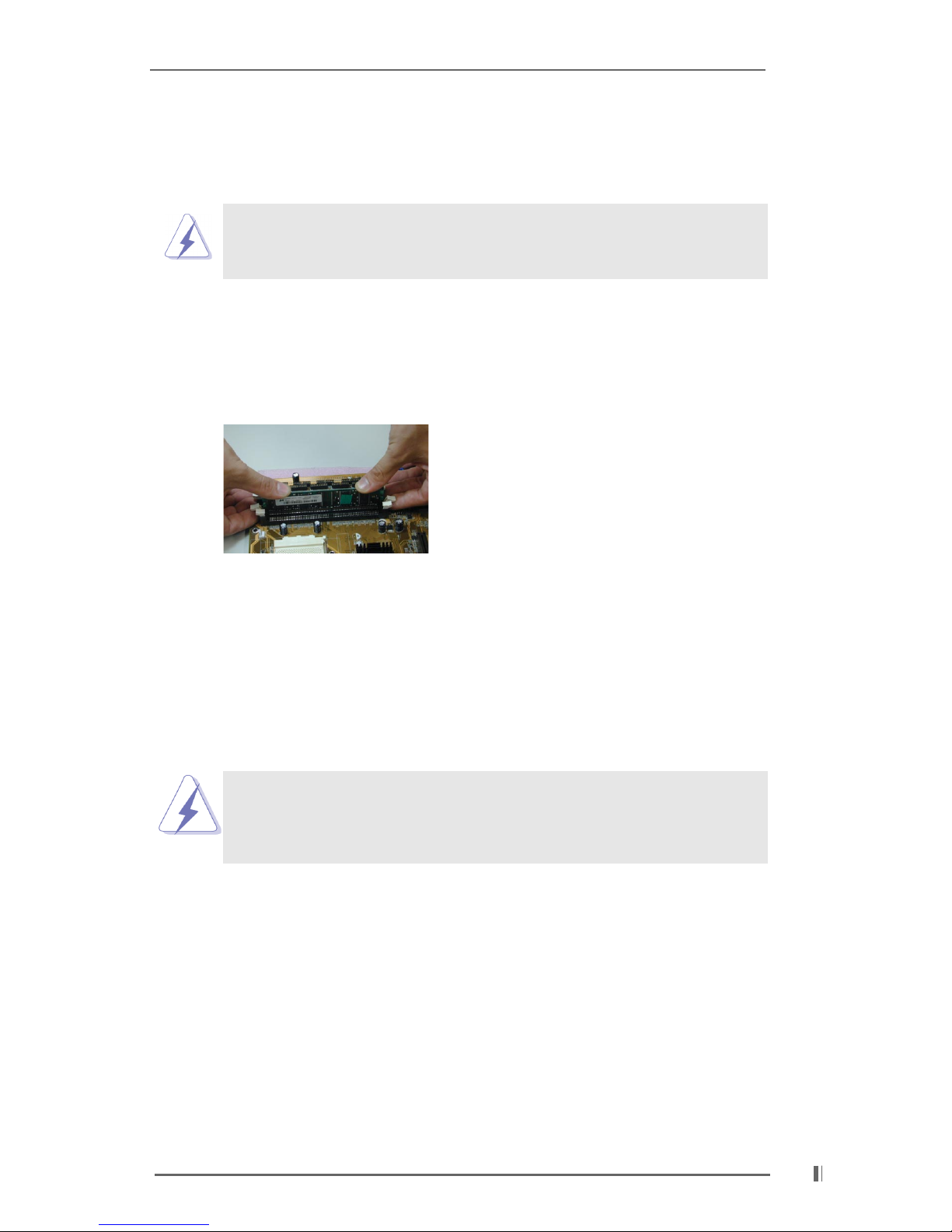

2.5 Installation of Memory Modules (DIMM)
K7VT4-4X / K7VT4-8X motherboard provides two 184-pin DDR (Double Data Rate)
DIMM slots.
Please make sure to disconnect power supply before adding or
removing DIMMs or the system components.
Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break
on the slot.
Step 3. Firmly insert the DIMM into the slot until the retaining clip snap back in place
and the DIMM is properly seated.
2.6 Expansion Slots (PCI and AGP Slots)
There are 5 PCI slots and 1 AGP slot on K7VT4-4X / K7VT4-8X motherboard.
PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI
interface.
AGP slot: The AGP slot is used to install a graphics card. The ASRock AGP slot has
a special locking mechanism which can securely fasten the graphics
card inserted.
Please do NOT insert a 3.3V AGP card into the AGP slot of
K7VT4-4X or K7VT4-8X motherboard!
It may cause permanent damage!
Installing an expansion card
Step 1. Before installing the expansion card, read the documentation of the
expansion card and make necessary hardware settings for the card.
Step 2. Remove the system unit cover (if your motherboard is already installed
in a chassis).
Step 3. Remove the bracket facing the slot that you intend to use.
Keep the screw for later use.
Step 4. Align the card connector with the slot and press firmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.

13

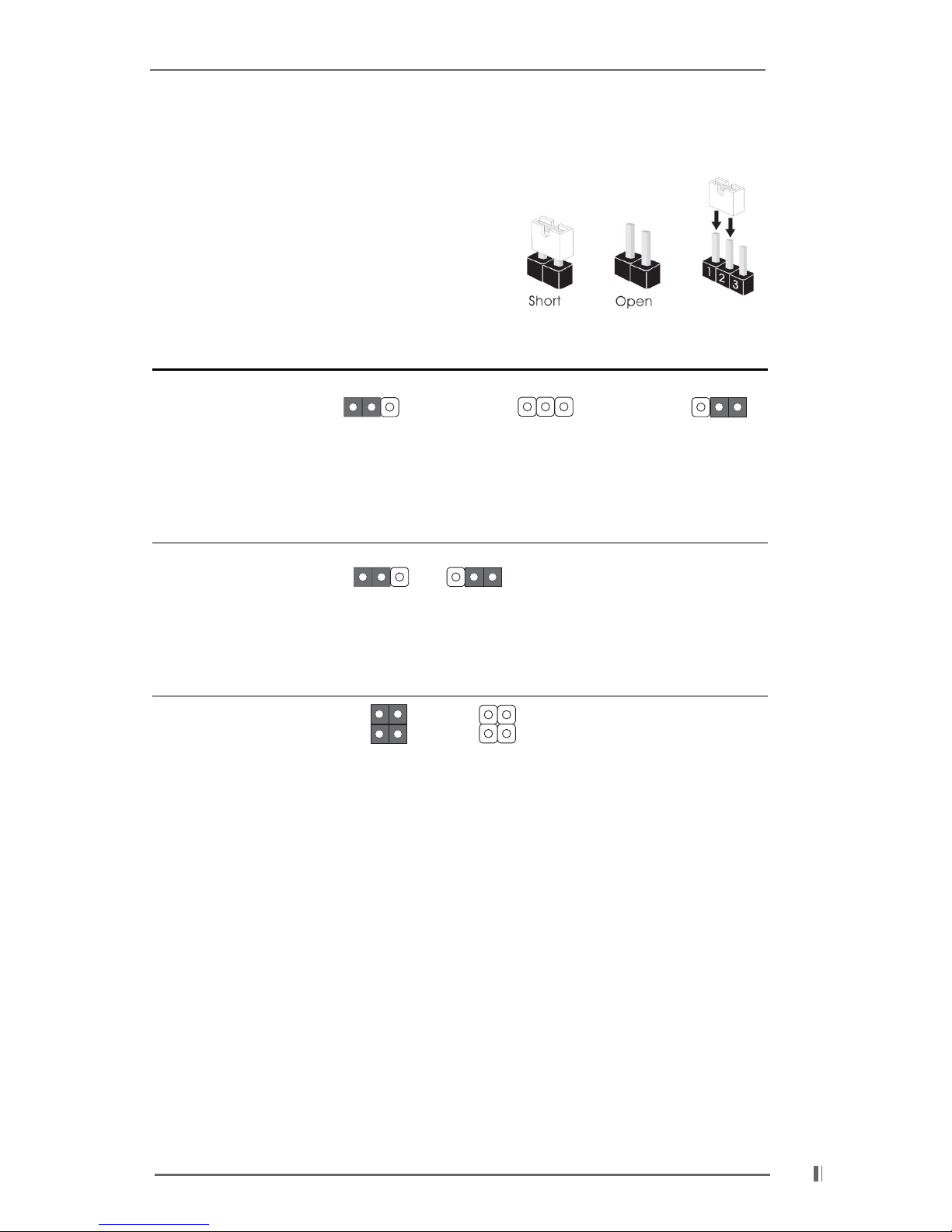

2.7 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “SHORT”. If no jumper
cap is placed on the pins, the jumper is
“OPEN”. The illustration shows a 3-pin
jumper whose pin1 and pin2 are “SHORT”
when jumper cap is placed on these 2 pins.
Jumper Setting
FSB_SEL0
(see p.7/p.8 item 10)
Note: The setting of the CPU front side bus frequency of this motherboard is by
means of the adjustment of jumper-setting. Please follow the figures above
to set the CPU front side bus frequency.
PS2_USB_PWR1 Short pin2, pin3 to enable
(see p.7/p.8 item 1) +5VSB (standby) for PS/2 or
USB wake up events.
Note: To select +5VSB, it requires 2 Amp and higher standby current provided by
power supply.
JR1(see p.7/p.8 item 26)
JL1(see p.7/p.8 item 25)
Note: When you connect speakers in back panel and front panel at the same time,
1. If the jumpers JL1 and JR1 are short (see fig. 1), both front panel and
rear panel audio connectors can work.
2. If both jumper caps on JL1 and JR1 are removed (see fig. 2), only front
panel audio works.
However, it requires your front panel to support the function.
+5V
1_2
+5VSB
2_3
JR1
JL1
JR1
JL1
fig. 1 fig. 2
FSB 200MHz
1_2
FSB_SEL0
FSB_SEL0
FSB 266MHz
FSB 333MHz
2_3
FSB_SEL0

14
FID Jumpers
(FID0, FID1, FID2, FID3, FID4)
(see p.7/p.8 item 29)
Note: The set of FID jumpers are only for advanced users to adjust the multiplier of CPU.
Please follow the table below to adjust the multiplier of CPU. However, the system will
work well without the adjustment of multiplier. You do not have to adjust the multiplier
for normal usage.
Multiplier FID0 FID1 FID2 FID3 FID4
5x 2-3 2-3 1-2 2-3 2-3
5.5x 1-2 2-3 1-2 2-3 2-3
6x 2-3 1-2 1-2 2-3 2-3
6.5x 1-2 1-2 1-2 2-3 2-3
7x 2-3 2-3 2-3 1-2 2-3
7.5x 1-2 2-3 2-3 1-2 2-3
8x 2-3 1-2 2-3 1-2 2-3
8.5x 1-2 1-2 2-3 1-2 2-3
9x 2-3 2-3 1-2 1-2 2-3
9.5x 1-2 2-3 1-2 1-2 2-3
10x 2-3 1-2 1-2 1-2 2-3
10.5x 1-2 1-2 1-2 1-2 2-3
11x 2-3 2-3 2-3 2-3 2-3
11.5x 1-2 2-3 2-3 2-3 2-3
12x 2-3 1-2 2-3 2-3 2-3
12.5x 1-2 1-2 2-3 2-3 2-3
13x 2-3 2-3 1-2 2-3 1-2
13.5x 1-2 2-3 1-2 2-3 1-2
14x 2-3 1-2 1-2 2-3 1-2
15x 2-3 2-3 2-3 1-2 1-2
16x 2-3 1-2 2-3 1-2 1-2
16.5x 1-2 1-2 2-3 1-2 1-2
17x 2-3 2-3 1-2 1-2 1-2
18x 1-2 2-3 1-2 1-2 1-2
19x 1-2 2-3 2-3 2-3 1-2
20x 1-2 1-2 2-3 2-3 1-2
21x 1-2 1-2 1-2 2-3 1-2
22x 1-2 2-3 2-3 1-2 1-2
23x 2-3 1-2 1-2 1-2 1-2
24x 1-2 1-2 1-2 1-2 1-2
For example, “Athlon XP 2000+” is an 1666MHz CPU: 12.5 (Multiplier) X 133MHz (External frequency) = 1666MHz
FID jumpers setting:
The jumper caps are not provided by ASRock. Please understand that ASRock
does not guarantee and support the adjustment of multiplier. These jumpers
setting may not apply to all multiplier-locked or even some unlocked AMD
CPU. Frequencies other than the recommended CPU bus frequencies may
cause the instability of the system or damage the CPU.
1
1
1
1
1
FID4
FID3
FID2
FID1
FID0
1
1
1
1
1
FID4
FID3
FID2
FID1
FID0

15
Clear CMOS
CLRCMOS1 CLRCMOS2
(see p.7/p.8 item 19) (see p.7/p.8 item 18)
Note:CLRCMOS1 and CLRCMOS2 allow you to clear the data in CMOS. The data in
CMOS includes system setup information such as system password, date,
time, and system setup parameters. There are 2 ways for you to clear and
reset the system parameters to the default setup. Please turn off the com-
puter and unplug the power cord, then you may either short the solder points
on CLRCMOS1 by using metal material, e.g., a paper clip for 3 seconds; or
you may use a jumper cap to short the pin on CLRCMOS2 for 3 seconds.
Please remember to remove the paper clip or the jumper cap after clearing
the CMOS.
solder points 2-pin jumper

16

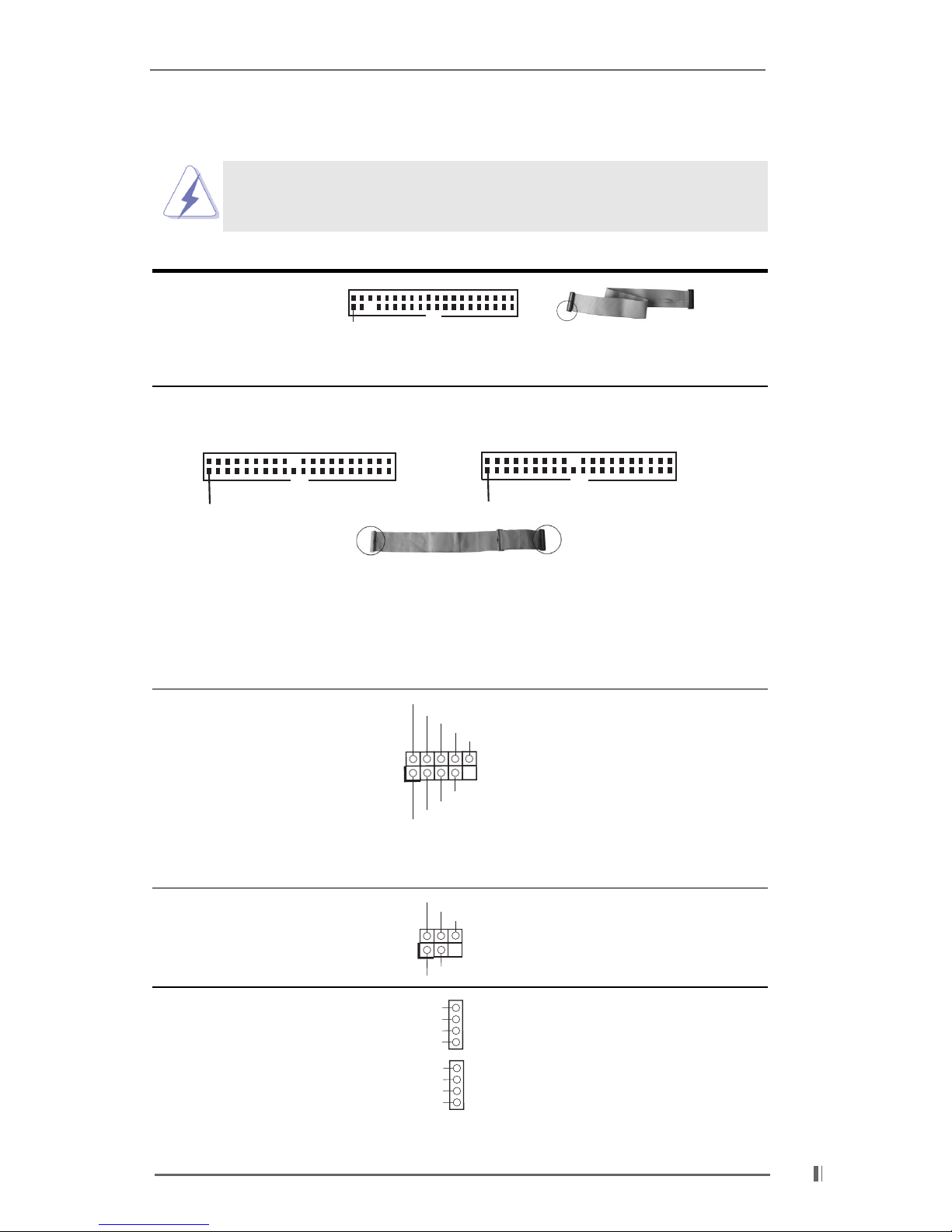

2.8 Connectors
Connectors are NOT jumpers. DO NOT place jumper caps over
these connectors.
Connector Figure Description
FDD connector
(33-pin FLOPPY1)
(see p.7/p.8 item 13)
Note: Match the red marking on the floppy ribbon cable with Pin1.
Primary IDE connector (Blue) Secondary IDE connector (Black)
(39-pin IDE1, see p.7/p.8 item 8) (39-pin IDE2, see p.7/p.8 item 7)
80-Pin ATA 100/133 cable
Note: To optimize compatibility and performance, please connect your hard disk
drive to the primary IDE connector (IDE1, blue) and CD-ROM to the
secondary IDE connector (IDE2, black).
USB 2.0 header ASRock I/OTM provides you
(9-pin USB45) four default USB 2.0 ports on
(see p.7/p.8 item 16) the rear panel. If the USB 2.0
ports on the rear panel are not
sufficient, you may use this
USB 2.0 header to attach two
additional USB 2.0 ports.
Infrared module connector This connector supports an
(5-pin IR1) optional wireless transmitting
(see p.7/p.8 item 17) and receiving infrared module.
Internal audio connectors These connectors allow you
(4-pin CD1, 4-pin AUX1) to receive stereo audio input
(CD1: see p.7/p.8 item 27) from sound sources such as
(AUX1: see p.7/p.8 item 28) a CD-ROM, DVD-ROM, TV
tuner card, or MPEG card.
CD1
AUX1
USB_PWR
USB_PWR
P+5
P-5
P+4
P-4
GND
GND
DUMMY
1
DUMMY
GND
+5V
IRTX
IRRX
1
IDE1
PIN1
IDE2
PIN1
FLOPPY1
Pin1
Red marking
connect the black end
to the IDE devices
connect the blue end
to the motherboard
AUX-R
GND
GND
AUX-L
CD-R
GND
GND
CD-L

17
Front panel audio connector This is an interface for the front
(9-pin AUDIO1) panel audio cable that allows
(see p.7/p.8 item 24) convenient connection and
control of audio devices.
System panel connector This connector accommo-
(9-pin PANEL1) dates several system front
(see p.7/p.8 item 14) panel functions.
External speaker connector This connector allows you to
(4-pin SPEAKER 1) attach to an external speaker.
(see p.7/p.8 item 15)
Chassis fan connector Connect the fan cable to the
(3-pin CHA_FAN1) connector matching the black
(see p.7/p.8 item 12) wire to the ground pin.
CPU fan connector Connect the fan cable to the
(3-pin CPU_FAN1) connector matching the black
(see p.7/p.8 item 2) wire to the ground pin.
ATX power connector Connect an ATX power
(20-pin ATXPWR1) supply to the connector.
(see p.7/p.8 item 6)
+5V
DUMMY
DUMMY
SPEAKER
1
GND
DUMMY
+5VA
BACKOUT-R
BACKOUT-L
AUD-OUT-L
AUD-OUT-R
MIC-POWER
MIC
1
GND
PWRBTN#
PLED-
PLED+
DUMMY
RESET#
GND
HDLED+
HDLED-
1
GND
+12V
CHA_FAN_SPEED
CPU_FAN_SPEED
GND
+12V

18
Chapter 3 BIOS Setup
3.1 BIOS Setup Utility
This section explains how to use the BIOS Setup Utility to configure your system.
The Flash Memory on the motherboard stores the BIOS Setup Utility. You may run the
BIOS Setup when you start up the computer. Please press <F2> during the Power-
On-Self-Test (POST) to enter the BIOS Setup Utility, otherwise, POST will continue
with its test routines.
If you wish to enter the BIOS Setup after POST, restart the system by pressing
<Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system chassis.
You may also restart the system by turning the system off and then back on.
The BIOS Setup Utility is designed to be user-friendly. It is a menu-driven program,
which allows you to scroll through its various sub-menus and select among the
predetermined choices.
Because the BIOS software is constantly being updated, the
following BIOS setup screens and descriptions are for reference
purpose only, and may not exactly match what you see on your
screen.
3.1.1 BIOS Menu Bar
The top of the screen has a menu bar with the following selections:
MAIN Sets up the basic system configuration
ADVANCED Sets up the advanced features
SECURITY Sets up the security features
POWER Configures Power Management features
BOOT Configures the default system device that is used
to locate and load the Operating System
EXIT Exits the current menu or the BIOS Setup
To access the menu bar items, press the right or left arrow key on the keyboard
until the desired item is highlighted.
3.1.2 Legend Bar
At the bottom of the Setup Screen is a legend bar. The following table lists the keys
in the legend bar with their corresponding functions.

19
Navigation Key(s) Function Description
<F1> Displays the General Help Screen
<ESC> Jumps to the Exit menu or returns to the upper menu
from the current menu
/ Moves cursor up or down between fields
/ Selects menu to the left or right
+ / - Increases or decreases values
<Enter> Brings up a selected menu for a highlighted field
<F9> Loads all the setup items to default value
<F10> Saves changes and exits Setup
3.2 Main Menu
When you enter the BIOS Setup Utility, the following screen appears.
System Date [Month/Day/Year]
Set the system date that you specify. Valid values for month, day, and year are
Month: (Jan to Dec), Day: (1 to 31), Year: (up to 2099). Use keys to move
between the Month, Day, and Year fields.
System Time [Hour:Minute:Second]
Set the system to the time that you specify. Use keys to move between
the Hour, Minute, and Second fields.
Floppy Drives
Use this to set the type of floppy drives installed.
IDE Devices
Use this to configure IDE devices.
AMIBIOS SETUP UTILITY - VERSION 3.31a
Main Advanced
Security Power
Boot Exit
System Date
System Time
Floppy Drives
IDE Devices
BIOS Version
Processor Type
Processor Speed
L1 Cache Size
L2 Cache Size
Total Memory
DDR1
DDR2
[ Setup Help ]
K7VT4 - 8X BIOS P1.00
AMD Athlon(tm) XP 2600+
Month: Jan - Dec
Day: 01-31
Year: 1980 - 2099
F1:Help
Esc:Exit
F9:Setup Defaults
F10:Save & Exit
+/-:Change Values
Enter:Select Sub-Menu
:Select Item
:Select Menu
2133 MHz
128 KB
256 KB
512 MB
None
512 MB / 166 MHz (DDR333)
20:07:40
19 2003 Mon
May

20
AMIBIOS SETUP UTILITY - VERSION 3.31a
Main
Type
Cylinders
Heads
Write Precompensation
Sectors
Maximum Capacity
LBA Mode
Block Mode
Fast Programmed I/O Modes
32 Bit Transfer Mode
Ultra DMA Mode
[ Setup Help ]
F1:Help
Esc:Previous Menu
F9:Setup Defaults
F10:Save & Exit
+/-:Change Values
Enter:Select Sub-Menu
:Select Item
Primary IDE Master
Off
Off
Auto
Off
Auto
Select how to set the
parameters of drive,
Or
Select [AUTO] to set
all HDD parameters
automatically.
Auto
TYPE
To set the type of the IDE device, first, please select “IDE Devices” on Main
menu and press <Enter> to get into the sub-menu. Then, select among
“Primary IDE Master”, “Primary IDE Slave”, “Secondary IDE Master”, and
“Secondary IDE Slave” to make configuration of its type. Below are the
configuration options.
[USER]: It allows user to manually enter the number of cylinders, heads,
and sectors per track for the drive.
Before attempting to configure a hard disk drive, make sure you
have the correct configuration information supplied by the drive
manufacturer. Incorrect settings may cause the system to fail
to recognize the installed hard disk.
[Auto]: Select [Auto] to automatically detect hard disk drive. If auto-
detection is successful, the BIOS Setup automatically fills in the
correct values for the remaining fields on this sub-menu. If the auto-
detection fails, it may due to that the hard disk is too old or too new.
If the hard disk was already formatted on an older system, the BIOS
Setup may detect incorrect parameters. In these cases, select [User]
to manually enter the IDE hard disk drive parameters.
After entering the hard disk information into BIOS, use a disk utility,
such as FDISK, to partition and format the new IDE hard disk
drives. This is necessary so that you can write the data into or
read the data from the installed hard disk. Please make sure to set
the partition of the Primary IDE hard disk drives to make them
active.
