Astria Fireplaces Mission36TMN Installation instructions

Installation and Operation Instructions
AstriaTM Mission B-Vent Fireplace
Millivolt System
P/N 126753-01 Rev. B 03/2014. Models
Mission36TMN Mission42TMN
P126753-01
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Installateur : Laissez cette notice avec l’appareil.
Consommateur : Conservez cette notice pour consultation ultérieure.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile
home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the
rating plate. This appliance is not convertible for use with other gases, unless a certified kit is used.
WARNING AVERTISSEMENT AVISO
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
UNE SURFACE VITRÉE CHAUDE PEUT
CAUSER DES BRÛLURES.
LAISSER REFROIDIR LA SURFACE VITRÉE
AVANT D’Y TOUCHER.
NE PERMETTEZ JAMAIS À UN ENFANT DE
TOUCHER LA SURFACE VITRÉE.
EL VIDRIO CALIENTE
CAUSARÁ QUEMADURAS.
USTED DEBE NUNCA TOCAR
EL VIDRIO CALIENTE.
LOS NIÑOS DEBEN NUNCA
TOCAR EL VIDRIO.
WARNING: If the information in these
instructions is not followed exactly, a fire or
explosion may result causing property damage,
personal injury or death.
AVERTISSEMENT : Assurez-vous de bien suivre les
instructions données dans cette notice pour réduire au
minimum le risque d’incindie ou d’explosion ou pour éviter
tout dommage matériel, toute blessure ou la mort.
—Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
—WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
—Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
—Ne pas entreposer ni utilizer d’essence ni d’autres
vapeurs ou liquides inflammables dans le voisinage
de cet appareil ou de tout autre appareil.
—QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :
• Ne pas tenter d’allumer d’appareil.
• Ne touchez à aucan interrupteur. Ne pas vous
servir des téléphones se trouvant dans le bâtiment
où vous trouvez.
• Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions du
fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service des incindies.
—L’installation et l’entretien doivent être assurés par un
installateur ou un service d’entretien qualifié ou par le
fournisseur de gaz.
PFS
®
USC
fire-parts.com

TABLE OF CONTENTS
Safety .................................................................. 3
Unpacking............................................................ 4
Introduction.......................................................... 4
Selecting Location ............................................... 5
Product Specications......................................... 6
Pre-Installation Preparation................................. 7
Requirements for the Commonwealth of
Massachusetts..................................................... 9
Venting Installation ............................................ 10
Installation ......................................................... 12
Operation........................................................... 19
Inspecting Burners ............................................ 20
Cleaning and Maintenance................................ 21
Wiring Diagram.................................................. 22
Replacement Parts............................................ 22
Service Hints ..................................................... 22
Technical Service............................................... 22
Troubleshooting................................................. 23
Parts .................................................................. 26
Accessories ....................................................... 31
Warranty ..............................................Back Cover
WARNING: Improper installation, adjustment, al-
teration, service or maintenance can cause injury or
property damage. Refer to this manual for correct in-
stallation and operational procedures. For assistance
or additional information consult a qualied installer,
service agency or the gas supplier.
NOT FOR USE WITH SOLID FUEL
CHECK LOCAL CODES PRIOR TO INSTALLATION
SAVE THIS BOOK
This book is valuable. In addition to instructing you on
how to install and maintain your appliance, it also con-
tains information that will enable you to obtain replace-
ment parts or optional accessory items when needed.
Keep it with your other important papers.
This replace may not be installed in manufactured
(mobile) housing constructed to HUD standards. The
replace may be installed in aftermarket, non-HUD
manufactured housing provided its installation com-
plies with State and Local Codes and in the absence of
these codes complies with the National Fuel Gas Code
ANSIZ223.1 NFPA 54.
State of Massachusetts: The installation must be made
by a licensed plumber or gas tter in the Commonwealth
of Massachusetts.
NOTICE: Young children should be carefully supervised when they are in the same room
as the appliance. Toddlers, young children, and others may be susceptible to accidental
burns. A physical barrier is recommended if there are to be at-risk individuals in the house.
To restrict access to a replace or stove, install an adjustable safety gate to keep toddlers,
young children, and other at-risk individuals out of and away from hot surfaces.
fire-parts.com

SAFETY
1. This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases unless a certied kit is used.
2. For propane/LP replace, do not place
propane/LP supply tank(s) inside any
structure. Locate propane/LP supply
tank(s) outdoors. To prevent performance
problems, do not use propane/LP fuel tank
of less than 100 lbs. capacity.
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not
use any phone in your building
• immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier's instructions
• if you cannot reach you gas supplier, call
the re department.
4. Never install the replace
• in a recreational vehicle
• where curtains, ., clothing or other am-
mable objects are less than 42" from
front, top or sides of replace
• in high trafc areas
• in windy or drafty areas
5. This replace reaches high temperatures.
Keep children and adults away from hot
surfaces to avoid burns or clothing igni-
tion. Fireplace will remain hot for a time
after shutdown. Allow surfaces to cool
before touching.
6. Carefully supervise young children when
they are in the room with replace.
7. A hearth extension is not required with this
appliance. If one is installed, it is for aes-
thetic purposes only and does not have
to meet the standard requirements.
8. Turn replace off and let cool before ser-
vicing or repairing. Only a qualied service
person should install, service or repair
this replace. Have replace inspected
annually by a qualied service person.
9. You must keep control compartments,
burners and circulating air passages clean.
More frequent cleaning may be needed due
to excessive lint and dust from carpeting,
bedding material, etc. Turn off the gas valve
and pilot light before cleaning replace.
10. Have venting system inspected annually by
a qualied service person. If needed, have
venting system cleaned or repaired. See
Cleaning and Maintenance, page 21.
WARNING: This product con-
tains and/or generates chemicals
known to the State of California
to cause cancer or birth defects
or other reproductive harm.
IMPORTANT: Read this owner’s
manual carefully and completely
before trying to assemble, op-
erate or service this replace.
Improper use of this replace
can cause serious injury or death
from burns, re, explosions,
electrical shock and carbon
monoxide poisoning.
DANGER: Carbon monoxide
poisoning may lead to death!
This replace is a vented product. This replace
will not produce any gas leakage into your home
if properly installed. This replace must be
properly installed by a qualied service person.
If this unit is not properly installed by a qualied
service person, gas leakage can occur.
Carbon Monoxide Poisoning: Early signs of
carbon monoxide poisoning resemble the u,
with headaches, dizziness or nausea. If you
have these signs, the replace may not have
been installed properly. Get fresh air at once!
Have replace inspected and serviced by a
qualied service person. Some people are more
affected by carbon monoxide than others. These
include pregnant women, people with heart or
lung disease or anemia, those under the inu-
ence of alcohol and those at high altitudes.
Propane/LP gas and natural gas are both
odorless. An odor-making agent is added
to each of these gases. The odor helps you
detect a gas leak. However, the odor added
to these gases can fade. Gas may be present
even though no odor exists.
Make certain you read and understand all
warnings. Keep this manual for reference. It
is your guide to safe and proper operation of
this replace.
WARNING: Any change to
this replace or its controls can
be dangerous.
fire-parts.com

www.Astria.US.com 126753-01B4
11. Keep the area around your fireplace
clear of combustible materials, gasoline
and other ammable vapor and liquids.
Do not run fireplace where these are
used or stored. Do not place items such
as clothing or decorations on or around
replace.
12. Do not use this replace to cook food or
burn paper or other objects.
13. Do not use any solid fuels (wood, coal,
paper, cardboard, etc.) in this replace.
Use only the gas type indicated on re-
place nameplate.
14. This appliance, when installed, must be
electrically grounded in accordance with
local codes or, in the absence of local
codes, with the National Electrical Code,
ANSI/NFPA 70 or the Canadian Electrical
Code, CSA C22.1.
15. Do not obstruct the ow of combustion
and ventilation air in any way. Provide
SAFETY
Continued
INTRODUCTION
adequate clearances around air open-
ings into the combustion chamber along
with adequate accessibility clearance for
servicing and proper operation.
16. Do not install replace directly on carpet-
ing, vinyl tile or any combustible material
other than wood. The replace must set
on a metal or wood panel extending the
full width and depth of the replace.
17. Do not use replace if any part has been
exposed to or under water. Immediately
call a qualied service person to arrange
for replacement of the unit.
18. Do not operate fireplace if any log is
broken.
19. Do not use a blower insert, heat exchang-
er insert or other accessory not approved
for use with this replace.
20. Provide adequate clearances around air
openings.
UNPACKING
The following items are packed inside the
rebox. Remove before positioning rebox
into framing.
• Transition Collar - For vent connection
• Ceramic Log Pack - Shrink-wrapped on
cardboard
• Three (3) plastic bags containing lava rock,
pan and ember materials
• Rear Log - Remove the two plastic quick
ties from around the burner and grate
• Grate Stand - Lift off of burner pan
Check all items for any shipping damage. If
damaged, promptly inform dealer or distributor
where you bought the product.
Safely retain these items for later installation.
Models MISSION36TMN and MISSION42T-
MN are vented gas replaces that use a mil-
livolt gas control valve with a millivolt ignition
system. A 6" B-Type venting system and a
listed type vent cap are not supplied but are
required for proper operation. See venting
instructions on pages 10 and 11.
WARNING: This gas appli-
ance must not be connected to
a chimney ue servicing a solid
fuel burning appliance.
BEFORE YOU BEGIN
Before beginning the installation of your
appliance, read these instructions through
completely.
This INNOVATIVE HEARTH PRODUCTS ap-
pliance and its approved components are safe
when installed according to this installation
manual and are operated as recommended by
INNOVATIVE HEARTH PRODUCTS. Unless
you use INNOVATIVE HEARTH PRODUCTS
approved components tested for this appliance,
YOU MAY CAUSE A FIRE HAZARD!
The INNOVATIVE HEARTH PRODUCTS
warranty will be voided by and INNOVATIVE
HEARTH PRODUCTS disclaims any respon-
sibility for the following actions :
A) Modication of the appliance or any of the
components.
B) Use of any component part not approved
by INNOVATIVE HEARTH PRODUCTS in
combination with this appliance.
C) Installation and/or operation in a manner
other than instructed in this manual.
fire-parts.com

www.Astria.US.com
126753-01B 5
D) Burning of anything other than the type of
gas approved for use in this gas appliance.
The installation must conform with local codes
or, in the absence of local codes, with the current
National Fuel Gas Code, ANSI Z223.1/NFPA
54. See Notice on Page 14.
This fireplace complies with the National
Safety Standards and is listed and tested by
PFS Corporation to ANSI Z21.50/CSA 2.22
standard as vented gas replace.
NOTICE: Decorative product not
for use as a heating appliance.
WARNING: Installation of
this appliance should be done
by a qualied installer of such
appliances. You will also need
a building permit from your
local Building and Safety Com-
missioner before installing this
appliance; otherwise your in-
surance co. may not cover this
appliance.
INTRODUCTION
Continued

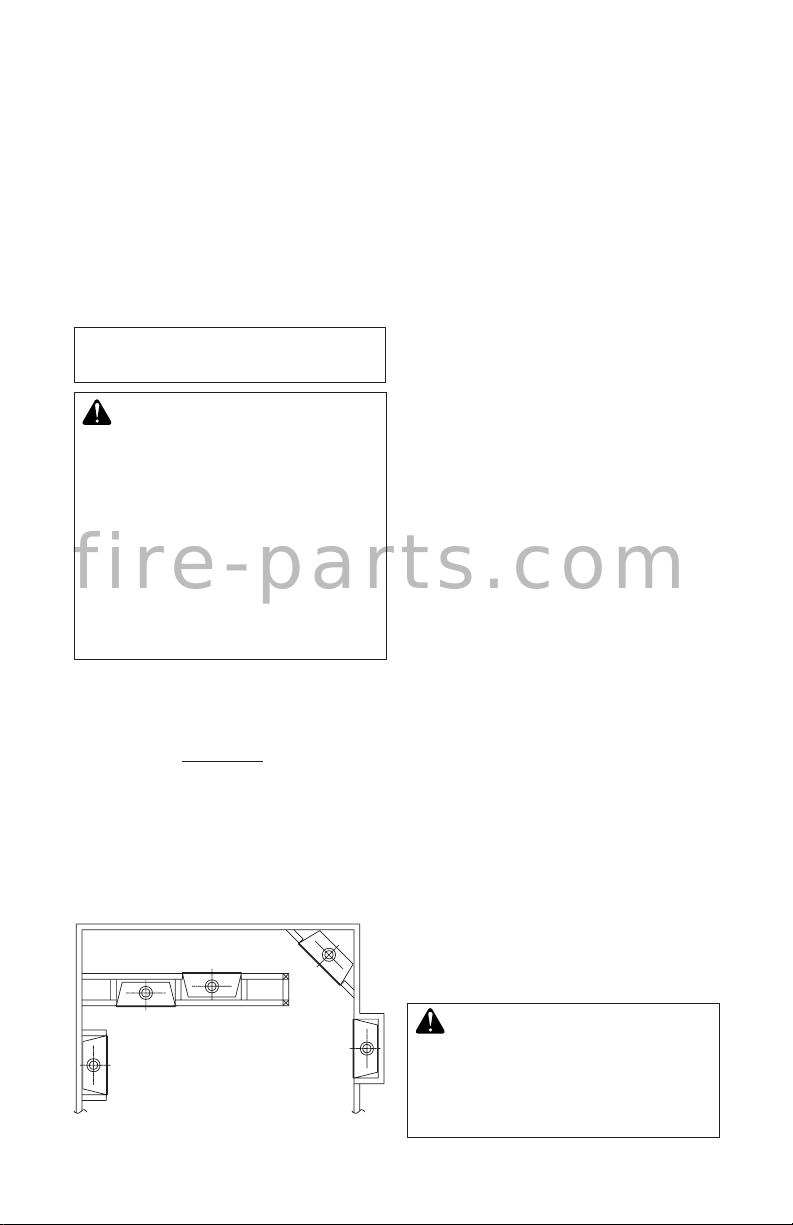

Figure 1 - Possible Locations for
Installing Appliance
INTERNAL WALL
INSTALLATION
CORNER
INSTALLATION
FULL
PROJECTION
INSTALLATION
FLUSH
INSTALLATION
The appliance and it’s individual shutoff valve
must be disconnected from gas supply piping
system during any pressure testing of that
system at test pressures in excess of 1/2 psi
(3.5 kPa).
The appliance must be isolated from the gas
supply piping system by closing its individual
manual shutoff valve during any pressure testing
of the gas supply piping system at test pressures
equal to or less than 1/2 psi (3.5 kPa).
For the purpose of input adjustment two
pressure taps (for IN and OUT pressures)
are provided on the gas control valve for test
gauge connections to the appliance. This
replace must be installed in an unconned
space with a minimum of 50 cubic feet per
1,000 BTUs of gas output. Therefore 36”
models require 2,650 cubic feet, 42” models
require 3,100 cubic feet.. If the space you
wish to install the replace does not meet
these requirements NFPA 54 details several
actions that may be taken.
living space is limited or at a premium and
since the space required to enclose the ap-
pliance would be located beyond an outside
wall, this would also reduce the cutting of
joists, roof rafters and such. Check local
codes for any restrictions.
Projected installations can extend any
distance into the room. A projection may
be ideal for a new addition on an existing,
nished wall.
Corner installations make use of space
that may not normally be used and provides
a wider and more efcient range for radiant
heat transference.
Internal wall installations provide a discreet
option for room separation and can also be
ideal as an addition to an existing wall.
CAUTION: Do not connect
appliance before pressure test-
ing gas piping. Damage to gas
valve may result and an unsafe
condition may be caused.
SELECTING LOCATION
To determine the safest and most efcient
location for your appliance, you must take
into consideration the following guidelines:
1. The location must allow for proper clear-
ances (see Clearances, page 7).
2. Consider a location where heat output
would not be affected by drafts, air con-
ditioning ducts, windows or doors.
3. A location that avoids the cutting of joists
or roof rafters will make installation easier.
Figure 1 shows a plan view of a few com-
mon locations.
Flush installations are recommended where
fire-parts.com

www.Astria.US.com 126753-01B6
PRODUCT SPECIFICATIONS
GAS RATING - NATURAL
MISSION36TMN MISSION42TMN
Max. Input Rating: 40,000 Btu/Hr 45,000 Btu/Hr
Manifold Pressure: 3.5" WC (.87 kPa) 3.5" WC (.87 kPa)
Minimum Supply Pressure: 4.5" WC (1.12 kPa) 4.5" WC (1.12 kPa)
Maximum Supply Pressure: 10.5" WC (2.66 kPa) 10.5" WC (2.66 kPa)
Orice Size: # 30 # 29
GAS RATING - PROPANE/LP
Max. Input Rating: 40,000 Btu/Hr 45,000 Btu/Hr
Manifold Pressure: 10" WC (2.49 kPa) 10" WC (2.49 kPa)
Minimum Supply Pressure: 11" WC (2.74 kPa) 11" WC (2.74 kPa)
Maximum Supply Pressure: 13" WC (3.23 kPa) 13" WC (3.23 kPa)
Orice Size: # 52 # 51
S
T
P
Q
R
X
Outside Air
Kit Location
(Optional)
K
7"
J
I
M
LV
13.5"
1.5"
Glass Door
(Optional)
W
O
N
Alternate Gas
Supply Inlet
7"
G
H
F
A
Stand Off
Collar
For Use With
6"Ø Type B-1
Vent Pipe Only
B
E
D
C

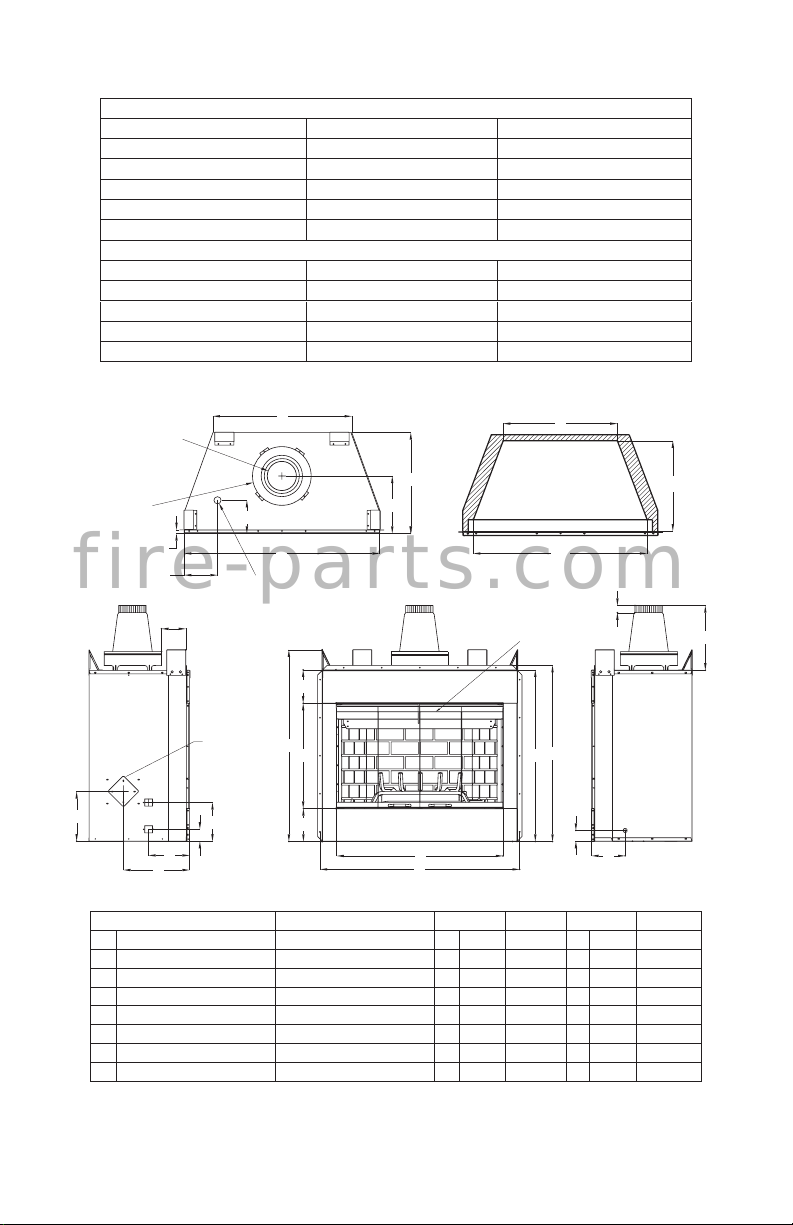

DIMENSIONS
HEARTH AREA
7"
Figure 2 - Appliance Dimensions
Model 36 Model 42 Model 36 Model 42 Model 36 Model 42
A29" 36" I 40 1/4"44 1/4"Q 13 7/8" 14"
B 5/8" 5/8" J21" 24" R 10 1/2"12 1/2"
C 41" 48" K8" 9" S 2 1/2"2 1/2"
D12" 14" L 34 3/4" 42" T 8 1/8"8 1/8"
E21 1/4" 23" M42" 49" U11" 12 3/4"
F 22 1/4" (24" w/o Brick) 29 1/4" (31" w/o Brick) N36" 40" V7" 7"
G32 5/8" (34" w/o Brick) 39 1/2" (41 1/4" w/o Brick) O37" 41" W 2 1/4"2 1/4"
H 15 3/4" (16 3/4" w/o Brick) 17 3/4" (18 3/4" w/o Brick) P 8 5/8"10 1/2"X5" 4 1/2"
fire-parts.com

www.Astria.US.com
126753-01B 7
PRE-INSTALLATION PREPARATION
Figure 3 - Minimum Clearances
(Top View)
0 cm/
po
0 cm/po
Clearance
Nailing
Flange
Front Face
Left Side
Surround
Back
Drywall
2 x 4 Stud
Figure 4 - Minimum Clearances
(Front View)
** **
42" (106.7 cm)
Min. Clearance
from Opening to
Ceiling 0" Clearance
Ceiling
1" (2.5 cm)
Min. Clearance
to "B" Vent's
Outer Pipe
Maintain 2" (5.1 cm)
Min. Clearance to
Transition Pipe as
Measured at Outer
Vent Collar
Required air
spaces are
indicated with
an "
*
". Do not
pack with
insulation or
any other
material.
DO NOT BLOCK
OR OBSTRUCT
OPENINGS
0" Clearance to
Combustible or
Noncombustible
Flooring
MANTEL CLEARANCES AND WALL
DETAILS
A combustible mantle shelf maybe installed
a maximum 12" (22.9 cm) from the wall.
Figures 5 and 6 show the minimum allow-
able distances from various combustible
mantle components in relation to fireplace
opening.
Spacer
3" (7.6 cm)
1
1
/
2
"
(3.8 cm) Max.
B
6" (15.2 cm)
A
12"
(22.9 cm)
Combustible
Materials
Header
Figure 5 - Mantel Clearances - Side View
(Cross Section)
MISSION36TMN
F0857
F0859
F0861
MISSION42TMN
F0863
F0865
F0867
A14" (35.6 cm) 15" (38 cm)
B 8" (20.3 cm) 9" (22.9 cm)
1
1
/
2
"
(3.8 cm)
Max. 3" (7.6 cm)
Max.
6" (15.2 cm)
Max. A
B
Outer Surround
Combustible
Material May
Be Used
TOP VIEW
SAFE
ZONE
Perpendicular
Wall
Figure 6 - Side Clearances - Top View
(Cross Section)
CLEARANCES
Minimum clearances to combustibles are:
Ceilings 40" min.
Back and Sides of Outer Surround 0" min.
Drywall to Sides of Front Face
(Nailing Flanges) 0" min.
“B” Vent Surfaces 1" min.
Ceiling to Opening 42" min.
Floor 0" min.
Perpendicular Wall See Figure 6
CAUTION: Do not block
required air spaces with insu-
lation or any other material. Do
not obstruct effective opening
of appliance with any type of
facing material.
MISSION36TMN
F0857
F0859
F0861
MISSION42TMN
F0863
F0865
F0867
A9" (22.9 cm) 6" (15.2 cm)
B 12" (30.5 cm) 9" (22.9 cm)
fire-parts.com

www.Astria.US.com 126753-01B8
PRE-INSTALLATION PREPARATION
Continued
FRAMING
1. Frame appliance enclosure as illustrated in
Figures 7 and 8.
Note: If a wall covering is used to line the
enclosure, then all measurements must be
from the surface of the covering.
2. Place the appliance into the framing and
secure it.
Note: If appliance is to be raised above oor
level, a platform must be built to support the
appliance.
3. Install the supply line to the appliance using
a 1/2" NPT black iron gas line terminating 2
5/16" above the bottom of the appliance. The
gas line must be installed through the lower
left side access point or alternate access
hole in the bottom of the appliance (see
Figure 16, page 13).
4. Repack insulation around the gas line to
cover any remaining openings in the conduit
sleeve. Prepare the incoming gas line with
teon tape or pipe joint compound and hook-
up incoming gas line to the exible gas line.
Note: If 1/2" NPT black iron pipe does not
mate with tting at the end of exible gas
line, remove tting and replace with a 37°
are 3/4"-12, 1/2" NPT (female) tting.
WARNING: When nishing
appliance, do not overlap com-
bustible material onto the black
front face. Brick, tile or other
noncombustible materials may
be applied to the face provided
that any gap is between the mate-
rial used and the face is caulked
with a noncombustible caulking.
Figure 7 - Rough Opening for Installing
in Wall
B
C
A
MISSION36TMN (F0857,
F0859, AND F0861)
MISSION42TMN (F0863,
F0865 AND F0867)
A 40 3/8" (102 cm) 44 3/8" (112 cm)
B21 3/8" (54.3 cm) 23 1/8" (58.7 cm)
C41 1/4" (104.8 cm) 48 1/4" (122.6 cm)
Figure 8 - Corner Installation Guidelines
MISSION36TMN (F0857,
F0859, AND F0861)
MISSION42TMN (F0863,
F0865 AND F0867)
A 24 1/2" (62.2 cm) 27 9/16" (70 cm)
B73 7/8" (187.6 cm) 83 7/8" (213 cm)
C52 3/16" (132.6 cm) 59 5/16" (150.6 cm)
D 17 1/4" (43.8 cm) 19 1/2" (49.5 cm)
A
B
C
D
These Dimensions Allow for a 3/4" Clearance
at Sides and Back of Fireplace. However, 0"
Clearance is Permitted.
3/4" Clearance Not Required
at Nailing Flanges
INSTALLING TRANSITION PIPE AND
STARTER COLLAR
The transition pipe and starter collar shown
in Figure 9 are supplied with the replace,
unattached and ready for installation. Remove
starter collar and set aside. Slide transition pipe
over vent collar and attach with a minimum
of three screws. Replace starter collar over
transition pipe and attach using four screws
located on leg stands (ve used on model
M42). To install B-vent piping, slide the rst
piece of B-vent over transition pipe and attach
with either a minimum of two screws or other
means approved by the vent manufacturer.
Figure 9 - Installing Transition Pipe and
Starter Collar
B-Vent Piping
Transition Pipe
Starter Collar
Vent Collar
fire-parts.com

www.Astria.US.com
126753-01B 9
REQUIREMENTS FOR THE COMMONWEALTH OF
MASSACHUSETTS
For all side wall horizontally vented gas fueled
equipment installed in every dwelling, building or
structure used in whole or in part for residential
purposes, including those owned or operated by
the Commonwealth and where the side wall ex-
haust vent termination is less than seven (7) feet
above nished grade in the area of the venting,
including but not limited to decks and porches,
the following requirements shall be satised:
INSTALLATION OF CARBON
MONOXIDE DETECTORS
At the time of installation of the side wall horizon-
tal vented gas fueled equipment, the installing
plumber or gas tter shall observe that a hard
wired carbon monoxide detector with an alarm
and battery backup is installed on the oor level
where the gas equipment is to be installed. In
addition, the installing plumber or gas tter shall
observe that a battery operated or hard wired car-
bon monoxide detector with an alarm is installed
on each additional level of the dwelling, building or
structure served by the side wall horizontal vented
gas fueled equipment. It shall be the responsibility
of the property owner to secure the services of
qualied licensed professionals for the installation
of hard wired carbon monoxide detectors.
In the event that the side wall horizontally
vented gas fueled equipment is installed
in a crawl space or an attic, the hard wired
carbon monoxide detector with alarm and
battery back-up may be installed on the next
adjacent oor level.
In the event that the requirements of this
subdivision can not be met at the time of
completion of installation, the owner shall
have a period of thirty (30) days to comply with
the above requirements; provided, however,
that during said thirty (30) day period, a battery
operated carbon monoxide detector with an
alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required
in accordance with the above provisions shall
comply with NFPA 720 and be ANSI/UL 2034
listed and IAS certied.
SIGNAGE
A metal or plastic identication plate shall be
permanently mounted to the exterior of the
building at a minimum height of eight (8) feet
above grade directly in line with the exhaust
vent terminal for the horizontally vented gas
fueled heating appliance or equipment. The
sign shall read, in print size no less than 1/2" in
size, "GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS".
INSPECTION
The state or local gas inspector of the side
wall horizontally vented gas fueled equipment
shall not approve the installation unless, upon
inspection, the inspector observes carbon
monoxide detectors and signage installed in
accordance with the provisions of 248 CMR
5.08(2)(a) 1 through 4.
EXEMPTIONS: The following equipment is
exempt from 248 CMR 5.08(2)(a) 1 through 4:
• The equipment listed in Chapter 10 entitled
"Equipment Not Required To Be Vented" in
the most current edition of 54
as adopted by the Board; and
• Product Approved side wall horizontally
vented gas fueled equipment installed in a
room or structure separate from the dwell-
ing, building or structure used in whole or
in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved
side wall horizontally vented gas equipment
provides a venting system design or venting
system components with the equipment, the
instructions provided by the manufacturer for
installation of the equipment and the venting
system shall include:
• Detailed instructions for the installation of
the venting system design or the venting
system components; and
• A complete parts list for the venting system
design or venting system.
Gas Equipment Venting System Not
Provided
When the manufacturer of a Product Ap-
proved side wall horizontally vented gas fu-
eled equipment does not provide the parts for
venting the ue gases, but identies "special
venting systems", the following requirements
shall be satised by the manufacturer:
• The referenced "special venting system" in-
structions shall be included with the appliance
or equipment installation instructions; and
• The "special venting systems" shall be Prod-
uct Approved by the Board, and the instruc-
tions for that system shall include a parts list
and detailed installation instructions.
A copy of all installation instructions for all
Product Approved side wall horizontally
vented gas fueled equipment, all venting in-
structions, all parts lists for venting instruc-
tions, and/or all venting design instructions
shall remain with the appliance or equipment
at the completion of the installation.
fire-parts.com

www.Astria.US.com 126753-01B10
VENTING INSTALLATION
total vertical system height. Codes also allow
only one offset in the total system when at
60° or greater. The total vertical height in this
example represents the minimum height of 8
feet and therefore the allowable lateral is 6
feet when the 75% rule applies. If the lateral
length must exceed 75% then the system
must be sized in accordance with Category I
venting tables.
Example 2: Shows a multiple offset each at
45° of inclination. Multiple offsets are permit-
ted if they do not exceed 45° of inclination. The
total lengths of the two offsets are not required
to meet the 75% allowable rule.
Example 3: Shows a single offset at 45° of
inclination and therefore the lateral length at
10 feet of offset does not have to meet the
75% rule.
In each case the offsets must be supported
and restops must be positioned wherever
the vent must pass through a sub-oor, ceil-
ing joist or an attic overhang. The vent pipe
must terminate vertically into a listed type vent
cap and extend a sufcient height through
an approved roof ashing, roof jack or a roof
thimble (38FST recommended). At all points
listed clearances must be maintained.
Vent terminations must be located in ac-
cordance with height and proximity rules of
NFPA No. 54. These rules apply to vents at
12" diameter or less and require a minimum
height in accordance with the roof pitch and
a minimum of 8 ft. distance from a vertical
wall or obstruction (see Figure 11, page 11).
A B-type venting system must be connected
to the appliance for venting to the outside of
the building.
INNOVATIVE HEARTH PRODUCTS denes
the installation standards of its product. Third
party products must be installed to their speci-
ed standards.
Standing codes requirements concerning B-
type vent installations may vary within your
state, province or local codes jurisdiction.
Therefore, it is recommended that you check
with your local building codes for specic
requirements or in absence of local codes,
follow Section 7.0 of the current National Fuel
Gas Code ANSI Z223.1/NFPA 54.
This gas appliance must be vented to the
outdoors only and may not be terminated
into an attic space or into a chimney ue
servicing a solid fuel burning appliance.
This appliance may be vented through a
manufactured chimney system or a masonry
chimney using a B-vent adapter or a chim-
ney liner system if all are listed, inspected
and approved by local codes and/or building
authorities.
The examples shown in Figure 10, are
typical of most B-vent installations and codes
practices.
Example 1: Shows the minimum allowable
system height and lateral offset for a 60° or
greater inclination. Code species that offsets
at 60° or greater are considered horizontal
and must follow the 75% rule for lateral to
Maintain
Listed
Clearance
Maintain
Listed
Clearance
12' Min.
12' Min. 45°
45°
6'
8'
12' Min.
60° 45°
Position
Firestop
Position
Firestop
Position
Firestop
Listed
Vent Cap
Listed
Vent Cap
Listed
Vent Cap
Maintain
Listed
Clearance
Maintain
Listed
Clearance
Maintain
Listed
Clearance
Maintain
Listed
Clearance
Support Each
Lateral At
Least Every
6 Feet
Maintain
Listed
Clearance
10'
EXAMPLE 3EXAMPLE 2
EXAMPLE 1

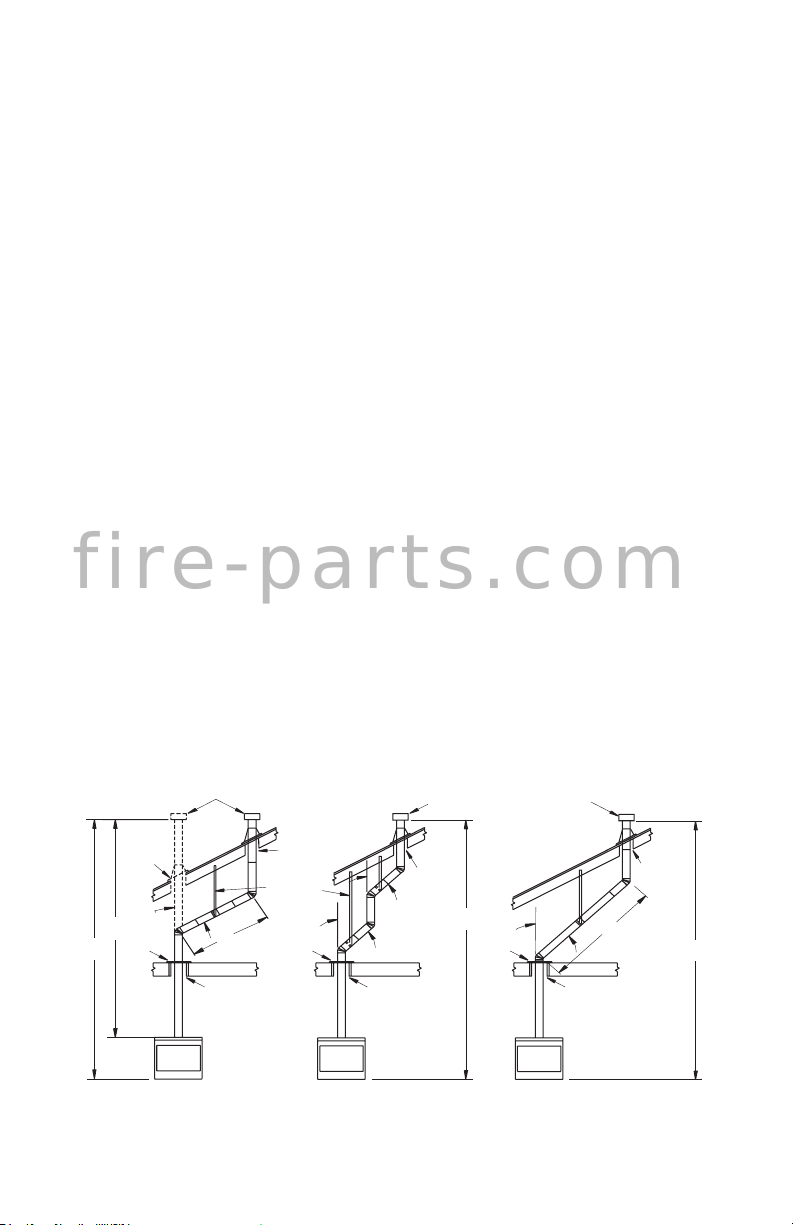

Figure 10 - Typical B-Vent Conguration
fire-parts.com

www.Astria.US.com
126753-01B 11

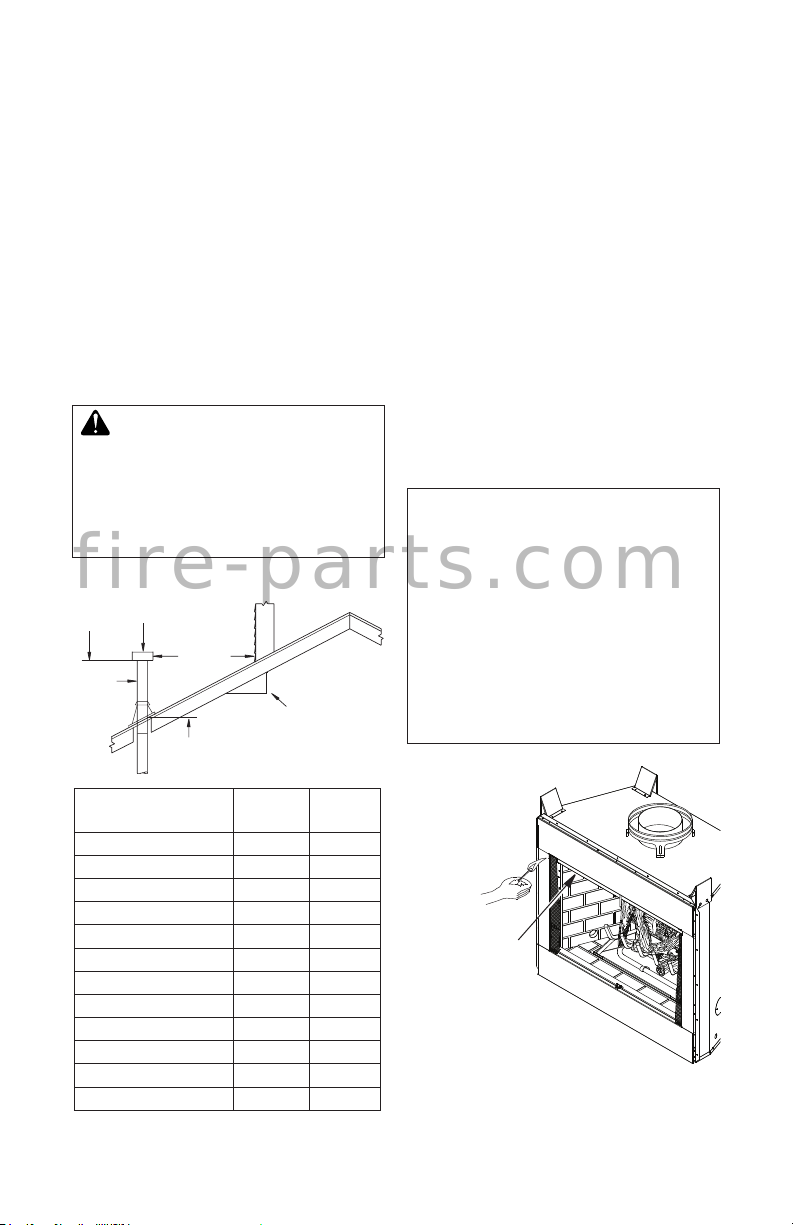

Some codes areas allow the use of existing
B-type vent systems if the system is at or
above the recommended diameter of the ue,
in this case 6".
The ue connection must be made using
listed B-type connectors and the existing
system must be code inspected for damage
and proper installation.
It is not recommended that this appliance be
common vented with an existing gas burning
appliance.
Note: Before connecting this appliance to an
existing vent system consult with your local
architect, planner or building ofcial.
WARNING: This appliance
must be properly connected
to a system and must not be
connected to a chimney ue
servicing a separate solid fuel
burning appliance.
CHECKING FOR PROPER VENTING
After completing and checking electrical,
gas and vent connections, follow the lighting
instructions and allow main burner to run
for approximately 5 minutes. Hold a lighted
match or cigarette near the top edge of re-
place opening and play it along entire length
of opening (see Figure 12). Proper venting
should tend to draw the ame or smoke into
the appliance. Improper venting or escaping
of spillage of burned gas, is indicated when
the match ickers or goes out. Smoke from a
cigarette will also tend to disperse away from
the appliance.
If appliance is found to be improperly vent-
ing, shut it off and notify your installer or a
qualied service agency to inspect the vent-
ing system.
NOTICE: This appliance is
equipped with a vent safety
shutoff switch which will shut
down the appliance in the case
of a venting problem. Do not
bypass the vent safety switch. If
the appliance should shut down,
contact a qualied installer, ser-
vice agency or your gas supplier
to have the vent inspected before
operating.
Lowest
Discharge
Opening
Listed
Vent Cap
8 Ft. Min.
Roof Pitch x/12
Listed Clearance
12
x
Listed
Gas
Vent
H (Min)
Height
From Roof
Roof Pitch
H (Min.)
Feet Meter
Flat to 6/12 1.0 ax 0.30
6/12 to 7/12 1.25 0.38
Over 7/12 to 8/12 1.5 0.46
Over 8/12 to 9/12 2.0 0.61
Over 9/12 to 10/12 2.5 0.76
Over 10/12 to 11/12 3.25 0.99
Over 11/12 to 12/12 4.0 1.22
Over 12/12 to 14/12 5.0 1.52
Over 14/12 to 16/12 6.0 1.83
Over 16/12 to 18/12 7.0 2.13
Over 18/12 to 20/12 7.5 2.27
Over 20/12 to 21/12 8.0 2.44
Figure 11 - B-Vent Terminations
Check this area
along entire top
edge of replace
opening. Smoke
or ame should be
drawn into appliance
opening.
Figure 12 - Checking for Spillage
VENTING INSTALLATION
Continued
fire-parts.com

www.Astria.US.com 126753-01B12

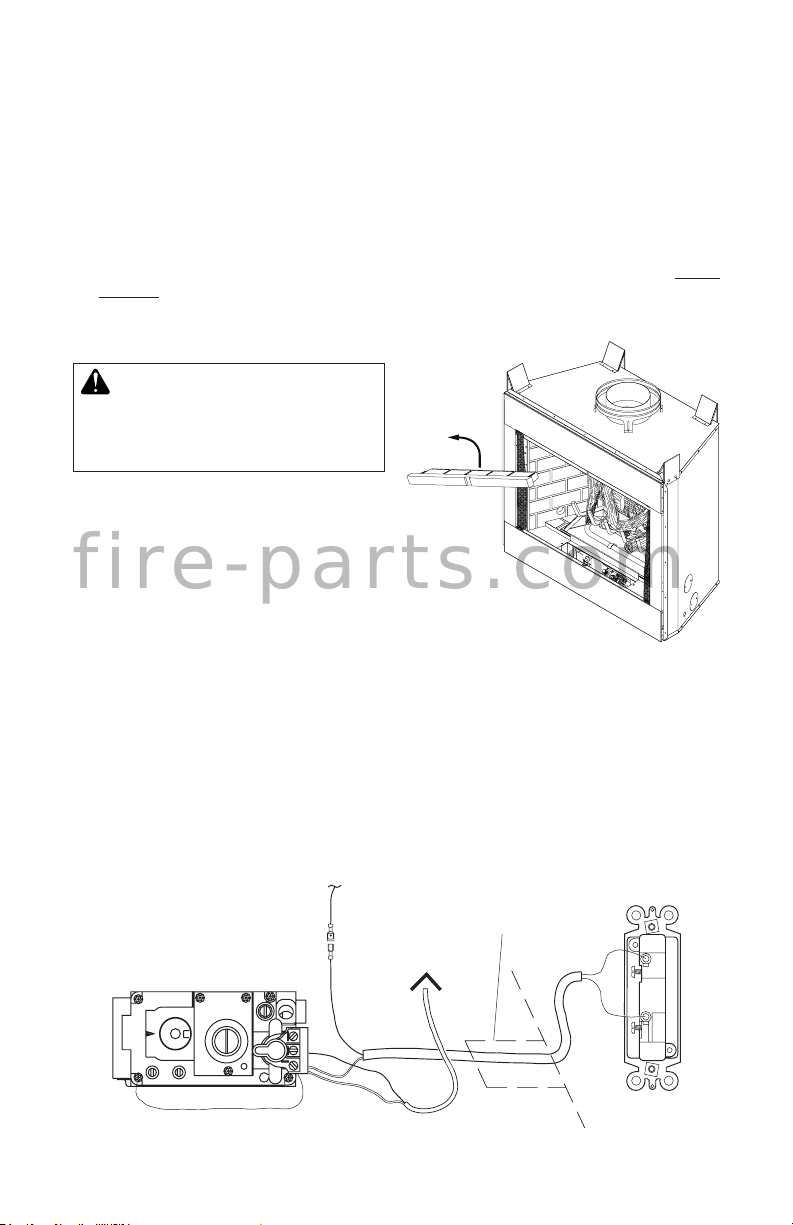

INSTALLATION
Figure 13 - Removing Front Refractory
Access Panel
WALL SWITCH INSTALLATION
The installation of a wall switch allows you to activate the gas control valve without normal
household electricity since valve operates on millivolt current supplied by heat generated by
the thermopile. To install wall switch:
1. Remove front refractory access panel by lifting up and angling out of rebox opening (see
Figure 13).
2. Use wire and connectors provided. Attach red wire to terminal marked TH/TP on control
valve. Attach white wire to blade connector on open end of safety circuit wiring (see Wiring
Diagram, page 22).
Note: If any of the original wire from unit control must be replaced, use the same type or a
higher rated wire (25 ft. maximum length).
WARNING: Do not wire re-
mote wall switch to main power
supply (Standard 120v house-
hold current).
3. Locate wall switch in a convenient location.
4. After wire connections are complete,
replace refractory access panel.
INSTALLING WIRELESS HAND-HELD REMOTE CONTROL MRC SERIES
Note: If using optional wireless hand-held remote control, the wall switch is no longer operational.
Installing Receiver
1. Remove front refractory access panel by lifting up and angling out of rebox opening (see
Figure 13) to expose controls.
2. Disconnect wall switch wires from TH and TH/TP terminals on control valve (see Figure 14).
3. See remote instructions for further information.
Conduit Sleeve
To Safety Circuit Route Millivolt
Through Gas Line
To Thermopile
Wires (Supplied)
Wall Switch
(Not Supplied)
(Back View)
IN
TH
TP
THTP
IN OUT
O
F
F
P
I
L
O
T
O
N
Note: If any of the original wire as
supplied must be replaced, use 18
AWG TYPE CL2 (UL) 105 C (25 ft.
length MAXIMUM) or equivalent.
Figure 14 - Wall Switch Wiring Diagram
fire-parts.com

www.Astria.US.com
126753-01B 13

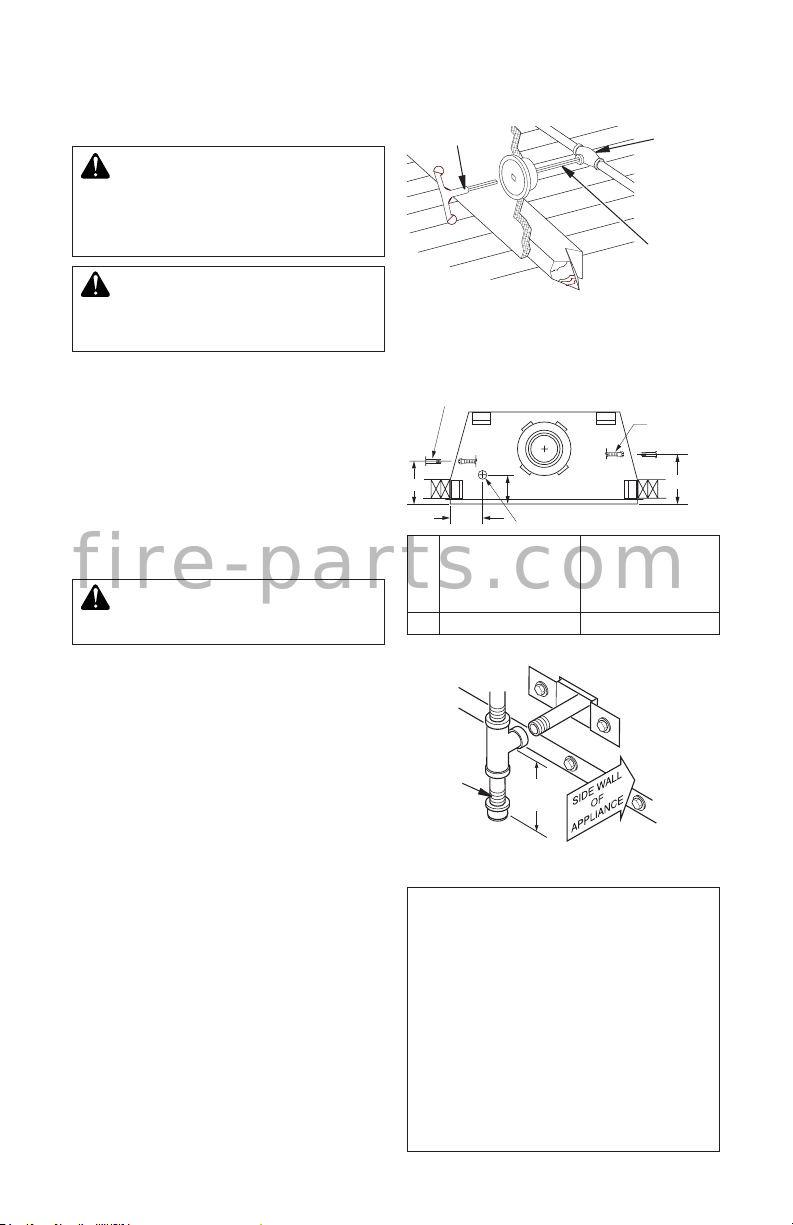

GAS LINE HOOK-UP
WARNING: Gas line hookup
should be done by your gas
supplier or a qualied service
person.
WARNING: Before you pro-
ceed, make sure your gas supply
is OFF.
A manual shutoff valve has been included in
the appliance’s gas supply system. You may
consider installing an extra gas shutoff valve
outside appliance’s enclosure (check with
local codes) where it can be accessed more
conveniently with a key through a wall as
shown in Figure 15.
In conformance with local codes, route a
1/2" NPT gas line to appliance through hole
in left side of rebox or sub-oor as shown
in Figure 16.
CAUTION: Do not kink ex-
ible gas line.
INSTALLATION
Continued
INNOVATIVE HEARTH PRODUCTS recom-
mends that a black iron gas line be routed
from the gas source, through a sediment
trap (see Figure 17) and into appliance. Once
connected through appliance, a exible gas
line may be used for ease of installation to
gas control valve (see Figure 18, page 14).
Before connecting black iron gas line to inside
of appliance a sediment trap must be included
outside appliance between gas line and gas
shutoff valve. It must extend down 3" beyond
center of pipe. Prepare incoming black iron
gas line with teon tape or pipe joint com-
pound (Check with local building codes).
Figure 15 - Manual Shutoff Valve
Installation
Typical Exterior Wall Gas
Shutoff Installation
Key
Extension
Shutoff
Valve
Figure 16 - Routing Incoming Gas Line
AB
1/2" NPT Incoming
Black Iron Gas Line Flexible Gas Line
(1 Provided) Can
Be Extended Out
Either Side
7"
7"
Alternate Gas Supply
Through Sub-Floor
MISSION36TMN
F0857
F0859
F0861
MISSION42TMN
F0863
F0865
F0867
A 8 5/8" (21.9 cm) 10 1/2" (26.7 cm)
Incoming
1/2" Gas Line
Permitted by
Local Codes
Sediment
Trap (Not
Supplied)
Figure 17 - Sediment Trap
3" Min.
(7.6 cm)
NOTICE: NFPA 54 denes minimum
space requirements for the installa-
tion of this appliance. This replace
must be installed in an unconned
space with a minimum of 50 cubic
feet per 1,000 BTUs of gas output.
Therefore 36” models require 2,650
cubic feet, 42” models require 3,100
cubic feet.. If the space you wish to
install the replace does not meet
these requirements NFPA 54 details
several actions that may be taken.
fire-parts.com

www.Astria.US.com 126753-01B14

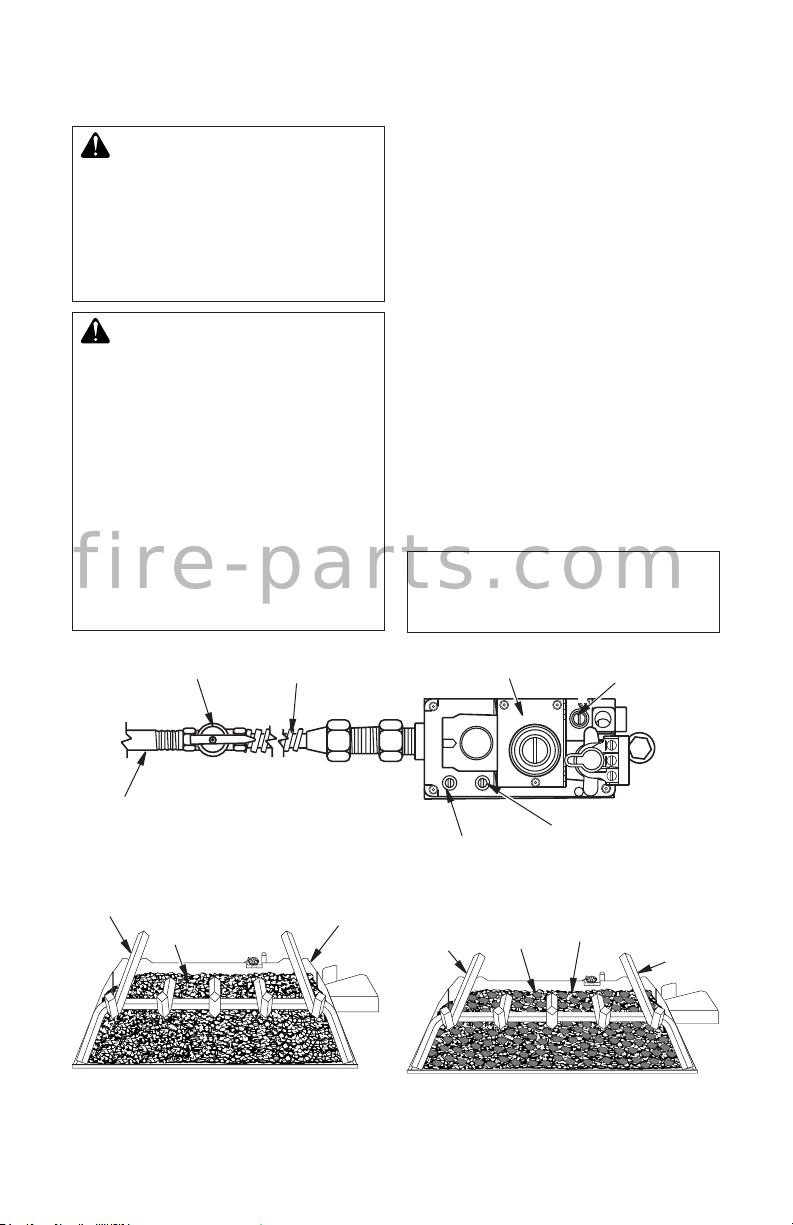

P
I
L
O
T
ON
OFF
IN OUT
Figure 18 - Connecting Flexible Gas Line to Millivolt Valve
Gas Shutoff
Valve
Flexible Gas Line
Do NOT Kink
1/2" NPT
Incoming
Gas Line
Note:
1) Wire Connections
Not Shown for Clarity
2) * 1/8" NPT Plugged
Tapping
Red Surface Indicates For
Propane/LP Use Only Pilot Adj
Inlet Pressure Tap
Outlet
Pressure Tap
CAUTION: Compounds used
on threaded joints of gas piping
shall be resistant to the action
of Liqueed Petroleum (LP or
propane) and should be applied
lightly to ensure excess sealant
does not enter the gas line.
WARNING: All gas piping
and connections must be tested
for leaks after the installation is
completed.
After ensuring that the gas valve
is on, apply a commercial leak
detection solution to all con-
nections and joints. If bubbles
appear, leaks can be detected
and corrected.
Do not use an open ame for leak
testing and do not operate any
appliance if a leak is detected.
INSTALLATION
Continued
Complete your gas installation by connect-
ing incoming gas line with exible gas line.
Secure tightly with wrench but DO NOT
OVERTIGHTEN.
EMBER AND PAN MATERIAL
PLACEMENT
1. Open bag(s) of vermiculite and ll entire
burner pan until burner tube is completely
covered (see Figure 19).
2. Smooth pan material just even with edges
of burner pan.
3. Remove ember material from bag and
atten small amounts into quarter size
pieces and lay on top of surface of pan
material (see Figure 20).
4. Place just enough to cover entire surface
and leave about a 1/2" gap under lower
grate members to allow air to ow (see
Figure 21, page 15).
Figure 19 - Fill Entire Burner Pan with
Vermiculite
Figure 20 - Ember Material on Surface of
Pan Material (Vermiculite)
Vermiculite
(Pan Material)
Burner Pan
Grate
Ember
Material Burner
Pan
Vermiculite (Pan Material)
Grate
Notice: Sealant should not be
used on are tting if one is
present.
fire-parts.com

www.Astria.US.com
126753-01B 15
0.5"
0.5"
Figure 21 - Pan and Ember Material
Clearances
Grate
Burner Pan
Pan and Ember
Material
INSTALLATION
Continued
LOG PLACEMENT FOR MISSION36TMN
(F0857, F0859, AND F0861)
1. Place small front right log (log 1) on right
front of grate as shown in Figure 22.
2. Place large back log (log 2) onto grate
making sure notches rest over grate as
shown in Figure 22.
3. Place log 3 into notch on log 2, resting
front end on top of log 1 (see Figure 23).
4. Place upper end of log 4 into notch on log
2 as shown in Figure 23. Rest lower end
of log 4 onto middle grate nger as shown
in Figure 24.
5. Place upper end of log 5 into notch on left
of log 2 (see Figure 24). Rest lower end
of log 5 on grate as shown in Figure 25.
6. Insert lower end of log 6 between rst
two grate ngers as shown in Figure
25 and position upper end of log 6 into
notched area on front of log 2 as shown
in Figure 25.
As an option to enhance the look of the hearth,
you may place the lava rock provided around
front and sides of burner.
Figure 22 - Installing Logs 1 and 2
Log 1
Log 2
Notch
Figure 23 - Installing Logs 3 and 4
Log 3
Log 4
Log 2
Log 1
Notches
NOTICE: Do not put lava rock in-
side burner pan or around the air
mixer tting. Placing lava rock
inside burner pan or blocking
openings of the propane/LP air-
mixer could cause performance
problems.
Figure 24 - Installing Logs 5 and 6
Log 5
Log 6
Log 4
Notch
Notch
Figure 25 - Logs Installed for
Mission36TMN (F0857, F0859, F0861)
fire-parts.com

www.Astria.US.com 126753-01B16
INSTALLATION
Continued
LOG PLACEMENT FOR MISSION42TMN
(F0863, F0865 AND F0867)
1. Place large back log (log 1) onto grate
making sure notches rest over grate (see
Figure 26).
2. Insert lower end of log 2A between rst
two grate ngers and position upper end
into notch on front of log 1. See Figure 26.
Place log 2B on front right side of grate as
shown in Figure 26.
3. Place log 3 into notch on top left of log 1,
resting lower end on left two grate ngers
(see Figure 27).
4. Place upper end of log 4 into notch on log
1 as shown in Figure 27. Rest lower end
of log 4 on middle grate nger as shown
in Figure 28.
5. Place upper end of log 5 into notch on top
inner right of log 1 (see Figure 28). Rest
lower end of log 5 on middle grate nger
as shown in Figure 29.
6. Place log 6 into notch on top right of log
1 (see Figure 28). Rest lower end of log
6 on top of log 2B (see Figure 29).
As an option to enhance the look of the hearth,
you may place the lava rock provided around
front and sides of burner pan.
NOTICE: Do not put lava rock
inside the burner pan or around
the air mixer tting. Placing lava
rock inside the burner pan or
blocking the openings of the pro-
pane/LP air-mixer could cause
performance problems.
Figure 26 - Installing Logs 1, 2A and 2B
Log 2A
Log 2B
Log 1
Notch
Figure 27 - Installing Logs 3 and 4
Log 4
Log 3
Log 1
Notches
Figure 28 - Installing Logs 5 and 6
Figure 29 - Logs Installed for
Mission42TMN (F0863, F0865, F0867)
Log 6
Log 5
Notch
Log 1
Log 2B
fire-parts.com

www.Astria.US.com
126753-01B 17
INSTALLATION
Continued
COMBUSTION AIR KIT MODEL AK4
(OPTIONAL)
The outside air kit may be installed on the left
side of replace only. The vent can be installed
through any outside wall a minimum of three
feet below fireplace termination cap. The
handle to operate damper door for outside
air inlet will be located inside the left “screen
pocket” of rebox (see Figure 30). Pull handle
to open or push to close.
CAUTION: Air inlet ducts are
not to terminate in attic space.
Figure 30 - Air Kit Handle Location
Air Kit
Handle
Screen
Pocket
APPLIANCE ENCLOSURE
Before nishing enclosure around appliance,
inspect all joints around outer surround. Any
gaps between nailing anges and framing
should be sealed with noncombustible insula-
tion or caulking.
If appliance is mounted on a raised platform,
it must be a continuous surface and not
on blocks without a solid surface. This will
prevent the entry of cold air by means of con-
duction through the total bottom of appliance
(see Figure 31).
Side
Framing
Side
Framing
Caulk Here Pack Insulation
Figure 31 - Sealing Between Appliance
and Framing
INSTALLING OPTIONAL GLASS
DOOR ACCESSORY
CAUTION: Use only glass
doors certied for use with this
appliance.
Note: Glass door may be heavy for some
individuals. Please request help if needed.
The Mission36TMN, Mission42TMN, B-vent
replaces are approved for use with optional
bi-fold glass doors (see Accessories, page
31). Glass panels may be ordered and in-
stalled anytime after replace installation is
complete.
Follow these steps to install left and right
panels:
1. With handle at the bottom, completely fold
panel on its hinges.
2. With handle facing center of rebox open-
ing, insert lower pivot pin on glass door
panel into hole in pivot plate on bottom edge
of replace opening (see Figure 32).
3. Keeping folded door tilted, slide upper two
pins into guide track found under upper
facial edge of rebox opening.
4. Tilt glass assembly fully vertical until outer
pivot pin snaps into mounting hole in up-
per spring clip (see Figure 32).
5. Once top and bottom pins are secured,
unfold door into the closed position.
Figure 32 - Installing Optional Glass
Door
Spring Clip
Insert Pin Into Spring Clip
Insert Bottom Pivot Pin Into
Pivot Plate and Swing Door
Into Vertical Position
Pivot Plate
Slide Top
Pin Into
Door Track
fire-parts.com

www.Astria.US.com 126753-01B18

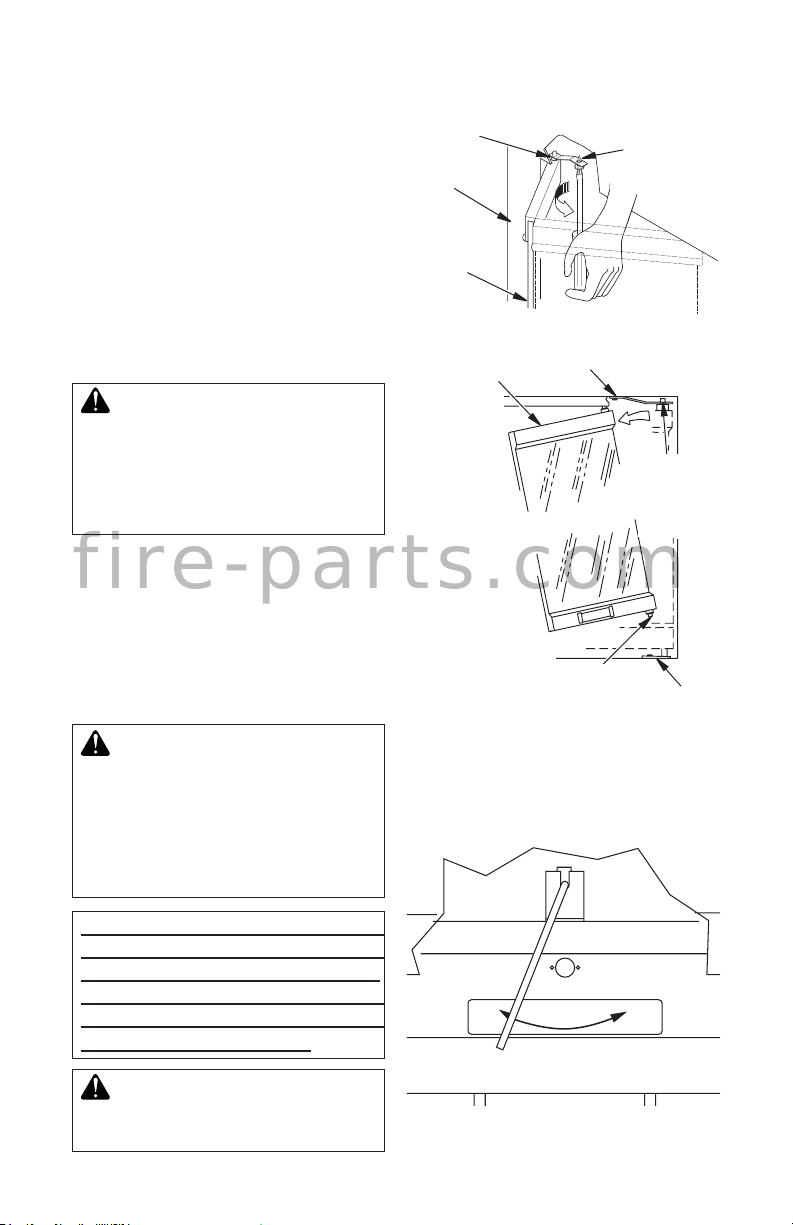

6. Repeat the process for the opposite door
assembly.
7. To adjust doors, slide them partially open.
Using a screwdriver, loosen hold-down
screws in the spring clip (see Figure 33)
and pivot plate.
8. Close both doors until evenly joined at the
middle and note the gap at outer edges of
face.
9. Reopen one door at a time and retighten
upper and lower hold-down screws.
10. Repeat process until both doors are
evenly joined, spaced and working freely.
CAUTION: The glass pan-
els become very hot while the
appliance is operating. Do not
attempt to adjust or clean the
glass doors until the appliance
has fully cooled.
The doors may be removed for replacement
or cleaning as follows:
1. Partially open door and press up on upper
spring clip with a screw driver until outer
top pivot pin is free of clip.
2. Fully fold frame assembly and slide upper
edge towards center of rebox opening
until guide pins are free of frame rail (see
Figure 34).
CAUTION: Always operate
the appliance with the doors ei-
ther fully opened or fully closed.
Operating the appliance with
the doors partially open can re-
sult in improper venting of ue
products.
WARNING: Discontinue use of
the appliance immediately if
doors are damaged and contact
a qualied installer for repair.
Only doors certied with the
appliance shall be used.
WARNING: Do not slam or
strike doors. Damage can result
in a hazardous condition.
INSTALLATION
Continued
Figure 33 - Adjusting Glass Doors
Spring
Clip
Hold-Down
Screw
Side
Front
Face
Partially
Opened
Door
Figure 34 - Removing Glass Doors
Spring Clip
Press
Spring Clip
to Release
Pivot Pin
Remove Bottom Pin From
Pivot Plate While Sliding Door
Out of the Upper Track Pivot Plate
Fold Bi-Fold
Door After
Releasing
Spring Clip
and Slide
Door Out of
Upper Track
OPENING VENT DAMPER
Vent damper must be locked in the full open
position before operating replace. If vent
damper is not open, replace will not light.
CLOSEOPEN
VENT DAMPER MUST BE LOCKED
IN THE FULL OPEN POSITION
TO OPERATE THE APPLIANCE
Figure 35 - Opening Vent Damper
fire-parts.com

www.Astria.US.com
126753-01B 19
OPERATION
1. STOP! Read the safety information, col-
umn 1.
2. Turn wall switch to the OFF position.
3. Turn off all electric power to appliance.
4. Place damper in full open position.
5. Fully open glass doors if installed.
6. Remove front refractory brick access
panel.
7. Turn gas control knob clockwise
to the OFF position (see Figure 36).
8. Wait ve (5) minutes to clear out any gas.
Then smell for gas, including near the
oor. If you smell gas, STOP! Follow “B”
in the safety information, column 1. If you
don’t smell gas, go to the next step.
9. Turn control knob counterclockwise
to the PILOT position.
10. Push in knob all the way and hold in.
Immediately light the pilot manually. Con-
tinue to hold control knob in for about one
minute after pilot is lit. Release knob and
it will pop back up. Pilot should remain lit.
If it goes out, repeat steps 5 through 9.
• If knob does not pop up when released,
stop and immediately call your service
technician or gas supplier.
• If the pilot will not stay lit after several
tries, turn the gas control knob to OFF
and call your service technician or gas
supplier.
11. Turn gas control knob counterclockwise
to O”. Knob can be turned to ON
only if the control knob is popped out.
12. Replace front refractory brick access
panel.
13. Fully close glass doors if installed.
14. Turn on all electric power to appliance.
P
I
L
O
T
ON
OFF
IN OUT
IN
Figure 36 - Control Knob in the PILOT
position
Position Indicator
Gas Control Knob Pilot Adjustment Screw
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not fol-
low these instructions exactly,
a re or explosion may result
causing property damage, per-
sonal injury or loss of life.
A. This appliance has a pilot which must
be lighted by hand. When lighting
the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING smell all around
the appliance area for gas. Be sure to
smell next to the oor because some
gas is heavier than air and will settle
on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do
not use any phone in your building.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
C. Use only your hand to push in or turn
the gas control knob. Never use tools.
If the knob will not push in or turn by
hand, don’t try to repair it, call a quali-
ed service technician or gas supplier.
Force or attempted repair may result in
a re or explosion.
D. Do not use this appliance if any part
has been under water. Immediately
call a qualied service technician to
inspect the appliance and to replace
any part of the control system and
any gas control which has been under
water.
LIGHTING
INSTRUCTIONS
NOTICE: During initial operation
of new replace, burning logs
will give off a paper-burning
smell. Orange ame will also
be present. Open damper or
window to vent smell. This will
only last a few hours.
fire-parts.com

www.Astria.US.com 126753-01B20
TO TURN OFF GAS
TO APPLIANCE
1. Turn off wall switch.
2. Turn off all electric power to appliance if
service is to be performed.
3. Fully open glass doors if installed.
4. Remove front hearth brick and control
access panel.
5. Turn gas control knob clockwise
to OFF. Do not force.
6. Replace front refractory brick access
panel.
7. Fully close glass doors if installed.
OPERATION
Continued
Figure 37 - Pilot
Thermopile
Pilot
Burner
Ignitor
INSPECTING BURNERS
BURNER FLAME PATTERN
Burner ames will be steady, not lifting or oat-
ing. Flames should go up through the middle
of log set. Flames should not "spill" to edges
of pan or sides of log set.
Figure 39 shows a typical ame pattern. If
burner ame pattern differs from that de-
scribed:
• turn appliance off (see To Turn Off Gas to
Appliance)
• see Troubleshooting, page 23
Thermopile
Pilot
Burner
Ignitor
Figure 38 - Correct Pilot Flame Pattern
Figure 39 - Typical Flame Pattern
OPTIONAL HAND-HELD
REMOTE OPERATION
Note: The receiver and hand-held remote
control kit must be purchased separately (see
Accessories, page 31). Follow installation
instructions included with the remote control.
Check pilot ame pattern and burner ame
patterns often.
PILOT ASSEMBLY
The pilot assembly is factory preset for the
proper ame height. Alterations may have
occurred during shipping and handling. The
pilot is located on the back right hand side
of the burner.
The height of the thermopile must be 3/8" to
1/2" above the pilot ame. The ame from
the pilot burner must extend beyond the
thermopile.
If your pilot assembly does not meet these
requirements:
• Turn adjustment screw marked pilot clock-
wise to decrease or counterclockwise to in-
crease the ame to proper size (see Figure
36, page 19). Do not remove adjustment
screw.
• see Troubleshooting, page 23
fire-parts.com
