1 Getting to know your wireless
router
1.1 Welcome!
Thank you for purchasing an ASUS RT-AC5300 Wireless Router!
The ultra-thin and stylish RT-AC5300 features 2.4GHz, 5GHz-1 and
5 GHz-2 triple bands for an unmatched concurrent wireless HD
streaming; SMB server, UPnP AV server, and FTP server for 24/7
file sharing; a capability to handle 300,000 sessions; and the ASUS
Green Network Technology, which provides up to 70% power-
saving solution.
1.2 Package contents
NOTES:
• Ifanyoftheitemsisdamagedormissing,contactASUSfortechnical
inquiries and support, Refer to the ASUS Support Hotline list at the
back of this user manual.
• Keeptheoriginalpackagingmaterialincaseyouwouldneedfuture
warranty services such as repair or replacement.
RT-AC5300 Wireless Router AC adapter
Network cable (RJ-45) Quick Start Guide
Support CD (Manual)

8

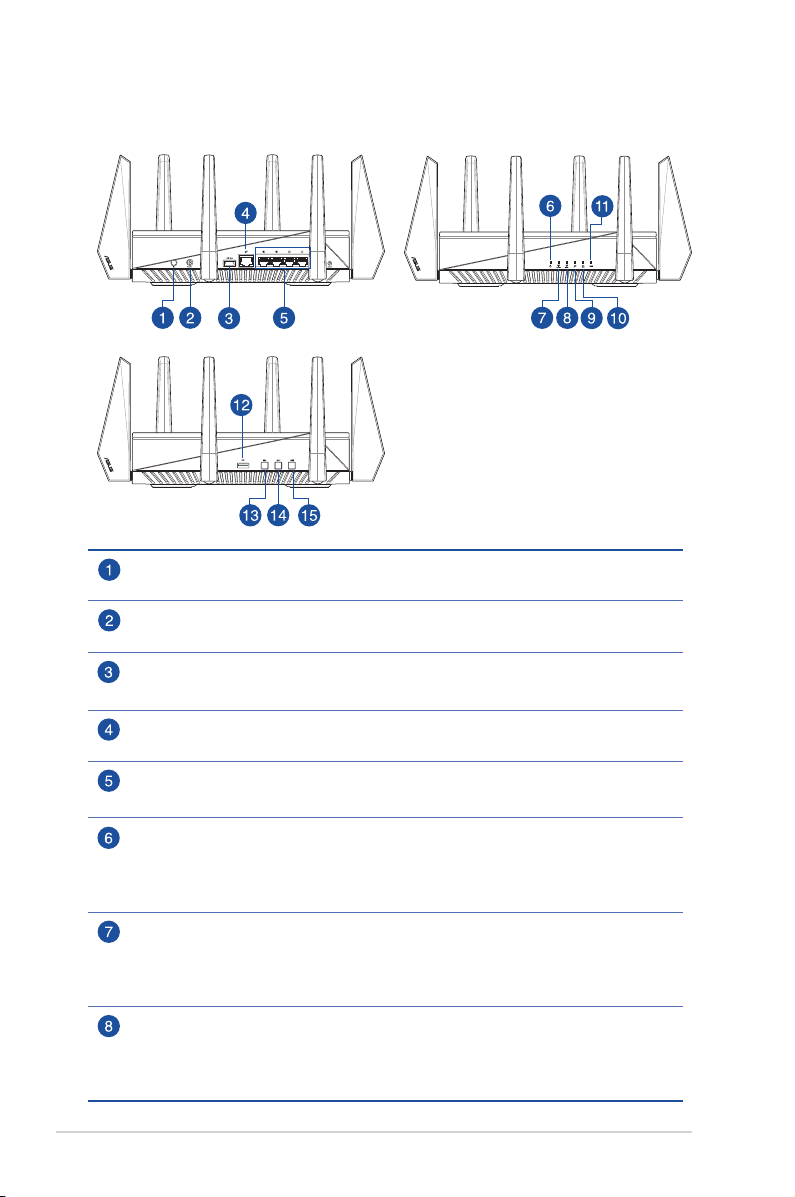

1.3 Your wireless router
Power button
Press this button to power on or off the system.
Power (DC-IN) port
Insert the bundled AC adapter into this port and connect your router to a power source.
USB 3.0 port
Insert USB 3.0 devices such as USB hard disks or USB flash drives into this port.
WAN (Internet) port
Connect a network cable into this port to establish WAN connection.
LAN 1 ~ 4 ports
Connect network cables into these ports to establish LAN connection.
Power LED
Off: No power.
On: Device is ready.
Flashing slow: Rescue mode.
2.4GHz LED
Off: No 2.4GHz signal.
On:Wireless system is ready.
Flashing:Transmitting or receiving data via wireless connection.
5GHz LED
Off: No 5GHz signal.
On:Wireless system is ready.
Flashing:Transmitting or receiving data via wireless connection.

9
NOTES:
• Useonlytheadapterthatcamewithyourpackage.Usingother
adapters may damage the device.
• Specifications:
DC Power adapter DC Output: +19V with max 3.42A current
Operating
Temperature 0~40oCStorage 0~70oC
Operating Humidity 50~90% Storage 20~90%
WAN (Internet) LED
Red: No IP or no physical connection.
On: Has physical connection to a wide area network (WAN).
LAN LED
Off: No power or no physical connection.
On: Has physical connection to a local area network (LAN).
WPS LED
Off:WPS verification process is off or completed.
Flashing:WPS verification process is activated.
USB 2.0 port
Insert USB 2.0 devices such as USB hard disks or USB flash drives into this port.
LED On/Off button
Press this button to turn on/off the LEDs on the panel.
WPS button
This button launches the WPS Wizard.
Wi-Fi On/Off button
Press this button to turn on /off the Wi-Fi connection.

10
1.4 Positioning your router
For the best wireless signal transmission between the wireless
router and the network devices connected to it, ensure that you:
• Placethewirelessrouterinacentralizedareaforamaximum
wireless coverage for the network devices.
• Keepthedeviceawayfrommetalobstructionsandawayfrom
direct sunlight.
• Keepthedeviceawayfrom802.11gor20MHzonlyWi-Fi
devices, 2.4GHz computer peripherals, Bluetooth devices,
cordless phones, transformers, heavy-duty motors, fluorescent
lights, microwave ovens, refrigerators, and other industrial
equipment to prevent signal interference or loss.
• Alwaysupdatetothelatestfirmware.VisittheASUSwebsiteat
http://www.asus.com to get the latest firmware updates.

11
1.5 Setup Requirements
To set up your wireless network, you need a computer that meets
the following system requirements:
• EthernetRJ-45(LAN)port(10Base-T/100Base-TX/
1000BaseTX)
• IEEE802.11a/b/g/n/acwirelesscapability
• AninstalledTCP/IPservice
• WebbrowsersuchasInternetExplorer,Firefox,Safari,or
Google Chrome
NOTES:
• Ifyourcomputerdoesnothavebuilt-inwirelesscapabilities,youmay
install an IEEE 802.11a/b/g/n/ac WLAN adapter to your computer to
connect to the network.
• Withitstriplebandtechnology,yourwirelessroutersupports
2.4GHz, 5GHz-1 and 5GHz-2 wireless signals simultaneously. This
allows you to do Internet-related activities such as Internet surfing
or reading/writing e-mail messages using the 2.4GHz band while
simultaneously streaming high-definition audio/video files such as
movies or music using the 5GHz band.
• SomeIEEE802.11ndevicesthatyouwanttoconnecttoyournetwork
may or may not support 5GHz band. Refer to the device's manual for
specifications.
• TheEthernetRJ-45cablesthatwillbeusedtoconnectthenetwork
devices should not exceed 100 meters.

12
1.6 Router Setup
IMPORTANT!
• Useawiredconnectionwhensettingupyourwirelessrouterto
avoid possible setup problems.
• BeforesettingupyourASUSwirelessrouter,dothefollowing:
 • Ifyouarereplacinganexistingrouter,disconnectitfromyour
network.
 • Disconnectthecables/wiresfromyourexistingmodemsetup.If
your modem has a backup battery, remove it as well.
 • Rebootyourcablemodemandcomputer(recommended).
1.6.1 Wired connection
NOTE: You can use either a straight-through cable or a crossover cable
for wired connection.
To set up your wireless router via wired connection:
1. Insert your wireless router’s AC adapter to the DC-IN port and
plug it to a power outlet.
RT-AC5300
WAN
1LAN
Internet
Modem
3
1
4
2

13
2. Using the bundled network cable, connect your computer to
your wireless router’s LAN port.
IMPORTANT! Ensure that the LAN LED is blinking.
3 Using another network cable, connect your modem to your
wireless router’s WAN port.
4. Insert your modem’s AC adapter to the DC-IN port and plug it
to a power outlet.
1.6.2 Wireless connection
To set up your wireless router via wireless connection:
1. Insert your wireless router’s AC adapter to the DC-IN port and
plug it to a power outlet.
RT-AC5300
2
WAN
1
3
Internet
Modem
Computer

14
2 Using the bundled network cable, connect your modem to
your wireless router’s WAN port.
3. Insert your modem’s AC adapter to the DC-IN port and plug it
to a power outlet.
4. Install an IEEE 802.11a/b/g/n/ac WLAN adapter on your
computer.
NOTES:
• Fordetailsonconnectingtoawirelessnetwork,refertotheWLAN
adapter’s user manual.
• Tosetupthesecuritysettingsforyournetwork,refertothesection
Setting up the wireless security settings in Chapter 3 of this user
manual.

15
2 Getting started
2.1 Logging into the Web GUI
Your ASUS wireless router comes with an intuitive web graphical
user interface (GUI) that allows you to easily configure its various
features through a web browser such as Internet Explorer, Firefox,
Safari, or Google Chrome.
NOTE: The features may vary with different firmware versions.
To log into the web GUI:
1. On your web browser, manually key in the wireless router’s
default IP address: http://router.asus.com.
2. On the login page, key in the default user name (admin) and
password (admin).
3. You can now use the Web GUI to configure various settings of
your ASUS Wireless Router.
NOTE: If you are logging into the Web GUI for the first time, you will be
directed to the Quick Internet Setup (QIS) page automatically.

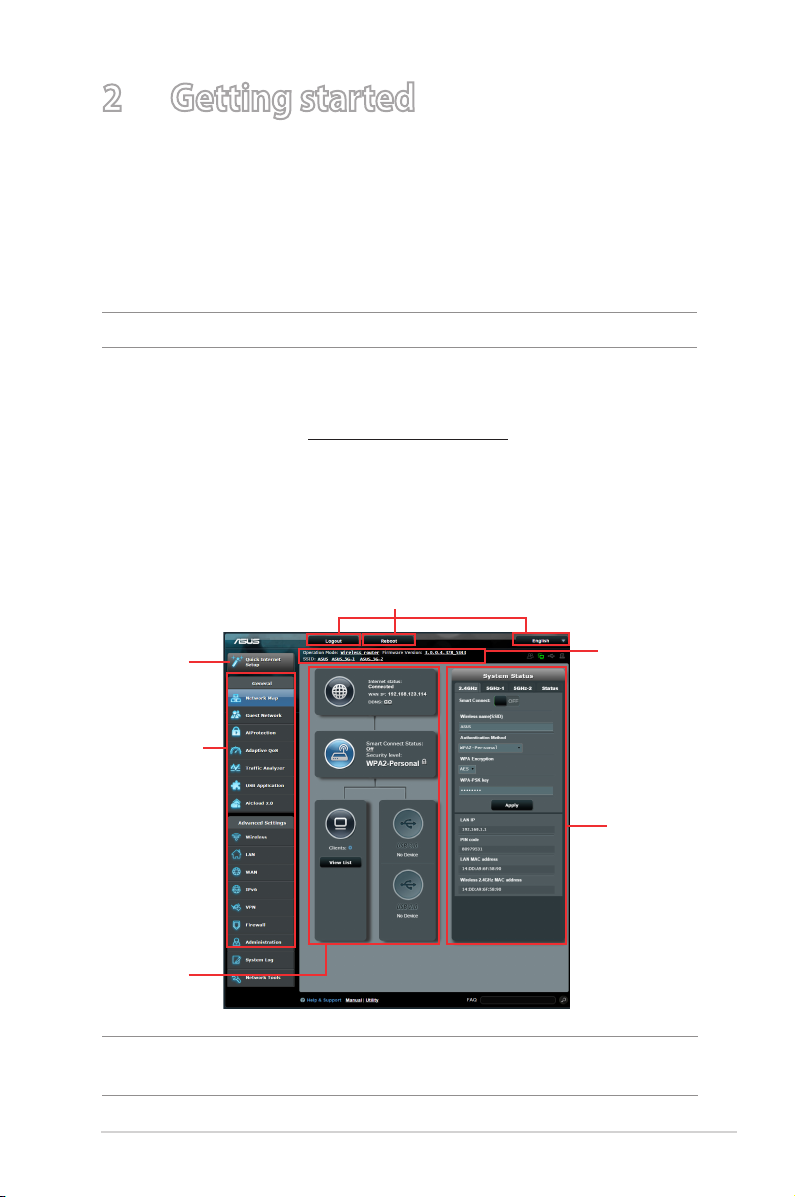

Navigation
panel
QIS - Smart
Connect
Wizard
Top command buttons
Information
banner
Middle
column
Right column

16
2.2 Quick Internet Setup (QIS) with Auto-
detection
The Quick Internet Setup (QIS) function guides you in quickly
setting up your Internet connection.
NOTE: When setting the Internet connection for the first time, press
the Reset button on your wireless router to reset it to its factory default
settings.
To use QIS with auto-detection:
1. Log into the Web GUI. The QIS page launches automatically.
NOTES:
• Bydefault,theloginusernameandpasswordforyourwireless
router's Web GUI is admin. For details on changing your wireless
router's login username and password, refer to section 4.6.2 System.
• Thewirelessrouter'sloginusernameandpasswordisdifferentfrom
the 2.4GHz/5GHz network name (SSID) and security key. The wireless
router's login username and password allows you to log into your
wireless router's Web GUI to configure your wireless router's settings.
The 2.4GHz/5GHz network name (SSID) and security key allows Wi-Fi
devices to log in and connect to your 2.4GHz/5GHz network.

17
2. The wireless router automatically detects if your ISP
connection type is Dynamic IP, PPPoE, PPTP and L2TP. Key
in the necessary information for your ISP connection type.
IMPORTANT! Obtain the necessary information from your ISP about the
Internet connection type.
for Automatic IP (DHCP)
for PPPoE, PPTP and L2TP

18
NOTES:
• Theauto-detectionofyourISPconnectiontypetakesplacewhen
you configure the wireless router for the first time or when your
wireless router is reset to its default settings.
• IfQISfailedtodetectyourInternetconnectiontype,clickSkip to
manual setting and manually configure your connection settings.
3. Assign the wireless network name (SSID) and security key
for your 2.4GHz and 5 GHz wireless connection. Click Apply
when done.
4. Your Internet and wireless settings are displayed. Click Next to
continue.
5. Read the wireless network connection tutorial. When done,
click Finish.

19
2.3 Connecting to your wireless network
After setting up your wireless router via QIS, you can connect your
computer or other smart devices to your wireless network.
To connect to your network:
1. On your computer, click the network icon in the
notification area to display the available wireless networks.
2. Select the wireless network that you want to connect to, then
click Connect.
3. You may need to key in the network security key for a secured
wireless network, then click OK.
4. Wait while your computer establishes connection to the
wireless network successfully. The connection status is
displayed and the network icon displays the connected
status.
NOTES:
• Refertothenextchaptersformoredetailsonconfiguringyour
wireless network's settings.
• Refertoyourdevice'susermanualformoredetailsonconnectingit
to your wireless network.

20
3 Configuring the General
settings
3.1 Using the Network Map
Network Map allows you to configure your network’s security
settings, manage your network clients, and monitor your USB
device.
