Asus VE228TLB User manual

VE228TLB Series
LCD Monitor
User Guide

ii
First Edition
September 2012
Copyright © 2012 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or alered, unless
such repair, modication of alteration is authorized in writing byASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM
ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN
THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation nd to the
owners’ benet, without intent to infringe.

iii
Contents
Notices......................................................................................................... iv
Safety information ....................................................................................... v
Care & Cleaning.......................................................................................... vi
Takeback Services..................................................................................... vii
Chapter 1: Product introduction
1.1 Welcome! ...................................................................................... 1-1
1.2 Package contents......................................................................... 1-1
1.3 Monitor introduction .................................................................... 1-2
1.3.1 Front view ....................................................................... 1-2
1.3.2 Back view........................................................................ 1-3
Chapter 2: Setup
2.1 Assembling the monitor arm/base ............................................. 2-1
2.2 Adjusting the monitor.................................................................. 2-1
2.3 Detaching the arm/base (for VESA wall mount)........................ 2-2
2.4 Connecting the cables................................................................. 2-3
2.5 Turning on the monitor................................................................ 2-3
Chapter 3: General instructions
3.1 OSD (On-Screen Display) menu ................................................ 3-1
3.1.1 How to recongure.......................................................... 3-1
3.1.2 OSD function introduction ............................................... 3-1
3.2 Specicationssummary(VE228TLB)......................................... 3-4
3.3 Troubleshooting (FAQ)................................................................ 3-5
3.4 Supported operating modes ....................................................... 3-6

iv
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with manufacturer’s
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to the graphics card is
required to assure compliance with FCC regulations. Changes or modications
to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
As an Energy Star® Partner, our company has determined that this
product meets the Energy Star® guidelines for energy efciency.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the
Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
This Class B digital apparatus meets all requirements of the Canadian Interference
- Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Réglement
sur le matériel brouiller du Canada.

v
Safety information
• Before setting up the monitor, carefully read all the documentation that came
with the package.
• To prevent re or shock hazard, never expose the monitor to rain or moisture.
• Never try to open the monitor cabinet. The dangerous high voltages inside the
monitor may result in serious physical injury.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied
service technician or your retailer.
• Before using the product, make sure all cables are correctly connected and the
power cables are not damaged. If you detect any damage, contact your dealer
immediately.
• Slots and openings on the back or top of the cabinet are provided for
ventilation. Do not block these slots. Never place this product near or over a
radiator or heat source unless proper ventilation is provided.
• The monitor should be operated only from the type of power source indicated
on the label. If you are not sure of the type of power supply to your home,
consult your dealer or local power company.
• Use the appropriate power plug which complies with your local power standard.
• Do not overload power strips and extention cords. Overloading can result in re
or electric shock.
• Avoid dust, humidity, and temperature extremes. Do not place the monitor in
any area where it may become wet. Place the monitor on a stable surface.
• Unplug the unit during a lightning storm or if it will not be used for a long period
of time. This will protect the monitor from damage due to power surges.
• Never push objects or spill liquid of any kind into the slots on the monitor
cabinet.
• To ensure satisfactory operation, use the monitor only with UL listed
computers which have appropriate configured receptacles marked between
100-240V AC.
• If you encounter technical problems with the monitor, contact a qualified
service technician or your retailer.
This symbol of the crossed out wheeled bin indicates that the product (electrical,
electronic equipment, and mercury-containing button cell battery) should not
be placed in municipal waste. Please check local regulations for disposal of
electronic products.

vi
Care & Cleaning
• Before you lift or reposition your monitor, it is better to disconnect the cables
and power cord. Follow the correct lifting techniques when positioning the
monitor. When lifting or carrying the monitor, grasp the edges of the monitor.
Do not lift the display by the stand or the cord.
• Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor
surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed
with a cloth dampened with mild cleaner.
• Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended
for use with the monitor. Never spray cleaner directly on the screen, as it may
drip inside the monitor and cause an electric shock.
The following symptoms are normal with the monitor:
• The screen may icker during the initial use due to the nature of the uorescent
light. Turn off the Power Switch and turn it on again to make sure that the
icker disappears.
• You may find slightly uneven brightness on the screen depending on the
desktop pattern you use.
• When the same image is displayed for hours, an afterimage of the previous
screen may remain after switching the image. The screen will recover slowly or
you can turn off the Power Switch for hours.
• When the screen becomes black or ashes, or cannot work anymore, contact
your dealer or service center to x it. Do not repair the screen by yourself!
Conventions used in this guide
WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components when trying
to complete a task.
IMPORTANT: Information that you MUST follow to complete a task.
NOTE: Tips and additional information to aid in completing a task.

vii
Wheretondmoreinformation
Refer to the following sources for additional information and for product and
software updates.
1. ASUS websites
The ASUS websites worldwide provide updated information on ASUS
hardware and software products. Refer to http://www.asus.com
2. Optional documentation
Your product package may include optional documentation that may have
been added by your dealer. These documents are not part of the standard
package.
Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest
standards for protecting our environment. We believe in providing solutions for
our customers to be able to responsibly recycle our products, batteries and other
components as well as the packaging materials.
Please go to http://csr.asus.com/english/Takeback.htm for detail recycling
information in different region.

viii

1-1ASUS VE228TLB LCD Monitor
1.1 Welcome!
Thank you for purchasing the ASUS® LCD monitor!
The latest widescreen LCD monitor from ASUS provides a crisper, broader, and
brighter display, plus a host of features that enhance your viewing experience.
With these features, you can enjoy the convenience and delightful visual
experience that the monitor brings to you!
1.2 Package contents
Check your package for the following items:
LCD monitor
Monitor base
Quick start guide
Warranty card
Power cord
VGA cable
DVI cable
Audio cable
USB cable
If any of the above items is damaged or missing, contact your retailer
immediately.

1-2 Chapter 1: Product introduction
1.3 Monitor introduction

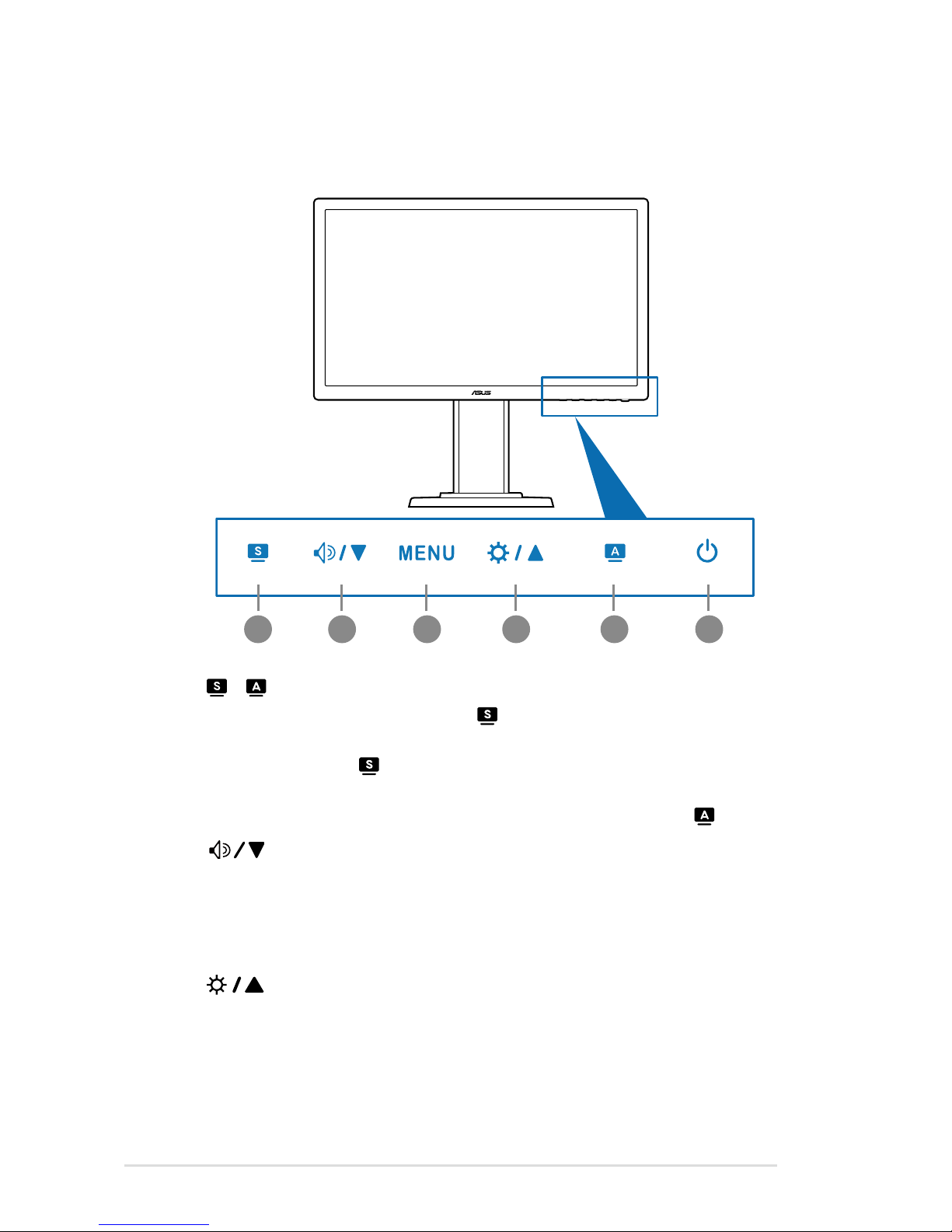

1.3.1 Front view
1 2 43 1 5
，
1. button:
Selects a desired preset mode.•
Exits the OSD menu or goes back to the previous menu when the OSD•
menu is active.
Automatically adjusts the image to its optimized position, clock, and phase •
by pressing this button for 2-4 seconds (for VGA mode only).
2.
Decreases values or moves your selection left/down. •
Volume hotkey•
MENU button:3.
Turns on the OSD menu. Enacts the selected OSD menu item.•
4.
Increases values or moves your selection right/up. •
Brightness hotkey•

1-3ASUS VE228TLB LCD Monitor
5. Power button/power indicator
Turns the monitor on/off.•
The color definition of the power indicator is as the below table.•
Status Description
Blue ON
Amber Standby mode
OFF OFF

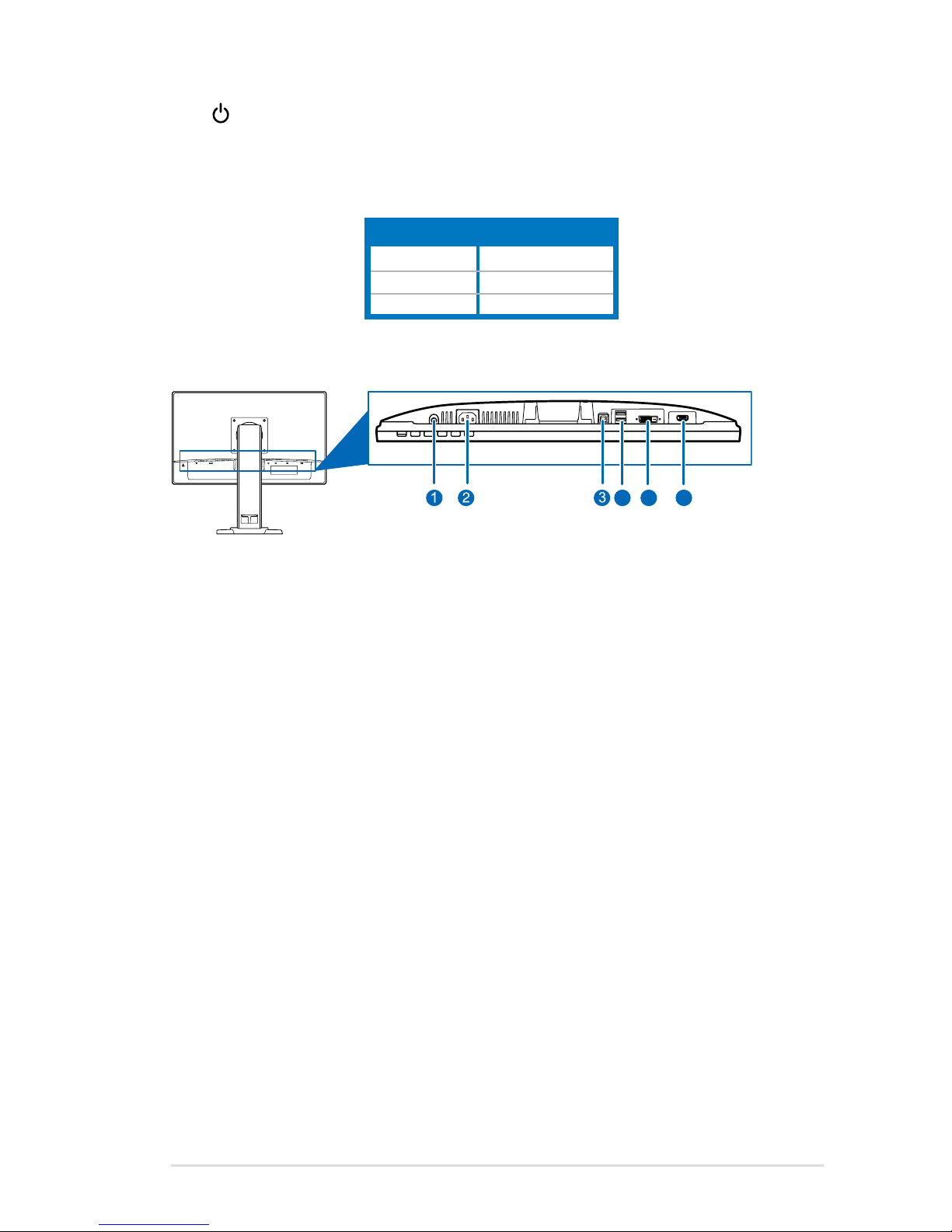

1.3.2 Backview
5 64
Rear connectors
Audio-in port.1. This port connects PC (Personal Computer) audio source by
the bundled audio cable.
AC-IN port.2. This port connects the power cord.
USBupstreamport(Type-B).3. This port is for connection with a USB upstream
cable. The cable enables the USB ports on the monitor.
USB downstream ports (Type-A).4. The ports are for connection with USB
devices, such as USB keyboard/mouse, USB flash drive, etc.
DVI port.5. This 24-pin port is for PC DVI-D digital signal connection.
VGA port.6. This 15-pin port is for PC VGA connection.

1-4 Chapter 1: Product introduction

2-1ASUS VE228TLB LCD Monitor
2.1 Assembling the monitor arm/base
To assemble the monitor base:
Have the front of the monitor face down on a table.1.
Rotate the arm anti-clockwise 90 degrees. (Figure 1)2.
Fix the base to the arm by fastening the bundled screw. (Figure 2) (Figure 3)3.
Align the arrow mark on the base with the two screws to allow 90 degrees swivel4.
from either left or right.
We recommend that you cover the table surface with soft cloth to prevent
damage to the monitor.
2.2 Adjusting the monitor
For optimal viewing, we recommend that you look at the full face of the•
monitor, then adjust the monitor to the angle that is most comfortable for you.
Hold the stand to prevent the monitor from falling when you change its angle.•
The recommended adjusting angle is• +15˚ to -5˚ (for tilt)/+45˚ to -45˚ (for swiveling/
+110 mm (for height adjustment)/90˚ (for portrait view).
It is normal that the monitor slightly shakes while you adjust the viewing angle.
Figure 1 Figure 2 Figure 3

2-2 Chapter 2: Setup
2.3 Detaching the arm/base (for VESA
wall mount)
The detachable arm/base of this monitor is specially designed for VESA wall
mount.
To detach the arm/base:
Have the front of the monitor face down on a table.1.
Loosen the four screws on the back of the monitor and remove the arm/base.2.
We recommend that you cover the table surface with soft cloth to prevent
damage to the monitor.

2-3ASUS VE228TLB LCD Monitor

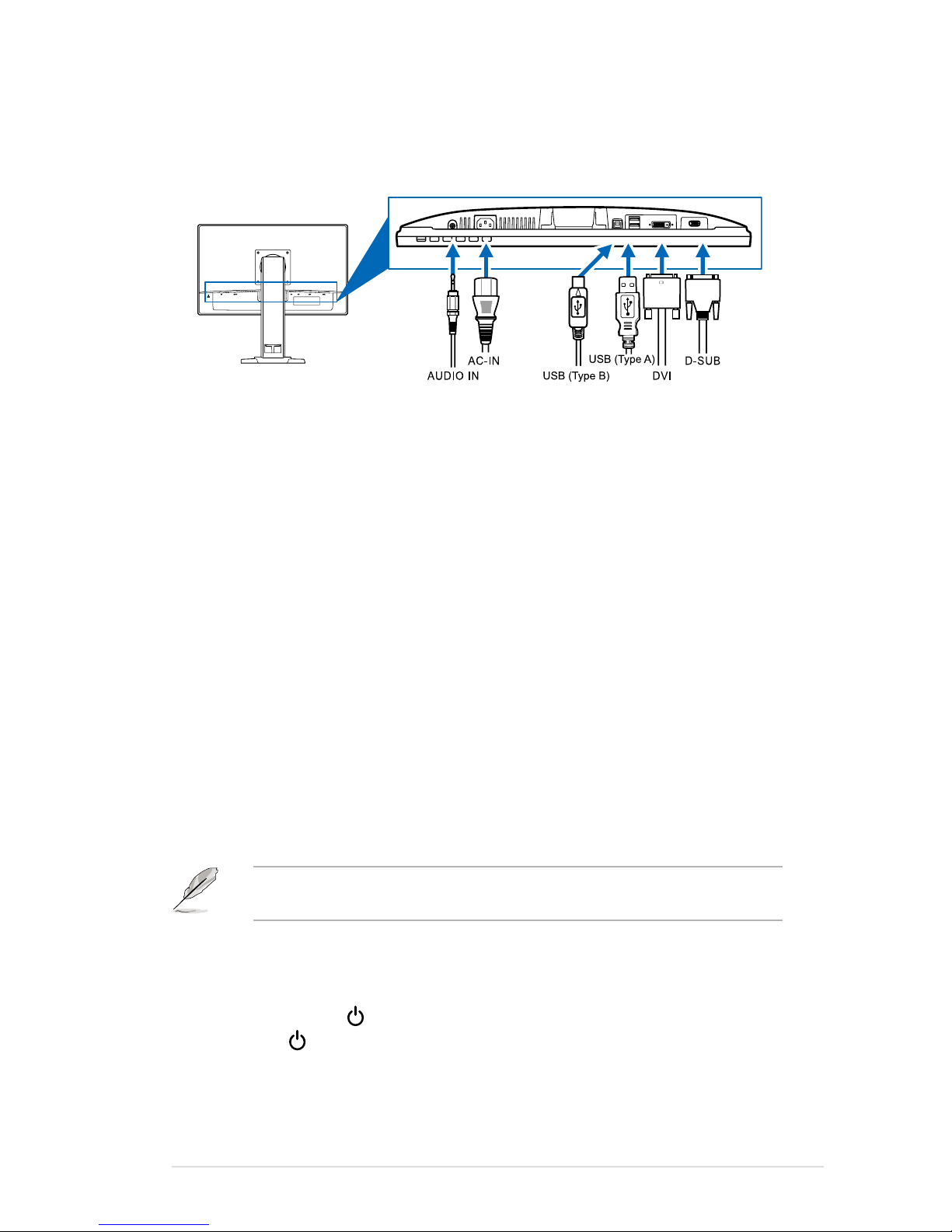

2.4 Connecting the cables
Connect the cables as the following instructions:
To connect the audio cable:• connect one end of the audio cable to the
monitor’s Audio-in port, the other end to the computer’s audio-out port.
To connect the power cord• : connect one end of the power cord securely to
the monitor’s AC input, the other end to a power outlet.
To connect the VGA/DVI cable• :
Plug one end of the VGA/DVI cable to the monitor’s VGA/DVI port.a.
Connect the other end of the VGA/DVI cable to your computer's VGA/b.
DVI port.
Tighten the two screws to secure the VGA/DVI connector.c.
TousetheUSBports• : plug the smaller end (type B) of the USB upstream
cable to the monitor’s USB upstream port, and the larger end (type A) to your
computer’s USB port. That will enable the USB ports on the monitor to work.
When these cables are connected, you can choose the desired signal from the
Input Select item in the OSD menu.
2.5 Turning on the monitor
Press the power button . See page 1-2 for the location of the power button. The
power indicator lights up in blue to show that the monitor is ON.

2-4 Chapter 2: Setup

3-1ASUS VE228TLB LCD Monitor
3.1 OSD (On-Screen Display) menu
3.1.1 How to reconfigure
Press the MENU button to1.
activate the OSD menu.
Press2. , and to
navigate through the functions.
Highlight the desired function
and press the MENU button
to activate it. If the function selected has a sub-menu, press and
again to navigate through the sub-menu functions. Highlight the
desired sub-menu function and press the MENU button to activate it.
Press3. , and to change the settings of the selected function.
To exit and save the OSD menu, press the4. button repeatedly until the
OSD menu disappears. To adjust other functions, repeat steps 1-3.
3.1.2 OSD function introduction
Splendid1.
This function contains six sub-
functions you can select for your
preference. Each mode has the
Reset selection allowing you to
maintain your setting or return to
the preset mode.
Scenery Mode• : best choice for scenery photo display with SPLENDID™
Video Enhancement.
Standard Mode•: best choice for document editing with SPLENDID™
Video Enhancement.
Theater Mode•: best choice for movies with SPLENDID™ Video
Enhancement.
Game Mode•: best choice for games playing with SPLENDID™ Video
Enhancement.
Night View Mode•: best choice for dark-scene games or movies with
SPLENDID™ Video Enhancement.
sRGB• : best choice for viewing photos and graphics from PCs.
In the Standard Mode, the ASCR, Saturation and Sharpness functions are
not user-configurable.

3-2 Chapter 3: General Instructions

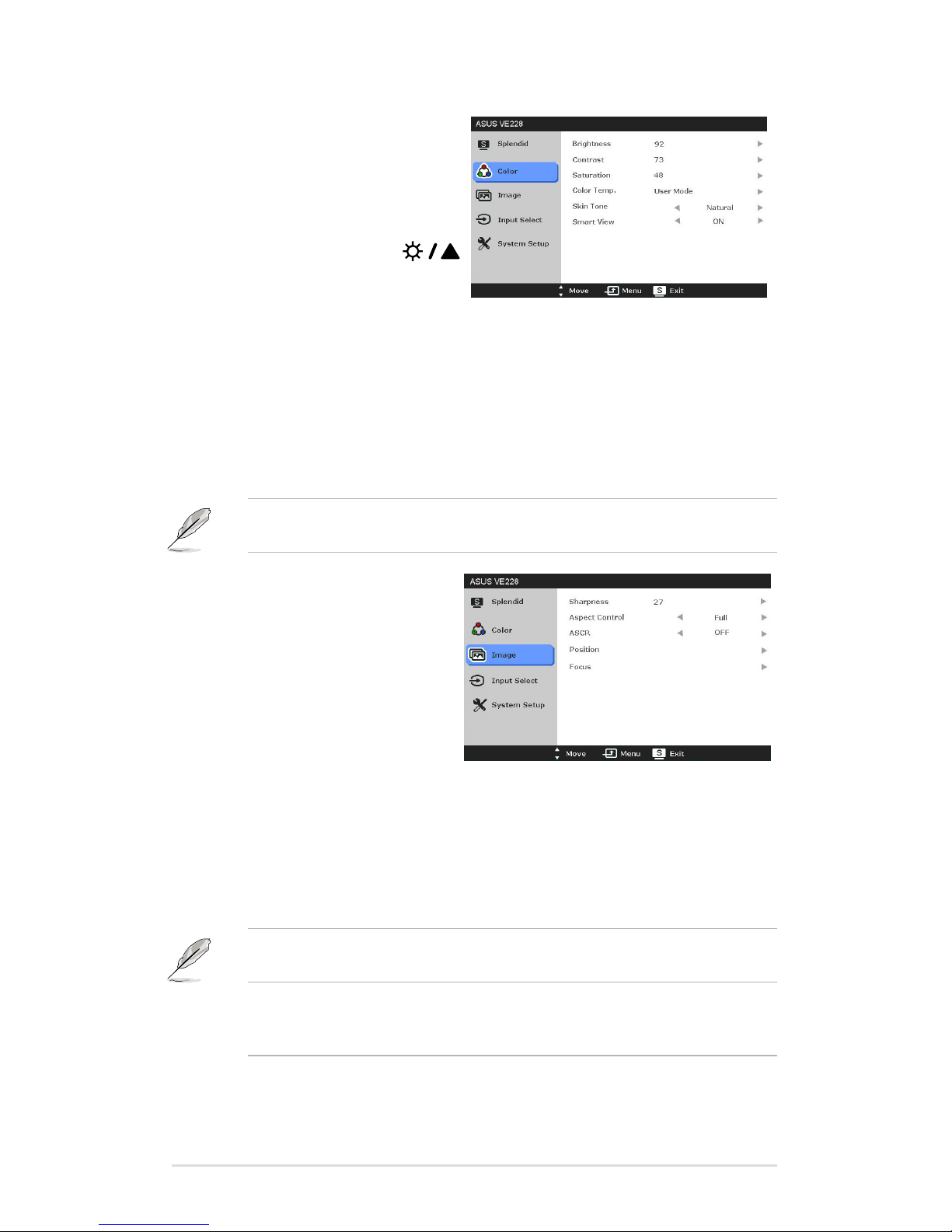

Color2.
You can adjust Brightness, Contrast,
Saturation, Color Temp., Skin Tone,
and Smart View from this menu.
Brightness• : the adjusting
range is from 0 to 100.
is a hotkey to activate this
function.
Contrast• : the adjusting range is from 0 to 100.
Saturation• : the adjusting range is from 0 to 100.
Color Temp.• : contains four modes including Cool, Normal, Warm, and
User Mode.
Skin Tone•: contains three color modes including Reddish, Natural, and
Yellowish.
Smart View•: provides better display quality under big viewing angle.
In the User mode, colors of R (Red), G (Green), and B (Blue) are user-
configurable; the adjusting range is from 0-100.
3. Image
You can adjust Sharpness,
Aspect Control, ASCR, Position
(VGA only), and Focus (VGA
only) from this menu.
Sharpness• : the adjusting
range is from 0 to 100.
Aspect Control• : adjusts the
aspect ratio to “Full”, or “4:3”.
ASCR• : turns on/off the ASCR (ASUS Smart Contrast Ratio) function.
Position• : adjusts the horizontal position (H-Position) and the vertical
position (V-Position) of the image. The adjusting range is from 0 to 100.
Focus•: reduces Horizonal-line noise and Vertical-line noise of the image
by adjusting (Phase) and (Clock) separately. The adjusting range is from
0 to 100.
• Phase adjusts the phase of the pixel clock signal. With a wrong phase
adjustment, the screen shows horizontal disturbances.
Clock (pixel frequency) controls the number of pixels scanned by one•
horizontal sweep. If the frequency is not correct, the screen shows vertical
stripes and the image is not proportional.

3-3ASUS VE228TLB LCD Monitor
4. Input Select
In this function, you can select
your desired input source.
5. System Setup
Allows you to adjust the system.
Splendid Demo Mode• :
splits the screen into two for
Splendid modes comparison.
Volume• : the adjusting range is from 0 to 100.
ECO Mode• : reduces power consumption.
OSD Setup• :
Adjusts the horizontal position (H-Position)/the vertical position *
(V-Position) of the OSD from 0 to 100.
Adjusts the OSD timeout from 10 to 120 seconds.*
Enables or disables the DDC/CI function.*
Adjusts the OSD background from opaque to transparent.*
Information• : shows the monitor information.
Language• : there are 10 languages for your selection, including English,
German, Italian, French, Dutch, Spanish, Russian, Traditional Chinese,
Simplified Chinese, and Japanese.
All Reset•: “Yes” allows you to restore the default settings.

3-4 Chapter 3: General Instructions
3.2 Specifications summary (VE228TLB)
Panel Type TFT LCD
Panel size 21.5”W (16:9, 54.6 cm) wide screen
Max. Resolution 1920 x 1080
Pixel pitch 0.248 mm
Brightness (Typ.) 250 cd/m2
Contrast Ratio (Typ.) 1000:1
Contrast Ratio (Max.) 80,000,000:1 (with ASCR on)
Viewing angle(H/V) CR>10 170˚/160˚
Display colors 16.7 M
Response time 5 ms
SPLENDID™ Video
Enhancement
Yes
SPLENDID™ selection 6 video preset modes (by hotkey)
Auto adjustment Yes (by hotkey)
Color temperature selection 4 color temperatures
Skin-Tone selection 3 skin-tones
Digital input DVI-D with HDCP
Analog input D-Sub
Audio-in port 3.5 mm Mini-jack
Colors Black
Speaker (Built-in) 1 W x 2 Stereo, RMS
Power LED Blue (On)/Amber (Standby)
Tilt +15˚~ -5˚
VESA wall mount 100 x 100 mm
Kensington lock Yes
Voltage rating AC: 100~240V
Power consumption Power On: < 33 W, Standby: < 0.5 W,
Power Off: < 0.5 W
Temperature (Operating) 0˚C~40˚C
Temperature
(Non-operating)
-20˚C~+60˚C
Dimensions (W x H x D) 511.69 mm x 474.07 mm x 213.94 mm (machine)
667 mm x 372 mm x 207mm (package)
Weight (Esti.) 4.8 kg (Net); 7.0 kg (Gross)
Multi-languages 10 languages (English, German, Italian, French, Dutch,
Spanish, Russian, Traditional Chinese, Simplified
Chinese, Japanese)
Accessories VGA cable, DVI cable, audio cable, USB cable, power
cord, Quick start guide, warranty card
Regulation approvals Energy Star® 5.0, TCO5.2, ISO 9241-307, UL/cUL, CB,
CE, ErP, FCC, BSMI, Gost-R, C-Tick, VCCI, J-MOSS,
RoHS, WEEE, Windows 7 WHQL
*Specifications are subject to change without notice.
