ENGLISH INSTRUCTION MANUAL
9KEHPW-410 /12KEHPW-410 /15KEHPW-410
• The unit is designed for indoor operation.
• Rating: This unit must be connected to a 220-240 V~ / 50 Hz earthed outlet.
• The installation must be in accordance with regulations of the country where the
unit is used.
• The air conditioner is safe. However, as with other electrical appliances, use it
with care.
• This appliance is not intended for use by young children or infirm persons unless
they have been adequately supervised by a responsible person to ensure that they
can use the appliance properly
• Young children should be supervised to ensure that they do not play with the
appliance.
• Do not clean the air conditioner by spraying it or immersing it in water.
• Do not insert any object into openings of the air conditioner.
• Disconnect it from the mains before cleaning the unit or any of its components.
• Never connect the unit to an electrical outlet using an extension cord. If an outlet
is not available, one should be installed by a licensed electrician.
• Never operate this appliance if it has a damaged cord or plug. Do not lead the cord
over sharp edges.
• A damaged supply cord should be replaced by the manufacturer, its service agent or a
qualified person in order to avoid a hazard.
• Any service other than regular cleaning or filter replacement should be performed by
an authorized service representative. Failure to do so could result in a loss of warranty.
• Don’t lift or move by pushing the air conditioner at the rear, but always at the front
side.

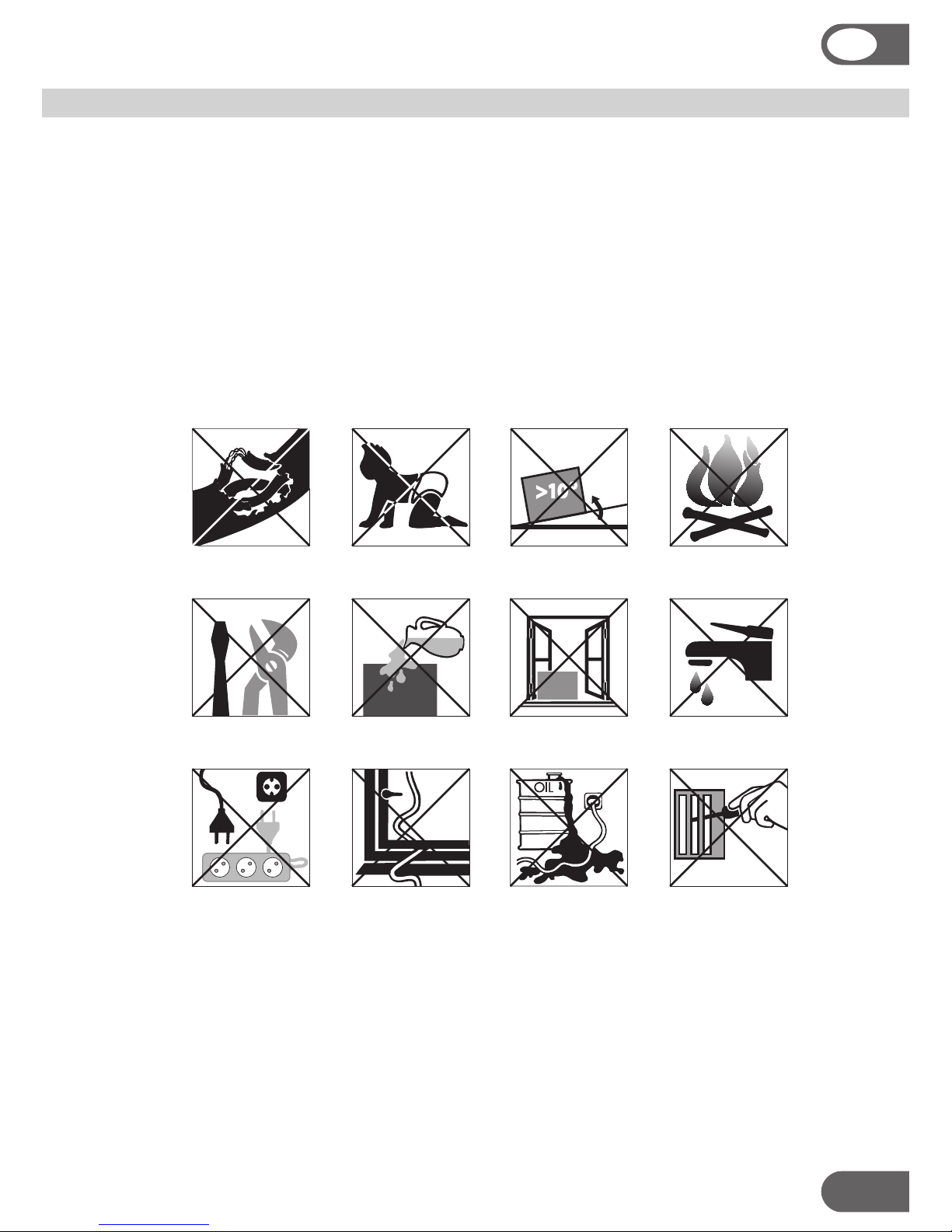

Close to a naked
flame
Inside unit exposed
to the weather
outdoors
Near water
If the power cable
wires are frayed
or cut
When small
children may be
left unattended
If an extension
lead may become
overloaded
Where the power
cable may be
damaged
On a slope or
uneven surface
Where it may
be damaged by
chemicals
Where there is a
risk of interference
by foreign objects
This products is
not made for DIY
repair
If there is a risk of
liquid falling on
the unit

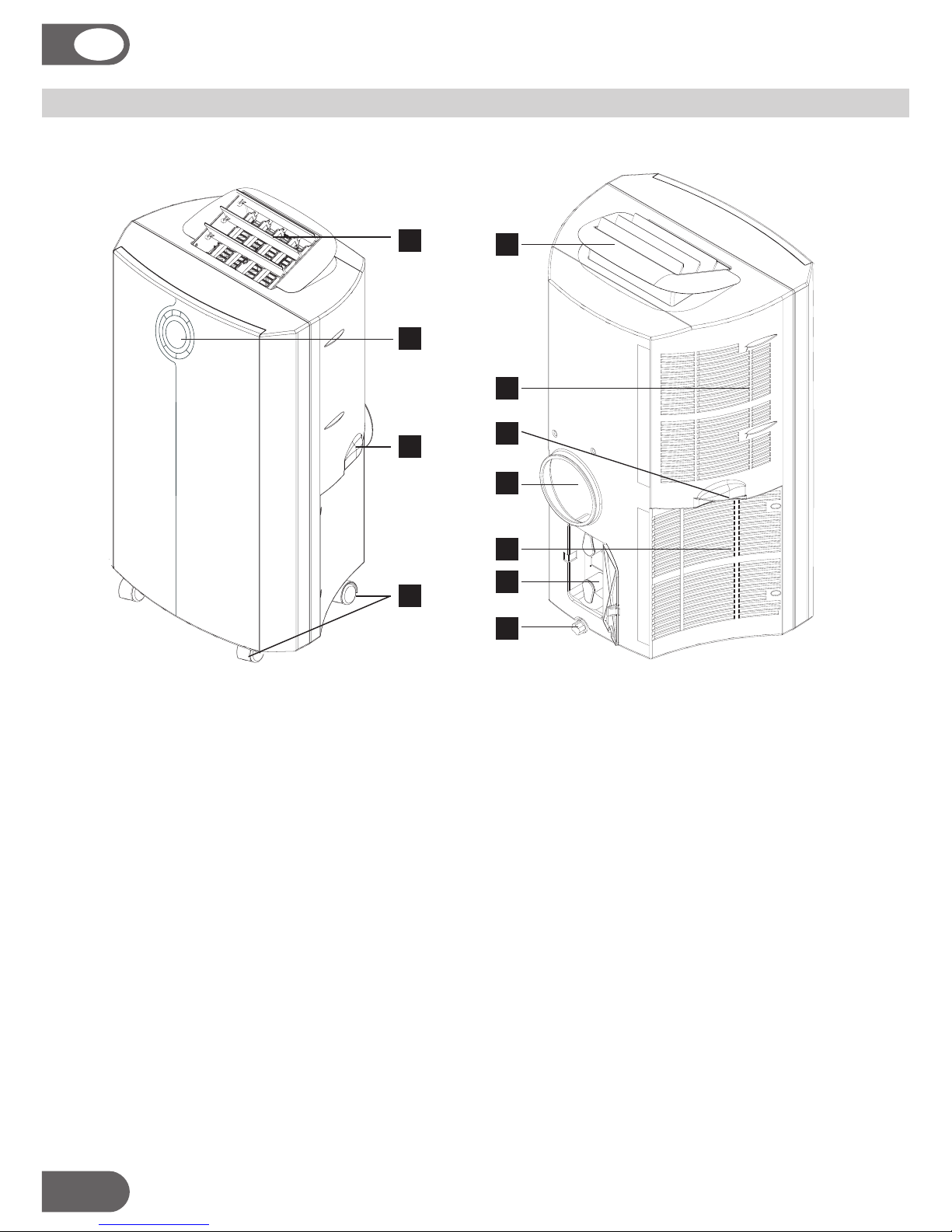

1. Air outlet
2. Control panel
3. Carrying handle
4. Caster wheels
5. Grill housing
6. Upper air inlet
7. Exhaust air outlet
8. Lower air inlet
9. Cable storage
10. Drainage point with water stopper
Controls
ON/OFF
UP
DOWN
MODE
TIMER
SLEEP
F
SWING
AN SPEED
Display
COOLING
FAN
HEAT
HOURS:MINUTES
TEMPERATURE

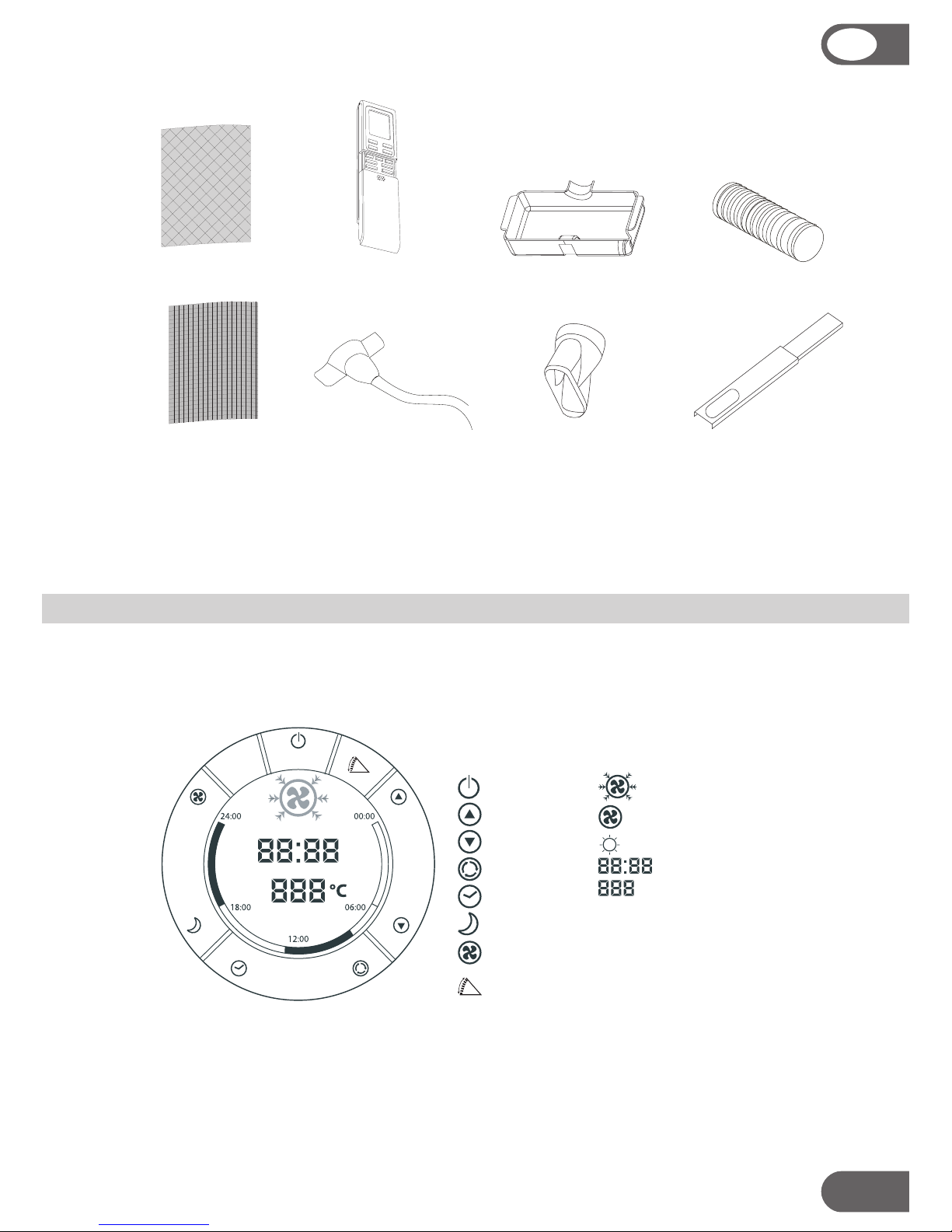

Slide bar connector
Active carbon filter
Telescopic slide bar
Exhaust hoseWater container
Remote control
with LCD
3M™ High Air Flow
filter (Optional)
Spiral Water Pipe
with Connector
Controls
ON/OFF
UP
DOWN
MODE
TIMER
SLEEP
F
SWING
AN SPEED
Display
COOLING
FAN
HEAT
HOURS:MINUTES
TEMPERATURE

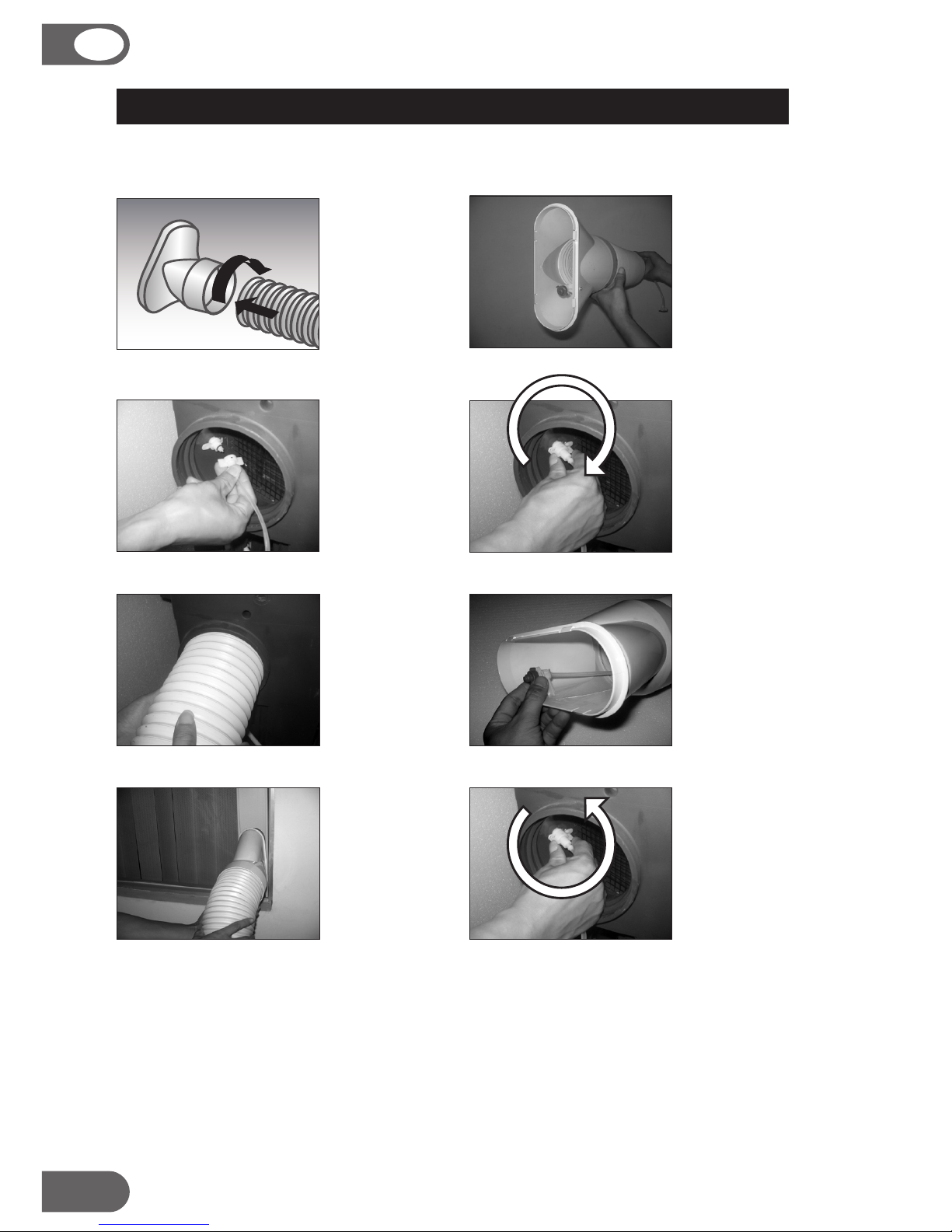

Put spiral water
pipe into hot air
flexible hose.
Connect the
female half of the
quick connector
at the end of the
spiral water pipe
to the male part
in the hot air
outlet pipe.
Turn the
connector
90 degrees
clockwise until it
is locked in place.
Assemble the
hot air hose on
the unit.
Clip on the
water atom-
izer at the end
of the spiral
pipe to the
holder.
Unfold flexible
hose with attached
hose adapter
connector, and
snap into
Window Slide Bar.
AutoDrain NanoMist Technology™Assembly
2
3
6
8
4
5
7
1Attach Window
Slide Bar
Connector to
Exhaust Hose by
twisting as shown.
Only
Required For
Disassembly.
In order to
unlock the quick
connector, push
the tab and turn
the connector
counter-
clockwise.
Before using the air conditioner it should be left in an upright position for at least
2 hours. This unit can easily be moved from one room to another.
– Ensure that the unit is positioned upright, on a level surface and 50 cm away
from any obstacles.
– To place the loose filters in the filter holder.
• Take the filter holder out of the air conditioner.
• Open the filter holder and place the active carbon filter (black) in the filter
holder.
• Place the filter fixing component back in the holder.
• Place the filter holder back in the air conditioner.
– Do not operate the unit inside the bathroom, shower, or in any other very humid
environment.
– Connect the hose to the unit by turning it clockwise (at least 5 turns).
– Similarly, connect the hose to the slide bar connector as far as possible.
– Place the telescopic slide bar in the open window or door and adjust the length
to fill as much open space as possible.
– Put the slide bar connector in the opening in the telescopic slide bar.
– Close the window or door as much as possible to prevent outside air entering the
room.
– Ensure that the slide bar connector has a free flow outside.
The flexible exhaust hose can be extended from 500 to 1500 mm for mounting.
This length has been designed especially according to the specifications of the air
conditioner.
The exhaust air must flow freely, any blockage can lead to
overheating of the air conditioner. Take care to prevent any sharp bow or bend in the
exhaust.
Press to switch the unit on, or to switch off. A buzzer will beep, and the LCD will
display 12:00 o’clock as default.
Press the -button for 3 seconds to set the clock. The 2 left digits of the 4 digits on
the LCD-display will flash. Press or to adjust the hour. Press momentarily,
the 2 right digits of the 4 digits will flash. Press or to adjust the minutes of the
clock. Press the -button for 3 seconds again to activate the clock.
If you want to change the set temperature press the or -button. The 2 digit
display will indicate the set temperature.
Reaching the set temperature depends on the room and outdoor climatic
conditions.
Pressing the -button successively until the icon representing the desired mode is
appearing
(=> Cool => Fan => Heat => etc). On the LCD-display you will see:
Cooling Fan only Heat
Each time the unit starts, it starts operating in cool mode with a set temperature of
22°C. The fan speed will be selected automatically.
If you prefer a constant fan speed instead of the auto fan speed, press the -button
successively; the fan speed icon on the LCD-display will rotate accordingly.
• Fast - for the turbo speed
• Normal - for the medium speed
• Slow - for the slow speed
• Auto - alternating fast and slow speed
With the mode switch select , set the desired temperature and the unit will heat
until this temperature is reached. Fan speed is selected automatically. Do not place
the unit near anything that could catch fire or be scorched. Do not
obstruct the air outlet.
For all of the following TIMER programming, proceed firstly with
these standard steps:
• Press the -button briefly; the 2 left digits of the 4 digits on the
Timer example
LCD display are flashing.
• Press or to adjust the hour.
• Press the -button briefly again, the 2 right digits of the 4 digits are flashing.
• Press or to adjust the minutes of the clock in intervals of 5 minutes. The
timer is set. After 10 seconds the time display returns.
• Perform the standard steps as described above.
The linear time scale will be on between the ON programmed times until 24:00.
The flashing bar on the time scale indicates the real time and moves a segment
ahead every 30 minutes until it reaches the ON timer time, then the black segments
in the linear time scale will disappear.
• Perform the standard steps as described above.
The linear time scale will be on between the present time to the OFF programmed
time. The flashing bar on the time scale indicates the real time and moves a
segment ahead every 30 minutes until it reaches the OFF timer time, then the black
segments in the linear time scale will disappear.
• Perform the standard steps as described above.
• Repeat the above procedure while the digits are still flashing for setting the ON.
The linear time scale will be ON between 00:00 to the time set with the timer to
OFF and from the ON time until 24:00. The flashing bar on the time scale indicates
the real time and moves a segment ahead every 30 minutes. The unit will operate
daily according to the timer setting.
• Perform the standard steps as described above.
• Repeat the above procedure while the digits are still flashing for setting the OFF.
The linear time scale will be OFF between 00:00 to the time set with the timer to
ON and from the OFF time until 24:00. The flashing bar on the time scale indicates
the real time and moves a segment ahead every 30 minutes. The unit will operate
daily according to the timer setting.
After a power failure, or after the unit has been unplugged, you will have to program
the timer settings again.
In order to cancel the timer programming press the -button momentarily, then it
will return to the time display. The daily mode will be cancelled as well. The black
segments in the linear time scale will disappear.
In order to switch off the blue back light, press the - and -buttons at the same
time. The blue back light will blink twice and goes off after three seconds.
By pushing any of the buttons the blue back light will come on again.
On the moment the air conditioner is connected to the mains, the louvres open and
close and stay closed.
• When the ON-button is pressed, the louvres open to maximum and return to an
angle of 75° above the upper plane of the louvres housing.
• Press the -button, the louvres will swing continuously up and down between
30° and 80° above the upper plane of the louvres housing.
• By pressing the -button again the movement will stop and the louvres remain
in that position. The direction of the air flow is then constant.
• When the OFF-button is pressed, the louvres close.
This way of directing the air flow is particularly convenient when using the remote
control: a user friendly approach to your comfort.
In order to direct the air flow to a lower angle, raise the louvres housing by pulling itlouvres housing by pulling it housing by pulling it
up only by the centre of its back rim.
The sleep mode function adjusts the set temperature of the unit to the thermal
needs of the body falling asleep as follow:
• Default fan speed: LOW
• Press the -button to operate the sleep mode. Press the -button again in order
to cancel the sleep mode.
The set temperature will increase 1°C after 1 hour and a further 1°C after 2 hours.
• No FAN mode under SLEEP mode operation.
Air outlet up,
louvres opened
Air outlet down,
louvres closed
Raising the
louvres housing.

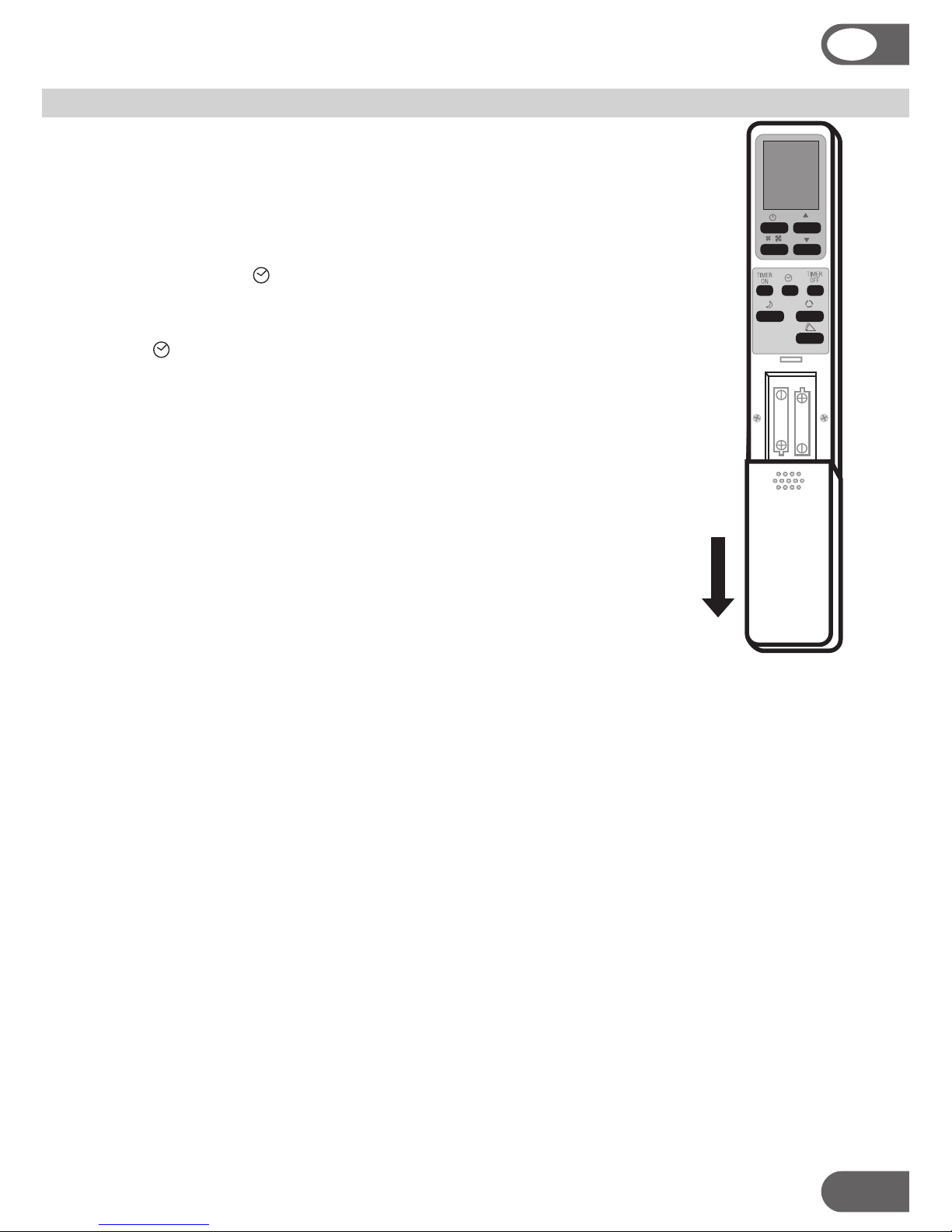

The unit responds to all signals that are sent by the remote
control. There will be a beep sound from the unit after receiving
the signal. The operation of the unit by remote control, is
almost identical to the operation by the control panel. The only
exception is the clock function.
Instead of the -button for setting the actual time and for
programming the timer, there are 3 push buttons on the remote
control as follows:
• - for setting the actual time.
• TIMER ON - for programming the time when the unit is ON.
• TIMER OFF - for programming the time when the unit is OFF.

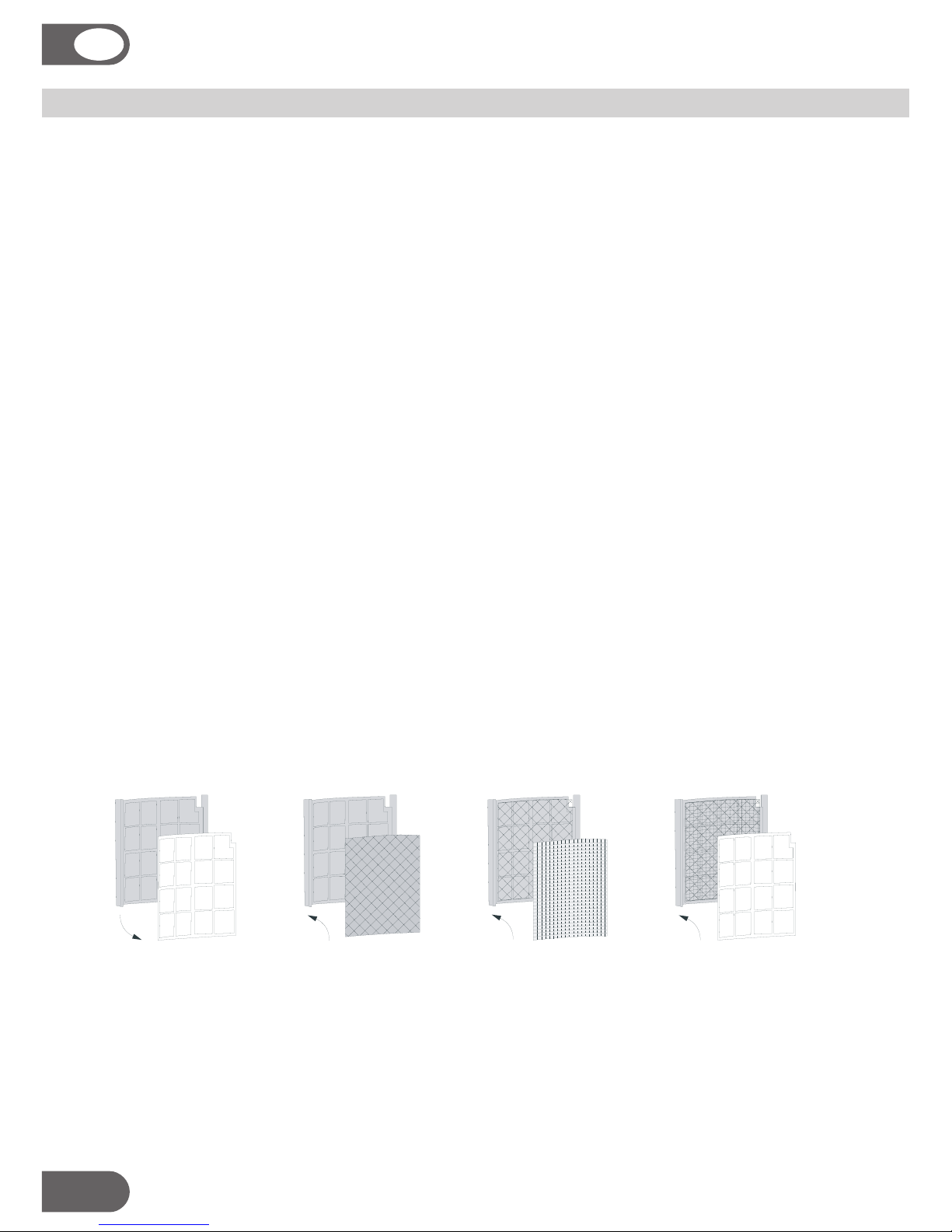

This air conditioner is equipped with two lter sets:
1. A multi layer lter in the upper air inlet, to clean the circulated room air, which
includes:
a. A screen lter, to remove dust particles.
b. An active carbon lter, to remove odours.
c. 3M™ High Air Flow lter; to remove unhealthy particles from the air such as
pollen, bacteria, animaldander and dust. Selected models have the 3M™ High
Air Flow llter as standard. However, if you require to add this to your model,
or wish to purchase a replacement, call Atlantic for details.
2. A screen lter in the lower air inlet, to remove dust particles.
The active carbon lter and the 3M™ High Air Flow lter are delivered in a
plastic packaging. Don’t forget to install these lters.
a. The screen lters in the upper and lower air inlet should be cleaned regularly by rinsing
them under running water.
b. The positive/negative electrostatically charged 3M™ High Air Flow lter is
recommended to be changed every 3 months. Unusual dirt, construction work, pets,
the presence of smoke and running the air conditioning unit continuously can shorten
the life time of the 3M™ High Air Flow lter.
c. The active carbon lter can be cleaned with a vacuum cleaner when dusty but has to be
changed at the same time as the 3M™ High Air Flow lter.
• Slide out the lter holder from the unit.
• Separate the lter xer from the lter holder (see g. 1).
• Remove the active carbon lter (black) and the 3M™ High Air Flow lter (white)
from its plastic bag.
• Insert the active carbon lter into the lter holder (see g. 2).
• Insert the 3M™ High Air Flow lter into the lter holder (see g. 3).
• Fix the lter by reassembling the xer into the lter holder (see g. 4).
1 2 3 4
Very little excess water should accumulate. During the process
of cooling, some of the water accumulated is actually used to
cool the unit internally, making it run more efficiently. Both this
evaporative technology and Innovative AutoDrain NanoMist
Technology™ are features not found in most portable air
conditioners.

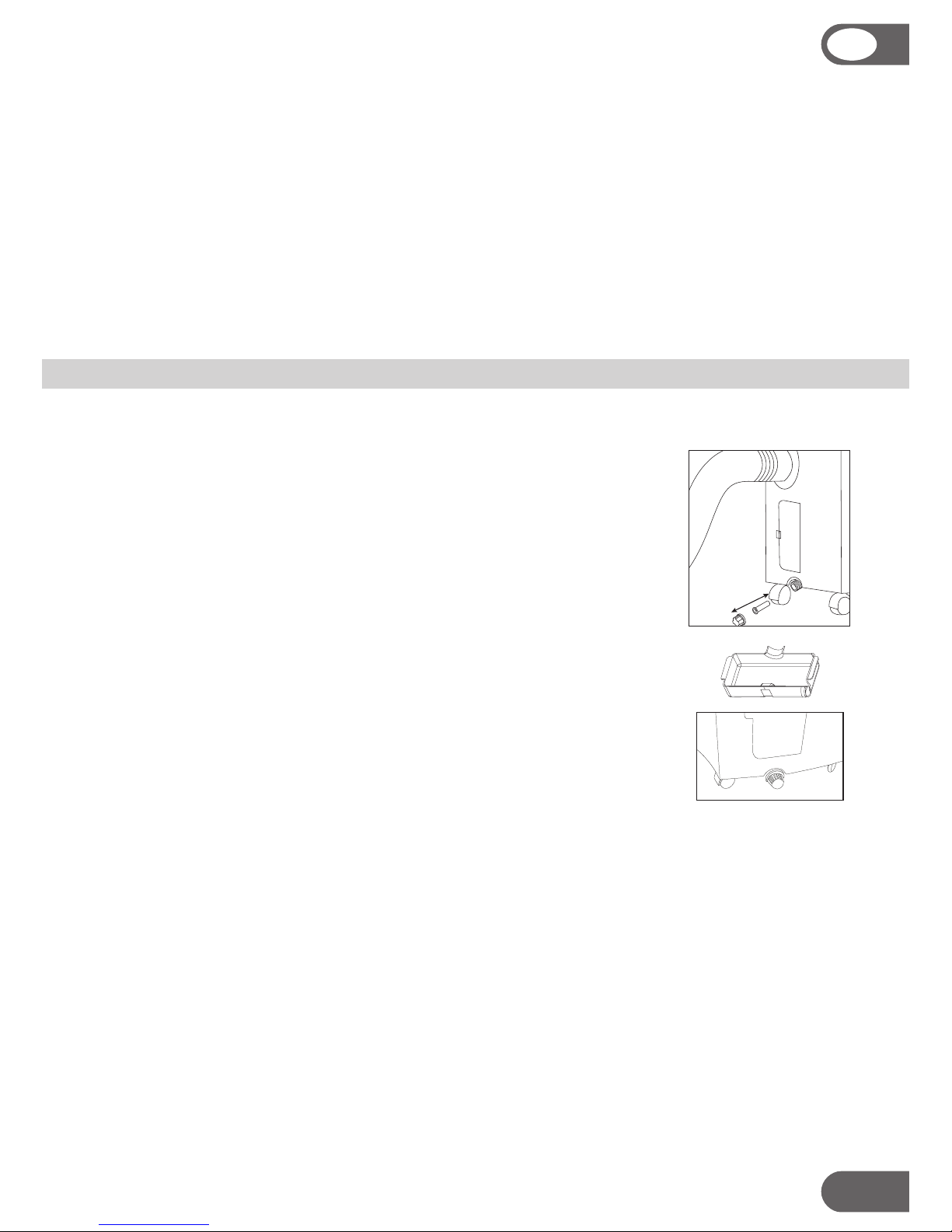

To empty the water container do the following:
• Switch off the unit and remove the plug from the wall socket.
• Place the water container on the floor underneath the
permanent drainage point.
• Remove the water stopper and rubber plug from the drain and let the water run
out. The water container has to be emptied several times before all water will be
drained (ca. 1.5 litres).
• Replace the rubber plug and water stopper, put the plug into the wall socket, and
switch the unit on. The warning signal should be off.
NOTE!
• Remove the 3M™ High Air Flow lter and active carbon lter before seasonal
storage and install new lters at the beginning of the new season. The old lters can
be disposed in the ‘Non-biological garbage container’.
• Replacement lter packages are available directly from Atlantic.
• To run the unit without active carbon lter and/or 3M™ High Air Flow lter does not
do any harm to the air conditioner. In this case odours and unhealthy dust are not
removed from the circulated air.
• The screen lter must always be used.
• 3M™ is a trademark of the 3M Company.
First of all switch off the unit and remove the plug from the wall socket.
Clean the housing with a soft, damp cloth. Never use aggressive chemicals, petrol,
detergents or other cleansing solutions.
Clean the screen filter regularly with a vacuum cleaner. See also “AIR FILTERS”
section.
Never use the air conditioner without the screen filter.
Never try to repair or dismantle the air condition yourself. Incompetent repairs result in loss of warranty
and can endanger the user and the property.
The air
conditioner does
not function.
No power supply. Connect to a functioning outlet and switch on.
Is the LCD light ashing. Empty the internal water container.
Timer function is active. Deactivate TIMER function.
The air
conditioner does
not seem to
perform.
In direct sunlight. Close curtains.
Windows or doors open, many
people or a heat source in the room.
Close doors and windows, place an extra air
conditioner.
Dirty filter. Clean or replace the lter(s).
Air inlet or air outlet blocked. Remove the blockage.
Room temperature lower than the
selected value.
Change temperature selection.
The unit is noisy. Unit stands uneven. Place on an even, solid surface (less
vibrations).
The compressor
does not work.
The overheat protection is probably
activated.
Wait 3 minutes until the temperature has
decreased, then turn on the unit again.
The remote
control does not
function.
Distance too great. Make sure the remote control is correctly
aimed at the control panel.
Remote control signal not detected
by the control panel.
The batteries are drained. Replace the batteries.
To correct problems that have not been described in the table and/or if the recommended solutions fail
to solve the problem, contact an authorized service centre.
• Empty the internal water container.
• Clean the screen filter.
• Remove the active carbon filter before end of season
storage and install new filters at the beginning of the new
season.
• The old filters can be disposed of in the ‘Non-biological
rubbish container’.
Replacement filter packages are available from Atlantic.
• Put the unit in Fan Only mode for a few hours to ensure
that the inside becomes completely dry.

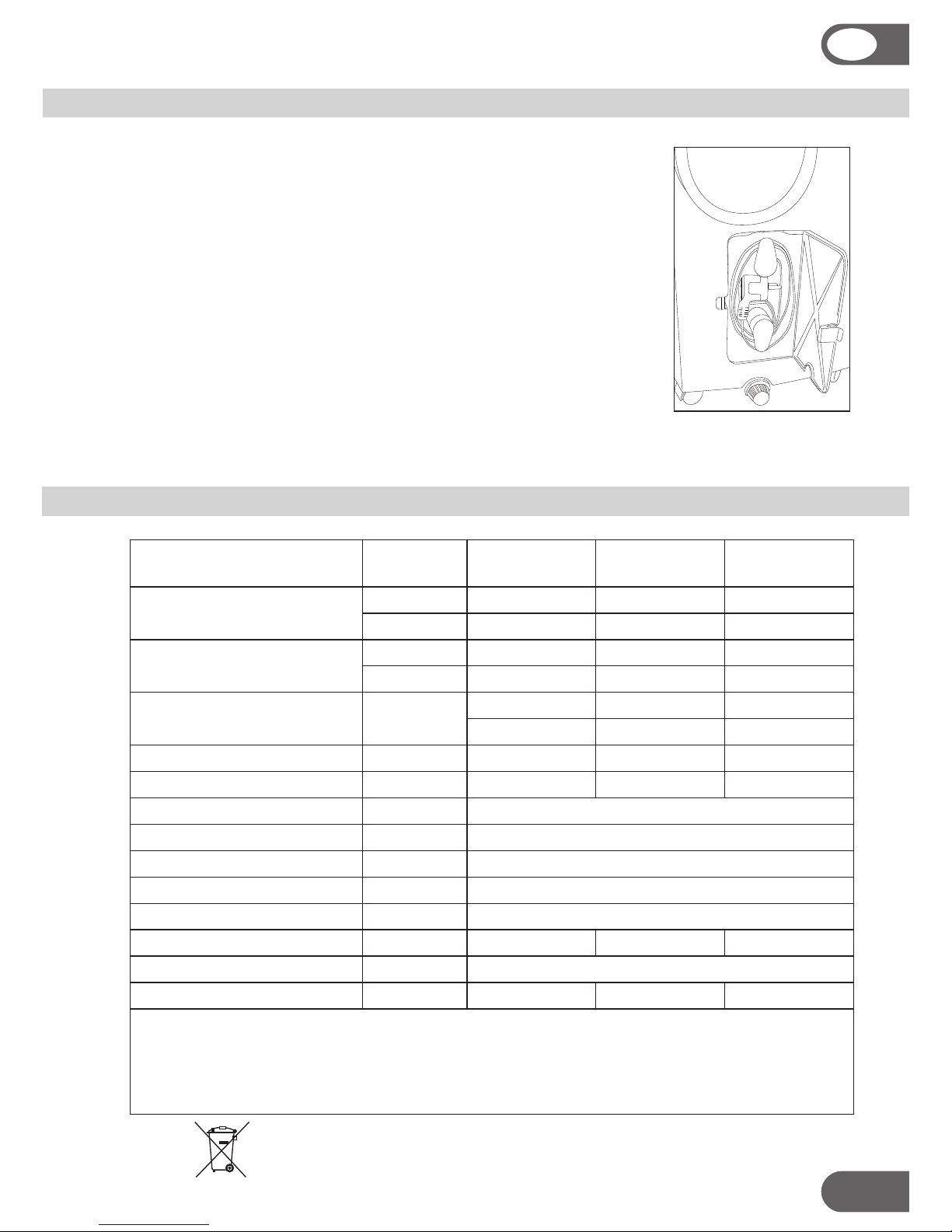

• Store the cable as shown.
Protect the unit against dust and store in a dry place, not accessible to children.
Model
PLMB
9KEHPW-410
PLMB
12KEHPW-410
PLMB
15KEHPW-410
Cooling capacity BTU/h 9000 12000 15000
KW 2.6 3.5 4.4
Heating capacity BTU/h 9500 12500 15500
KW 2.8 3.7 4.5
Power consumption -Cooling
-Heating W850 1100 1500
900 1200 1400
Current -Cooling A 3.7 4.8 6.5
Current -Heating A 3.9 5.2 6.0
Mains V / Hz / PH 220 - 240 V~/ 50 / 1
Compressor model Rotary
Fan speeds 3 (2+1 turbo)
Thermostat range ºC 18 - 32
Operating temperature range ºC 5 - 35
Refrigerant / R410A g 340 560 660
Dimensiones (w x h x d) mm 500 x 815 x 415
Net weight kg 31.2 35 35.8
PLMB 9KEHPW-410 series can be connected only to a supply with system impedance no more than 0.210 Ohm.
PLMB 12KEHPW-410 series can be connected only to a supply with system impedance no more than 0.130 Ohm.
PLMB 15KEHPW-410 series can be connected only to a supply with system impedance no more than 0.110 Ohm.
If necessary, please consult your supply authority for system impedance information.
Subject to modifications without prior notice. For greater precision, please refer to the rating label placed on the
product.
Waste electrical products must not be disposed of with household waste.
This product should be taken to your local recycling centre for safe treatment.
The purchaser is responsible for sending/returning the unit to/from an approved repairer.
Products are non-refundable 14 days from date of purchase.
www.atlantics.com.au
YOUR GUARANTEE
DOMESTIC AIR CONDITIONERS
If this product is found to be defective as a result of faulty materials or workmanship
within two years from date of purchase, it will be repaired or replaced free of charge.
This guarantee is subject to the following terms:
Atlantic Australasia, must be notified of the fault
Proof of purchase must be presented to Atlantic Australasia’s nominated
representative
The warranty will be void if the product is modified, misused or repaired by an
unauthorised person
The guarantee does not cover accidental damage, misuse, or consumable items
such as filters
The guarantee after repair or replacement will not be extended beyond the original
two-year period
All replacement parts or units will be new or reconditioned
Parts or units, which are replaced, become the property of Atlantic Australasia
Atlantic Australasia disclaims any liability for incidental or consequential damages
The warranty applies for the use of the product in Australia and New Zealand.
This GUARANTEE is in addition to your Statutory Rights.
Atlantic Australasia Pty Ltd
Suite 4, 13-25 Church Street, Hawthorn, Victoria, Australia 3122
Atlantic Australasia
PLMB monoblocs-410 913129140
This manual suits for next models
5
Table of contents
Other Atlantic Air Conditioner manuals
Popular Air Conditioner manuals by other brands
Lennox
Lennox KGA092KGA102KGA120KGA150 installation instructions
Frigidaire
Frigidaire FAA052N7A1 Schematic diagram
Applied Comfort
Applied Comfort RSHPC Series Installation & operation manual
LG
LG JW-Q09WUZA owner's manual
Toshiba
Toshiba RAS-18LAH-A owner's manual
Panasonic
Panasonic CW-1006FU operating instructions
