Atlas Copco Battery 18V Instruction sheet
Battery 18V, Battery 36V
Printed Matter No. 9839 2028 01
Publication Date 2020-04-24
Valid from Serial No. A8670001 Product Instructions
Battery 18V 4211 6030 85
Battery 36V 4211 6030 86
WARNING
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
2© Atlas Copco Industrial Technique AB - 9839 2028 01
Table of Contents
Product Information................................................................................................3
General Information ..........................................................................................3
Safety Signal Words ..............................................................................3
Warranty ................................................................................................3
Website..................................................................................................3
ServAid ..................................................................................................4
Safety Data Sheets MSDS/SDS............................................................4
Country of Origin ...................................................................................4
Dimensional Drawings...........................................................................4
Overview...........................................................................................................4
Battery Overview ...................................................................................4
Battery Temperatures............................................................................5
Charger Temperatures ..........................................................................5
Installation ...............................................................................................................6
Installation Instructions .....................................................................................6
Attaching and Removing the Battery .....................................................6
Operation .................................................................................................................7
Operating Instructions.......................................................................................7
Battery Health and Charge Display .......................................................7
Recycling .................................................................................................................9
Environmental Regulations...............................................................................9
Battery 18V, Battery 36V EN Product Information
© Atlas Copco Industrial Technique AB - 9839 2028 01 3
Product Information
General Information
WARNING Risk of Property Damage or Severe Injury
Ensure that you read, understand and follow all instructions before operating the tool. Failure to follow
all the instructions may result in electric shock, fire, property damage and/or severe bodily injury.
►Read all Safety Information delivered together with the different parts of the system.
►Read all Product Instructions for installation, operation and maintenance of the different parts of
the system.
►Read all locally legislated safety regulations regarding the system and parts thereof.
►Save all Safety Information and instructions for future reference.
Safety Signal Words
The safety signal words Danger, Warning, Caution, and Notice have the following meanings:
DANGER DANGER indicates a hazardous situation which, if not avoided, will result in death or se-
rious injury.
WARNING WARNING indicates a hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if
not avoided, could result in minor or moderate injury.
NOTICE NOTICE is used to address practices not related to personal injury.
Warranty
■Product warranty will expire 12 months after the product is first taken into use, but will in any case ex-
pire at the latest 13 months after delivery.
■Normal wear and tear on parts is not included within the warranty.
■Normal wear and tear is that which requires a part change or other adjustment/overhaul during
standard tools maintenance typical for that period (expressed in time, operation hours or other-
wise).
■The product warranty relies on the correct use, maintenance, and repair of the tool and its component
parts.
■Damage to parts that occurs as a result of inadequate maintenance or performed by parties other
than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the
warranty.
■To avoid damage or destruction of tool parts, service the tool according to the recommended mainte-
nance schedules and follow the correct instructions.
■Warranty repairs are only performed in Atlas Copco workshops or by Certified Service Partners.
Atlas Copco offers extended warranty and state of the art preventive maintenance through its ToolCover
contracts. For further information contact your local Service representative.
For electrical motors:
■Warranty will only apply when the electric motor has not been opened.
Website
Information concerning our Products, Accessories, Spare Parts and Published Matters can be found on
the Atlas Copco website.
Please visit: www.atlascopco.com.
Product Information EN Battery 18V, Battery 36V
4© Atlas Copco Industrial Technique AB - 9839 2028 01
ServAid
ServAid is a portal that is continuously updated and contains Technical Information, such as:
■Regulatory and Safety Information
■Technical Data
■Installation, Operation and Service Instructions
■Spare Parts Lists
■Accessories
■Dimensional Drawings
Please visit: https://servaid.atlascopco.com.
For further Technical Information, please contact your local Atlas Copco representative.
Safety Data Sheets MSDS/SDS
The Safety Data Sheets describe the chemical products sold by Atlas Copco.
Please consult the Atlas Copco website for more information www.atlascopco.com/sds.
Country of Origin
For the Country of Origin, please refer to the information on the product label.
Dimensional Drawings
Dimensional Drawings can be found either in the Dimensional Drawings Archive, or on ServAid.
Please visit: http://webbox.atlascopco.com/webbox/dimdrw or https://servaid.atlascopco.com.
Overview

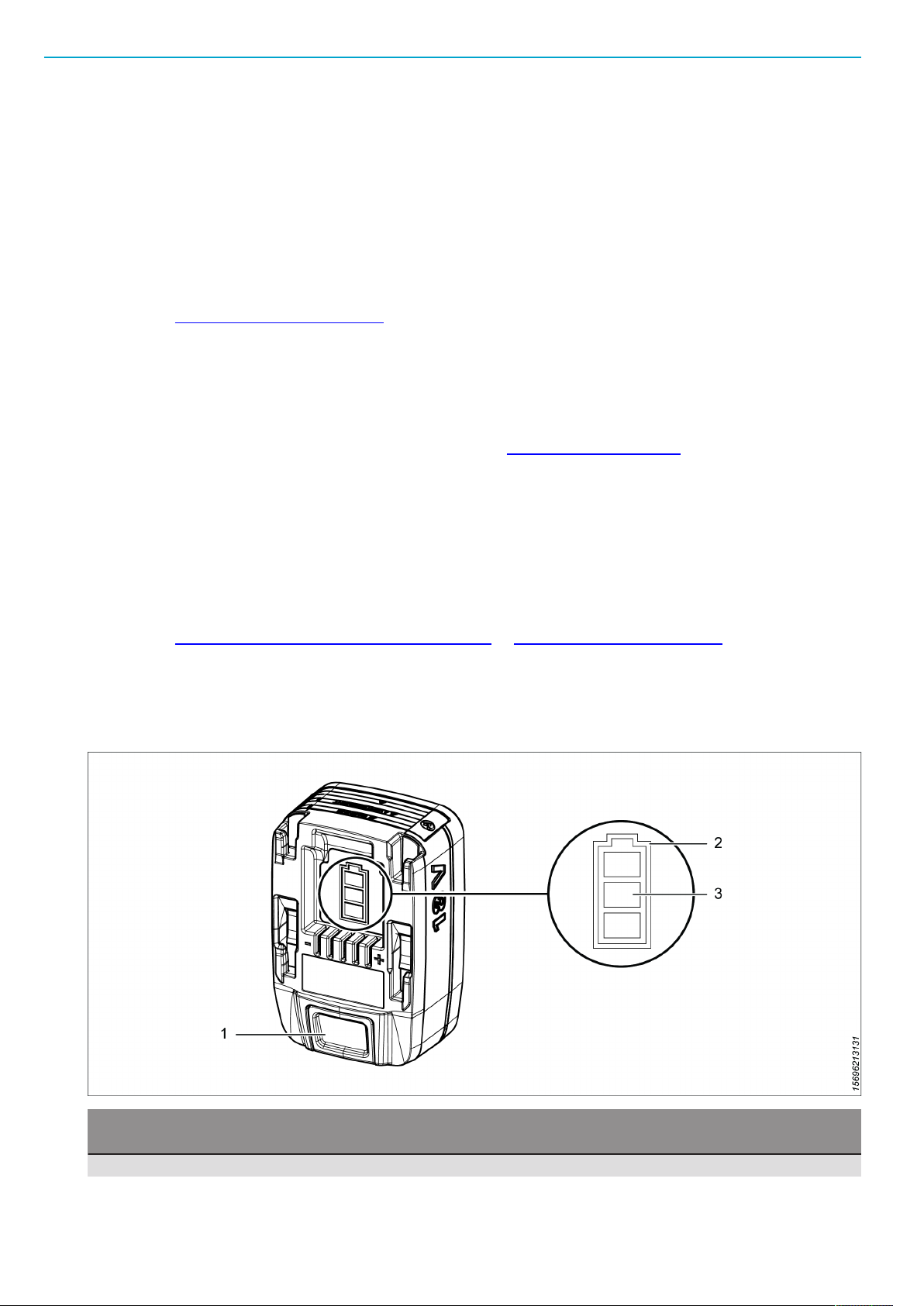

Battery Overview
Position Description
1 Release button
2 State of health indicator
Battery 18V, Battery 36V EN Product Information
© Atlas Copco Industrial Technique AB - 9839 2028 01 5
Position Description
3 State of charge indicator
Battery Temperatures
Operating temperature, charge +5 to +40 °C
(+41 to +104 °F)
Operating temperature, discharge 0 to +40 °C
(+32 to +104 °F)
Storage temperature −20 to +40 °C
(−4 to +104 °F)
Charger Temperatures
Charger operating temperature +5 to +40 °C
(+41 to +104 °F)
Installation EN Battery 18V, Battery 36V
6© Atlas Copco Industrial Technique AB - 9839 2028 01
Installation
Installation Instructions

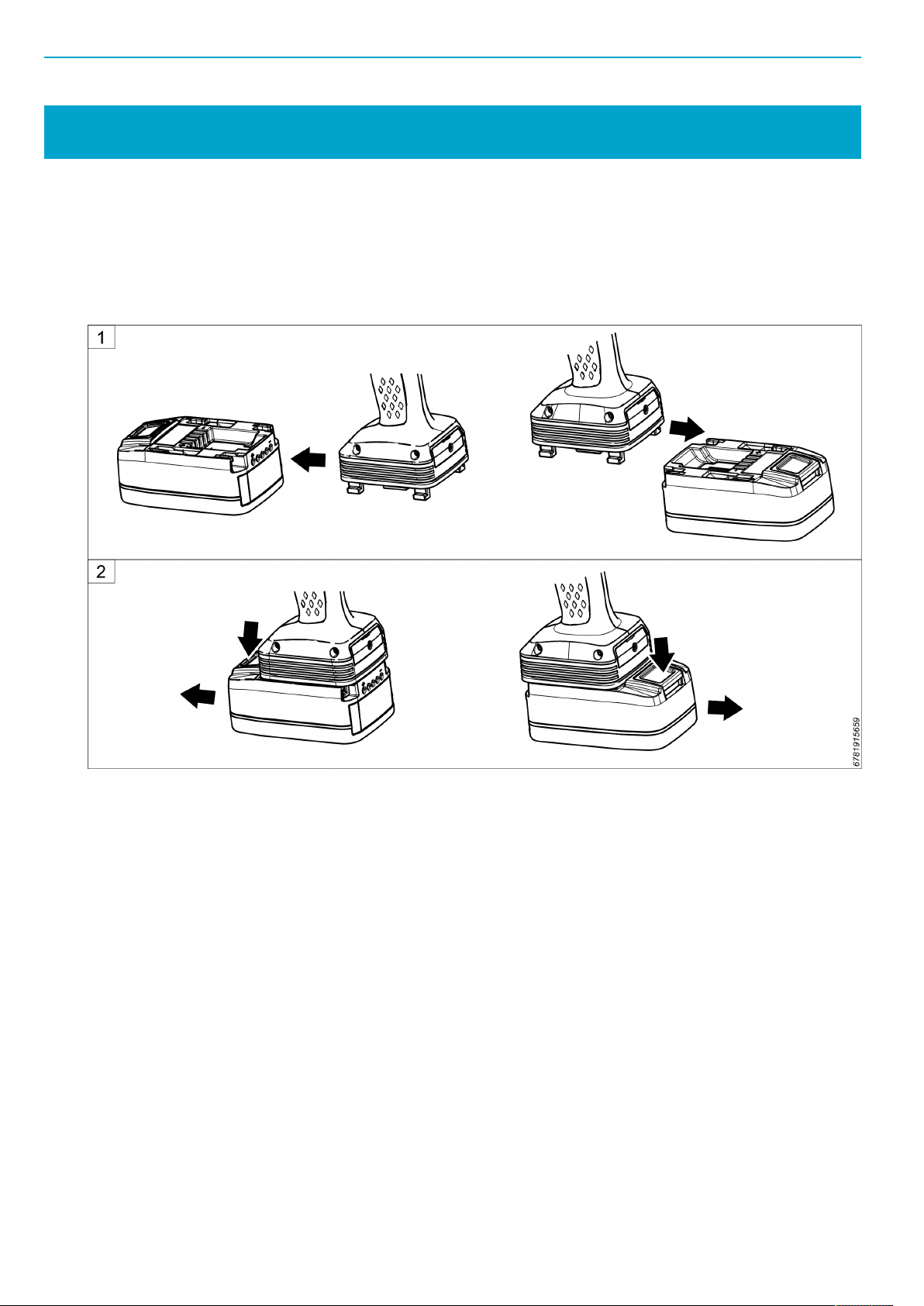

Attaching and Removing the Battery
1. Attach the battery to the tool and make sure that it is fastened correctly. The battery can be attached
pointing forward or backward to get the best accessibility and balance.
2. To remove the battery, press the button on the battery and push it out.
Battery 18V, Battery 36V EN Operation
© Atlas Copco Industrial Technique AB - 9839 2028 01 7
Operation
Operating Instructions
Battery Health and Charge Display
The battery capacity is dependent on the battery model and the type of work performed with the tool.
The indicator is located on the connector plate of the battery, and is also shown on the tool LED light indi-
cator. Press the battery release button to view the status.
The battery health is only indicated on the battery itself. The battery indicator on the LED light indica-
tor only indicates the battery charge, not health.
When the battery is connected to a charger, the state of health (SOH) and the state of charge (SOC) will
glow for 5 seconds before starting the charge pattern.

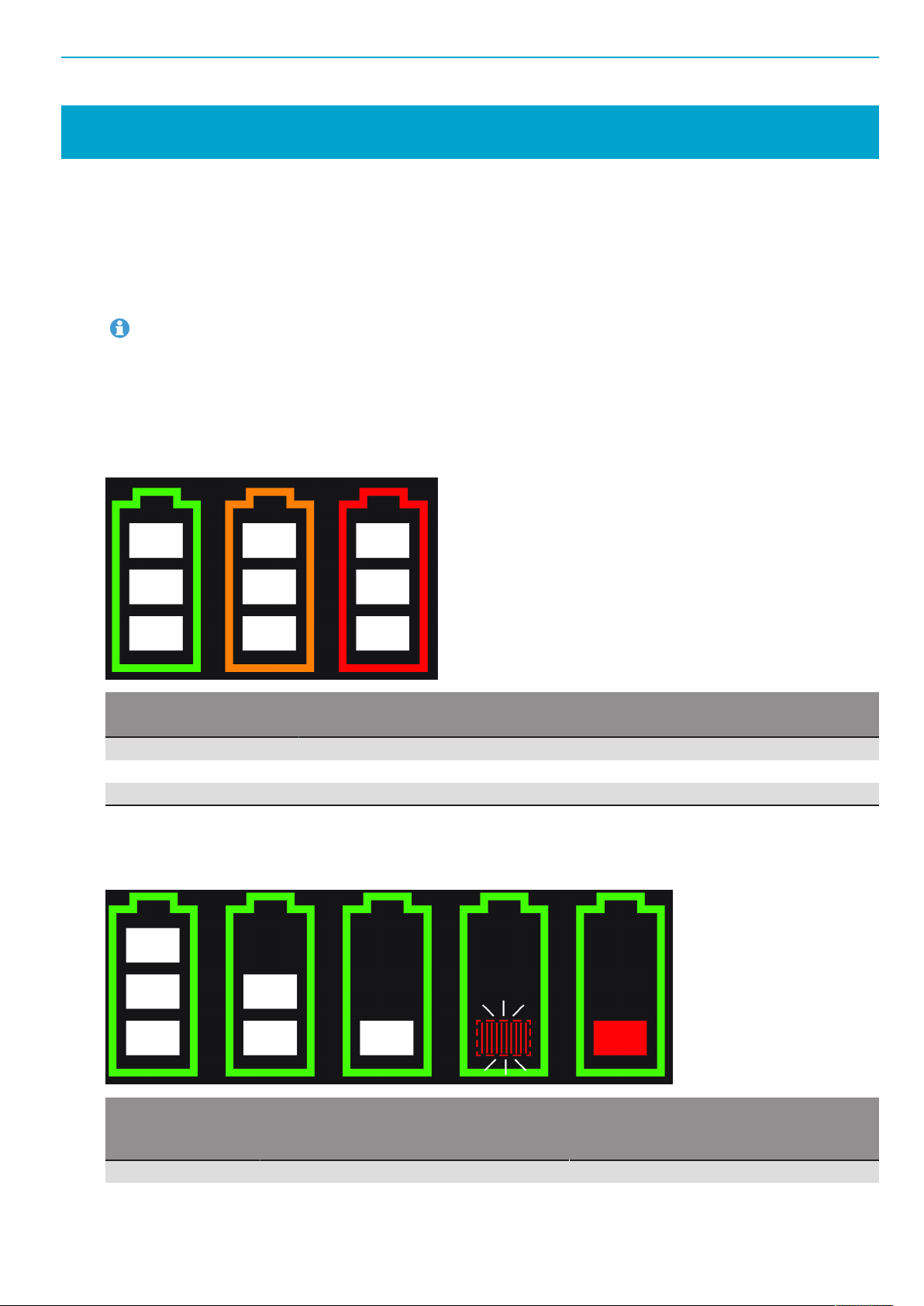

Battery State of Health
The SOH is shown by the battery outline of the battery indicator:
Battery light Battery health Remark
Green Good Battery is healthy and performing well
Yellow Decreased Battery will eventually need to be replaced
Red Low Replace the battery
Battery State of Charge
The SOC is shown by the bars in the battery indicator and shows five levels:
Level
Battery bar indica-
tor Battery status Remark
1 3 white Full charge
2 2 white Medium charge
Operation EN Battery 18V, Battery 36V
8© Atlas Copco Industrial Technique AB - 9839 2028 01
Level
Battery bar indica-
tor Battery status Remark
3 1 white Low charge Charge battery, when possible
4 1 red blinking Nearly empty Charge battery
5 1 red Empty and will not
work
Charge battery
Battery 18V, Battery 36V EN Recycling
© Atlas Copco Industrial Technique AB - 9839 2028 01 9
Recycling
Environmental Regulations
When a product has served its purpose it has to be recycled properly.
Batteries shall be taken care of by your national battery recovery organization.
Original instructions
Atlas Copco Industrial
Technique AB
SE-10523 STOCKHOLM
Sweden
Telephone: +46 8 743 95 00
www.atlascopco.com
© Copyright 2020, Atlas Copco Industrial Technique AB. All rights reserved.
Any unauthorized use or copying of the contents or part thereof is prohibited.
This applies in particular to trademarks, model denominations, part numbers
and drawings. Use only authorized parts. Any damage or malfunction caused
by the use of unauthorized parts is not covered by Warranty or Product
Liability.
Out of respect to wildlife and nature, our technical literature is printed on
environmentally friendly paper.
