ATN 7084440 - 01 User manual

Operating and installation instructions
Upright refrigerator with BioFresh compartment
101209 7084440 - 01
SKBes/SKB/KB/KBes 31/36/42 ... 6

Contents
1 Appliance at a glance............................................ 2
1.1 Description of appliance and equipment.................. 2
1.2 Range of appliance use............................................ 2
1.3 Conformity................................................................ 3
1.4 External dimensions of the appliance....................... 3
1.5 Saving energy.......................................................... 3
1.6 HomeDialog............................................................. 3
2General safety information................................... 3
3Controls and displays........................................... 4
3.1 Operating and control elements............................... 4
3.2 Temperature display................................................. 4
4 Putting into operation............................................ 4
4.1 Changing over the door hinges................................ 4
4.2 Insertion into a row of kitchen units........................... 7
4.3 Transporting the appliance....................................... 7
4.4 Installing the appliance............................................. 7
4.5 Disposing of packaging............................................ 8
4.6 Connecting the appliance......................................... 8
4.7 Switching on the appliance....................................... 8
5Control.................................................................... 8
5.1 Brightness of the temperature display...................... 8
5.2 Child proofing........................................................... 8
5.3 Door alarm................................................................ 8
5.4 Refrigerator compartment........................................ 9
5.5 BioFresh compartment............................................. 10
6 Maintenance........................................................... 11
6.1 Cleaning the appliance............................................. 11
6.2 Changing the interior light with bulb.......................... 12
6.3 Customer service..................................................... 12
7 Malfunction............................................................. 12
8 Decommissioning.................................................. 13
8.1 Switching off the appliance....................................... 13
8.2 Taking the appliance out of service.......................... 13
9 Disposing of the appliance................................... 13
The manufacturer works constantly on the further development
of all the types and models. Therefore please understand that we
have to reserve the right to make design, equipment and tech-
nical modifications.
To get to know all the benefits of your new appliance, please read
the information contained in these instructions carefully.
The instructions apply to several models. Differences may occur.
Text relating only to specific appliances is marked with an
asterisk (*).
Instructions for action are marked with a , the results of
action are marked with a .
1 Appliance at a glance
1.1 Description of appliance and equip-
ment
Note
uPlace food inside the appliance as shown in the diagram. This
allows the appliance to save energy during operation.
uShelves, drawers and baskets are arranged for optimum
energy efficiency on delivery.

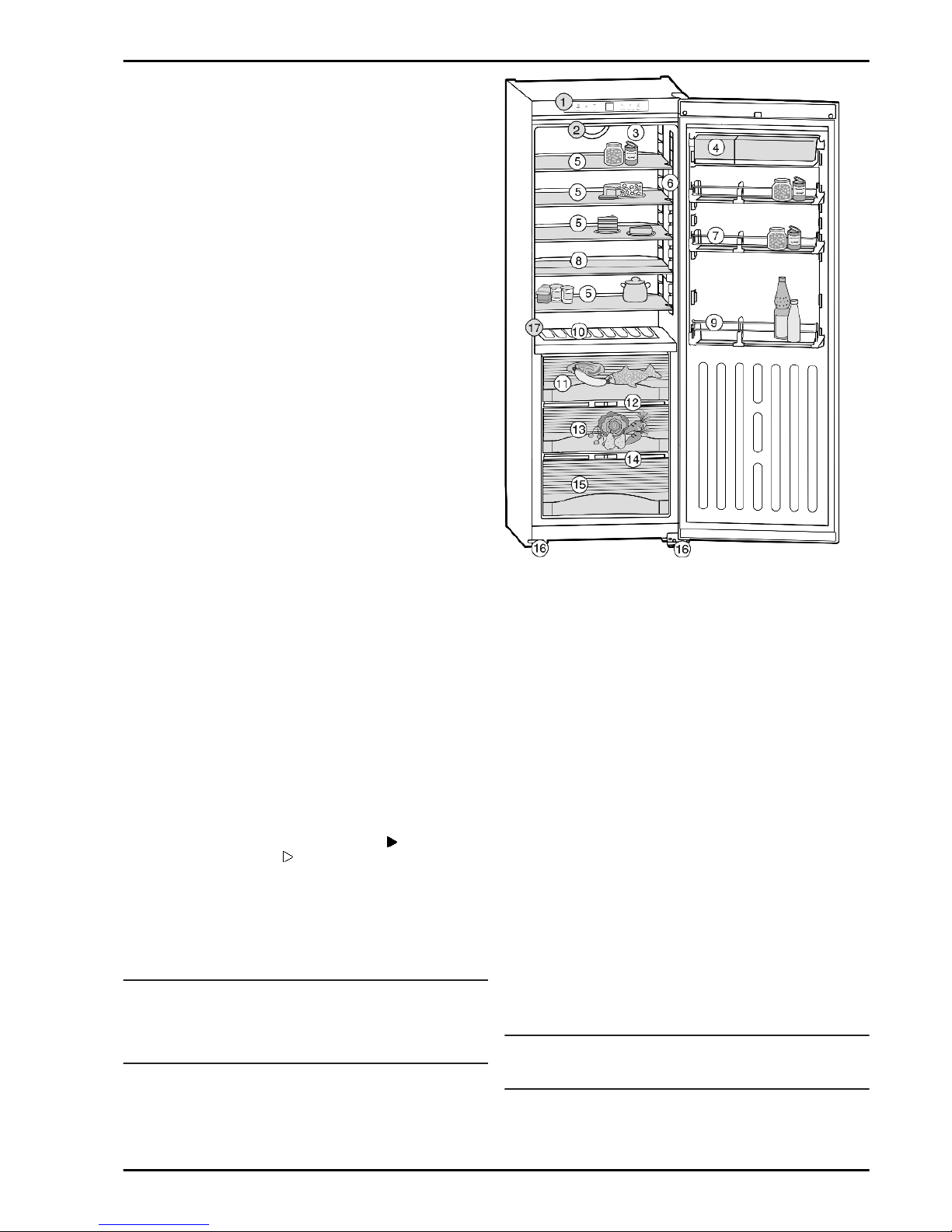

Fig. 1
(1) Operating panel (10) Bottle shelf
(2) Fan (11) BioFresh compartment,
Drysafe
(3) Interior light, bulb* (12) HydroSafe control
(4) Box shelves, removable (13) BioFresh compartment,
Hydrosafe
(5) Glass shelves, relocat-
able
(14) HydroSafe control
(6) Interior light, LED* (15) BioFresh compartment,
Hydrosafe
(7) Rack for tinned food,
relocatable
(16) Height-adjustable foot
(8) Glass shelf, sectioned,
relocatable
(17) Type plate
(9) Bottle rack
1.2 Range of appliance use
The appliance is suited only for cooling food.
In the case of commercial food cooling, the pertinent statutory
regulations have to be observed. The appliance is not suited for
storing and cooling pharmaceuticals, blood plasma, laboratory
preparations or similar substances and products subject to the
Medical Devices Directive 2007/47/EC. Any misuse of the appli-
ance may result in damage to or spoilage of the stored goods.
Furthermore, the appliance is unsuited for use in areas exposed
to an explosion hazard.
The appliance is set to operate within specific ambient temper-
ature limits according to its climate rating. The correct climate
rating for your appliance is indicated on the type plate.
Note
uCompliance with the ambient temperatures indicated is
required, otherwise the cooling performance is reduced.
Appliance at a glance
2

Climate
rating
for ambient temperatures of
SN 10 °C to 32 °C
N 16 °C to 32 °C
ST 16 °C to 38 °C
T 16 °C to 43 °C
1.3 Conformity
The refrigerant circuit has been tested for leaks. The appliance
complies with current safety regulations and EC directives
2006/95/EC and 2004/108/EC.
1.4 External dimensions of the appliance
Fig. 2
Designation H (mm)
KB 31 1458
KB 36 1655
KB 42 1852
1.5 Saving energy
-Always ensure good ventilation. Do not cover ventilation
openings or grille.
-Always keep fan louvres clear.
-Do not place appliance in areas of direct sunlight or next to a
stove, heater or similar object.
-The energy consumption depends on the installation condi-
tions, e.g. the ambient temperature (see 1.2) .
-Keep the time the appliance is open to a minimum.
-Store food logically.
-Ensure that all food is well packed and covered for storage.
This will prevent frost from forming.
-First cool warm food to room temperature before storing it .
-Use the vacation function for longer vacation periods
(see 5.4.4) .
Accumulated dust increases the energy
consumption:
-Once a year, dust the refrigerating unit
together with the metal grille of the heat
exchanger at the back of the appliance.
-Use the vacation function for longer vaca-
tion periods (see 5.4.4) .
1.6 HomeDialog
The appliance can be provided with the retrofit
modules for the HomeDialog system or the serial
interface (RS 232), depending on model and
equipment. The modules are available from your
specialist dealer.
You will find more information on the internet at
www.liebherr.com.
2 General safety information
Danger for the user:
-This appliance is not designed for persons (including children)
with physical, sensory or mental impairment or persons not
having sufficient experience and knowledge, unless they are
instructed in the use of the appliance and are initially super-
vised by a person responsible for their safety. Keep children
under supervision to ensure they do not play with the appli-
ance.
-In case of a fault, pull out the mains plug (not by pulling the
connecting cable) or switch off the fuse.
-Have any repairs to or intervention in the appliance, and any
change of the mains power cable, carried out by the customer
service only or by other specialised personnel trained for the
purpose.
-When disconnecting the appliance from the supply, always
take hold of the plug. Do not pull the cable.
-Install and connect the appliance only as instructed.
-Please keep these instructions in a safe place and pass them
on to any subsequent owners.
Fire hazard:
-The refrigerant R 600a is environmentally friendly but flam-
mable. Escaping refrigerant may ignite.
•Do not damage the refrigerant circuit pipes.
•Do not allow naked flames or ignition sources to enter the
appliance.
•Do not use any electrical appliances in the interior (e.g.
steam cleaners, heaters, ice cream maker etc.).
•If refrigerant escapes: eliminate naked flames or sources
of ignition from the vicinity. Pull out the power plug. Venti-
late the area well. Notify customer service.
-Do not store explosives or sprays using combustible propel-
lants such as butane, propane, pentane, etc. in the appliance.
Respective spray cans can be identified by reference to the
contents printed on the can or by a flame symbol. Gases
possibly escaping may ignite due to electrical components.
-Do not place any burning candles, lamps or other items with
naked flames on or in the appliance.
-Only store high-percentage alcohol in tightly sealed, upright
containers. Alcohol possibly escaping may ignite due to elec-
trical components.
Danger of tipping and falling:
-Do not misuse the plinth, drawers, doors etc. as a step or for
support. This applies particularly to children.
Danger of food poisoning:
-Do not consume food which has been stored too long.
General safety information
3

Danger of frostbite, numbness and pain:
-Avoid lasting skin contact with cold surfaces or refrigerated/
frozen food or take protective steps, e.g. wear gloves. Do not
consume ice cream, water ice or ice cubes immediately and
do not consume them too cold.
Please observe the specific information in the other
sections:
DANGER identifies a situation involving direct
danger which, if not obviated, may
result in death or severe bodily injury.
WARNING identifies a dangerous situation
which, if not obviated, may result in
death or severe bodily injury.
CAUTION identifies a dangerous situation
which, if not obviated, may result in
minor or medium bodily injury.
NOTICE identifies a dangerous situation
which, if not obviated, may result in
damage to property.
Note identifies useful information and tips.
3 Controls and displays
3.1 Operating and control elements
Fig. 3
(1) Alarm button (7) Up setting button
(2) SuperCool button (8) Holiday button
(3) On/Off button (9) Temperature display
(4) Alarm symbol (10) HomeDialog symbol
(5) Menu symbol (11) SuperCool symbol
(6) Down setting button (12) Child-proofing symbol
3.2 Temperature display
The following are displayed in normal operation:
-the average cooling temperature
The following displays indicate malfunction. Possible causes and
corrective action (see Malfunction).
-F0 to F9
4 Putting into operation
4.1 Changing over the door hinges
You can change over the door hinges if necessary.
NOTICE*
Risk of damage to side-by-side appliances due to condensation!
When a side-by-side appliance (S…) is fitted together with a
second appliance (as a SBS combination), the door hinges must
remain as delivered.
uDo not change over the door hinges.
Ensure that the following tools are to hand:
qTorx 25
qTorx 15
qScrewdriver
qCordless screwdriver, if necessary
qSecond person for fitting work, if needed
4.1.1 Detaching the soft stop unit*
For appliances with soft stop mechanism start with this point.
For appliances without soft stop mechanism start with the
point 'Detaching the door'.

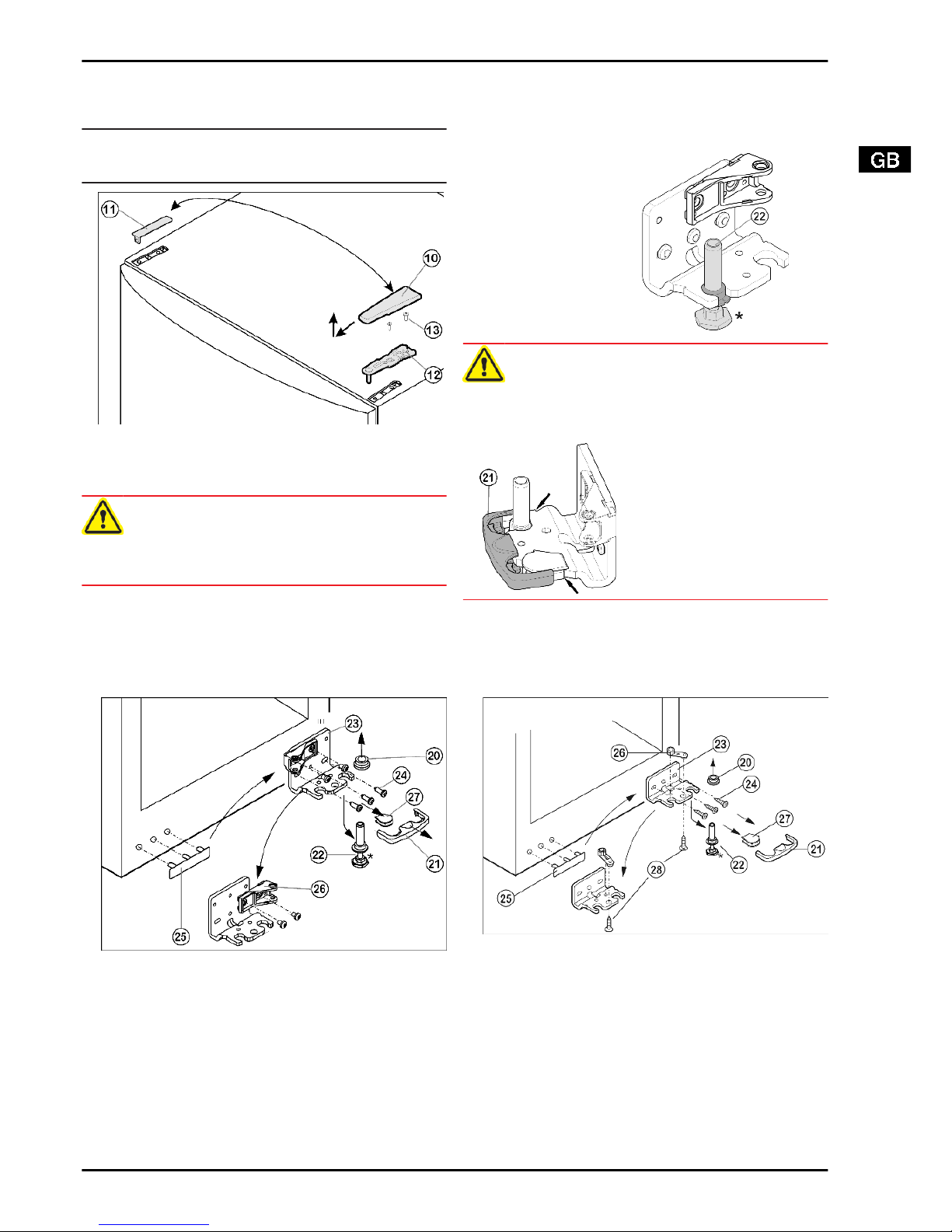

Fig. 4
uOpen the door.
NOTICE
Risk of damage!
If the door seal is damaged, the door may fail to close properly
and the cooling will be inadequate.
uDo not damage the door seal with the screwdriver!
uDisengage and remove the faceplate
Fig. 4 (1)
using a flat-
blade screwdriver.
wThe faceplate is attached over the soft stop bracket.
Fig. 5
uSlide the faceplate forwards over the soft stop bracket
Fig. 5 (5)
in the direction of the appliance.
uSnap the safety lock
Fig. 5 (3)
into the oblong hole.
wThe safety lock prevents the hinge from snap-closing.
uUsing a screwdriver, lift off the cover
Fig. 5 (2)
from the outside
and remove it in an outward direction.
uIf necessary, tip the appliance backwards with the assistance
of a second person.
uPress the pin
Fig. 5 (4)
out from underneath.
uPress the soft stop bracket
Fig. 5 (5)
towards the door.
uRemove the faceplate
Fig. 5 (1)
.
uUnscrew the entire soft stop unit (2 Torx 15)
Fig. 5 (6)
.
uPull the soft stop unit out a little, push it in the direction of the
handle side and swing it out.
Controls and displays
4

uSet the soft stop unit aside.
4.1.2 Detaching the door
Note
uRemove any food from the door racks before removing the
door, so that no food falls out.
Fig. 6
uClose the door.
uPull off the cover
Fig. 6 (10)
forwards and upwards.
uLift off the cover
Fig. 6 (11)
.
CAUTION
Risk of injury if the door tips!
uTake good hold of the door.
uSet down the door carefully.
uUnscrew the upper turn hinge
Fig. 6 (12)
(2 Torx 25)
Fig. 6 (13)
and raise it for removal.
uLift up the door and set it aside.
4.1.3 Changing bearing parts*
For appliances with soft stop mechanism.*
Fig. 7
uDraw the safety lock
Fig. 7 (21)
forwards for removal.
uRemove the cover
Fig. 7 (27)
.*
uTurn the adjustable-height foot
Fig. 7 (22)
all the way in.
uIf necessary, tip the appliance back a little with the assistance
of a second person for removal of the bearing pin.
uPull out the bearing pin
Fig. 7 (22)
downwards and forwards.
In so doing, pay attention to the hinge bush
Fig. 7 (20)
.
uUnscrew the turn hinge
Fig. 7 (23)
(3 Torx 25)
Fig. 7 (24)
.
uCarefully lift off and transfer the cover on the handle side
Fig. 7 (25)
.
uScrew the bearing bracket
Fig. 7 (23)
onto the new hinge side
tightly to at least 4 Nm or retighten with the aid of a cordless
screwdriver if necessary.
uUnscrew the bearing part
Fig. 7 (26)
, turn it 180° and screw it
down again.
uTip the appliance back a
little again and re-insert the
bearing pin
Fig. 8 (22)
. The
notch has to point forwards.
uPlace the cover
Fig. 7 (27)
on the opposite side.*
Fig. 8
CAUTION
Risk of injury if the door tips!
uThe safety lock
(21)
has to engage with the turn hinge at the
side so that the bearing pin and therefore the door are
secured.
u
uSnap the safety lock
(21)
onto the turn hinge again.
uPut on the hinge bush
Fig. 7 (20)
.
4.1.4 Changing bearing parts*
For appliances without soft stop mechanism.*
Fig. 9
uDraw the safety lock
Fig. 9 (21)
forwards for removal.
uRemove the cover
Fig. 9 (27)
.*
uFully retract the adjustable-height foot
Fig. 9 (22)
.
uIf necessary, tip the appliance back a little with the assistance
of a second person for removal of the bearing pin.
uPull out the bearing pin
Fig. 9 (22)
downwards and forwards.
In so doing, pay attention to the hinge bush
Fig. 9 (20)
.
uUnscrew the turn hinge
Fig. 9 (23)
(3 Torx 25)
Fig. 9 (24)
.
uUnscrew the bearing part
Fig. 9 (26)
(1 Torx 25),
Fig. 9 (28)
,
transfer it to the opposite hole in the turn hinge and screw it
down again.
uCarefully lift off and transfer the cover
Fig. 9 (25)
on the handle
side.
Putting into operation
5

uScrew the bearing bracket
Fig. 9 (23)
onto the new hinge side
tightly to at least 4 Nm or retighten with the aid of a cordless
screwdriver if necessary.
uTip the appliance back a
little again and re-insert the
bearing pin
Fig. 10 (22)
. The
notch has to point forwards.
uPlace the cover
Fig. 9 (27)
on the opposite side.*
Fig. 10
CAUTION
Risk of injury if the door tips!
uThe safety lock
(21)
has to engage with the turn hinge at the
side so that the bearing pin and therefore the door are
secured.
u
uSnap the safety lock
(21)
onto the turn hinge again.
uPut on the hinge bush
Fig. 9 (20)
.
4.1.5 Transferring the handle
For appliances without soft stop mechanism.
uDisengage the spring clip
Fig. 11 (34)
from the door and
transfer it to the new hinge side.*
For all appliances:
uLift the stopper
Fig. 11 (30)
out of the door bearing bush and
transfer it.
Fig. 11
uDetach door handle
Fig. 11 (31)
, stoppers
Fig. 11 (32)
and
pressure plates
Fig. 11 (33)
plates and transfer to the opposite
side
uWhen fitting the pressure plates at the opposite side, pay
attention that they engage properly.
4.1.6 Fitting the lower door
uPlace the door from above onto the lower bearing pin
Fig. 9 (22)
.
uClose the door.
uInsert the upper turn hinge
Fig. 6 (12)
in the door on the new
hinge side.
uScrew on the upper bearing bracket
Fig. 6 (12)
tightly to at
least 4 Nm(2 x Torx 25)
Fig. 6 (13)
. Make preliminary holes
(optional) or use a cordless screwdriver.
uSnap the cover
Fig. 6 (10)
and cover
Fig. 6 (11)
into place at
the opposite side.
4.1.7 Fitting the soft stop unit*
For appliances with soft stop mechanism.
For appliances without soft stop mechanism: (see 4.1.8) .
Fig. 12
uRemove the cover
Fig. 12 (7)
from the faceplate
Fig. 12 (1)
and re-insert it at the other side.
uEngage the soft stop unit with the joint pointing to the hinge
side (A) and swivel into place (B).
wThe screw holes at the left and right have to register.
uScrew down the soft stop unit (2 Torx 15)
Fig. 12 (6)
.
Fig. 13
uAttach the faceplate
Fig. 13 (1)
to the soft stop bracket so that
the catches face forwards and the front faces the appliance.
uDraw the soft stop bracket
Fig. 13 (5)
towards the bearing
part
Fig. 13 (26)
and re-insert the pin
Fig. 13 (4)
from above
so that the square sits in the recess.
uAttach and engage the cover
Fig. 13 (2)
.
wPay attention that the cover fits properly so that the door closes
properly and the pin is secured.
uTwist the safety lock
Fig. 13 (3)
for removal.
uSnap the faceplate
Fig. 13 (1)
onto the door.
uClose the door.
4.1.8 Aligning the door
uAlign the door to the appliance housing by way of the two
oblong holes in the lower turn hinge
Fig. 9 (23)
. To do so,
unscrew the middle screw.
Putting into operation
6

WARNING
Risk of injury due to the door dropping out!
If the bearing parts are not screwed into place firmly enough, the
door may drop out. This may lead to severe injuries. What is
more, the door may not close and therefore the appliance may
fail to cool properly.
uScrew the turn hinges firmly into place, with at least 4 Nm.
uCheck all of the screws and retighten if necessary.
4.2 Insertion into a row of kitchen units
Fig. 14
(1) Stack cabinet (3) Kitchen cabinet
(2) Appliance (4) Wall
When inserting the appliance into a row of standard kitchen units
(max. depth 580 mm), the appliance can be installed directly next
to the kitchen unit
Fig. 14 (3)
. The appliance door projects relative
to the front of the kitchen unit by 34 mm at the side and by
50 mm in the middle of the appliance. It can be opened and
closed perfectly as a result.
Important for the ventilation:
-At the back of the stack cabinet there has to be a ventilation
duct of at least 50 mm depth throughout the width of the stack
cabinet.
-The ventilation space under the ceiling has to be at least
300 cm2.
-The larger the ventilation space, the more energy-saving the
appliance is in operation.
If the appliance is installed with the hinges next to a wall
Fig. 14 (4)
, the distance between appliance and wall has to be at
least 36 mm. This corresponds to the projection of the handle
when the door is open.
4.3 Transporting the appliance
CAUTION
Risk of injury and danger of damage as a result of incorrect trans-
port!
uTransport the appliance in a packed condition.
uTransport the appliance upright.
uDo not transport the appliance without assistance.
4.4 Installing the appliance
In the event that the appliance is damaged, contact the supplier
immediately before connecting to the mains.
The floor at the site must be flat and level.
Do not install the appliance in a location where it is exposed to
direct radiation of the sun, next to a cooker, heater and similar.
Always install the appliance directly against the wall.
Do not install the appliance without assistance.
Standard EN 378 specifies that the room in which you install your
appliance must have a volume of 1 m2 per 8 g of R 600a refrig-
erant used in the appliance. If the room in which the appliance is
installed is too small, a flammable gas-air mixture may form in the
event of a leakage in the refrigeration circuit. The quantity of
refrigerant used in your appliance is indicated on the type plate
on the inside of the appliance.
WARNING
Fire hazard due to dampness!
If live parts or the mains lead become damp this may cause short
circuits.
uThe appliance is designed for use in enclosed areas. Do not
operate the appliance outdoors or in areas where it is exposed
to splash water or damp conditions.
WARNING
Fire hazard due to refrigerant!
The refrigerant R 600a is environmentally friendly but flammable.
Escaping refrigerant may ignite.
uDo not damage the piping of the refrigeration circuit.
WARNING
Fire hazard and danger of damage!
uDo not place appliances emitting heat e.g. microwaves,
toasters etc. on the appliance!
WARNING
Fire hazard and risk of damage due to blocked ventilation grille!
uAlways keep the ventilation grille free. Always ensure that the
appliance is properly ventilated.
uDetach the connecting cable from the rear of the appliance,
removing the cable holder at the same time because other-
wise there will be vibratory noise!
uRemove the protective film from the outside of the appli-
ance.*
NOTICE*
The stainless steel doors are provided with a high-quality surface
coating and must not be treated using the accompanying care
product.
Otherwise the surface coating will be affected.
uWipe the coated door surfaces using a soft, clean cloth only.
uApply a stainless steel cleaner only to the stainless steel
side walls evenly, wiping with the grain. Subsequent cleaning
becomes easier as a result.
uWipe side walls with a paint finish using a soft, clean cloth
only.
uRemove the protective film from the decorative trims.
uRemove all transit supports.
uDispose of packaging material (see 4.5) .
NOTICE
Risk of damage due to condensate!
If your appliance is not a Side-by-Side (SBS) appliance:
udo not install the appliance directly alongside a further refrig-
erator/freezer.
Putting into operation
7

uAlign the appliance so that it
stands firmly and on a level by
applying the accompanying
spanner to the adjustable-
height feet (A) and using a spirit
level.
uThen support the door: Extend
the adjustable foot at the turn
hinge (B) until it rests on the
floor and then make a further
90° turn.
When a Side-by-Side appliance (S…) is fitted together with a
second appliance (as a SBS combination):
uProceed according to the Side-by-Side combined fridge-
freezer installation instructions. (Accessories bag of the SBS
freezer/appliance with freezer compartment)
If the appliance is installed in a very damp environment, conden-
sate may form on the outside of the appliance.
uAlways see to good ventilation at the installation site.
4.5 Disposing of packaging
WARNING
Danger of suffocation due to packing material and plastic film!
uDo not allow children to play with packing material.
The packaging is made of recyclable materials:
-corrugated board/cardboard
-EPS moulded parts
-polythene bags and sheets
-polypropylene straps
uTake the packaging material to an official collecting point.
4.6 Connecting the appliance
NOTICE
Risk of damage to the electronic control system!
uDo not use stand-alone inverters (conversion of d.c. to a.c./
three-phase) or energy saving plugs.
WARNING
Fire and overheating hazard!
uDo not use extension cables or multiple socket outlets.
The type of current (alternating current) and voltage at the instal-
lation site have to conform with the data on the type plate (see
Appliance at a glance).
Connect the appliance only with a properly installed
socket outlet with earthing contact. The socket outlet
must be fused with 10 A or higher.
It must be easily accessible so that the appliance can
be quickly disconnected from the supply in an emer-
gency.
uCheck the electrical connection.
uClean the appliance (see 6.1) .
uPlug in the power plug.
4.7 Switching on the appliance
uPress On/Off button
Fig. 3 (3)
.
wThe temperature display indicates the current temperature.
wThe interior light is on when the door is open.
5 Control
5.1 Brightness of the temperature
display
You can adjust the brightness of the temperature display to the
light conditions of the room in which the appliance is installed.
5.1.1 Adjusting the brightness
The brightness is adjustable between h0 (no illumination) and
h5 (maximum luminosity).
uTo activate the setting mode: press SuperCool button
Fig. 3 (2)
for about 5s.
wThe display indicates c.
wThe menu symbol
Fig. 3 (5)
shines.
uUsing the Up setting button
Fig. 3 (7)
and Down setting
button
Fig. 3 (6)
, select h.
uTo confirm: briefly press the SuperCool button
Fig. 3 (2)
.
uTo set the display brighter: press the Up
setting button
Fig. 3 (7)
.
uTo set the display darker: press the Down
setting button
Fig. 3 (6)
.
uTo confirm: briefly press the SuperCool
button
Fig. 3 (2)
.
wThe brightness is adjusted to the new value.
uTo deactivate the setting mode: press the On/Off button
Fig. 3 (3)
.
-or-
uWait for 5 minutes.
wThe temperature is indicated again in the temperature display.
5.2 Child proofing
The child-proofing function enables you to make sure that the
appliance is not inadvertently switched off by playing children.
5.2.1 Setting the child lock function
uTo activate the setting mode: press SuperCool button
Fig. 3 (2)
for about 5 s.
wThe display indicates c.
wThe menu symbol
Fig. 3 (5)
shines.
uBriefly press theSuperCool button
Fig. 3 (2)
to confirm.
When c1 is indicated in the display:
uto activate the child lock, briefly press the
SuperCool button
Fig. 3 (2)
.
wThe child lock symbol
Fig. 3 (12)
shines. c flashes in the
display.
When c0 is indicated in the display:
uto deactivate the child lock, briefly press the SuperCool
button
Fig. 3 (2)
.
wThe child lock symbol
Fig. 3 (12)
goes out. c flashes in the
display.
uTo deactivate the set-up mode: press On/Off button
Fig. 3 (3)
.
-or-
uWait for 5 minutes.
wThe temperature is indicated again in the temperature display.
5.3 Door alarm
If the door is open longer then 60 s, the audible alarm sounds.
The audible alarm is automatically silenced when the door is
closed.
Control
8

5.3.1 Muting the door alarm
The audible alarm can be muted when the door is open. The
sound switch-off function is active as long as the door is left open.
uPress alarm button
Fig. 3 (1)
.
5.4 Refrigerator compartment
The natural circulation of air in the refrigerator compartment
results in zones differing in temperature. It is coldest directly
above the plate separating off the BioFresh zone and at the rear
wall. It is warmest at the top front of the compartment and in the
door.
5.4.1 Food refrigeration
Note
The energy consumption increases and the cooling performance
decreases if the ventilation is inadequate.
uAlways keep the air slits of the fan free.
uPlace butter, eggs and preserves in the upper area and in the
door (see Appliance at a glance).
uUse recyclable plastic, metal, aluminium and glass containers
and cling film for wrapping.
For appliances from 1216 mm high:*
uUse the front area of the refrigerator compartment floor only
for briefly putting down cooled products, e.g. when rear-
ranging and sorting. However do not leave cooled products
there otherwise they may be pushed back or tipped over when
the door is closed.
uDo not store food too close together to enable good air circu-
lation.
uTo safeguard bottles from tipping over: move the bottle holder.
At the base of the refrigerator compartment, the integrated bottle
shelf or alternatively the glass shelf can be used:
uTo use the bottle shelf:
store the glass shelf
compactly under the
bottle shelf.
uPlace the bottles with the
base pointing backwards
facing the rear wall.
If the bottles project
beyond the bottle shelf:
uset the lower door rack
one position higher.
5.4.2 Setting the temperature
The temperature can be set from 9 °C to 3 °C, the recommended
temperature is 5 °C.
uFor a higher temperature setting: press Up button
Fig. 3 (7)
.
uFor a lower temperature setting: press Down button
Fig. 3 (6)
.
wThe first time the button is pressed, the value set so far is indi-
cated in the temperature display.
uTo change the temperature in 1 °C steps: briefly press the
button.
uTo change the temperature continuously: hold down the
button.
wThe value is displayed flashing during the setting operation.
wThe actual temperature is displayed about 5 s after the last
press of a button. The temperature slowly adjusts to the new
value.
5.4.3 SuperCool
With SuperCool you switch to the highest cooling performance
to reach lower cooling temperatures. Use SuperCool, to rapidly
cool large amounts of food.
The SuperCool function uses slightly more energy.
Cooling with SuperCool
uBriefly press SuperCool button
Fig. 3 (2)
.
wThe SuperCool symbol
Fig. 3 (11)
lights up in the display.
wThe cooling temperature drops to the coldest value. Super-
Cool is activated.
wSuperCool is automatically deactivated after 6 to12 hours The
appliance continues to operate in the energy-saving, normal
mode.
To prematurely deactivate SuperCool
uBriefly press SuperCool button
Fig. 3 (2)
.
wThe SuperCool symbol
Fig. 3 (11)
goes out in the display.
wSuperCool is deactivated.
5.4.4 Holiday mode
The holiday mode saves energy and prevents odour from occur-
ring when the door of the refrigerator compartment stays closed
for a lengthy period.
Activating the holiday mode
uRemove all the food from the refrigerator and
BioFresh compartment, otherwise they will
perish..
uPress the holiday button
Fig. 3 (8)
for 3 sec.
wThe holiday mode is activated. The display indicates Ho.
Deactivating the holiday mode
uBriefly press the holiday button
Fig. 3 (8)
.
wThe holiday mode is deactivated.
wThe current cooling temperature is indicated in the display.
5.4.5 Relocating the shelves
The shelves have stops preventing them from being unintention-
ally pulled out.
uLift the shelf and draw it out forwards.
uInsert shelf with the raised edge pointing upwards at the back.
wThe food does not freeze onto the rear wall.
5.4.6 Using the sectioned shelf
Fig. 15
uThe glass shelf with stop face (2) has to be at the back.
Control
9

5.4.7 Moving the storage rack
uRemove storage rack according to illus-
tration.
The boxes can be removed and placed on the table as a single
unit.
Only one box or both boxes can be used. If particularly tall bottles
are to be stored, attach only the wide box above the bottle rack.
Three small boxes are available through the customer service as
optional equipment instead of one wide and one small box.
uRe-positioning the boxes: Lift them for
removal and re-position them as
required.
uTo detach lid: Open 90° and raise to
disengage.
5.4.8 Removing the bottle holder
uAlways take hold of the bottle holder on
the plastic part.
5.5 BioFresh compartment
The BioFresh compartment allows some types of fresh food to
be stored up to three times longer than in conventional refriger-
ators, without compromising quality.
For food with an indicated best before date, the date specified
on the packaging always applies.
5.5.1 HydroSafe
The HydroSafe at the moist setting is suited for storing
unwrapped salad, vegetables and fruit with high inherent mois-
ture. When the drawer is well filled, a dewy climate with up to 90%
humidity is established. The humidity in the compartment
depends on the moisture content of the food stored and on the
opening frequency. You can set the humidity yourself.
5.5.2 DrySafe
The DrySafe is suitable for storing dry or wrapped food (e.g. dairy
products, meat, fish, sausages). A relatively dry storage climate
is established here.
5.5.3 Storing food
Note
uVegetables sensitive to cold, such as cucumbers, aubergines,
semi-ripe tomatoes, zucchinis and all tropical fruits sensitive
to cold, do not belong in the BioFresh compartment.
uTo prevent food spoilage due to transfer of germs: Store
unwrapped animal and vegetable products separate from one
another in the drawers. This also applies to different sorts of
meat.
If food has to be stored together due to lack of space:
uwrap the food.
5.5.4 Storage times
Standard values for storage time at low humidity
Butter up to 90 days
Hard cheese up to 110 days
Milk up to 12 days
Sausage, cold meat up to 9 days
Poultry up to 6 days
Pork up to 7 days
Beef up to 7 days
Game up to 7 days
Note
uPlease note that protein-rich food deteriorates faster, i.e.
shellfish and crustaceans deteriorate faster than fish, fish
faster than meat.
Standard values for storage time at high humidity
Vegetables, salad
Artichokes up to 14 days
Celery up to 28 days
Cauliflower up to 21 days
Broccoli up to 13 days
Chicory up to 27 days
Lamb's lettuce up to 19 days
Peas up to 14 days
Kale up to 14 days
Carrots up to 80 days
Garlic up to 160 days
Kohlrabi up to 55 days
Lettuce up to 13 days
Herbs up to 13 days
Leek up to 29 days
Mushrooms up to 7 days
Radishes up to 10 days
Brussels sprouts up to 20 days
Asparagus up to 18 days
Spinach up to 13 days
Savoy cabbage up to 20 days
Fruit
Apricots up to 13 days
Apples up to 80 days
Pears up to 55 days
Blackberries up to 3 days
Control
10

Standard values for storage time at high humidity
Dates up to 180 days
Strawberries up to 7 days
Figs up to 7 days
Blueberries up to 9 days
Raspberries up to 3 days
Currants up to 7 days
Sweet cherries up to 14 days
Kiwis up to 80 days
Peaches up to 13 days
Plums up to 20 days
Cranberries up to 60 days
Rhubarb up to 13 days
Gooseberries up to 13 days
Grapes up to 29 days
5.5.5 Adjusting the temperature in the BioFresh
compartment
The temperature is automatically regulated to between 0 °C and
3 °C, the recommended temperature is 1 °C.
You can adjust the temperature slightly colder or warmer. The
temperature can be adjusted from b1 (coldest temperature) to
b9 (warmest temperature). The presetting is b5. At the b1 to b4
settings the temperature may drop below 0 ° C and therefore the
food may freeze slightly.
Note
for testing institutes: If temperatures below 3 °C are to be
reached in the refrigerator compartment:
uset the temperature in the BioFresh compartment to b1-b4.
uTo activate the setting mode: press the SuperCool button
Fig. 3 (2)
for about 5 s.
wThe menu symbol
Fig. 3 (5)
shines. The temperature display
indicates c .
uUsing the Up setting button
Fig. 3 (7)
and Down setting
button,
Fig. 3 (6)
, select b.
uTo confirm: briefly press the SuperCool button
Fig. 3 (2)
.
uFor a warmer temperature adjustment: press Up setting
button
Fig. 3 (7)
.
uFor a colder temperature adjustment: press Down setting
button
Fig. 3 (6)
.
uTo confirm: press SuperCool button
Fig. 3 (2)
.
wThe temperature slowly adjusts to the new
value.
uTo deactivate the setting mode: press the On/Off button
Fig. 3 (3)
.
-or-
uWait for 5 minutes.
wThe temperature is indicated again in the temperature display.
5.5.6 Setting the humidity in the HydroSafe
u
Low humidity: move the regulator to the
left.
u
High humidity: move the regulator
to the right.
5.5.7 Drawers
Fig. 16
uPull out drawers
Fig. 16 (1)
to the limit.
uThen raise the drawer at the back, pull it forwards and lift it.
wIn the case of the bottom drawer, the drawer lock is additionally
released and the drawer can be removed.
uDisengage drawer cover
Fig. 16 (2)
with humidity controller of
removed drawers by lifting and draw it forwards for removal.
Fig. 17
uTo insert drawer cover
Fig. 17 (2)
: Insert mouldings of the
drawer cover into the rear holders from underneath and snap
into the holder at the front.
uPlace drawers
Fig. 17 (1)
on the rails and slide them all the
way in until the drawer audibly snaps into place.
wIn the case of the bottom drawer, the drawer lock additionally
engages and the vegetable drawer sits firmly on the telescopic
rails.
6 Maintenance
6.1 Cleaning the appliance
Before cleaning:
CAUTION
Risk of injury and damage as a result of hot steam!
Hot steam may damage the surfaces and cause burns.
uDo not use any steam cleaners!
NOTICE
Incorrect cleaning damages the appliance!
uDo not use cleaning agents in concentrated form.
uDo not use any scouring or abrasive sponges or steel wool.
uDo not use any cleaning agents containing sand, chloride,
chemicals or acid.
uDo not use chemical solvents.
uDo not damage or remove the type plate on the inside of the
appliance. It is important for the customer service.
uDo not pull off, bend or damage cables or other components.
uDo not allow any cleaning water to enter the drain channel,
ventilation grille or electrical parts.
uEmpty the appliance.
uPull out the plug.
- Use soft cleaning cloths and a multi-purpose
cleaning agent with neutral pH value.
Maintenance
11

- Only use food compatible cleaning and care agents
on the inside of the appliance.
Outside surfaces and interior:
uClean the plastic surfaces, outside and inside, by hand using
lukewarm water and a little washing-up liquid.
NOTICE*
The stainless steel doors are provided with a high-quality surface
coating and must not be treated using the accompanying care
product.
Otherwise the surface coating will be affected.
uWipe the coated door surfaces using a soft, clean cloth only.
In case of stubborn dirt, use a little water or a neutral cleaning
agent. A microfibre cloth can be optionally used.
uIf the stainless steel side walls are dirty, clean them using
a commercially available stainless steel cleaning agent. Then
evenly apply the accompanying stainless steel care product,
making strokes in the direction of the grain.
uWipe side walls with a paint finish using a soft, clean cloth
only. In case of stubborn dirt, use a little water or a neutral
cleaning agent. A microfibre cloth can be optionally used.
Do not apply stainless steel cleaning agent to glass or plastic
surfaces to prevent them from being scratched. Darker areas at
the beginning and quite an intensive colour of the stainless steel
surface are normal.*
uTo clean the drain opening: remove
any deposits with a fine instrument,
e.g. a cotton bud.
Items of equipment:
uClean items of equipment by hand with lukewarm water and
a little washing-up liquid.
uFor cleaning, remove the support rails for the half-sized glass
shelves.
uTo dismantle the shelves: remove the
trims and side parts.
uTo dismantle the storage rack:
remove the protective film from the
decorative trims.
uLift out the boxes and lift the covers
for removal.
After cleaning:
uWipe dry the appliance and items of equipment.
uConnect the appliance and switch it on again.
uPut the food back inside.
6.2 Changing the interior light with bulb*
Bulb data
T25 tube, Philips
max. 25 W
Fitting: E14
Type of current and voltage must conform with the details on
the type plate
Fig. 18
uSwitch off the appliance.
uPull out the power plug or switch off the fuse.
uTo remove the cover
Fig. 18 (1)
: put your finger behind the
cover and disengage it.
uPull out the glass shelf
Fig. 18 (2)
.
uChange the bulb
Fig. 18 (3)
.
uSlide the glass shelf back in.
uAttach the cover again, engage it at the right and left and pay
attention that the middle hook
Fig. 18 (4)
grips over the glass
shelf.
6.3 Customer service
First check whether you can correct the fault yourself by refer-
ence to the list (see Malfunction). If this is not the case, please
contact the customer service whose address is given in the
enclosed customer service list.
WARNING
Risk of injury if repair work is not carried out professionally!
uHave any repairs to and intervention in the appliance and
mains power cable, which are not expressly mentioned in the
(see Maintenance) carried out by the customer service only.
uRead the appliance
designation
Fig. 19 (1)
, service
No.
Fig. 19 (2)
and
serial No.
Fig. 19 (3)
off
the type plate located
inside the appliance
on the left-hand side.
Fig. 19
uNotify the customer service, specifying the fault, appliance
designation
Fig. 19 (1)
, service No.
Fig. 19 (2)
and serial No.
Fig. 19 (3)
.
wThis will help us to provide you with a faster and more accurate
service.
uKeep the appliance closed until the customer service arrives.
wThe food will stay cool longer.
uPull out the mains plug (not by pulling the connecting cable)
or switch off the fuse.
7 Malfunction
Your appliance is designed and manufactured for a long life span
and reliable operation. If a malfunction nonetheless occurs
during operation, check whether it is due to a handling error. In
this case you will have to be charged for the costs incurred, even
during the warranty period. You may be able to rectify the
following faults yourself:
Appliance does not work.
→The appliance is not switched on.
uSwitch on the appliance.
→The power plug is not properly inserted in the wall socket.
Malfunction
12

uCheck power plug.
→The fuse of the wall socket is not in order.
uCheck fuse.
The compressor runs for a long time.
→The compressor switches to a low speed when little cold is
needed. Although the running time is increased as a result,
energy is saved.
uThis is normal in energy-saving models.
→SuperCool is activated.
uThe compressor runs for longer in order to rapidly cool the
food. This is normal.
Excessive noise.
→Speed-controlled* compressors may produce varying
running noise due to different speed steps.
uThe sound is normal.
A bubbling and gurgling noise.
→This noise comes from the refrigerant flowing in the refriger-
ation circuit.
uThe sound is normal.
A quiet clicking noise.
→The noise is produced whenever the refrigeration unit (motor)
automatically switches on or off.
uThe sound is normal.
A hum. It is briefly a little louder when the refrigeration unit
(the motor) switches on.
→The refrigeration increases automatically when fresh food
has just been placed in the appliance or the door has been
left open for a while.
uThe sound is normal.
→The ambient temperature is too high.
uSolution: (see 1.2)
A low hum.
→The sound is produced by air flow noise of the fan.
uThe sound is normal.
Vibratory noise.
→The appliance is not standing firmly on the floor. As a result,
adjoining units or objects are set into vibration by the running
refrigeration unit.
uMove the appliance away a little and align it using the adjust-
able feet.
uMove bottles and containers apart.
Flow sound at the soft stop mechanism.*
→The noise is produced when the door is opened and closed.
uThe sound is normal.
The temperature display indicates: F0 to F9
→There is a fault.
uContact the customer service. (see Maintenance).
DEMO shines in the temperature display.
→The demo mode is activated.
uContact the customer service. (see Maintenance).
The outside surfaces of the appliance are warm.
→The heat of the refrigeration circuit is used to prevent conden-
sate from forming.
uThis is normal.
The temperature is not cold enough.
→The door of the appliance is not properly closed.
uClose the door of the appliance.
→Insufficient ventilation.
uClear ventilation grilles.
→The ambient temperature is too high.
uSolution: (see 1.2) .
→The appliance was opened too frequently or for too long.
uWait until the appliance reaches the required temperature
itself. If not, contact the customer service. (see Mainte-
nance).
→The appliance is too close to a heat source.
uSolution: (see Putting into operation).
The interior light is not on.
→The appliance is not switched on.
uSwitch on the appliance.
→The door was open longer than 15 min.
uThe interior light automatically switches off if the door has
been open for about 15 min.
→If the interior light is not on but the temperature display is lit,
the bulb is faulty.
uChange the bulb. (see Maintenance).
→The LED lighting is defective or the cover is damaged:*
WARNING*
Risk of injury due to electric shock!
Live parts are located under the cover.
uHave the LED interior light changed or repaired only by the
customer service or by specialized personnel trained for the
purpose.
WARNING*
Danger of injury due to laser radiation, class 1M.
uDo not look inside when the cover is open.
8 Decommissioning
8.1 Switching off the appliance
uPress On/Off button
Fig. 3 (3)
for about 2 s.
wThe temperature display is dark.
8.2 Taking the appliance out of service
uEmpty the appliance.
uPull out the power plug.
uClean the appliance (see 6.1) .
uLeave the door open to prevent odour.
9 Disposing of the appliance
The appliance contains some reusable materials
and should be disposed of properly - not simply with
unsorted household refuse. Appliances which are no
longer needed must be disposed of in a professional
and appropriate way, in accordance with the current
local regulations and laws.
When disposing of the appliance, ensure that the refrigeration
circuit is not damaged to prevent uncontrolled escape of the
refrigerant it contains (data on type plate) and oil.
uDisable the appliance.
uPull out the plug.
uCut through the connecting cable.
Decommissioning
13

Disposing of the appliance
14
Table of contents
Popular Refrigerator manuals by other brands

camry
camry CR 8064 user manual

Frigidaire
Frigidaire GLHS67EH Factory parts catalog

Arctic Air
Arctic Air AUC-27R Installation, operation & maintenance manual

KitchenAid
KitchenAid KSSP42MFB05 parts list

KitchenAid
KitchenAid KSSS36D Use and care guide

AGA marvel
AGA marvel 30ARM Installation, operation and maintenance instructions
