Atongm Laser Keyboard User manual

LASER KEYBOARD User’s Guide
1
LASER KEYBOARD
User’s Guide

LASER KEYBOARD User’s Guide
2
Content
1. Product Overview……………………………………………………………………………5
2. Package Contents……………………………………………………………………………5
3. How this Product Works…………………………………………………………………..6
4. Identifying Parts and their Functions…………………………………………………7
5. Using Laser Keyboard…………………………………………………….............…….8
6. Mouse Function………………………………………………………………………………15
7. Specification…………………………………………………………………………………..16

LASER KEYBOARD User’s Guide
3
1. Product Overview
Compact and ultra-portable for mobility
English QWERTY keyboard layout
Easy connection via Bluetooth 3.0 HID profile or USB
Lithium-ion Polymer rechargeable battery, Mini-B Type charge interface
Compatible with latest operating systems:
Windows XP/VISTA/7/8, Windows Phone 7, IOS4/5/6(iPhone and iPad)
Android 3.1 higher, Mac OS X.
2. Package Contents
Laser keyboard
USB cable
User’s Guide

LASER KEYBOARD User’s Guide
4
3. How this product works
When the user presses a key on the projected keyboard, the infrared layer is interrupted.
This produces IR reflections that are recognized by the sensor in three dimensions,
allowing the system to assign a coordinate.
Conditions to avoid
1. Avoid direct sunlight
2. Avoid low color temperature light source, such as tungsten, halogen, or incandescent
lamp.
3. Avoid uneven or irregular surface, Put the product on flat, opaque surface.
4. Avoid putting any objects within the space between the main unit and the laser
projected keyboard layout.
Note:
Because this product uses infrared rays, strong infrared radiation from direct or reflected
sunlight or from tungsten (halogen or incandescent) lighting may cause operating error.
4. Identifying parts and their functions
Battery
LED
Charging
Red
Full
LED Red Stop
Start
LED
Working Start
LED Yellow Blinking One Second
Being Searched
LED Blue Blinking
Finish Searching
LED Blue Stop

LASER KEYBOARD User’s Guide
5
Laser Keyboard Use:
FN+B Clear the current Bluetooth pair and search status
Note: Please restart the device after clearing the current Bluetooth search status so that
Bluetooth start new searching.
FN+P Switch on/off key stroke sound
Adjusting keyboard brightness:
FN+Increase the keyboard brightness
FN+Lower the keyboard brightness
Note: when users press every key on the projected keyboard, the device will make ’’beep’’
key stroke sound.
Language input Switch:
IOS system: Press and hold “MENU”key + Space key
ANDROID system: Press and hold “SHIFT”key + Space key
IOS system: Press and hold “SHIFT”key +press any of the above shift keys.
ANDROID system: it depends on input method, normally Press and hold “SHIFT”key +press any
of the above shift keys. In a few case that press “SHIFT”key, then loose and press any of the above
shift keys.
Note: when press in’’ SHIFT”combination with any of the above shift keys, please press
and hold them both with your fingers of right and left hands at the same time, as two

LASER KEYBOARD User’s Guide
6
fingers from one hand pressing and hold two key at the same time easily block sensor
light.
USB Connection Terminal
Interface Specification: USB HID keyboard
Input Power: 1A 5V USB charge
5. Using Laser Keyboard
This product is used as keyboard via Bluetooth HID and USB HID connection.
This device is compatible with all USB HID capable operation system, USB HID connection
allows plug-n-play without installing a separate driver.
5.1 USB HID Connection Instruction
Connect laser keyboard and host device using supplied USB cable, and your host
device must support USB HID.
Turn on laser keyboard.
Green LED indicates proper connection. If LED indicates blinking red, it is charging.
5.2 Bluetooth HID Connection Instruction
Connection via Bluetooth HID
Compatible with All Microsoft OS,
IOS4/5/6(iPhone and iPad), Android 3.1 Up, Mac OS X
Laser keyboard support Bluetooth HID, it’s connection does not require installation of
separate driver. It only needs pairing with your device for one time and automatically
register it, if the user wants to connect it with another device, it require to clear the
previous paired device by pressing and hold ’’ FN+B ’’ on the projection keyboard,
meanwhile click unpair on the previous paired device to cancel pair.
Power on device
Press and hold ’’FN+B’’, device become pairing status after beep sound , then
shutdown and restart this device once, it can be researched by other host.
Blue LED with flash fast indicates that the device is ready to pair
Scan Bluetooth device from your host(phone or PC or PAD)

LASER KEYBOARD User’s Guide
7
On IOS, tap on Settings-General-Bluetooth
Turn on Bluetooth by tapping the ON button. iPhone/iPad will now search for
pairing device.
Laser Keyboard shown as follows:
Click “Laser keyboard ”to pair
Successful pairing will be indicated by “Connected”message, and blue LED stop
flash.

LASER KEYBOARD User’s Guide
8
5.3 Connection to Android devices
Navigate through Android as follows:
Home Main MenuSettingsWIRELESS & NETWORKSBluetooth.
Turn on the Bluetooth on Android, From the same screen, with Bluetooth ON, tap
on Scan devices.

LASER KEYBOARD User’s Guide
9
Click “Laser keyboard ”to pair

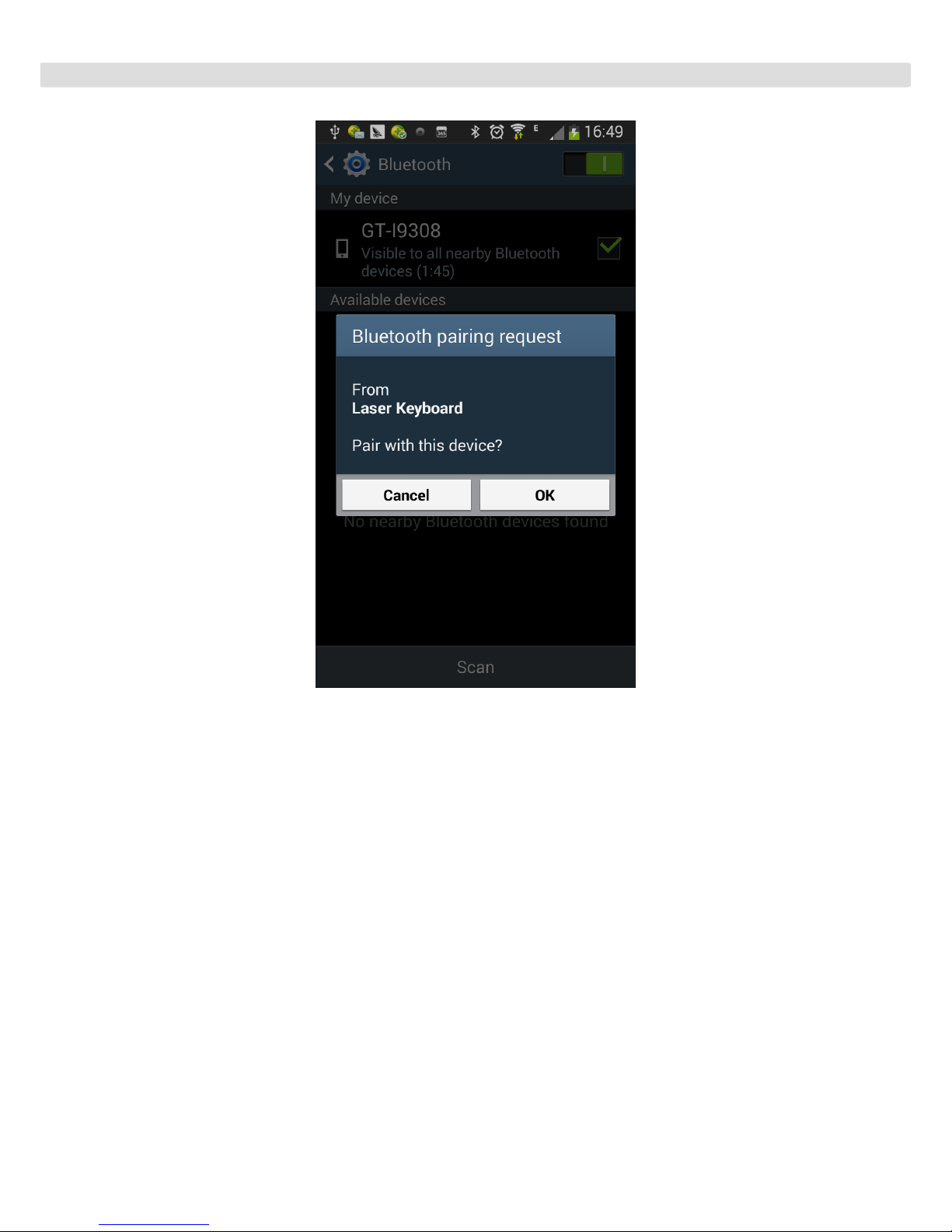

A new message will display on your Android device: “Bluetooth pairing request’’,
and click “OK ”to pair with the laser keyboard.

LASER KEYBOARD User’s Guide
10
Upon successful pairing, blue “Laser keyboard connected’’ will be displayed on
your Android device.

LASER KEYBOARD User’s Guide
11

5.4 Laser keyboard key stroke sound adjustment
Press and hold “FN”key and press left arrow key to increase volume
Press and hold “FN”key and press right arrow key to decrease volume

LASER KEYBOARD User’s Guide
12
Laser Projection Keyboard Multi-touch Mouse Function:
Mouse move:
Control the cursor move
your finger freely in any
direction within
operational area.
Left mouse button :
one finger click.
Right mouse button:
two fingers click
simultaneously.
Scroll mode:
Click and hold with two
finger, slide and move up
and down.
Remarks: Mouse function only supports Android system. For IOS system, users need to
download BTC Mouse & Trackpad App in it then can be used.
FN+K power on/off voice speaker(only letters and part function keys).
Bluetooth Audio Feature
1.Build in stereo speakers and Using the latest Bluetooth 2.1 & EDR standard.
2.Support Bluetooth stereo sound, perfect sound quality, outstanding bass effect.
3.Support iPhone, iPad and all Devices which have Bluetooth function.
mouse mode allows you to use your finger as a mouse.
Added mouse feature tracks your natural movements and may reduce stress.
on you hands .
Mouse Freely control by clicking the mouse arrow keys.
FN+ start mouse function while keyboard pattern dark.
FN+ exit mouse and switch keyboard function.

LASER KEYBOARD User’s Guide
13
6. SPECIFICATION
Pattern Projector
Item
Description
Keyboard light source
Red laser diode
Keyboard layout
Approx.19mm incline, sized QWERTY layout
Projection size
250mm(W)*110mm(H)
Keyboard location
Approx. 100mm from keyboard device
Required projection surface
Non-reflective, opaque flat surface
Electrical Characteristics
Item
Description
Recognition rate
Over 350 characters per minute
Operation Surface
Any opaque flat surface
Physical Dimension
38mmx75mmx18mm
weight
Approx. 47g
Power source
The USB power, Lower 1A @ 5V
Battery capacity:
Polymer rechargeable battery, 1000mAH(Max)@3.7V
Battery working time
120 minutes
Battery charging time
200 minutes
USB interface
USB 1.1 and 2.0. USB HID Ver. 1.0
Bluetooth
V3.0(class 2), HID Profile Ver. 1.0
Frequency Range
2402-2480MHz
Channel
79
Modulation
GFSK
Environmental Conditions
Item
Description
Working Temperature
Approx. -10~40°C/90%RH
Storage Temperature
Approx. -20~40°C°C/~90%RH
