Atrix JR8BPV User manual

JET RED BACKPACK VACUUM
OWNER’S MANUAL
Model: JR8BPV
120V 12A, 1400W ETL US Canada
Atrix
1350 Larc Industrial Blvd.
Burnsville, MN 55337
www.atrix.com
[e-mail]
Telephone: [phone]
Toll Free Telephone: [phone]
Fax: [phone]

2
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should
always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING APPLIANCE
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR
INJURY:
1. Do not leave appliance when plugged in. Unplug from
outlet when not in use and before servicing.
2. Electrical shock may occur if used outdoors or on wet
surfaces.
3. Do not allow to be used as a toy. Close attention is
necessary when used by or near children.
4. Use only as described in this manual. Use only
manufacturer’s recommended instructions.
5. Do not use with damaged cord or plug. If appliance is not
working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return to Atrix
International.
6. Do not pull or carry by cord, use cord as a handle, close a
door on cord, or pull cord around sharp edges of corners.
Do not run appliance over cord. Keep cord away from
heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp plug,
not the cord.
8. Do not handle plug or appliance with wet hands.
9. Do not put any object into any openings. Do not use with
any opening blocked; keep free of dust, lint, hair, and
anything that may reduce airflow.
10.
Keep hair, loose clothing, fingers, and all body parts away
from openings and moving parts.

3
11. Do not pick up anything that is burning or smoking such as
cigarettes, matches or hot ashes.
12.
Do not use without filter in place.
13. Turn off all controls before unplugging.
14.
Use extra care when cleaning on stairs.
15.
Do not use to pick up any liquids, including flammable or
combustible liquids such as gasoline or use in areas where
they may be present.
16.
Connect to a properly grounded outlet only.
17.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory, and mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of appliance by person responsible for their safety.
18.
Children should be supervised to ensure that they do not
play with the appliance.
SAVE THESE INTRUCTIONS!

4
GET TO KNOW YOUR ERGO BACKPACK VACUUM
1. Furniture Nozzle (BP40)
2. Air Driven Turbo Brush (BP44)
3. Mini Turbo Brush (JRMTB)
4. Floor Tool (BP43-1)
5. 3-in-1 Multi-Surface Tool (JR31)
6. Extension Wand, 22”-37” (BP39)
7. Hose (JRBPH)
8. Filter Bags (VACBPFB)
9. Shakeout Bag (VACBP8)
10. & 11. Premotor and Exhaust Filter Set (BPFILPACK)
12. Exhaust Filter Cover (BP18)
13. Jet Red Lid (JRAILID) Hose Inlet
14. Carry Handle
15. Harness Back Support
16. Cord Strain Relief (BP99)
17. Latch to access Exhaust Filter
18. Exhaust Filter Cover (BP18)

5
OPERATING INSTRUCTIONS
War n i n g :
To red uc e t h e ri s k o f ele c tri c sh o c k , t h e po w er
c ord m us t be di sc o nn e c ted be f ore removi n g t h e
d us t bag , sh ake-o u t bag , ch a n gi n g t h e f ilter s or
per f ormi n g mai n te n a nc e or tro u ble- sh ooti n g
ch e c k s.
Important: Do NOT use the vacuum without all filters, shake-out
bag, and HEPA dust bag in place.
Attaching
the Flexible Hose to the Vacuum
The flexible hose should be connected to the vacuum before
strapping the unit to your back.
1. Push/press fit the hose into the lid opening.
Attaching the Telescopic Extension Wand
Note: Always remove the power plug from the wall outlet
before attaching or removing accessories.
1.
Holding the telescopic extension wand, insert the handle
into the telescopic tube receptacle. Push the handle in
while using a twisting motion to secure the pieces
together.

6
2. To extend the length, push forward on the plastic button
and pull the inner tube outward to extend for a longer
reach.
Manual Suction Control
Your vacuum cleaner includes a manual variable suction control on
the flexible hose handle. The suction power can be adjusted by
moving the suction regulator to the desired position between open
and closed.
Open
gives you less suction, closed maximum suction. For
example, less suction is required on upholstery and draperies
compared to floors, which require maximum suction.
Using the Attachments
3-in-1 Multi-Surface Tool Brush
The dusting brush is used for furniture.
The crevice tool is for radiators, crevices,
corners, baseboards and between cushions.
The furniture utensil is used for furniture and rugs.
Using
the Floor to Carpet Brush
1. To attach the floor to carpet brush to the telescopic
extension wand, insert the telescopic tube into the carpet
to floor brush.

7
2. Step on the floor to carpet selector to adjust the height of
the brushes. There are two different heights. The tool
allows you to retract the bristle brushes when being used
on the carpet or rugs, and extend when being used on
wood or tile surfaces.
3. To remove the telescopic tube from the floor to carpet
brush, pull the telescopic tube out from the floor to carpet
brush.
Air Driven Turbo Brush
The efficiency of your air driven turbo brush depends on
the bristle brush rotating at high speed. Strong air suction
is needed to accomplish this.
To ensure that maximum air suction is maintained, please
read the following instructions:
1.
Change the HEPA dust bag or empty the shake-out
bag frequently.
2.
Replace the pre-motor and exhaust filters as
needed.
3.
Ensure that the rotating brush is kept free of hair
and string, which may accumulate and decrease
brush performance.

8
4. To attach the air driven turbo brush, insert the
telescopic tube into the air driven turbo brush.
5.
To adjust the suction control on the air driven
turbo brush, slide the suction control for more or
less as desired.
Using Your Vacuum
1. Insert the power plug into the extension cord, then plug
the extension cord into the wall outlet.
2. Make a loop with the extension cord and put the loop
through the extension cord relief. Put the extension cord
around the hook and pull the cord tight. (See page 11)
3.
Connect the hose and telescopic extension wand if desired.
4.
Correctly place shoulder straps on each shoulder and
secure the waist trap.
5. Turn the unit on by pressing the switch located near the
base of the unit to turn the vacuum cleaner on.
War n i n g :
To red uc e t h e ri s k o f ele c tri c sh o c k , t h e po w er
c ord m us t be di sc o nn e c ted be f ore removi n g t h e
d us t bag , sh ake-o u t bag , ch a n gi n g t h e f ilter s or
per f ormi n g mai n te n a nc e or tro u ble- sh ooti n g
ch e c k s.
Removing & Replacing HEPA Dust Bag
Important Note: DO NOT use the vacuum without all filters,
shake-out bag, and with or without HEPA dust bag in place.
1.
To open the canister lid, pull up the canister lid tabs on
each side of the unit and remove the canister lid. (Fig.1)
Fig. 1 Fig. 2

9
2. Pull the tab on the HEPA bag holder out slightly and flip
upwards. (Fig. 2)
3.
Holding the HEPA bag in your hand, slide/pull it out of the
bag holder and dispose.
4. Insert/slide new bag. Cardboard face should rest securely
in the bag cover guides.
(Fig. 3)
Fig. 3 Fig. 4
Cleaning & Replacing the Shake-Out Bag
1. Remove the Shake-out bag from the canister. Hold the
handle on the bottom of the bag, shaking vigorously over a
garbage receptacle and preferably outdoors. (Fig. 4)
2. As necessary, hand wash the cloth shake-out bag with
warm water and let it air dry before reinserting it onto
canister lip. Allow to air dry for
24 hours . Never replace
it in the vacuum if still wet.
3. Inspect shake-out bag regularly for tears or damage.
Replace shake-out bag if damaged or torn.
Cleaning or Replacing the HEPA Pre-Motor Filter
Important Please Note: The HEPA pre-motor filter will stop most of
the tiniest dust particles and airborne allergens from re-entering
the air you breathe. Because of this incredible filtration
performance, the HEPA pre-motor filter will accumulate many fine
dust particles that are difficult to see. Be assured that the HEPA
pre-motor filter is doing the job. Clean the HEPA pre-motor filter
when dirty as described in this section.

10
1. Remove the shake-out bag from the canister. The HEPA
pre-motor filter is located underneath the shake-out bag.
To remove the HEPA pre-motor filter, place your index
finger underneath the edge of the premotor filter, and
using your thumb press the tab toward the center of the
filter to release, then lift the side of the HEPA pre-motor
filter and pull upwards on filter.
2. Vigorously tap clean the HEPA pre-motor filter on a hard
surface to remove any residual dust that might still be on
the HEPA pre-motor filter.
3. You can wash the HEPA pre-motor filter by running it under
the tap and allowing the water to run on the dirty side at
least once a month or when suction appears to be
decreased.
4. Shake off any excess water and allow to dry completely
before reinserting it.
5. Replace the Pre-Motor Filter if it cannot be cleaned or if
damaged.

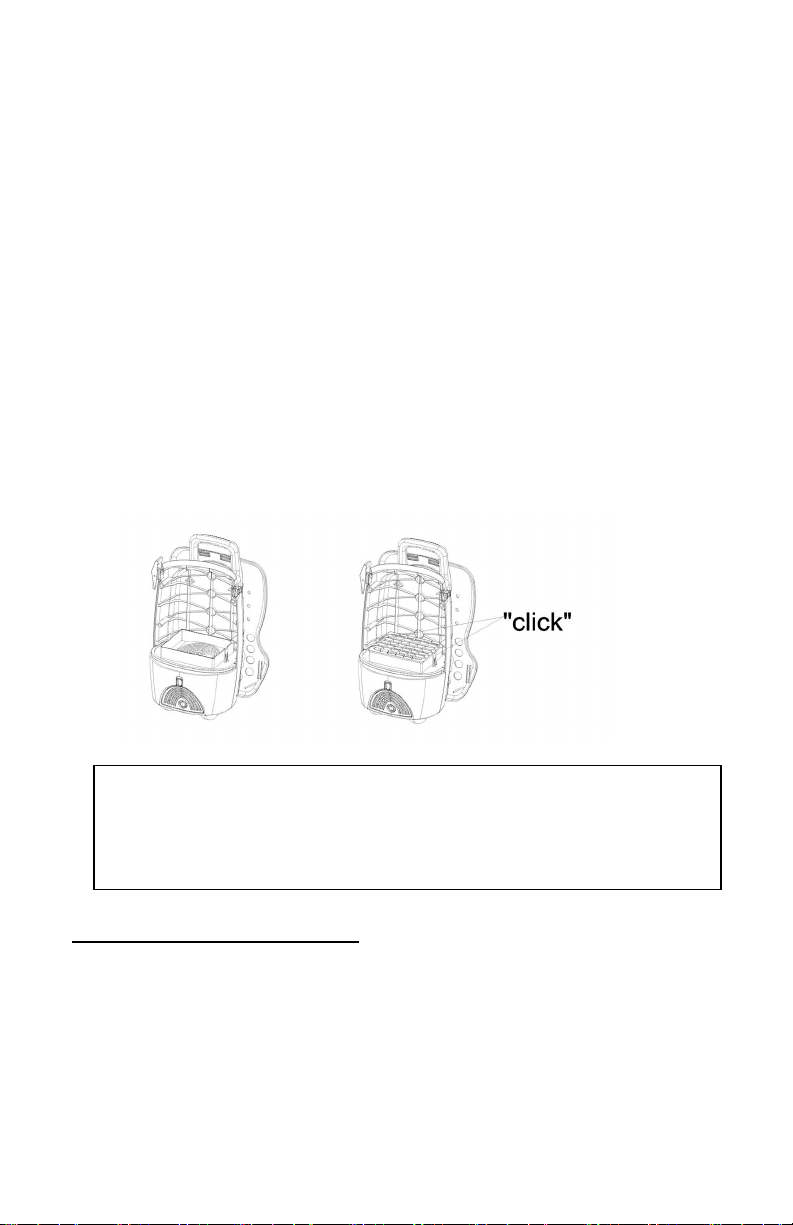

6. To reinsert, place filter over the tabs and press down. You
should hear two "clicks" if installed correctly. (Fig. 5)
(Fig. 5)
Cleaning the Exhaust Filter
1. Pull up and hold the exhaust tab and pull out the exhaust
cover. (Fig. 6)
Wash or Replace at least once a year or when suction appears
reduced.
WARNING
Allow 24 hours for drying before replacing in unit.

11
2. Remove the exhaust filter.
3. As necessary, hand wash or replace the cloth filter with
tap water and let dry before reinserting it.
(Fig. 6)
How to properly use the cord relief:

12
Atrix JET RED Backpack Vacuum
WARRANTY INFORMATION
Warranty/Service Information: For warranty service
information, please contact Atrix or your local Atrix
distributor.
Atrix Jet Red Backpack Vacuum Limited Warranty: To the original
user purchasing the Atrix Jet Red Backpack Vacuum, Atrix warrants
that the vacuum will be free of defects in material and manufacture
for a period of one (1) year from the date of purchase. Should any
failure to conform to this warranty appear within this period, Atrix
will, at its option, repair or replace the defective product. It is the
user’s responsibility to return the product, freight prepaid, to Atrix
International. These remedies are the user’s exclusive remedies for
breach of this warranty.
Exclusions to warranty coverage: The above warranty will
not apply to any special configurations or to any unit that have
been modified, or damaged by negligence, misuse, accident or
failure to follow Atrix’s Instruction manual. Consumable supplies,
such as filters, accessories, and motor brushes are not covered
by this warranty.
Disclaimer of Warranty: EXCEPT FOR THE IMPLIED
WARRANTIES OF TITLE AND AGAINST PATENT INFRINGEMENT,
ATRIX MAKES NO OTHER WARRANTIES WITH RESPECT TO THE
ATRIX BACKPACK VACUUM CLEANER, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Limitation of Liability: ATRIX WILL NOT BE LIABLE UNDER ANY
CIRCUMSTANCES FOR ANY COINCIDENTAL, SPECIAL, OR
CONSEQUENTIAL DAMAGES OR ECONOMICAL LOSS, BASED
UPON BREACH OF WARRANTY, BREACH OF CONTRACT,
NEGLIGENCE, STRICT LIABILITY IN TORT OR ANY OTHER LEGAL
THEORY, EVEN IF ATRIX HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES INCLUDING, BUT NOT LIMITED TO LOSS OF
PROFITS, REVENUE, EQUIPMENT USE, DATA OR INFORMATION
OF ANY KIND. THE LIABILITY OF ATRIX SHALL NOT UNDER
ANY CIRCUMSTANCE, EXCEPT AS EXPRESSLY PROVIDED HEREIN,
EXCEED THE PRICE OF THE ATRIX BACKPACK VACUUM.
To Register your Warranty Visit:
www.atrix.com
