Atrix ERGO PRO VACBPAIC User manual

ERGO PRO CORDLESS BACKPACK VACUUM
OWNER’S MANUAL
Model: VACBPAIC
26V, 300W
Atrix
1350 Larc Industrial Blvd.
Burnsville, MN 55337
www.atrix.com
[e-mail]
Telephone: [phone]
Toll Free Telephone: [phone]
Fax: [phone]

2
Battery MUST be REMOVED from the Vacuum
prior to charging. Failure to follow the warnings
and instructions may result in shock, fire, property
damage and or serious injury or death.
IMPORTANT SAFETY INSTRUCTIONS
Per CFR 49, Lithium Ion batteries are considered “hazardous
goods.” As such, they are subject to SPECIAL handling and
packaging regulations for ground and air shipping.
Proper shipping procedures compliant with CFR 49 MUST BE
FOLLOWED.
When using an electrical appliance, basic precaution should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
WARNING:
Read Owner’s Manual before using this product. Failure to do
so can result in serious injury or death.
1. Use only as described in this manual. Use only the
recommended attachments, battery, charger, and
replacement parts.
2. DO NOT use the vacuum outdoors or on wet surfaces. DO
NOT expose to rain or water.
3. DO NOT use or store vacuum in wet or moist conditions.
4. DO NOT try to recover any liquid with this vacuum. This
vacuum is for DRY RECOVERY only DO NOT USE A DAMAGED
VACUUM. If the unit is not working as it should, or if it has
been damaged, left outdoors, or exposed to water, take it to
an Authorized Repair Center for inspection and repair.
5. DO NOT allow the vacuum to be used as a toy. Pay close
attention when using the vacuum near children.
6. DO NOT handle the switch or battery pack with wet hands.

3
7. DO NOT put any objects into openings. Do not use with any
opening blocked, keep free of dust, lint, hair, and anything
that may reduce air flow.
8. Keep hair, loose clothing, fingers, and all parts of body away
from openings and moving parts.
9. Use with extra care when cleaning on stairs.
10. DO NOT vacuum flammable or combustible materials or
anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
11. Sparks inside the motor can ignite flammable vapors, to
reduce the risk of fire or explosion, do not use near
combustible liquids, gases, or dusts, such as gasoline or other
fuels, lighter fluid, cleaners, oil-based paints, or natural gas.
12. To reduce the risk of inhaling toxic vapors or dust, DO NOT
vacuum or use near toxic or hazardous materials.
13. DO NOT use without filter in place.
14. Disconnect battery pack before servicing vacuum.
SAVE THESE INSTRUCTIONS!

4

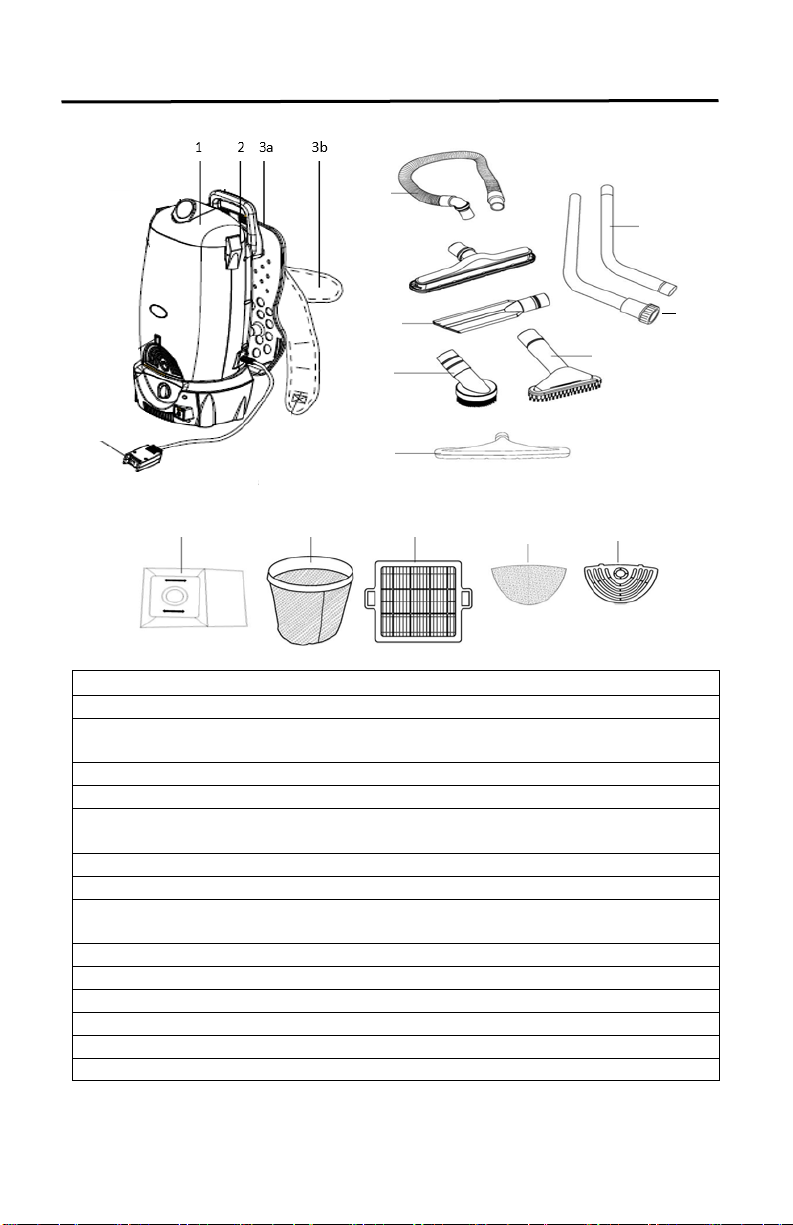

GETTING TO KNOW YOUR ERGO PRO CORDLESS VACUUM
1. Replacement 1.5” Lid Grey (VACBPAILIDG)
2. Replacement Latch (BP34-38)
3. 3a & 3b Assembly - Replacement Handle, Webbing and
Harness (BPAIHARN)
4. On/Off Power Switch
5. Replacement Hose 1.5” (VACBPAI39)
6. 7a - 1.5” Aluminum Wand Hose End (VACBPAI37)
7b - 1.5” Aluminum Wand Utensil End (VACBPAI38)
7. HEPA Bag (VACBP6- 10P)
8. Reusable Cloth Shake-Out Bag (VACBP8)
9. and 10. HEPA Pre-Motor Filter and Exhaust Filter Set
(BPFILPACK)
11. Exhaust Filter Cover (BP18)
12. Floor tool w/ Scallops 1.5” (VACBPAI34)
13. Crevice Tool 1.5” (VACBPAI36)
14. Round Dusting Brush 1.5” (VACBPAI33)
15. Upholstery Tool w/ Brush 1.5” (VACBPAI32)
16. Floor Tool with Bristles 1.5” (VACBPAI35)
4
5
6a
6b
7
8
9
10
11
12
13
14
15
16

5
OPERATING INSTRUCTIONS
Assembling Your Vacuum
1. Push/press fit the hose into the lid opening. (Fig 1)
(Fig. 1)
2. To connect the hose and attachment wand, slide the hose
over the hose end wand attachment and over the bump by
approx. ½”. (Fig. 2)
(Fig. 2)
3. Take the hose end attachment wand and insert it into the lower
attachment wand (utensil end). (Fig. 3)
(Fig. 3)

6

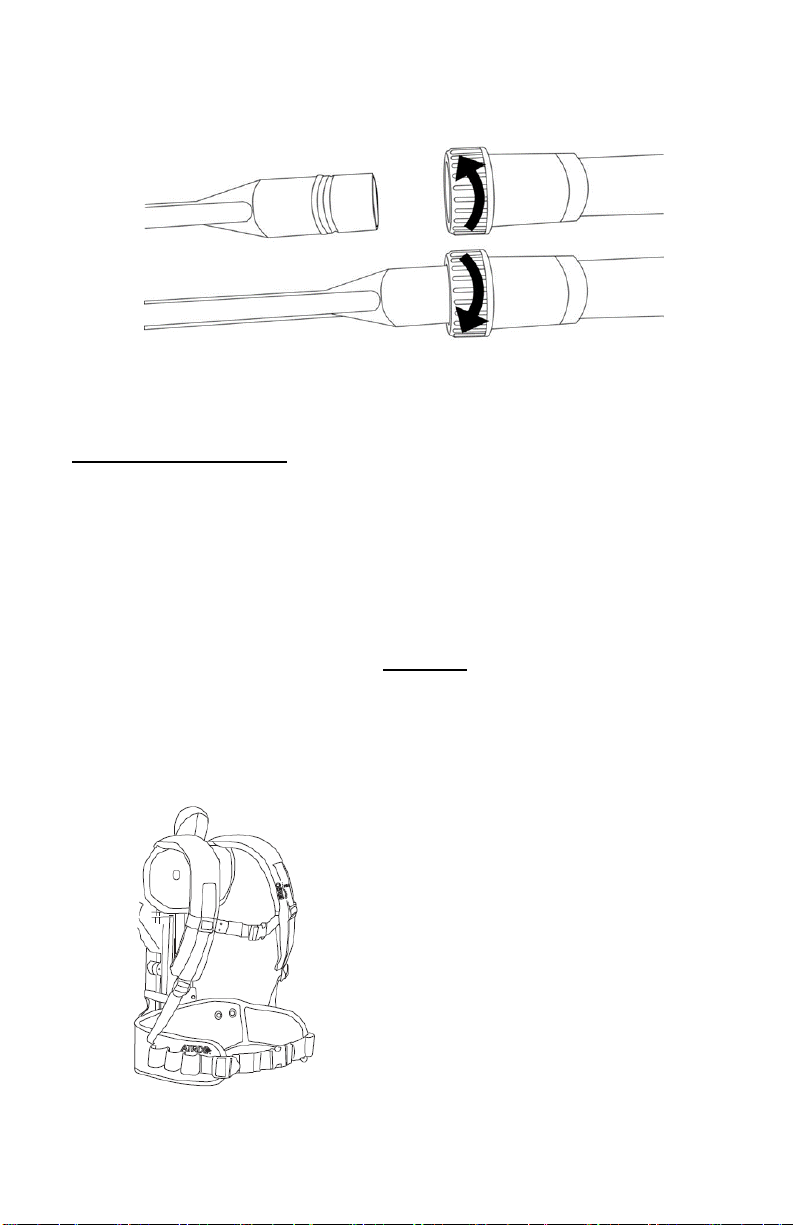

4. Secure the utensil to the end of wand. Align the copper ring with
the groove on the tool to ensure a secure fit (Fig. 4)
(Fig. 4)
Using Your Vacuum
1. Ensure the battery pack is assembled and locked in the
vacuum.
2. Connect hose to the lid of the vacuum.
3. Connect the Aluminum Wands together, then connect the
hose to the assembled wand, and secure utensil for use.
4. Correctly place shoulder straps on each shoulder and secure
the waist band (Fig. 5) Caution: If the waist band and both
shoulder straps are not properly and securely in place the
unit could fall off your back-causing damage or injury.
5. Turn the unit on by pressing the switch.
(Fig. 5)

7
Replacing the HEPA Bag
1. To open the canister lid, pull up the canister lid tabs on each side
of the unit and remove canister lid. (Fig.1)
Fig. 1 Fig. 2
2. Pull the tab on the HEPA bag holder out slightly and flip upwards.
(Fig. 2)
3. Holding the HEPA bag in your hand, slide/pull it out of the bag
holder and dispose.
4. Insert/slide new bag. Cardboard face should rest securely in the
bag cover guides. (Fig. 3)
Fig. 3 Fig. 4
Cleaning the Cloth Shake-Out Bag
1. Remove the Shake-out bag from the canister. Hold the handle
of the bag shaking vigorously over a garbage receptacle and
preferably outdoors. (Fig. 4)
2. As necessary, hand wash the cloth shake-out bag with warm
water and let it air dry before reinserting it onto canister lip.
Inspect shake-out bag regularly for tears or damage. Replace
shake-out bag if damaged or torn.

8
Cleaning or Replacing the HEPA Pre-Motor Filter
Important Please Note: The HEPA pre-motor filter will stop most of the
tiniest dust particles and airborne allergens from re-entering the air you
breathe. Because of this incredible filtration performance, the HEPA pre-
motor filter will accumulate many fine dust particles that are difficult to
see. Be assured that the HEPA pre-motor filter is doing the job. Clean
the HEPA pre-motor filter when dirty as described in this section.
1. Remove the shake-out bag from the canister. The HEPA pre-
motor filter is located underneath the shake-out bag. To
remove the HEPA pre-motor filter, place your index finger
underneath the edge of the premotor filter, and using your
thumb press the tab toward the center of the filter to release,
then lift the side of the HEPA pre-motor filter and pull upwards
on filter.
2. Vigorously tap clean the HEPA pre-motor filter on a hard
surface to remove any residual dust that might still be on the
HEPA pre-motor filter.
3. You can wash the HEPA pre-motor filter by running it under
the tap and allowing the water to run on the dirty side at least
once a month or when suction appears to be decreased.
4. Shake off any excess water and allow to dry completely before
reinserting it.
5. Replace the Pre-Motor Filter if it cannot be cleaned or if
damaged.

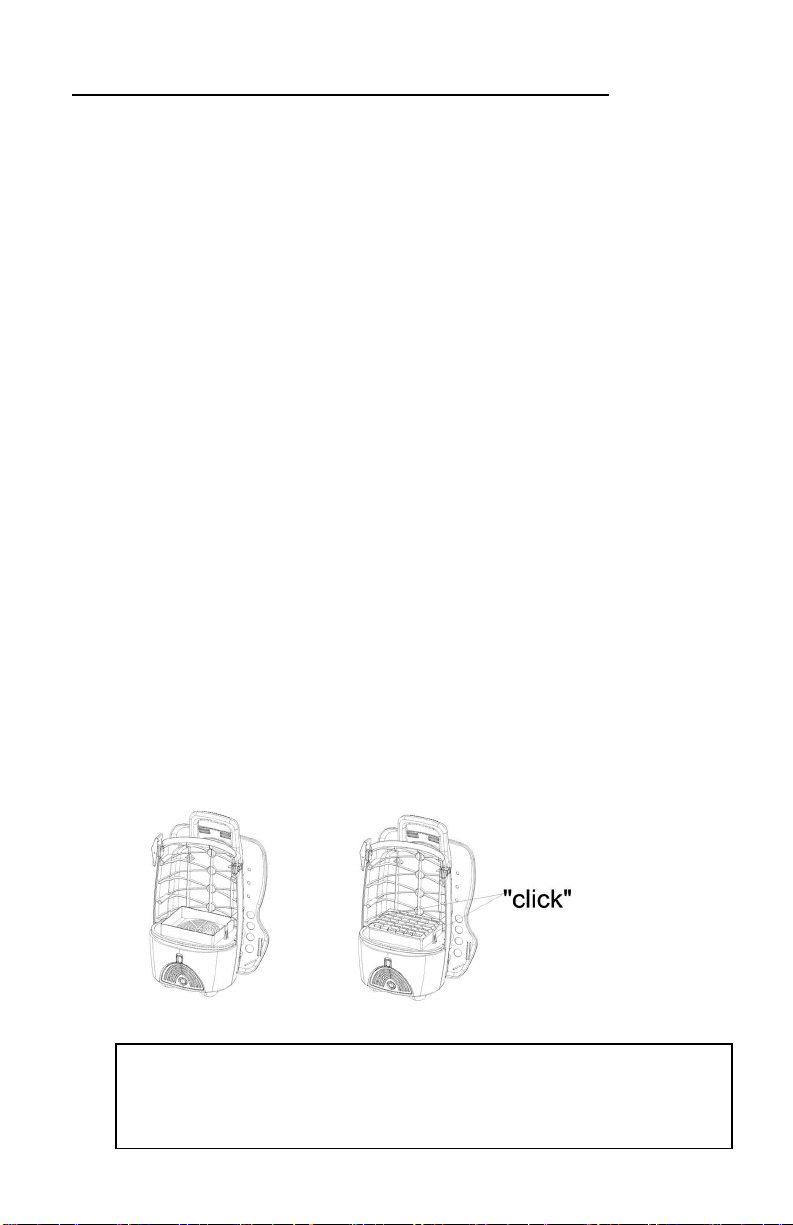

6. To reinsert, place filter over the tabs and press down. You
should hear two "clicks" if installed correctly. (Fig. 6)
(Fig. 6)
Wash or Replace at least once a year or when suction appears reduced.
WARNING
Allow 24 hours for drying before replacing in unit.

9
Cleaning the Exhaust Filter
1. Pull up and hold the exhaust tab and pull out the exhaust cover.
(Fig. 7)
2. Remove the exhaust filter.
3. As necessary, hand wash or replace the cloth filter with tap
water and let dry before reinserting it.
(Fig. 7)

10
HOW TO CHARGE THE BATTERY PACK
When using the charger, basic precautions should always be followed,
including the following:
Battery and Charging Safety
To reduce the risk of electric shock, fire, battery explosion, or injury:
1. Basic information and warning for ATRIX Battery and Charger
are contained below. For detailed usage and warning
information, read the HOW TO CHARGE THE BATTERY PACK
carefully before using this unit.
2. Use only the ATRIX Charger and ATRIX Battery Pack.
3. DO NOT expose battery pack to temperatures above 122°F
(50°C). Never leave battery packs in automobiles on hot days,
where temperatures can be much higher than the outside
temperature.
4. DO NOT use or store vacuum or batteries in wet or moist
conditions, or with flammable or combustible materials.
5. DO NOT charge batteries or store batteries for extended
periods, 1 month or more, in temperatures above 90°F (32°C)
or below 40°F (5°C).
6. When charging, make sure that the charger and battery has at
least 6 inches of clearance on all sides. Adequate airflow is
required to cool them during the process.
7. DO NOT use a damaged cord or plug for charging.
8. DO NOT pull on charger’s cord to unplug. Grasp and pull the
plug, not the cord.
9. DO NOT handle the charger’s cord plug with wet hands when
inserting into electrical outlet.
10. Keep sparks and flames away from batteries. Do not smoke near
batteries or charger.
11. DO NOT charge the unit outdoors.
12. DO NOT attempt to repair, service, or modify the battery
system or charger. Contact Atrix with any issues.
13. DO NOT short-circuit the battery or charger terminals with
conductive items such as paper clips. This can deliver high
current, resulting in heat and fire.
14. DO NOT crush, drop, incinerate or damage the battery pack.
DO NOT use a battery pack that has been damaged in any way.
DO NOT incinerate the battery even if it is severely damaged or
non-working. The battery can explode in a fire.

11
SPECIFICATIONS AND PARTS
Charger Specification:
Charger input: 100-240V 50/60Hz AC
Charger output: 30V 4A
Battery Specification:
Lithium Polymer chemistry 26V
Approximate charge time: 4 Hours
Approximate run time: 60 Minutes
1. 26V Battery Pack (BPAIBAT)
2. Battery Charger (BPAICHG)
3. Cord US, EURO, UK

12
OPERATION
When using the charger, basic precautions should always be followed,
including the following:
Battery MUST be REMOVED from the Vacuum
prior to charging. Failure to follow the warnings and
instructions may result in shock, fire, property
damage and or serious injury or death.
CHARGING LITHIUM POLYMER BATTERY PACKS
It is not necessary to drain the battery pack completely before
recharging. If the charger’s light is not lit at any point during the
charging process, remove the battery pack from the charger to avoid
damaging the product. DO NOT insert another battery. Contact Atrix
with any issues.
BATTERY PROTECTION FEATURE
The 26-volt Lithium Polymer batteries are designed with features that
protect the Lithium Polymer cells and maximize battery life. When the
battery has reached its minimum voltage level the electronics will shut
off the battery. Once the battery shuts off, it must be recharged.
PREPARING BATTERY PACK FOR CHARGING
BATTERY MUST BE REMOVED FROM VACUUM PRIOR TO CHARGING
AND DURING CHARGING PROCESS.
1. Turn off the power switch.
2. Unlock the battery pack by turning knob counterclockwise and
remove battery pack from the vacuum.
3. Plug the charger’s power cord into the charger.
4. Plug the round connector on the charger’s cord into the battery
pack.
5. Plug the charger’s power cord into wall outlet.
6. The indicator light will turn red when charging and turn Green
when full charged. The battery pack may require approximately
3.5 hours to fully charge.
Note: Battery pack and charger may get warm while charging.

13
Atrix ERGO PRO Cordless Backpack Vacuum
WARRANTY INFORMATION
Warranty/Service Information, please contact Atrix.
Atrix Ergo Pro Cordless Backpack Vacuum, Part no. VACBPAIC, Limited
Warranty: To the original user purchasing the Atrix Ergo Pro Cordless
Backpack Vacuum, Atrix warrants that the vacuum will be free of
defects in material and manufacture for a period of one (1) year from
the date of purchase. Should any failure to conform to this warranty
appear within this period, contact Atrix.
Per CFR 49, Lithium Ion batteries are considered “hazardous
goods.” As such, they are subject to SPECIAL handling and
packaging regulations for ground and air shipping.
Proper shipping procedures compliant with CFR 49 MUST BE
FOLLOWED.
Exclusions to warranty coverage: The above warranty will not
apply to any special configurations or to any units that have been
modified, or damaged by negligence, misuse, accident or failure to
follow Atrix’s Instruction Manual. Consumable supplies, such as filters,
accessories, and motor brushes are not covered by this warranty.
Disclaimer of Warranty: EXCEPT FOR THE IMPLIED WARRANTIES
OF TITLE AND AGAINST PATENT INFRINGEMENT, ATRIX MAKES NO
OTHER WARRANTIES WITH RESPECT TO THE ATRIX ERGO PRO
CORDLESS BACKPACK VACUUM CLEANER, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Limitation of Liability: ATRIX WILL NOT BE LIABLE UNDER ANY
CIRCUMSTANCES FOR ANY COINCIDENTAL, SPECIAL, OR
CONSEQUENTIAL DAMAGES OR ECONOMICAL LOSS, BASED UPON
BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE,
STRICT LIABILITY IN TORT OR ANY OTHER LEGAL THEORY, EVEN IF
ATRIX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES
INCLUDING, BUT NOT LIMITED TO LOSS OF PROFITS, REVENUE,
EQUIPMENT USE, DATA OR INFORMATION OF ANY KIND. THE
LIABILITY OF ATRIX SHALL NOT UNDER ANY CIRCUMSTANCE, EXCEPT
AS EXPRESSLY PROVIDED HEREIN, EXCEED THE PRICE OF THE ATRIX
ERGO PRO CORDLESS BACKPACK VACUUM.
To Register your Warranty Visit:
www.atrix.com
