Atwood DV 20 Owner's manual

SAFETY ALERT SYMBOLS
Safety Symbols alerting you to potential personal safety hazards.
Obey all safety messages following these symbols.
WARNING CAUTION
avoid possible avoid possible
injury or death injury and/or property damage
FOR YOUR SAFETY
READ ALL INSTRUCTIONS BEFORE OPERATING APPLIANCE
Installer: Provide these instructions to the consumer.
Consumer: Keep documents for future reference.
WARNING
FIRE OR EXPLOSION
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS
• Open windows.
• DO NOT touch any electrical switch, or use any phone or radio in
vehicle.
• Extinquish any open flame.
• Evacuate ALL persons from vehicle.
• Shut off gas supply at gas container or source.
• DO NOT start vehicle’s engine or electric generator.
• Contact nearest gas supplier or qualified Service Technician for
repairs.
• If you cannot reach a gas supplier or qualified Service Technician,
contact the nearest fire department.
• DO NOT turn on gas supply until gas leak(s) has been repaired.
FOR YOUR SAFETY
➤Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
WARNING
• Improper installation, adjustment, service or maintenance can
cause injury, property damage or death. Refer to this manual. For
assistance or additional information, consult a qualified installer,
service agency, manufacturer or the gas supplier.
WARNING
EXPLOSION OR FIRE
• Shut off all gas appliances and pilot lights when refueling
gasoline tanks, LP tanks or when vehicle is in motion.
• Atwood & Wedgewood gas operated cooking appliances are for
use with LP gas only, and for installation in recreation vehicles
only (e.g. travel trailers, motor homes, tent campers, etc.).
WARNING
CARBON MONOXIDE POISONING
• Do not use cooking appliance for space heating. It is a potential
danger to occupants of vehicle and damage to operating compo-
nents of the drop-in.
• A window or air vent should be open slightly while using any
cooking appliance. Gas flames consume oxygen which must be
replaced to assure proper combustion.
NOTE TO CONSUMER:
Have the installer or dealer show you where the main gas shut off
valve is located so that you will know how and where to turn off the
gas supply when necessary.
CONTENTS
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Cabinet & Counter Cut Out Chart . . . . . . . . . . . . . . . . . . .2
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Parts Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
INSTALLATION
Appliance intended for use inside or temporary use outside the recre-
ation vehicle. Do not store appliance outdoors. Portable installations
into enclosure not made from metal or wood must be approved by
Atwood Mobile Products. Appliance for use only with recreation vehi-
cle with which it is supplied. This unit is not designed to be installed
adjacent to another top unit.
Installation must conform with local codes or in the absence of local
codes, with the American National Standard for Recreational Vehicles,
ANSI/A119.2 and Article 551, ANSI/NFPA 70. In Canada, installation
must conform with CSA Z240.4.2-M.
WARNING
FIRE, EXPLOSION, BURN INJURY
CARBON MONOXIDE POISONING
• The cooking appliance must be completely separated and/or
sealed from other air moving or air consuming devices such as,
but not limited to, furnaces, microwave ovens, clothes dryers,
cooling fans and doors or drawers in common cabinets. Failure
to do so will affect the appliance(s) combustion air supply by
creating either a negative or positive draft.
• NEGATIVE DRAFT caused by air moving appliances may draw
the top burner flame down into or toward the drop-in resulting in
drop-in damage, burn hazard, explosion possibility and/or car-
bon monoxide buildup.
• POSITIVE DRAFT may blow out the top burner flame during use
resulting in an explosion and/or fire hazard and/or injury to the
occupants of the vehicle.
• Do not operate the appliance in excessive windy conditions as
this may cause a negative or positive draft.
WEDGEWOOD VISION
LP GAS
DROP-IN COOKTOPS
DV Series
PATENTS PENDING
LITERATURE NUMBER MPD 56283
ENGLISH •Installation •Operation •Maintenance
Effective 10/25/02

1. For proper operation of your cooking appliance:
THE CABINET MUST BE
• properly constructed.
• squared to the countertop and cabinet face
THE OPENING IN CABINET MUST BE
• level from side to side and front to rear
2. The cabinet opening must be constructed so that no combustible
material can be placed next to the drop-in sides. If there is a gap
between the drop-in and an adjacent cabinet, the gap must be closed
prior to installing the drop-in.
WARNING
FIRE
• 19-1/2 inches is the minimum vertical distance to combustible
material above the drop-in stove. This distance may be reduced
by using non-combustible construction in accordance with Table
2-6.7.2 in ANSI A119.2.
3. Cabinet dimensions needed for each model are shown in CABINET &
COUNTER CUT OUT CHART. The cabinet cut-out must be located
with respect to the minimum clearances to combustible materials as
noted. When planning the location consider curtains or other com-
bustible materials installed around the drop-in.
4. When the cabinet has been prepared according to the dimensions
given and the gas line is in place, remove the drop-in from its pack-
aging and position the drop-in in the opening.
5. Verify that the drop-in is level from side to side and front to rear.
6. Secure the burner box assembly in place with wood screws (not
supplied).
7. Make the gas connection. All openings in the cabinetry around the
gas line must be closed at time of installation.
8. Turn on the gas supply.
WARNING
EXPLOSION OR FIRE
• Do not use matches, candles or other sources of ignition to test
fittings and gas lines for leaks.
9. Check all connections for gas leaks using a non-corrosive leak
detection fluid. Do not use a soap and water solution. Leak test in
excess of 13.9” W.C. (1/2 psi) of air pressure will invalidate warran-
ty.
10. Remove the drop-in top and burner grates from packaging. To install
grates, squeeze opposite sides of the grate together and insert
the legs into the holes in the stove top from above the stove top.
11. REPLACE THE DROP-IN TOP
Position the drop-in top in place; install the attachment screws
and protective nylon washers (supplied) through the drop-in top.
Tighten securely. Slide the knobs over the valve stems to com-
plete the installation. Your drop-in is now ready for operation.
BURNER OPERATION
WARNING
BURN INJURY, FIRE AND/OR EXPLOSION
• Do not heat unopened containers. They could explode. The hot contents
may cause burns and container particles may cause injury.
• Do not use the drop-in for warming or heating the vehicle. You could be
burned or injured, or a fire could start.
• Do not store flammable materials on, in, or near drop-in. Any fumes can
create an explosion and/or fire hazard.
• Do not operate drop-in if it is damaged or not working properly.
• Know where your vehicle’s main LP gas shutoff is located.
• Verify sufficient gas supply before attempting to light any top burner. Air in
the gas supply line will significantly delay burner ignition, and a burner may
light unexpectedly as the air in the line clears out and is replaced by LP
gas; this unexpected ignition may burn you. Air may be introduced into the
supply line when the vehicle gas bottle is replaced, during servicing of
other gas appliances, etc.
• If any burner should extinguish (after initially lighting or due to accidental
blow-out), turn all burner knobs clockwise 哶to OFF and WAIT FIVE (5)
MINUTES before again attempting to light the burner.
• Do not touch top burners, burner grates, or areas near top burners during
and after use. Do not let clothing or other flammable materials contact top
burners or areas near top burners until they have sufficient time to cool.
• Pans must be large enough to contain food. Heavy splattering or spillovers
left on the drop-in can ignite and burn you.
• Be sure that glass cooking utensils are safe for use on the drop-in. Only
certain kinds of glass utensils are suitable for surface or top burner use
without breaking due to sudden changes in temperature.
• Never leave top burners unattended. A boil over may result, causing smoke
or grease spillovers that may ignite.
• Turn pan handles inward, but not over other top burners. This reduces the
chance of burns due to bumping pan.
• Grease is flammable. Never allow grease to collect around top burners or
on drop-in surface. Wipe spillovers immediately.
• Do not use water on grease fires. Never pick up a flaming pan. Smother a
flaming pan with a tight-fitting lid or cookie sheet. Flaming grease outside of
the pan can be extinguished with baking soda or a multipurpose dry chemi-
cal or foam-type fire extinguisher.
• Use care when lighting a top burner by hand. If the burner lights unex-
pectedly, or your hand is close to burner, you may be burned.
• Burner flame should not extend beyond the edge of the cooking utensil.
The flame could burn you and cause poor cooking results.
• Control knobs must be turned OFF when not cooking. Someone could
be burned or a fire may start if a burner is accidentally left ON.
1. Check that gas is on at shutoff valve.
2. LIGHTING Top Burners:
a. All burner controls operate counter-clockwise 哷and must be
pressed inward (toward the drop-in) to turn ON or LITE. Do not
attempt to light more than one burner at a time.
b. IMMEDIATELY light the burner by holding a lit match or a hand-
held spark igniter designed for this purpose near the burner ports.
c. To extinguish the top burner flame, turn the appropriate burner
knob clockwise 哶to OFF.
2
CABINET & COUNTER CUT OUT CHART
ABCDE
DV Models - 2 Burners 11-1/2 16-1/4 3-3/8 ◆2-5/8 ◆1-1/2 ◆
DV Models - 3 Burners 15 19 2 ◆3-1/16 ◆3◆
CUT OUT DIMENSIONS in inches
FG
DV Models - 2 Burners 3-3/4 ◆2-13/16 ◗
DV Models - 3 Burners 4-1/2 ◆2-13/16 ◗
◆Minimum dimension ◗Overall depth of drop-in
A
C
MIN.
B
F
MIN.
E
MIN.
G
Models DV
D
MIN

CAUTION
PRODUCT DAMAGE HAZARD
• Do not use oversized cookware. The maximum pan size is a 10-
inch skillet. Oversized cookware will cause excessive heat build-up
in the drop-in top and will result in damage to the burner grate,
burner and drop-in.
• Do not use a broiler pan, griddle, or any other large utensil which
covers more than one (1) top burner at a time. This will create
excessive heat which may cause melting, sooting or discoloration
damage to the burner grates, drop-in top, or utensils.
• Do not leave an empty utensil, or one which has boiled dry, on a
hot top burner. The utensil could overheat and damage the utensil
or the cooking appliance.
STORAGE
Dry all surfaces and burner box, then spray surfaces with PAM or oil
base substance to preserve the surface from rusting during storage.
Before using, clean oil off surface of appliance.
MAINTENANCE
The owner’s cooking habits and cleanliness will affect the operation
of the drop-in. Proper installation and care will help keep your drop-in
looking and operating like new. Most cleaning can be performed
using normal household items.
WARNING
BURN INJURY, FIRE AND/OR EXPLOSION
• All controls must be OFF, the drop-in cool before cleaning.
• All drop-in surfaces, burner grates and burners must be cool
before cleaning or disassembling drop-in.
• Do not use oven cleaners, bleach, or rust removers on the drop-
in or burner grates.
• Do not obstruct the flow of combustion and ventilation air.
• Keep appliance area clear of combustible materials, gasoline
and other flammable vapors and liquids.
CAUTION
PRODUCT DAMAGE HAZARD
• Clean all surfaces quickly after boil overs or spillovers.
• Use warm soapy water only to clean the burner grates, drop-
ins, painted surfaces, porcelain surfaces, stainless steel sur-
faces and plastic items on your drop-in. Do not use grit or acid-
type cleaners.
• Do not use steel wool or abrasive cleaners, they will damage
your drop-in. Use only non-abrasive plastic scrubbing pads.
CAUTION
PRODUCT DAMAGE HAZARD
• Do not allow foods containing acids (such as lemon or tomato
juice, or vinegar) to remain on porcelain or painted surfaces.
Acids may remove the glossy finish. Wipe up egg spills when
drop-in is cool.
• Do not wash warm porcelain surfaces. Allow porcelain to cool
before cleaning. You may burn yourself, or porcelain may crack.
• Pitting and discoloration will result if spills are allowed to remain
for any length of time on stainless steel.
• Do not allow spillovers to remain on burner caps. Caps could
be permanently stained if spillovers are not cleaned up promptly.
DROP-IN COOKTOPS:
1. To remove the drop-in top:
a. Remove the two (2) side screws and washers from the drop-in.
b. Pull the knobs straight up, removing them from the valve
stems, before removing the top.
c. Lift the drop-in clear of the burner box. Replacement is a
reversal of this procedure.
2. To remove the burner grates:
a. Squeeze opposite sides of the grate together and lift free of the
drop-in top.
b. Replacement is a reversal of the above procedure.
ALL DROP-IN’S
If any of the burner ports or the orifices are clogged, carefully clean
with a toothpick. Never use a wire brush or metallic item for cleaning
burner ports or orifices. Never use any brush which may “shed” bris-
tles, which may become lodged in the orifice or burner ports and
cause a fire or explosion.
COOKING APPLIANCE LIMITED WARRANTY
Atwood Mobile Products warrants to the original consumer purchaser and subject to
the below mentioned conditions, that this product will be free of defects in material or
workmanship for a period of two years from the original date of purchase. Atwood’s
liability hereunder is limited to the replacement of the product, repair of the product,
or replacement of the product with a reconditioned product at the discretion of
Atwood Mobile Products. This warranty is void if the product has been damaged by
accident, unreasonable use, neglect, tampering or other causes not arising from
defects in material workmanship. This warranty extends to the original owner of the
product only and is subject to the following conditions:
1. For two years from the date of the original purchase Atwood warrants that this
product will be free of defects in material and workmanship with the exceptions
noted below. This warranty includes reasonable labor charges required to remove
and replace the part. Service calls to the customer’s location are not considered
part of these charges and are therefore the responsibility of the owner.
2. This warranty does not cover the following items classified as normal maintenance
and/or customer damage.
a. Damage, discoloration or scratches to porcelain enamel or other finishes from
improper use and care.
b. adjustment of gas pressure
c. cleaning or adjustment of any burners
d. cleaning or replacement of burner orifices
e. cleaning or adjustment of pilot and thermocouple
f. damage to glass
g. products purchased for commercial or industrial use.
3. In the event of warranty claim the owner must contact in advance either an author-
ized Atwood Service Station or the Atwood Service Department. Warranty claim
service must be performed at an authorized Atwood
Service Station (a list will be provided at no charge) or as approved by the Atwood
Service Department Atwood Mobile Products, 4750 Hiawatha Drive Rockford, IL
61103-12998 USA. Phone [phone].
4. Return parts must be shipped to Atwood Mobile Products “prepaid”. Credit for
shipping costs will be included with the warranty claim. The defective parts
become the property of Atwood Mobile Products and must be returned to the
Consumer Service Department, Atwood Mobile Products, Greenbrier Operations,
6320 Kelly Willis Road, Greenbrier, TN 37073 USA.
5. This warranty applies only if the unit is installed according to the installation instruc-
tions provided and complies with local and state codes.
6. The warranty on replacement parts is the unused portion of the original warranty
period.
7. Damage or failure resulting from misuse (including failure to seek proper repair
service) misapplication, alterations, water damage or freezing are owner’s responsibility.
8. Atwood does not assume responsibility for any loss of use of vehicle, loss of time,
inconvenience, expense for gasoline, telephone, travel, lodging, loss or damage to
personal property or revenues. Some States do not allow the exclusion or limita-
tion of incidental or consequential damages, so the above limitations or exclusions
may not apply to you.
9. Any implied warranties are limited to two (2) years. Some States do not allow limi-
tations on how long an implied warranty lasts, so the above limitation may not apply
to you. This warranty gives you specific legal rights and you may also have other
rights, which may vary, from State to State.
10. Replacement parts purchased outside the original cooking warranty
carry a 90 day warranty. This includes the part at no charge and rea-
sonable labor charges to replace it.
This Atwood product is designed for use in recreation vehicles for the pur-
pose as stated in the ‘data plate’. Any other use, unless authorized in writ-
ing by the Atwood Engineering Department, voids the warranty.
Atwood/Wedgewood Vision Products include range/oven, drop-in, slide-in
and high pressure stoves. 9/02
3

Offer void outside the United States.
Tennessee residents add 8.25% sales tax.
Enclose check or money order in U.S. dollars.
Allow 4-6 weeks for delivery.
WEDGEWOOD MODEL #
NAME
ADDRESS
CITY ST ZIP
▼ COPY ORDER FORM AND MAIL IN WITH PAYMENT ▼
PHONE:615•643•4556 FAX:615•643•4616
Atwood Mobile Products
6320 Kelly Wills Road
Greenbrier, TN 37073
INTERNET: http://www.atwoodmobile.com
Drop-In Covers
Lift-Up Drop-in Cover
Add valuable counter space with the addition of the attractive Wedgewood Vision Drop-In Cover.
When in the down position, it completely covers the Drop-In and provides a stable surface as it rests
on the countertop itself. When in the up position with the windguards extended (as in the photograph
at right), it provides a shield against splatters to the sides and back. Available for two- and three-burner
units in black, white or stainless steel. The cover comes completely assembled with mounting screws.
9/02
Please send me this Drop-In Cover.
Mail in orders only. No C.O.D.s or charge card orders
Qty. Description Price Sub Total
Lift-Up Drop-In Cooktop Cover
■■
■■2-burner black w/windguards $44.95
■■
■■white w/windguards $44.95
■■
■■stainless w/windguards $49.95
■■
■■3-burner black w/windguards $49.95
■■
■■white w/windguards $49.95
■■
■■stainless w/windguards $54.95
Prepaid UPS Charges per item $4.50
TOTAL

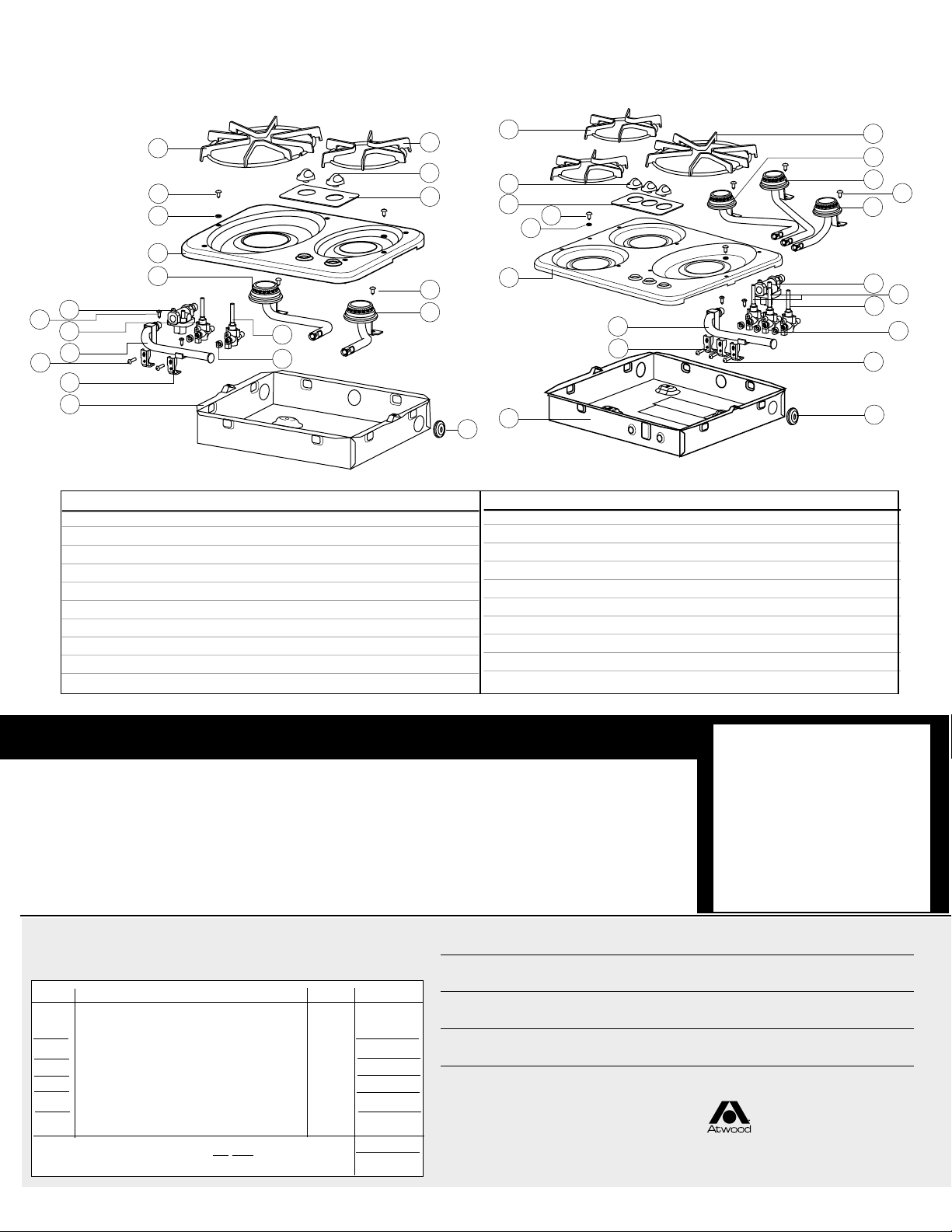

ITEM DESCRIPTION DV 20 DV 30
1 Round Grate / Grille ronde 56378 56378 (1)
2 Oval Grate / Grille ovale 56379 56379
3 Burner Knob / Bouton du brûleur 56380 (2) 56380 (3)
4 Label / Plaque d’indication 56388 56491
5 Top / Plaque supérieure ORDER BY COLOR
6 Right Burner / Brûleur droit 56385 56483
7 Left Front Burner/Brûleur avant gauche 56384 56482
8 Left Rear Burner/Brûleur arrière gauche NA 56481
9 Manifold Pipe / Tuyau de distribution 56383 56478
10 Regulator / Régulateur 51062 51062
ITEM DESCRIPTION DV
20
DV
30
11 Valve 7200 Btu/h / Vanne 7200 Btu/h 56468 56468
12 Valve 5200 Btu/h / Vanne 5200 Btu/h 56469 56469 (2)
13 Screw-Valve / Ecrou de vanne 56480 (2) 56480 (3)
14 Valve Bracket/Dispositif de fixation de la vanne 56479 (2) 56479 )3)
15 Screw-Burner/Mnfld/Vis du brûleur/distributeur 51325 (4) 51325 (5)
16 Screw-Top/Vis de fixation de la plaque 56377 (2) 56377 (2)
17 Nylon Washer/Rondelle de nylon 52434 (2) 52434 (2)
18 Burner Box/Boîtier pour brûleurs 56498 56476
19 Inlet Pipe Grommet/Œillet du tuyau d’admission 92610 92610
20 Gasket, Valve/Joint de la vanne 56366 (2) 56366 (3)
DV 20 DV 30
2
5
7
1
3
4
16
17
6
15
19
1
7
8
615
2
3
4
5
18 19
13
11
10
18
11
9
14
15
13
12
20
10
9
14 20
12
16
17

Atwood Extended Service
Contract Provides These Extras!
for
PLEASE USE ORDER FORM BELOW TO BEGIN EXTENDED SERVICE CONTRACT OF YOUR PRODUCT(S).
ATWOOD WATER HEATER
inner tank
HYDRO FLAME FURNACE
combustion chamber ATWOOD/WEDGEWOOD RANGE
gas valves & manifold
■■
■■extends coverage
to full five years ■■
■■one price covers
parts and labor ■■
■■in-shop service
(read complete information on form below)
Also available...
Service Related Travel
✔✔✔
■■
■■Includes mileage travel
expense by authorized
service center
■■
■■Up to 200 miles total
of service travel ■■
■■One full year of
coverage
✔✔✔
ATWOOD EXTENDED SERVICE CONTRACTS
Water Heater Tank—An extended service contract is available covering the parts and labor
for replacement of the inner tank in the event the water heater tank develops leaks due to
corrosion. This extends the original (2) two year warranty an additional (3) three years for
a total of (5) five years to the original owner from the original date of purchase of the water
heater or vehicle.
Furnace Combustion Chamber—An extended service contract is available covering the
parts and labor for the replacement of the combustion chamber in the furnace in the event
the combustion chamber were to prematurely fail due to defects in material or workmanship.
This extends the original (2) two year warranty an additional (3) three years for a total of
(5) five years to the original owner from the date of purchase of the furnace or vehicle.
Range Gas Valves and Manifold—An extended service contract is available covering the
parts and labor for the replacement of range burner valves and manifold in the event of
premature failure due to defects in material and workmanship. This extends the original
(2) two year warranty an additional (3) three years for a total of (5) five years to the original
owner from the original date of purchase of the range or vehicle.
Save $10.00 by selecting all three Extended Service Contracts.
SERVICE RELATED TRAVEL MILEAGE—$20.00 (See Explanation)
Mileage Travel Expense—Mileage travel expense is not covered by the Limited Warranty
issued with each product. If it is anticipated that it may be inconvenient to transport your
vehicle or Atwood product to obtain service you may choose to purchase this Service
Mileage option. This will pay up to 200 miles of service travel at 20 cents per mile to an
authorized Atwood Service Center whose service personnel travels to your location to per-
form in-warranty service work on your Atwood product. This is for (1) one year from the
original date of purchase of the vehicle or Atwood water heater, furnace or range.
To qualify for any of these options, they must be purchased within 90 days of the vehicle or
product purchase. Prices listed are in US DOLLARS-please make check amount accordingly.
Upon receipt of this completed card together with your check or money order, Atwood will
send you a written confirmation of the options you selected.
$45
■■
■■
$25
■■
■■
$15
■■
■■
All 3
$75
■■
■■
$20
■■
■■
EXTENDED SERVICE ORDER FORM
Today’s Date __________________________________________
Date of Purchase________________________________________
Name ________________________________________________
Address ______________________________________________
City ____________________________ ST ____ ZIP __________
Phone ________________________________________________
Your RV Manufacturer’s Brand Name ________________________
Your Dealer’s Company Name ____________________________
CONTRACT DESIRED
Atwood Mobile Products
4750 Hiawatha Drive
Rockford, IL 61103
Model No. Serial No.
ATWOOD Water Heater Tank ____________ __________ $45.00 ■■
■■
HYDRO FLAME Furnace ____________ __________ $25.00 ■■ ■■
ATWOOD/WEDGEWOOD Range ____________ __________ $15.00 ■■
■■
Save $10—Select All Three from above ■■ ■■
MILEAGE TRAVEL EXPENSE $20.00 ■■ ■■
